SIYI ZR30 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Tool Supplies: Assembled class

Technical parameters: Value 4

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

Quantity: 1 pcs

Origin: Mainland China

Model Number: ZR30

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: aerops

Overall

Model: ZR30
Video Output Port: Ethernet, Micro-HDMI
Control Signal Input Port:
- S.Bus, UART
- UDP (Ethernet)
Working Voltage: 11 to 25.2 V
Power Consumption: Summit 20 W
Working Temperature: -10 ~ 50 ℃

Dimension: 132*100*159 mm (including the quick release board)

Weight: 628 g (including the quick release board)

Quick Release Board

Dimension: 82*65*18 mm
Weight: 38 g

Gimbal

Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Controllable Yaw Angle: -270° to +270°
Roll Angle: -45° to +45°

Camera

Lens: 30X Optical Zoom (180X Hybrid Zoom)

Focal Length: 4.5±5% to 148.4±5% mm
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion

Aperture: F1.3±5% to F2.8±5%

FOV: Diagonal 65.4°, Horizontal 58.1°

TF Recording Resolution:
- 4K (4096 x 2160) @ 25 fps
- 2K (2560 x 1440) @ 30 fps
- 1080p (1920 x 1080) @ 30 fps
- 720p (1280 x 720) @ 30 fps

Video Storage Bitrate: 12 Mbps (H.265 codec)

File Storage Format: FAT32
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 128GB

Still Photography Mode: Single

Metering Mode: Evaluative metering

180X 31 180X Hybrid Zoom Al Smart Quick Release 30X Optical Zoom Identify Tracking Fast Payload Change cMOS 4K 1/2.7 Inch 4K Ultra HD Upside Sony CMOS Photo & Video Recording Down Mode 58]

The ZR30 gimbal camera features an 180x hybrid zoom and up to 30x optical zoom capabilities. Its fast and accurate algorithms enable quick and precise focusing, allowing for seamless production of high-quality video output.

The SIYI ZR30 gimbal camera features autonomous object recognition, capable of identifying moving subjects such as vehicles, boats, and people. Once an object is detected, the camera's zoom function will continuously track it and maintain its position at the center of the frame.

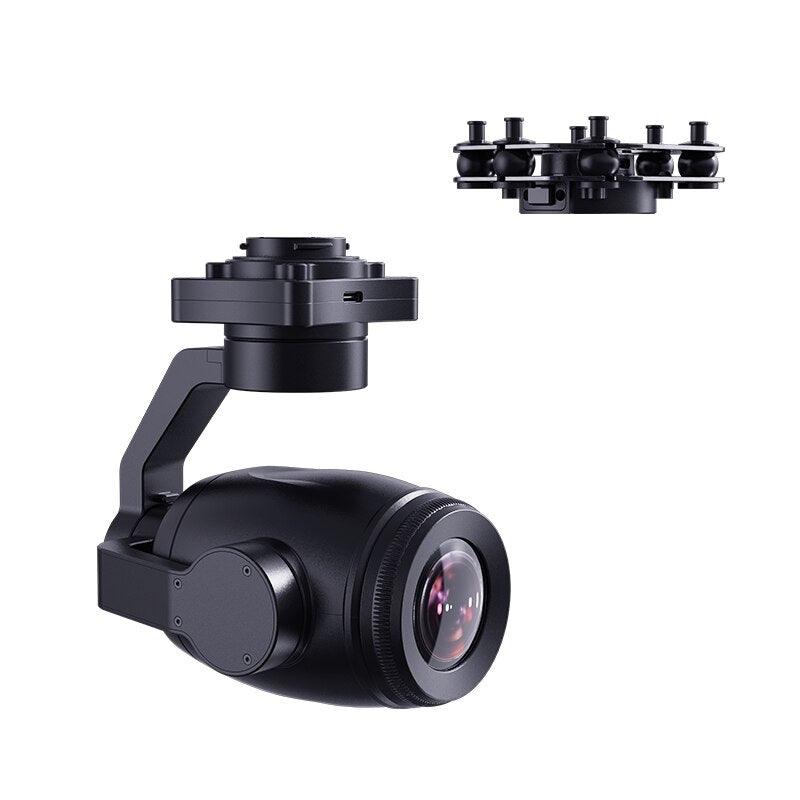

The ZR30 is the first gimbal to feature a quick-release design, allowing for easy payload changes to adapt to various application scenarios.

Sony's Professional Imaging System ZR3O carries a 1/2.7-inch image sensor, a megapixels CMOS with remarkable photosensitivity ability, impressive 4K video recording and photography . those combined features make distant beautiful sceneries nicely seen in motion pictures

The ZR30 gimbal features an intelligent design that automatically detects and adjusts for inverted mode when placed upside down, allowing for seamless integration onto various platforms such as unmanned ground vehicles (UGVs), underwater surface vehicles (USVs), or robot dogs.

The Gimbal offers various motion modes, including Follow, Lock, and FPV (First-Person View) modes. In Follow mode, the gimbal tracks the subject horizontally. However, when the aircraft rotates, the gimbal does not automatically follow its movement. Instead, it rotates simultaneously with the aircraft's roll to provide a stable FPV view.

The SIYI ZR30 camera features an ultra-sensitive Starlight CMOS sensor, capable of capturing vivid images even in low-light environments. Additionally, its HDR functionality enables precise detail capture in complex scenes with both bright highlights and deep shadows.

The SIYI ZR30 gimbal camera employs advanced 3-axis stabilizing technology and high-precision FOC control algorithms, effectively reducing image shake and blur. This allows for continuous smooth output of clear images, even during zooming operations.

Power input: The camera requires an external power source. Gimbal/Camera control input: The device has an S-Bus UART interface for controlling the gimbal and camera. Ethernet connectivity: The device features an Ethernet port. Micro-HDMI and Type-C interfaces: These ports provide options for video output and data transfer. TF Card: The device supports storage expansion via a microSD card.

Various Options of Links and Controllers HM3O MK32 MK1S Full HD Digital Imoge Enterprise Handheld Mini Handheld Transmission System Ground Station Smart
