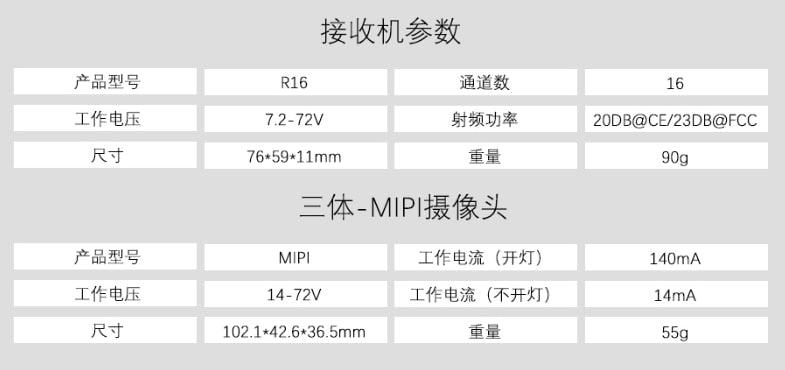

H16/H1GPRO comparison Parameteri (Transmission HDMI Input RJ4S Input Others Model Distance H16 5-1Okm No Yes Same HI6PRO 20-30km Yes Yes Same 10 1 MiPI 2 HDMI 3 Antenna 6 .

#Wtlles 74TS R16 Ainsk 16 TI-EE 7.2-72v AteIh# 2ODB@CE23DB@FCC Rt 76*59-11mm 04 90g E/A-MIPIEIR:K 7048 MIPI IiF4m (#IT) 14OmA TI EF 14-72V Inem (T#FJ) 14mA Rt102.1.42.6+36.Smm 55g 34

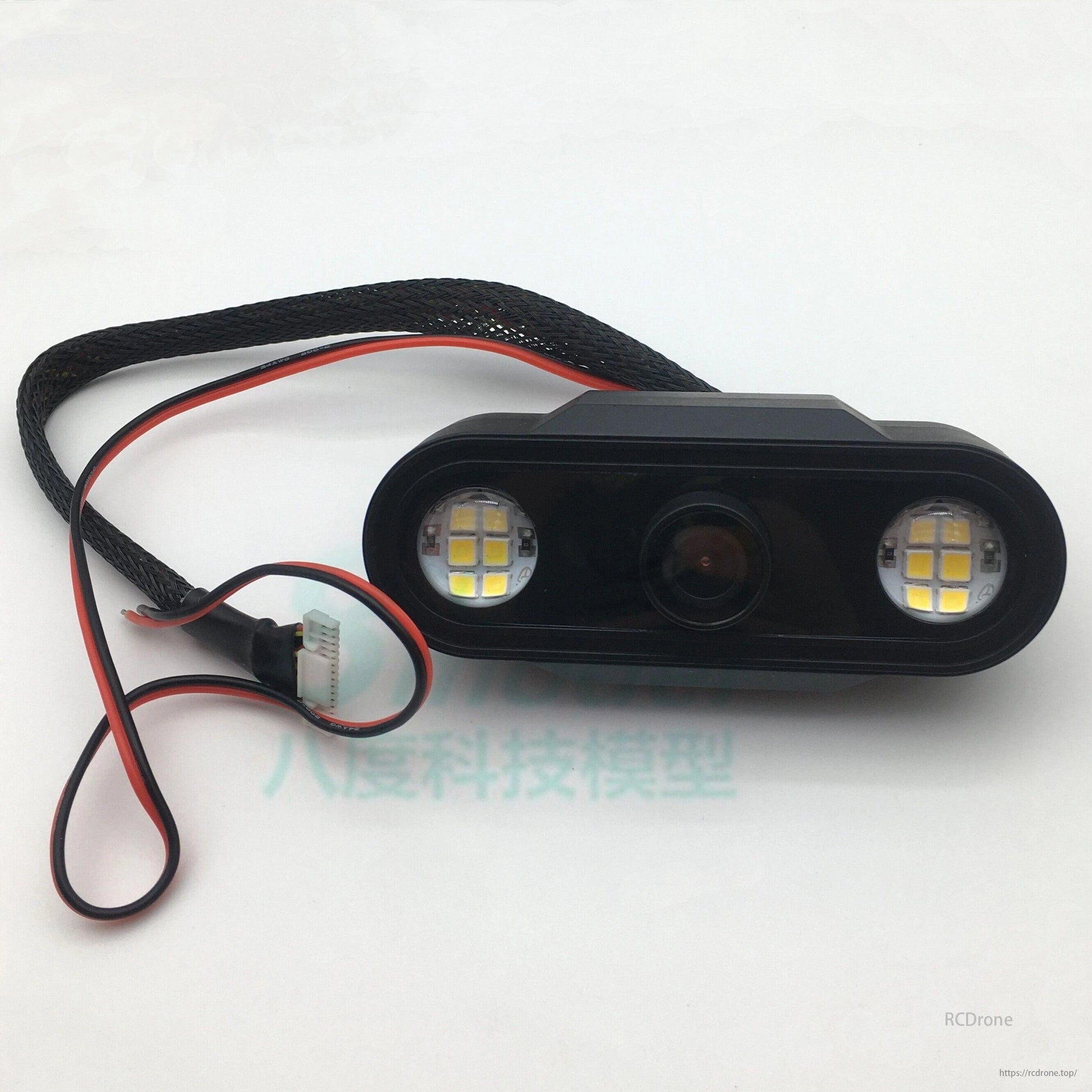

Camera Specification:

Model No.: MIPI

Working voltage: 14-72V

Working current (light on): 140mA

Size: 102.1*42.6*36.5mm

Weight: 63g

Camera integrated 8W searchlight;

Ultra high luminous efficiency LED with 150 degree lens.

the H16/H16 Pro 108OP uses the newest surging processor, equipped with an Android embedded system and advanced SDR technology . it also has a super protocol stack to make the image clearer, lower latency .

In the future, ground stations utilizing flight controllers will likely support wireless video streaming capabilities via RTSP sharing. The dual-antenna system's complementary signals will offer exceptionally strong transmissions with extended range, controlled by algorithms that implement out-of-sync frequency hopping. Furthermore, the design is dust-resistant and waterproof, ensuring reliable operation in various environments.

The Skydroid ground station has undergone extensive optimization based on QGC. The integration of weather-resistant materials such as silica gel, frosted rubber, stainless steel, and aviation aluminum alloy provides an exceptional ergonomic experience. Additionally, the fuselage, control switches, and various peripheral interfaces are designed to be dust-free and waterproof.

This system features a 7-inch IPS high-brightness display with a high screen ratio, providing a clear and visible real-time display in direct sunlight conditions. Additionally, it supports an RJ45 network interface for long-distance connections to internal networks.

The Skydroid H16 Pro features an integrated high-performance lithium-ion battery with high energy density, allowing for fast 36W charging. This enables the device to operate for up to 10-15 hours on a single charge, which can be achieved in just 2 hours of charging time.
