Skydroid H30 Remote Controller Specifications

R30 Receiver Specifications

Packange Included:

Skydroid H30 Remote controller x 1
Skydroid R30 receiver x 1
Charger x 1
Datalink cable x 1

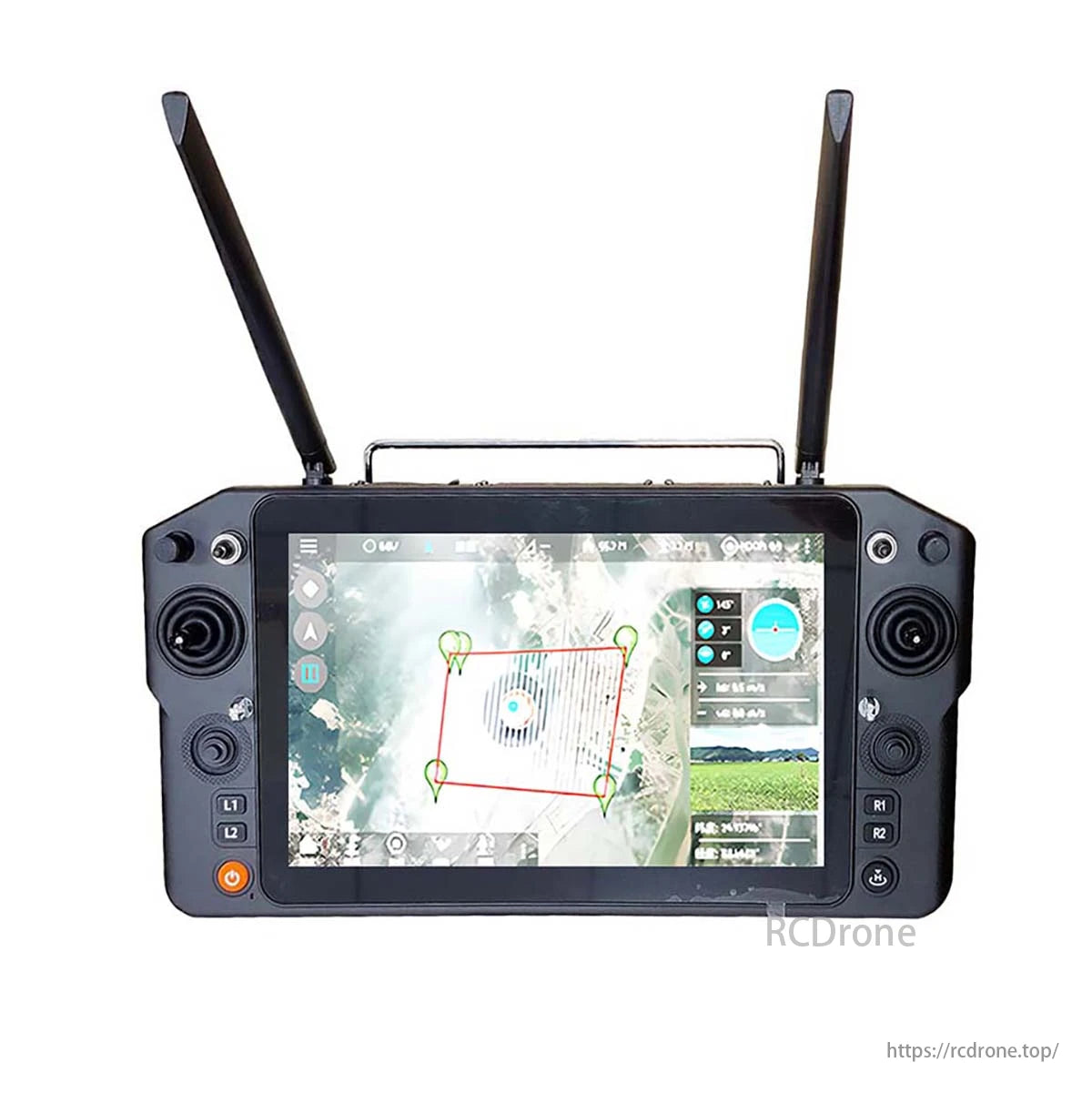

Skydroid H30 Details

The Skydroid H30 HD Video Transmission System revolutionizes drone operations by offering a comprehensive, portable ground control solution. This system seamlessly integrates video and data links, remote control capabilities, and an Android operating system, delivering an all-in-one package that excels in efficiency and affordability. Designed to cater to drones, robotics, and industrial control applications, the H30 is versatile, supporting a wide range of interfaces for enhanced connectivity.

Powered by the advanced Qualcomm Snapdragon 660 8-core processor and equipped with Android 9 (64-bit), the H30 ensures smooth and reliable performance. It boasts multiple interface options, including HDMI and RJ45, along with sensor inputs and dual serial ports for streamlined data transmission. Operating on three dedicated frequencies (800MHz, 1.4GHz, and 2.4GHz), it guarantees exceptional video transmission up to 50KM, minimizing delays and maximizing anti-interference capabilities.

Durability meets design in the H30, constructed from materials resistant to dust and drops. Its high-brightness IPS LCD display remains clear even in direct sunlight, supporting 1080P HD digital transmission. The device features dual-3 frequency antenna signals for unparalleled signal strength and transmission range. A high-capacity lithium-ion battery ensures up to five hours of operation on a full charge.

Compatible with various camera brands and video equipment, the H30 offers extensive connectivity through its ground-end interface, including an RJ45 network and a Type-C Android USB interface. Its independent 2-dimensional gimbal joystick facilitates effortless control.

Engineered to endure, the H30 is built with premium materials like weather-resistant silica gel, frosted rubber, stainless steel, and aviation aluminum alloy, ensuring it stands up to the toughest environments. It remains dust-free and protected against splashing, guaranteeing smooth operation even in challenging conditions.

The system is not just about hardware; it supports an array of interfaces such as HDMI, SIM card, USB, Type-C, and RJ45, along with PPM, dual serial port pass-through transmission, and dual net ports for comprehensive connectivity. Offering a development kit, SDK, and dedicated technical support, the H30 is adaptable to mainstream flight control ground stations, supports video pausing, and enables wireless RTSP video stream sharing, making it a top choice for sophisticated drone operations.

Skydroid H30 Features:

Stable Triple Frequency
The H30 operates on three stable frequencies: 1.4GHz, 2.4GHz, and 800MHz, providing stable low-latency transmission, long-range control, and strong anti-interference capability.

The Skydroid H30 remote controller features a Qualcomm Snapdragon 660 processor and an Android 9.1 embedded system. With three operating frequencies - 1.4GHz, 2.4GHz, and 8.0MHz - this device ensures crisp image quality, reduced latency, extended range, and robust anti-interference capabilities.

Qualcomm Android Platform

The H30 is powered by the high-performance Qualcomm Snapdragon 660 processor and runs on the Android 9.1 system, delivering smooth operation and enhanced functionality, including 3D mapping capabilities.

The Skydroid H30 remote controller features a Qualcomm-powered platform with an Android 9.1 operating system, driven by a high-performance Qualcomm 660 processor. This combination enables smoother performance, enhanced functionality, and the ability to run complex applications, including 3D mapping capabilities.

50km Remote Control  Image Transmission

Utilizing Skydroid's unique data-video control link technology, the H30 achieves a remote control image transmission range of over 10km, with a maximum range of up to 50km.

Featuring Skydroid's proprietary data link technology, the H30 remote controller offers an impressive transmission range of up to 10 kilometers (6.2 miles) and a maximum distance of approximately 50 kilometers (31 miles), providing reliable control over long distances.

Rich Interfaces

The H30 radio supports various interfaces, including USB, LAN, audio, HDMI, TF card, and TYPE-C. It also includes a 4G SIM card slot for added functionality.

The Skydroid H30 remote controller features multiple interfaces, including USB, LAN, audio, HDMI, and TF TYPE-C, as well as a 4G card slot. These interfaces enable the use of various functions, including those specifically designed for 4G connectivity.

Dust and Water Resistance

With its IP67 dust and water resistance rating and high structural strength, the Skydroid H30 is designed to withstand challenging environmental conditions.

The Skydroid H30 remote controller boasts robust construction, including dust-resistance, ensuring reliable operation in various challenging environmental conditions.

High-Definition Large Display

The Skydroid H30 remote controller features a large 10.1-inch touchscreen display with a resolution of 1920x1200. It offers responsive touch operation and excellent visibility even under bright sunlight.

Skydroid H30 has a large screen of up to 10.1 inches with a resolution of 1920*1200 . can be operated by capacitive touch and can be seen clearly under the hot sun outdoors .

The R3O receiver specifications include: dual antennas operating on frequencies of 1.4GHz, 2.4GHz, and 800MHz; it features a serial port with a working voltage range of 7.2V to 12V, a baud rate of 115200, and an Air interface that supports single-node communication at speeds of up to 30Mbps in one-way mode or 45Mbps in two-way mode.
