Skydroid MX680 Flight Platform - 3.5KG Take-off Weight 90 Minutes Flight Time 35KM Cruising Range Industrial Drone

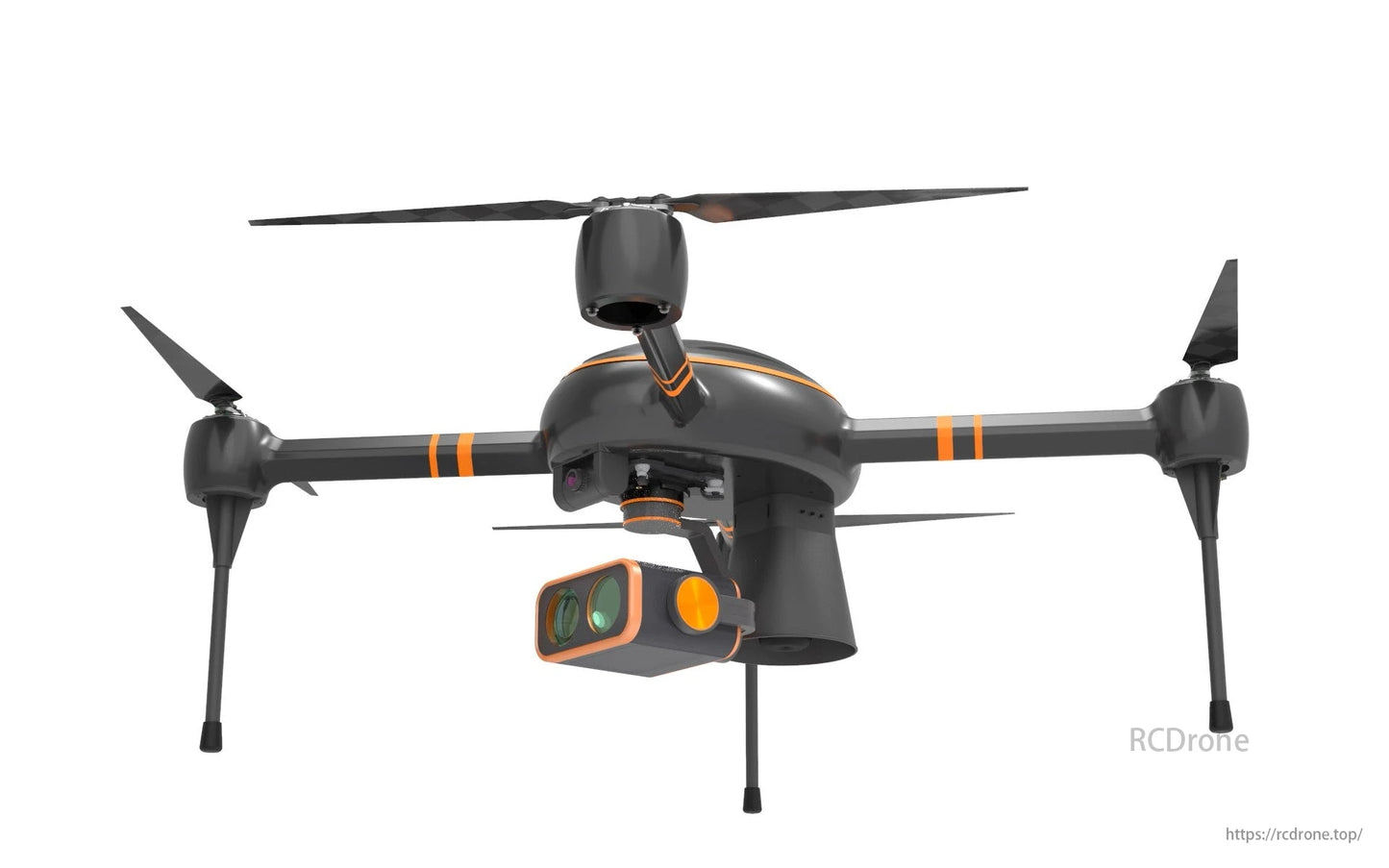

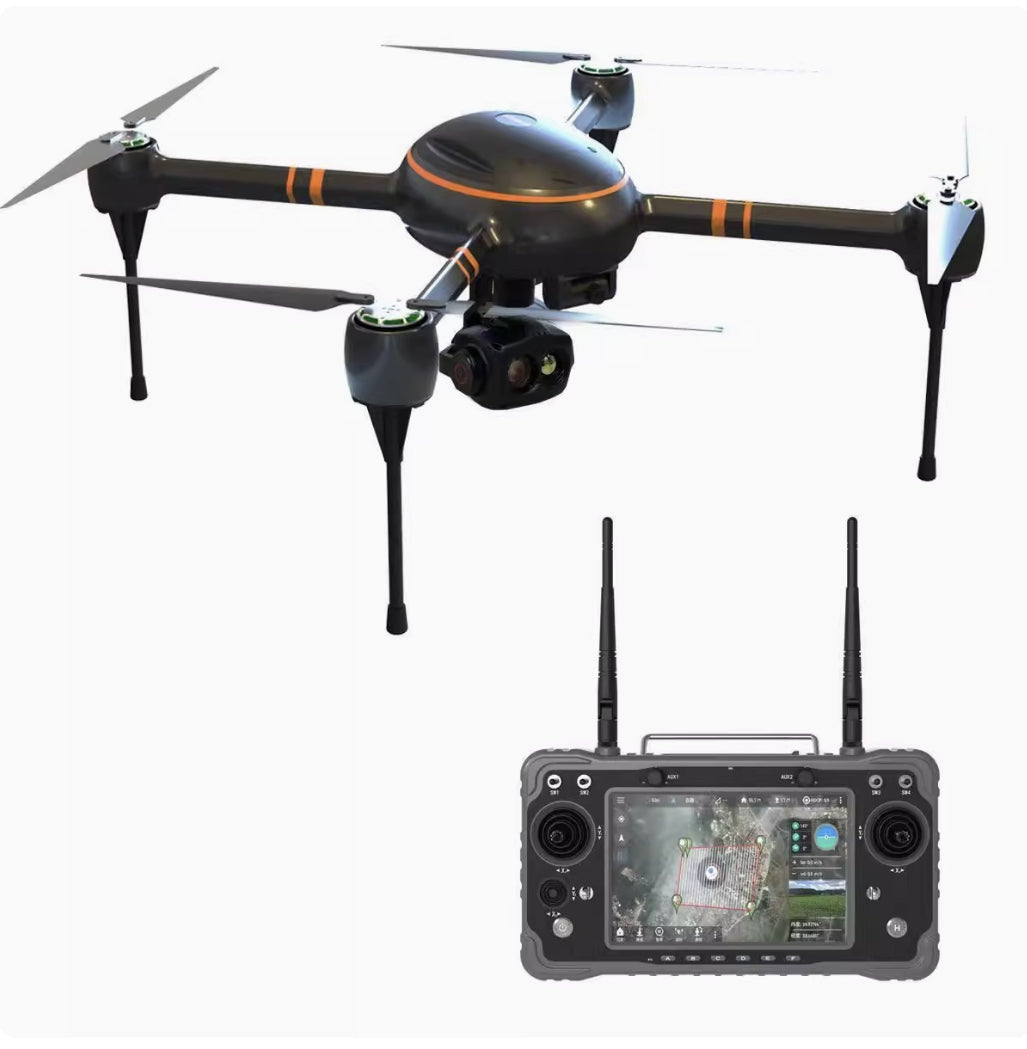

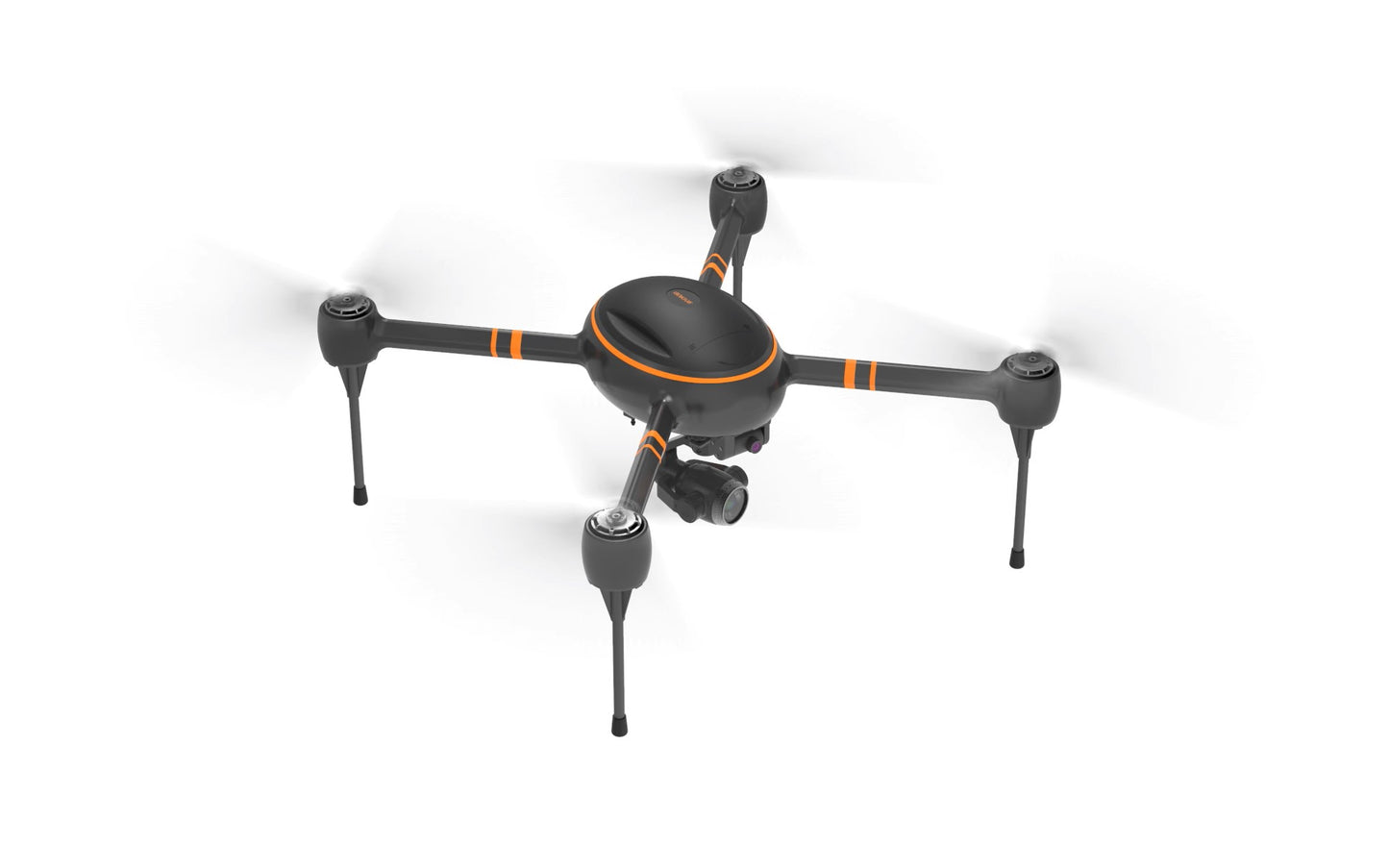

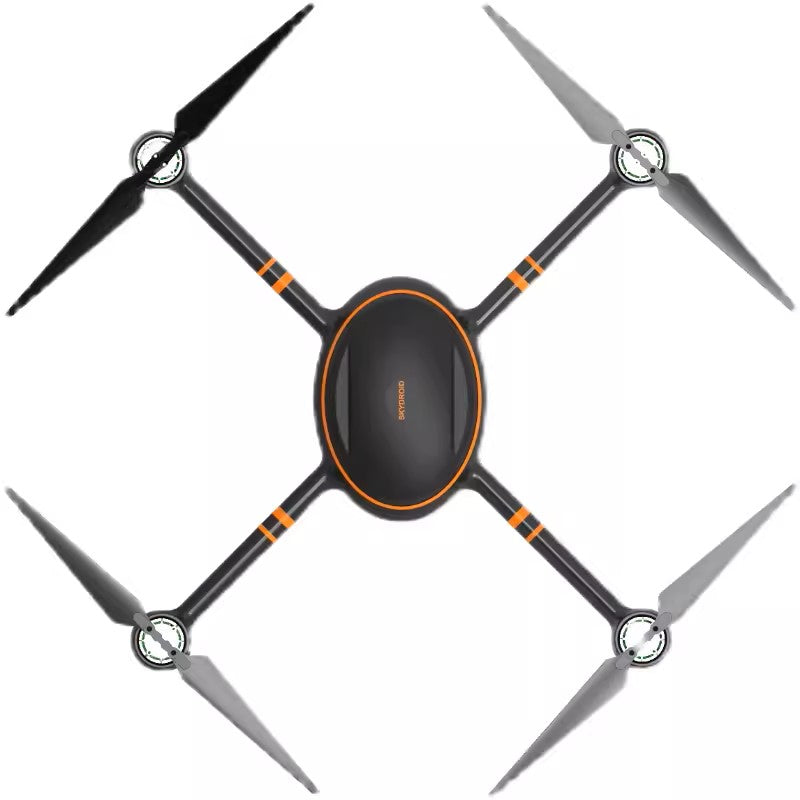

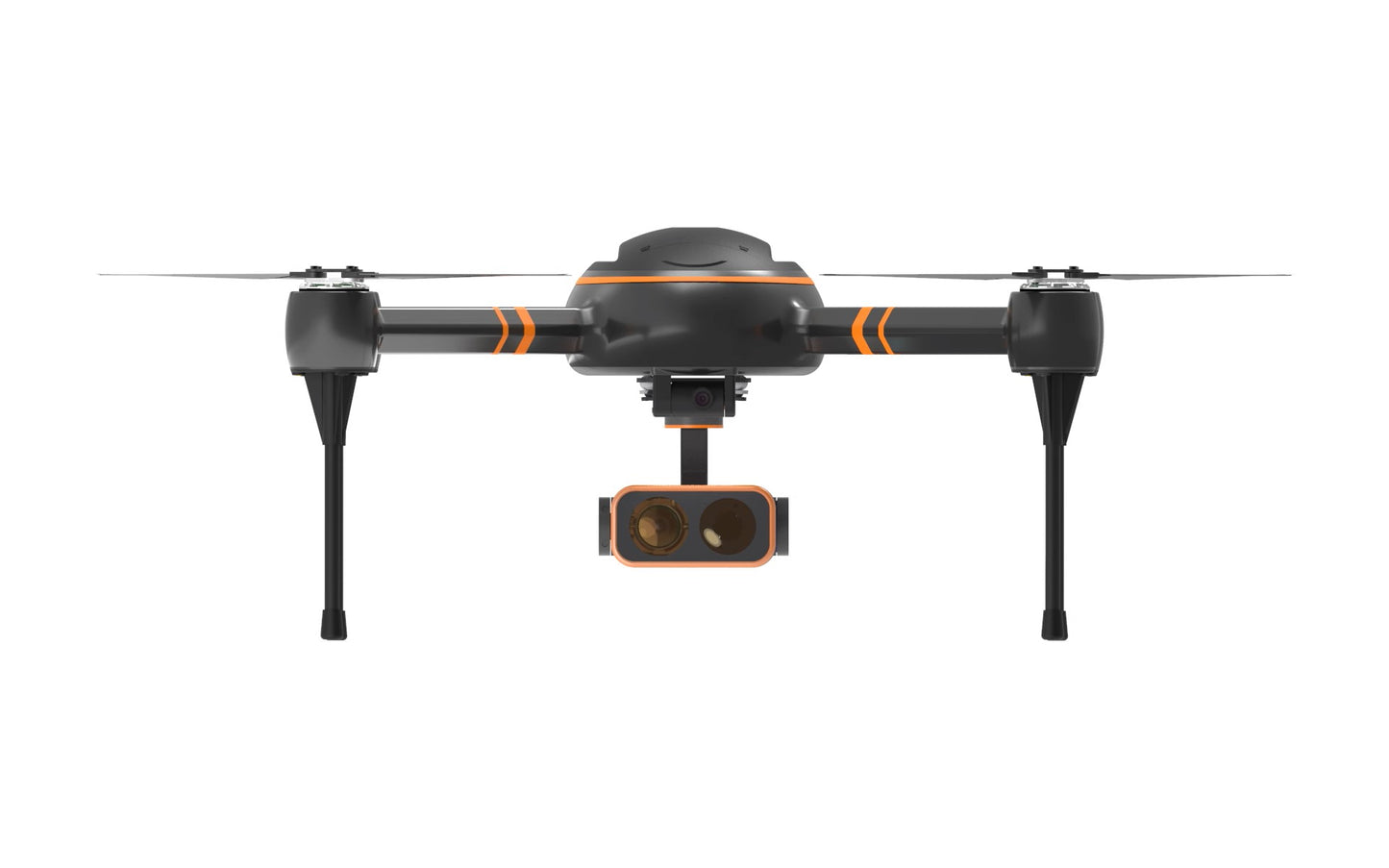

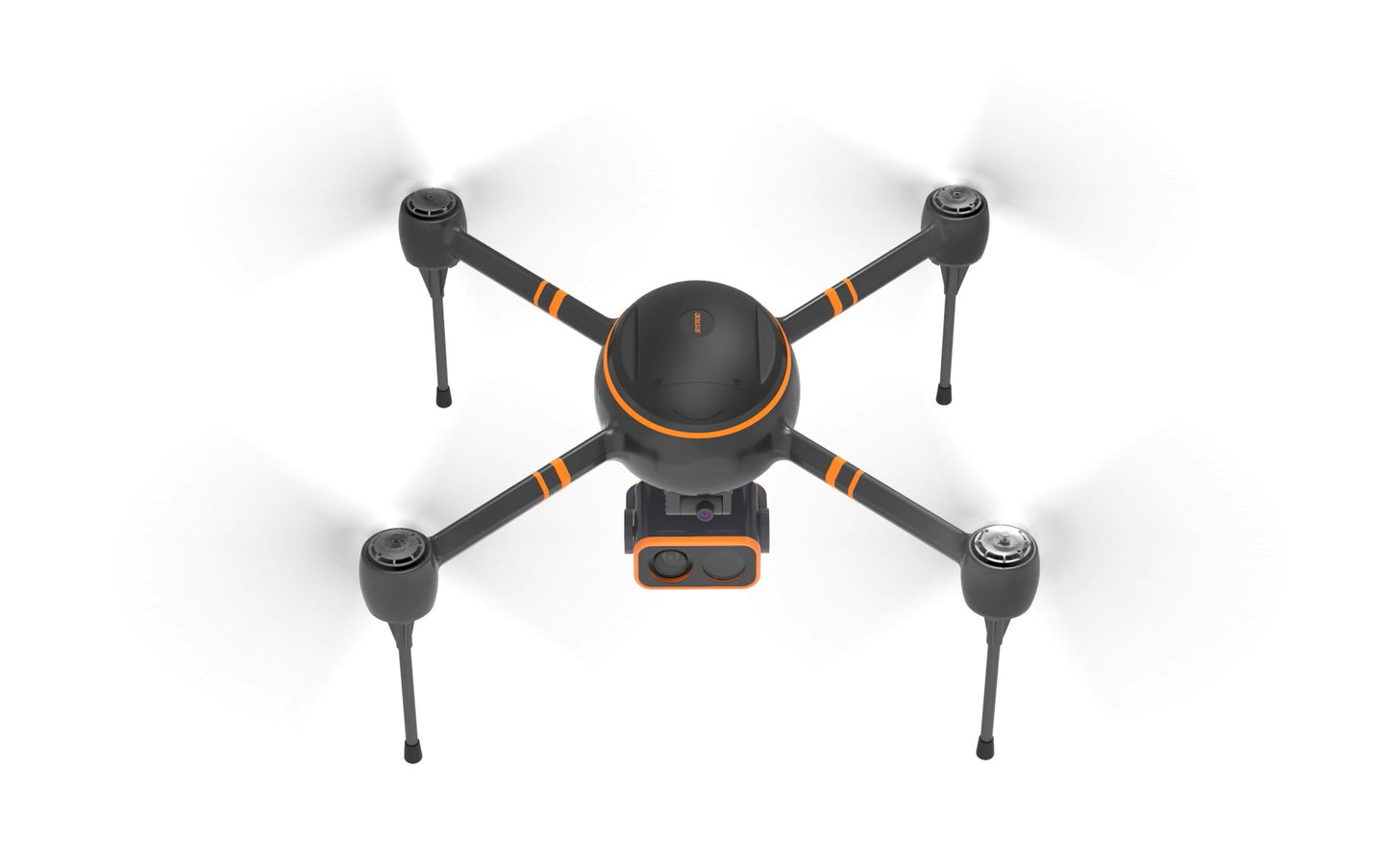

Skydroid MX680

Introduction: Skydroid MX680 flight platform is born for various application environments, aiming to improve the feasibility of aerial operations. The MX680 series has a compact design, all-in-one carbon fiber, 680mm ultra-small wheelbase, up to 90 minutes (no payload) battery life, open source protocol, FPV, can be matched with a variety of mounts, adapt to various environments and scenarios, for multiple industry provides professional solutions.

Parameters:

• Model: MX680
• Symmetrical motor wheelbase: 680mm
• Drone unfolded size: 980x980x255mm
• Drone folded size: 544x544x255mm
• Net weight: 1200g
• Shipping size: 630x620x340mm
• Packing weight: 10KG
• Recommended maximum take-off weight: 3.5KG
• Hovering accuracy: vertical ± 0.8m/horizontal ± 2.5m
• Maximum cruising range: 35KM
• Number of axes: 4
• Maximum ascending speed: 3m/s
• Maximum descent speed: 2.1m/s
• Maximum withstand wind speed: 10m/s
• Flight time (no payload): 90 minutes
• Flight time (1KG payload): 60 minutes
• Power system: motor 4008 ESC 40A
• Operating ambient temperature: -10°C to 40°C
• Maximum flight speed: 54Km/h
• Maximum pitch angle: 20°

Features:

• Carbon fiber one-piece body
• 90 minutes battery life (no payload)
• Ultra-long transmission distance
• Multi-load platform

Rich mount:

• Skydroid C10
• Skydroid C20
• Skydroid TQ10N
• Third party load
