Overview

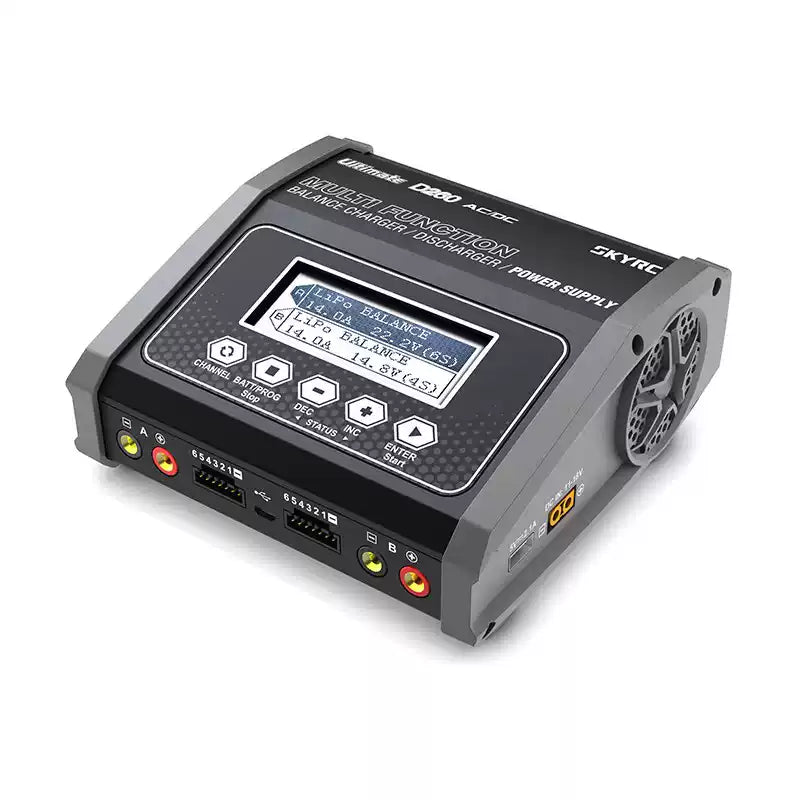

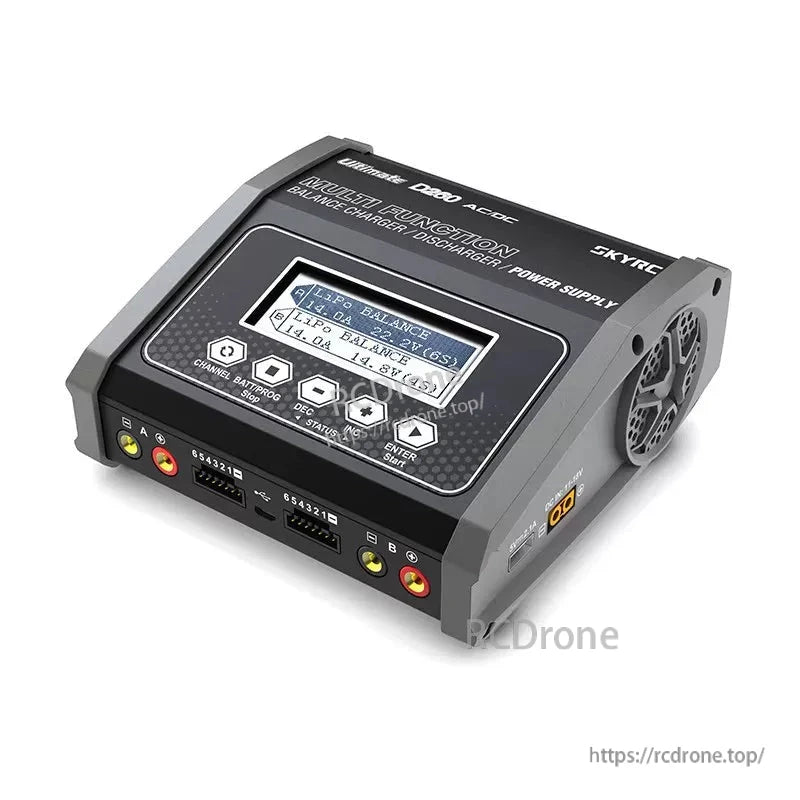

The SkyRC D260 Ultimate Duo is a dual-channel AC/DC balance charger / discharger / power supply designed for common RC and hobby battery types. It features two independent circuits, an intuitive 5-button interface, and a 128 × 64 LCD with black/white backlight. Dual output enables charging two different battery packs simultaneously.

Key Features

Dual-channel output: 130W per channel (130W × 2 charge power), with charge current 0.1–14.0A × 2.

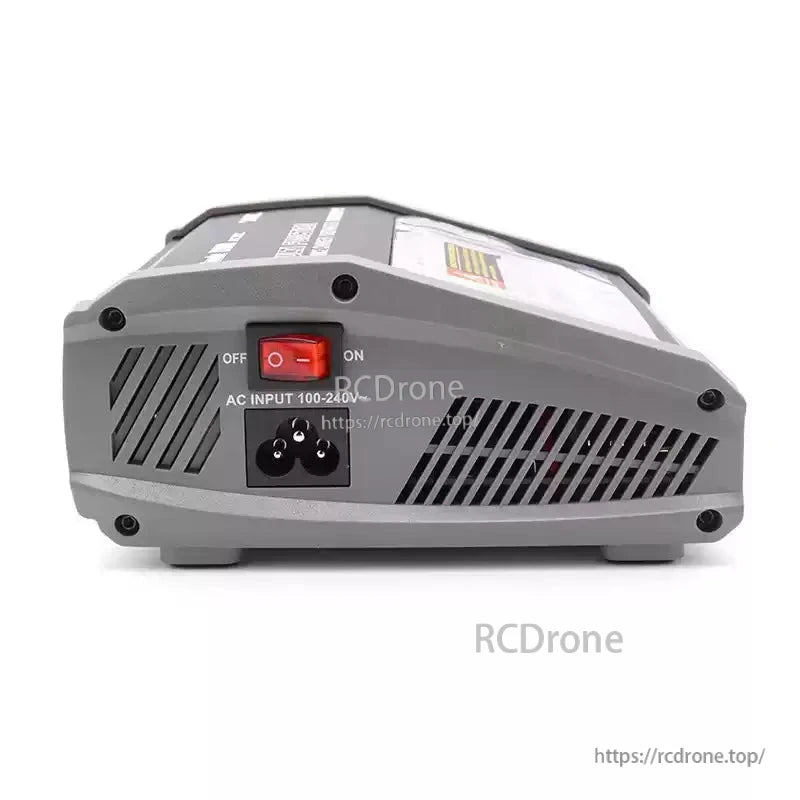

AC/DC input: AC input 100–240V; DC input 11–18V.
Multi-chemistry support: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCd, and Pb (lead acid).
LiHV mode available: Supports LiHV charging with an end charge voltage of 4.35V.
Balance capability: 2–6S balance cell count; balance current 500 mA/cell.
Discharge function: Discharge current 0.1–2.0A × 2; discharge power 10W × 2.
Program memory: Each channel can store 10 groups of charge/discharge programs.
PC connectivity: USB interface for PC control and firmware upgrade; PC software supports start/stop, real-time graphs (current/voltage/capacity), and single-cell voltage monitoring.
Cooling design: Temperature-controlled high-speed sleeve bearing cooling fan with extruded aluminum heat sink.
Built-in DC power supply mode: Can be turned into a power supply unit; two channels can be used individually to power two different hobby devices simultaneously.
Micro controller: ARM Cortex-M3 32 bits high speed processor; data process capability improves 20 times; 2.5V–5.5V wide range input voltage; strong anti-interference ability.
AGM & Cold modes mentioned: AGM (Absorbent Glass Mat) battery support is described with a caution not to charge AGM batteries using a regular charger in normal Pb mode.

Specifications

DC Input Voltage	11–18V
AC Input Voltage	100–240V
Display	128 × 64 LCD
Display Backlight	Black / White
Case Material	Metal and Plastic
Control Method	5 Buttons
Dimensions	160 × 150 × 71 mm
Weight	896 g
DC Power Output	130W per channel
Computer Connection	Connects to a computer via USB interface for PC control and firmware upgrade

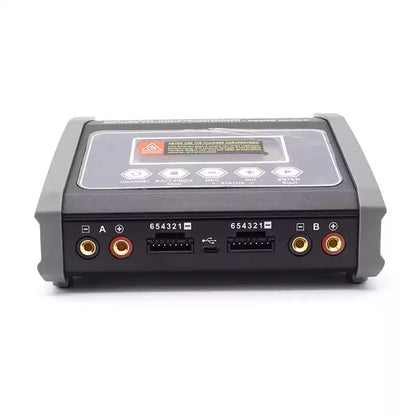

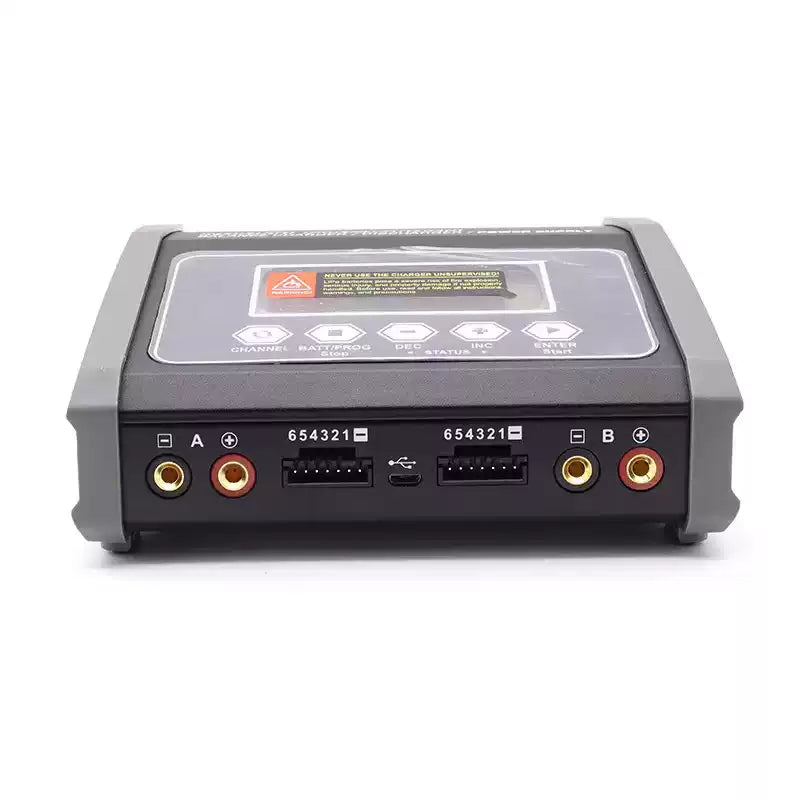

External Ports	2–6S XH balance port, temperature sensor port, battery port, AC input port, DC input/output port, Micro USB port, 5V/2.1A USB output port

Battery Detection and Charging Parameters

NiMH/NiCd Delta Peak Detection Range	3–15 mV/cell, default: 4 mV/cell
Charge Cut-off Voltage - NiMH/NiCd	Delta peak detection
Charge Cut-off Voltage - LiPo	4.18–4.25V/cell
Charge Cut-off Voltage - LiIon	4.08–4.20V/cell
Charge Cut-off Voltage - LiFe	3.58–3.70V/cell
Charge Cut-off Voltage - LiHV	4.25–4.35V/cell
Balance Current	500 mA/cell
Voltage Detection Range	0.1–26.1V/cell
Battery Type / Cell Count - LiPo / LiIon / LiFe / LiHV	1–6 cells
Battery Type / Cell Count - NiMH / NiCd	1–15 cells
Battery Type / Voltage - Pb	2–20V
Capacity Cut-off Threshold - NiMH / NiCd	100–50,000 mAh
Capacity Cut-off Threshold - LiPo / LiIon / LiFe / LiHV	100–50,000 mAh
Capacity Cut-off Threshold - Pb	100–50,000 mAh

Charge / Discharge Performance

Charge Current	0.1–14.0A × 2
Time Cut-off Protection	1–720 minutes / Off
Charge Power	130W × 2
Discharge Current	0.1–2.0A × 2
Discharge Cut-off Voltage - NiMH / NiCd	0.1–1.1V/cell
Discharge Cut-off Voltage - LiPo	3.0–3.3V/cell
Discharge Cut-off Voltage - LiIon	2.9–3.2V/cell
Discharge Cut-off Voltage - LiFe	2.6–2.9V/cell
Discharge Cut-off Voltage - LiHV	3.1–3.4V/cell
Discharge Cut-off Voltage - Pb	1.8–2.0V/cell
Discharge Power	10W × 2
Balance Cell Count	2–6S
Memory Programs	Each channel can store 10 groups of charge/discharge programs
Charging Modes	Pb / Lithium battery: Constant Current / Constant Voltage; NiMH / NiCd battery: Delta peak detection

Applications

Charging and balancing LiPo / Li-Ion / LiHV / LiFe packs (1–6 cells)
Charging NiMH / NiCd packs (1–15 cells)
Charging Pb batteries (2–20V), including AGM batteries (use the correct mode)
Bench DC power supply use for compatible hobby equipment

For pre-sales compatibility questions (connectors, supported batteries, or PC setup) or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

SkyRC D260 Ultimate Duo 260W AC/DC Balance Charger / Discharger / Power Supply

SkyRC D260 Ultimate Duo is a dual-channel AC/DC balance charger/discharger and power supply with an easy button interface and support for up to 6S packs.

The SkyRC D260 Ultimate Duo balance charger supports LiHV charging (up to 1–6 cells) and includes AGM and cold charging modes for lead-acid batteries.

The SkyRC D260 Ultimate Duo provides dual outputs for charging two different packs and supports common chemistries like LiPo, Li-ion, NiMH, and Pb.

The SkyRC D260 Ultimate Duo combines dual-channel charging with universal 100–240V AC input and a temperature-controlled cooling fan for steady operation.
