SkyRC e430 AC LiPo/LiFe 2-4S Balance Charger (30W/3A), 100-240V Input, 1A/2A/3A Selectable

Overview

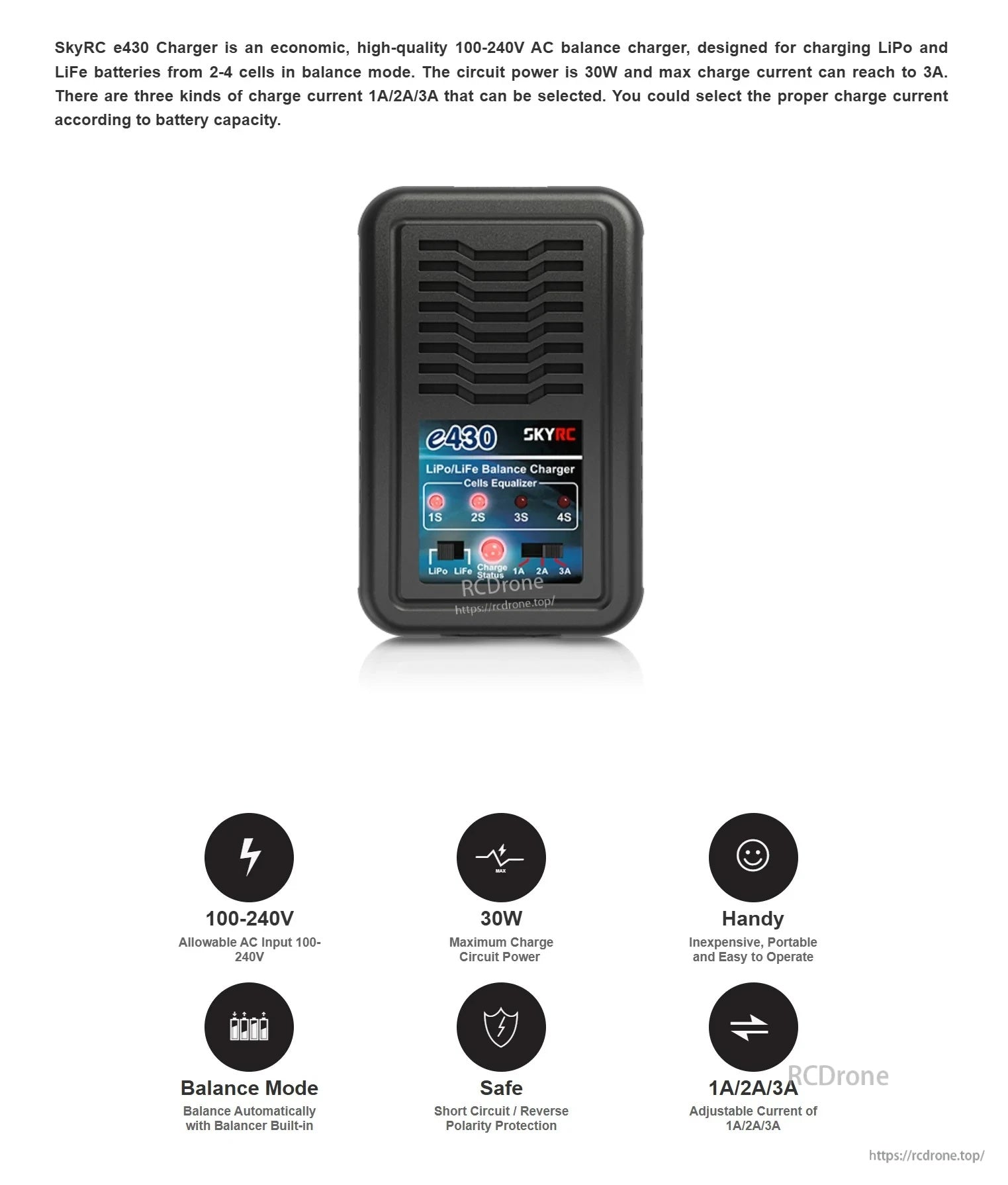

The SkyRC e430 is an AC balance charger (cells equalizer) for LiPo and LiFe batteries from 2–4 cells in balance mode. It features selectable charge current (1A/2A/3A) and a maximum circuit power of 30W, with a built-in balancer and LED indicators for charge and cell status.

Key Features

• Supports LiPo / LiFe battery types (selectable via battery type switch)
• Cell count support: 2–4 cells (2S/3S/4S indicators; panel also shows 1S indicator)
• Selectable charge current: 1A / 2A / 3A (current switch)
• Balance mode with built-in balancer (cells equalizer)
• Protections listed: short circuit / reverse polarity protection
• LED indicators: Charge Status LED and Cell LED indicator

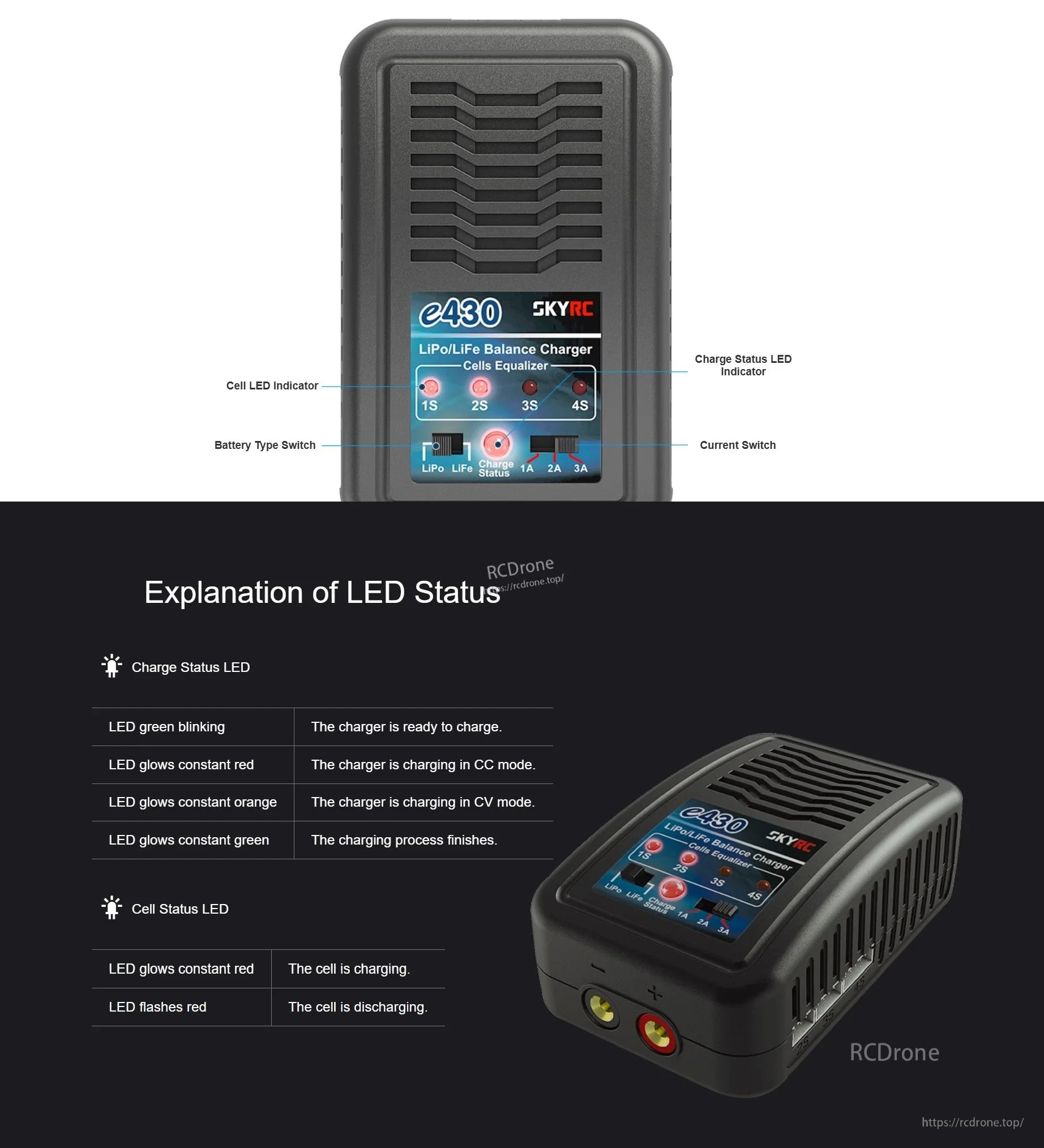

LED Status

Charge Status LED

• LED green blinking: The charger is ready to charge.
• LED glows constant red: The charger is charging in CC mode.
• LED glows constant orange: The charger is charging in CV mode.
• LED glows constant green: The charging process finishes.

Cell Status LED

• LED glows constant red: The cell is charging.
• LED flashes red: The cell is discharging.

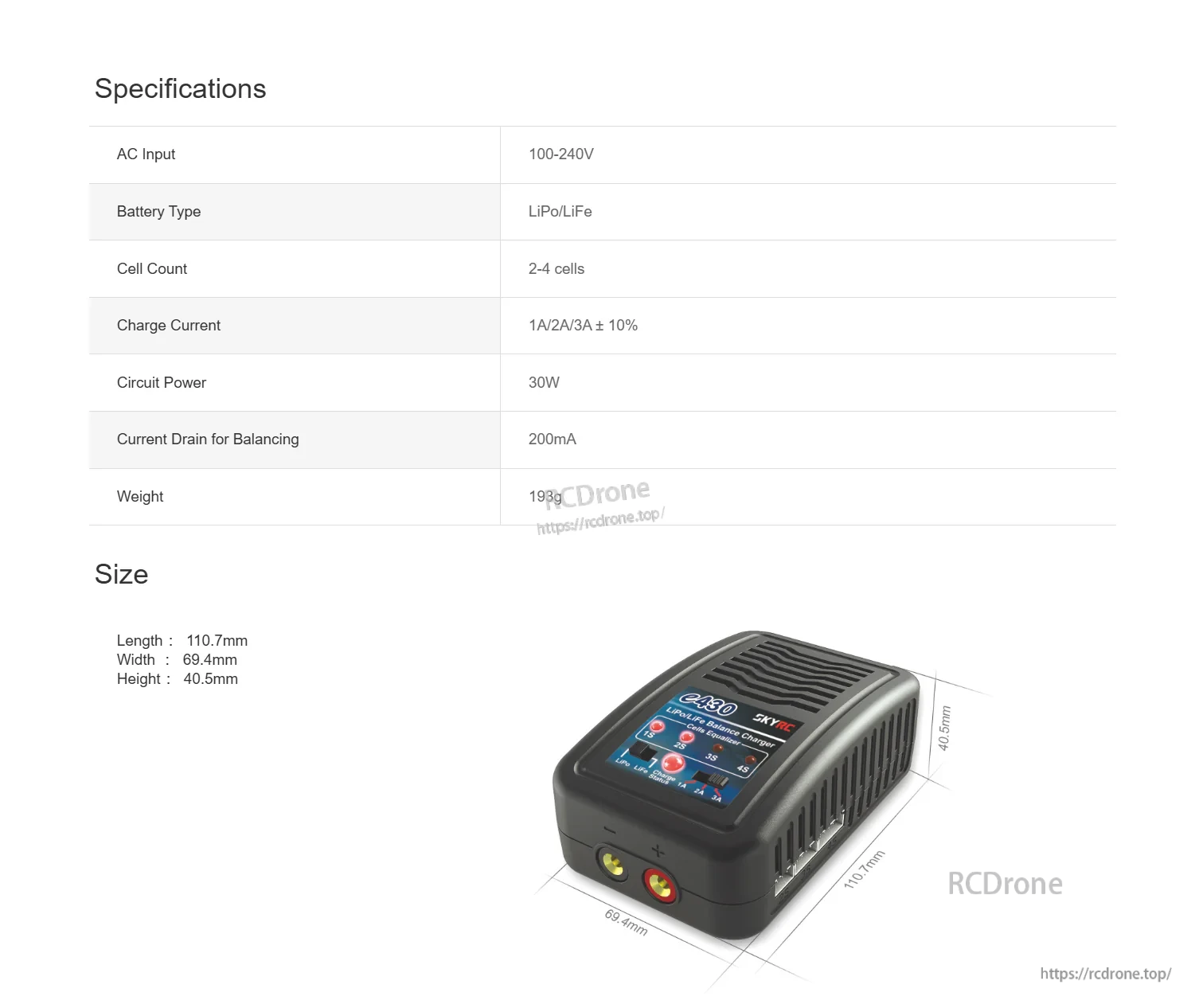

Specifications

What’s Included

• e430 Charger
• AC Power Cord
• XT60 Charging Cable
• Instruction Manual

If assistance is needed with compatibility or setup, contact customer service at https://rcdrone.top/ or support@rcdrone.top.

Details

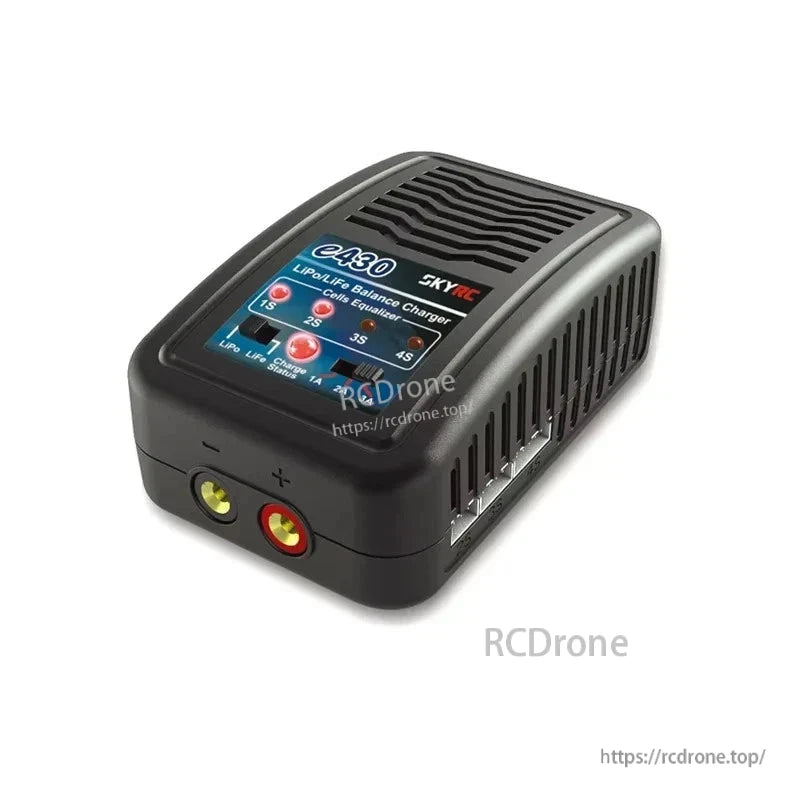

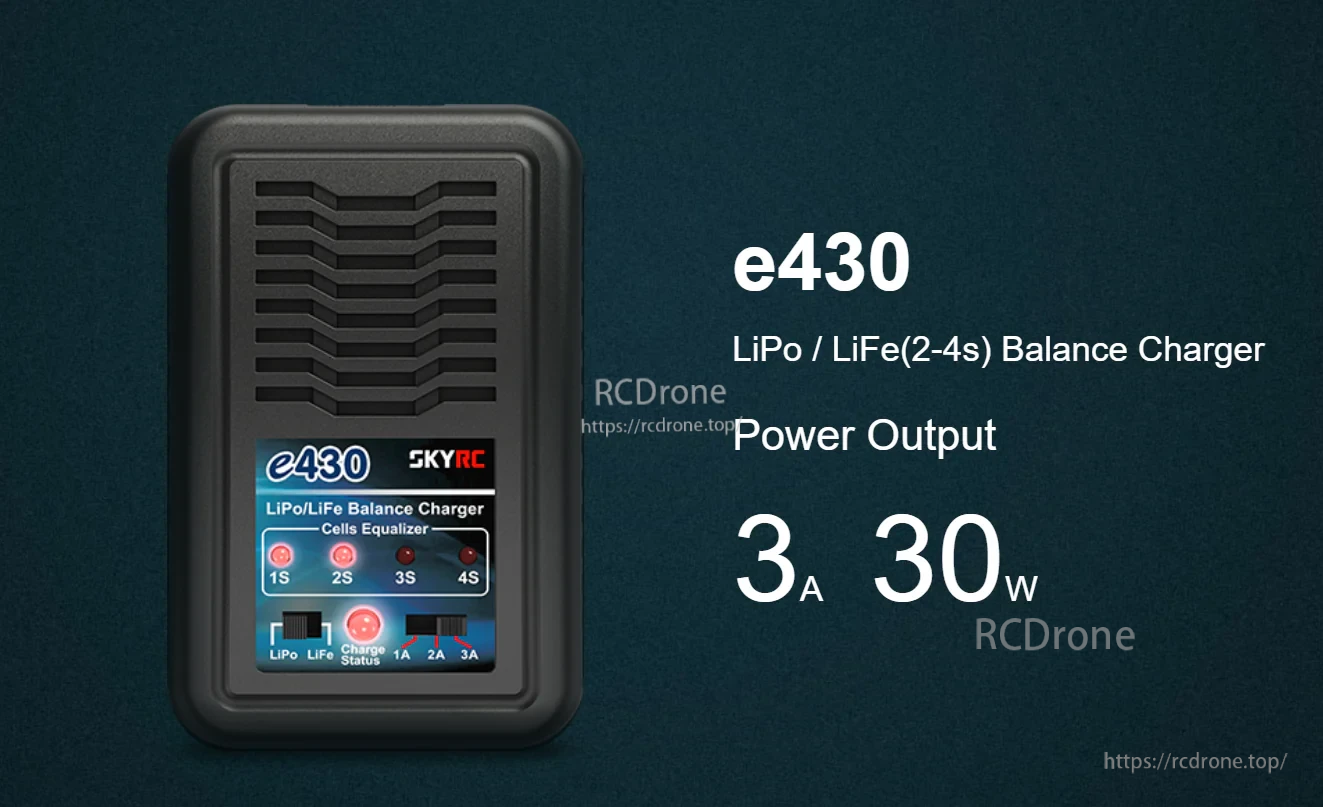

The SkyRC e430 balance charger supports LiPo/LiFe packs from 2–4S with clear 1S–4S status LEDs and up to 3A (30W) output.

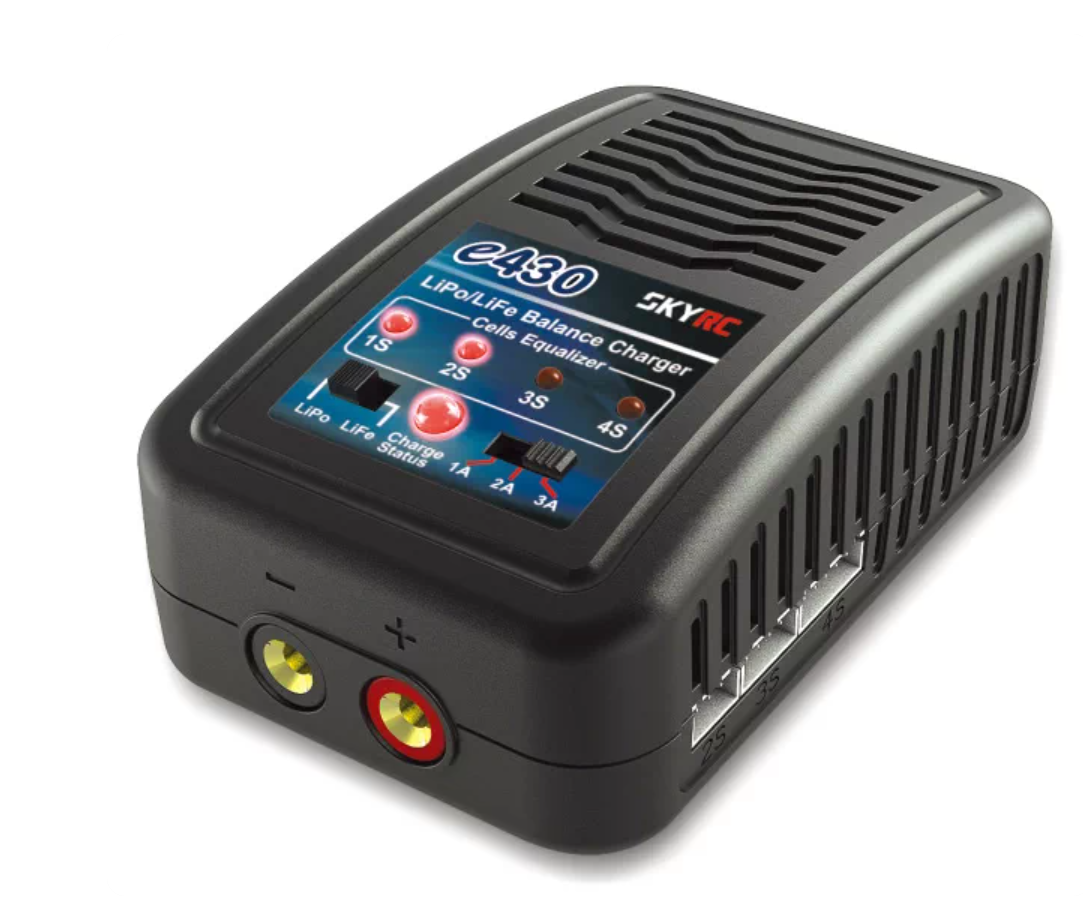

SkyRC e430 uses 1S–4S cell LEDs plus a charge status indicator, with simple LiPo/LiFe and 1A–3A current selector switches for setup.

The SkyRC e430 AC balance charger supports LiPo/LiFe packs with 1S–4S indicators, a LiPo/LiFe mode switch, and selectable 1A/2A/3A charge current.

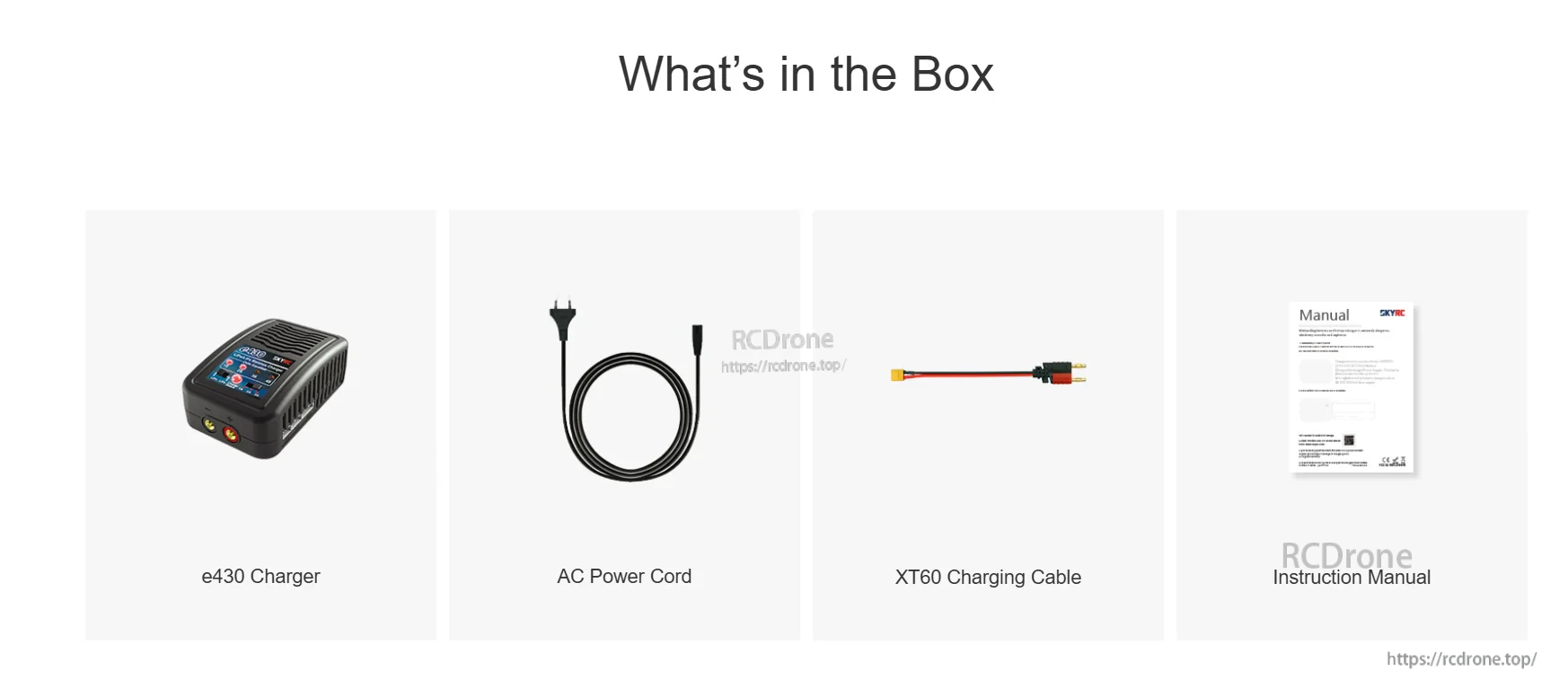

The SkyRC e430 package includes the charger, an AC power cord, an XT60 charging cable, and an instruction manual.

SkyRC e430 is a compact AC balance charger for LiPo/LiFe 2–4S packs with selectable 1A/2A/3A charge current and 100–240V input.
