Overview
The SkyRC eN18 is a NiMH peak charger designed for 4-8 cell (4-8S) NiMH battery packs, with AC input and Delta-V peak detection for automatic charge termination. It provides a fixed 1.2A charge current and supports universal-voltage mains power for convenient use at home or in the workshop.
Key Features

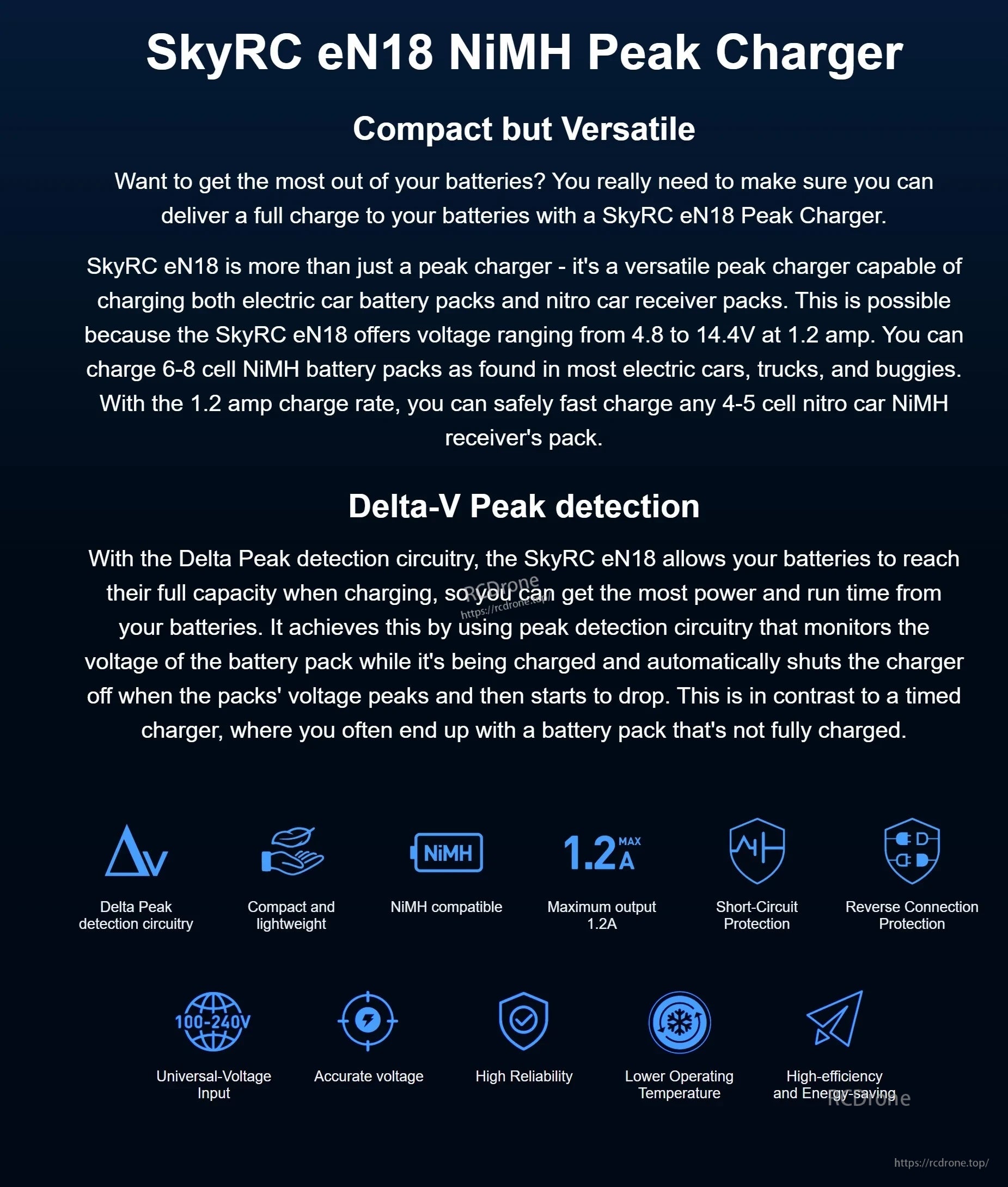

- Delta-V peak detection circuitry for automatic full-charge termination

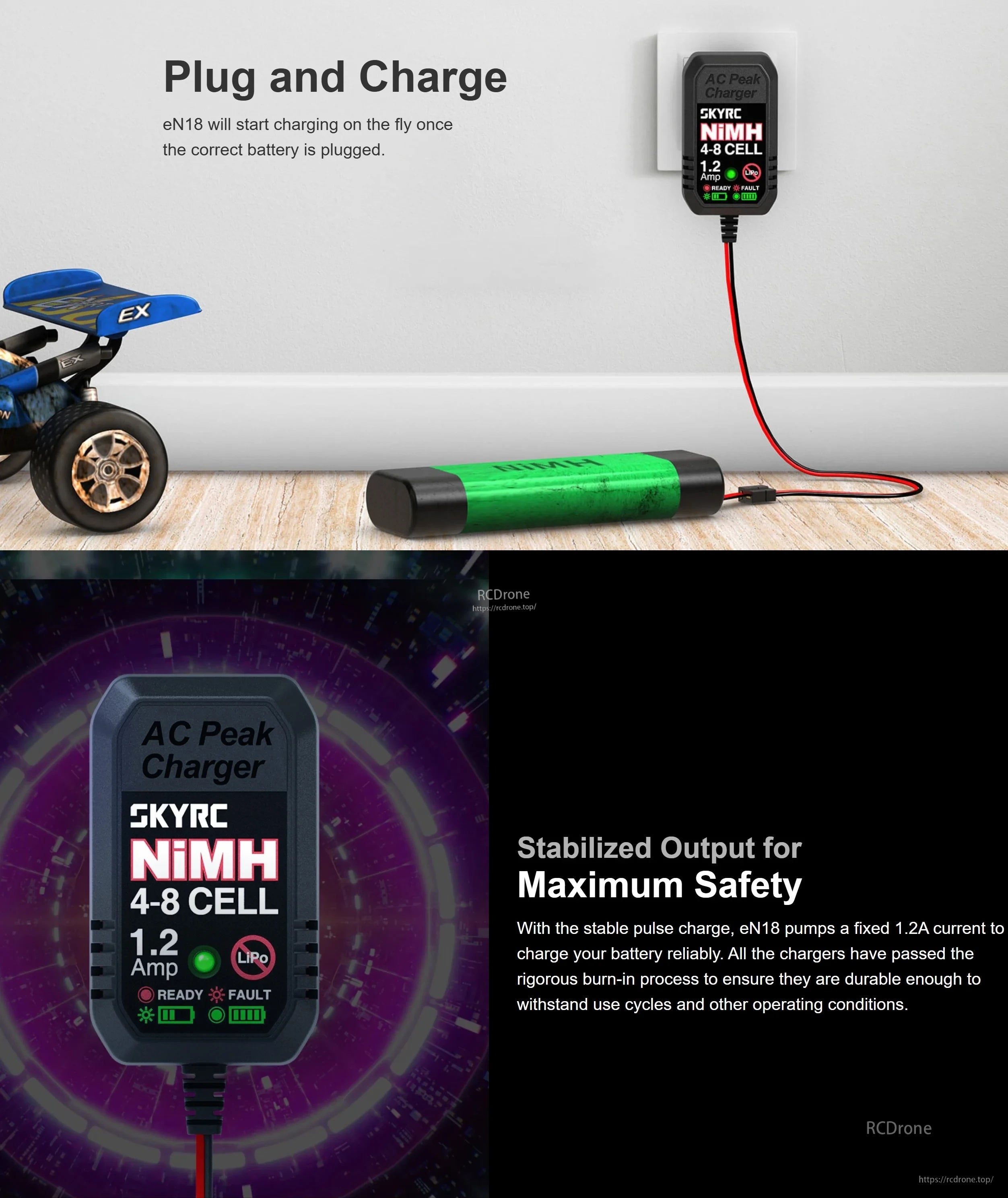

- Plug and charge operation (starts charging once the correct battery is connected)
- Stabilized output with fixed 1.2A pulse charge

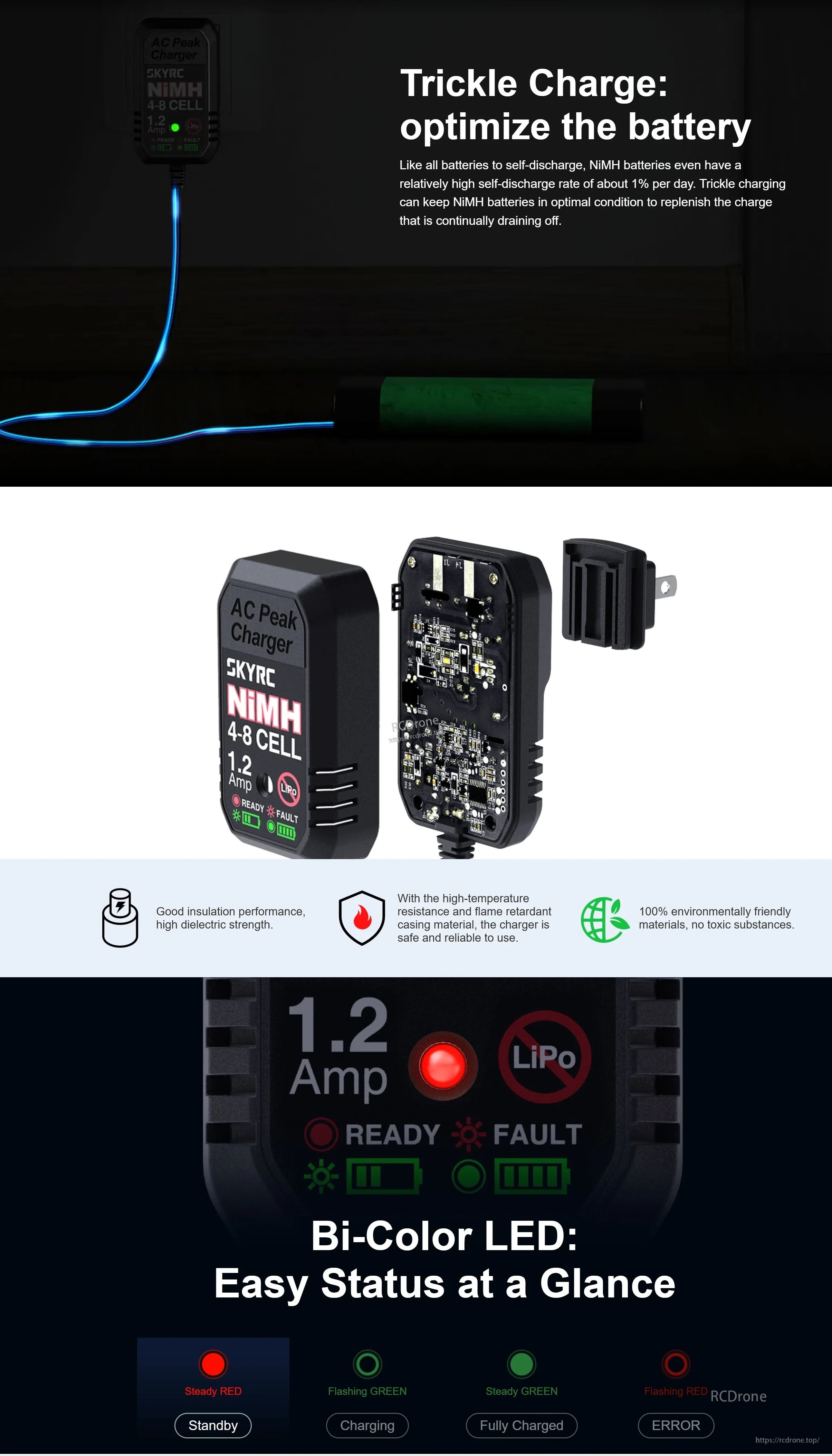

- Trickle charging to help maintain NiMH packs (self-discharge noted as about 1% per day)

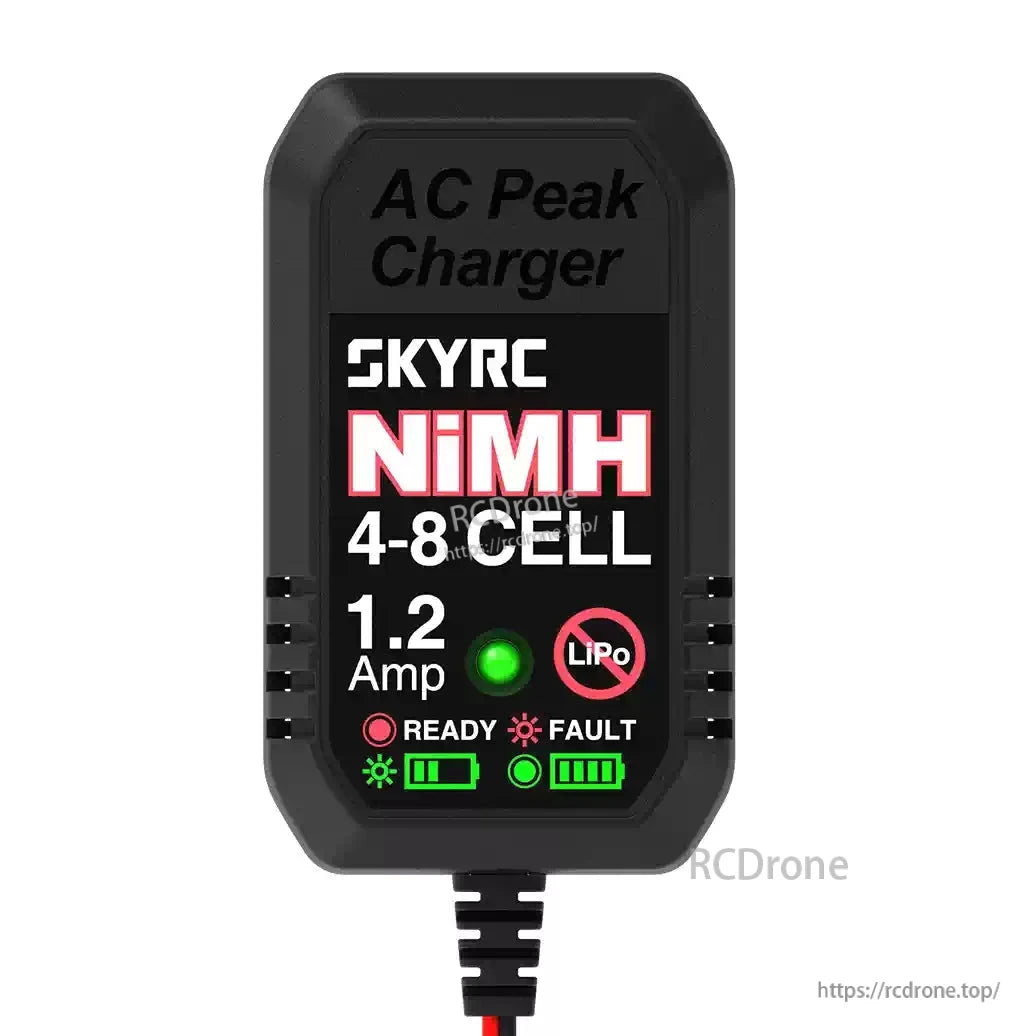

- Bi-color LED status indication:
- Steady RED: Standby
- Flashing GREEN: Charging
- Steady GREEN: Fully Charged
- Flashing RED: ERROR
- Short-circuit protection and reverse connection protection

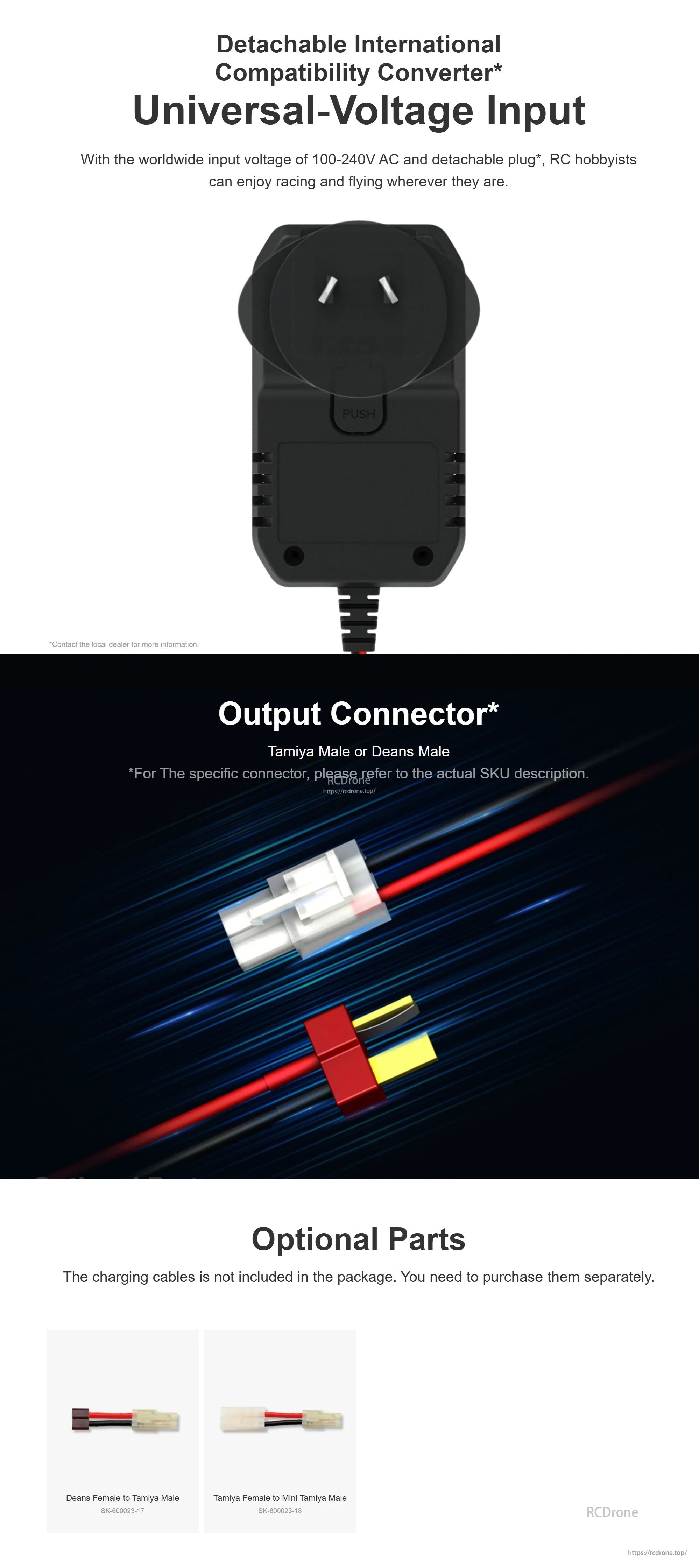

- Detachable international compatibility converter (detachable plug)
- Output connector (varies by SKU): Tamiya Male or Deans Male
For connector selection and compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.

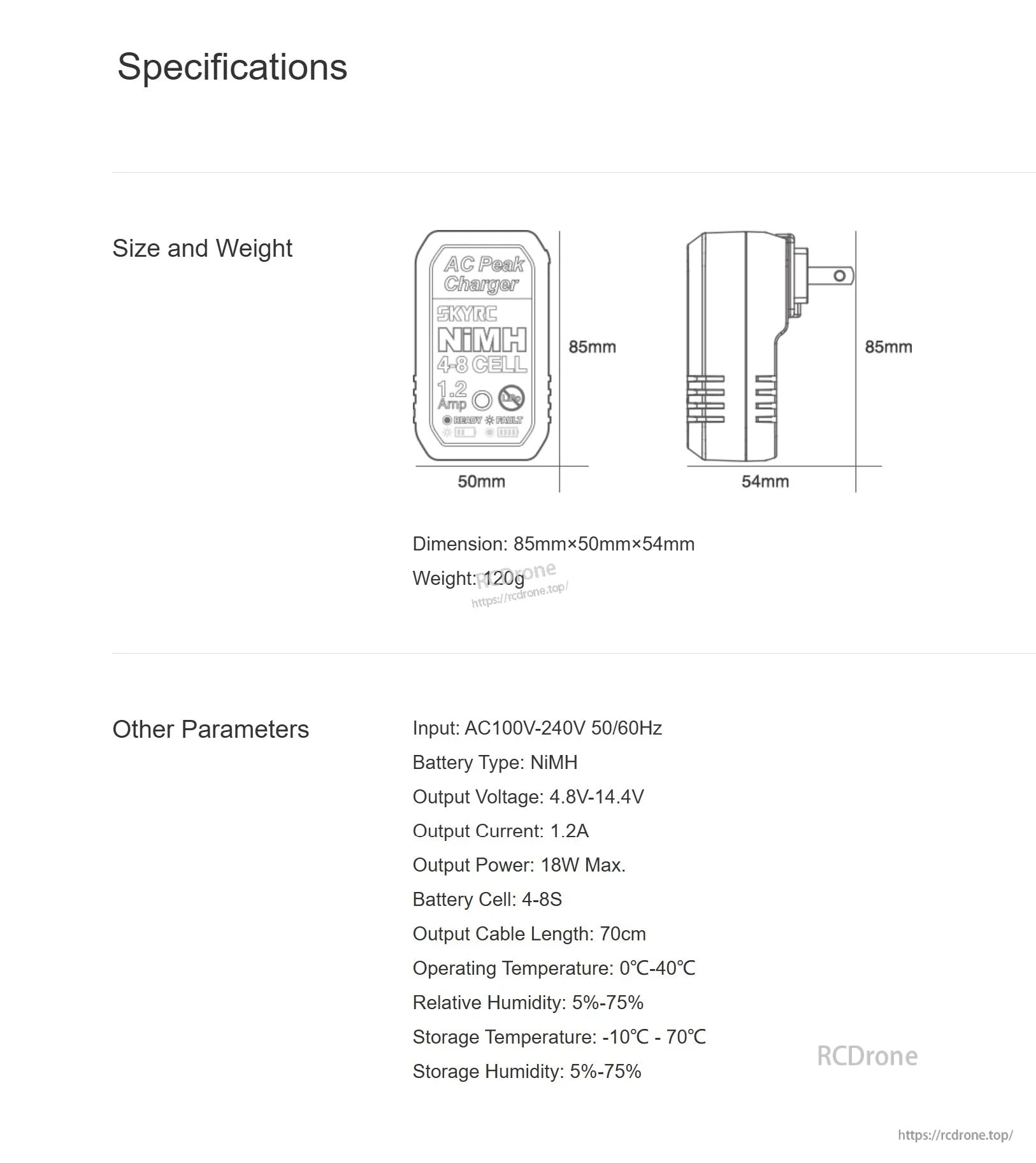

Specifications
| Model | SkyRC eN18 |
| Charger Type | AC Peak Charger |
| Battery Type | NiMH |
| Battery Cell | 4-8S (4-8 Cell) |
| Input | AC100V-240V 50/60Hz |
| Output Voltage | 4.8V-14.4V |
| Output Current | 1.2A |
| Output Power | 18W Max. |
| Output Cable Length | 70cm |
| Operating Temperature | 0°C-40°C |
| Relative Humidity | 5%-75% |
| Storage Temperature | -10°C - 70°C |
| Storage Humidity | 5%-75% |
| Dimensions | 85mm x 50mm x 54mm |
| Weight | 120g |
Applications
- Charging 4-8 cell NiMH battery packs for RC cars, trucks, and buggies
- Charging 4-5 cell NiMH receiver packs
Optional Parts
- Charging cables are not included in the package and need to be purchased separately.
- Deans Female to Tamiya Male (SK-800023-17)
- Tamiya Female to Mini Tamiya Male (SK-800023-18)
Details

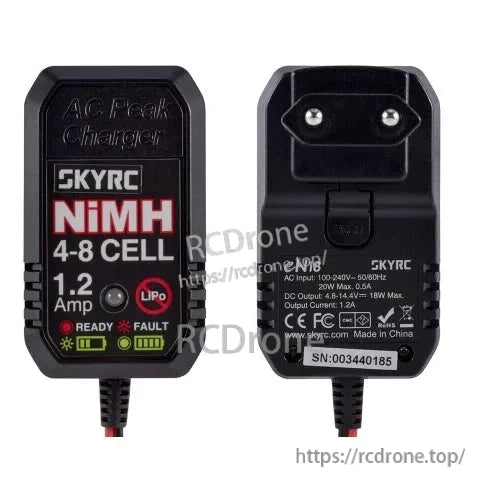

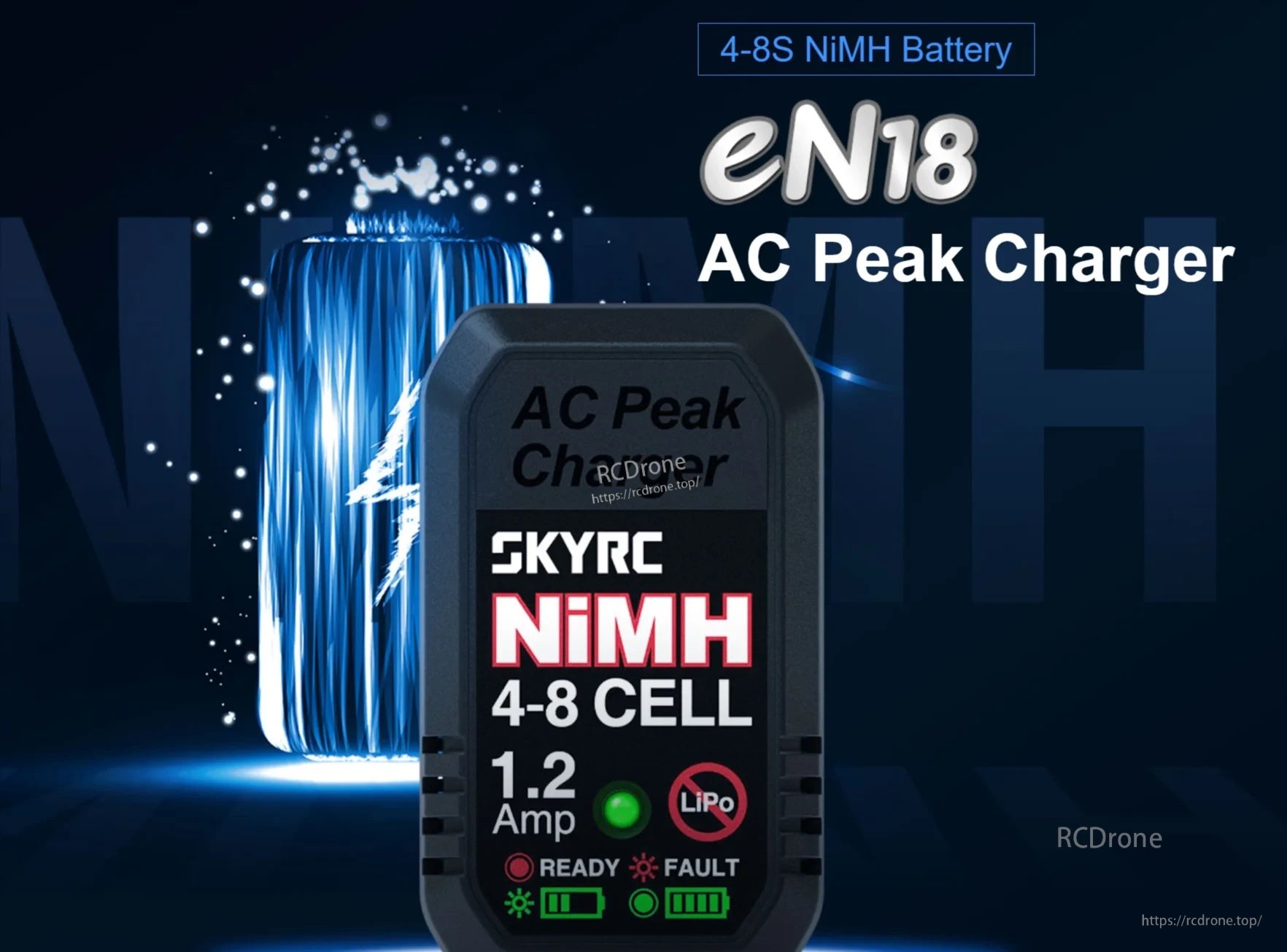

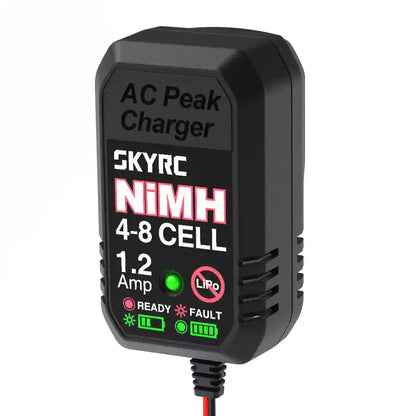

The SkyRC eN18 AC peak charger supports 4–8 cell NiMH packs with a simple front-panel display and Ready/Fault status LEDs.

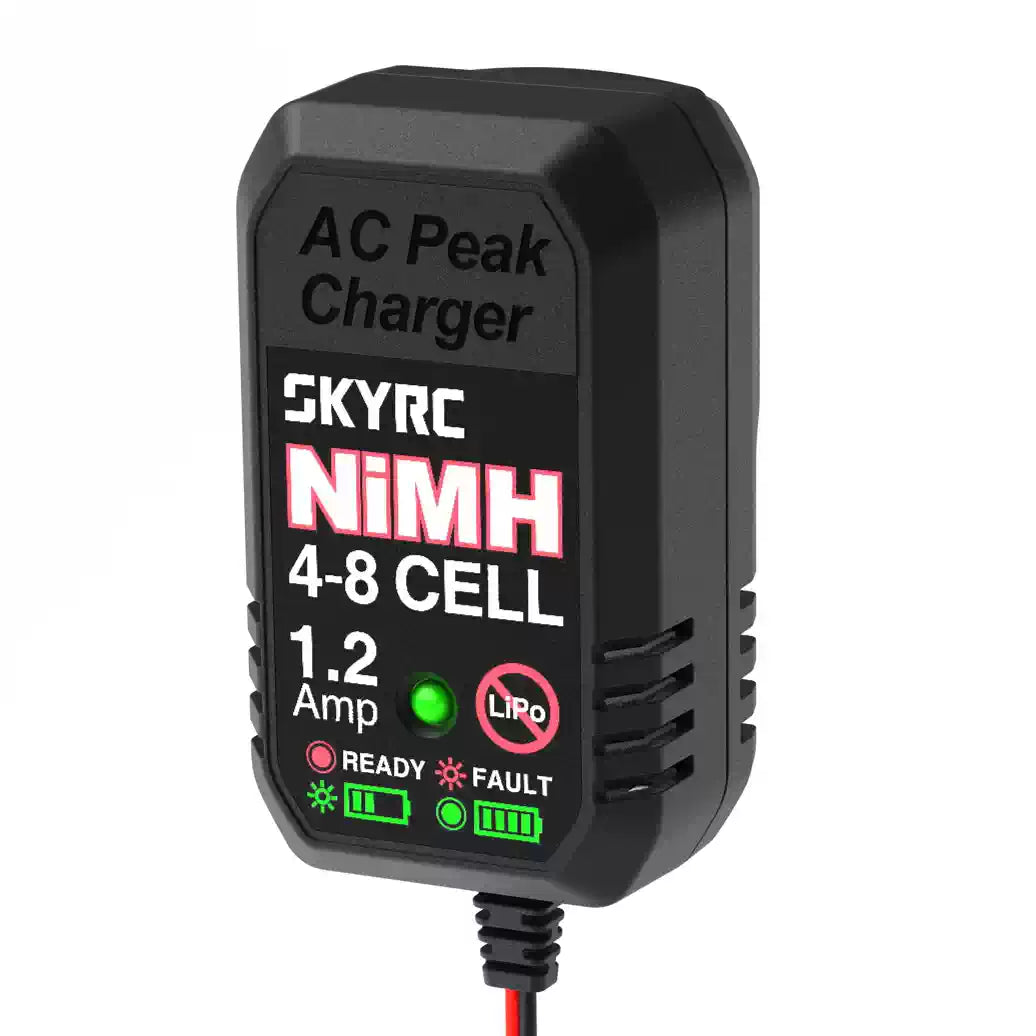

SkyRC eN18 NiMH peak charger plugs into AC power and provides a fixed 1.2A charge for 4–8 cell packs with clear status indicators.

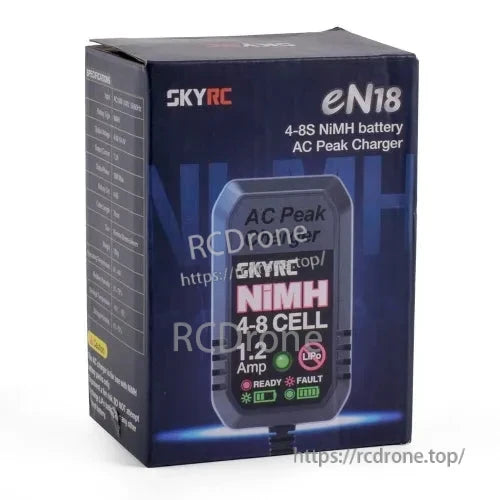

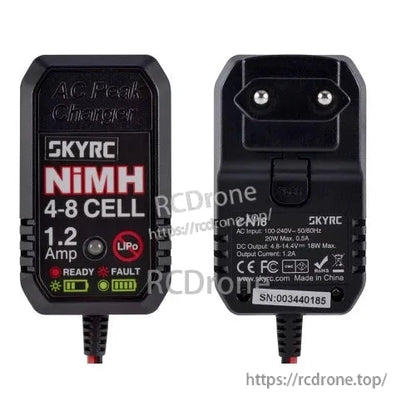

The SkyRC eN18 NiMH peak charger supports 4–8 cell packs, delivers up to 1.2A, and uses a bi-color LED for clear ready and fault status.

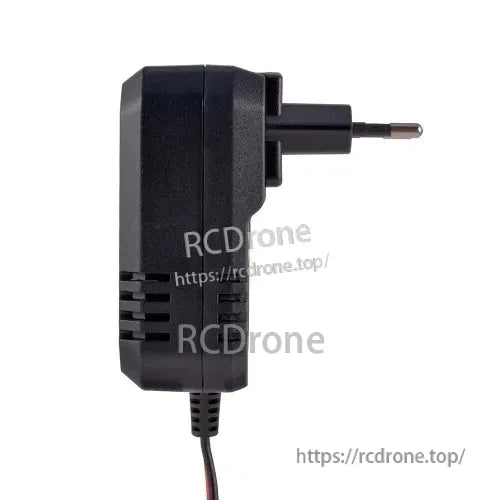

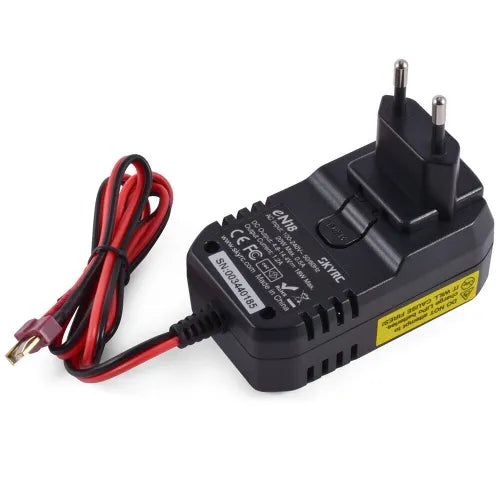

The SkyRC eN18 uses a detachable 100–240V AC plug adapter and a Tamiya male output connector, with additional charging leads available separately.
SkyRC eN18 NiMH peak charger supports 4.8–14.4V packs with delta‑V peak detection and up to 1.2A output.
The SkyRC eN18 NiMH peak charger is rated for AC 100–240V input and up to 1.2A output with 4.8–14.4V NiMH packs.
