SkyRC PC3000H Quattro Battery Charger 12S/14S LiPo/LiHV, 3000W 60A, CAN Bus, Active PFC
SkyRC PC3000H Quattro Battery Charger 12S/14S LiPo/LiHV, 3000W 60A, CAN Bus, Active PFC
SkyRC
Couldn't load pickup availability
Overview
The SkyRC PC3000H is a quattro battery charger designed for 12S/14S lithium battery packs, supporting LiPo (4.2V) and LiHV (4.35V) chemistries. It provides up to 3000W charging output (AC 220V) and up to 60A max charge current (single channel), with multi-channel charging for up to four batteries.
Key Features
- 12S/14S LiPo (4.2V) and LiHV (4.35V) support
- Quattro (four-channel) charging capability
- Charging modes: Fast charge / Standard Charge / Charge / Storage
- CAN Bus ready with built-in CAN Bus communication; CAN port
- English-Chinese interface (language switchable)
- High-quality ventilator with dust/sediment filtering; detachable for cleaning
- Rubber cover for charging port protection (helps reduce corrosion/oxidation when not in use)
- Active PFC; conversion rate: up to 93%
- Conformal coating protection for key circuit electronic components (anti-corrosion)
- Multiple protection: short circuit protection, reverse polarity protection, over-temperature protection
- Battery life extended with pre-charge (detects overall voltage via balance port and adjusts charging current)
Specifications
| Housing material | Plastic (Flame Retardant PC+ABS) |
| Size | 294mmx139mmx282mm |
| Weight | 6Kg |
| Battery type | Lithium Battery |
| LiPo battery cells | 12S/14S (4.2V) |
| LiHV battery cells | 12S/14S (4.35V) |
| AC 220V fast charge current | max. 60A single channel |
| AC 220V standard charge current | max. 30A single channel, max. 60A Dual channels in total |
| AC 220V slow charge current | max. 20A single channel; max. 60A multi channels in total |
| AC 120V fast charge | max. 1200W single channel |
| AC 120V slow charge current | max. 20A single channel; max. 1200W multi channels in total |
| Storage discharge power (main port) | 50W Max. |
| Storage discharge power (balance port) | 80W Max. (The current will be adjusted based on the balance port’s temp) |
| Max charge output power (AC220V) | 3000W |
| Max charge output power (AC120V) | 1200W |
| Discharge power | 60W |
| Charging mode | Fast charge / Standard Charge / Charge / Storage |
| Working temperature | 0℃-40℃ |
| Working humidity | 0%-75% |
| Storage temperature | -10℃-70℃ |
| Storage humidity | 0%-75% |
Notes
- The product materials state: “If the voltage is lowered to 120V, the power will be reduced to no more than 1200W.”
- The product materials state: “A 28000 mAh battery can be fully charged in 15 minutes” (charging time depends on battery condition, settings, and input power).
For compatibility questions (battery connectors, balance ports, CAN communication) or after-sales support, contact https://rcdrone.top/ or email support@rcdrone.top.
Details

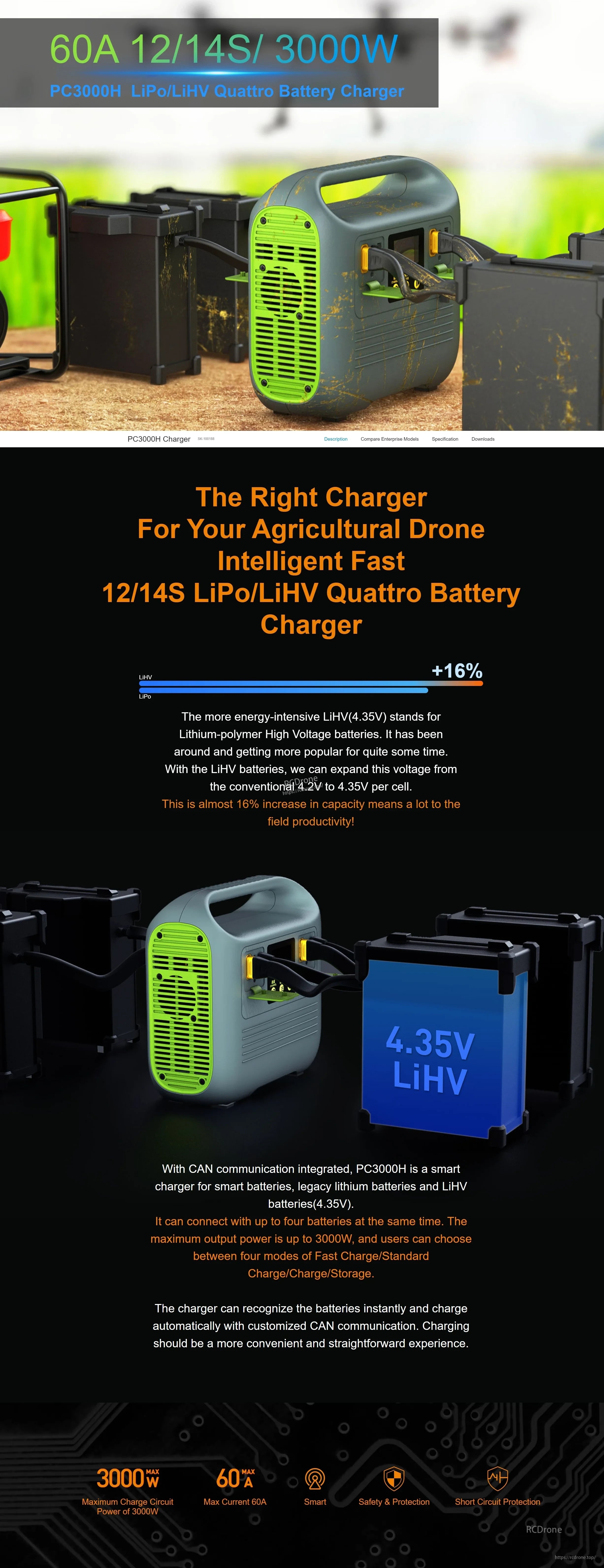

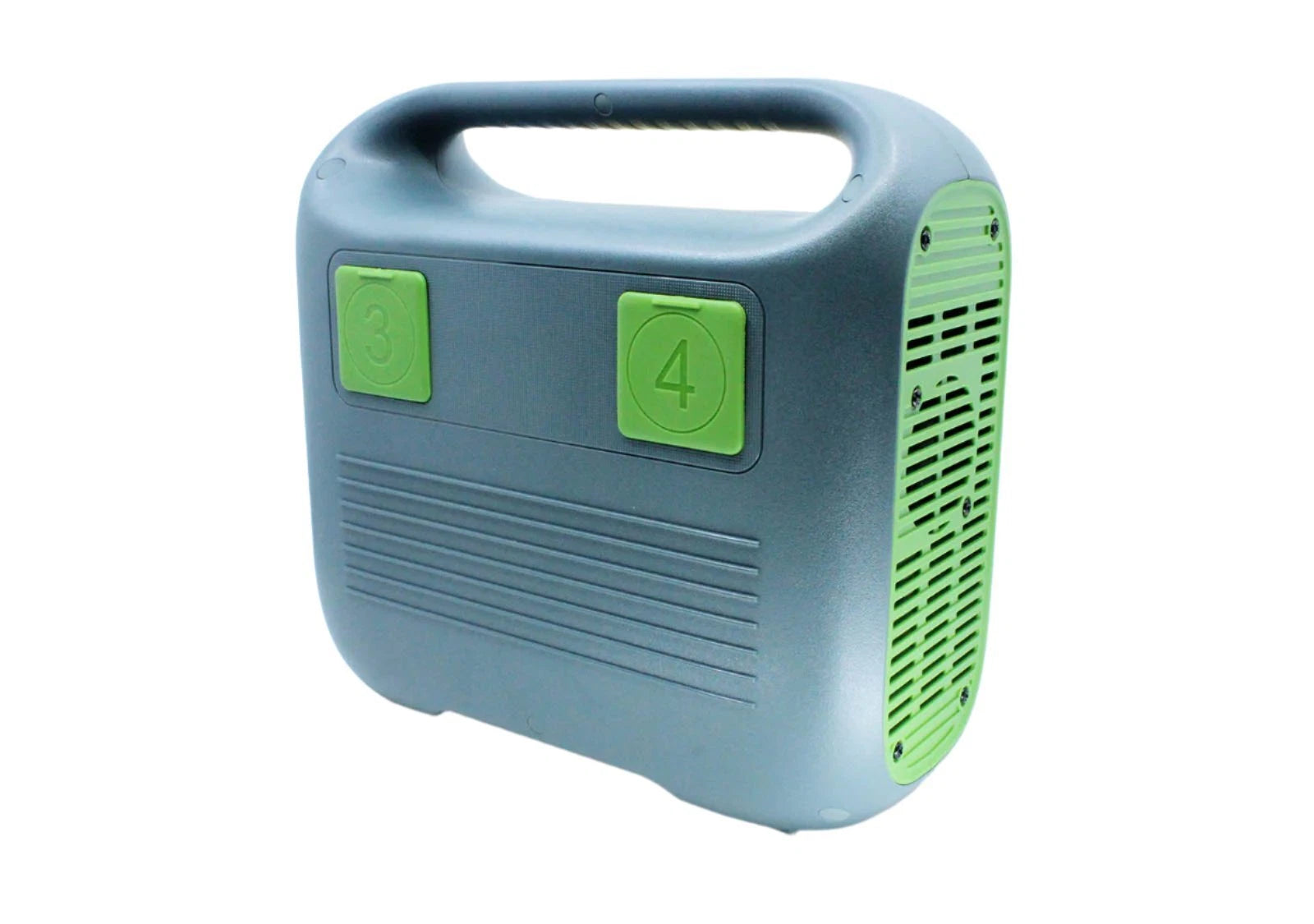

SkyRC PC3000H Quattro charger supports 12/14S LiPo/LiHV packs with up to 60A and 3000W output for high-capacity battery setups.

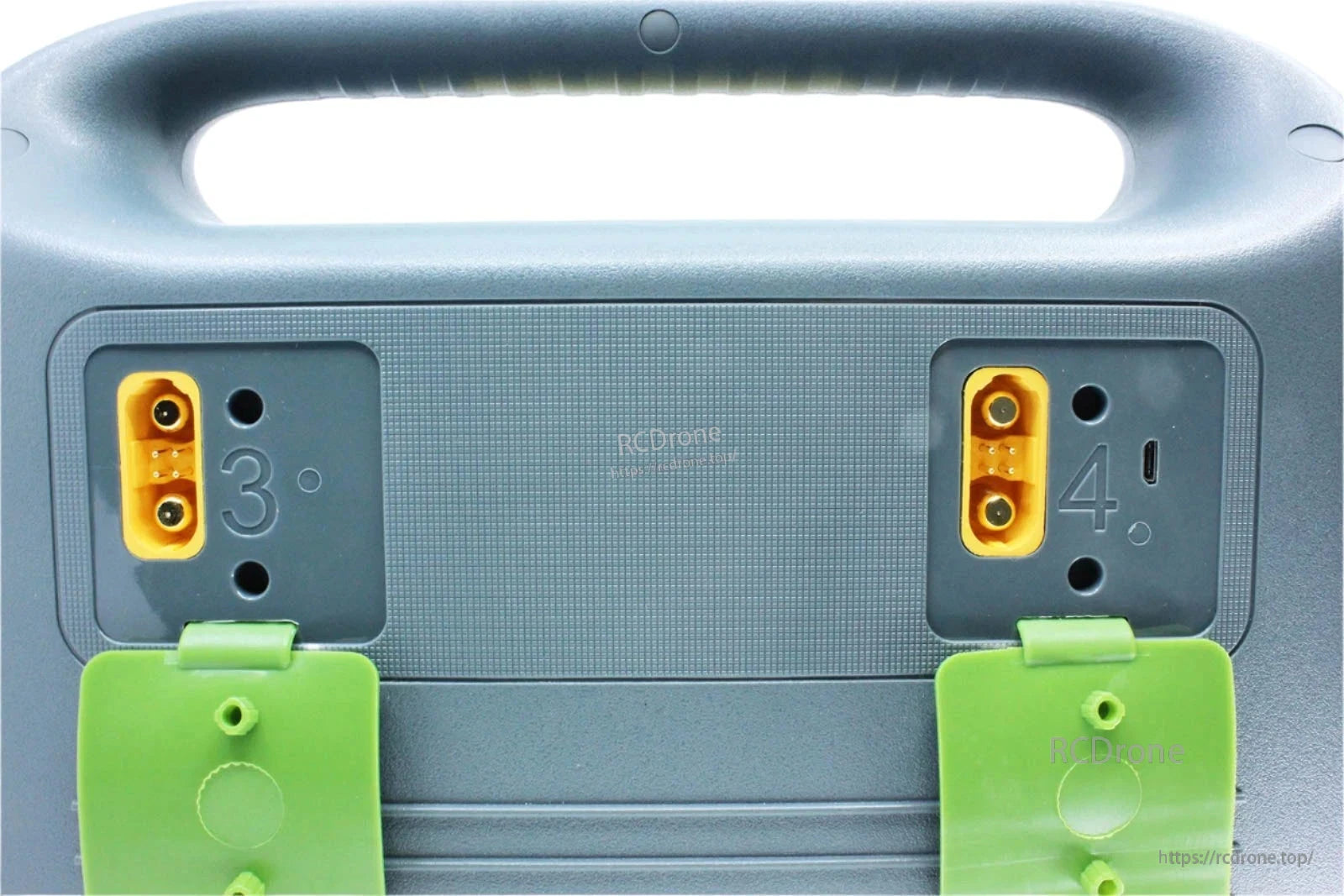

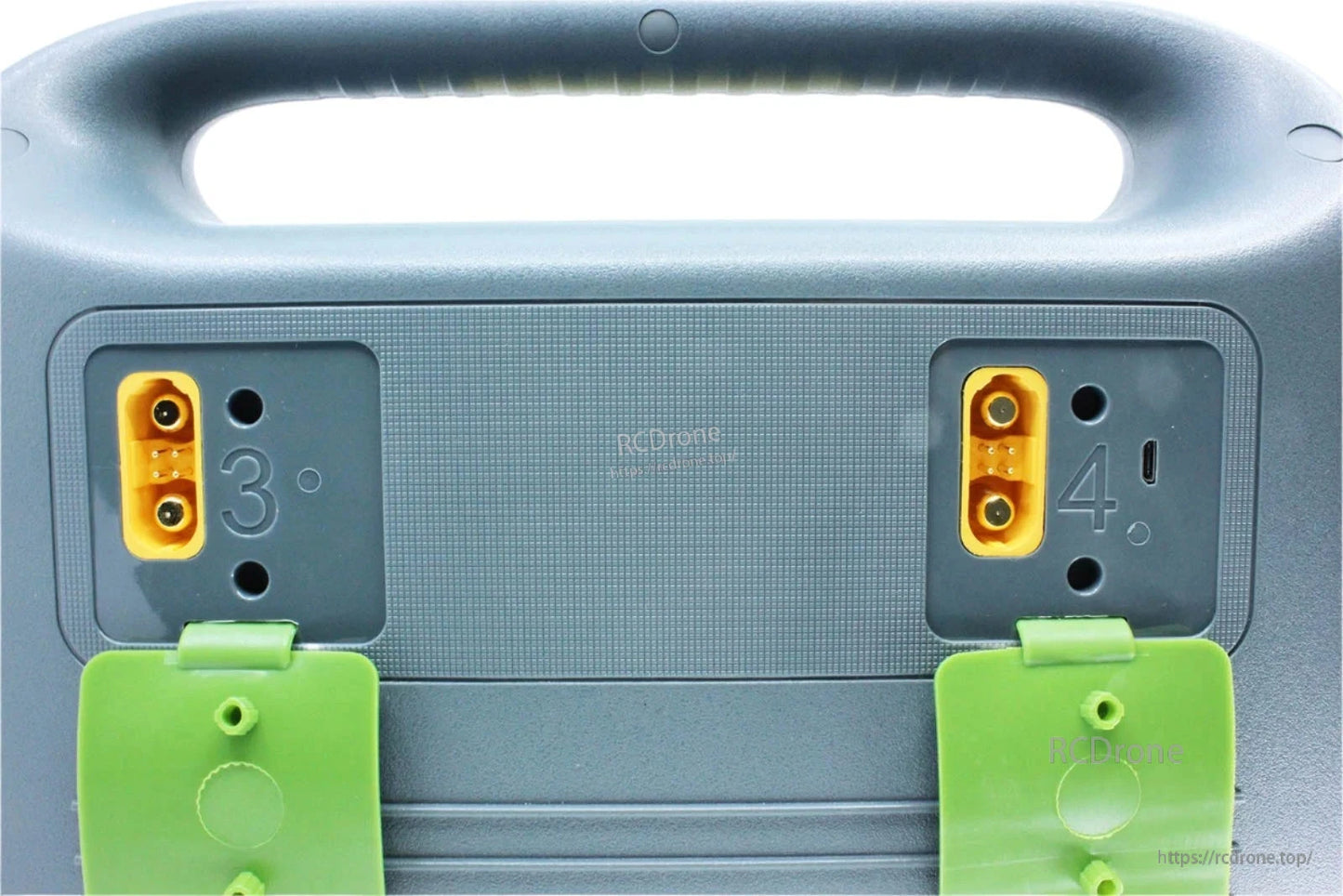

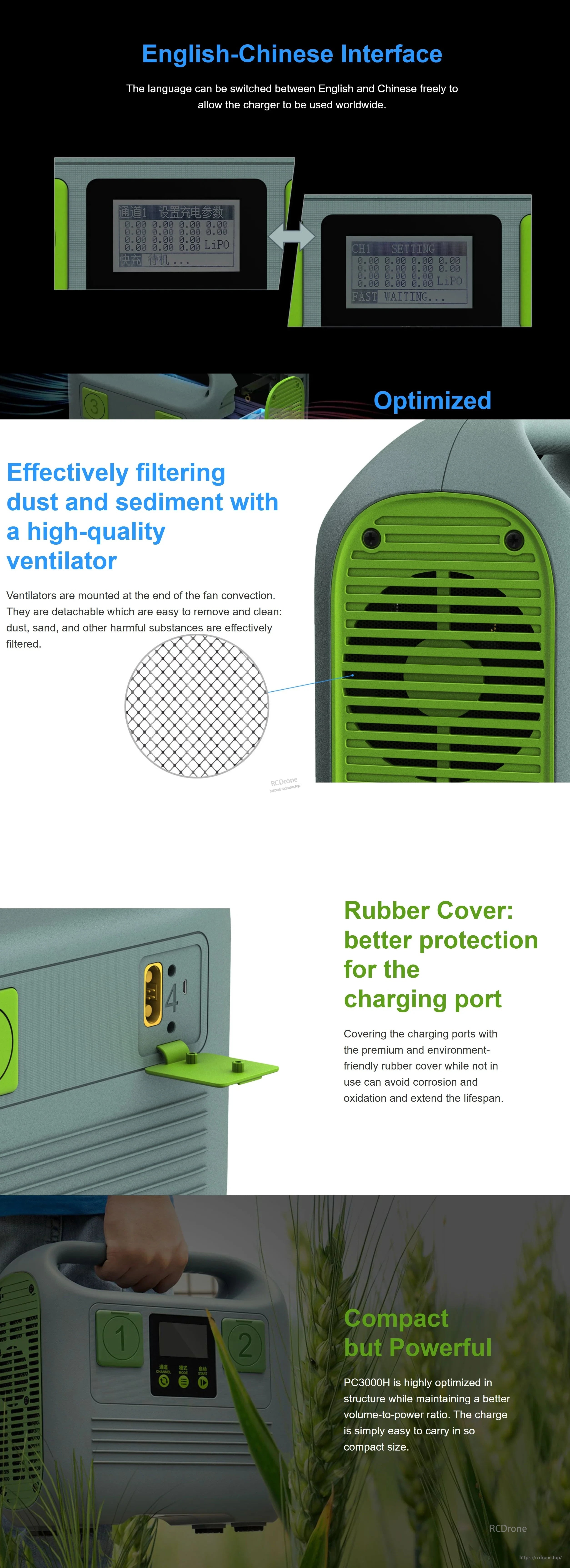

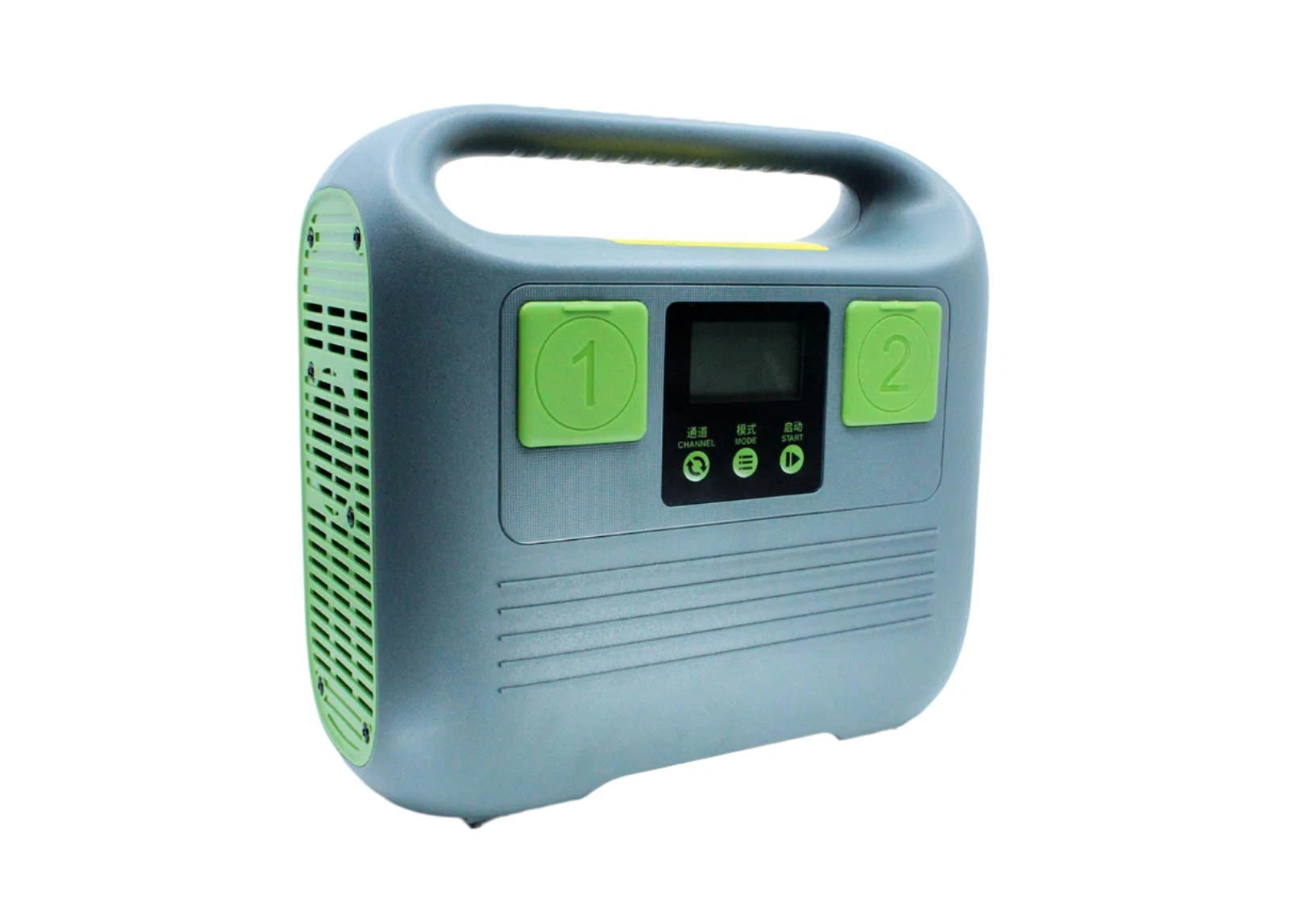

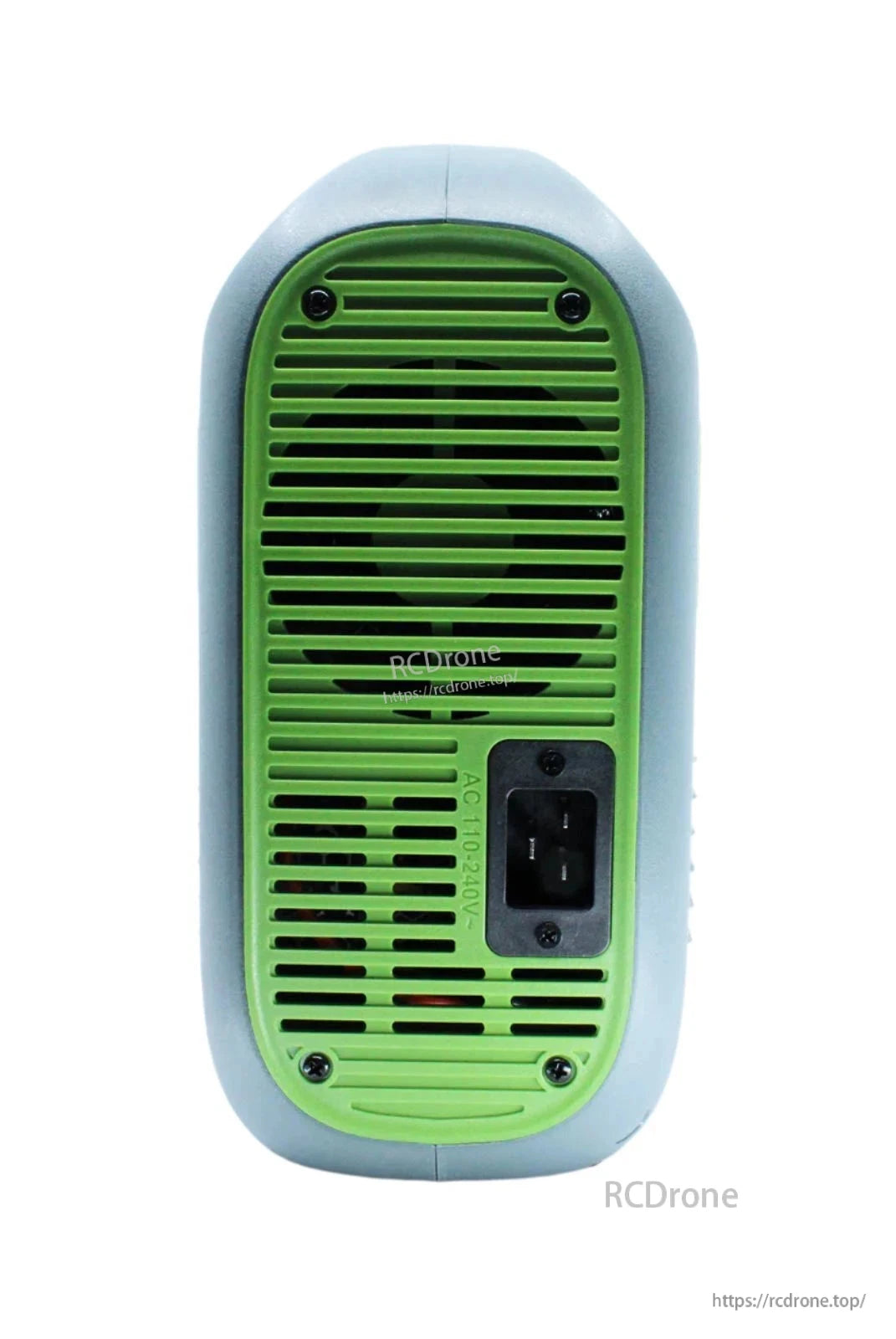

The SkyRC PC3000H Quattro charger features an English-Chinese menu interface, a vented cooling grille with filter, and a rubber cover for the charging port.

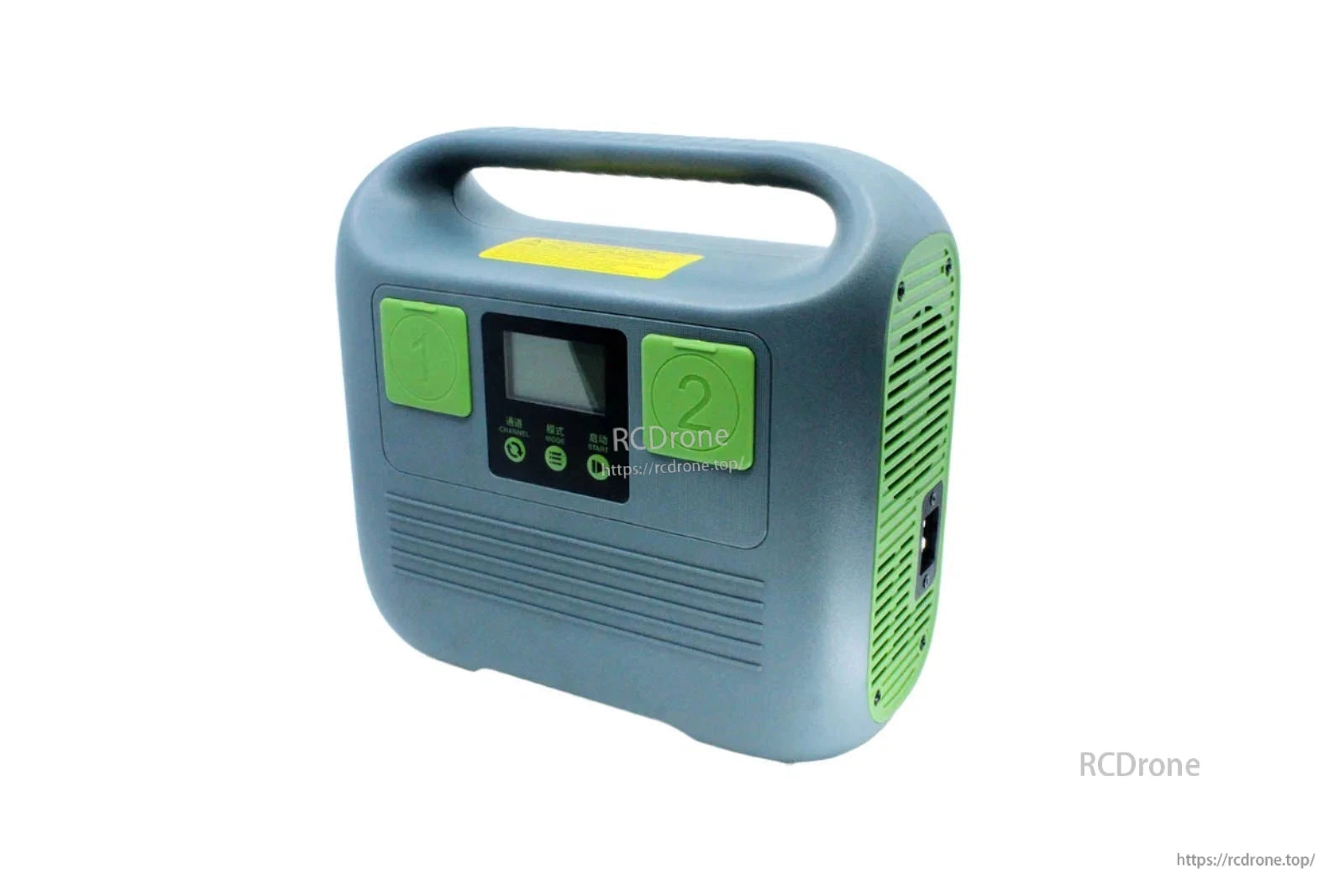

The SkyRC PC3000H Quattro charger features an intuitive screen and controls, four-channel 3000W charging, and a built-in CAN port for smart battery communication.

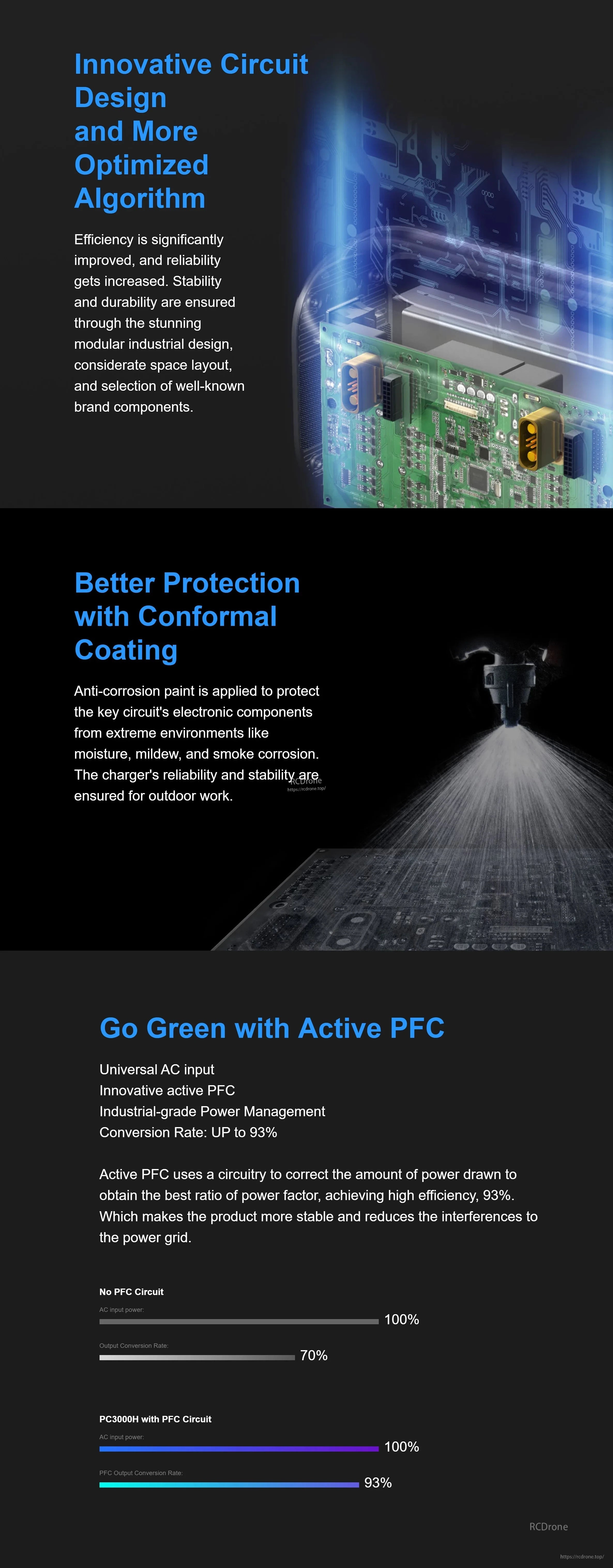

SkyRC PC3000H Quattro uses an optimized circuit design, conformal coating protection, and active PFC with up to 93% conversion rate.

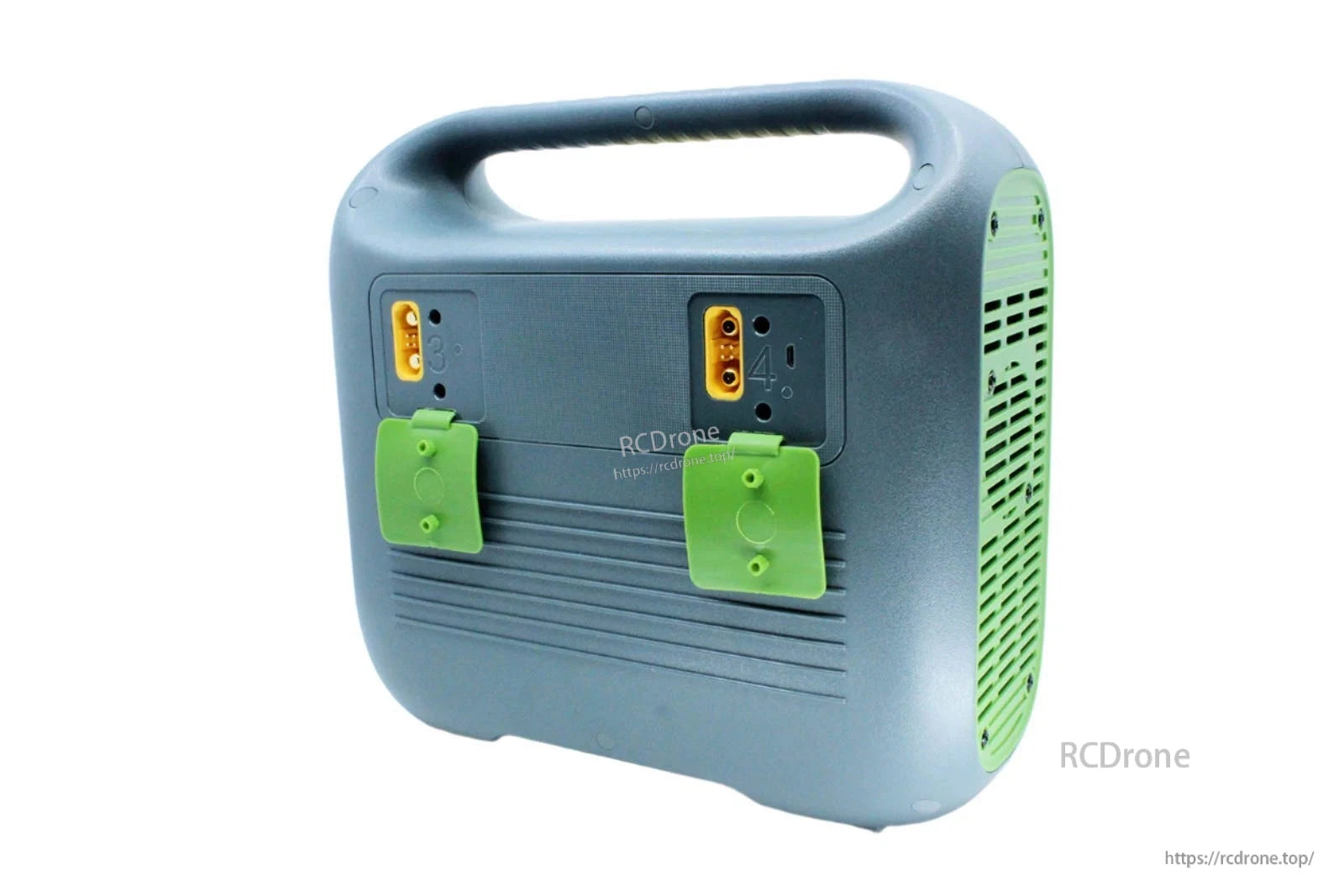

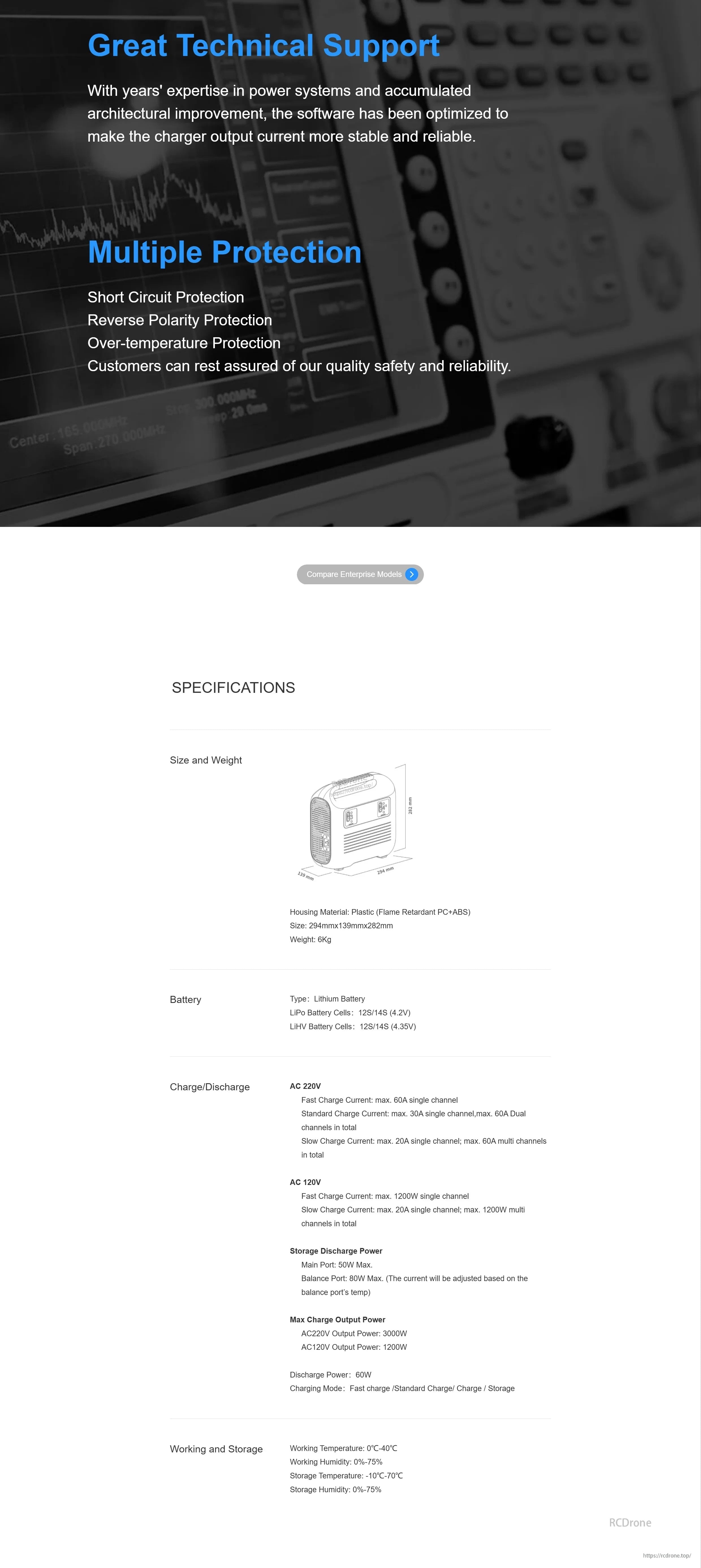

SkyRC PC3000H Quattro includes short-circuit, reverse-polarity, and over-temperature protection, with a listed size of 294×139×282 mm and weight of 6 kg.
