Overview
SkyRC Type35N is a PD-powered 4-8S NiMH/NiCd battery charger designed for convenient charging from USB-C PD sources. It supports PD3.0 input (9-20V) with up to 35W charge power, and offers selectable charge current levels (1A/2A/3A) with a tri-color LED status system for clear operation feedback.
Key Features
- USB-C PD input: PD3.0 9-20V
- Charge power: Max. 35W
- Selectable charge current: 1A / 2A / 3A
- Supported battery chemistry: NiMH/NiCd
- Supported battery cells: 4S-8S
- Tri-color LED status indication (current + warning indicators)
- One-button operation
- Compliance marks shown: CE, FCC, RoHS, WEEE

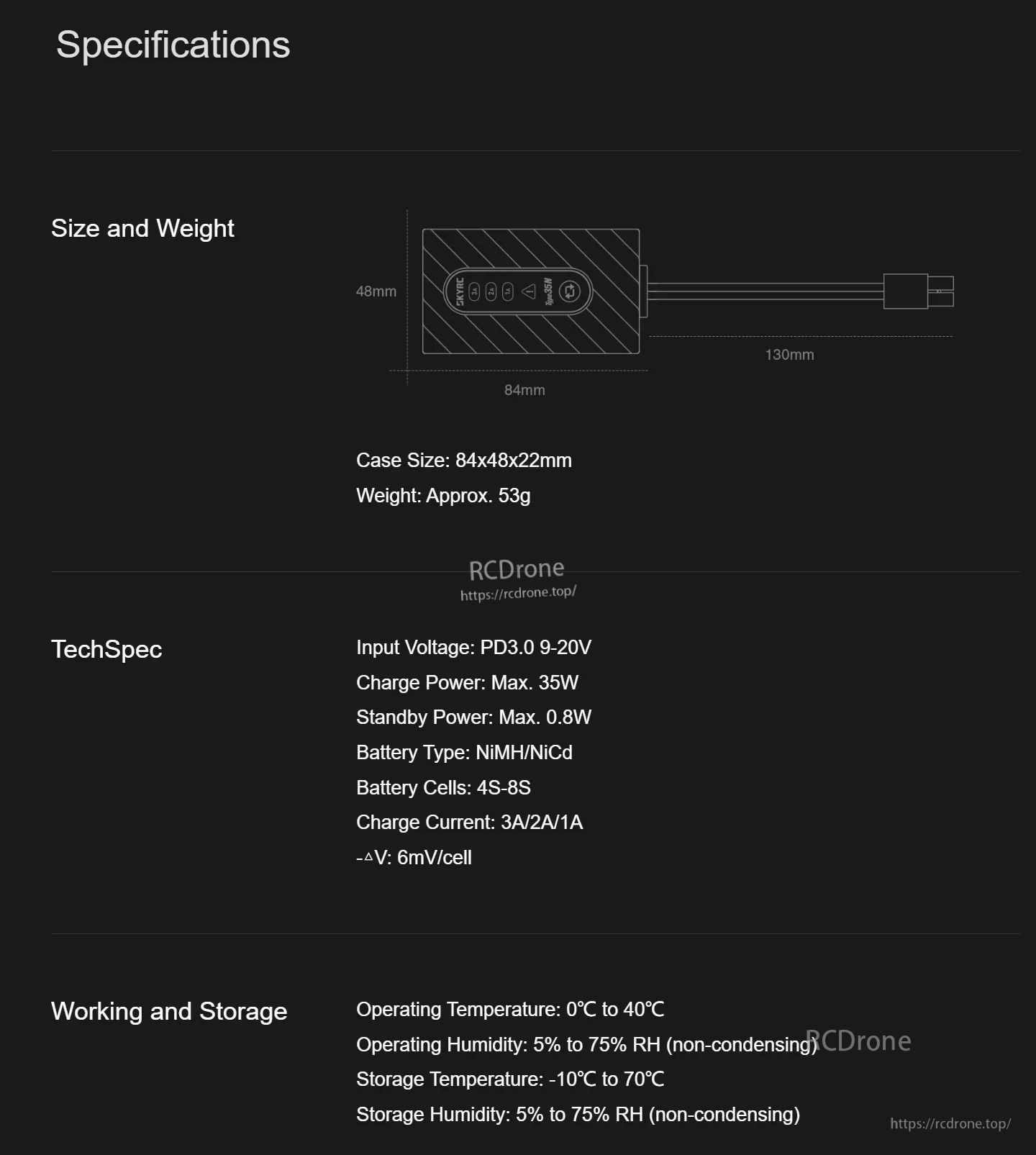

Specifications
| Input Voltage | PD3.0 9-20V |
| Charge Power | Max. 35W |
| Standby Power | Max. 0.8W |
| Battery Type | NiMH/NiCd |
| Battery Cells | 4S-8S |
| Charge Current | 3A / 2A / 1A |
| -ΔV | 6mV/cell |
| Case Size | 84 x 48 x 22 mm |
| USB-C Cable Length | 130 mm |
| Weight | Approx. 53 g |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% to 75% RH (non-condensing) |
| Storage Temperature | -10°C to 70°C |
| Storage Humidity | 5% to 75% RH (non-condensing) |

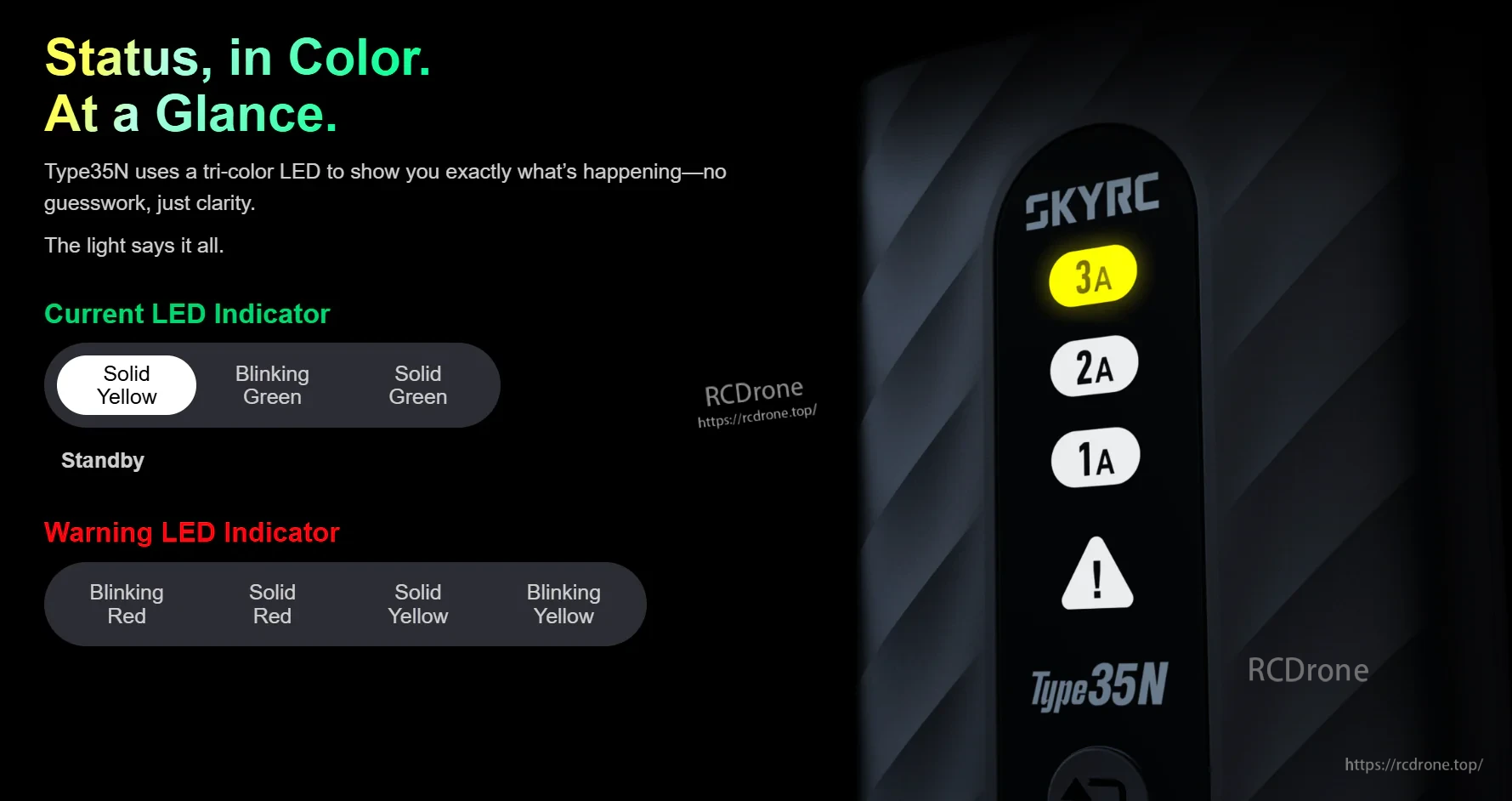

LED Indicators
Current LED Indicator
- Solid Yellow: Standby
- Blinking Green
- Solid Green
Warning LED Indicator
- Blinking Red
- Solid Red
- Solid Yellow
- Blinking Yellow
What’s Included
- SkyRC Type35N charger
Note: Charging cables/adapters are not included and need to be purchased separately.
Applications
- Charging 4S-8S NiMH/NiCd battery packs for RC models and hobby electronics where USB-C PD power is available
For connector compatibility questions or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.
Details

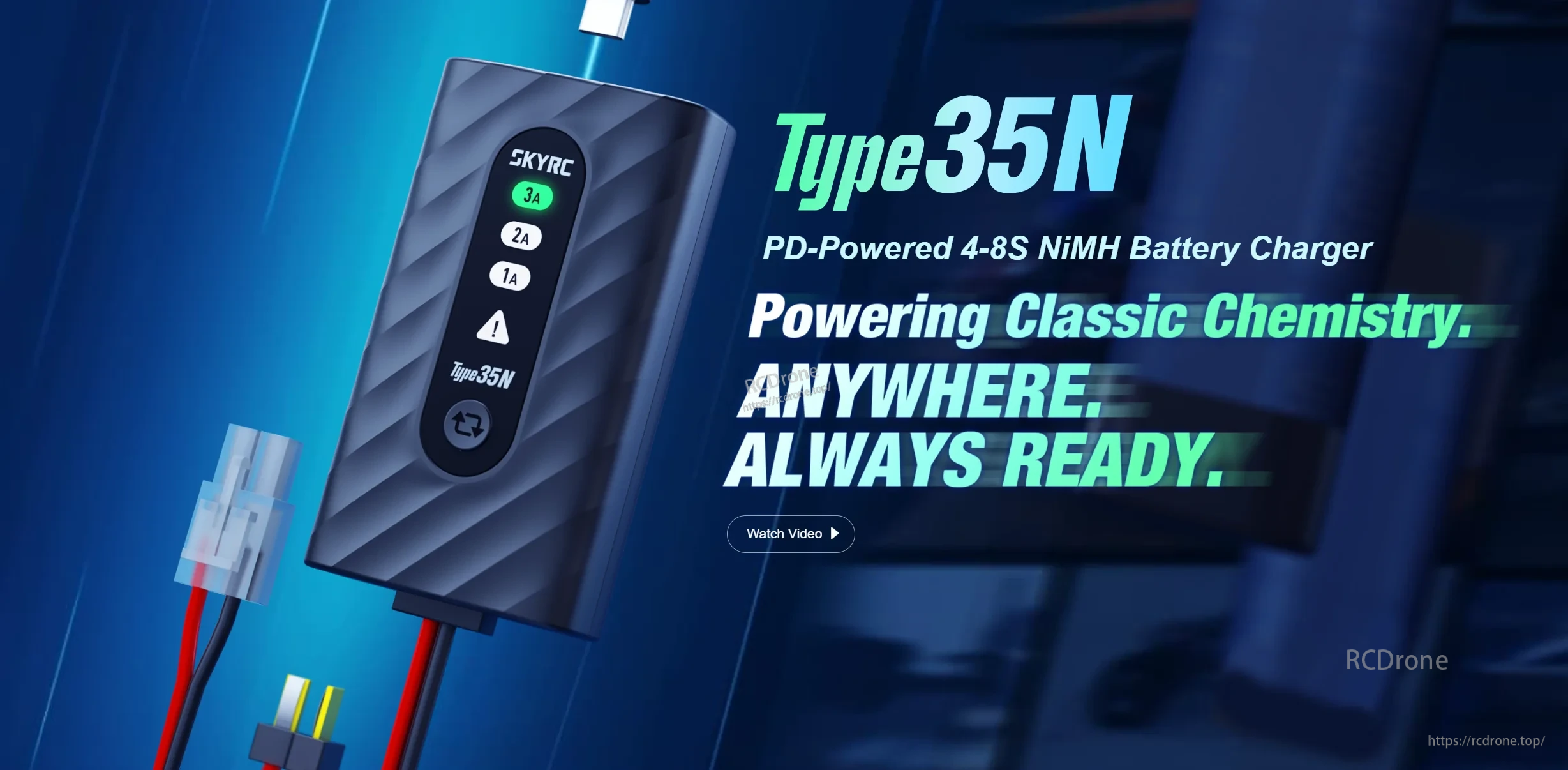

The SkyRC Type35N uses a compact, handheld design with simple front-button controls for charging 4–8S NiMH battery packs.

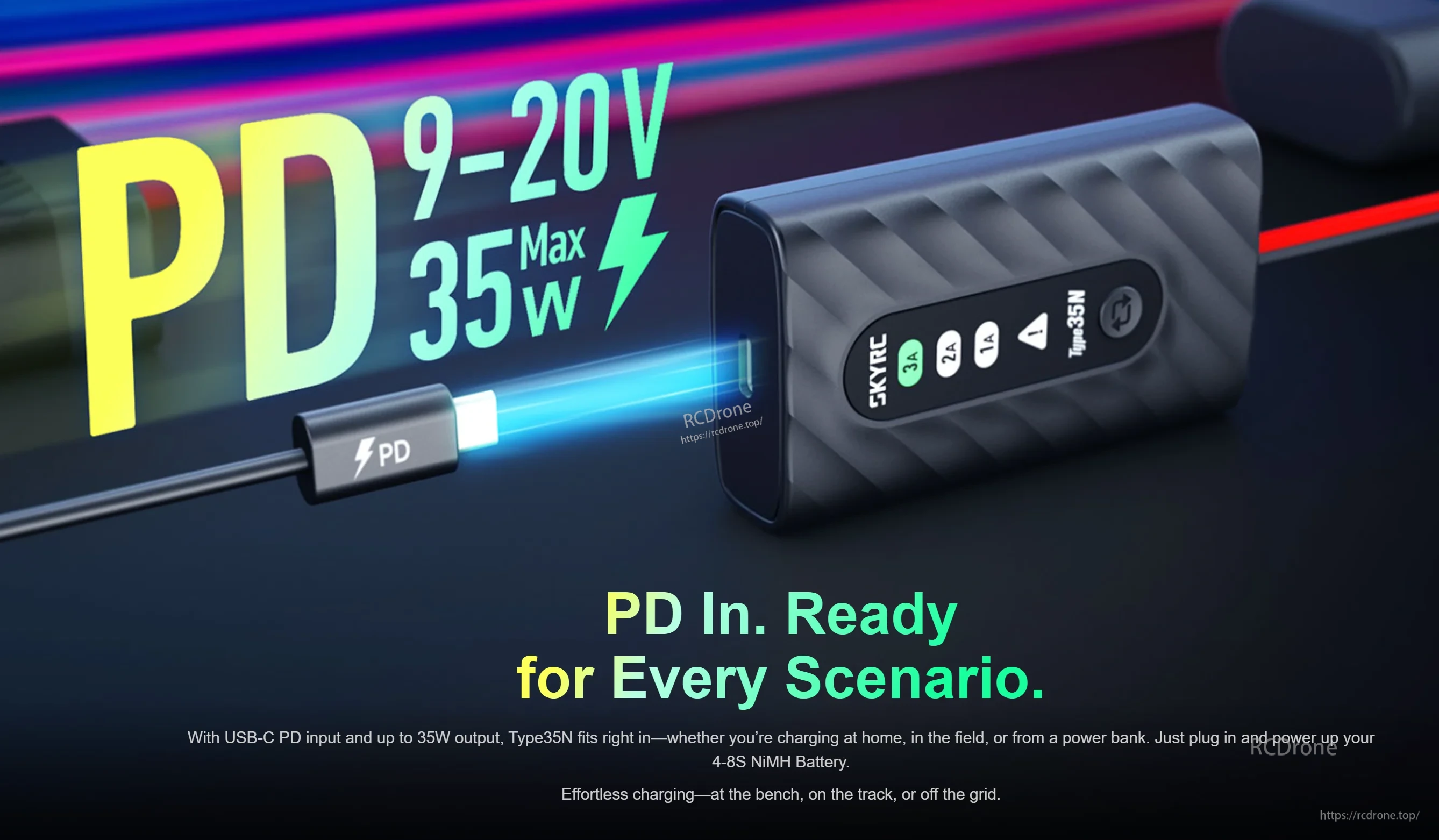

SkyRC Type35N uses USB-C PD input (9–20V, up to 35W) for convenient NiMH/NiCd battery charging from compatible power sources.

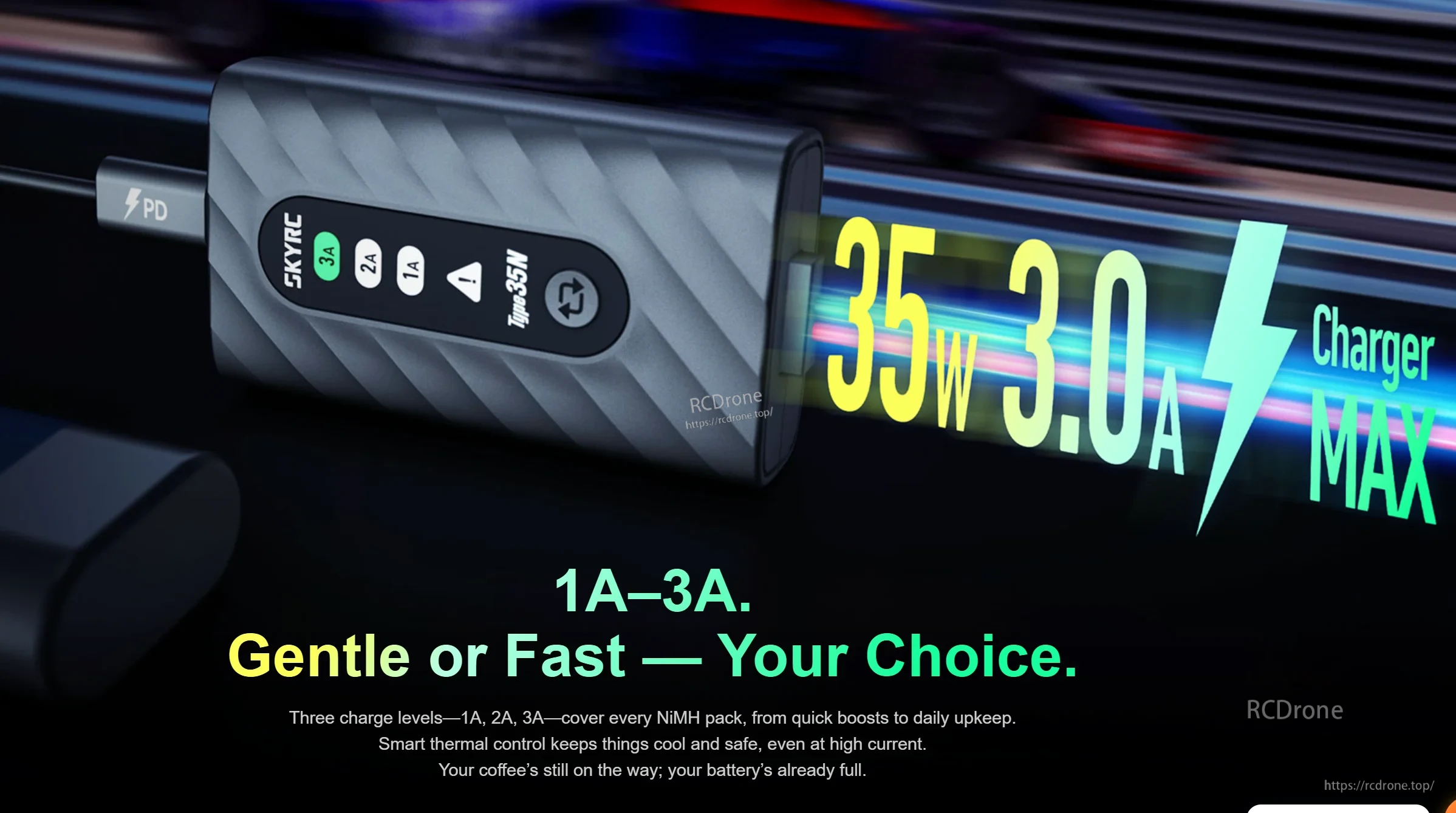

SkyRC Type35N supports PD-powered charging with selectable 1A–3A levels and up to 35W output for flexible battery charging.

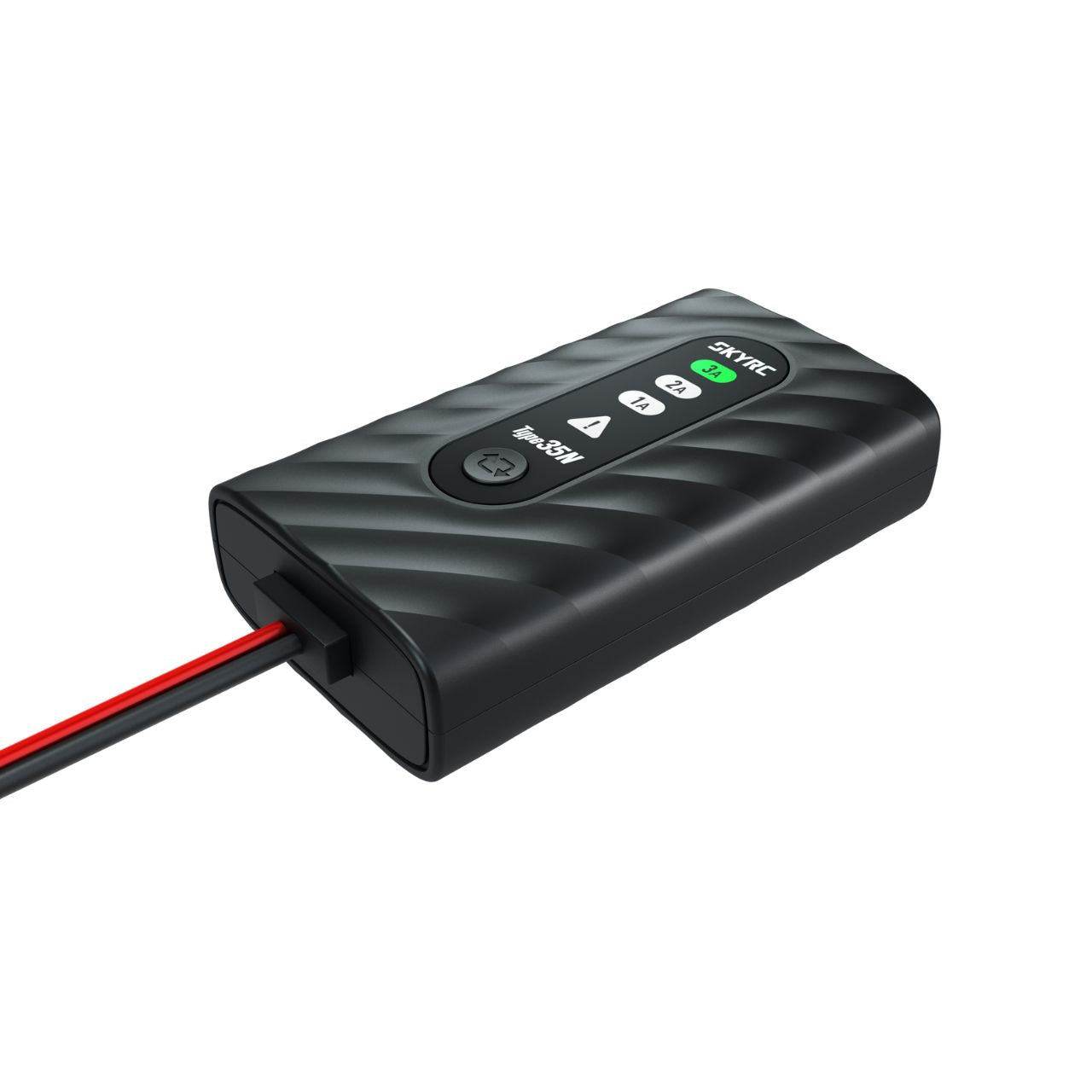

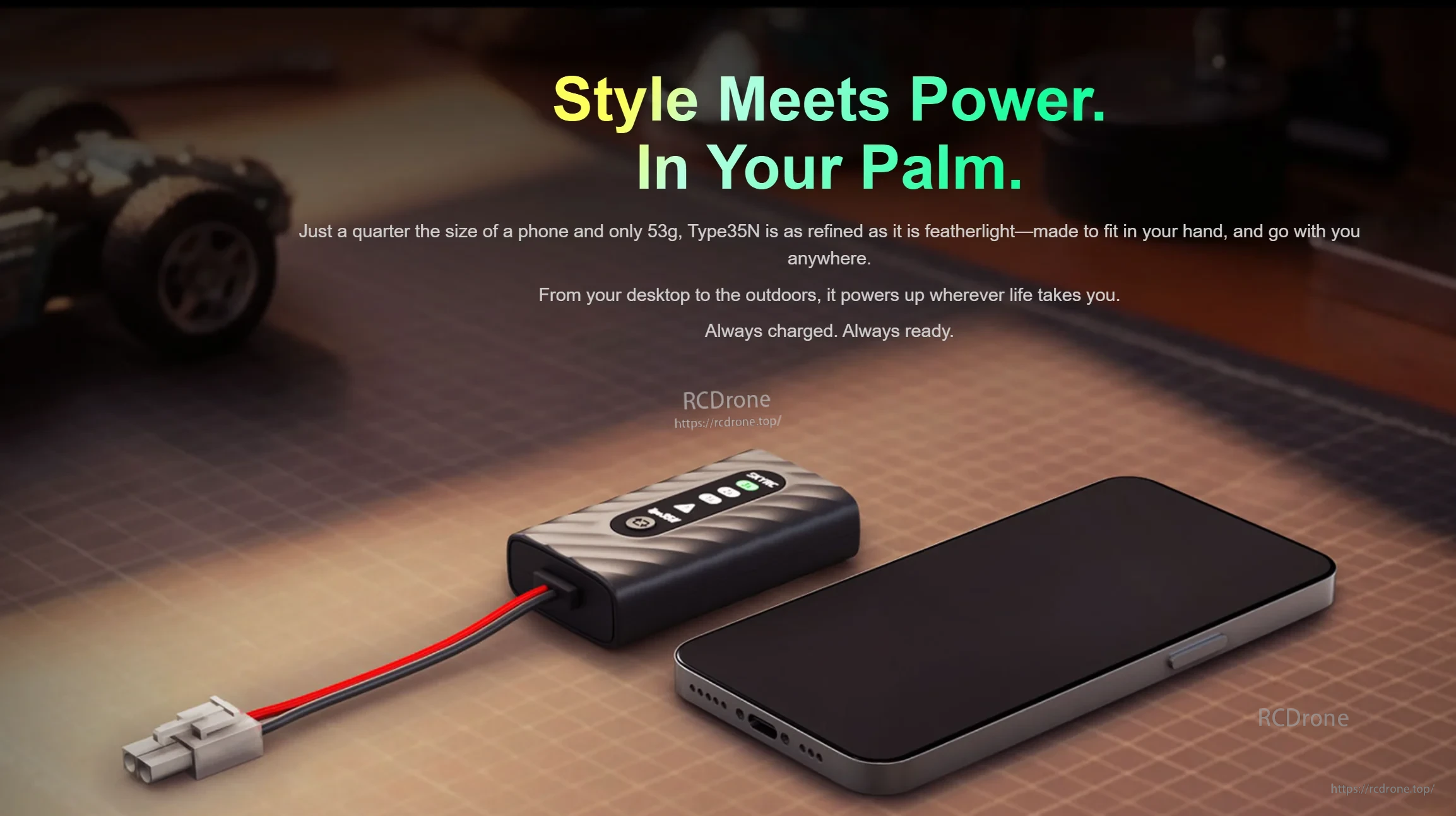

The SkyRC Type35N pairs a compact, palm-size charger body with a simple lead connection for portable charging setups.

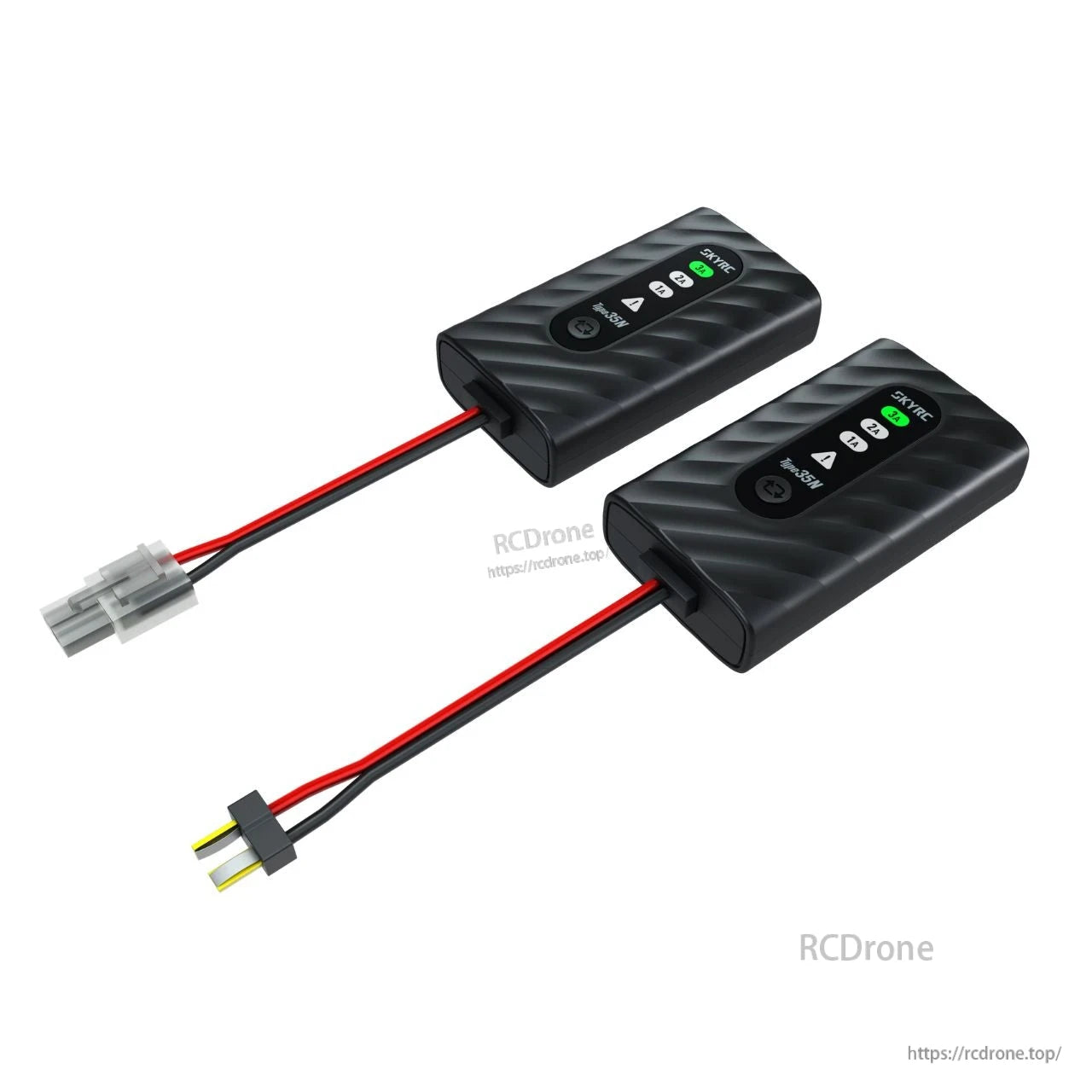

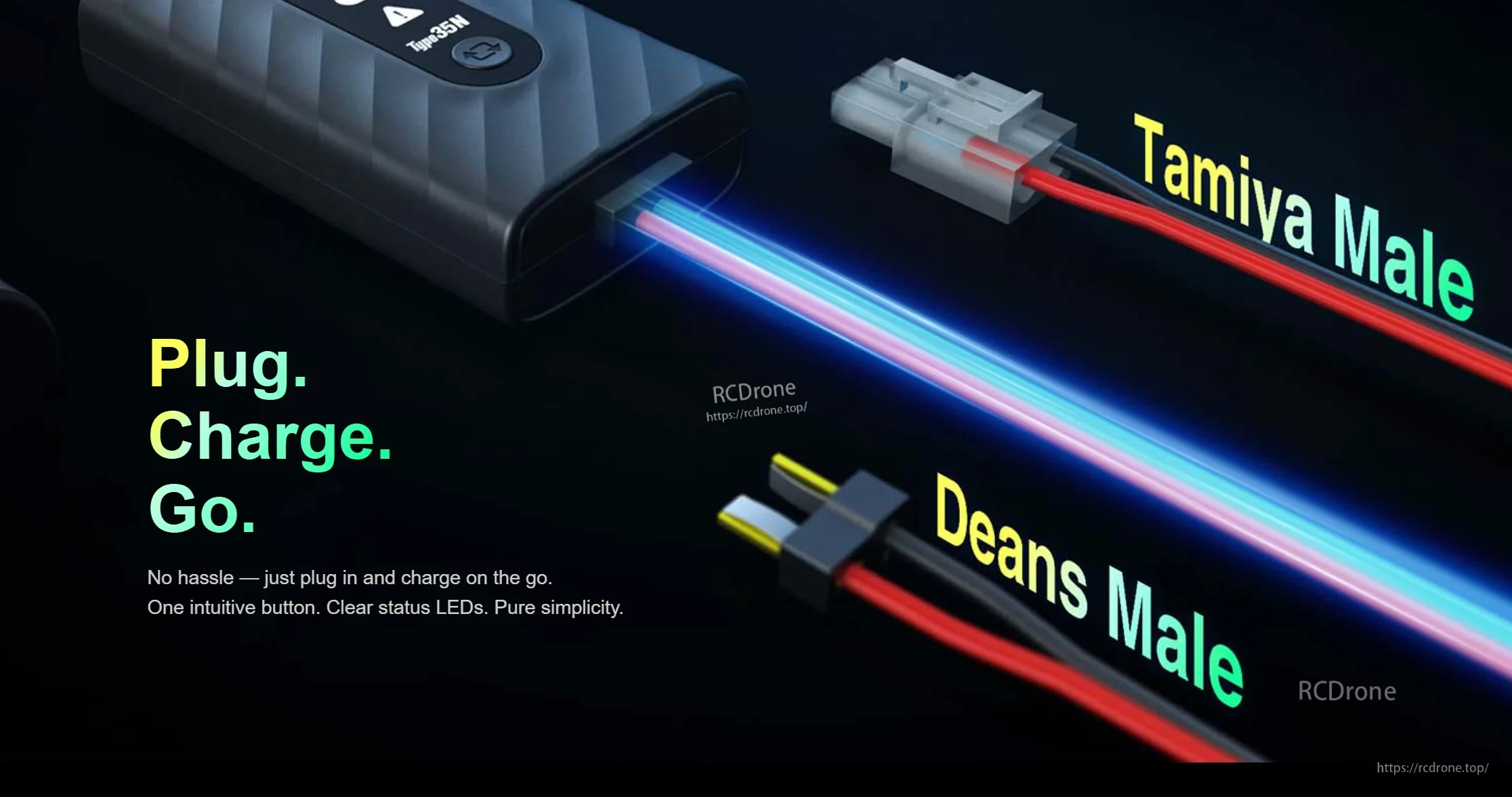

SkyRC Type35N uses a compact, one-button design with output leads for Tamiya male and Deans male connectors.
SkyRC Type35N uses a color LED indicator and simple 1A, 2A, or 3A selection for quick at-a-glance charging status.
CE, FCC, and RoHS-style compliance marks are presented alongside a “We are Certified, We are Qualified!” statement.

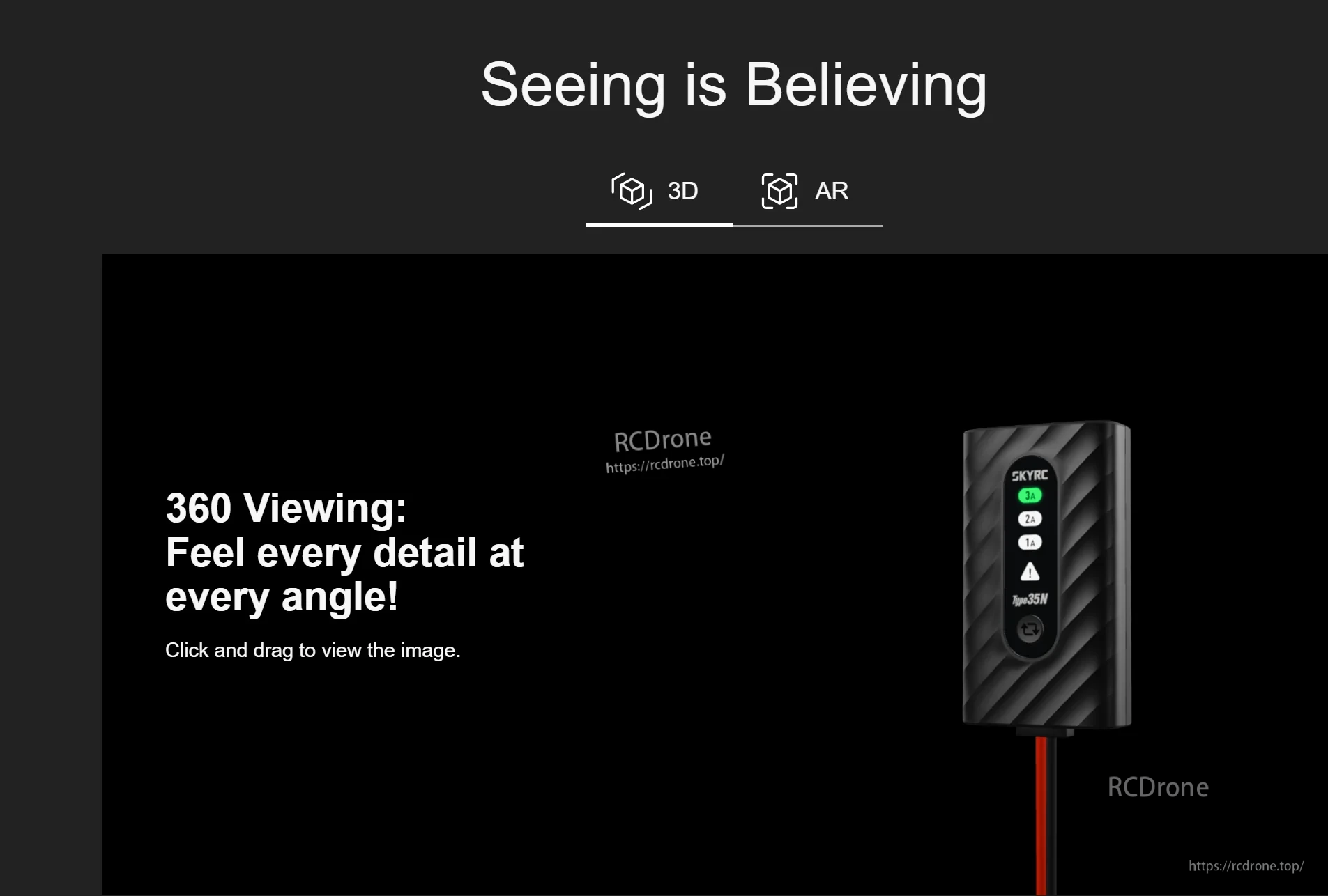

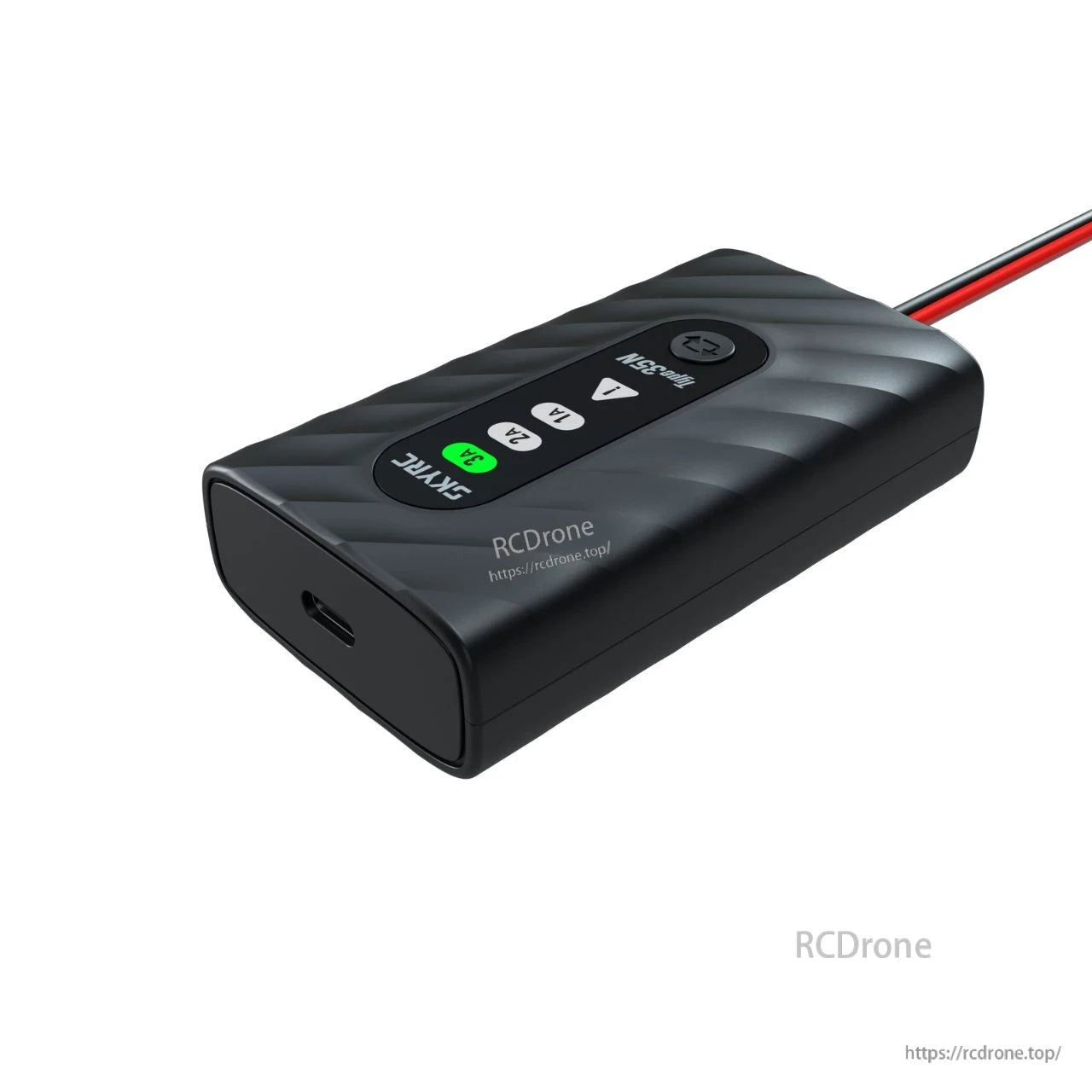

The SkyRC Type35N charger uses a compact, handheld-style design with simple front buttons for quick operation.

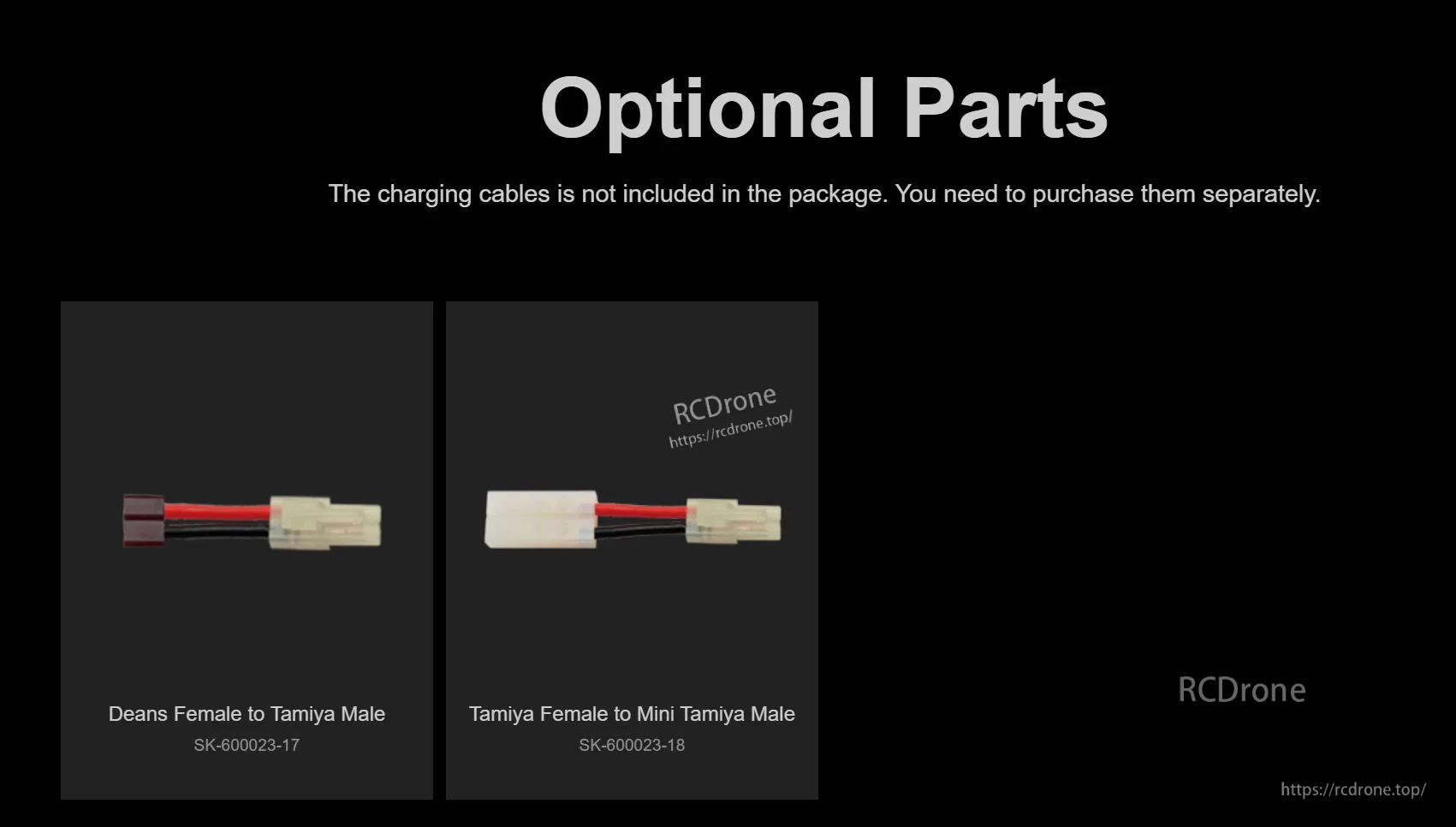

Optional charging lead adapters are available, including Deans female to Tamiya male and Tamiya female to mini Tamiya male cables (sold separately).
SkyRC Type35N supports USB-C PD3.0 9–20V input and charges 4–8S NiMH/NiCd packs up to 35W in a compact 84×48×22mm, 53g body.
