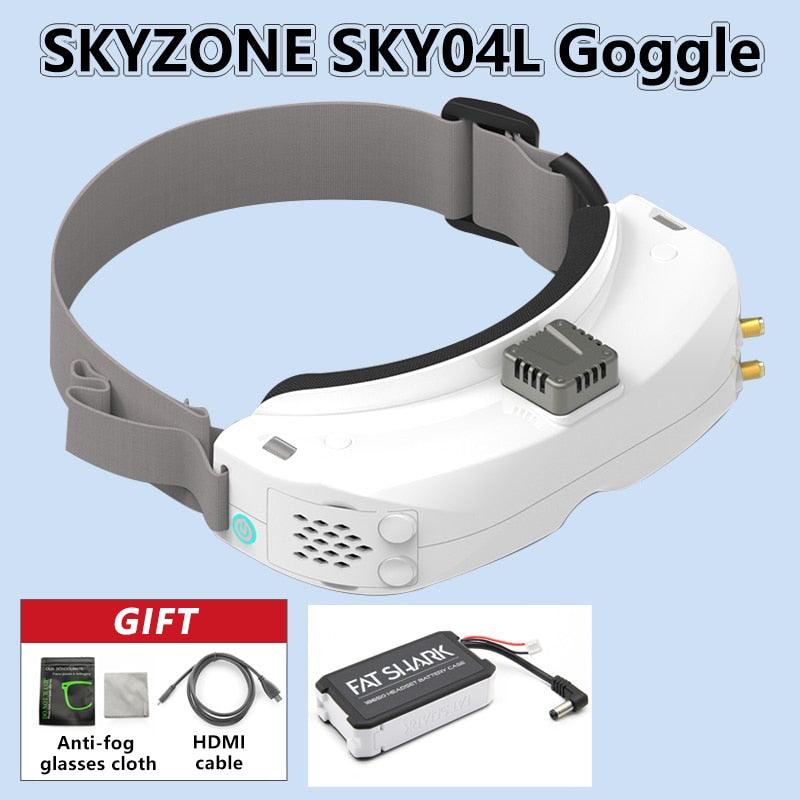

SKYZONE SKY04L V2 04L 04X FPV Goggles - 1280×960 5.8G 48CH Steadyview Receiver Build In Headtracker Video Glasses RC Racing Drone

With focus adjustment, 1280*960 high resolution LOCS screen , the screen have vivid color , pilot can see more details in the racing .

With steadyview receiver , the receiver merge two signals to one, avoid image tearing and rolling, make image more stable and clear in challenging condition.

The new designed optics have focus adjustment feature and 39 degree field of view, give pilots more immersive FPV experience.

The new OS with 10 languages to set select, pilot have no trouble with the menu system, with shuttle wheel and new user interface, pilot can set all the settings just by rolling the wheel without taking off the goggle.

Features

5.8G 48CH steadyview receiver

Focus Adjustment -6~+6

FOV 39°

LCOS 1280*960 High Resolution Screen

Dual Module Bay

Bulit-in with de-fogging and heat-sink fan

IPD range 58〜71mm

Channel scanning

Type C connector to upgarde the firmware or power goggle

HDMI in

2S-6S wide voltage support

Build in Headtracker

H.264 DVR60fps, SD card support up to 128GB

Package Included

1x SKY04L V2 Goggles

1x Steadyview Receiver Module

2x Faceplate (wide and narrow)

1x Sponge with velcro

1x Zipper case

1x Power cable

1x Headtracker cable

2x 5.8GHz 2dB antennas

1x Video/Audio Cable

1x USB-C Cable

1x Uer Manual

Goggles Focus Adjustment Shuttle Wheel Control SteadyView Receiver 16.9 10 Languages New UI Advance Screen Setting Il '(( (((()

The SKYZONE goggles feature an LCOS (Liquid Crystal on Silicon) screen that boasts high resolution and vivid color reproduction. Additionally, this 1280x960 LCOS screen ensures low latency and detailed visuals.

The SKYZONE optics boast a generous field of view, measuring 39 degrees, and also feature an adjustable focus function (-6 to +6 diopters), eliminating the need for additional diopter adjustments.

Skyzone Shuttle Wheel Control offers a seamless navigation experience, eliminating the need for complex multi-function buttons or 5-way joysticks.

The SKYZONE SteadyView Receiver combines two signals into one, resulting in a more stable and clearer image even in challenging conditions. Additionally, the modular design allows for easy upgrades of the module goggles.

The new UI features a shuttle wheel for easy navigation, with support for 10 languages to cater to local users. Additionally, the RSSI fan mode allows for frequency tracking on Channel I (4123-95778 MHz), while the head tracker provides calibration options for voltage adjustment. The image display shows California DVR settings in one language, with a speedometer and system rotary beeps that can be adjusted through settings.

Features four preset screen settings and three customizable options for indoor, outdoor, and various weather conditions. The display supports standard 4:3 and 16:9 aspect ratios, providing bright, soft, and vivid footage for an immersive FPV experience.

Specifications for the SKYZONE SKY04L V2 include a LCOS screen with a resolution of 1280x960 pixels, a diagonal field of view (FOV) of 39 degrees, an aspect ratio of either 4:3 or 16:9, adjustable focus from +6 to -6 diopters, and an interpupillary distance (IPD) range of 58-71mm. The receiver operates on the 5.8GHz frequency with 48 channels and features a SteadyView technology. The language support is available in 10 languages. Power supply options include DC power from 6.5V to 25.2V, as well as USB power at 5V. The power consumption is approximately 720mA when using a 12V power source. The DVR capabilities include H.264 compression, 6 frames per second, and MOV file format support.
