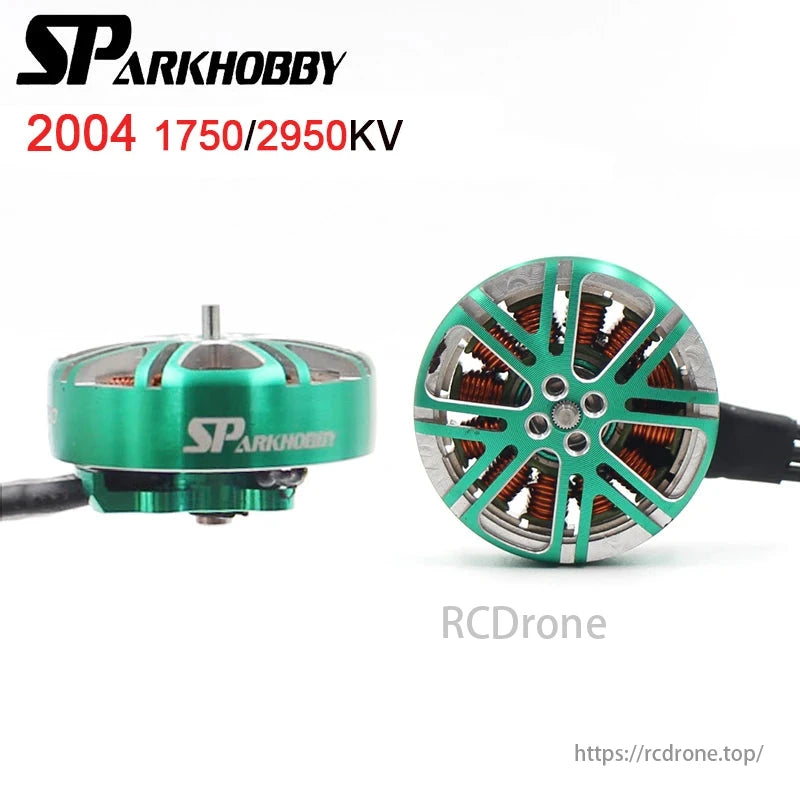

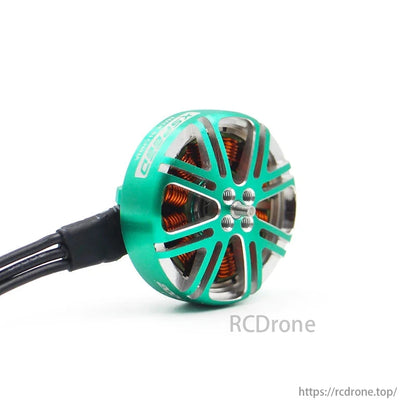

SPARKHOBBY XSPEED 2004 1750KV 2950KV Brushless Motor for 3-5 Inch FPV Drone 4-6S 12N14P 3mm Shaft

• Overview

  The SPARKHOBBY XSPEED 2004 Brushless Motor is a high-performance, lightweight motor designed for FPV racing and freestyle drones with 3 to 5 inch propellers. Available in two variants—1750KV for 4–6S and 2950KV for 2–3S setups—this motor provides excellent thrust, smooth throttle response, and high efficiency for agile and cinematic flights.

  Whether you're looking for endurance or explosive power, the XSPEED 2004 offers reliable performance for all flying styles.

  ---

  Key Features

  • Dual KV Options:

    • 1750KV – ideal for 4S to 6S voltage, long-range and cinematic builds

    • 2950KV – designed for 2S to 3S voltage, for lightweight and fast 3” drones

  • High Efficiency & Power Output:

    • Max power up to 495W (2950KV)

    • Peak current up to 30.7A

  • Precision Engineering:

    • 12N14P configuration with 3.0mm shaft diameter

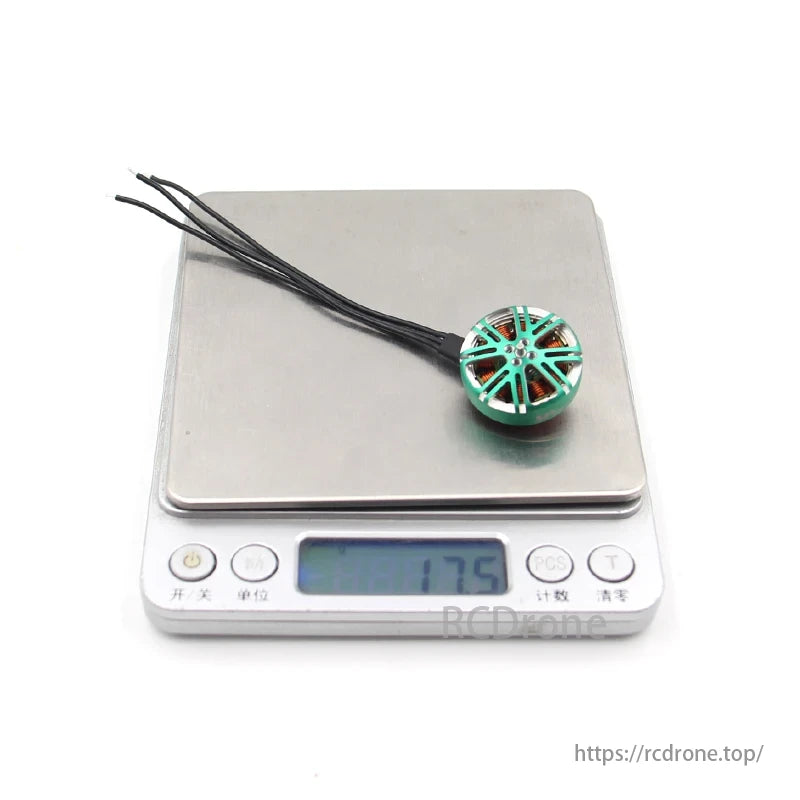

    • Compact and lightweight: only 17.2g

  • Durable Build:

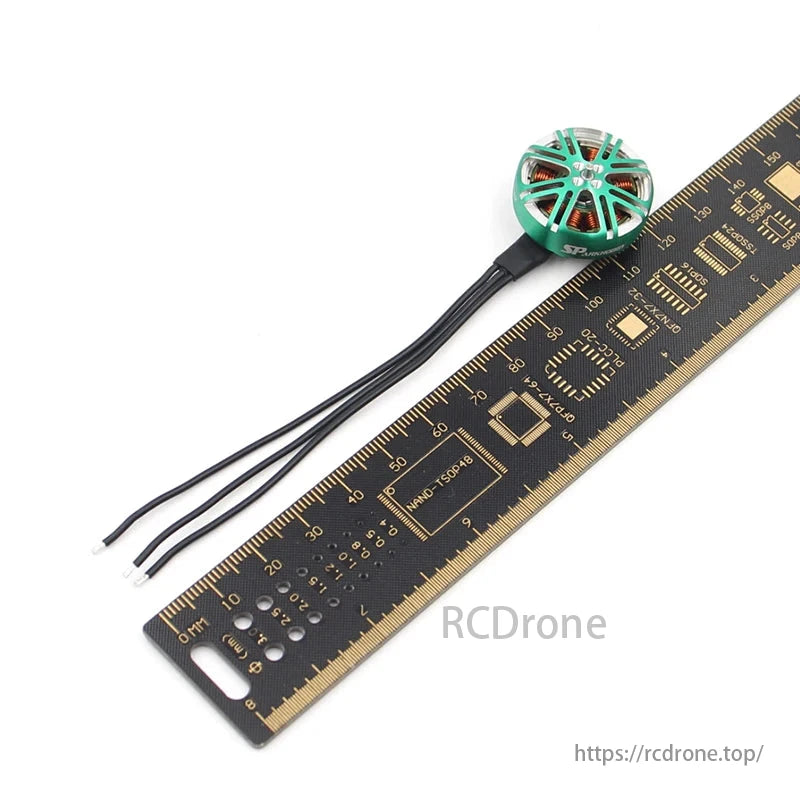

    • 150mm 24AWG silicone wire

    • 26mm outer diameter with 13.1mm height

  ---

  Specifications

  Specification	1750KV	2950KV
  Rated Voltage	4–6S LiPo	2–3S LiPo
  Shaft Diameter	3.0mm	3.0mm
  Configuration	12N14P	12N14P
  Idle Current @10V	0.5A	1.0A
  Internal Resistance	207mΩ	81mΩ
  Max Power	375W	495W
  Peak Current	15.62A	30.7A
  Dimensions (Φ × H)	26 × 13.1mm	26 × 13.1mm
  Lead Wire	24AWG, 150mm	24AWG, 150mm
  Weight	17.2g	17.2g

  ---

  Recommended Use

  • 3” – 5” FPV Racing Drones

  • Freestyle builds and Cinewhoops

  • Perfect for pilots needing a balance of power, efficiency, and weight

  ---

  Package Includes

  • 1 × SPARKHOBBY 2004 Brushless Motor (1750KV or 2950KV)
    or

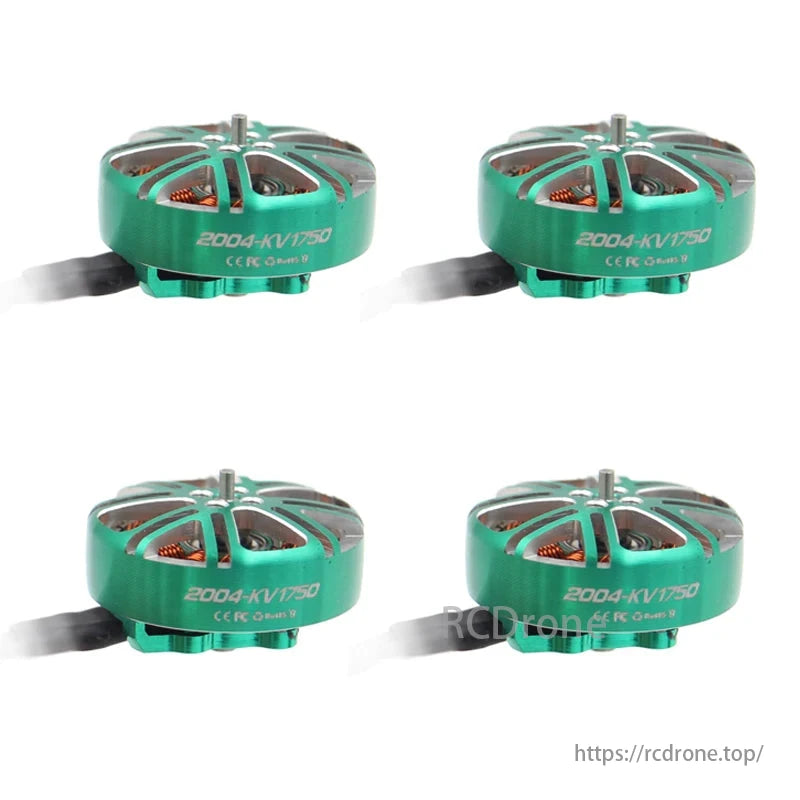

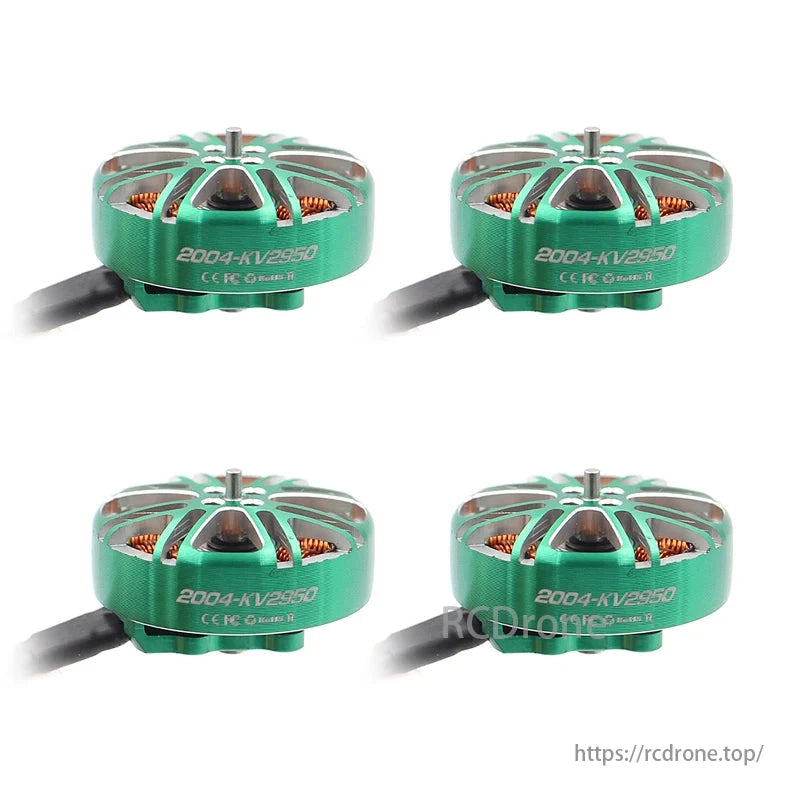

  • 4 × SPARKHOBBY 2004 Brushless Motor (1750KV or 2950KV)

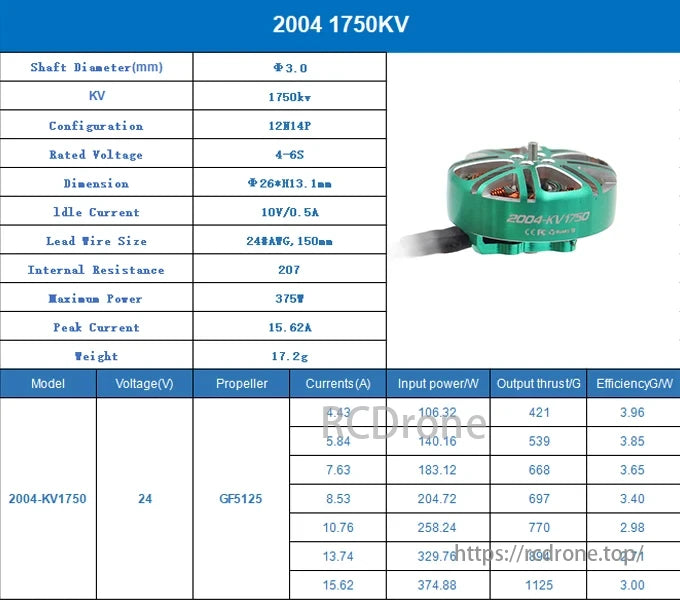

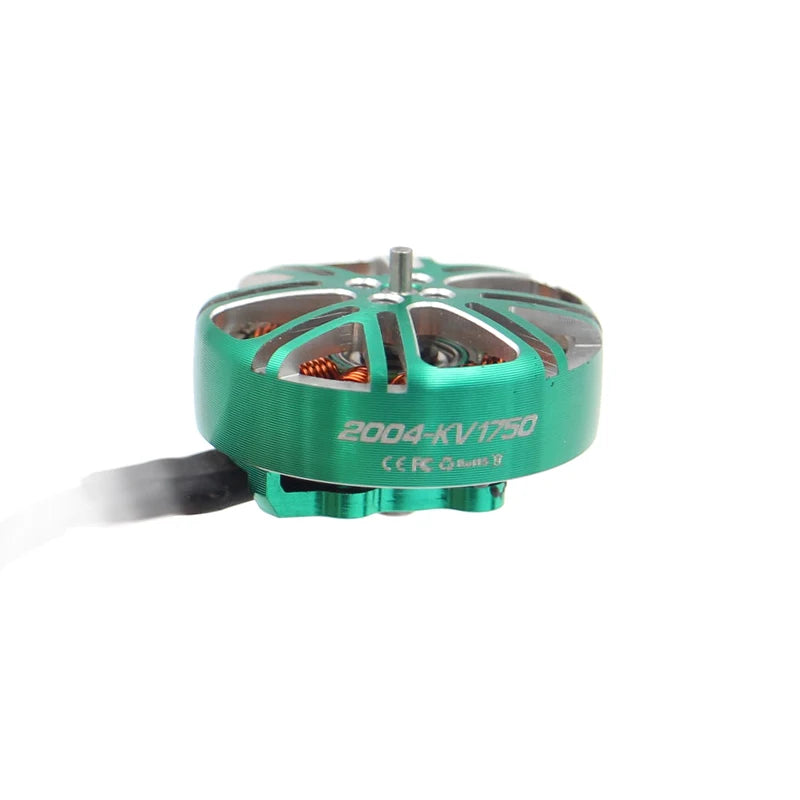

XSPEED 2004 Brushless Motor: 3.0mm shaft, 1750KV, 12N14P config, 4-6S voltage, 26x13.1mm size, 10V/0.5A idle current, 24#AWG lead wire, 207Ω resistance, 375W max power, 15.62A peak current, 17.2g weight.

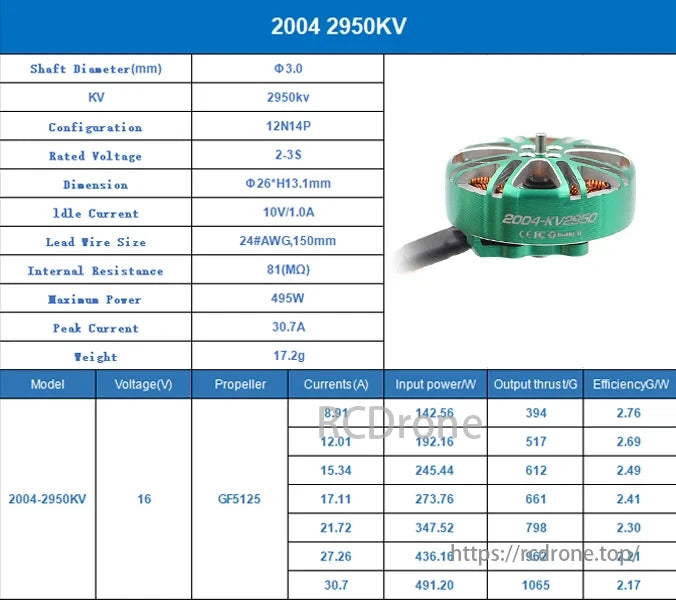

XSPEED 2004 Brushless Motor: 2950KV, 12N14P config, 2-3S voltage, 26x13.1mm size, 17.2g weight. Max power 495W, peak current 30.7A. Tested with GF5125 propeller at 16V for efficiency and thrust.
