Specs Overview

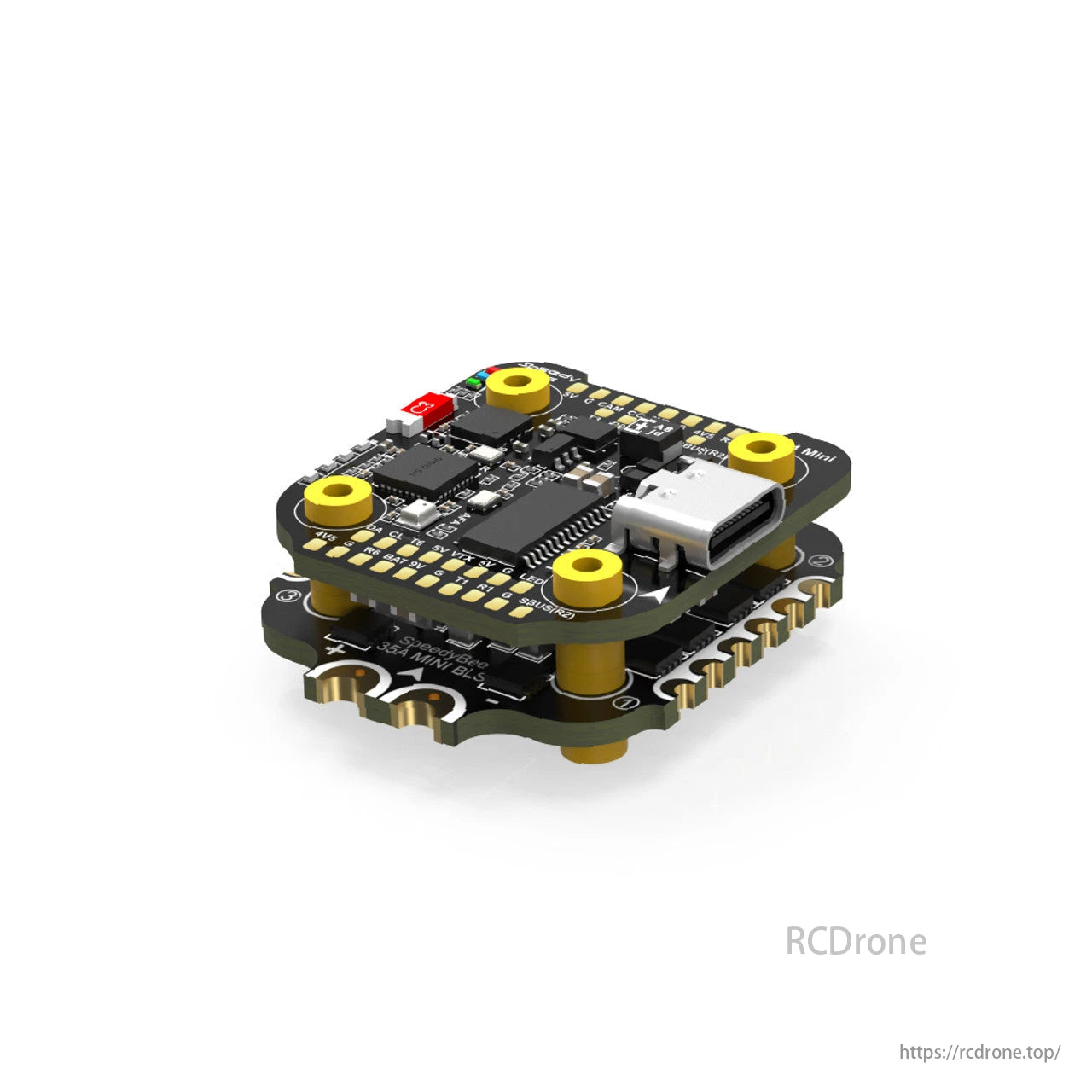

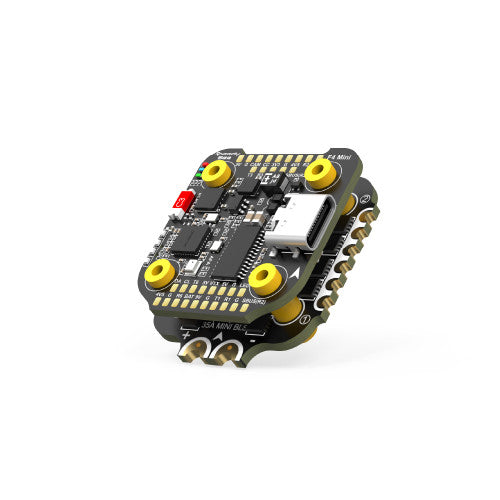

Product Name SpeedyBee F405 Mini BLS 35A 20x20 Stack
Flight Controller SpeedyBee F405 Mini
ESC SpeedyBee BLS 35A Mini V2 4-in-1 ESC
Bluetooth Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration. Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available.
WiFi NOT Supported
Wireless FC Firmware Flashing NOT Supported
Wireless Blackbox Dwonload & Analysis NOT Supported
Power Input 3-6S LiPo
Mounting 20 x 20mm 3.5mm hole size，Compatible with M2 and M3 screws/Silicone grommets
Dimension 32mm(L) x 35mm(W) x 14.2mm(H)
Weight 13.5g



Specifications

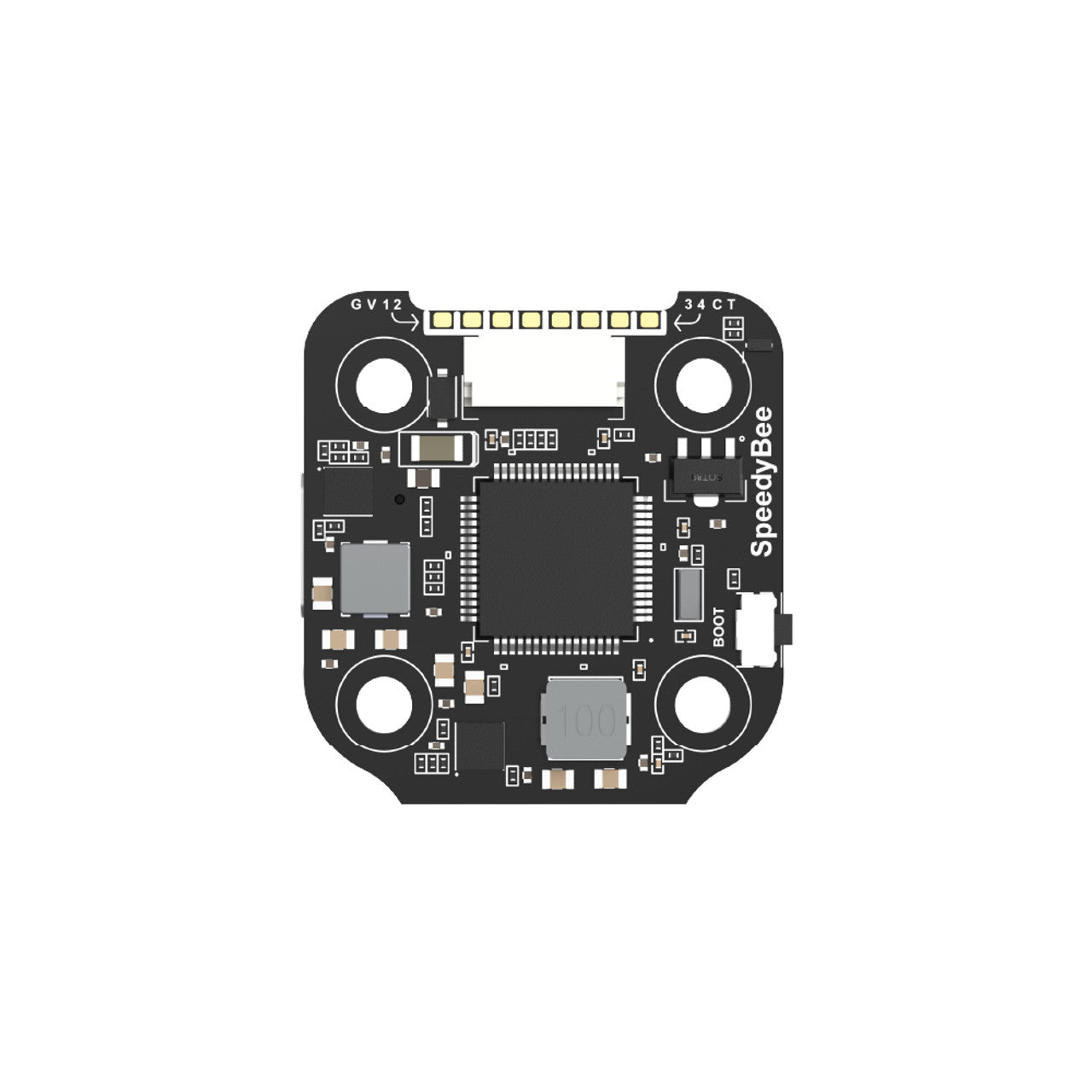

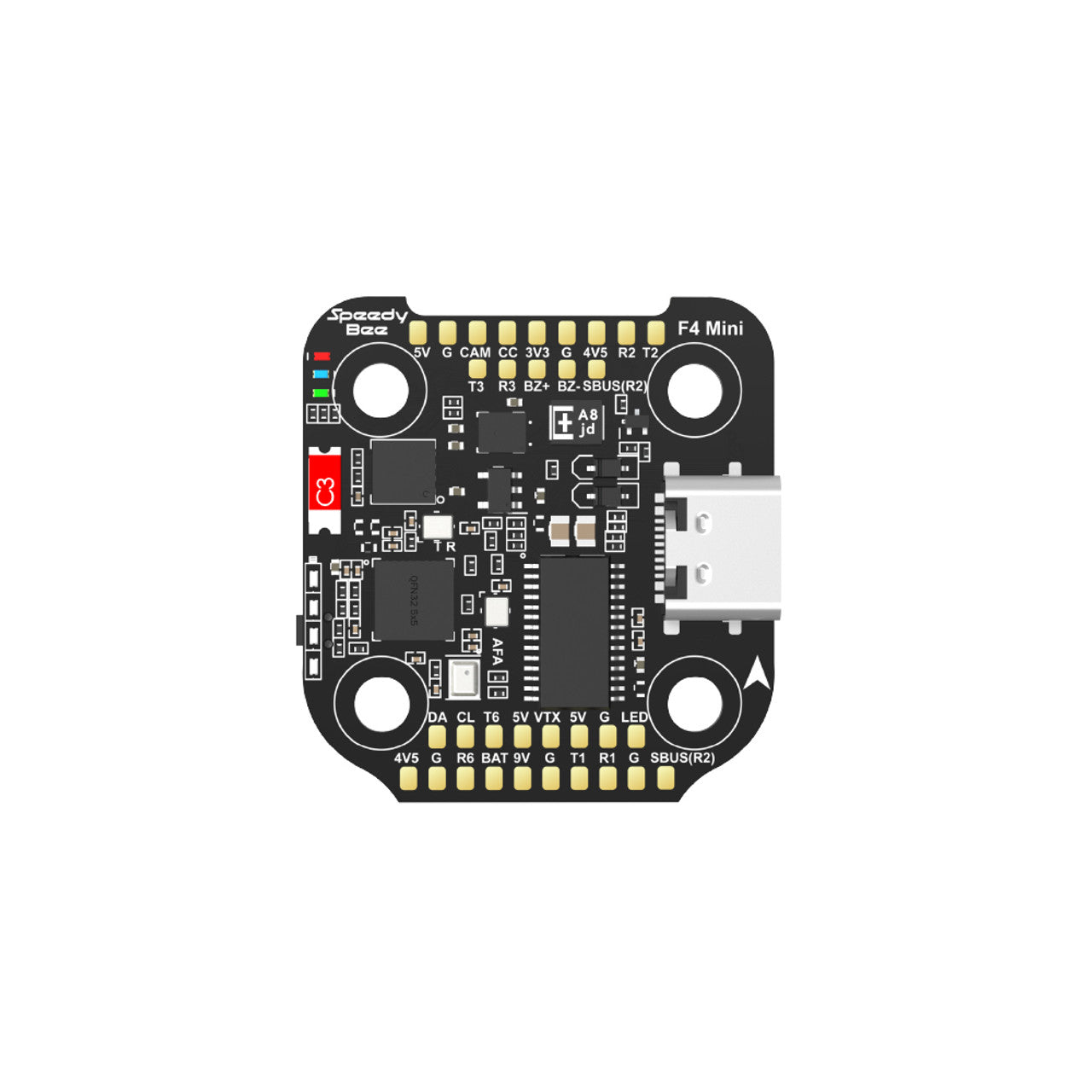

ProductName SpeedyBee F405 Mini Flight Controller
MCU STM32F405
IMU(Gyro) ICM42688P
USB Port Type Type-C
Barometer Built-in
OSD Chip AT7456E chip
BLE Bluetooth Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration. Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available.
Wireless FC Firmware Flashing NOT Supported. Please connect to the Betaflight configurator on the PC to do FC firmeare update
Wireless Blackbox Dwonload & Analysis NOT Supported. Please connect to the Betaflight configurator on the PC to do blackbox analysis.
WIFI Not supported
DJI Air Unit Connection Way Direct soldering
DJI Air Unit Compatibility Compatible with all DJI Air Units: DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1. Please use the solder pads < 9V, G, T1, R1, G, SUBS(R2) > on the front right corner of the flight controller to make a pin-to-pin connection with the solder pads on the DJI Air Unit. UART1(T1, R1) is used for OSD and SUBS(R2) is used for DJI Air Unit’s internal SBUS receiver signal input.
Blackbox 8MB Onboard Flash
BetaFlight Camera Control Pad Yes(CC pad on the front side)
Current Sensor Input Supported. For SpeedyBee BLS 35A V2 ESC, please set Scale=250 and Offset=-500.
Power Input 3-6S LiPo. The flight controller is powered through the G, V wires of the 8pin harness or G, V pads from the bottom side of the flight controller.
5V Output 4 groups of 5V output, three +5V pads and 1 BZ+ pad( used for Buzzer) on front side. The total current load is 2A.
9V Output 1 group of 9V output, one +9V pad on front side. The total current load is 3A.
3.3V Output Supported. Soldering pad named ‘3V3’ on the front top of the flight controller. Designed for 3.3V input receivers. Up to 500mA current load.
4.5V Output Supported. Designed for radio receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal M1 - M4 wires or soldering pads on bottom side.
UART 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
ESC Telemetry UART R5(UART5)
I2C Supported. DA & CL pads on front side. Used for magnetometer, sonar, etc
Traditional Betaflight LED Pad Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LEDs controlled by the Betaflight firmware.
Buzzer BZ+ and BZ- pad used for 5V Buzzer
BOOT Button Supported. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
RSSI Input Not Supported
Smart Port / F.Port Not Supported
Supported Flight Controller Firmware BetaFlight(Default), INAV
Firmware Target Name SPEEDYBEEF405MINI
Mounting 20 x 20mm 3.5mm hole diameter ，Compatible with M2 and M3 screws/Silicone grommets.
Dimension 30(L) x 32(W) x 7.8(H)mm
Weight 9.6g

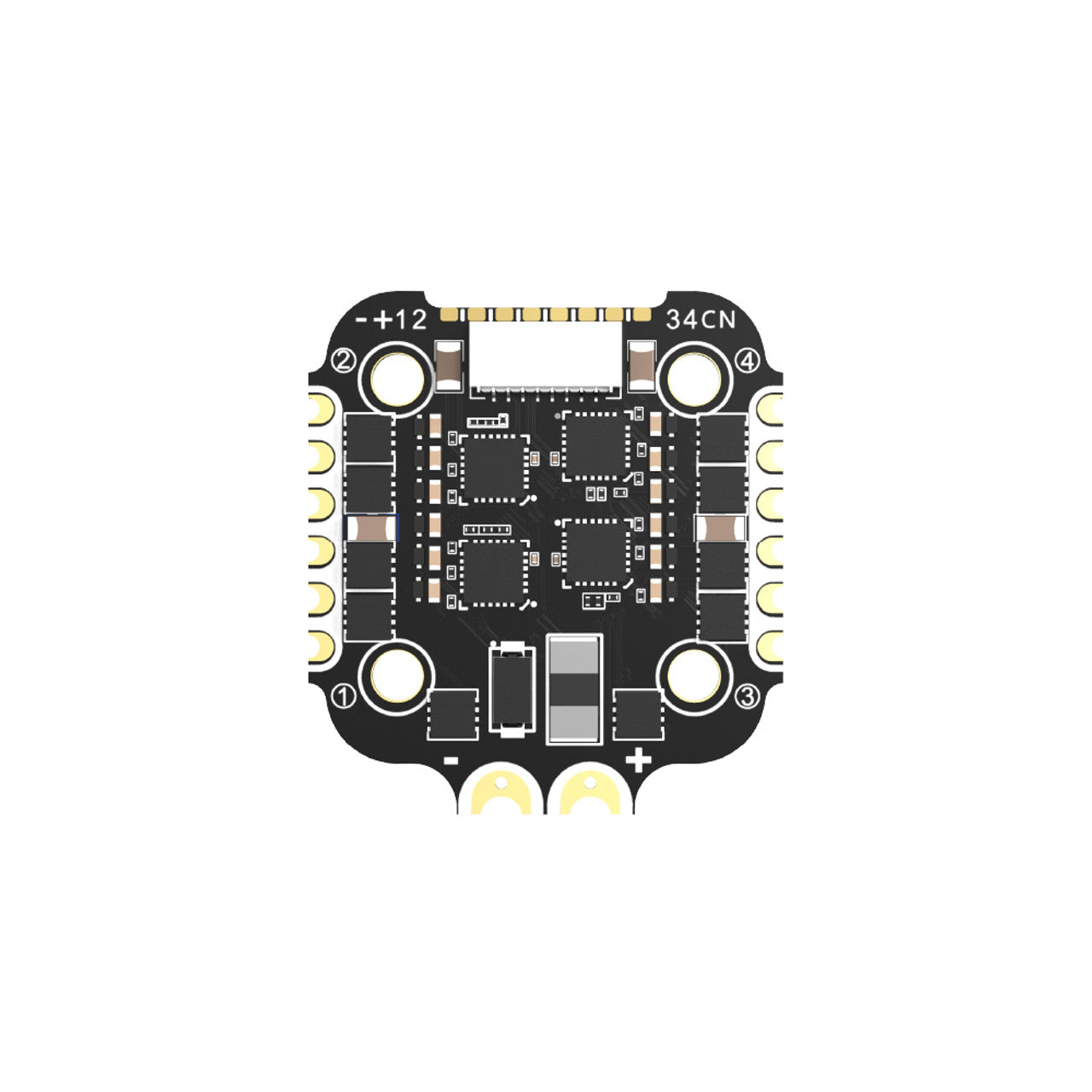

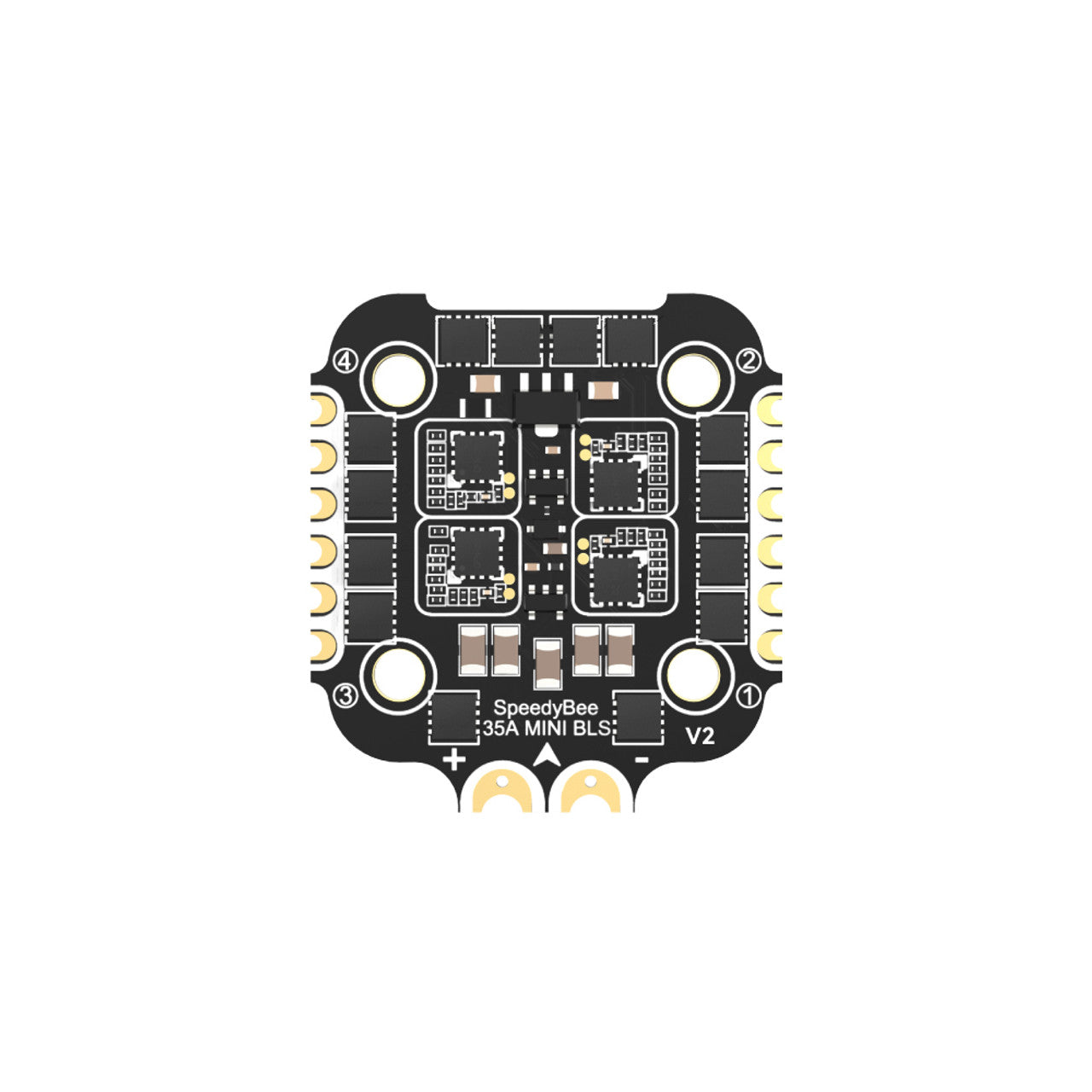

ProductName SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC
Firmware BLHeli_S J-H-40
Continuous Current 35A * 4
Burst Current 45A(5seconds)
ESC Protocol DSHOT300/600
Power Input 3-6S LiPo
Power Output VBAT(Battery voltage, used to power the flight controller)
Current Sensor Support (Scale=250 Offset=-500)
ESC Telemetry Not supported
Mounting 20 x 20mm ∅3.5mm hole size，compatible with M2 and M3 screws/Silicone grommets.
Dimension 35 * 35 * 5.5mm
Weight 7.2g

    Descriptions



    Utilizing an upgraded F405 flight controller chip with better performance than the F411, it features a built-in Bluetooth chip for seamless wireless Betaflight tuning. The board comes with a 4-level battery voltage display, built-in barometer, and supports connectivity to all DJI Air Units. It offers 4 available UART ports, and a dual BEC setup with 5V 2A and 9V 3A outputs.
    35A 4-in-1 BLHeliS Mini ESC: This ESC provides four synchronized outputs with a continuous current of 35A, delivering strong power to drive all 2-4 inch and lightweight 5-inch quadcopters via 4-6S battery. Equipped with a TVS transient suppression diode onboard, it better absorbs surge voltage, providing enhanced protection for the ESC.
    SpeedyBee F405 Mini BL, SpeedyBee F405 V3 STACK
    Tune Flight controller and ESC wirelessly!
    Power the quad, connect the SpeedyBee app via Bluetooth, configure the UART Ports,PID,OSD and every other settings on this flight controller. Also, every parameter of the BLHeli_S ESC in this stack can be set via the app.
    With this Bluetooth stack, even micro drones become easy to tune—no need to worry about the hassle of inserting USB cables into the flight controller. Simply tune your drone wirelessly through the App, and say goodbye to wires and worries!
    SpeedyBee F405 Mini BL, SpeedyBee F405 V3 STACK
    Powerful Real 35A 4-in-1 ESC!
    6-layer 2oz PCB plus optimized circuit design equals stable and strong current output. The four-channel continuous 140A output can reach 30 seconds*.
    The use of Japanese TDK filtering SMT capacitors and the onboard TVS protective diode, further enhances your flight experience, providing a seamless and reliable performance. The stack underwent rigorous pressure testing with various 5-inch freestyle and racing drones, confirming its powerful capability to effortlessly drive any 2-4 inch and lightweight 5-inch drones.
    SpeedyBee F405 Mini BL, SpeedyBee F405 V3 STACK
    Clean Gyroscope Power Supply, Smoother Flight
    Equipped with the renowned brand MaxLinear's LDO power supply chip, the gyroscope receives independent power, boosting surge protection capacity by 320%. Additionally, built with a 100uF ultra-large filtering tantalum capacitor, guarding the gyroscope's data from interference caused by the power source. Each posture and movement during flight receives precise responsiveness, allowing you to fully experience the pure beauty of flying!
    SpeedyBee F405 Mini BL, SpeedyBee F405 V3 STACK
    Forgot your LiPo checker? Just look at the FC!
    On the side of the flight controller, you will find a 4-level battery capacity indicator. As soon as you connect the battery, you can instantly see the battery level, saving you the hassle of needing to put on goggles to check the battery status.
    SpeedyBee F405 Mini BL, SpeedyBee F405 V3 STACK
    Change motor directions wirelessly!
    Are you still using a computer to change motor directions? With this stack, when you finish your build, connect to the SpeedyBee app, change the motor directions just in a few simple steps*. Then take off.
    * To use this feature, go to the App > Motors > Motor Direction Settings.
    SpeedyBee F405 Mini BL, SpeedyBee F405 V3 STACK
    Support DJI Digital Video Transmitter
    The flight controller has two independent 9V 3A BEC and 5V 2A BEC, supports various analog image transmissions above 5V, and also supports DJI O3 Air Unit/Link / Vista/Air Unit V1
    SpeedyBee F405 Mini BL, SpeedyBee F405 V3 STACK
    M2 or M3? Why not both?
    Have you ever experienced that the stack holes of your frame did not fit the stack you got? This stack is perfectly compatible with M2/M3 screws. What’s more, two sets of M2 and M3 screws + silicone grommets are included in the package!
    SpeedyBee F405 Mini BL, SpeedyBee F405 V3 STACK
    TVS Protective Diode + 470uF Low-ESR Capacitor = Upgraded ESC Protection
    The ESC is built with TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props. We also provide a Rubycon 470uF Low-ESR capacitor, ensuring clean data from the gyro to the FC.
    SpeedyBee F405 Mini BL, SpeedyBee F405 V3 STACK
    And packaged with more useful features
    ● Sufficient 4 x UARTs for your receiver + VTX + camera + GPS.
    ● Two independent 5V 2A BEC and 9V 3A BEC.
    ● Power your GPS with a USB cable - no battery needed. No extra heat, no worries
    ● 17mm cutouts for FPV camera in your tight build
    ● Onboard barometer for real-time altitude sensing
    ● Onboard 8MB Blackbox storage
    SpeedyBee F405 V3 STACK
    SpeedyBee F405 V3 STACK

    SpeedyBee F4 Mini BL 35A 20x20 Stack Product Dimensions: 3mm x 30mm x 6mm (Length x Width x Height) Important Installation Note: Please ensure that the flight stack is installed in the standard manner, with the flight controller on top and the electronic speed controller on the bottom. Damage resulting from improper installation is not covered under our warranty.

    SpeedyBee F405 V3 STACK
    SpeedyBee F405 V3 STACK

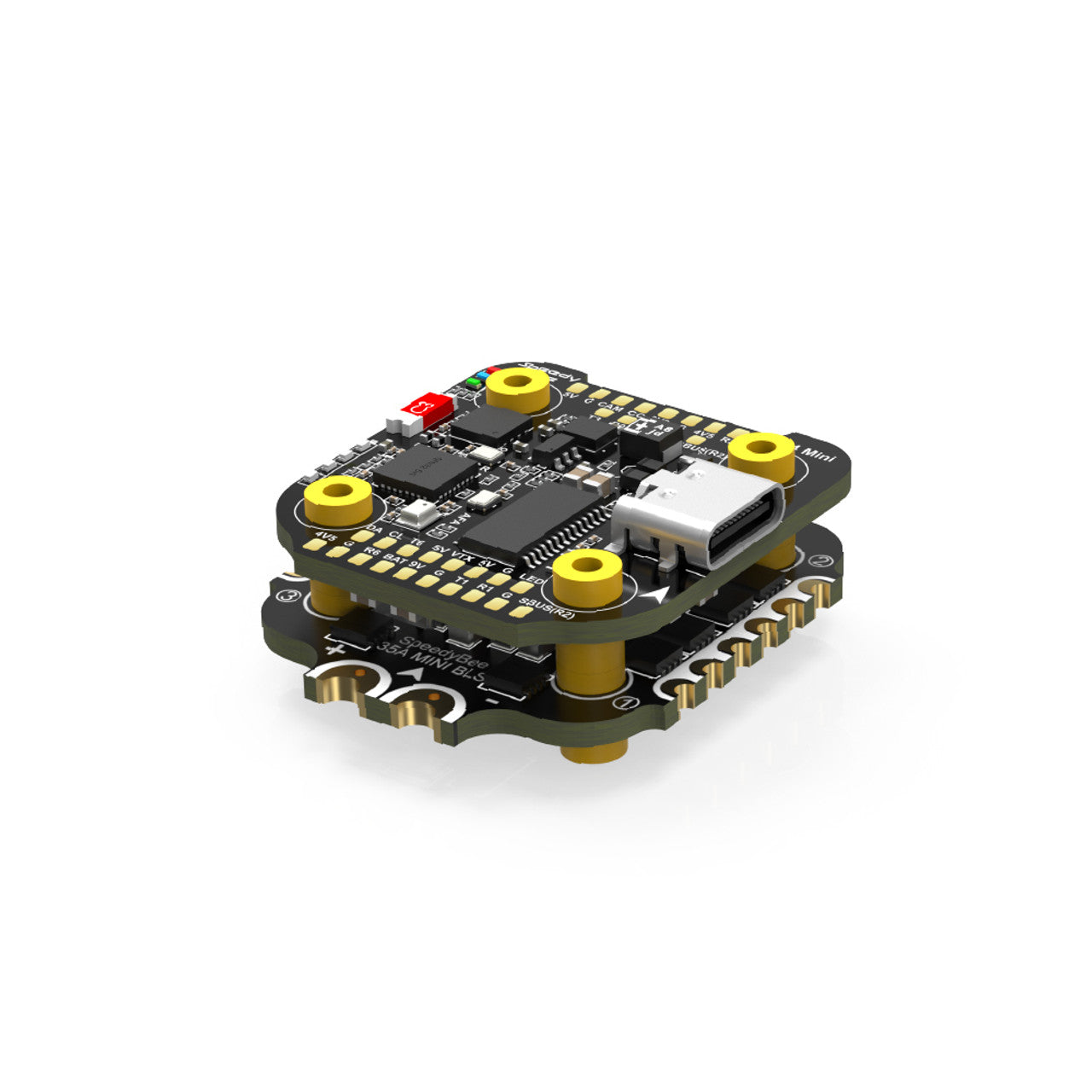

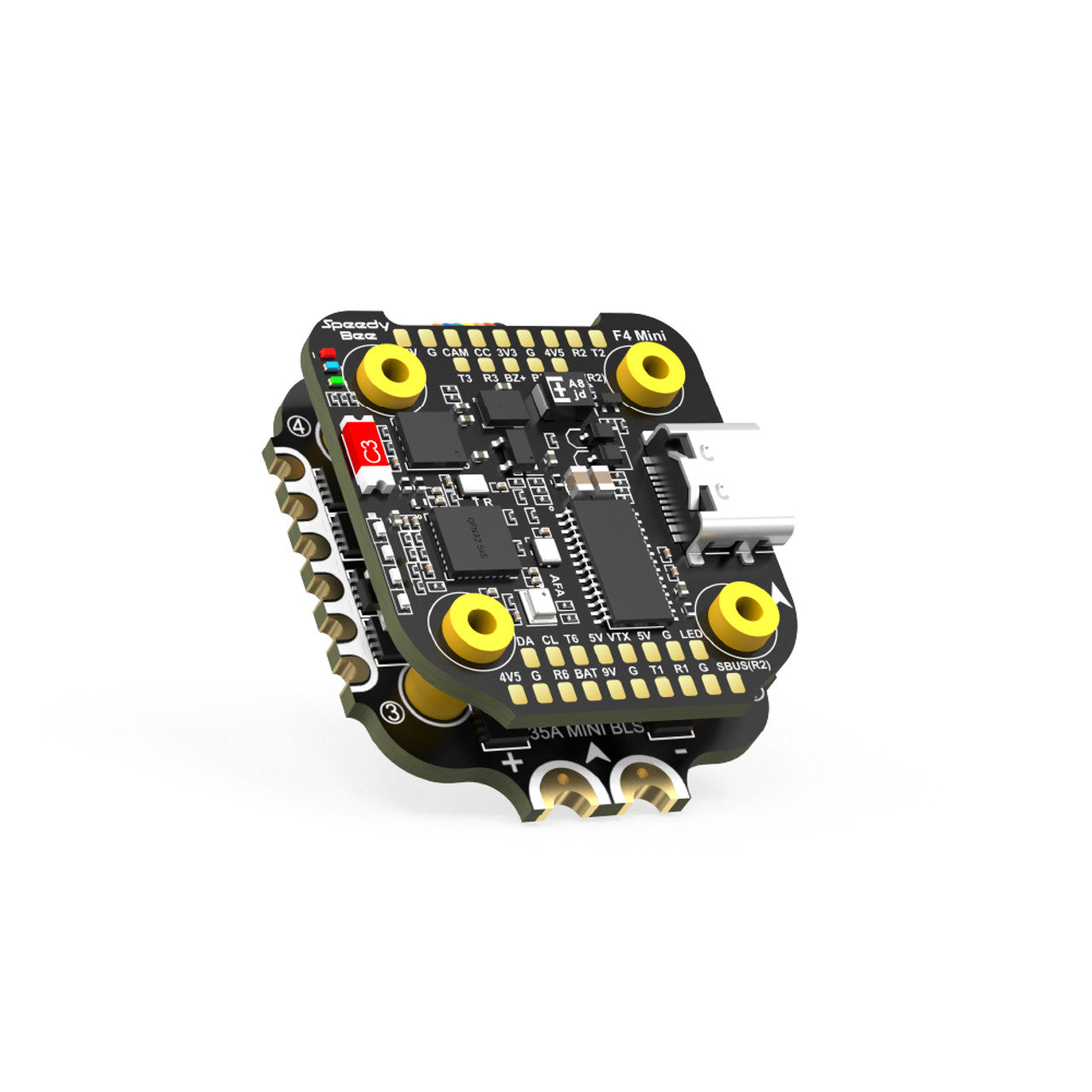

    SpeedyBee F405 Mini Flight Controller BLS 35A 20x20 Stack: This product image shows a SpeedyBee F405 Mini Flight Controller, which is a miniaturized version of the popular F4 series. It features a built-in Low ESR capacitor and four motors that are designed to work together seamlessly.

    SpeedyBee F405 V3 STACK

    The F4O5 Mini BLS 35A 20x20 Stack comes with a DJI 6-pin cable. To connect the F4O5 Mini to the DJI Air Unit V1, cut off the 6-pin connector on the F4O5 Mini and keep the 8-pin connector. Then, solder the 8-pin connector to the DJI Air Unit V1.

    SpeedyBee F405 V3 STACK

    Important notice for SBUS receiver: When an SBUS receiver is used, the SBUS signal wire of the receiver must be connected to the SBUS pad on the front side of the flight controller (this pad internally uses UART2). If you are also using the DJI Air Unit (03/Vista/Air Unit V1), you will need to disconnect the SBUS signal wire from the Air Unit harness. Failure to do so will prevent the SBUS receiver from being properly recognized by the flight controller. You can use tweezers to pick out the SBUS wire and insulate the exposed part of the wire carefully. Important notice for ELRS receiver: We recommend connecting the ELRS receivers TX and RX to the T2 and R2 pads on the flight controller. However, when using the DJI Air Unit simultaneously, some ELRS receivers may not be recognized properly by the flight controller. If you encounter this issue, you need to disconnect the SBUS signal wire from the Air Unit harness. You can use tweezers to pick out the SBUS wire and insulate the exposed part of the wire carefully.

    SpeedyBee F405 V3 STACK

    The SpeedyBee F405 Mini BLS 35A 20x20 Stack includes one SpeedyBee F4O5 Mini Flight Controller, one SpeedyBee 354 BLHeliS Mini V2 4-in-1 ESC, a manual and app download card, a 35V 47Ohm capacitor, an SH 10mm 25mm-length 8-pin cable for FC-ESC connection, a DJI 6-pin cable (80mm), an XT30 power cable (7cm), M2 accessories including silicone O-rings, nylon hex nuts, and anti-vibration silicone grommets, and M3 accessories with the same components.

    SpeedyBee F405 V3 STACK

    SpeedyBee F405 Mini BLS 35A 20x20 Stack: Flight Controller with M2 (hole diameter) 7.6mm height and anti-vibration silicone grommets, M3 (hole diameter) 6.6mm height and anti-vibration silicone grommets, DJI 6-pin cable (8.0mm), manual, and app download card. Includes a SH 1.0mm 25mm-length 8pin cable for FC-ESC connection. Also includes OCC EF4 Mini serialiser.

    SpeedyBee F405 V3 STACK

    SpeedyBee F405 Mini BLS 4-in-1 ESC, 35A, 20x20mm Stack. Product features include: M2 (hole diameter) 7.6mm (height) anti-vibration silicone grommets, M2 silicone O-ring, manual and app download card, M3 (hole diameter) 6.6mm (height) anti-vibration silicone grommets, M3 silicone O-ring, 35V capacitor, 47uF ZLh.




    Manual

    SpeedyBee F405 Mini BL, Used to connect with SpeedyBee App for flight controller and ESC parameter configuration.English SpeedyBee F405 Mini BL, M2 and M3 screws plus silicone grommets are included in the package.中文
