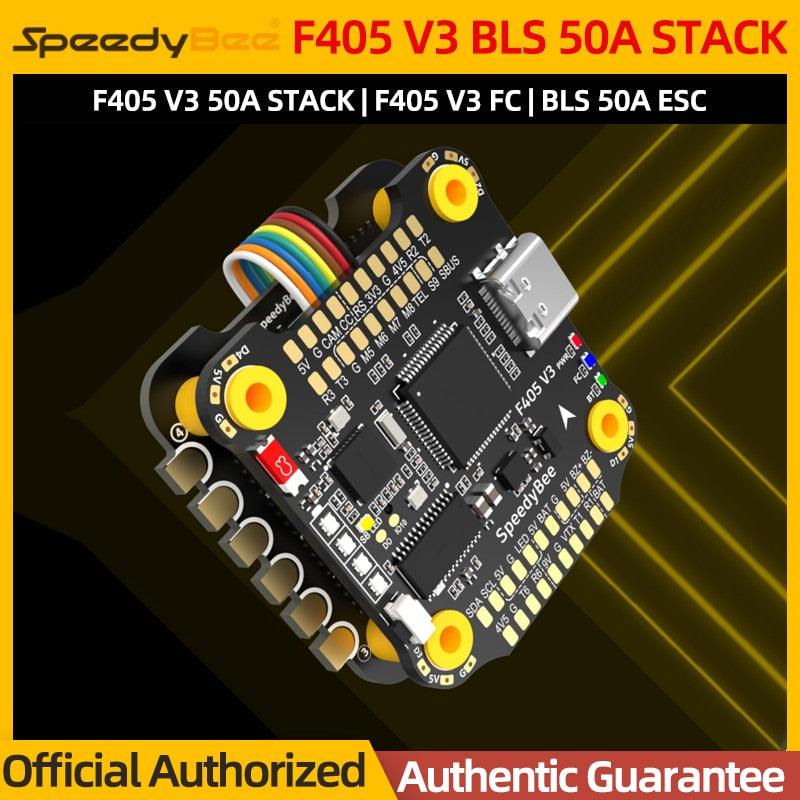

SpeedyBee F405 V3 50A Stack - FC ECS BMI270 30x30 Flight Controller BLS 50A 4-in-1 ESC 3-6S LiPo For RC FPV Drone RunCam

SpeedyBee F405 V3 50A Stack - FC ECS BMI270 30x30 Flight Controller BLS 50A 4-in-1 ESC 3-6S LiPo For RC FPV Drone RunCam

SpeedyBee

$97.00 USD
$145.50 USD $97.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

101 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SpeedyBee F405 V3 50A Stack SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Flight Controller

Tool Supplies: Assembly Category

Size: 41.6x39.4x7.8mm

Remote Control Peripherals/Devices: Flight Controller

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Controller

Quantity: 1 pcs

Origin: Mainland China

Model Number: SpeedyBee F405 V3

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: XDRC

Specifications

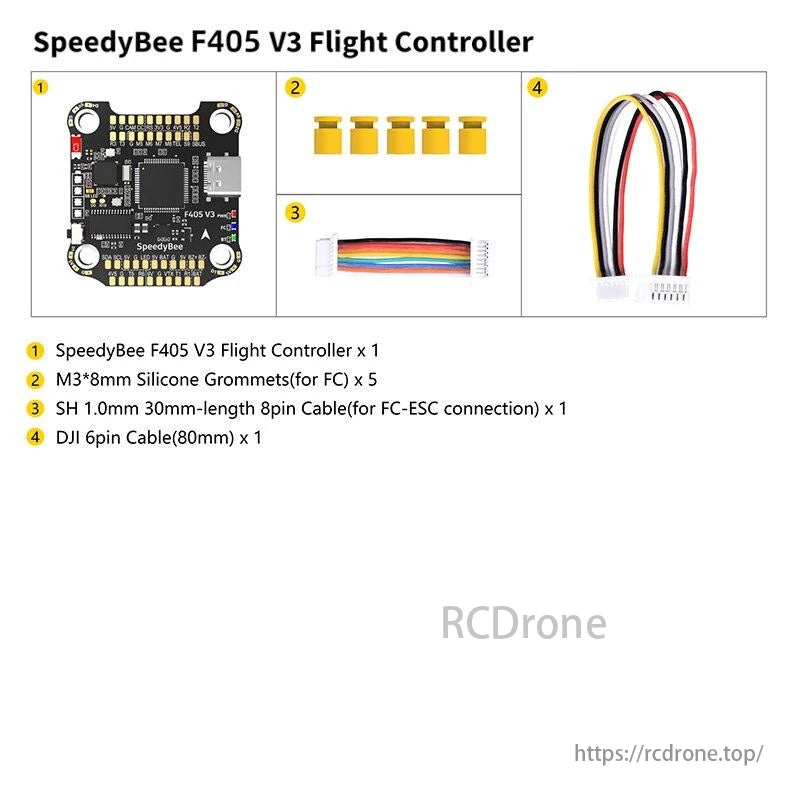

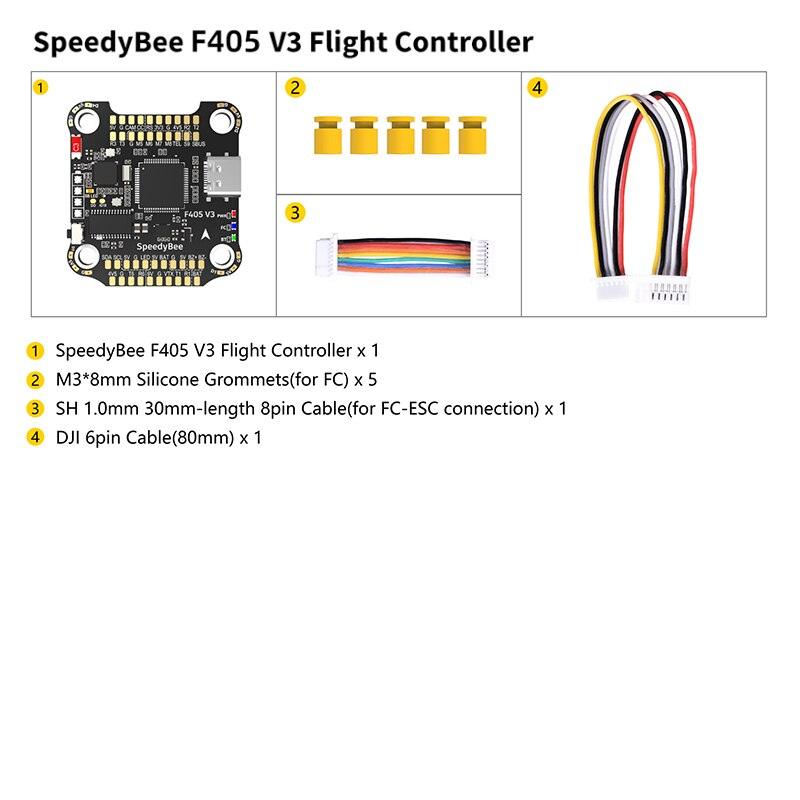

Product Name

SpeedyBee F405 V3 30x30 Flight Controller

MCU

STM32F405

IMU(Gyro)

BMI270

USB Port Type

Type-C

Barometer

Built-in

OSD Chip

AT7456E chip

BLE Bluetooth

Supported. Used for Flight Controller configuration

DJI Air Unit Connection Way

Two ways supported: 6-pin connector or direct soldering.

Blackbox MicroSD Card Slot

*Betaflight firmware requires the type of the microSD card to be

either Standard (SDSC) or High capacity (SDHC),so extended

capacity cards (SDXC) are not supported(Many high-speed U3

cards are SDXC). Also the card MUST be formatted with the

FAT16 or FAT32 (recommended) filesystems. So, you could

use any SD card less than 32GB, but the Betaflight can only

recognize 4GB maximum. We suggest you use this

3rd party formatting tooland choose 'Overwrite format' then format

your card. Also check outherefor the recommended SD cards

or buy thetested cardsfrom our store.

BetaFlight Camera Control Pad

Yes(CC pad on the front side)

Current Sensor Input

Supported. For SpeedyBee BLS 50A ESC, please set scale = 386 and Offset = 0.

Power Input

3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)

5V Output

9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side,

and 4x LED 5V pads. The total current load is 2A.

9V Output

2 groups of 9V output, one +9V pad on front side and other included in a connector

on bottom side. The total current load is 2A.

3.3V Output

Supported. Designed for 3.3V-input receivers. Up to 500mA current load.

4.5V Output

Supported. Designed for receiver and GPS module even when the FC is powered

through the USB port. Up to 1A current load.

ESC Signal

M1 - M4 on bottom side and M5-M8 on front side.

UART

5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6)

ESC Telemetry UART

R4(UART4)

I2C

Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.

Traditional Betaflight LED Pad

Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED

controlled by Betaflight firmware.

Buzzer

BZ+ and BZ- pad used for 5V Buzzer

BOOT Button

Supported.
[A]. Press and hold BOOT button and power the FC on at the

 same time will force the FC to enter DFU mode, this is for

firmware flashing when the FC gets bricked.
[B]. When the FC is powered on and in standby mode, the

BOOT button can be used to controller the LED strips

connected to LED1-LED4 connectors on the bottom side.

By default, short-press the BOOT button to cycle the LED

displaying mode. Long-press the BOOT button to switch

between SpeedyBee-LED mode and BF-LED mode.

Under BF-LED mode, all the LED1-LED4 strips will be

controlled by Betaflight firmware.

RSSI Input

Supported. Named as RS on the front side.

SmartPort

Use any TX pad of UART for the SmartPort feature.

Supported Flight Controller Firmware

BetaFlight(Default), EMUFlight, INAV

Firmware Target Name

SPEEDYBEEF405V3

Mounting

30.5 x 30.5mm( 4mm hole diameter)

Dimension

41.6(L) x 39.4(W) x 7.8(H)mm

Weight

9.6g

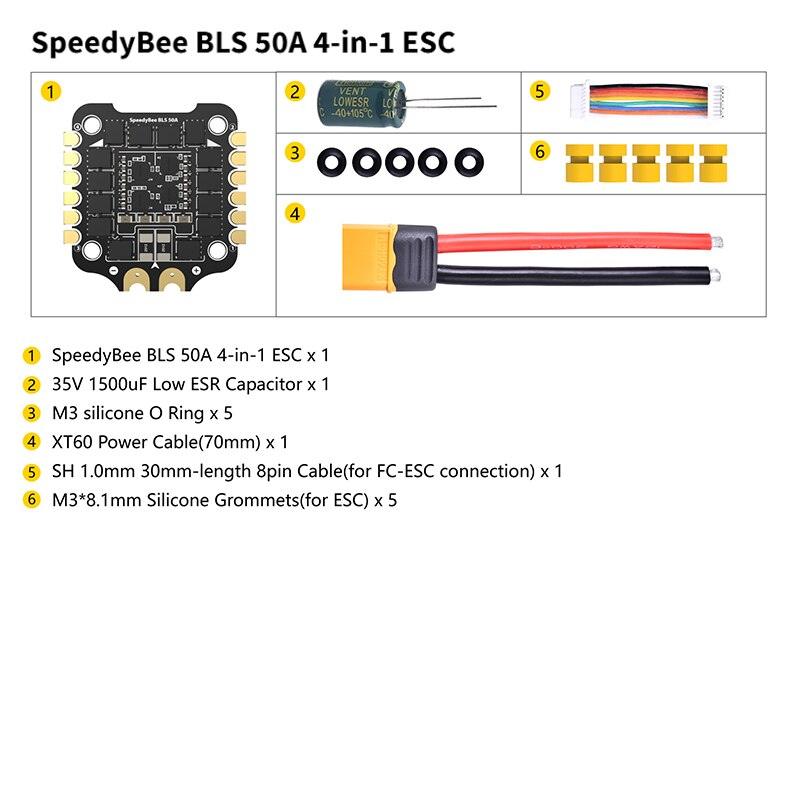

Product Name

SpeedyBee BLS 50A 30x30 4-in-1 ESC

Firmware

BLHeli_S JH50

Wireless Configuration

Full Configuration Supported in the SpeedyBee app

PC Configurator Download Link

https://esc-configurator.com/

Continuous Current

50A * 4

Burst Current

55A(5S)

TVS Protective diode

Yes

External Capacitor

1500uF Low ESR Capacitor(In the package)

ESC Protocol

DSHOT300/600

Power Input

3-6S LiPo

Power Output

VBAT

Current Sensor

Support (Scale=386 Offset=0)

Mounting

30.5 x 30.5mm( 4mm hole diameter)

Dimension

45.6(L) * 44(W) * 6.1mm(H)

Weight

13.8g


SpeedyBee F405 V3 50A Stack, Used for Flight Controller configuration DJI Air Unit Connection Way Two ways supported: 6-pin connector or

Configure your FC and ESC via Bluetooth

With SpeedyBee app, turn your phone into an all-in-one
FC configurator and tune your quad anytime, anywhere.
Experience wireless, fully configurable ESC experience with
SpeedyBee app.


SpeedyBee F405 V3 50A Stack, Ota Configure your FC and ESC via Bluetooth With SpeedyBee app,

Ota Configure your FC and ESC via Bluetooth With SpeedyBee app, turn your phone into an al-in-one G CAM CC FC configurator and tune your anytime, anywhere .

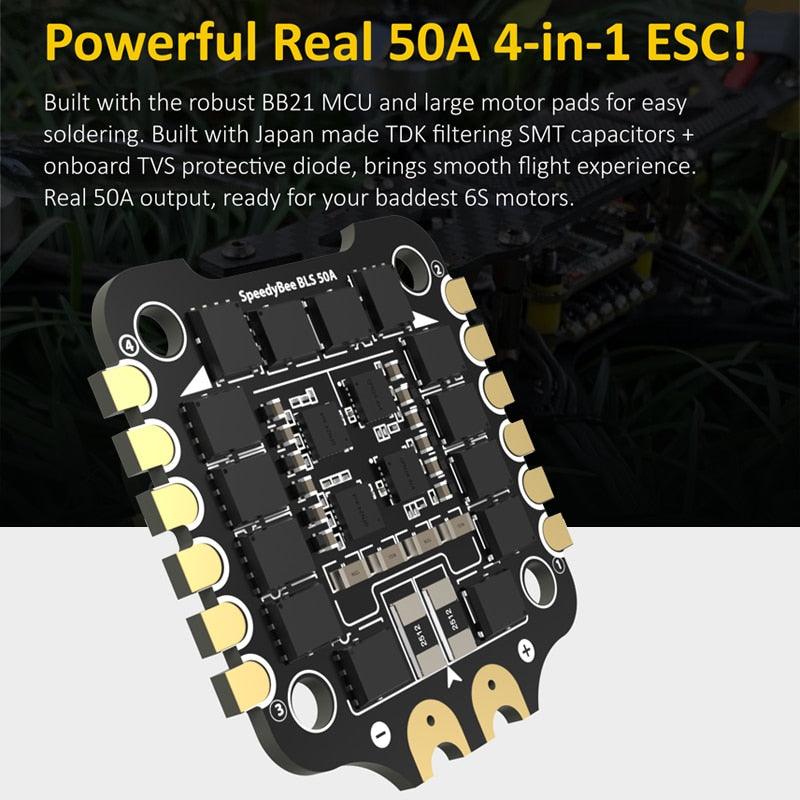

Powerful Real 50A 4-in-1 ESC!

Built with the robust BB21 MCU and large motor pads for easy
soldering. Built with Japan made TDK filtering SMT capacitors +
onboard TVS protective diode, brings smooth flight experience.
Real 50A output, ready for your baddest 6S motors.



SpeedyBee F405 V3 50A Stack, Built with the robust BB21 MCU and large motor pads for easy soldering,

Built with robust BB21 MCU and large motor pads for easy soldering, brings smooth flight experience: Real 50A output, ready for your baddest 6S motors

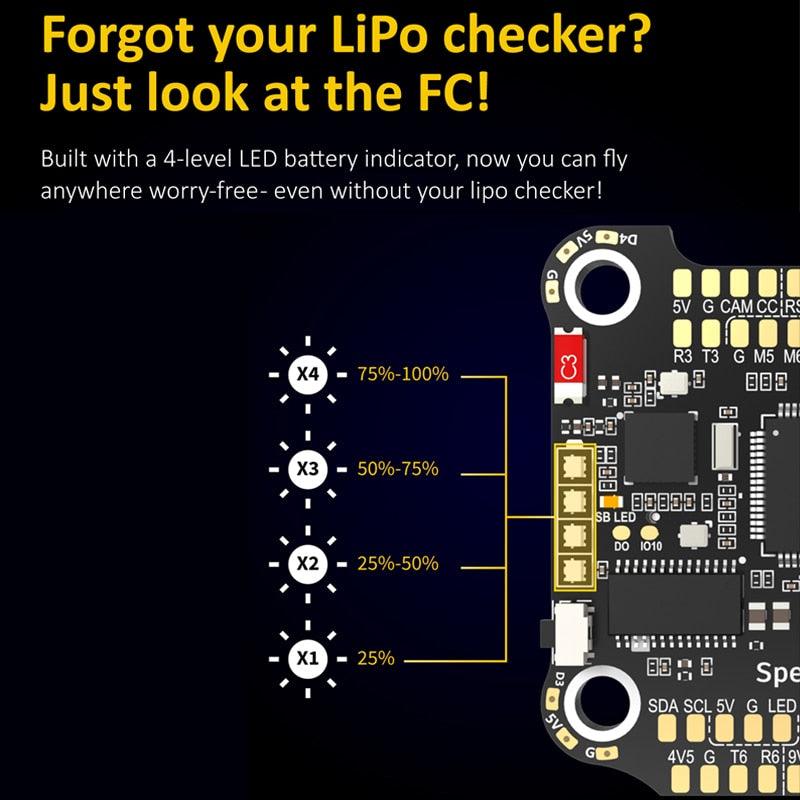

Forgot your LiPo checker?

Just look at the FC!
Built with a 4-level LED battery indicator, now you can fly
anywhere worry-free - even without your lipo checker!


SpeedyBee F405 V3 50A Stack, Betaflight LED Pad Supported.


8 motors output for X8/Y6/
fixed-wings

You could use this stack to build your X8 drones, Y6 drones or
fixed wings. Forget about crawling through your massive build
just to plug in that USB cable. Just take out your phone to
configure everything in the SpeedyBee app.


SpeedyBee F405 V3 50A Stack, use this 3rd party formatting tool and choose 'Overwrite format' then format your


Change motor directions
wirelessly!

Finishing your latest build? Just replaced your motor after a crash?
Take your smartphone out, and configure your motor direction
wirelessly with the latest SpeedyBee app. Works for all
BLHeli32 / BLHeli_S / BlueJay ESCs.

SpeedyBee F405 V3 50A Stack, speedybee app allows you to change motor directions wirelessly . works for all

the latest SpeedyBee app allows you to change motor directions wirelessly . it works for all BLHeli32 / BlueJay ESCs: 21 13.5 in to .




4 sets of LED pads with
simple switching



Need more visibility at night? Just solder up your LED strips*
and blaze the darkest trail you can find. With just one tap on t
he BOOT button, you can cycle through all different LED presets**
and pick the one you love!
* LED strips could be purchased here
**Or long press the boot button to switch to Betaflight LED mode


SpeedyBee F405 V3 50A Stack, 5V, G and LED pads on bottom of the front side



1500uF Low ESR capacitor +
TVS protective diode =
Extra protection

The ESC is built with TVS protective diode to absorb the voltage
spike when you plug in the battery, or during crashes that block
your props.We also provide a humongous 1500uF low ESR
capacitor, ensuring clean data from the gyro to the FC.


SpeedyBee F405 V3 50A Stack, 1500uF Low ESR capacitor + TVS protective diode = Extra protection .

1500uF Low ESR capacitor + TVS protective diode = Extra protection The ESC is built with a humongous 150OuF low ESR . capacitor; ensuring clean data from the gyro to the FC.


And packaged with more
useful features

● Built-in barometer for accurate height calculation

● SD Card slot can support up to 4GB Blackbox data*

● Dedicated DJI Air Unit connector for a quick digital build

● 9V 2A + 5V 2A individual BECs

● 4 x UARTs for your receiver + VTX + camera + GPS.

● Power your GPS with a USB cable - no battery needed.
   No extra heat, no worries.

● 22mm cutouts for FPV camera in your tight build

SpeedyBee F405 V3 50A Stack, built-in barometer SD Card slot can support up to 4GB Blackbox data .

built-in barometer for accurate height calculation SD Card slot can support up to 4GB Blackbox data* Dedicated DJI Air Unit connector for a quick digital build . power your GPS with a USB cable- no battery needed .



*Betaflight firmware requires the type of the microSD card to be
either Standard (SDSC) or High capacity (SDHC), so extended
capacity cards (SDXC) are not supported(Many high-speed U3 cards
are SDXC). Also the card MUST be formatted with the FAT16 or FAT32
(recommended) filesystems. So, you could use any SD card less than
32GB, but the Betaflight can only recognize 4GB maximum.
We suggest you use this3rd party formatting tooland choose
'Overwrite format' then format your card. Also check out here for
the recommended SD cards or buy the tested cards from our store.



SpeedyBee F405 V3 50A Stack, 9V Output 2 groups of 9V output, one +9V pad on front sideSpeedyBee F405 V3 50A Stack, BetaFlight Camera Control Pad Yes(CC pad on the front side) Current Sensor InputSpeedyBee F405 V3 50A Stack, F405 V3 Flight Controller FPV Cam For Second 4-in-1 ESC Receive

F405 V3 Flight Controller FPV Cam For Second 4-in-1 ESC Receiver Ia Extra PWM output 5v G CAM CC RSl3v3 G4V5 R2_T2 3 Antenna MCU: F4O5 R3 T3 M5_M6_M7M8 TELIS9) SBUS Bluetooth Chip Orange LED USB TYPC-C Port ISB LED 4-level LED DO 1010 battery indicator Red LED F4OS V3 PWRL]

SpeedyBee F405 V3 50A Stack, BLS 50A 4-in-1 ESC Driver chips SpeedyBee . BLS

SpeedyBee BLS50A 4-in-1 ESC features a driver chip from SpeedyBee, with four motor outputs. It includes two motor drivers for each of three motors, and has an 8-pin connector to connect to the flight controller (FC). The ESC also features a capacitor bank with 12 pins, and is compatible with batteries up to 3S or 4S (34CN) voltage.

SpeedyBee F405 V3 50A Stack, 8 motors output for X8/Y6/ fixed-wings . stackSpeedyBee F405 V3 50A Stack, Please set scale = 386 and Offset = 0. For SpeedyBee BLS 50
