SPECIFICATIONS
Type: Motherboard
Origin: Mainland China
Model Number: SB-F405
Compatible Action Camera Brand: Runcam
Bundle: Bundle 1
Brand Name: Runcam
About customs duties: we can declare a price of$20to help you avoid any customs duties.
(If you are an EU buyer and the payment amount is less than 150 Euros, AliExpress will charge customs duties and value-added tax when you pay. So your package does not need to pay customs duties again when it arrives. If the payment amount is greater than 150 euros, AliExpress will not charge any additional fees when you pay, but when the package arrives at the customs, you need to pay VAT and customs duties on the package.)
About "Free Return" policy: If you are not satisfied with the product, you can return the product to your local warehouse for any reason, and then get a refund
Product Name |
SpeedyBee F405 V3 30x30 Flight Controller |
MCU |
STM32F405 |
IMU(Gyro) |
BMI270 |
USB Port Type |
Type-C |
Barometer |
Built-in |
OSD Chip |
AT7456E chip |
BLE Bluetooth |
Supported. Used for Flight Controller configuration |
DJI Air Unit Connection Way |
Two ways supported: 6-pin connector or direct soldering. |
Blackbox MicroSD Card Slot |
*Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC),so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the card MUST be formatted with the FAT16 or FAT32 (recommended) filesystems. So, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose 'Overwrite format' then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store. |
BetaFlight Camera Control Pad |
Yes(CC pad on the front side) |
Current Sensor Input |
Supported. For SpeedyBee BLS 50A ESC, please set scale = 386 and Offset = 0. |
Power Input |
3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side) |
5V Output |
9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 2A. |
9V Output |
2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 2A. |
3.3V Output |
Supported. Designed for 3.3V-input receivers. Up to 500mA current load. |
4.5V Output |
Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load. |
ESC Signal |
M1 - M4 on bottom side and M5-M8 on front side. |
UART |
5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6) |
ESC Telemetry UART |
R4(UART4) |
I2C |
Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc. |
Traditional Betaflight LED Pad |
Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware. |
Buzzer |
BZ+ and BZ- pad used for 5V Buzzer |
BOOT Button |
Supported. same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked. BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware. |
RSSI Input |
Supported. Named as RS on the front side. |
SmartPort |
Use any TX pad of UART for the SmartPort feature. |
Supported Flight Controller Firmware |
BetaFlight(Default), EMUFlight, INAV |
Firmware Target Name |
SPEEDYBEEF405V3 |

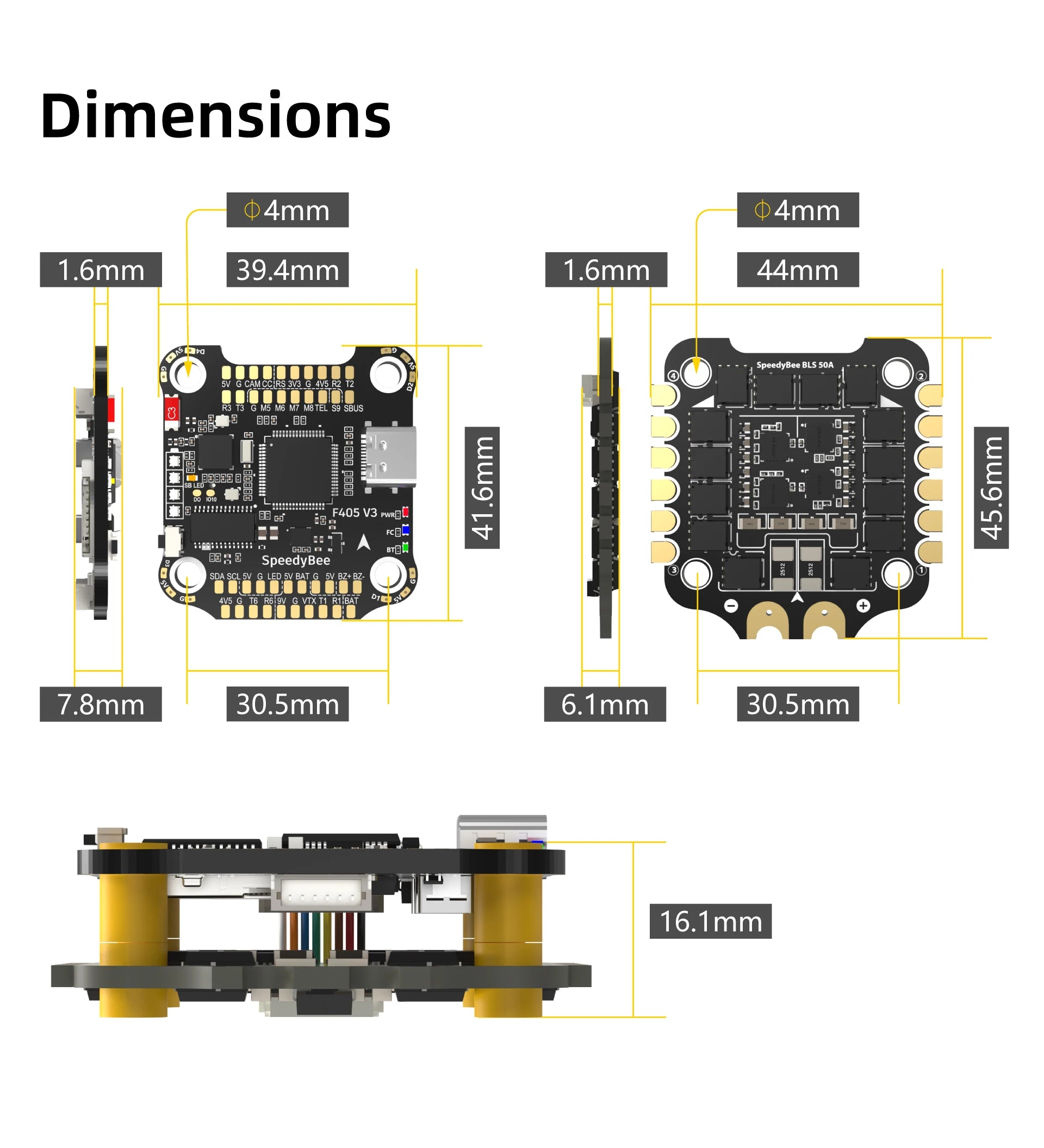

Mounting |
30.5 x 30.5mm( 4mm hole diameter) |
Dimension |
41.6(L) x 39.4(W) x 7.8(H)mm |
Weight |
9.6g |
Product Name |
SpeedyBee BLS 50A 30x30 4-in-1 ESC |
Firmware |
BLHeli_S JH50 |
Wireless Configuration |
Full Configuration Supported in the SpeedyBee app |
PC Configurator Download Link |
|
Continuous Current |
50A * 4 |
Burst Current |
55A(5S) |
TVS Protective diode |
Yes |
External Capacitor |
1500uF Low ESR Capacitor(In the package) |
ESC Protocol |
DSHOT300/600 |
Power Input |
3-6S LiPo |
Power Output |
VBAT |
Current Sensor |
Support (Scale=386 Offset=0) |
Mounting |
30.5 x 30.5mm( 4mm hole diameter) |
Dimension |
45.6(L) * 44(W) * 6.1mm(H) |
Weight |
13.8g |

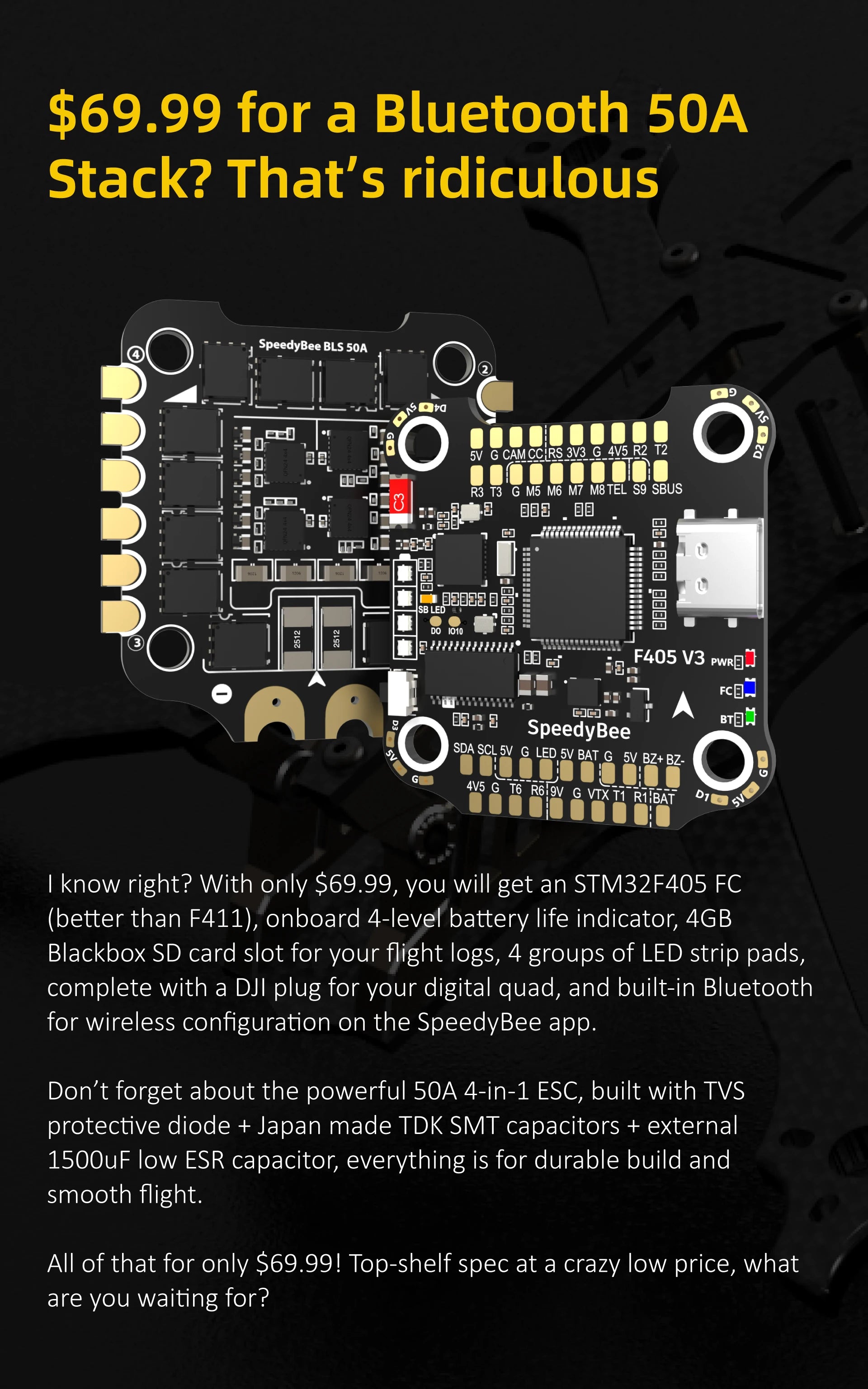

I know right? With only $69.99, you will get an STM32F405 FC
(better than F411), onboard 4-level battery life indicator, 4GB
Blackbox SD card slot for your flight logs, 4 groups of LED strip pads,
complete with a DJI plug for your digital quad, and built-in Bluetooth
for wireless configuration on the SpeedyBee app.
Don't forget about the powerful 50A 4-in-1 ESC, built with TVS
protective diode + Japan made TDK SMT capacitors + external
1500uF low ESR capacitor, everything is for durable build and
smooth flight.
All of that for only $69.99! Top-shelf spec at a crazy low price, what
are you waiting for?
3 SpeedyBee BLS S0A 7 5V G CAMCCIRS 3V3.G_4V5 R2 T2 1 R3 T3 G M5 M6 M7 M8 TEL S9 SBUS F 8 SB LED 8 DO I010 . with only S69.99, you will get an STM32F4OS FC (better than F411), onboard 4-level battery life indicator, 4GB Blackbox SD card slot for your flight logs .

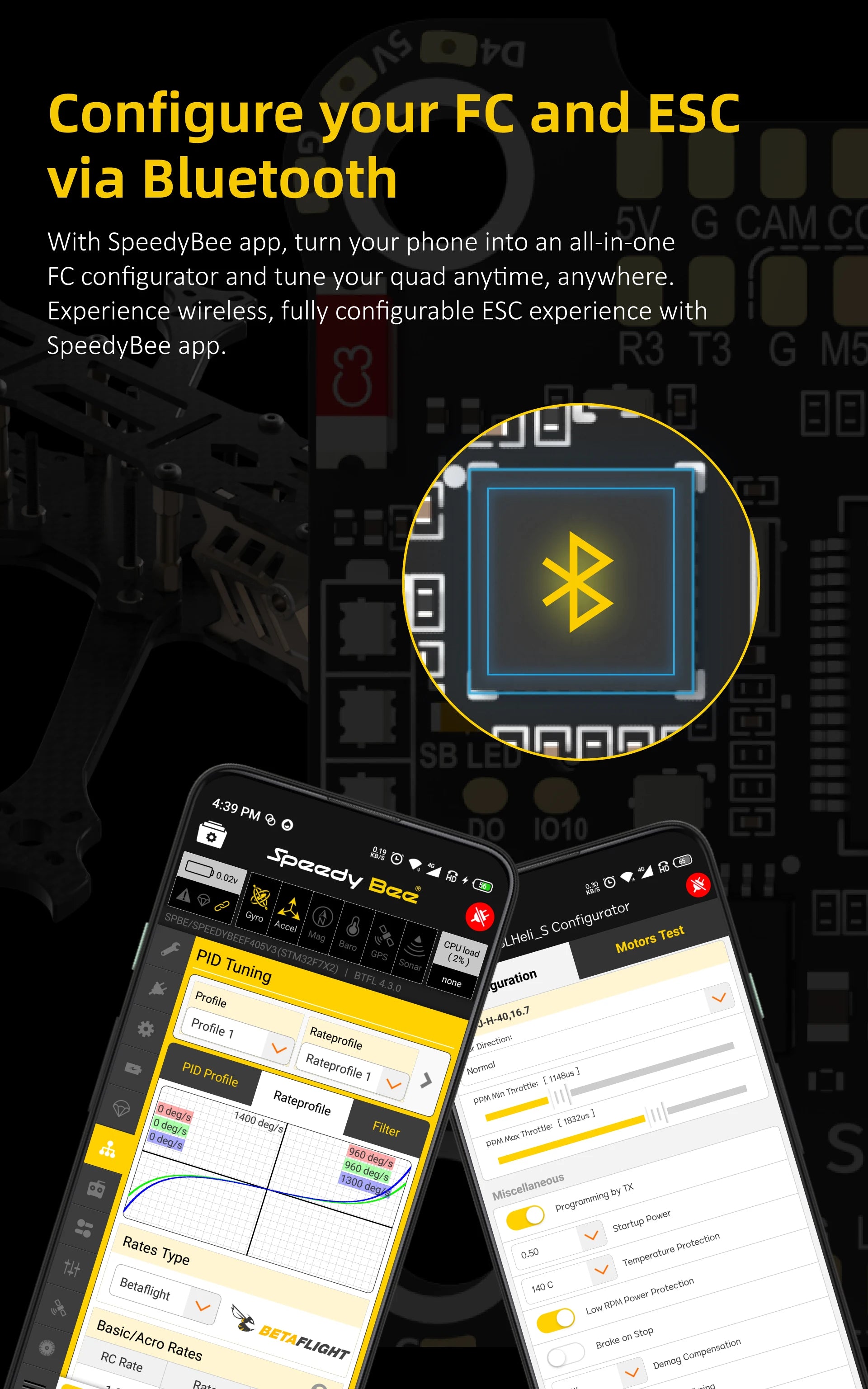

Configure your FC and ESC via Bluetooth
With SpeedyBee app, turn your phone into an all-in-one
FC configurator and tune your quad anytime, anywhere.
Experience wireless, fully configurable ESC experience with
SpeedyBee app.
Ota Configure your FC and ESC via Bluetooth With SpeedyBee app, turn your phone into an al-in-one G CAM CC FC configurator and tune your anytime, anywhere .

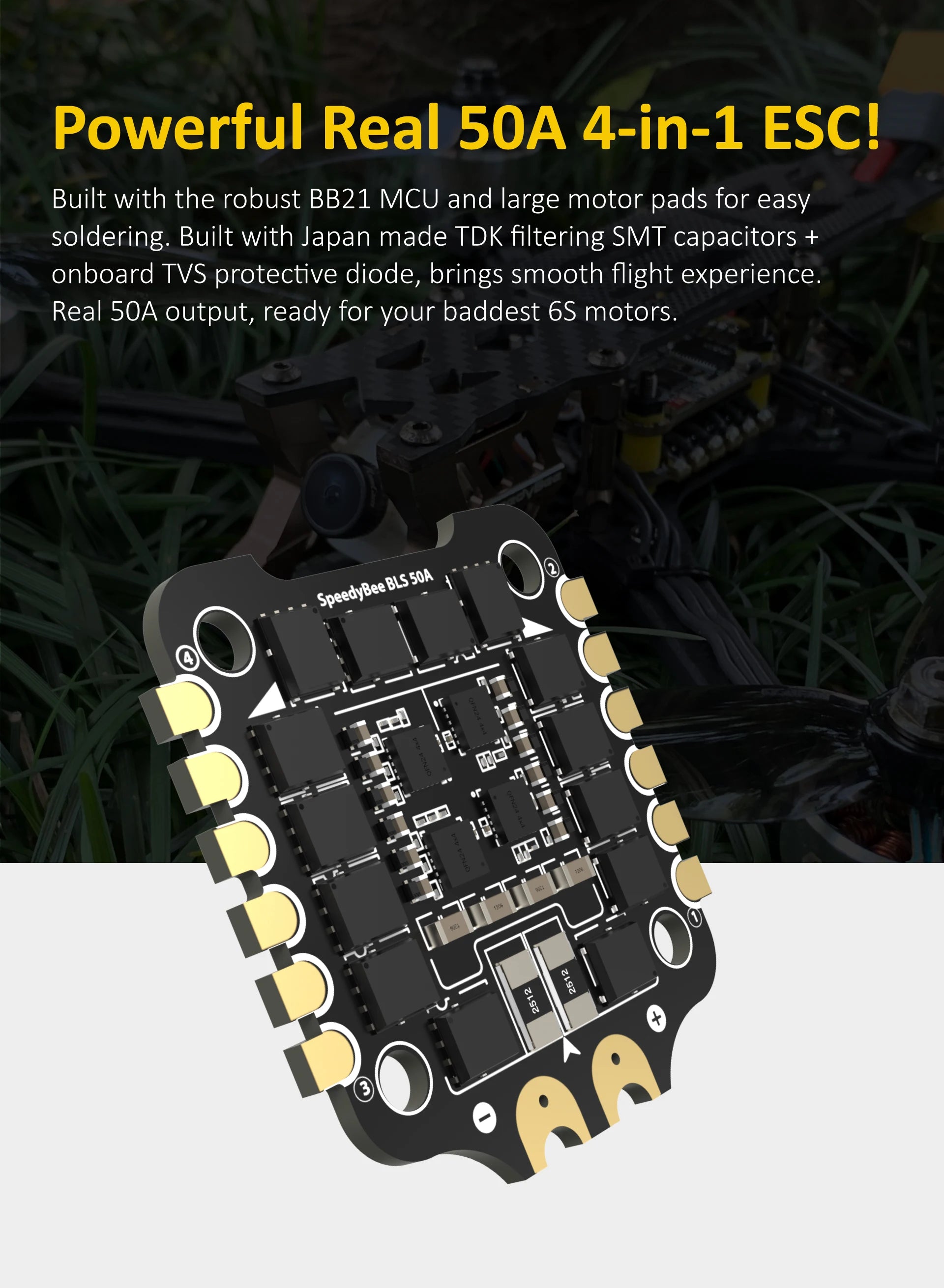

Powerful Real 50A 4-in-1 ESC!
Built with the robust BB21 MCU and large motor pads for easy
soldering. Built with Japan made TDK filtering SMT capacitors +
onboard TVS protective diode, brings smooth flight experience.
Real 50A output, ready for your baddest 6S motors.
Built with robust BB21 MCU and large motor pads for easy soldering, brings smooth flight experience: Real 50A output, ready for your baddest 6S motors

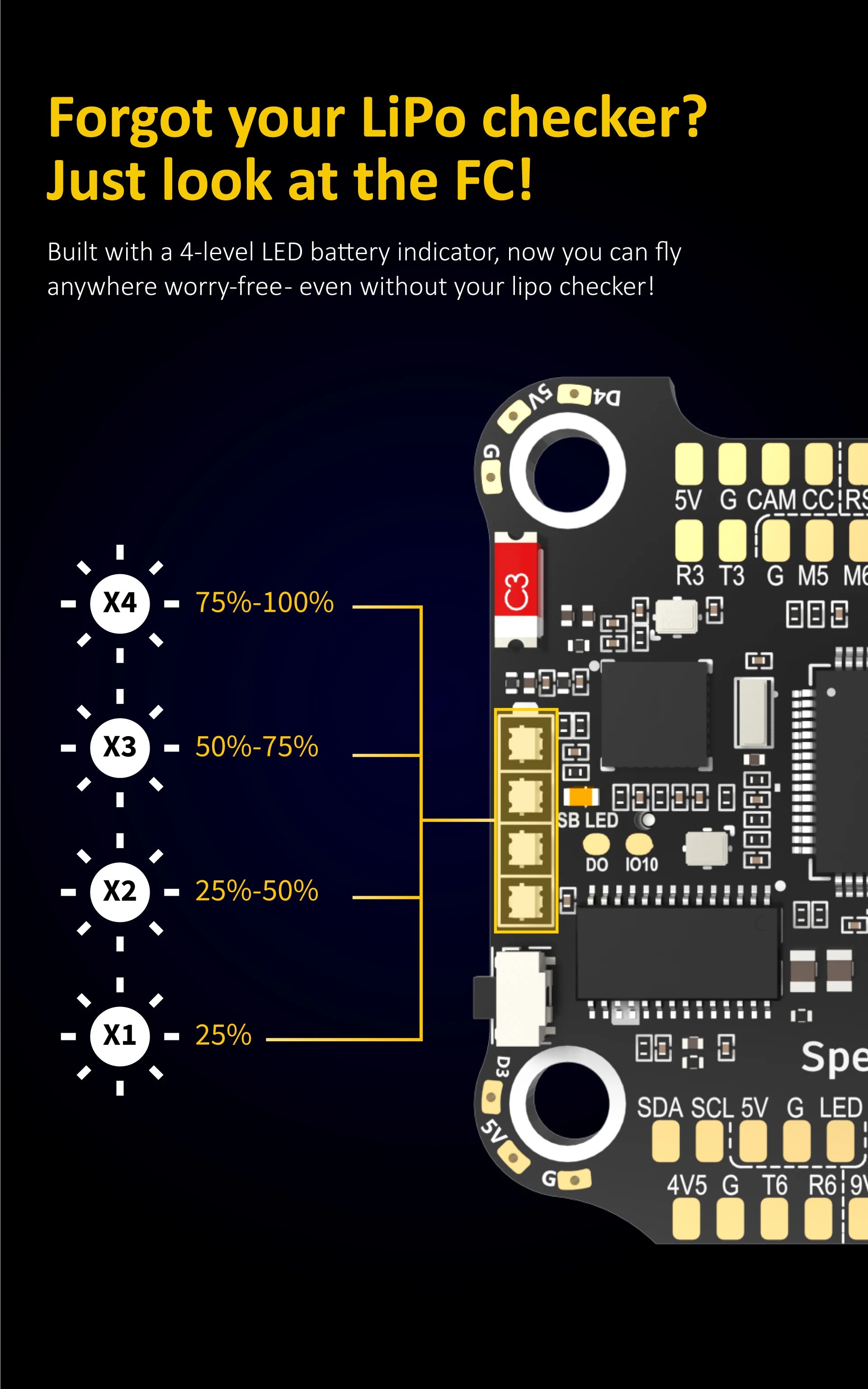

Forgot your LiPo checker?
Just look at the FC!
Built with a 4-level LED battery indicator, now you can fly
anywhere worry-free - even without your lipo checker!

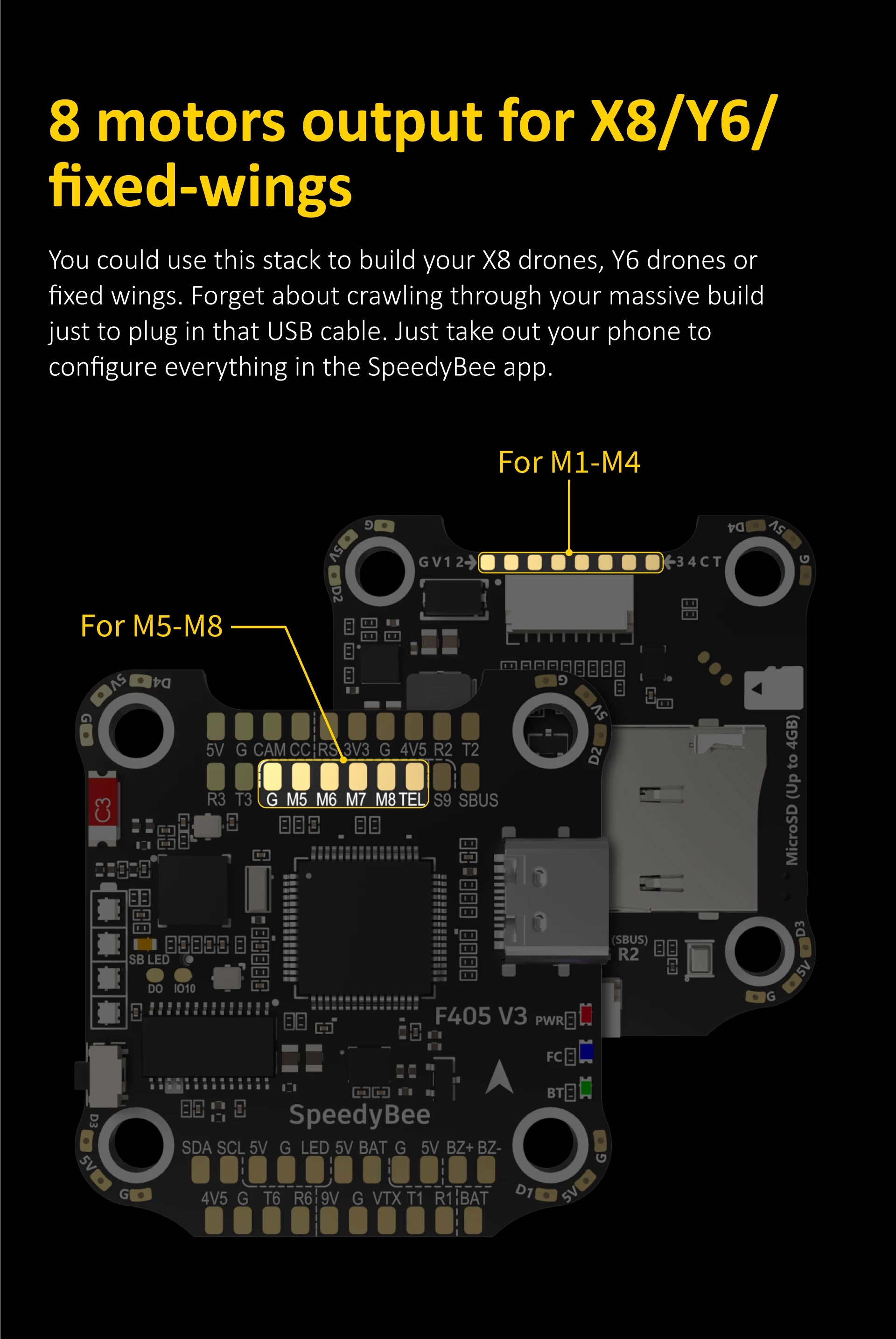

8 motors output for X8/Y6/
fixed-wings
You could use this stack to build your X8 drones, Y6 drones or
fixed wings. Forget about crawling through your massive build
just to plug in that USB cable. Just take out your phone to
configure everything in the SpeedyBee app.

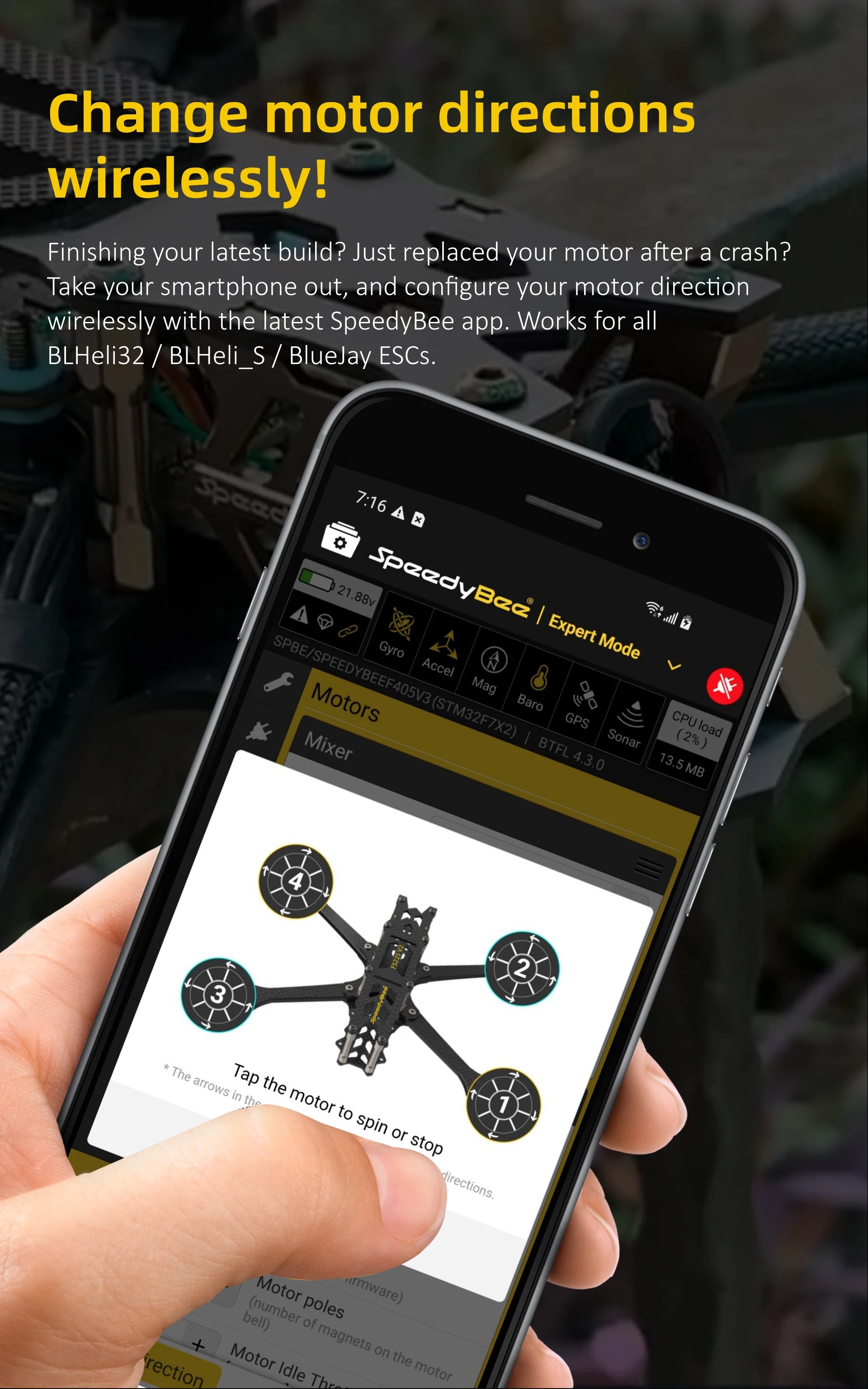

Change motor directions
wirelessly!
Finishing your latest build? Just replaced your motor after a crash?
Take your smartphone out, and configure your motor direction
wirelessly with the latest SpeedyBee app. Works for all
BLHeli32 / BLHeli_S / BlueJay ESCs.
the latest SpeedyBee app allows you to change motor directions wirelessly . it works for all BLHeli32 / BlueJay ESCs: 21 13.5 in to .

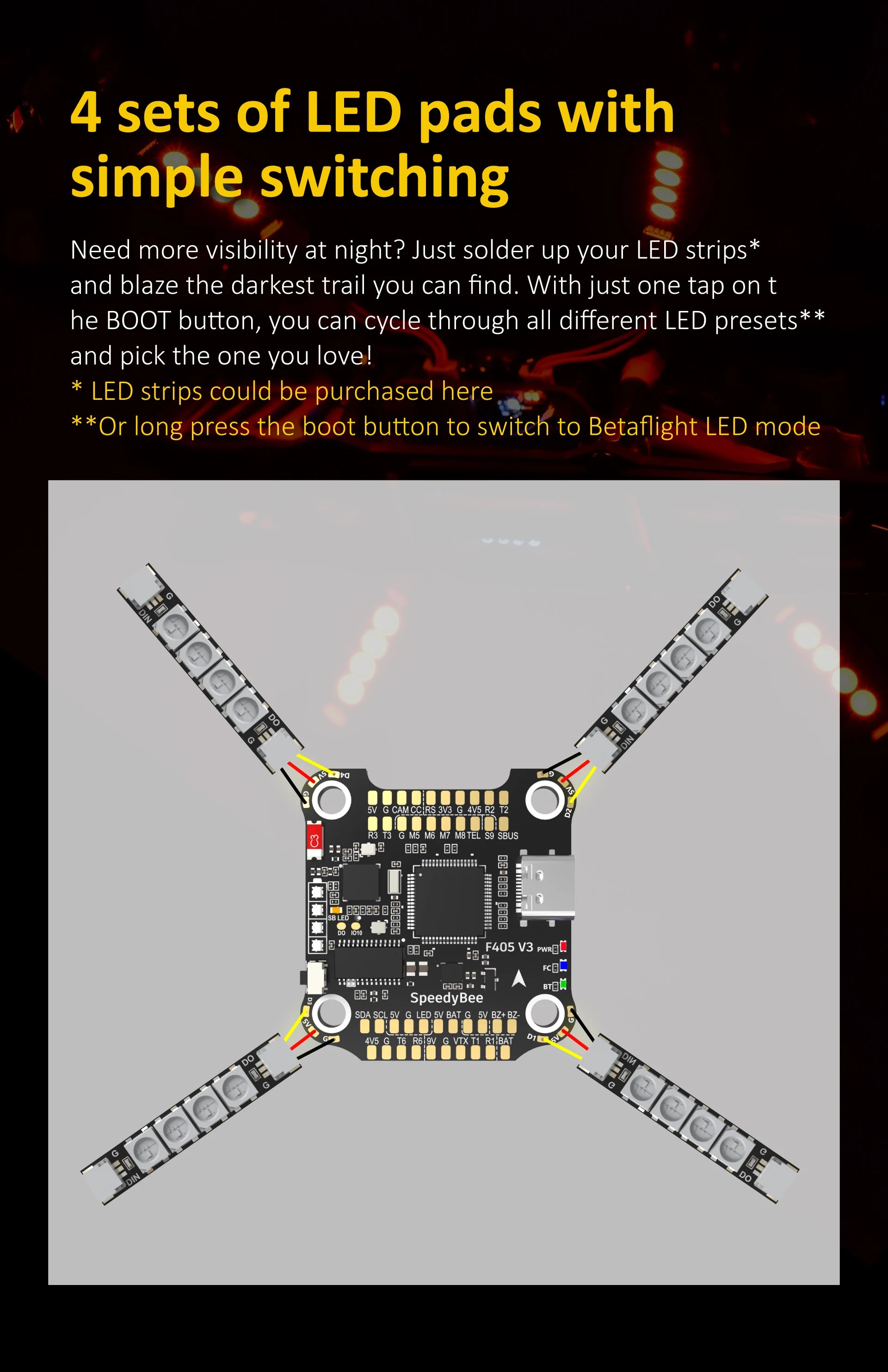

4 sets of LED pads with
simple switching
Need more visibility at night? Just solder up your LED strips*
and blaze the darkest trail you can find. With just one tap on t
he BOOT button, you can cycle through all different LED presets**
and pick the one you love!
* LED strips could be purchased here
**Or long press the boot button to switch to Betaflight LED mode

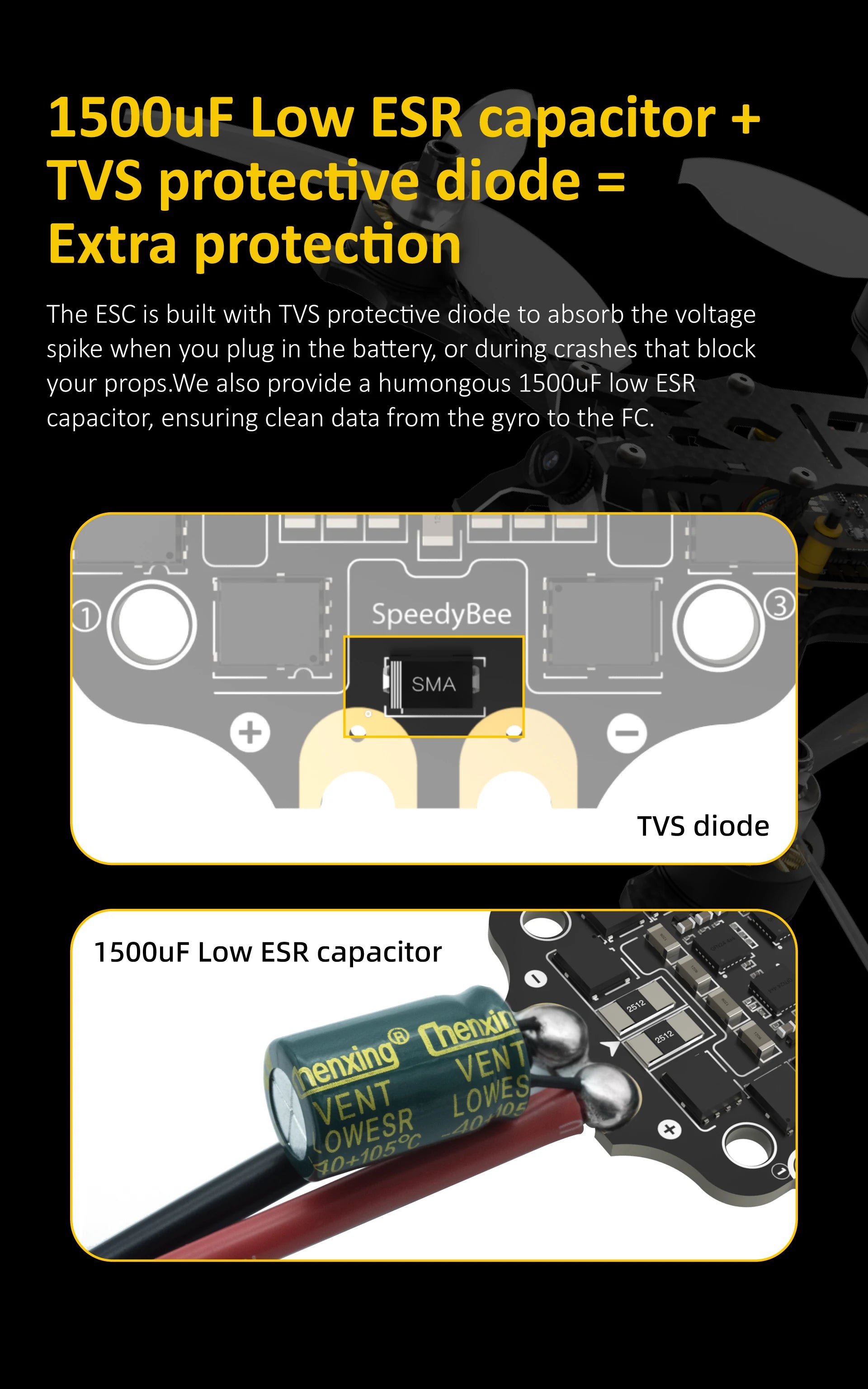

1500uF Low ESR capacitor +
TVS protective diode =
Extra protection
The ESC is built with TVS protective diode to absorb the voltage
spike when you plug in the battery, or during crashes that block
your props.We also provide a humongous 1500uF low ESR
capacitor, ensuring clean data from the gyro to the FC.
1500uF Low ESR capacitor + TVS protective diode = Extra protection The ESC is built with a humongous 150OuF low ESR . capacitor; ensuring clean data from the gyro to the FC.

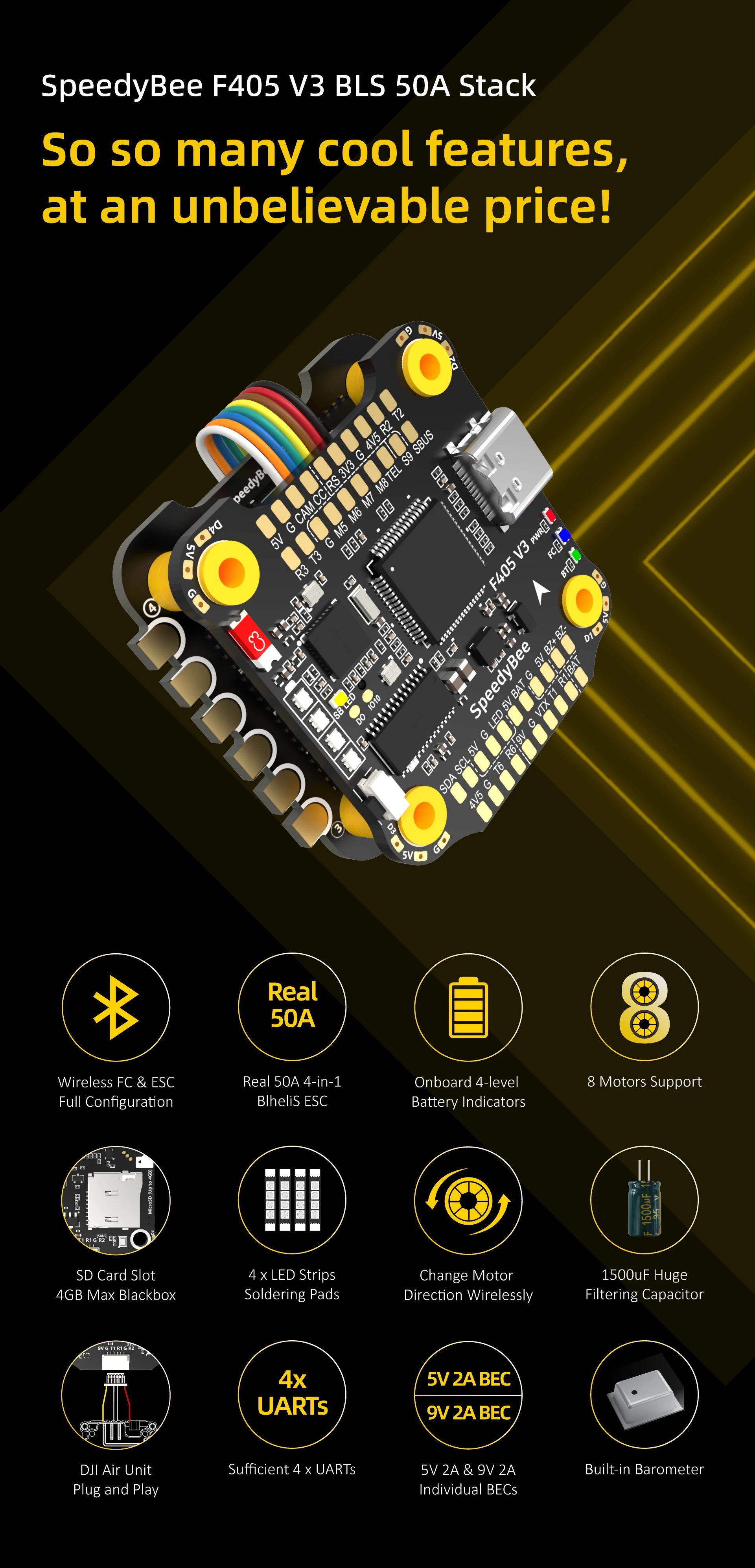

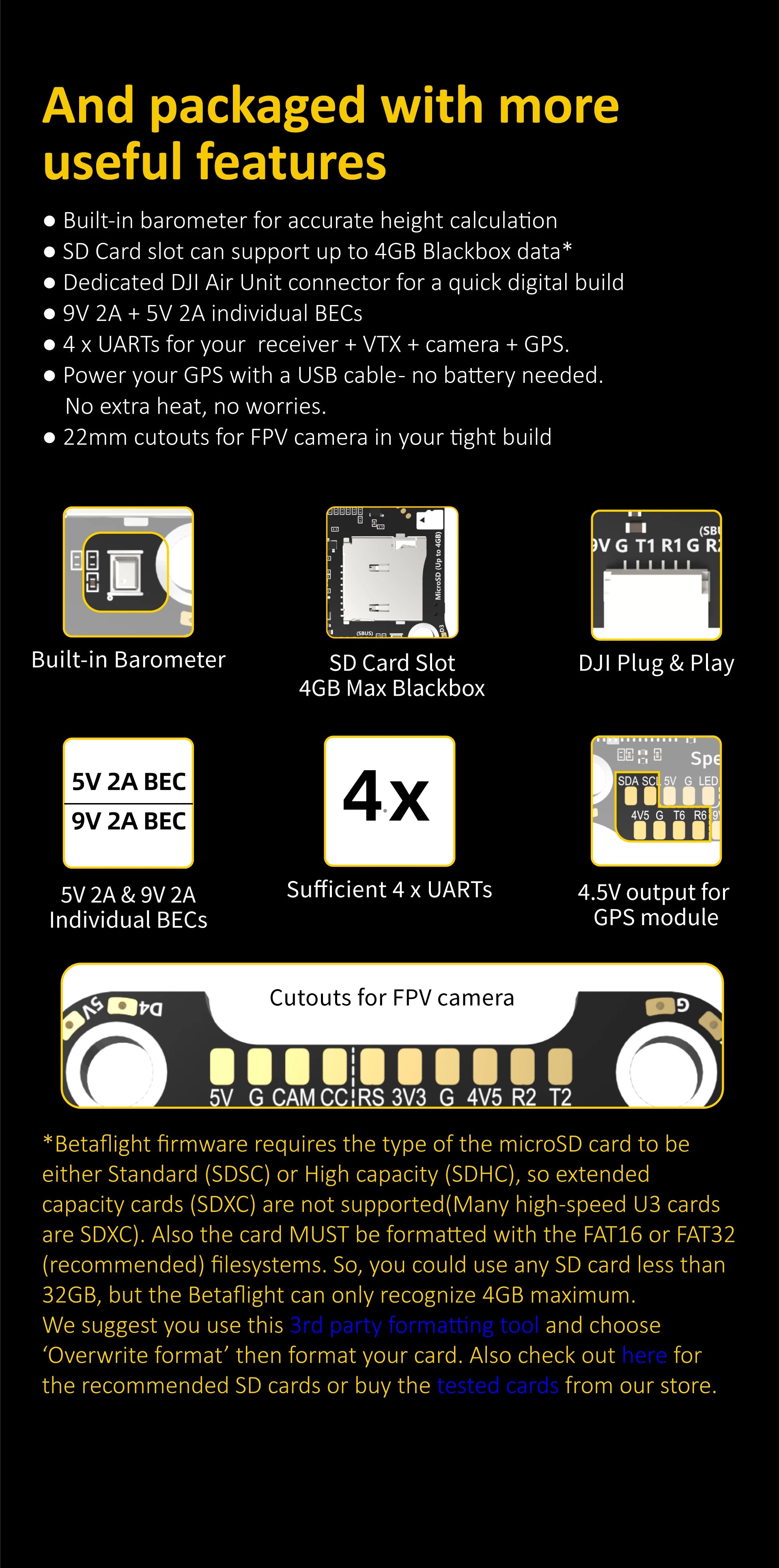

And packaged with more
useful features
● Built-in barometer for accurate height calculation
● SD Card slot can support up to 4GB Blackbox data*
● Dedicated DJI Air Unit connector for a quick digital build
● 9V 2A + 5V 2A individual BECs
● 4 x UARTs for your receiver + VTX + camera + GPS.
● Power your GPS with a USB cable - no battery needed.
No extra heat, no worries.
● 22mm cutouts for FPV camera in your tight build
built-in barometer for accurate height calculation SD Card slot can support up to 4GB Blackbox data* Dedicated DJI Air Unit connector for a quick digital build . power your GPS with a USB cable- no battery needed .
*Betaflight firmware requires the type of the microSD card to be
either Standard (SDSC) or High capacity (SDHC), so extended
capacity cards (SDXC) are not supported(Many high-speed U3 cards
are SDXC). Also the card MUST be formatted with the FAT16 or FAT32
(recommended) filesystems. So, you could use any SD card less than
32GB, but the Betaflight can only recognize 4GB maximum.
We suggest you use this3rd party formatting tooland choose
'Overwrite format' then format your card. Also check out here for
the recommended SD cards or buy the tested cards from our store.
F405 V3 Flight Controller FPV Cam For Second 4-in-1 ESC Receiver Ia Extra PWM output 5v G CAM CC RSl3v3 G4V5 R2_T2 3 Antenna MCU: F4O5 R3 T3 M5_M6_M7M8 TELIS9) SBUS Bluetooth Chip Orange LED USB TYPC-C Port ISB LED 4-level LED DO 1010 battery indicator Red LED F4OS V3 PWRL]
SpeedyBee F405 V3 BLS 50A ESC (Electronic Speed Controller) features a 4-in-1 driver chip, with four motor channels, two with three motors each. The unit includes an 8-pin connector for connecting to a Flight Controller (FC), along with eight capacitors and a BAT+ pin for power supply.
