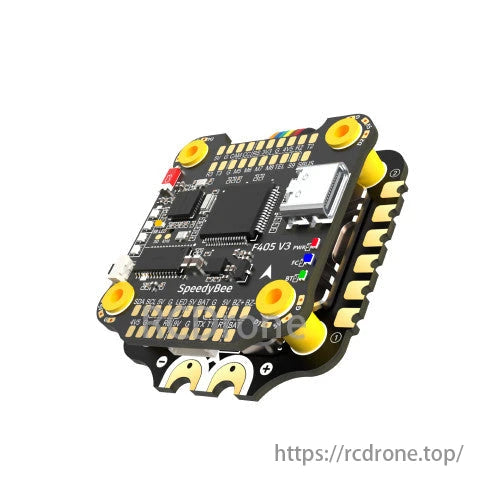

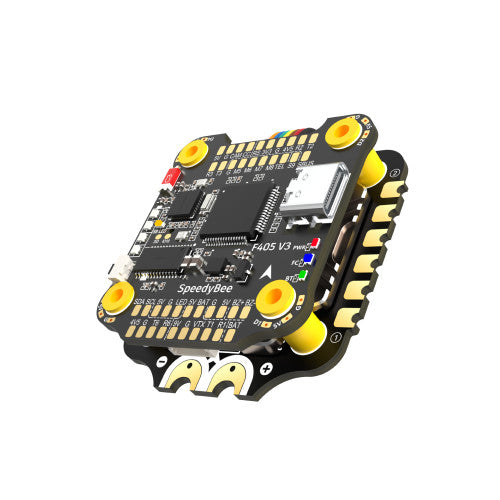

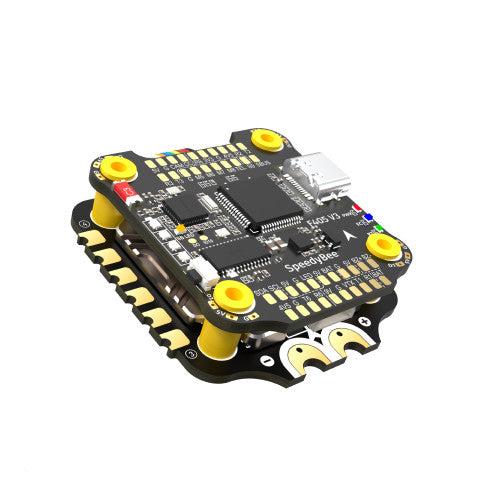

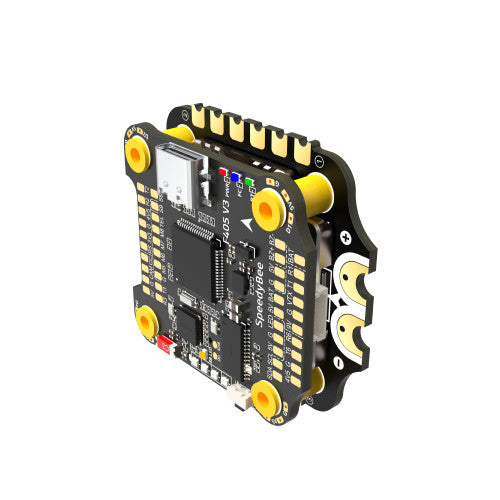

SpeedyBee F405 V3 BLS 60A 30x30 FC&ESC Stack

Details

Important tips for installing the flight stack: please ensure that the flight stack is installed in the standard manner, with the flight controller (FC) on top and the electronic speed controller (ESC) on the bottom. To change the gyroscope direction and motor sequence, use the settings app. Damage resulting from improper installation is not covered under our warranty.

SpeedyBee F405 V3 BLS 60A 30x30 FC and ESC Stack. This product image shows a connection with the flight controller (FC) to motors via L.J. connectors, featuring a 4-in-1 motor driver board with pads for four motors. The stack includes a motor 1, motor 2, motor 3, and motor 4, as well as a BDA 3-65 ESC and a 8-bit SpCCOYBzz motor driver. It also features a low ESR capacitor and an XT60 power cable.

SpeedyBee F405 V3 BLS 60A 30x30 FC&ESC Stack. The importance notice for SBUS receiver is as follows: when an SBUS receiver is connected, the SBUS signal wire of the receiver must be connected to the SBUS on the front side of the flight controller (this internally uses UART2). If you are also using a DJI Air Unit and have connected it to the flight controller through the dedicated 6-pin harness on the back, you will need to disconnect the SBUS signal wire from the Air Unit harness. Failure to do so will prevent the SBUS receiver from being properly recognized by the flight controller.

The SpeedyBee F405 V3 BLS 60A 30x30 FC&ESC Stack features a recommended connection method for ELRS receivers. Connect the TX and RX pads on the flight controller to the T2 and R2 pads, respectively. However, when using the DJI Air Unit simultaneously with some ELRS receivers, issues may arise. To resolve this, disconnect the SBUS signal wire from the Air Unit harness. Use tweezers or cut the wire carefully, then insulate the exposed part.

SpeedyBee F405 V3 Flight Controller with FPV Cam for Second 4-in-1 ESC Receiver and Extra PWM Output. SV G CAM CC RSI3V3, 4V5, R2 T2 Antenna MCU: F405 R3T3 G M5 M6 M7 M8 TELIS9JSBUS d08 00 Bluetooth Chip Orange LED 8 USB TYPC-C Port @ SB LED 0b0bb0e-8 4-level LED Di 010 5 battery indicator Red LED. Ei EE.FLOS V3 pw RD] FC Blue LED BOOT Button Qcj 08;! SpeedyBee Green LED SDA SCU SV G LEDISV BATI SV BZ+ BZ-| OSD Chip (AT7456E) Gyro (BMI270) 4V5 G T6 R6i gV G VIX T1 RIABAT Buzzer GPS & Compass Betaflight LED VTX (Analog/DJI) 8pin Connector to ESC LEDI LED4 GV129 634ct TVS Diode (Anti-voltage spike) 00 00 5V 2A BEC @ 8 2 D g SD Card Slot (Use SDSCISDHC cards E 0 format to 'FAT32' format) 9V 2A BEC (SBUS) 9V G T1 R1G R2 00 LED2 IDI pr LED3 DJI Air Unit Connector Barometer LED Indicator Definition RED LED Power Indicator Solid Red after powering up. GREEN LED Bluetooth status light. Solid Green indicates Bluetooth is connected. BLUE LED Flight controller status light which is controlled by the flight controller firmware. Orange LED LED Control Mode Indicator It indicates the 4 sets of LED strips connected to LEDI-LED4 pads on the corners of the flight controller are controlled by Betaflight firmware (BF_LED mode) or the Bluetooth chip (SB_LED mode): Solid Orange indicates the 4x LEDs are in SB_LED mode. In this mode, when the FC is powered on and in standby mode, press the BOOT button to cycle the display modes of the LEDs. OFF indicates the 4x LEDs are controlled by Betaflight firmware. Long press the button for 3 seconds to switch the control modes between BF_LED mode and SB_LED mode. BOOT Button [AJ Only if the flight controller bricked and can't power Up, please follow these steps to re-flash firmware for it: Insert a USB A to TYPE-C cable to your PC. Press and hold the BOOT button, insert the USB cable into the flight controller; then release the BOOT button Open Betaflight/INAV configurator on the PC, go to the 'Firmware Flashing page, choose the target 'SPEEDYBEEFLOSV3' and flash: [B]. When the FC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to LEDI-LED4 pads on the corners.

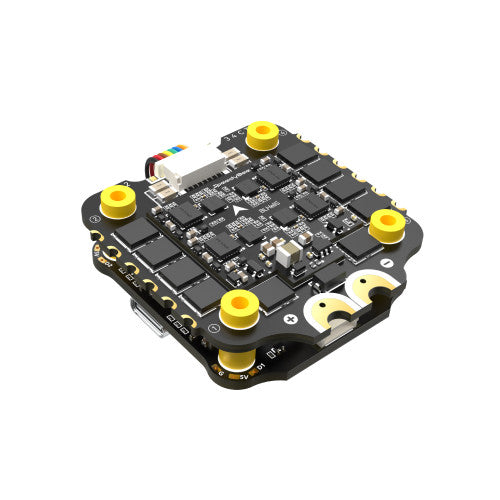

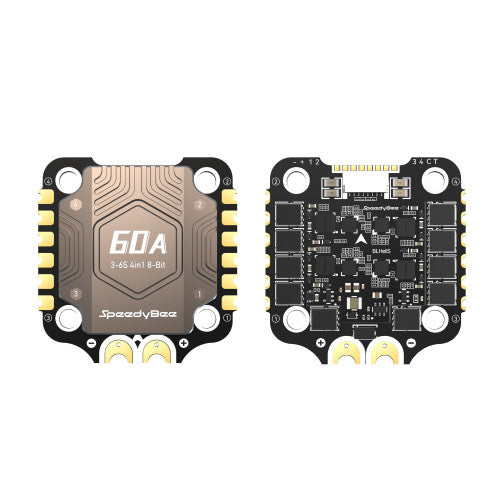

SpeedyBee F405 V3 BLS 60A 30x30 FC and ESC Stack features a 4-in-1 ESC motor with four motors, two 6DA motors, an 8-bit microcontroller (BB21), and a TVS diode. It includes a capacitor pin and BAT+ hole for connecting to the flight controller (FC). The stack has an 8-pin connector for linking the FC and ESC. The MCU is driven by the SPccdYBcz driver chip. This product is designed for high-performance applications and is suitable for various drone configurations.

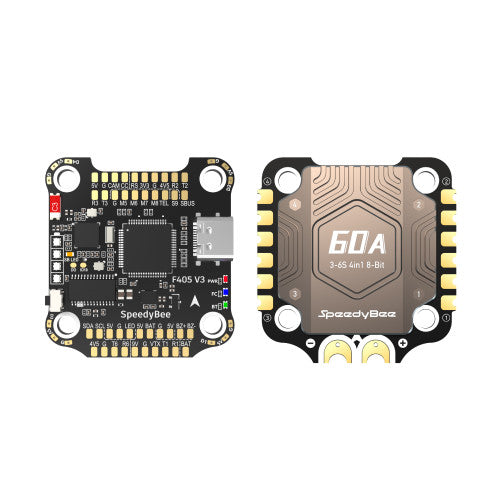

SpeedyBee F405 V3 BLS 60A 30x30 FC&ESC Stack. This product includes: SpeedyBee F405 V3 Flight Controller, SpeedyBee BLS 60A 4-in-1 ESC, and various hardware components.
