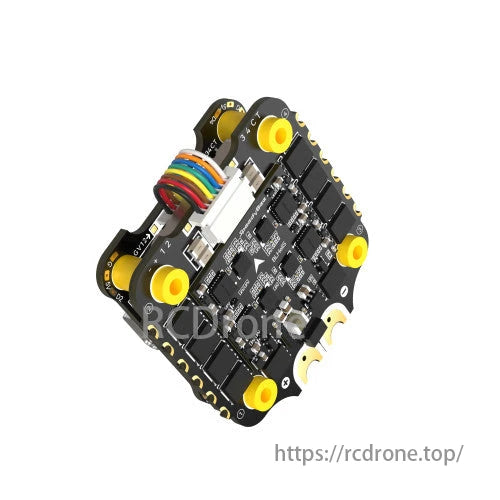

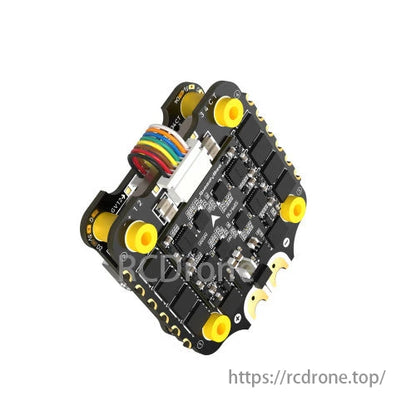

SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC Stack

SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC Stack

SpeedyBee

$99.00 USD
$99.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

99 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Specifications

Product Name SpeedyBee F405 V4 30x30 Flight Controller
MCU STM32F405
IMU(Gyro) ICM42688P
USB Port Type Type-C
Barometer Built-in
OSD Chip AT7456E chip
BLE Bluetooth Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)
WIFI Not supported
DJI Air Unit Connection Way Two ways supported: 6-pin connector or direct soldering.
6-pin DJI Air Unit Plug Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
Blackbox MicroSD Card Slot *Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported (Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format. So, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose 'Overwrite format' then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store.
Current Sensor Input Supported. For SpeedyBee BLS 60A ESC, please set scale = 400 and Offset = 0.
Power Input 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
5V Output 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.
9V Output 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.
3.3V Output Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
4.5V Output Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal M1 - M4 on bottom side and M5-M8 on front side.
UART 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5 (Dedicated for ESC telemetry),UART6
ESC Telemetry UART R5
I2C Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
Buzzer BZ+ and BZ- pad used for 5V Buzzer
BOOT Button Supported.
[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI Input Supported. Named as RS on the front side.
Smart Port / F.Port Not supported
Supported Flight Controller Firmware BetaFlight(Default), INAV
Firmware Target Name SPEEDYBEEF405V4
Mounting 30.5 x 30.5mm( 4mm hole diameter)
Dimension 41.6(L) x 39.4(W) x 7.8(H)mm
Weight 10.5g
Product Name SpeedyBee BLS 60A 30x30 4-in-1 ESC
Firmware BLHeli_S J-H-40
PC Configurator Download Link https://esc-configurator.com/
Continuous Current 60A * 4
Burst Current 80A(10 sec)
TVS Protective diode Yes
External Capacitor 1000uF Low ESR Capacitor(In the package)
ESC Protocol DSHOT300/600
Power Input 3-6S LiPo
Power Output VBAT
Current Sensor Support (Scale=400 Offset=0)
ESC Telemetry Not supported
Mounting 30.5 x 30.5mm( 4mm hole diameter)
Dimension 45.6(L) * 44(W) *8mm(H)
Weight 23.5g



Details

SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
$75.99 for a Bluetooth 60A Stack?
That's ridiculous
I know right? With only $75.99, you will get an STM32F405 FC (better than F411), onboard 4-level battery life indicator, 4GB Blackbox SD card slot for your flight logs, 4 groups of LED strip pads, complete with a DJI plug for your digital quad, and built-in Bluetooth for wireless configuration on the SpeedyBee app. Don’t forget about the powerful 60A 4-in-1 ESC, built with aluminum alloy heat sink + TVS protective diode + high-quality SMD filtering capacitors + external 1000uF low ESR capacitor, everything is for durable build and smooth flight.
All of that for only $75.99! Top-shelf spec at a crazy low price, what are you waiting for?
* The DJI Air Unit plug is completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
Configure your FC and ESC via Bluetooth!
With SpeedyBee app, turn your phone into an all-in-one FC configurator and tune your quad anytime, anywhere. Enjoy wireless, fully configurable ESC experience with SpeedyBee app
SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
ESC upgraded to 60A with heat sink.
The PCB design has been refined, with copper thickness increased from 2 to 3 ounces and enhanced MOSFET specifications. Continuous current now reaches 240A across all channels, peaking at 320A for 10 seconds. An added aluminum alloy heat sink ensures efficient MOSFET heat dissipation for stable ESC output. It delivers a genuine 60A output, primed for your baddest high-powered 6S motors.
SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
ICM42688P Gyro and clean
power supply.
Featuring MaxLinear's esteemed LDO power chip, the gyroscope gets dedicated power, enhancing surge protection by 320%. A 100uF filtering tantalum capacitor shields gyro data from power interferences. This ensures precise flight responsiveness, letting you truly savor the joy of flying!
SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
Forgot your LiPo checker?
Just look at the FC!
On the side of the flight controller, you will find a 4-level battery capacity indicator. As soon as you connect the battery, you can instantly see the battery level, saving you the hassle of needing to put on glasses to check the battery status.
SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
SD card compatibility issue fixed!
The F405 V3 FC faced compatibility issues with certain microSD cards, with a few even occasionally affecting the stable OSD display. The improved F405 V4 flight controller, however, addresses these challenges. It reliably supports C4, C6, C10, and higher cards at 2k/4k logging rates.
BF/INAV can recognize up to 4GB of black box space. Once you clear the SD card, you can enjoy 1000+ flights. Experience black box freedom like never before!
SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
Change motor directions wirelessly!
Are you still using a computer to change motor directions? With this stack, when you finish your build, connect to the SpeedyBee app, change the motor directions just in a few simple steps*. Then take off.
* To use this feature, please go to the App > Motors > Motor Direction Settings.
SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
8 motors output for X8/Y6
You could use this stack to build your X8 drones and Y6 drones . Forget about crawling through your massive build just to plug in that USB cable. Just take out your phone to configure everything in the SpeedyBee app.
SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
4 sets of LED pads with simple switching.
Need more visibility at night? Just solder up your LED strips* and blaze the darkest trail you can find. With just one tap on the BOOT button, you can cycle through all different LED presets** and pick the one you love!
* LED strips could be purchased here
**Or long press the boot button to switch to Betaflight LED mode.
SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
TVS Protective Diode + 20 Onboard Filtering Capacitors + 1000uF High-Capacity Electrolytic Capacitor = Upgraded ESC Protection
We've included a TVS diode that effectively absorbs voltage spikes during power-up and crash events. The board features 20 high-quality SMD filtering and energy storage capacitors. These, along with the standard 1000uF high-frequency, low-ESR electrolytic capacitor, effectively filter out signal interference from the power supply to the flight controller's gyroscope, ensuring smoother flight performance.
SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, SpeedyBee F405 BLS 60A
And packaged with more useful features.
● Built-in barometer for accurate height calculation
● SD card slot can support up to 4GB Blackbox data*
● Dedicated DJI Air Unit connector for a quick digital build
● 5V & 9V Dual BECs now upgraded to both 3A output
● 4 x UARTs for your receiver + VTX + camera + GPS
● Power your GPS with a USB cable - no battery needed,
No extra heat, no worries
● 22mm cutouts for FPV camera in your tight build
*Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose 'Overwrite format' then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store.
SpeedyBee F405 BLS 60A

SpeedyBee F405 BLS 60A

SpeedyBee F405 BLS 60A

SpeedyBee F405 BLS 60A

The SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC Stack is a comprehensive package for drone enthusiasts. It includes a flight controller, four motors, and an ESC (Electronic Speed Controller). The stack is designed to work seamlessly together, allowing users to easily control their drones. The flight controller features advanced stabilization and navigation capabilities, while the ESC provides reliable motor control. This bundle is ideal for those looking to build or upgrade their drone performance.


SpeedyBee F405 BLS 60A

SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC Stack Product Image: The SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC stack is designed for DJI Air Unit V1 and V3, using a 6-pin cable. It an essential accessory for your aerial photography or videography needs.


SpeedyBee F405 BLS 60A

Speedy Bee F405 V4 BLS 60A 30x30 Flight Controller and Electronic Speed Controller (ESC) Stack


SpeedyBee F405 BLS 60A

SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC Stack: The stack includes a flight controller, power distribution board, and ESCs. It supports multiple motor configurations and has a high current rating of 60A.


SpeedyBee F405 BLS 60A

SpeedyBee F405 V4 Flight Controller with FC and ESC Stack, 60A, 30x30mm, featuring FPV Cam, 4-in-1 ESC, Receiver, Barometer, Extra PWM output, Antenna, 5V G, CAMCC RSIV3, GPS, Compass, Betaflight LED, VTX (Analog) VTX (DJI), 8pin Connector to ESC, LEDI, LEDG, GV129 F34CT TVS Diode (Anti-voltage spike) 9V 3A BEC, SPCYaYBzz, SD Card Slot (uses SDSCISDH cards, OSD Chip AT7456E format to FAT32), UART 1 for OSD, UART 2 for receiver.


SpeedyBee F405 BLS 60A

SpeedyBee F405 V4 BLS 60A 30x30 FC and ESC Stack. It features a 4-in-1 ESC motor with four motors, two BDA 3-65 linear regulators, an 8-bit motor controller, and three motor drivers. The board includes capacitor pins for capacitors and BAT+ and GND holes. Additionally, it has an 8-pin connector to connect to the FC module. The driver MCU is a BB21 chip. It also features TVS diodes and chips.


SpeedyBee F405 BLS 60A

The SpeedyBee F405 V4 BLS 60A 30x30 FC and ESC Stack is a product that combines flight control and electronic speed controller functionality. It features a robust design with high-quality components.

Manual

SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, It supports various card types, including C4, C6, and C10, at high logging rates.English SpeedyBee F405 V4 BLS 30x30 FC ESC Stack, By default, short-press the BOOT button to cycle the LED displaying mode.中文
