Specifications
Overview | |

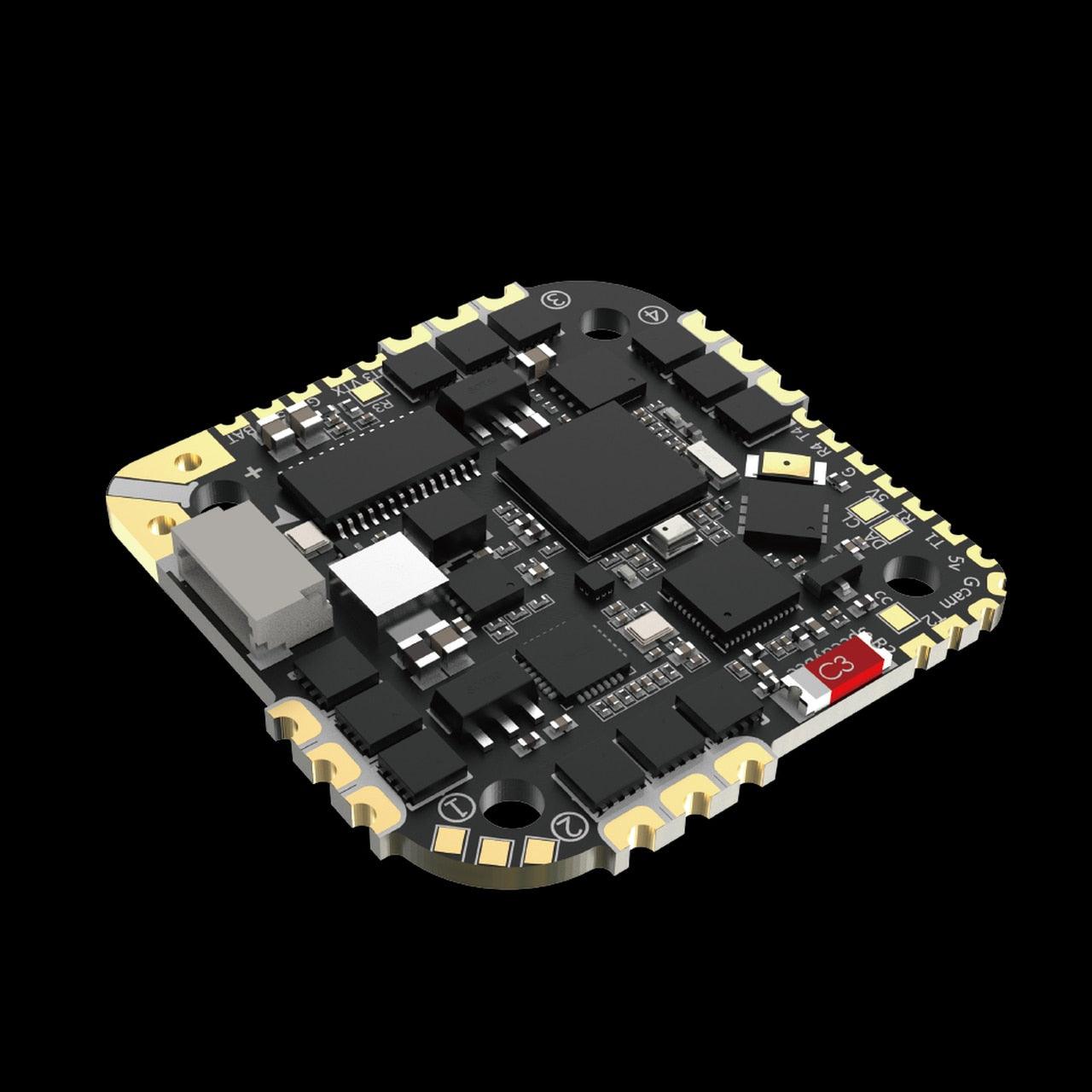

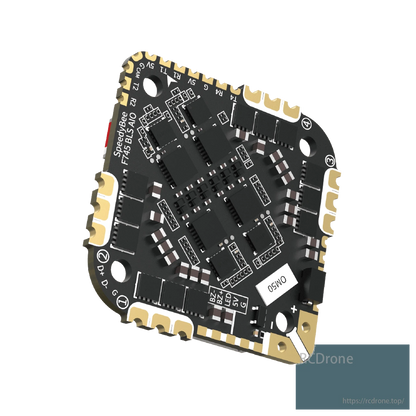

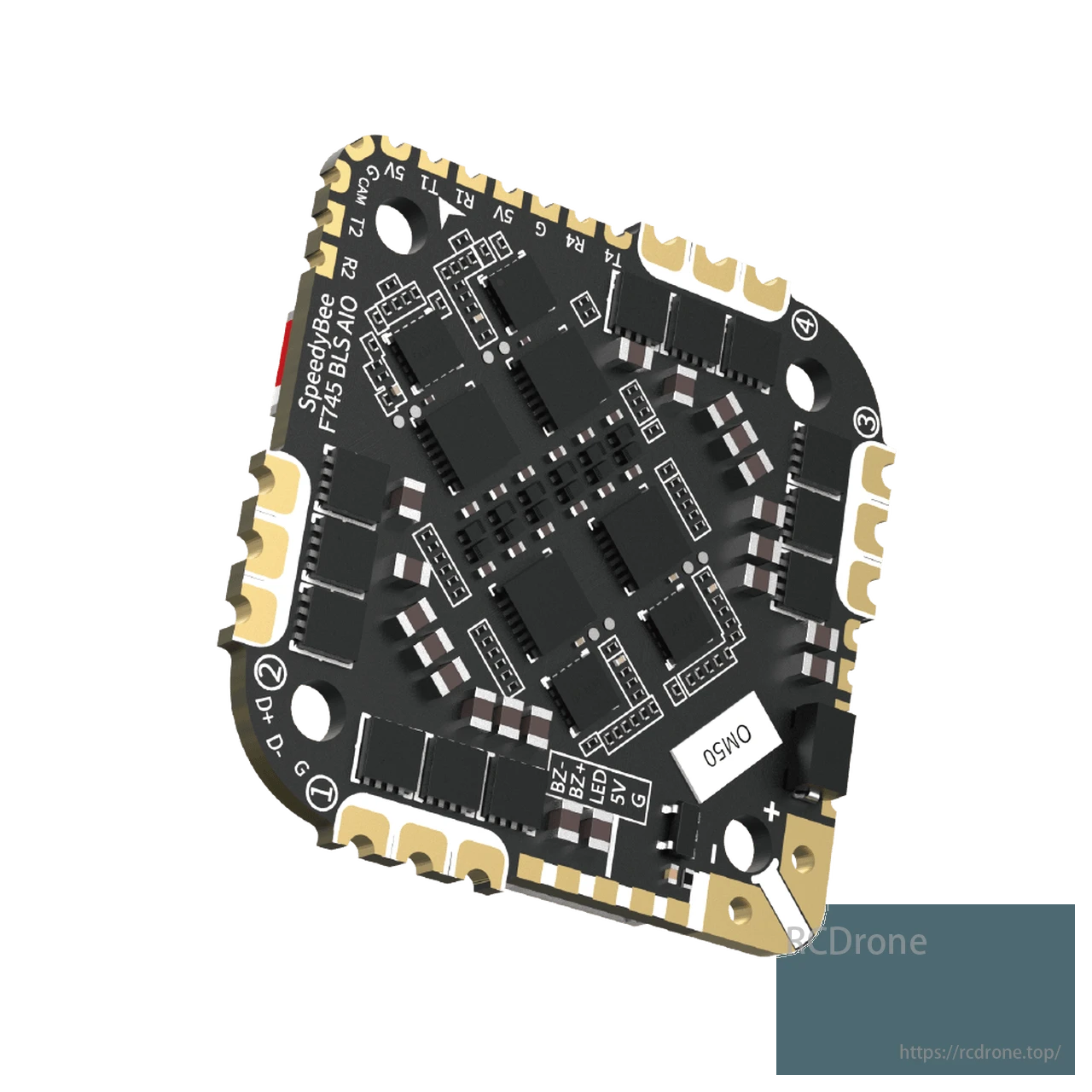

Product Name | SpeedyBee F745 35A BLS AIO |
Power Input | 3S - 6S Lipo |
Mounting | 25.5 x 25.5mm, 3mm hole diameter |
Dimension | 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5" or above |
Weight | 10.1g |
FC | |
MCU | STM32F745 |
IMU(Gyro) | MPU6000 |
USB Connection | Need to solder a USB TYPE-C module to D+,D-,GND pads. |
Barometer | BMP280 |
OSD | Supported |
BLE Bluetooth | Supported. Used for parameter configuration,built-in a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip |
Flash FC Firmware Wirelessly | Supported |
Download/Analyze Blackbox | Supported |

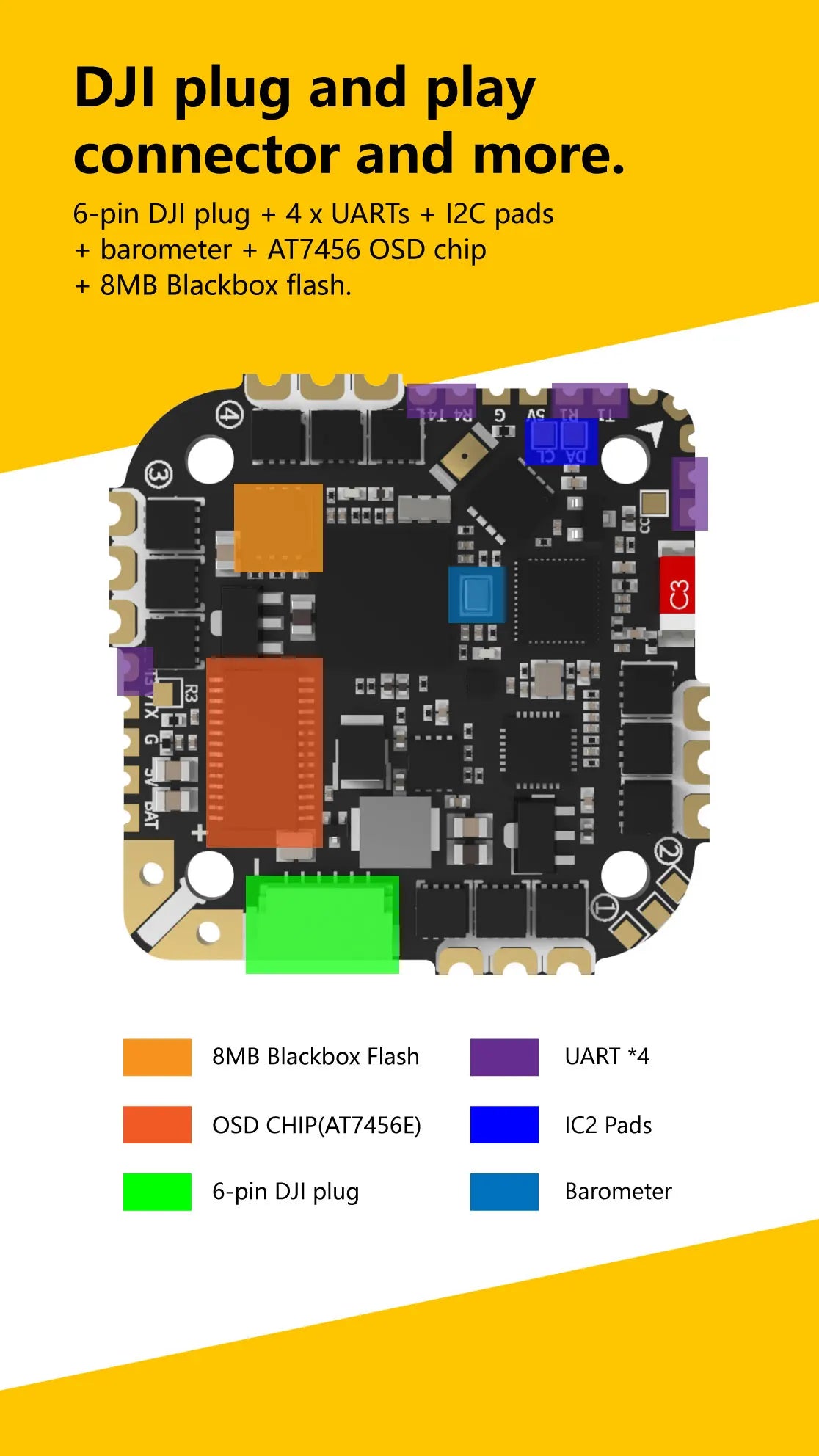

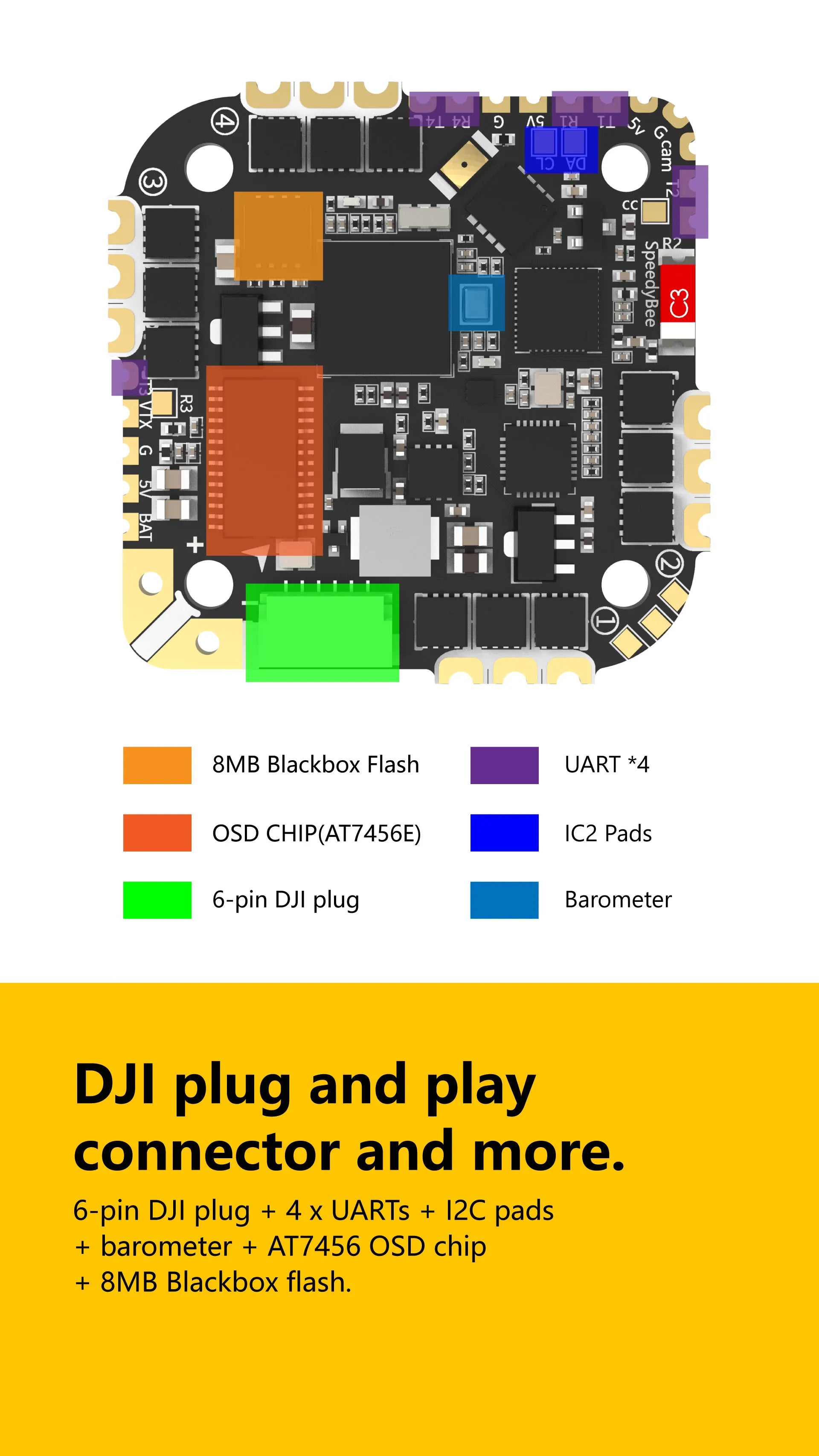

DJI Air Unit 6-pin Connector | Built-in. |
Flash(for BlackBox) | 8MB |
Current Sensor | Supported. Scale=256 |
BetaFlight Camera Control Pad | Yes(CC pad) |
5V Output | 4 groups of 5V output. The total current load is 2.5A. |
9V Output | None |
ESC Signal Pads | M1 - M4 |
UART | Full UART * 4(UART1, UART2, UART3,UART4) |
ESC Telemetry UART | None |
I2C | Supported. |
LED Pad | Used for WS2812 LED |
Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
BOOT Button | Used to enter DFU mode |
RSSI Input | Not supported |
SmartPort | Not Supported |
Supported Flight Controller | BetaFlight(Default) |
Firmware Target Name | SPEEDYBEE F745AIO |
ESC | |
Power Input | 3-6S LiPo |
Continuous Current | 35A * 4 |
Burst Current | 45A(5seconds) |
ESC Protocol | DSHOT300/600 |
Power Output | VBAT |
Current Sensor | Supported(Sacle=256) |
Firmware | BLHeli_S JH40 |
Descriptions
We suggest you use this AIO on your 3.5" to 5" cinewhoops/long-range or lightweight quads.For quads below 3.5",
you should carefully check if your quad has enough room for this AIO.

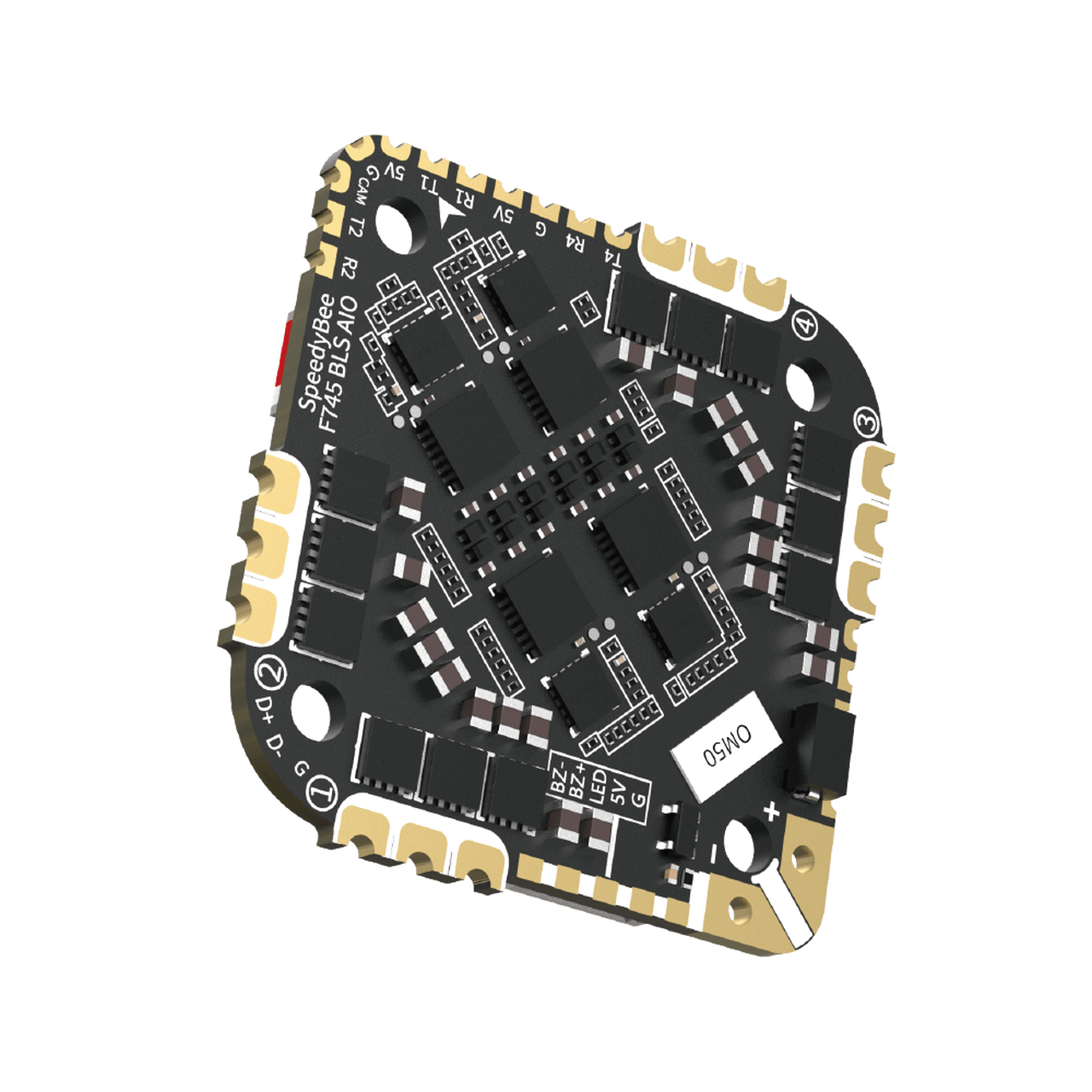

SpeedyBee F745 35A BLS 25.5x25.5 AIO World's First Wireless AII-In-One FC For Cinewhoop Micro Long-Range 5 Inch Sub-250g Powerful and Durable 35A 6S ESC with TOSHIBA MOSFETs
24 2 6 0' 2 X 3 8 3 simpler Inch this with 0 -range, headache FC = flight flights long- smoother 9 micro less 1 MCU.
Equipped with built-in Bluetooth and Wi-Fi technology, you can wirelessly connect your flight controller to the SpeedyBee app on your smartphone for seamless control and monitoring.

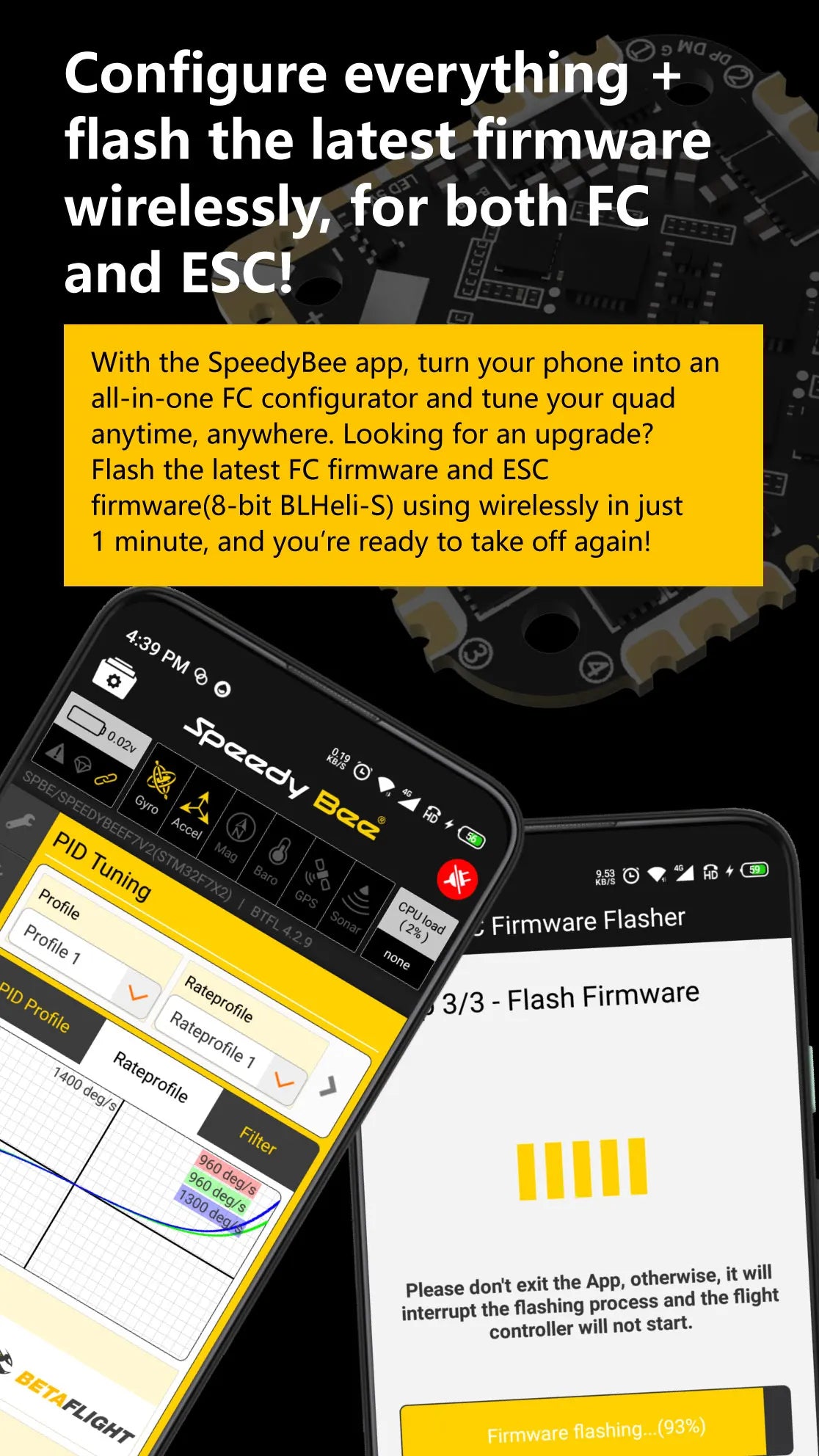

Wirelessly flash the latest flight controller (FC) and ESC firmware in just one minute. Convert your smartphone into an all-in-one FC configurator, allowing you to tune your quad at any time and from anywhere.

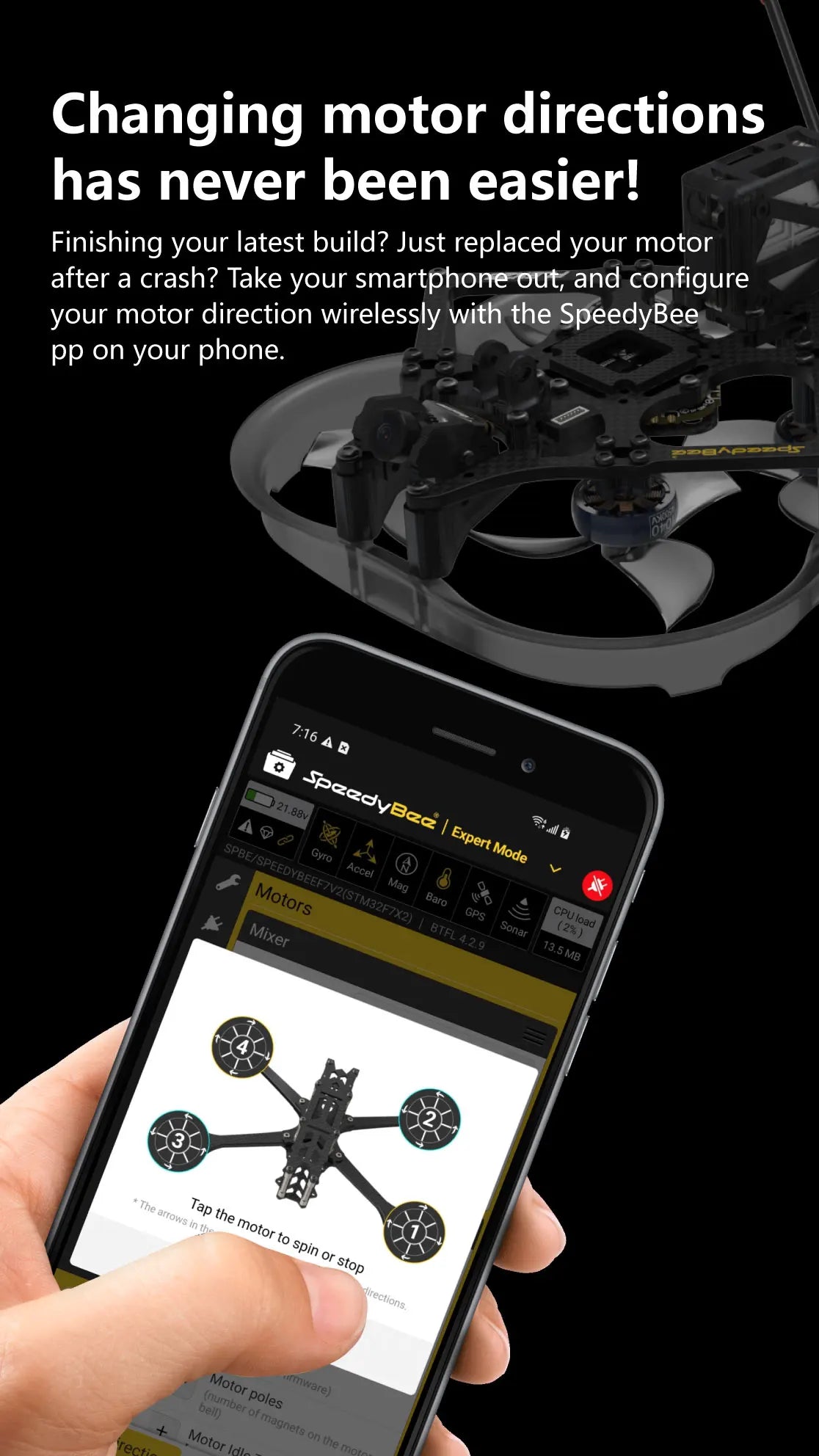

Configure your motor direction wirelessly using the SpeedyBee app on your smartphone or on the Trictra device.
