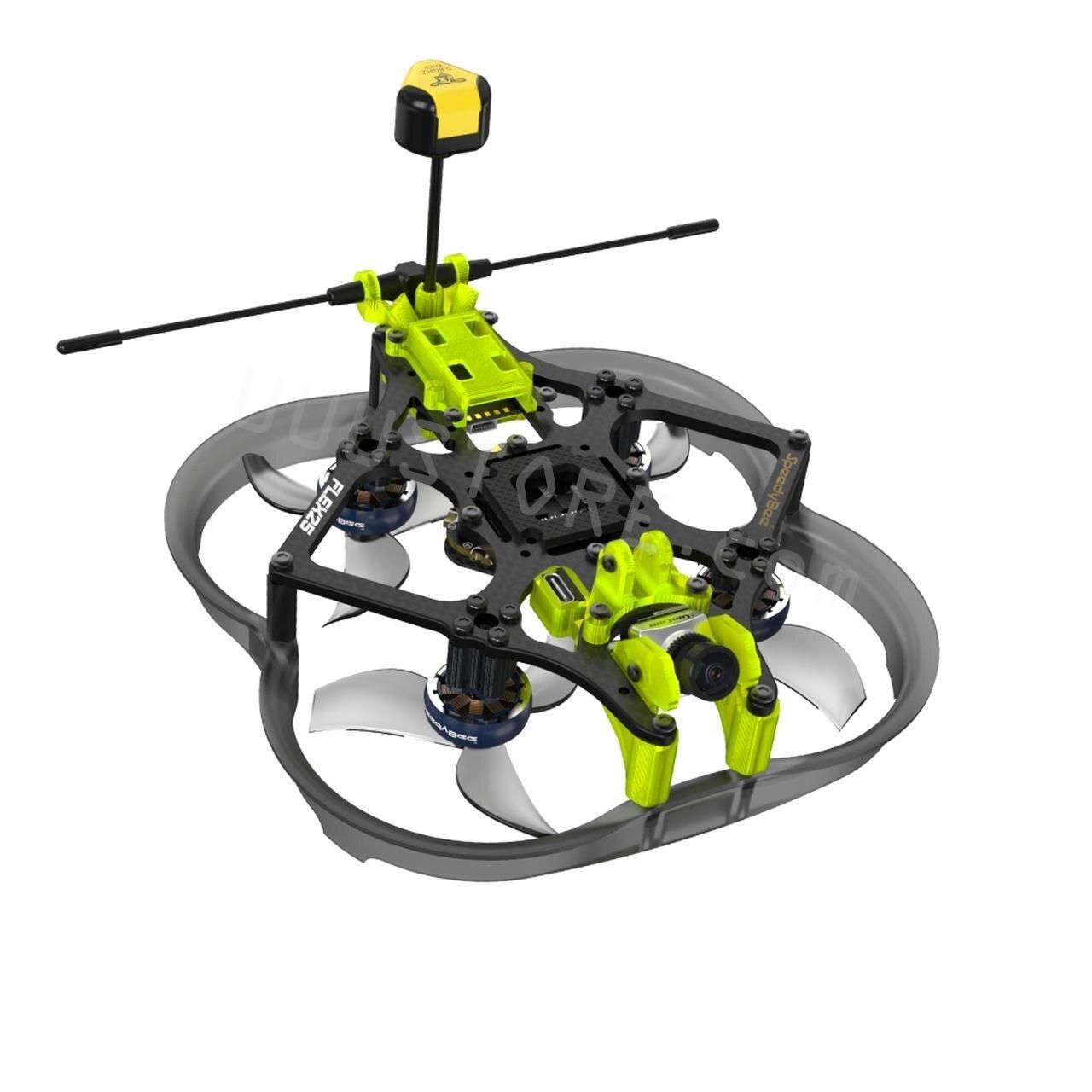

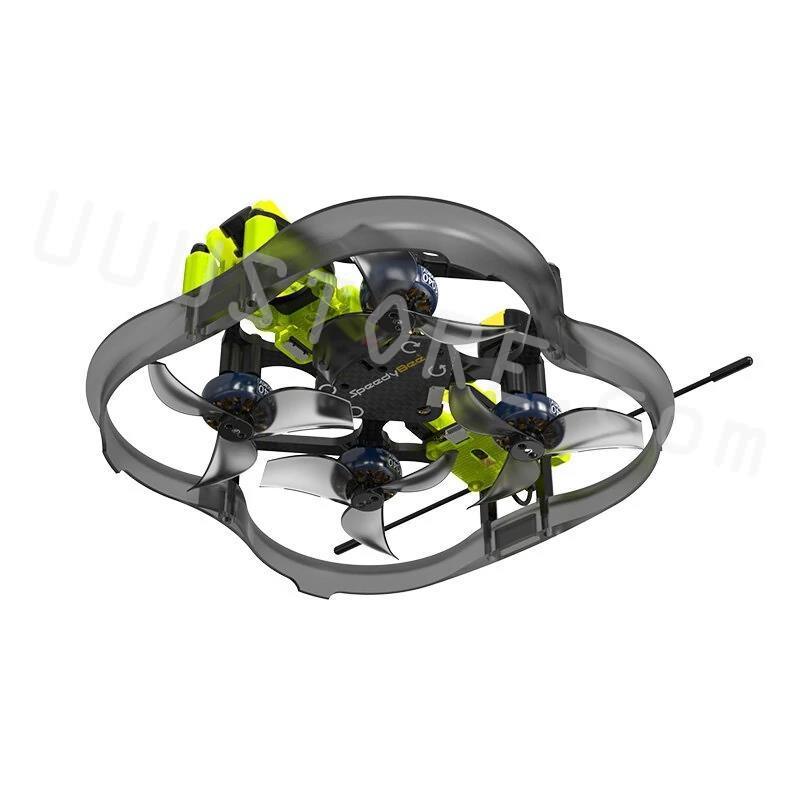

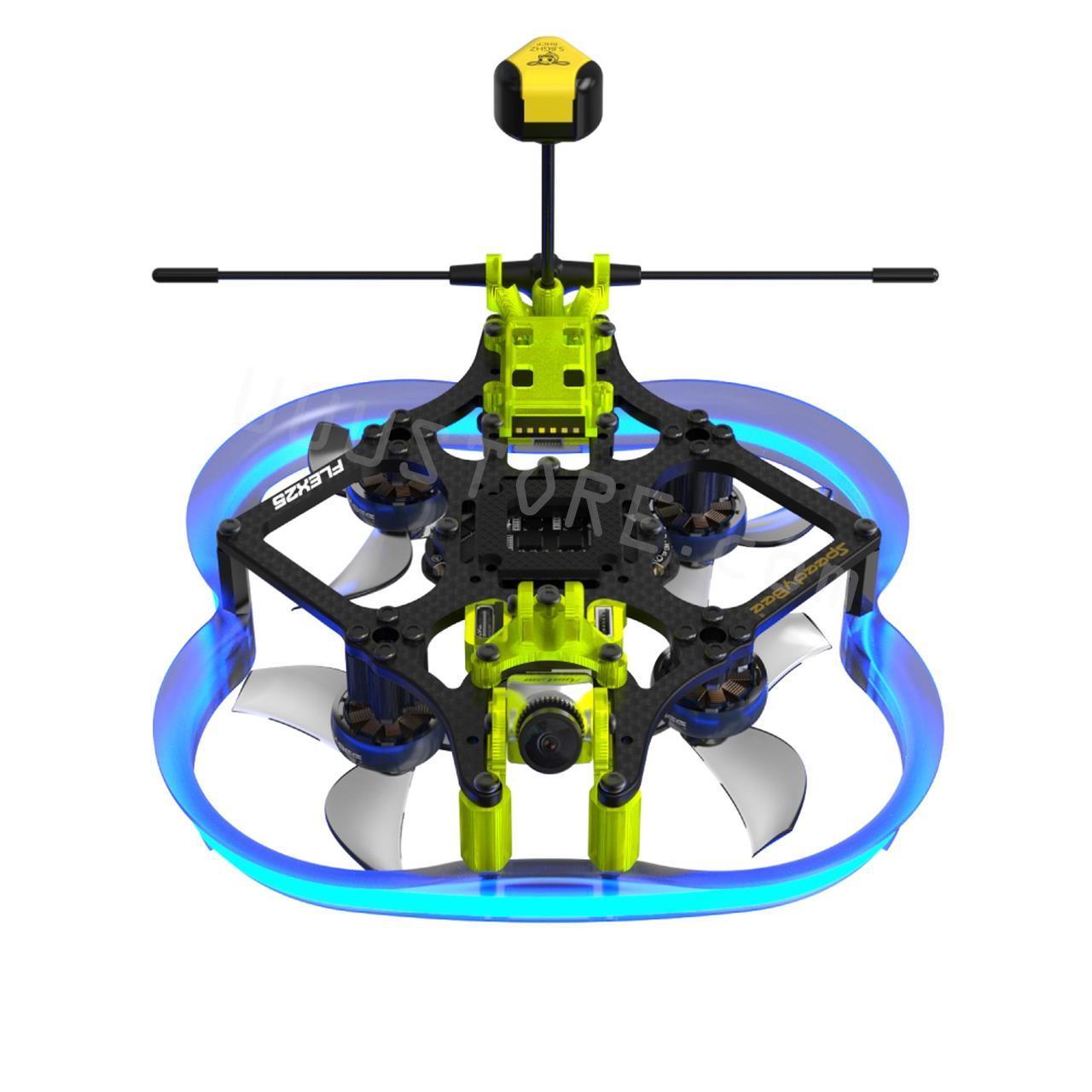

SpeedyBee Flex25 Analog - 78mm F7 35A AIO 4S 2.5 Inch CineWhoop RC FPV Racing Drone with 800mW VTX RunCam Phoenix2 Nano Camera Toy

SpeedyBee Flex25 Analog - 78mm F7 35A AIO 4S 2.5 Inch CineWhoop RC FPV Racing Drone with 800mW VTX RunCam Phoenix2 Nano Camera Toy

SpeedyBee

Regular price $258.18 USD
Regular price $361.45 USD Sale price $258.18 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

17 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SpeedyBee Flex25 Analog SPECIFICATIONS

Video Capture Resolution: Other

State of Assembly: Almost Ready

Remote Distance: as show

Remote Control: No

Recommend Age: 12+y

Package Includes: Original Box

Origin: Mainland China

Motor: Brushless Motor

Model Number: SpeedyBee Flex25 Analog

Material: Carbon Fiber

Indoor/Outdoor Use: Indoor-Outdoor

Features: FPV Capable

Controller Mode: MODE1,MODE2

Controller Battery: No

Control Channels: 8 Channels

Camera Mount Type: Fixed Camera Mount

Aerial Photography: Yes

SpeedyBee Flex25 Analog 78mm F7 35A AIO 4S 2.5 Inch CineWhoop RC FPV Racing Drone with 800mW VTX RunCam Phoenix2 Nano Camera Toy

Specification:

Brand: SpeedyBee

Model: Flex25 ( Analog)

Item Name: 78mm Wheelbase F7 4S 2.5 Inch FPV Racing Drone

Wheelbase: 78mm

Dimension: 136x136x35mm ( LxWxH)

Weight: 140g ( without Battery)


SpeedyBee F745 35A AIO

Gyro: MPU6000

OSD: AT7456E

Support 3-6S Lipo

Mounting Hole: 25.5x25.5mm

Con. Current: 35A

Firmware: BLHeli_S

FC: Wireless firmware flashing + full Betaflight configuration

ESC: Wireless firmware flashing + full BLHeli_S configuration

Change motor directions wirelessly

4 UARTS + Barometer + I2C pads + 8MB Blackbox flash

SpeedyBee 1404 4500KV Motor

KV: 4500KV
Input Voltage: 3-4S
Shaft Diameter: 1.5mm
Motor Dimension: 19.3x15.6mm (Dia*Len)

Mounting Hole: M2x9 , M2x5
Weight: 9.6g
Idle Current:  0.5A/ 8V
Max. Power (6S):  250W
Max. Current: 14.8A

Gemfan D63-3 2.5 Inch Propeller
Diameter: 63mm
Pitch: 3 in
Inner shaft diameter: 1.5mm
Hub Thickness: 4.9 mm
Weight: 1.36g each
SpeedyBee TX800 VTX

Frequency: 5.8GHz 48CH

Output Power: PIT/25/200/400/800mW

Working Current: 250-750mA (5V)

Voltage out: max 250mA ( 5V)

Voltage In: 3.7-5.5V

Video input impedance: 75 Ohm

Antenna Connector: MMCX

Weight: 5.6g (without antenna)

PCB Size: 28x28mm

Mounting Hole: 20x20mm

VTX Antenna

Model: Speedy Bee 5.8 GHz Antenna V2

Frequency range: 5.5-6.0 GHz

Gain: 2.8dBi

Polarization: RHCP

RunCam Phoenix2 Nano FPV Camera

Image Sensor: 1/2" CMOS Sensor

Horizontal Resolution: 1000TVL

Lens: 2.1mm (M8);FOV155 (4:3)

Screen Format: 4:3 / 16:9 switchable

Signal System: PAL / NTSC Switchable

Power: DC 5-36V

Dimensions: 14x14x22mm

Recommend Battery( NOT Included)

Recommend 4S 450-750mAh LiPo

Flight Time: around 8mins (Test with 4S 850mAh Lipo ,total flight time depends on flying style / throttle position.)


Package Included:

1x SpeedyBee Flex25 Analog FPV Drone

1x Extra Gemfan D63-3 Propeller Set ( 2L+2R)

1x set of connection cables

1x set of Screws and Nuts


SpeedyBee Flex25 Analog, SpeedyBee Flex25 C 0 WORLD' $ SMALLEST 2.5"

SpeedyBee Flex25 C 0 WORLD' $ SMALLEST 2.5" CINEWHOOP 28%+ smaller wheelbase vs other 2.5"cinewhoop . built-in world's first F745 35A Bluetooth/WiFi AIO Naked GoPro/lnsta360 Go/RunCam Thumb plug and play


World’ssmallest 2.5” cinewhoop


Get 2.5" props power at the size of a 2”cinewhoop


●28%+ smaller wheelbase vs other 2.5” cinewhoop

●Clearer video with RunCam Phoenix 2 Nano FPV Camera

●Built-in world's first F745 35A Bluetooth/WiFi AIO

●Naked GoPro/Insta360 Go/RunCam Thumb plug and play

●Tough unibody protective duct made of durable car bumper material

●Optional full-surrounded LED Strips

●Quick receiver binding via app

●Flight time up to 8 minutes


SpeedyBee Flex25 Analog, cinewhoop placed the motors at different levels to greatly reduce the overall wheelbase

cinewhoop placed the motors at different levels to greatly reduce the overall wheelbase . at a 78mm wheelbase, you can carry your lightweight action cams with more confidence .


Get tighter shots with 28%+ smaller wheelbase!


Let’s go back to the drawing board - cinewhoop’s wheelbase is limited to its prop size. You can’t go smaller than 109mm wheelbase if 2.5” props is what you want. Our solution?


We placed the motors at different levels to greatly reduce the overall wheelbase, while still getting the power of a 2.5” props! At a 78mm wheelbase (similar to a tiny whoop!), you can carry your lightweight action cams with more confidence for that tight cinematic shots.


SpeedyBee Flex25 Analog, the RunCam Phoenix is Joshua Bardwell 's favorite FPV camera:

the RunCam Phoenix is Joshua Bardwell 's favorite FPV camera: Runtam huge image sensor and f/2.0 aperture, indulge in excellent low light performance and less digital shimmer


Clearer Analog Feed with RunCam Phoenix 2 Nano.


Get the best analog video feed with RunCam Phoenix 2 Nano into this quad. With a
1/2” image sensor and ƒ/2.0 huge aperture, indulge in excellent low light
performance and less digital shimmer. Here’s why the RunCam Phoenix is
Joshua Bardwell’s favorite FPV camera.


SpeedyBee Flex25 Analog, this unibody protective duct made of car bumper material will make sure your quad from impact

this unibody protective duct made of car bumper material will make sure your quad from impact in the most extreme shooting conditions . Proven with extensive tests, this new duct will make your quad the toughest 2.5 inch cinewhoop .


Tougher unibody protective duct made of car bumper material


Say goodbye to broken ducts! Proven with extensive tests, this new unibody protective duct made of car bumper material will make sure your quad from impact in the most extreme shooting conditions. Reinforced with M2.5 hex standoffs and M2.5 screws, this quad will definitely be one of the toughest 2.5 inch cinewhoop in your fleet.


SpeedyBee Flex25 Analog, Powered an F745 35A wireless flight controller . powered by the high-end

Powered an F745 35A AIO wireless flight controller . powered by the high-end STM32F745 MCU . connect the SpeedyBee app via Bluetooth and configure everything on your quad .


Powered by an F745 35A AIO wireless flight controller. F7!


While other brands are still using outdated F4 20A AIO flight controllers, we built our AIO FC with the high-end STM32F745 MCU and complement it with the powerful 35A Bluejay ESC.


Andforget the annoying USB cables and inaccessible USB ports. Just power the quad, connect the SpeedyBee app via Bluetooth and configure everything on your FC and ESC with just a smartphone. You could even flash the firmware for both FC and ESC, or tinker with your quad wirelessly anytime, anywhere.


SpeedyBee Flex25 Analog, the AUX 4 is configured for recording control connect your action camera with the cable provided and

the AUX 4 is configured for recording control connect your action camera with the cable provided and start recording remotely using your radio . 2 X cable for Naked RunCam Thumb series Ioas .


Naked GoPro/RunCam Thumb/Insta360 Go plug and play.


Swap from Naked GoPro, RunCam Thumb, and Insta360 Go quickly with 4 different cables* included in the package. The AUX 4 is configured for recording control -connect your action camera with the cable provided and start recording remotely using your radio. How’s that for convenience?


*Package includes:


1 x cable for NakedGoPro8

1 x cable for NakedGoPro6/7

2 x cable for RunCam Thumb series

SpeedyBee Flex25 Analog, follow the guide in the SpeedyBee app when you power for the first time: Complete

follow the guide in the SpeedyBee app when you power for the first time: Complete the steps and send it!


Bind your receiver in a new convenient way


Getting a headache binding every time you get a new quad? Not anymore. Just follow the guide in the SpeedyBee app when you power your quad for the first time. Complete the steps and send it!

SpeedyBee Flex25 Analog, high-end STM32F745 MCU and powerful 35A Bluejay SpeedyBee Flex25 Analog, 850mAh 4S LiPo: Total flight time depends on flying style/throttle

with our optimized setup, up to 8 minutes of flight time . with 850mAh 4S LiPo: Total flight time depends on flying style/throttle position .


Fly for up to 8 minutes.


With our optimized setup, get up to 8 minutes of flight time with the analog version of this quad*. Fly longer and get that dream cinematic shot you always wanted.


*With 850mAh 4S LiPo. Total flight time depends on flying style/throttle position.





SpeedyBee Flex25 Analog, Replacing broken parts has never been easier: Camera VTX RX .

Replacing broken parts has never been easier: Camera VTX RX . Flex25 is made for you: Unplug and swap your; camera, VTx, and receiver anytime .




Unplug and swap your, camera, VTX, and receiver. No soldering required.


New to FPV, or just not a fan of soldering? Flex25 is made for you. Just unplug and swap your, camera, VTX, and receiver anytime. Replacing broken parts has never been easier.SpeedyBee Flex25 Analog SpeedyBee Flex25 Analog, Betafligt/BLHeli-S Configurator will not be powered up

Betafligt/BLHeli-S Configurator will not be powered up if the USB port is not used . power the quad with a battery, otherwise, the AIO flight controller will not work .

SpeedyBee Flex25 Analog

The pin definition for the 6-pin connector on the end E is as follows: pins 2, 3, and 8 are for BAT (battery), SV (signal voltage), GND (ground), CC (charge control), RX (receive), and TX (transmit). The cables include one 60mm power cable with a 6-pin to 3-pin connector for controlling the RunCam Phoenix2 Nano camera, as well as one 60mm power cable with a 6-pin to 2-pin connector for the Naked RunCam Thumb or GoPro 8/7 cameras. Note that this setup also supports AUX channel control.

SpeedyBee Flex25 Analog, Gemfan D63-3 2.5 Inch Propeller Diameter: 63mm Pitch:

SpeedyBee Flex25 Analog, SpeedyBee Flex25 C 0 WORLD' $ SMALLEST 2.5"

SpeedyBee Flex25 C 0 WORLD' $ SMALLEST 2.5" CINEWHOOP 28%+ smaller wheelbase vs other 2.5"cinewhoop . built-in world's first F745 35A Bluetooth/WiFi AIO Naked GoPro/lnsta360 Go/RunCam Thumb plug and play

SpeedyBee Flex25 Analog, cinewhoop placed the motors at different levels to greatly reduce the overall wheelbase

cinewhoop placed the motors at different levels to greatly reduce the overall wheelbase . at a 78mm wheelbase, you can carry your lightweight action cams with more confidence .

SpeedyBee Flex25 Analog, the RunCam Phoenix is Joshua Bardwell 's favorite FPV camera:

the RunCam Phoenix is Joshua Bardwell 's favorite FPV camera: Runtam huge image sensor and f/2.0 aperture, indulge in excellent low light performance and less digital shimmer

SpeedyBee Flex25 Analog, this unibody protective duct made of car bumper material will make sure your quad from impact

this unibody protective duct made of car bumper material will make sure your quad from impact in the most extreme shooting conditions . Proven with extensive tests, this new duct will make your quad the toughest 2.5 inch cinewhoop .

SpeedyBee Flex25 Analog, Powered an F745 35A wireless flight controller . powered by the high-end

Powered an F745 35A AIO wireless flight controller . powered by the high-end STM32F745 MCU . connect the SpeedyBee app via Bluetooth and configure everything on your quad .

SpeedyBee Flex25 Analog, the AUX 4 is configured for recording control connect your action camera with the cable provided and

the AUX 4 is configured for recording control connect your action camera with the cable provided and start recording remotely using your radio . 2 X cable for Naked RunCam Thumb series Ioas .

SpeedyBee Flex25 Analog, follow the guide in the SpeedyBee app when you power for the first time: Complete

follow the guide in the SpeedyBee app when you power for the first time: Complete the steps and send it!

SpeedyBee Flex25 Analog, Comes in Luminous White, Blazing Blue, and Neon Green . comes

Comes in Luminous White, Blazing Blue, and Neon Green . comes with a 12V 1A BEC module .

SpeedyBee Flex25 Analog, 850mAh 4S LiPo: Total flight time depends on flying style/throttle

with our optimized setup, up to 8 minutes of flight time . with 850mAh 4S LiPo: Total flight time depends on flying style/throttle position .

SpeedyBee Flex25 Analog, Replacing broken parts has never been easier: Camera VTX RX .

Replacing broken parts has never been easier: Camera VTX RX . Flex25 is made for you: Unplug and swap your; camera, VTx, and receiver anytime .

SpeedyBee Flex25 Analog, just unplug and swap your, camera, VTX, and receiver anytime
