BrotherHobby Tornado T2 1407 CW Brushless Motor 2800KV/3600KV/4100KV, M5 Shaft, 3S-4S
BrotherHobby Tornado T2 1407 CW Brushless Motor 2800KV/3600KV/4100KV, M5 Shaft, 3S-4S
BrotherHobby
Couldn't load pickup availability
Overview
BrotherHobby Tornado T2 1407 is a CW brushless motor offered in 2800KV / 3600KV / 4100KV options. The T2 1407 version is presented as a lightweight design with a simplified bell structure and an updated “naked bottom” style intended to support heat dissipation and reduce weight.
Key Features
- “Small and Dexterous” (manufacturer tagline)
- Feature highlights shown: Strong Power, Full Inspection, Ultralight, Solid Structure, Silky Smooth
- Updated “naked bottom” design noted for heat dissipation and weight reduction

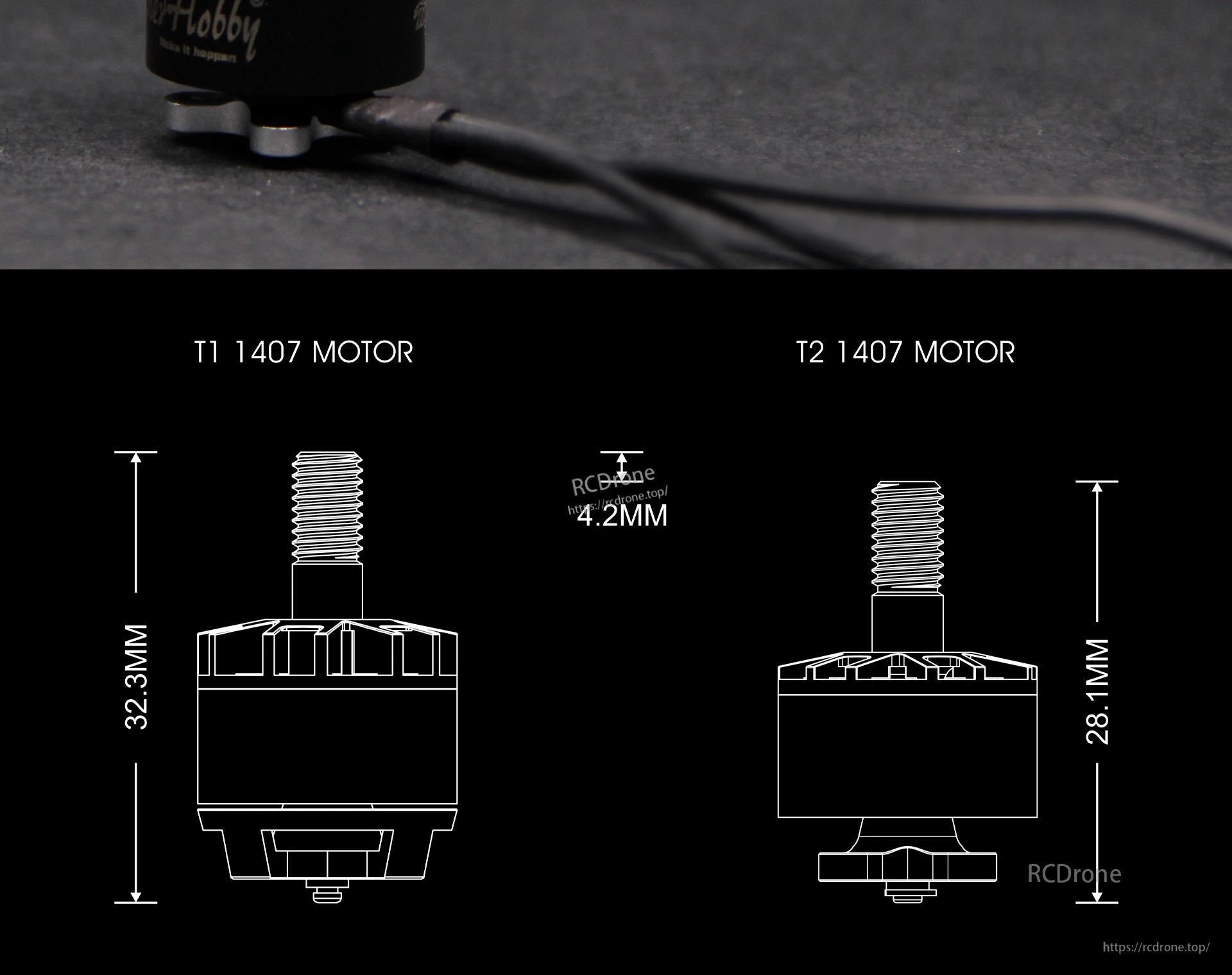

- Overall height reduction shown: 4.2 mm (T1 1407: 32.3 mm; T2 1407: 28.1 mm)
Specifications
| Model | Tornado T2 1407 Motor (CW) |
| KV | 2800KV / 3600KV / 4100KV |
| Stator | 0.15mm Nippon steel silicon steel |
| Configuration | 9N12P |
| No. of Cells (LiPo) | 3S-4S |
| Prop Adapter Shaft Thread | M5 |
| Bolt Pattern | M2 (12mm x 12mm) |
| Bearings | Japanese NSK 5 x 2 x 2.5mm |
| Rotor | N52H arc magnets |
| Bell cap | Al 7075 |
| Wire | 26AWG, 16cm length |
| Weight | 15.1g with 16cm SR wires; graphic also shows 15.19g (including wire) |

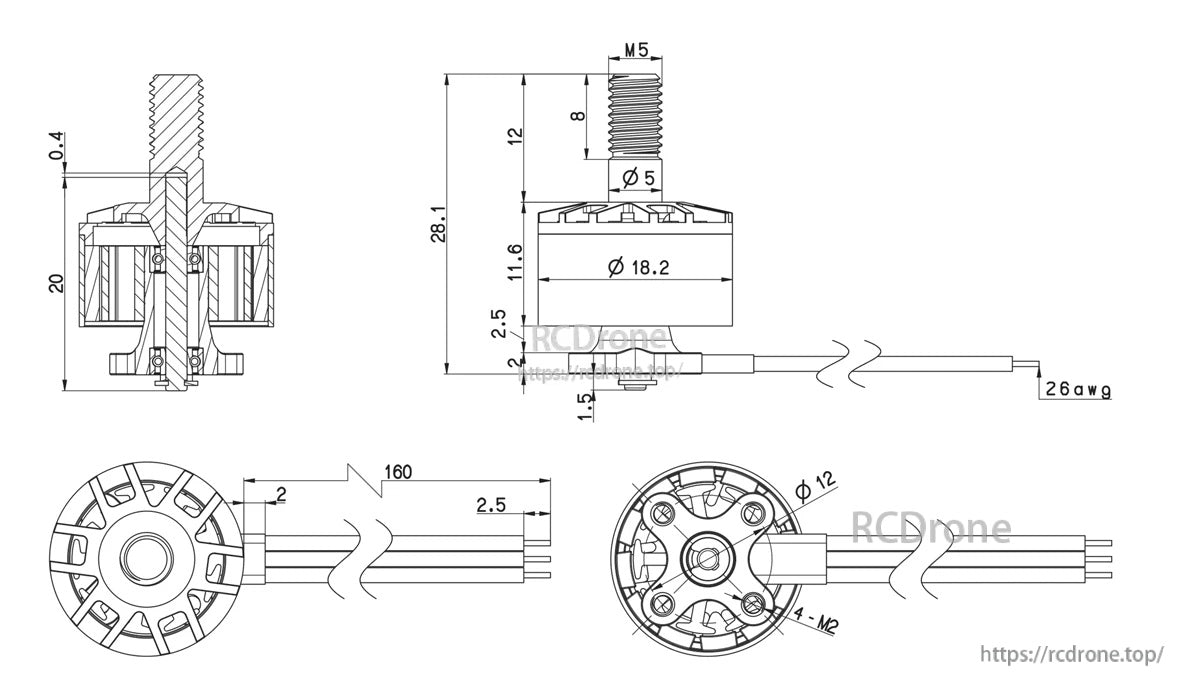

| Mechanical drawing (selected dimensions) | Overall height: 28.1mm; T1 height shown: 32.3mm; height reduction: 4.2mm; max diameter: Ø18.2; shaft/thread callouts: M5, Ø5; shaft protrusion shown: 12mm; thread length shown: 8mm; mounting: 4-M2 with Ø12 circle; lead length shown: 160; lead drawing marks: 2 and 2.5; cross-section marks: 0.4 and 20; wire label: 26 awg |
For compatibility questions (KV choice, mounting, or wiring), contact support@rcdrone.top or visit https://rcdrone.top/.
Details

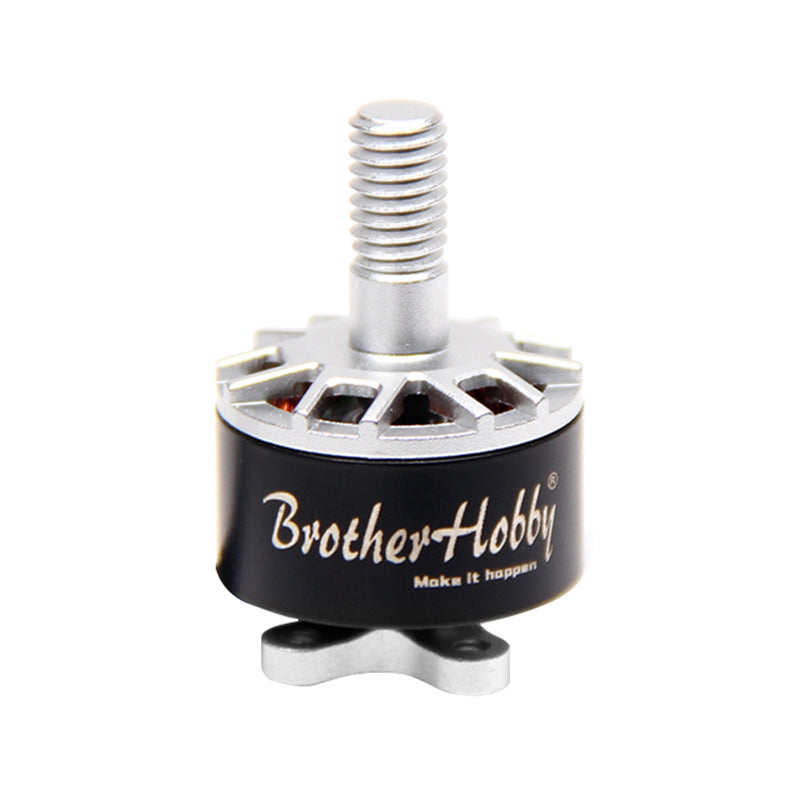

The BrotherHobby Tornado T2 1407 brushless motor features a compact, lightweight design suited to tight FPV drone builds.

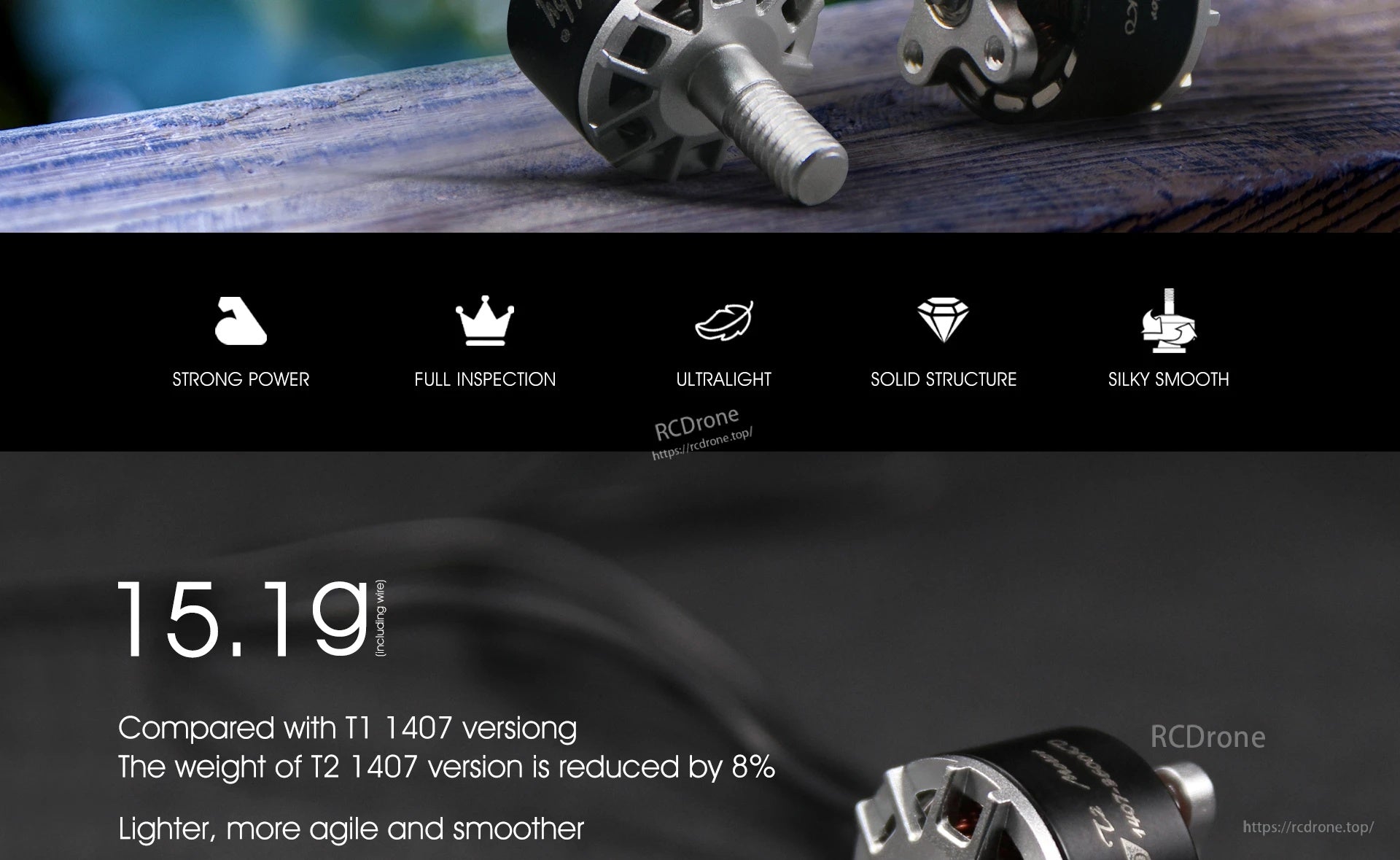

The BrotherHobby Tornado T2 1407 CW motor is listed at 15.19g, with the banner noting an 8% weight reduction compared to the T1 1407 version.

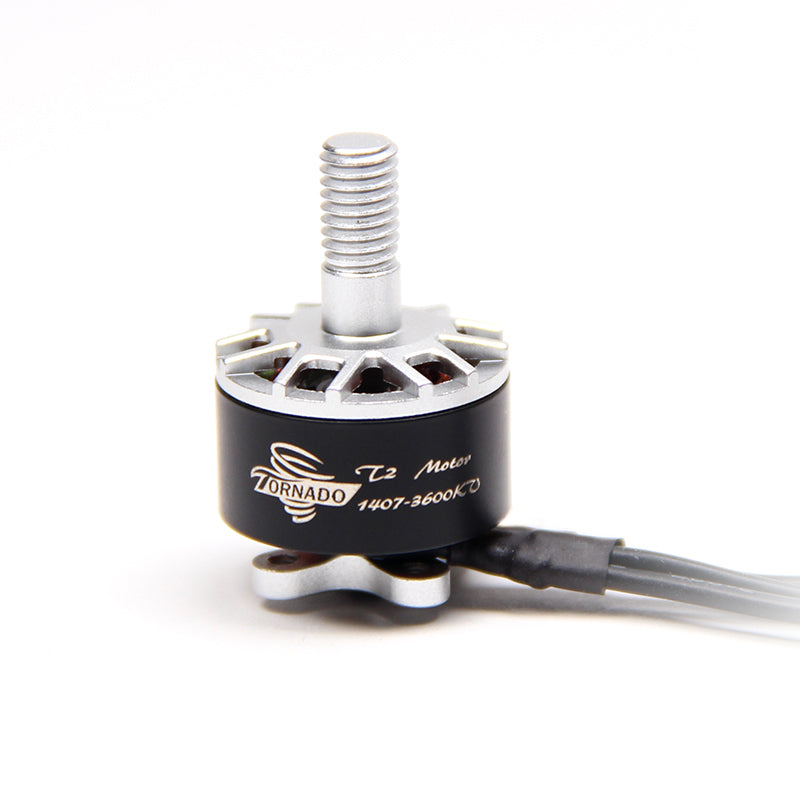

The BrotherHobby Tornado T2 1407 motor pairs a small body with lightweight design for compact drone builds.

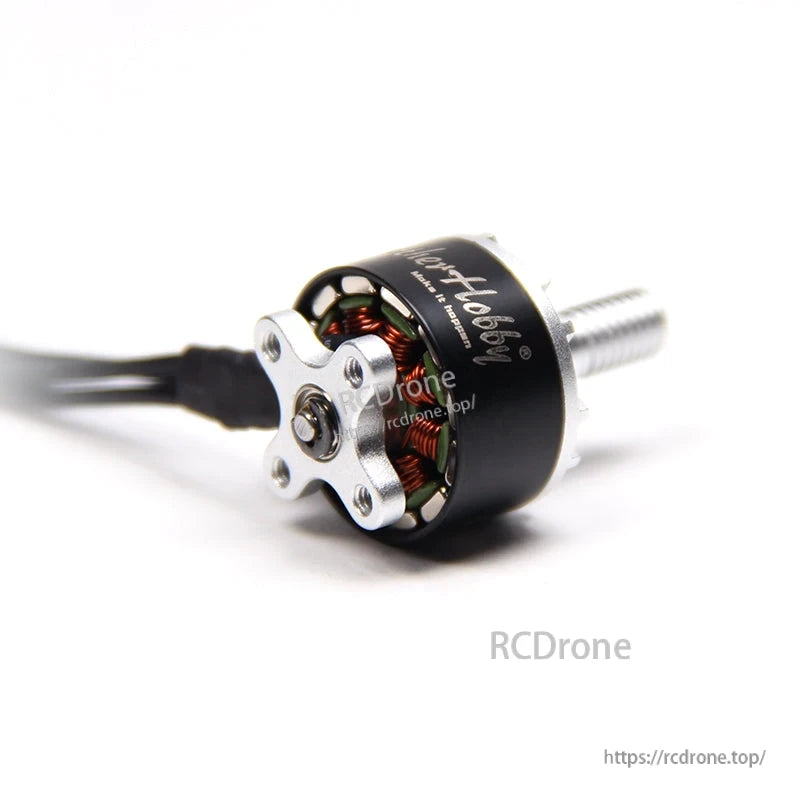

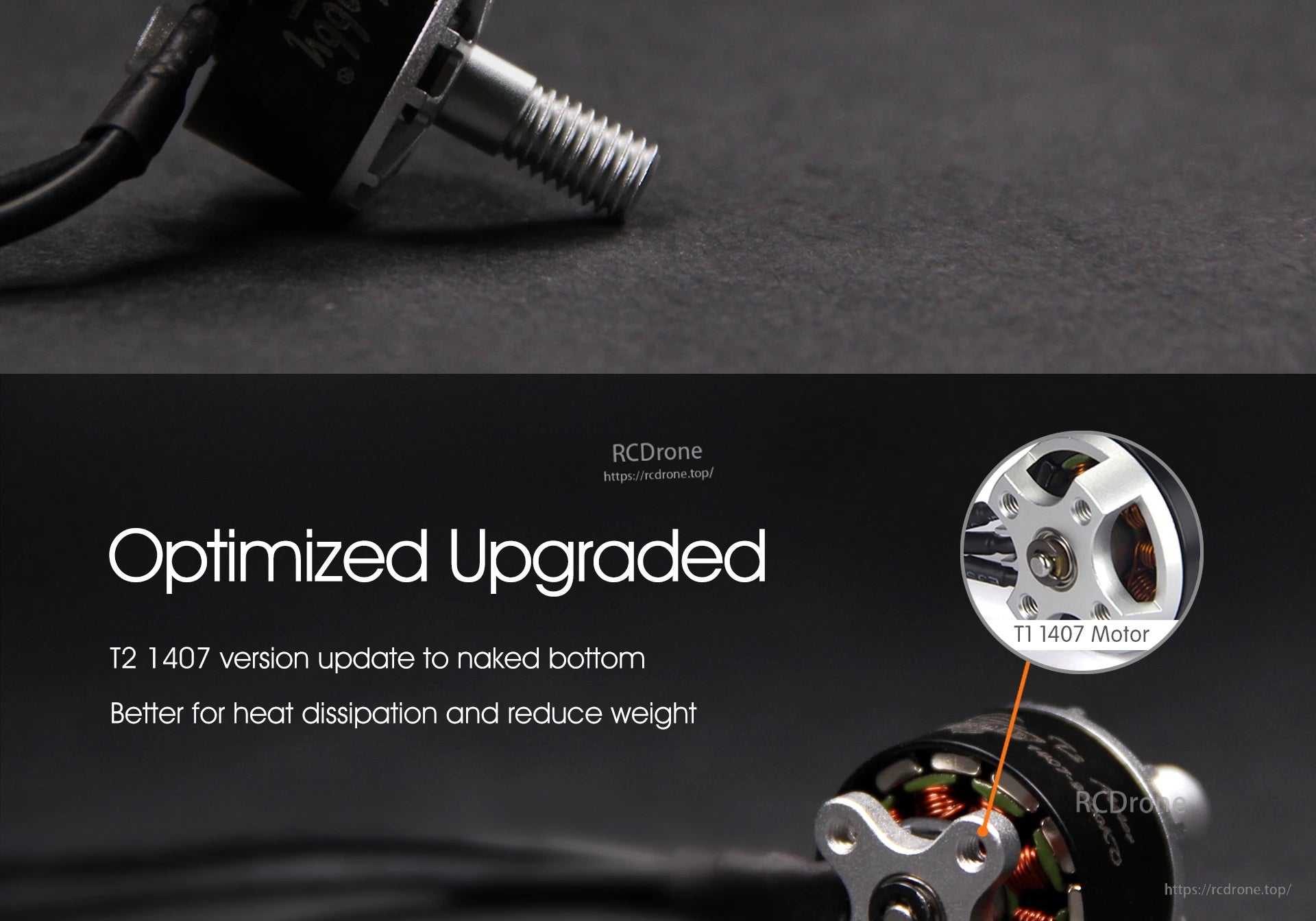

The BrotherHobby Tornado T2 1407 motor features an optimized upgraded design with a naked bottom aimed at better heat dissipation and reduced weight.
The Tornado T2 1407 motor bell uses a cutout design that reduces overall height by about 4.2mm for a lower-profile build.
The Tornado T2 1407 motor’s 28.1mm overall height and 4.2mm shaft length help confirm clearance in tight builds.
BrotherHobby Tornado T2 1407 CW motor dimensions include an 18.2 mm body diameter, M5 shaft, and 160 mm 26 AWG lead wires for planning your build.
