BrotherHobby Avenger 3512 V5 CW Brushless Motor 360KV/550KV/750KV for 6-8S LiPo (M5)

BrotherHobby

$75.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

KV 360 550 750 730

type Three-blade folding propeller Two-blade folding propeller

Quantity

View full details

Overview

The BrotherHobby Avenger 3512 V5 Motor (CW) is a brushless outrunner motor offered in 360KV / 550KV / 750KV options for 6–8S LiPo setups. It uses an M5 prop adapter shaft thread and is designed for use with folding triblade propeller hardware (CW/forward setup).

Key Features

Foldable paddles/propeller system concept for easy installation and portability (folding triblade setup)
Claimed single-motor thrust up to 6kg
Materials and internal design notes: SUS420 heat treated steel shaft; aviation-grade 7075 aluminum caps (hard anodized, hollow-carved design); N52H arc magnet; TU1 grade enameled wire; ultra-thin non-oriented silicon steel sheet; premium high-precision bearings (greater axial load capability)

Specifications

Model	Avenger 3512 V5 Motor (CW)
KV	360KV / 550KV / 750KV
No. of Cells (LiPo)	6-8S
Configuration	12N14P
Stator	12mm
Base casing	Al 7075
Bell cap	Al 7075
Rotor	N52H arc magnets
Shaft	SUS420
Prop adapter shaft thread	M5
Bolt pattern	M3 (19X19mm)
Bearings	12X6X4
Weight	135g with 35cm SR wires
Wire	16# 35cm length

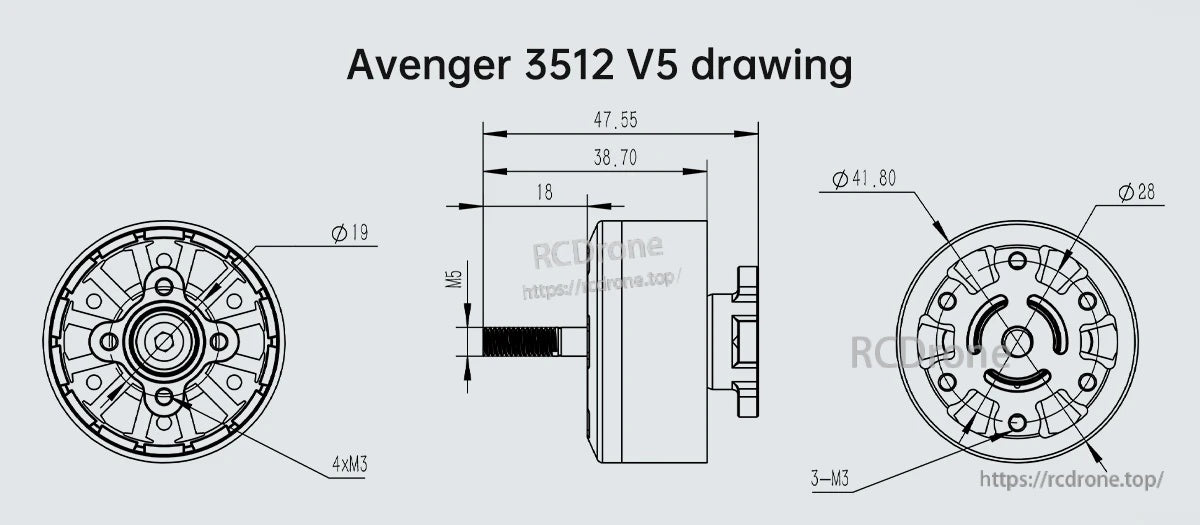

Dimensions (Drawing Data)

Overall length	47.55
Body length	38.70
Step length	18
Thread	M5
Diameter	Dia. 41.80
Diameter	Dia. 28
Diameter	Dia. 19
Mounting holes	4xM3; 3-M3

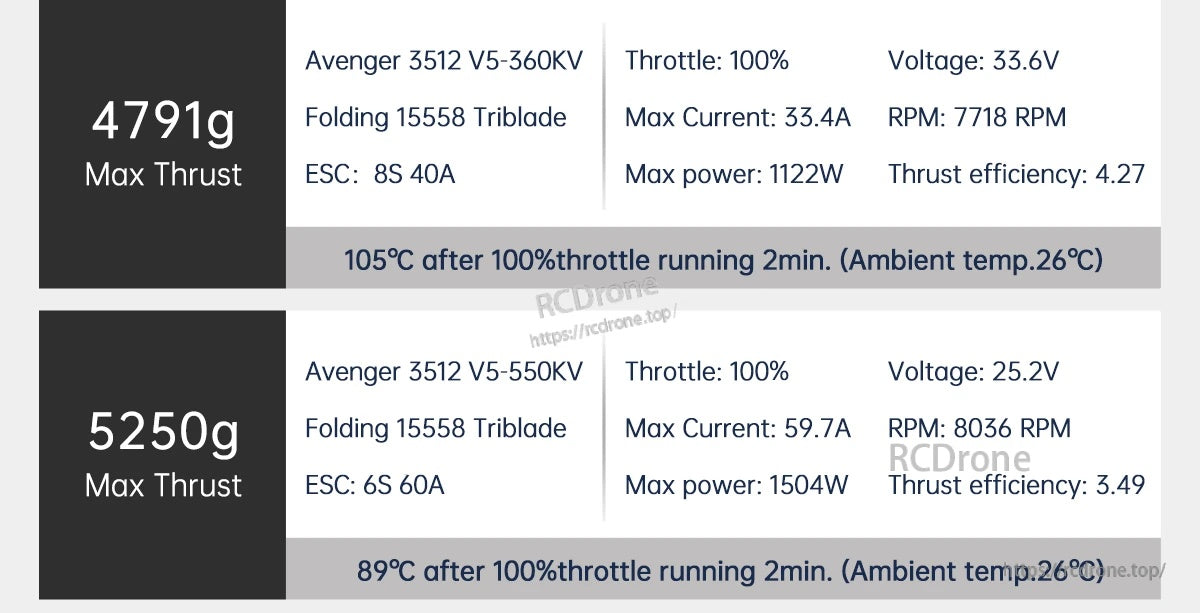

Performance Data (Test Conditions Listed)

Avenger 3512 V5-360KV (Folding 15558 Triblade; ESC: 8S 40A)
Throttle	100%
Voltage	33.6V
Max Current	33.4A
RPM	7718 RPM
Max power	1122W
Max Thrust	4791g
Thrust efficiency	4.27
Temperature	105°C after 100% throttle running 2min (Ambient temp. 26°C)
Avenger 3512 V5-550KV (Folding 15558 Triblade; ESC: 6S 60A)
Throttle	100%
Voltage	25.2V
Max Current	59.7A
RPM	8036 RPM
Max power	1504W
Max Thrust	5250g
Thrust efficiency	3.49
Temperature	89°C after 100% throttle running 2min (Ambient temp. 26°C)
Avenger 3512 V5-750KV (Folding 1248 Triblade; ESC: 6S 80A)
Throttle	100%
Voltage	25.2V
Max Current	70.3A
RPM	11122 RPM
Max power	1771W
Max Thrust	5420g
Thrust efficiency	3.06
Temperature	98°C after 100% throttle running 2min (Ambient temp. 26°C)
Avenger 3512 V5-550KV (Folding 1248 Triblade; ESC: 8S 70A)
Throttle	100%
Voltage	33.6V
Max Current	61.7A
RPM	11663 RPM
Max power	2073W
Max Thrust	5991g
Thrust efficiency	2.89
Temperature	114°C after 100% throttle running 2min (Ambient temp. 26°C)

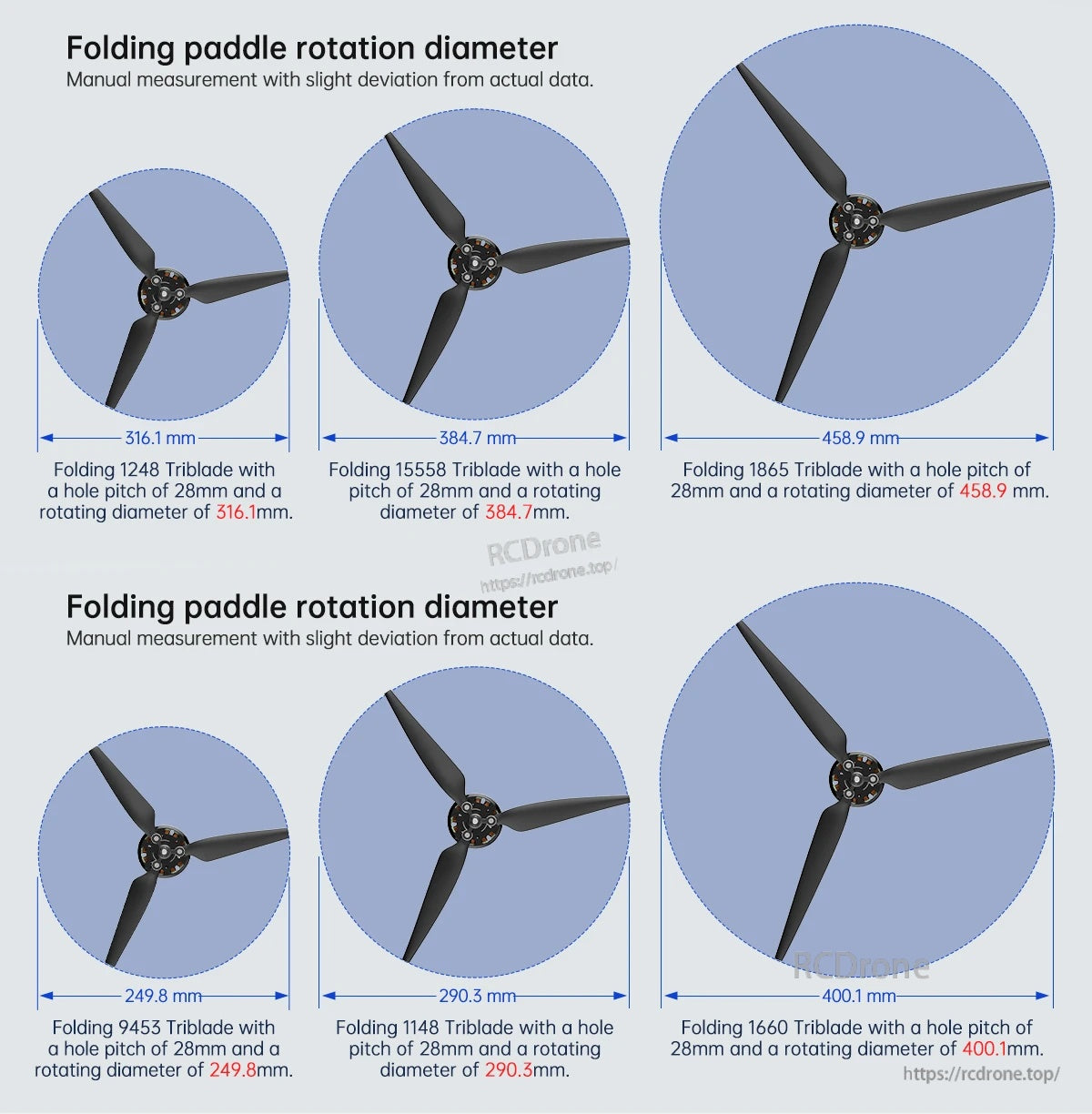

Folding Triblade Propeller Rotation Diameter (Hole Pitch: 28mm)

Folding 9453 Triblade: rotating diameter 249.8mm
Folding 1148 Triblade: rotating diameter 290.3mm
Folding 1248 Triblade: rotating diameter 316.1mm
Folding 15558 Triblade (with a hole pitch of 28mm): rotating diameter 384.7mm
Folding 1660 Triblade: rotating diameter 400.1mm
Folding 1865 Triblade (with a hole pitch of 28mm): rotating diameter 458.9mm

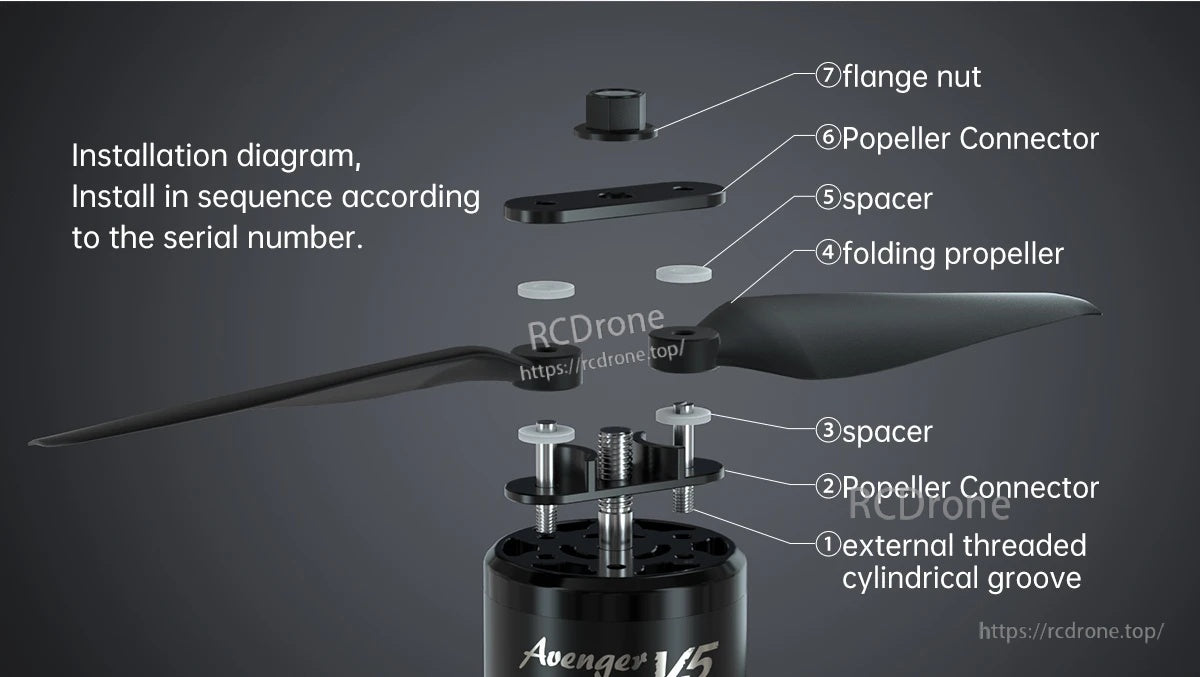

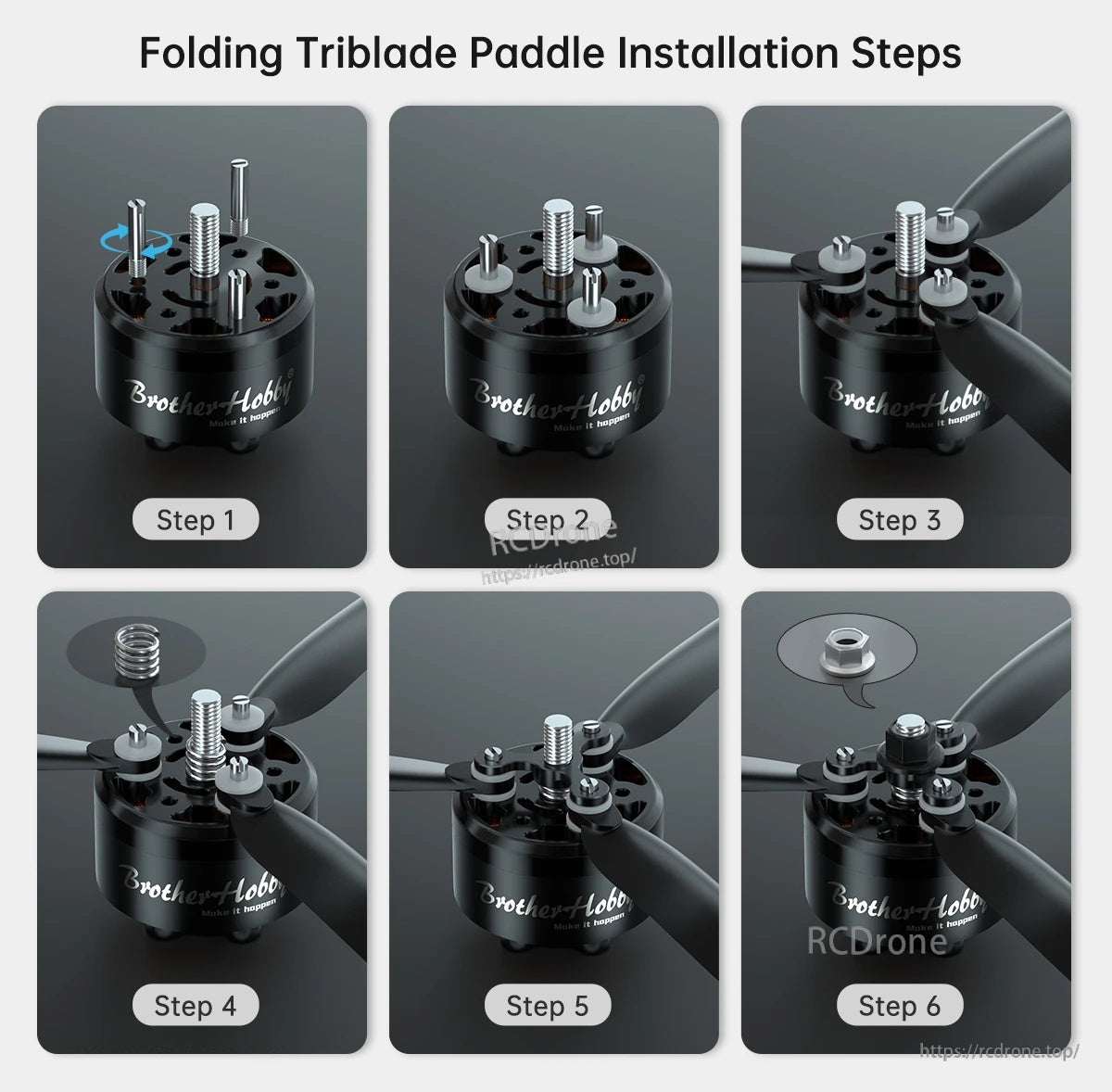

Installation (Folding Triblade Hardware Sequence)

Install in sequence according to the serial number:

External threaded cylindrical groove
Propeller connector
Spacer
Folding propeller
Spacer
Propeller connector
Flange nut

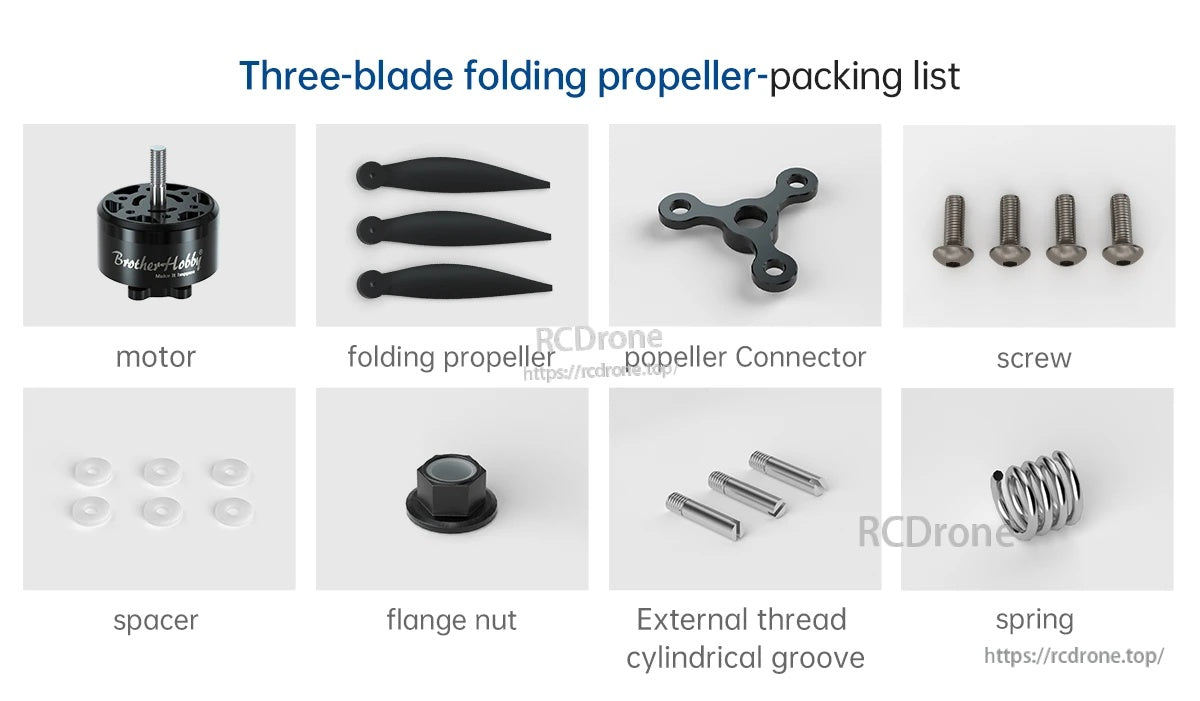

Packing List (Three-blade Folding Propeller)

Motor
Folding propeller
Propeller connector
Screw
Spacer
Flange nut
External thread cylindrical groove
Spring

For compatibility questions (KV option, LiPo cell count, folding propeller hardware fitment), contact support at https://rcdrone.top/ or email support@rcdrone.top.

Details

BrotherHobby Avenger 3512 V5 360KV/550KV/750KV Motor(CW)

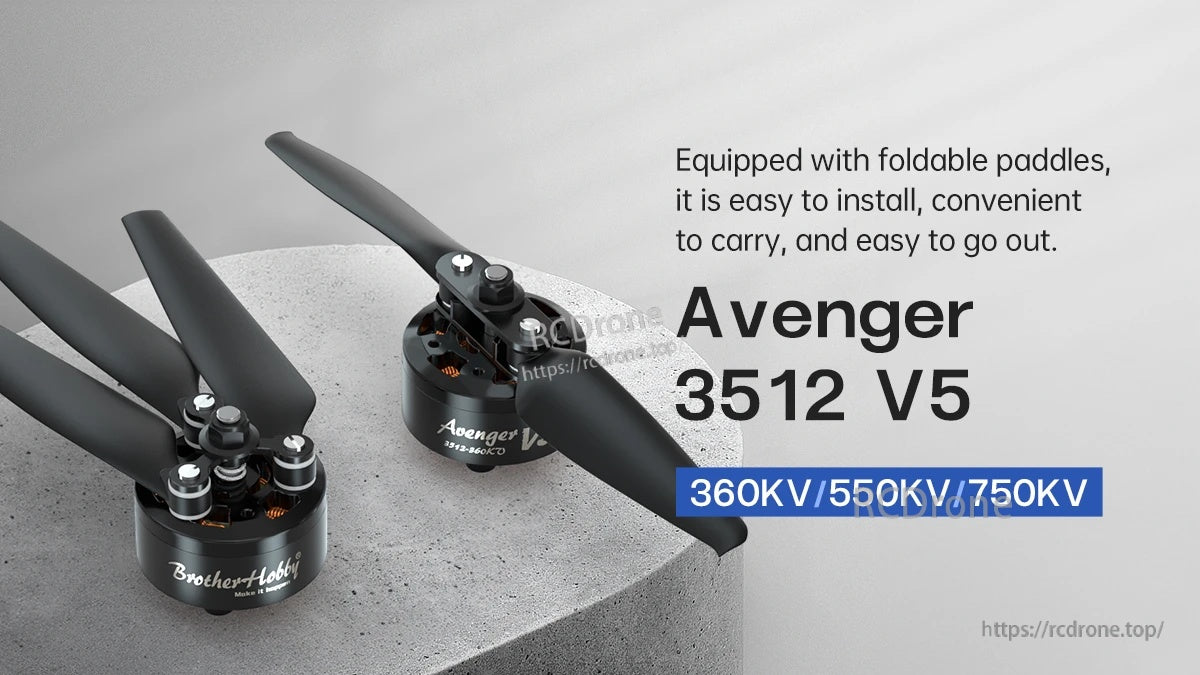

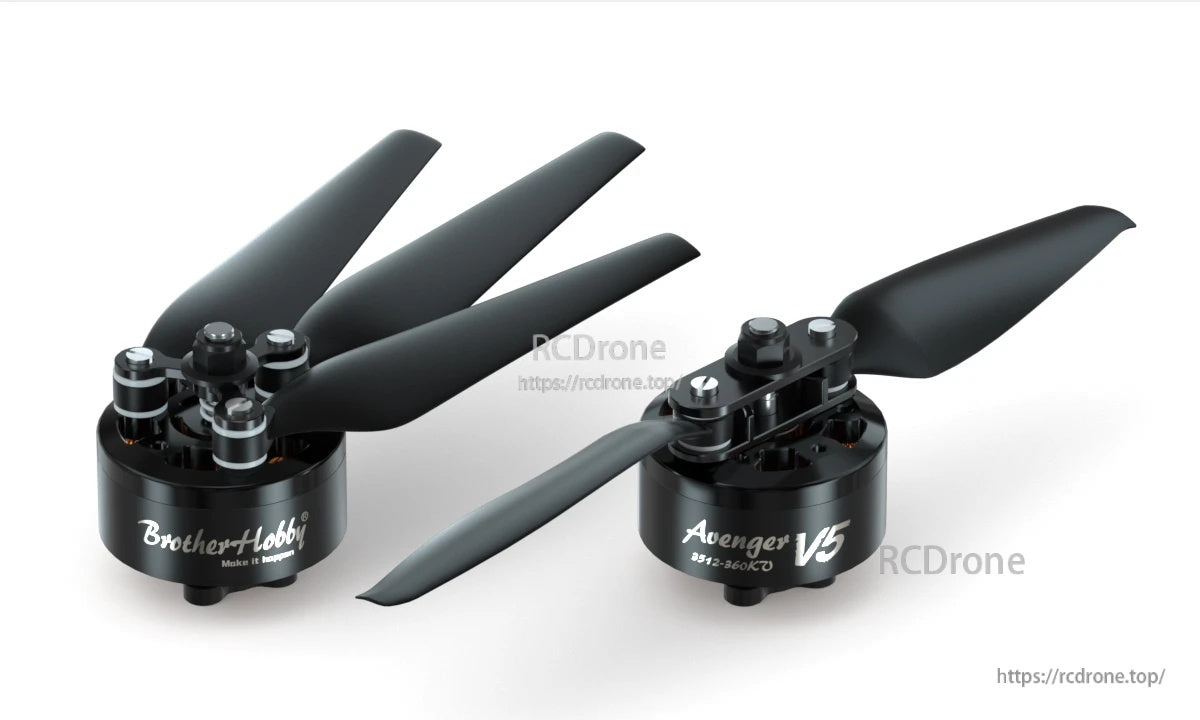

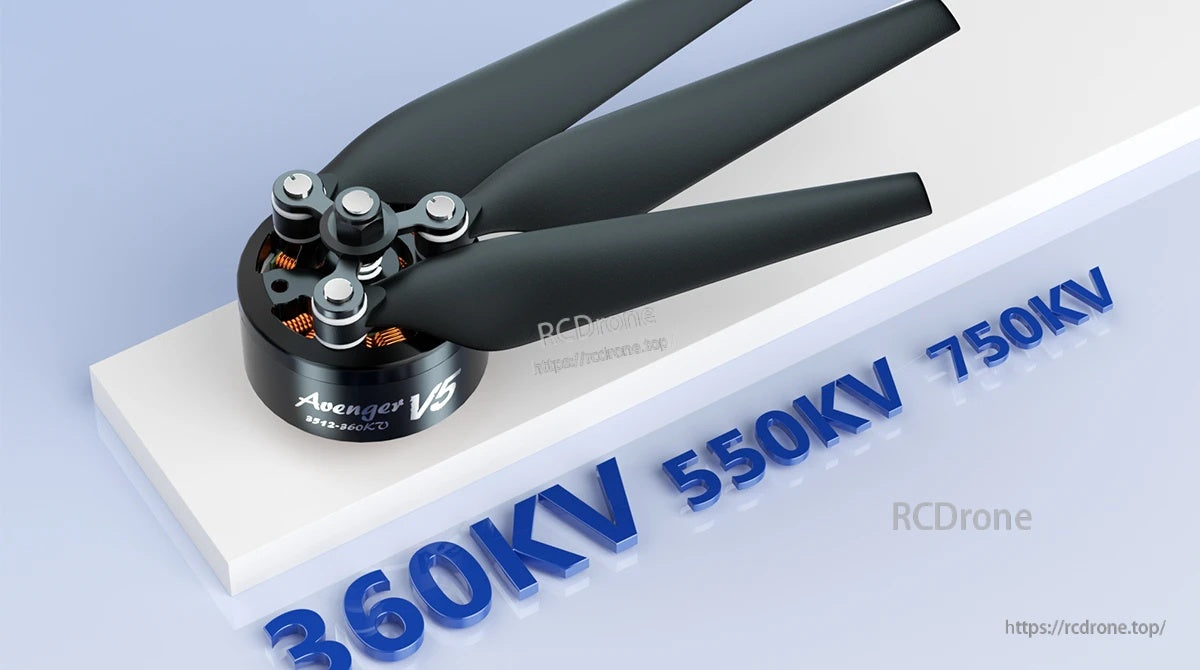

The BrotherHobby Avenger 3512 V5 motor is paired with foldable paddles and comes in 360KV, 550KV, and 750KV options for different setups.

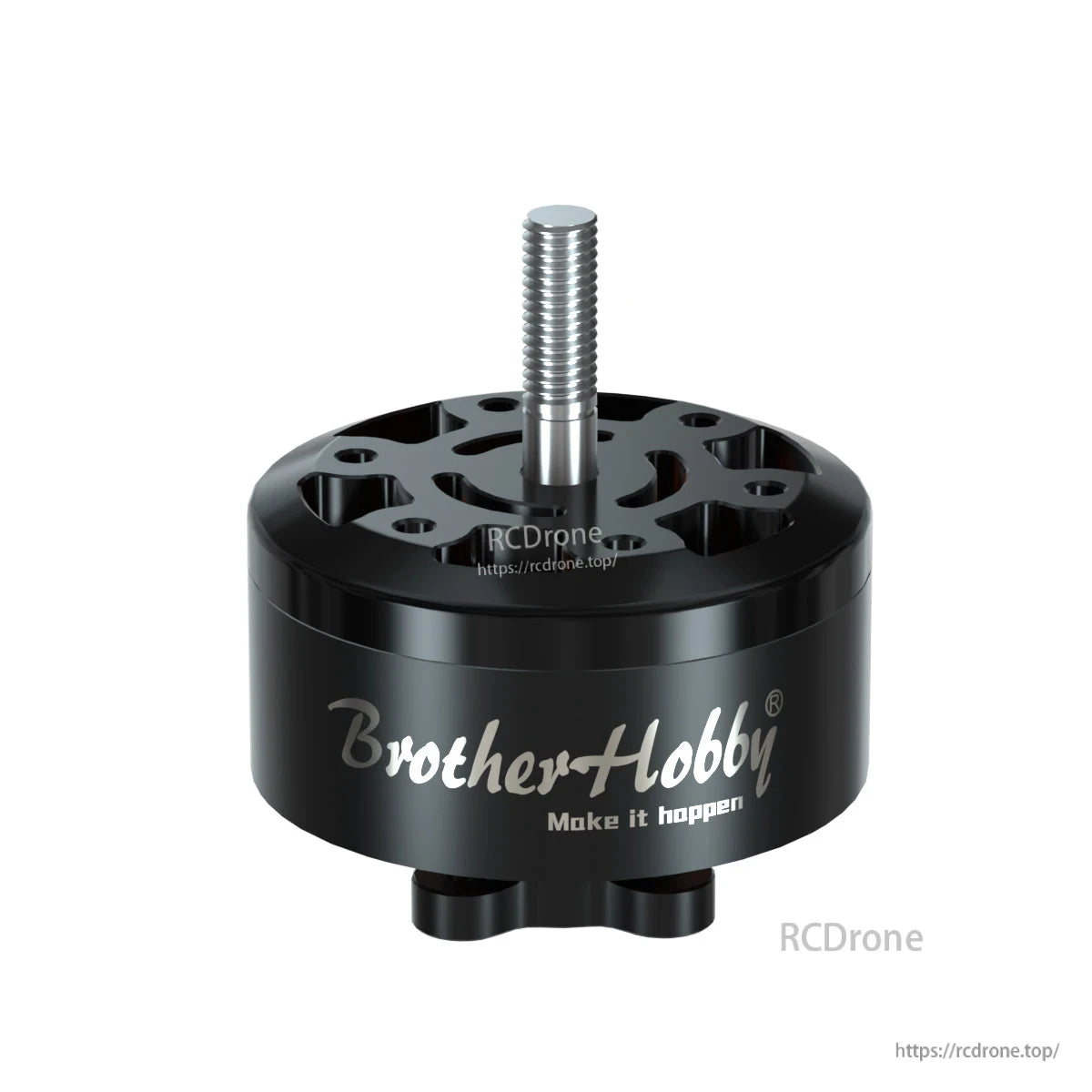

The BrotherHobby Avenger 3512 V5 CW brushless motor is listed at 136g and rated for up to 6kg maximum pull force per motor.

Avenger 3512 V5 bench test results list max thrust of 4791g (360KV) and 5250g (550KV) with a 15558 folding triblade prop setup.

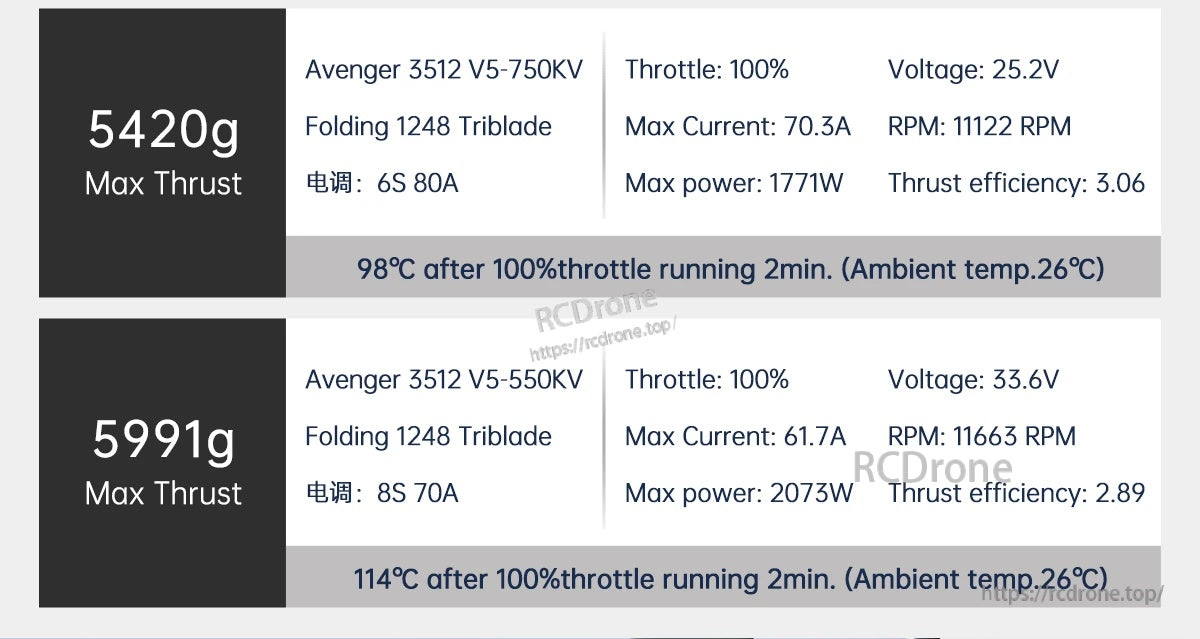

Avenger 3512 V5 test data lists up to 5420g max thrust on 6S and 5991g on 8S with a 1248 folding triblade prop.

The Avenger V5 3512 brushless motor is offered in 360KV, 550KV, and 750KV variants for matching your prop and setup.

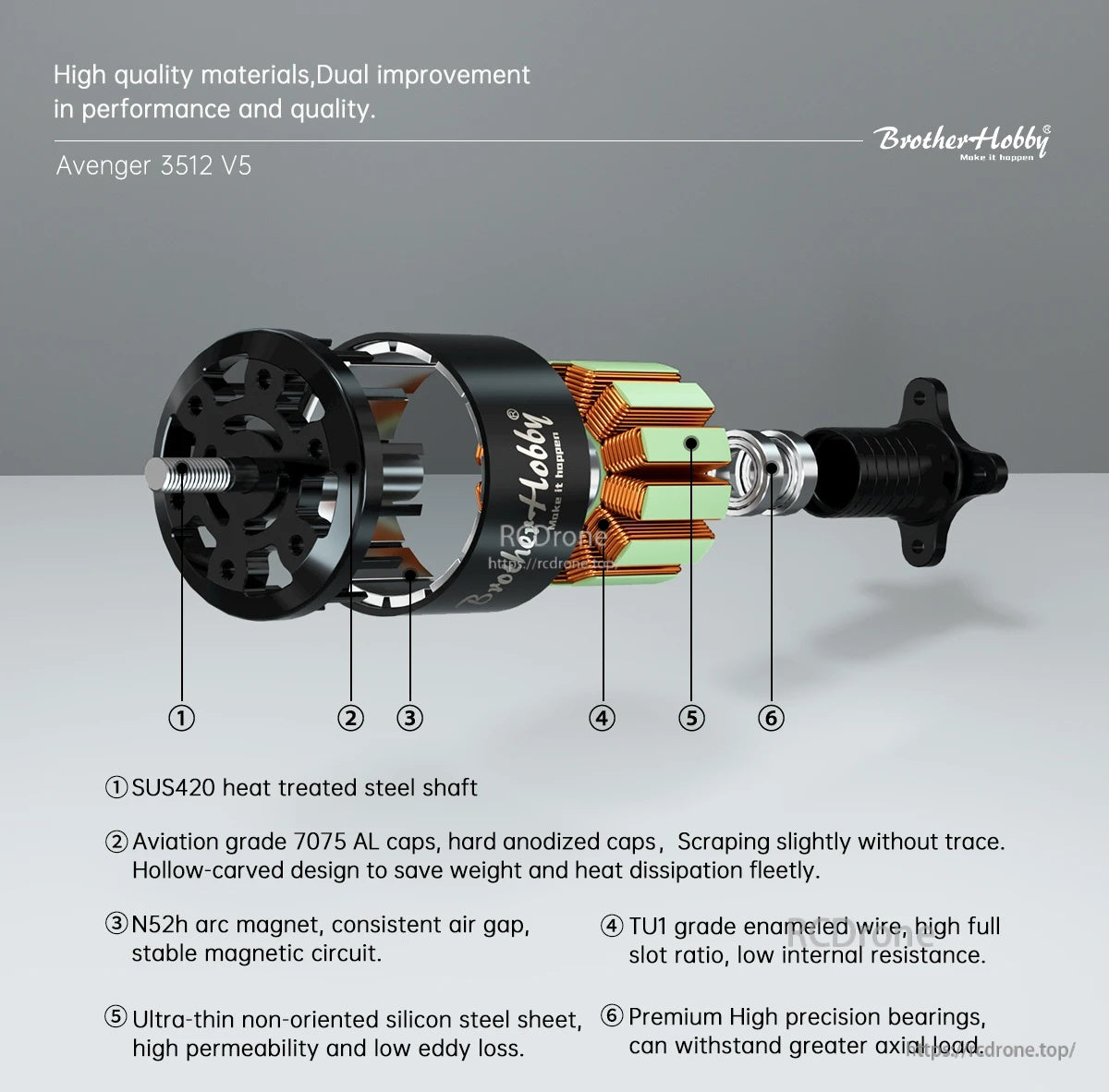

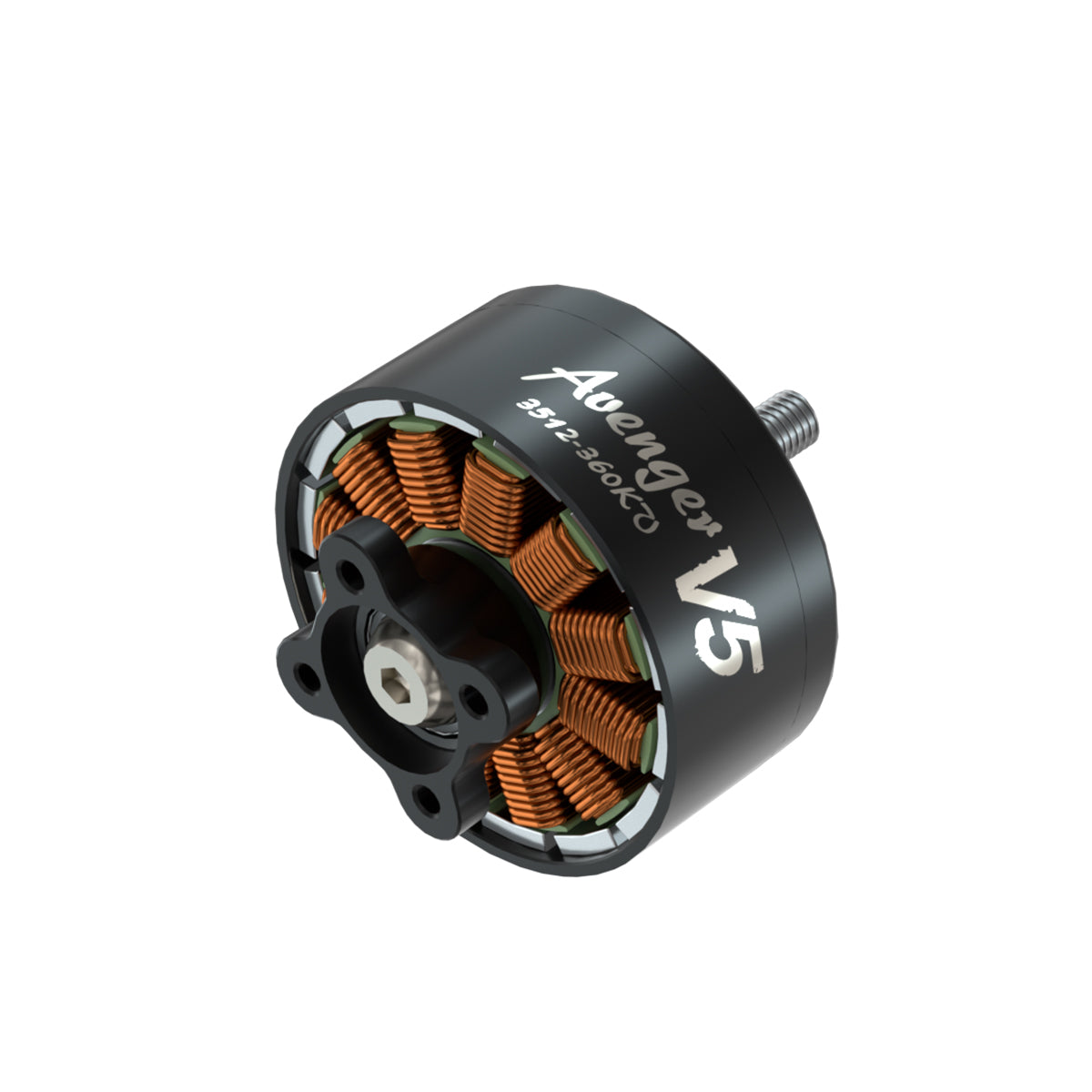

The BrotherHobby Avenger 3512 V5 CW brushless motor uses a heat-treated steel shaft, 7075 aluminum caps, and precision bearings with a wound stator and arc magnets.

Avenger 3512 V5 motor dimensions and mounting-hole layout help confirm fit and clearance before installation.

Folding triblade prop sizes with a 28mm hole pitch range from about 249.8mm to 458.9mm rotation diameter for clearance planning.

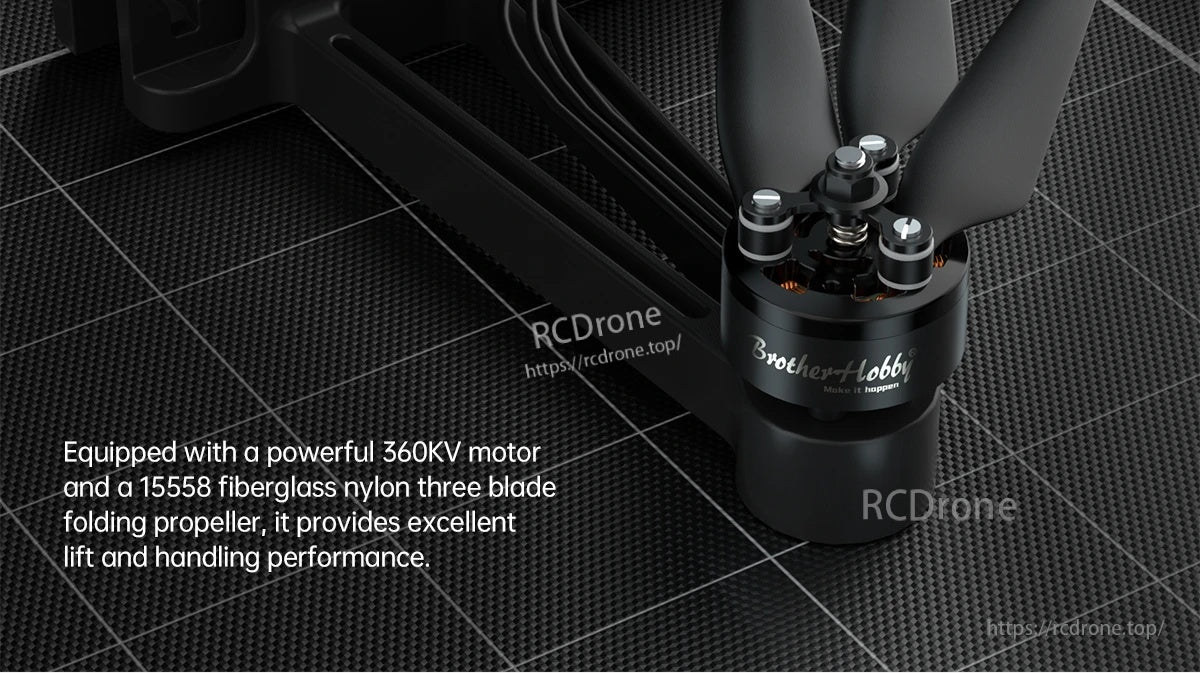

BrotherHobby brushless motor is labeled 360KV and paired with a 15558 fiberglass nylon three-blade folding propeller.

The Avenger 3512 V5 CW motor uses a folding triblade prop mount with spacers, a spring, and a lock nut for secure assembly.

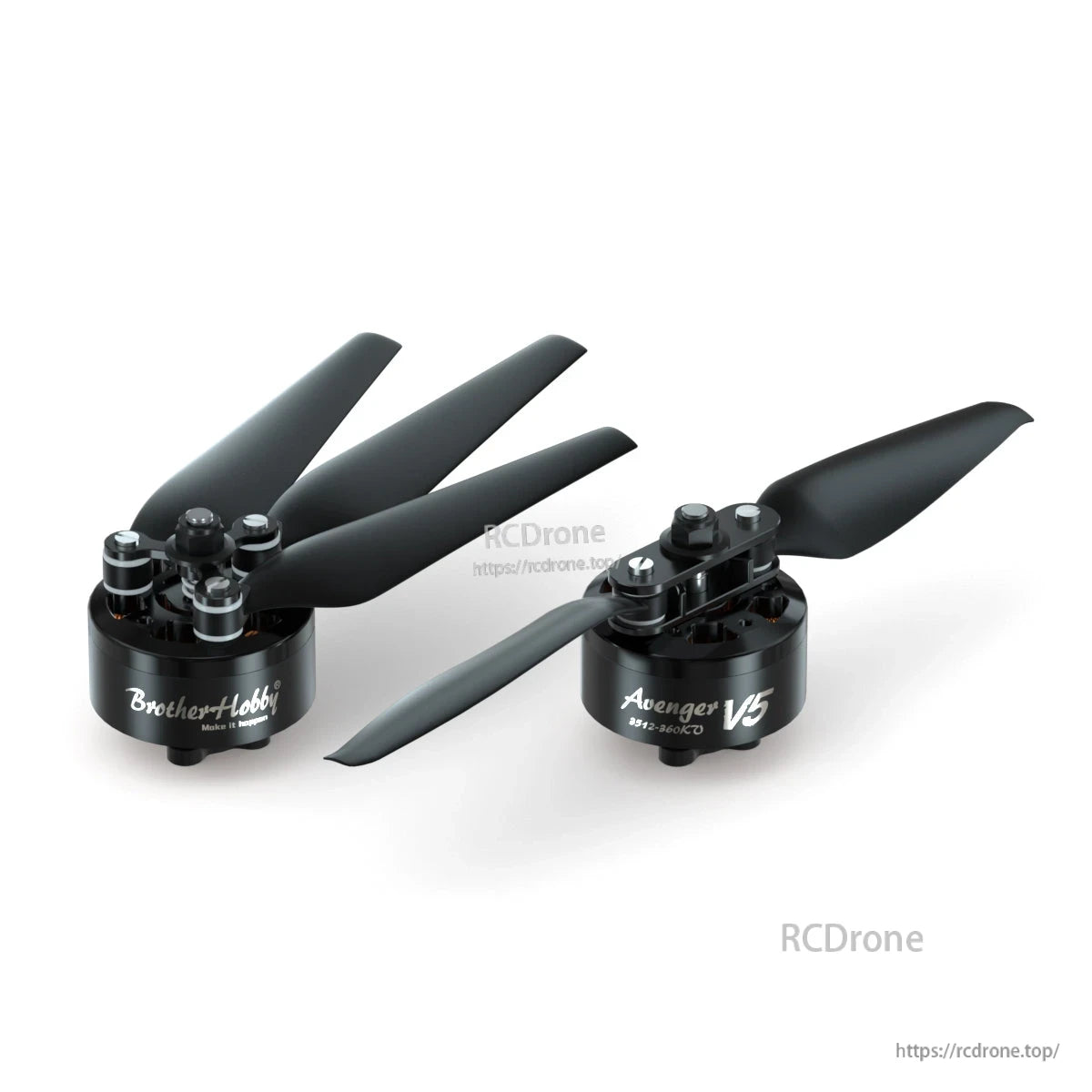

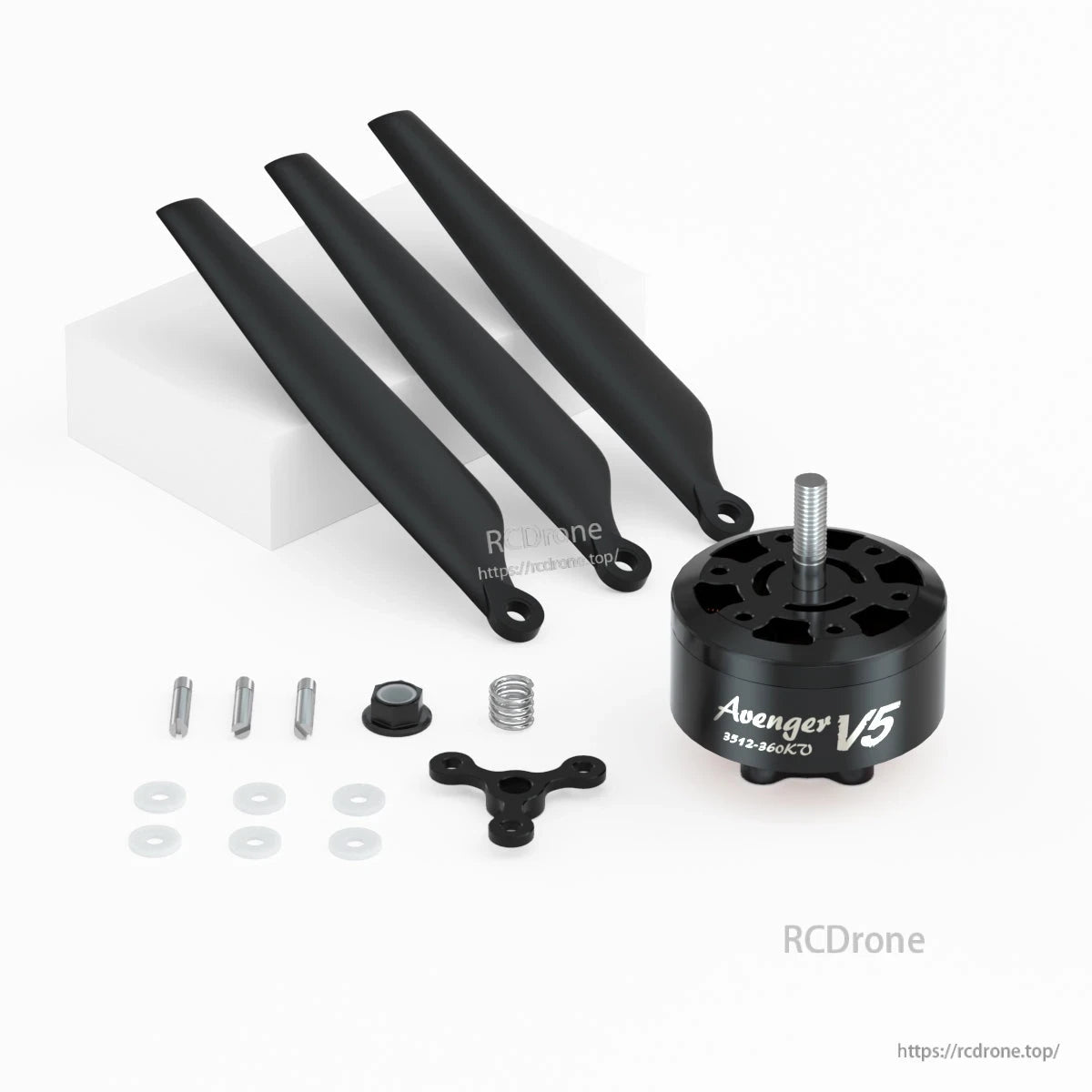

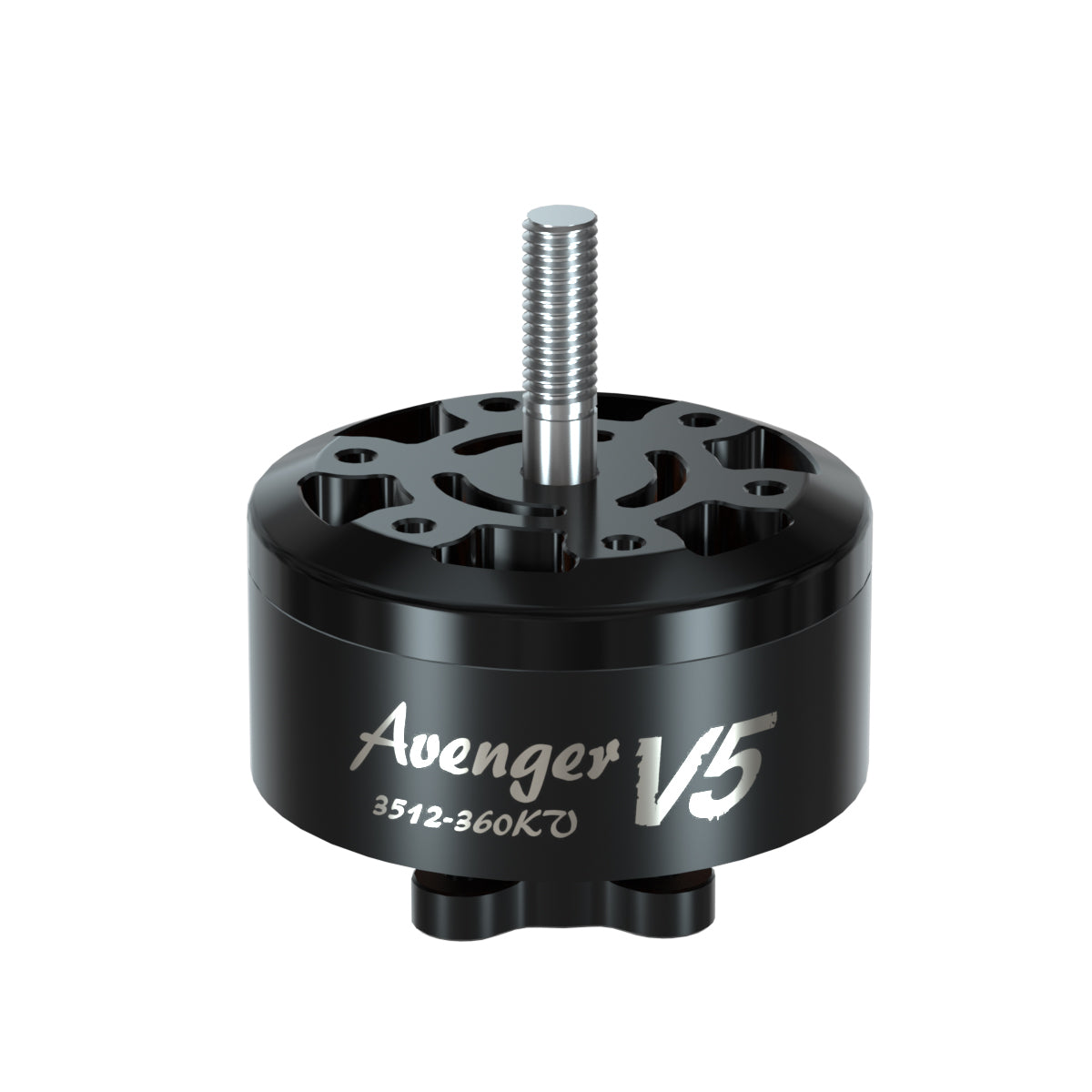

BrotherHobby Avenger V5 3512 brushless motor features a compact black can design with a propeller hub and clearly labeled 3512-360KV marking for easy identification during builds.

The Avenger 3512 V5 CW motor uses a propeller connector with spacers and a flange nut to stack and secure a folding propeller.

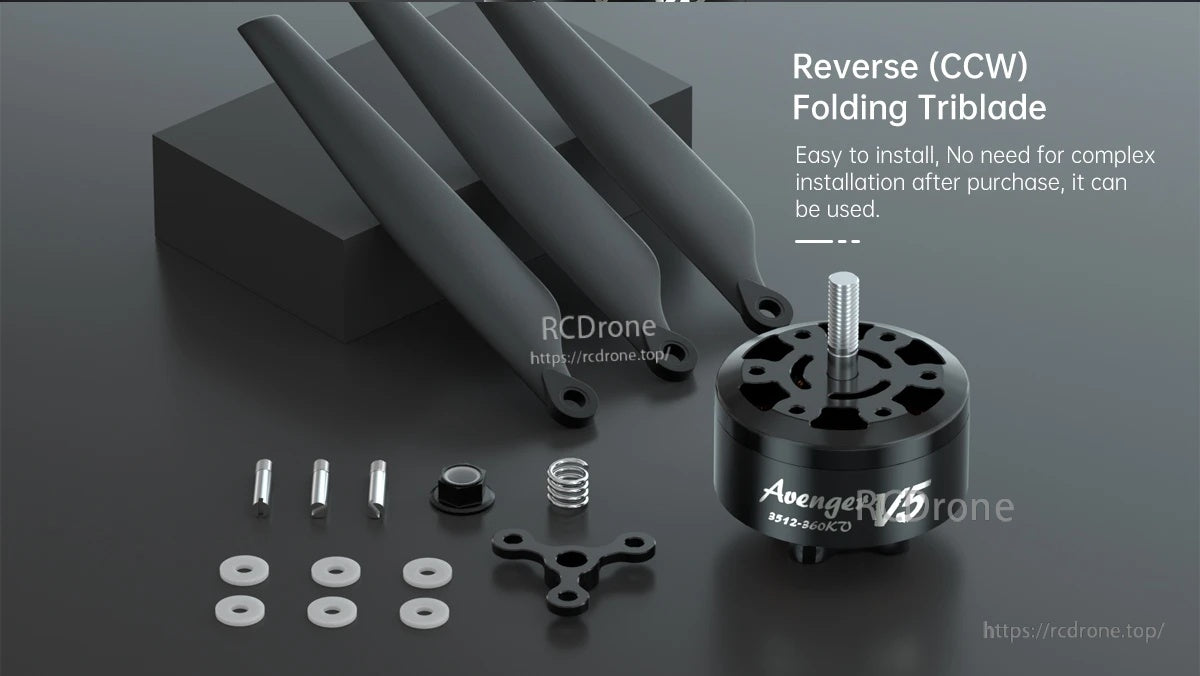

The Avenger V5 motor kit includes a reverse (CCW) folding tri-blade prop set with the mounting hardware for quick installation.

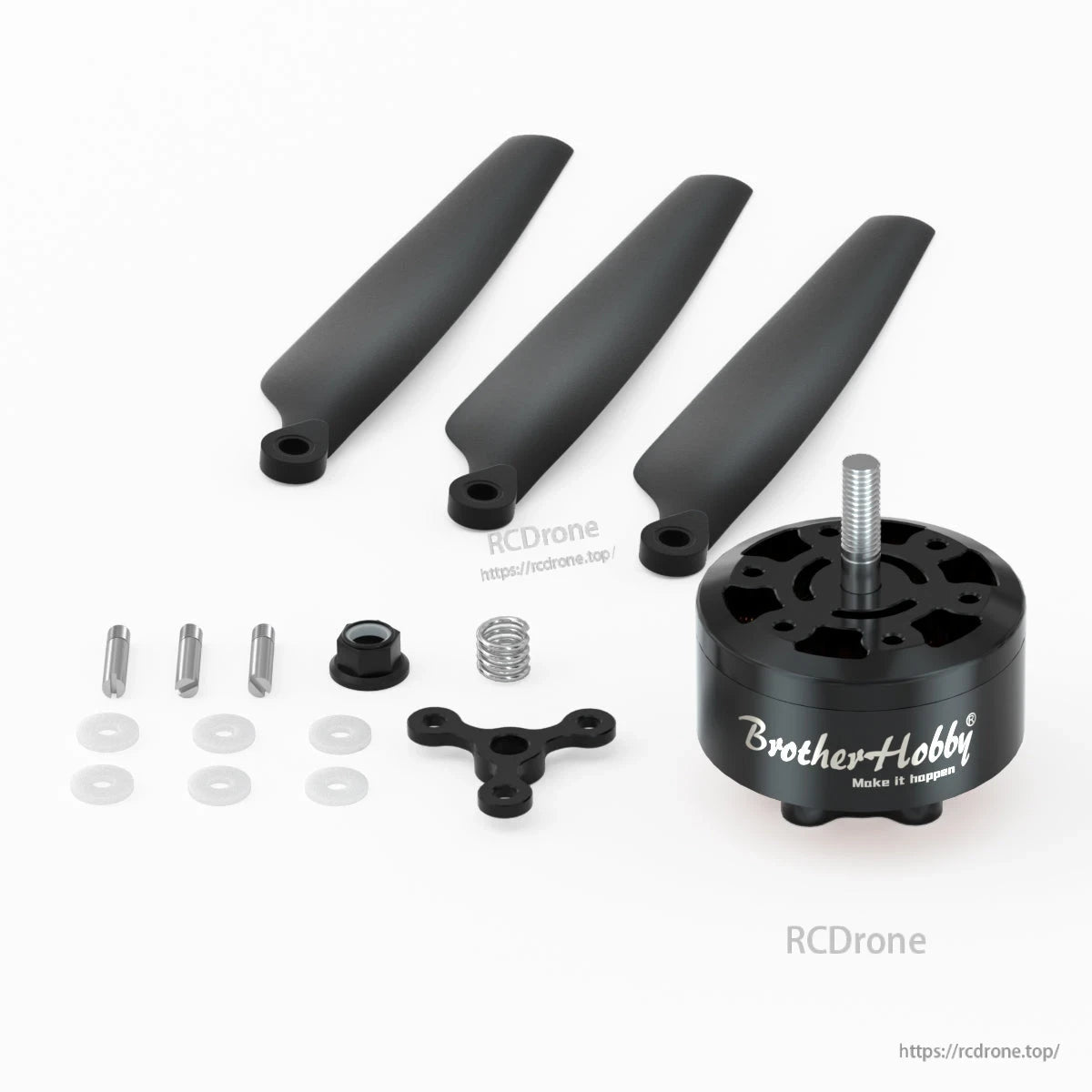

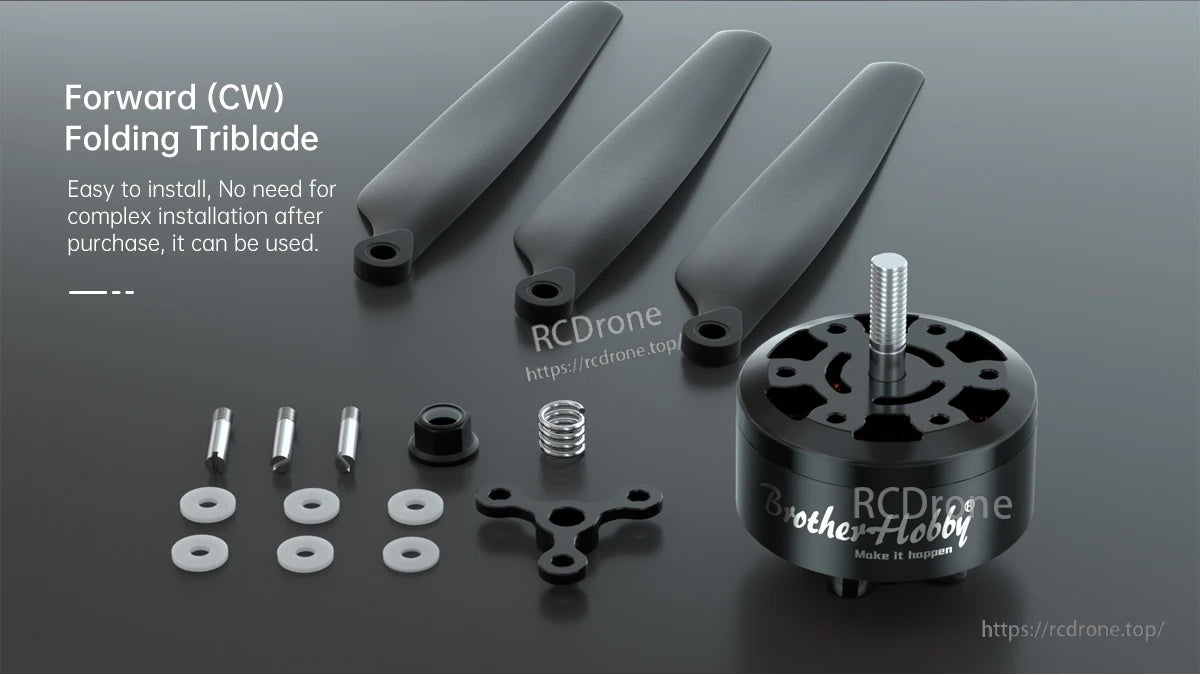

The BrotherHobby Avenger CW motor set includes a folding triblade prop and mounting hardware for straightforward installation.

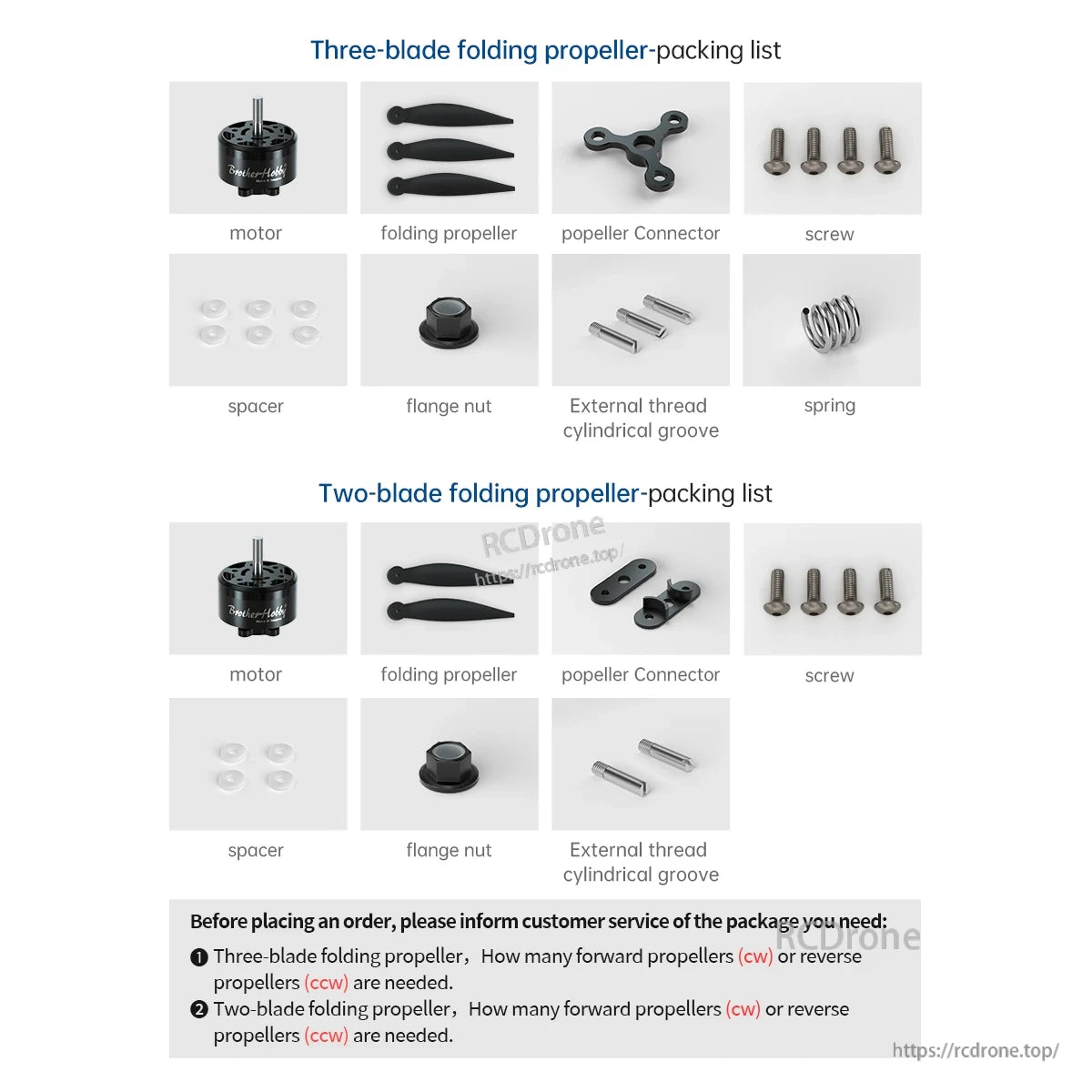

The three-blade folding propeller kit includes a motor, folding propeller blades, connector hub, screws, spacers, a flange nut, pins, and a spring for assembly.

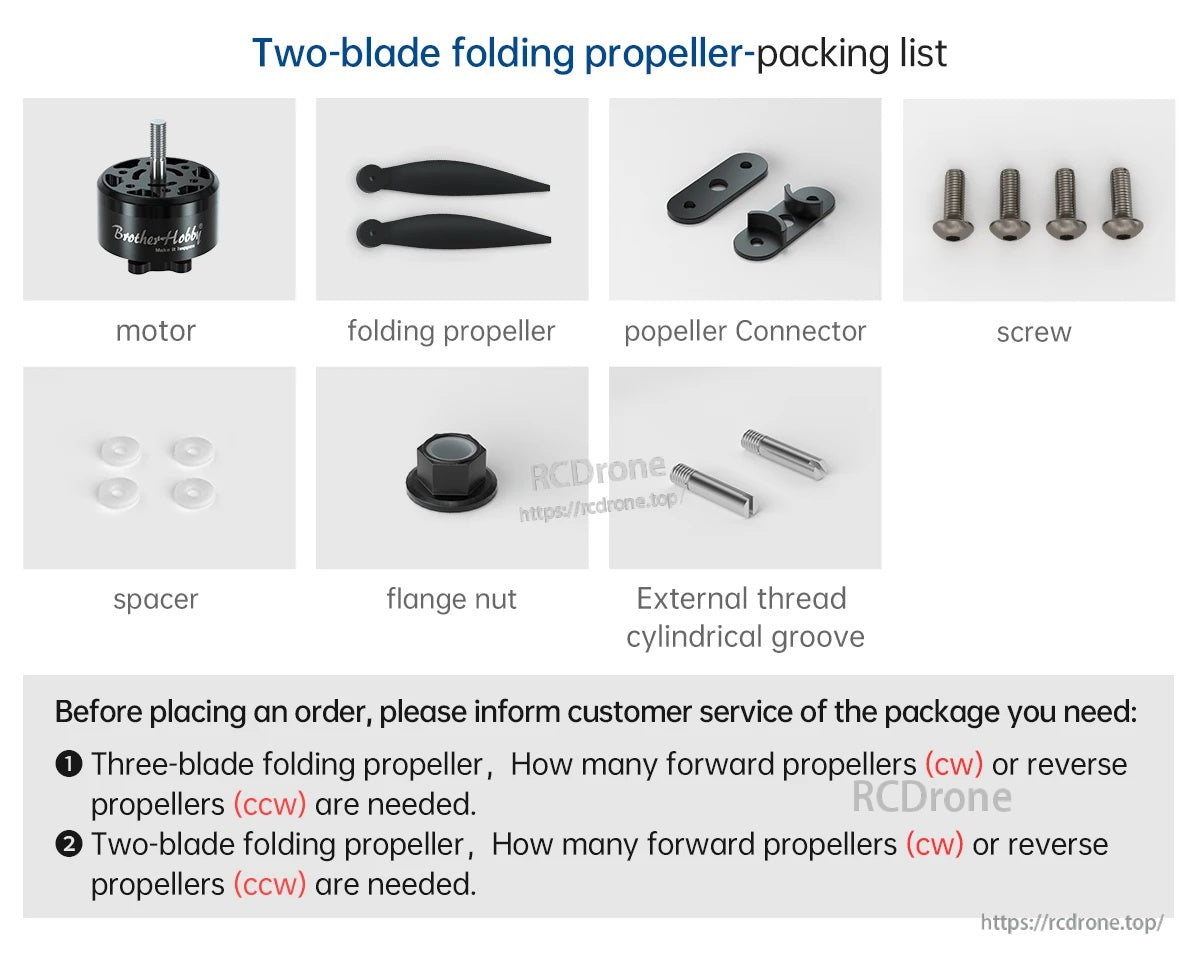

The two-blade folding propeller package includes the motor along with propellers, a propeller connector, screws, spacers, a flange nut, and small hardware.

Avenger 3512 V5 360KV motor dimensions, key specs, and thrust/power test results help you choose the right prop and setup.

The Avenger 3512 V5 550KV motor sheet lists key dimensions and a 33.6V prop test table with throttle, RPM, thrust, input power, and efficiency values.

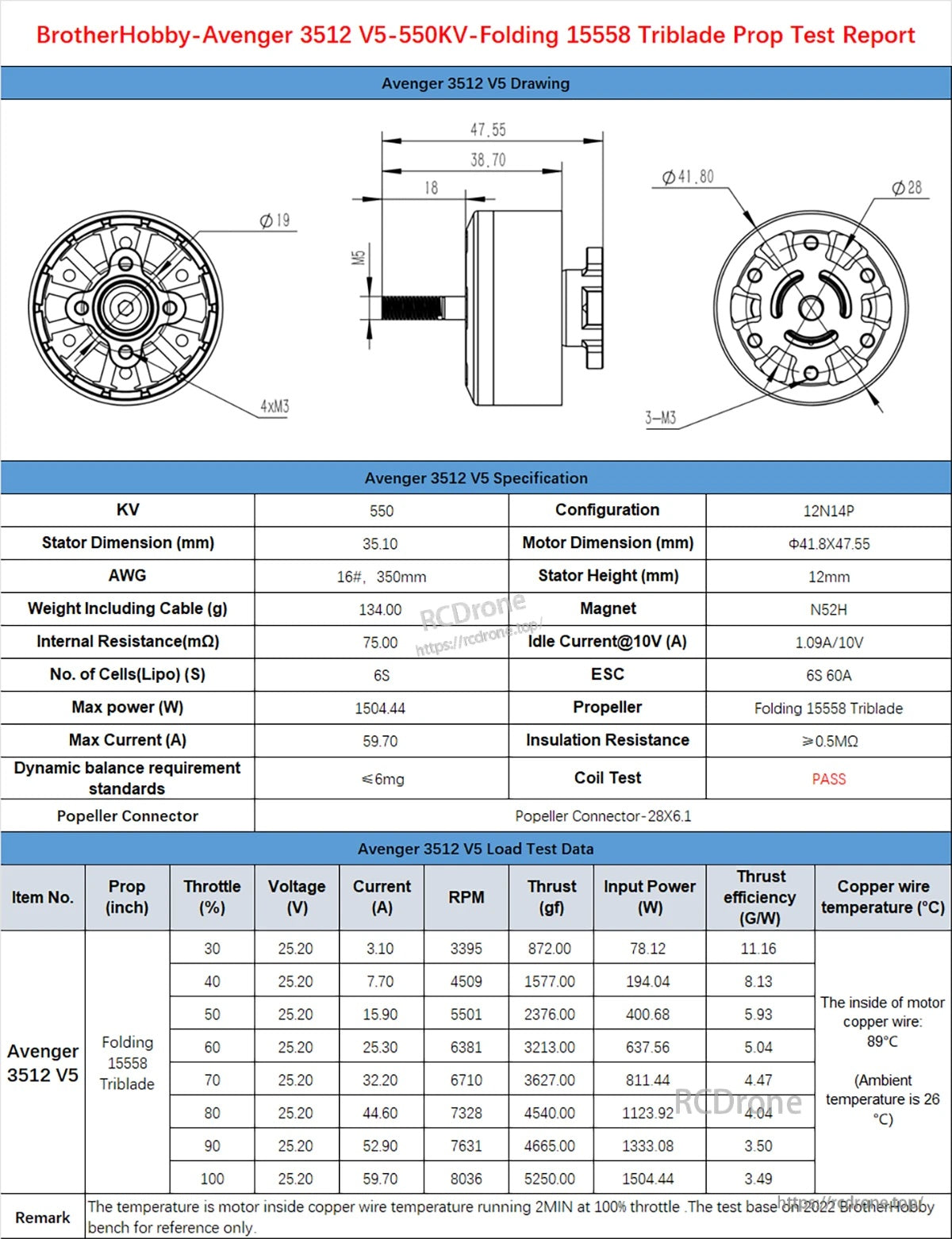

BrotherHobby Avenger 3512 V5 550KV motor documentation includes dimension drawings and thrust test data using a 15x5.5 triblade prop.

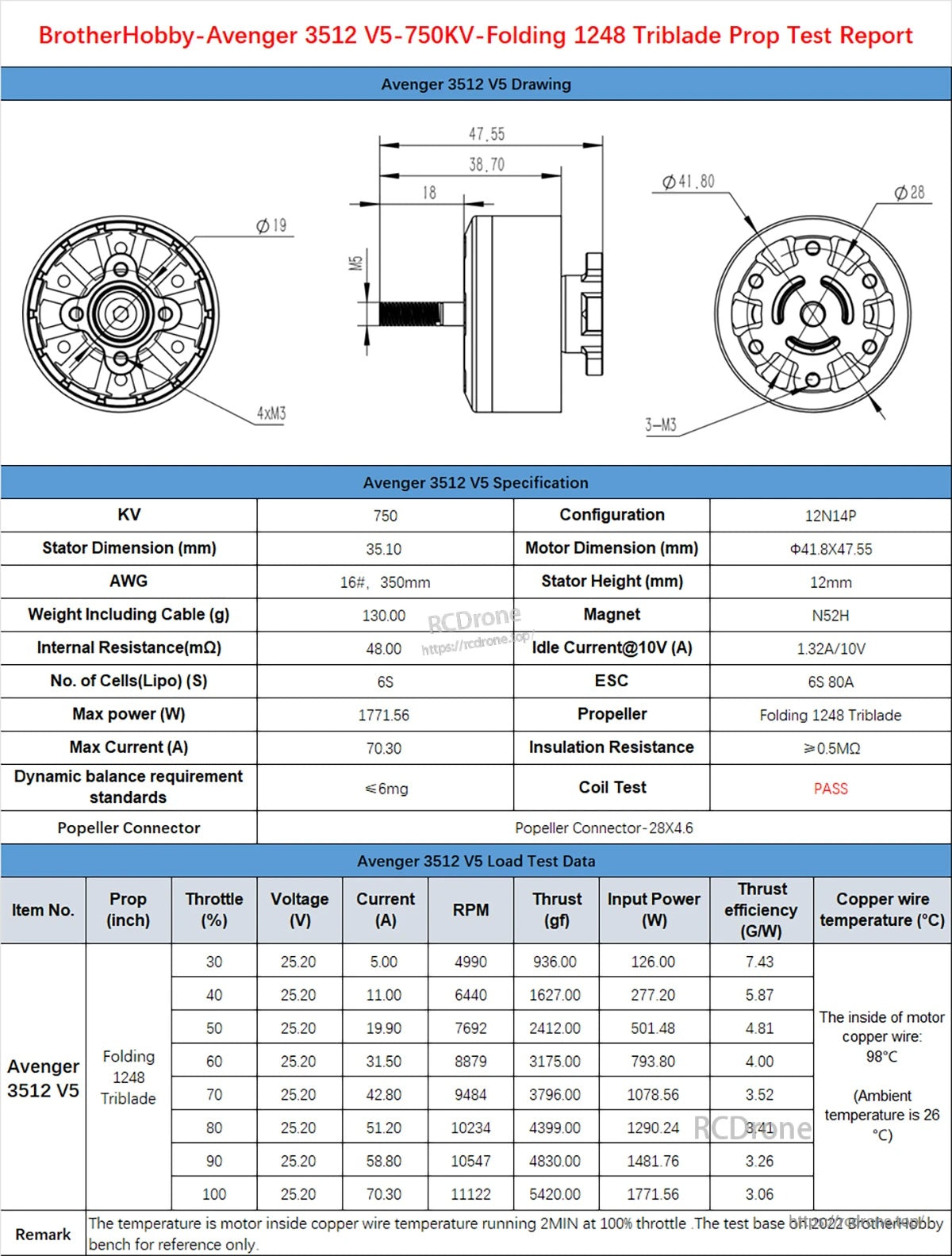

BrotherHobby Avenger 3512 V5 750KV motor documentation includes a dimension drawing, key specs (35×12 stator), and 25.2V load test data with a 1248 triblade prop.
