BrotherHobby Avenger 4112 V5 CW Motor 560KV/720KV - 6-8S, 12N14P, M5 Shaft Thread, 168g

Overview

The BrotherHobby Avenger 4112 V5 560KV/720KV Motor (CW) is a brushless motor designed for multi-rotor propulsion systems and commonly paired with folding propellers.

Key Features

• CW (forward) motor option in the Avenger 4112 V5 series (560KV/720KV)
• 12N14P configuration with N52H arc magnets
• Al 7075 base casing and Al 7075 bell cap
• SUS420 steel shaft (heat treated steel shaft is referenced)
• TU1 grade enameled wire is referenced; ultra-thin non-oriented silicon steel sheet is referenced
• Premium high precision bearings are referenced (bearing size: 12 x 6 x 4)

Specifications

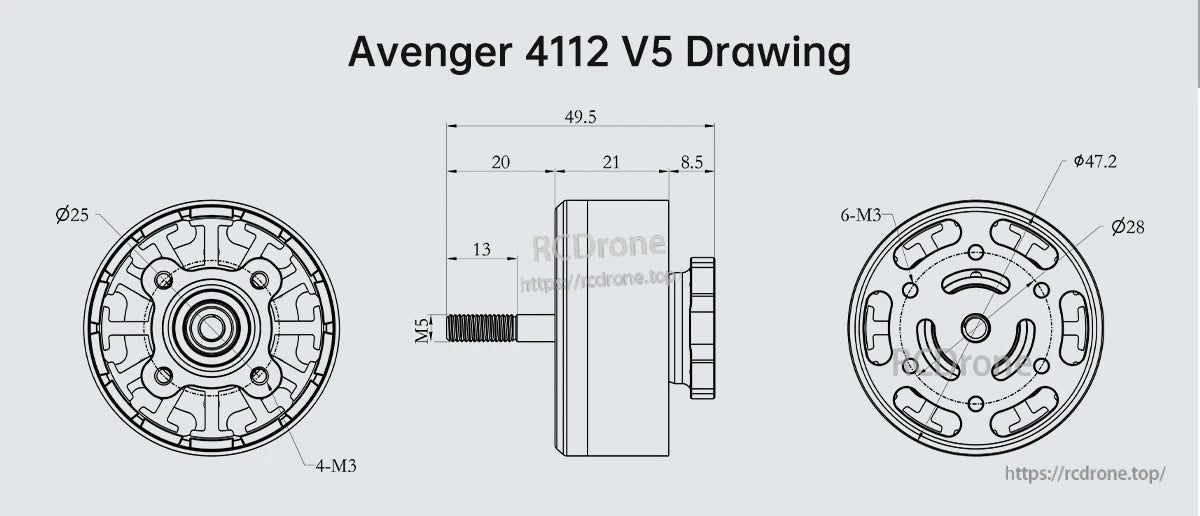

Dimension Drawing (as labeled)

• Overall length: 49.5
• Segment dimensions: 20 / 21 / 8.5
• Additional labeled dimension: 13
• Thread: M5
• Diameters: Ø25, Ø47.2, Ø28
• Hole labels: 4-M3, 6-M3

Thrust / Bench Data (as labeled)

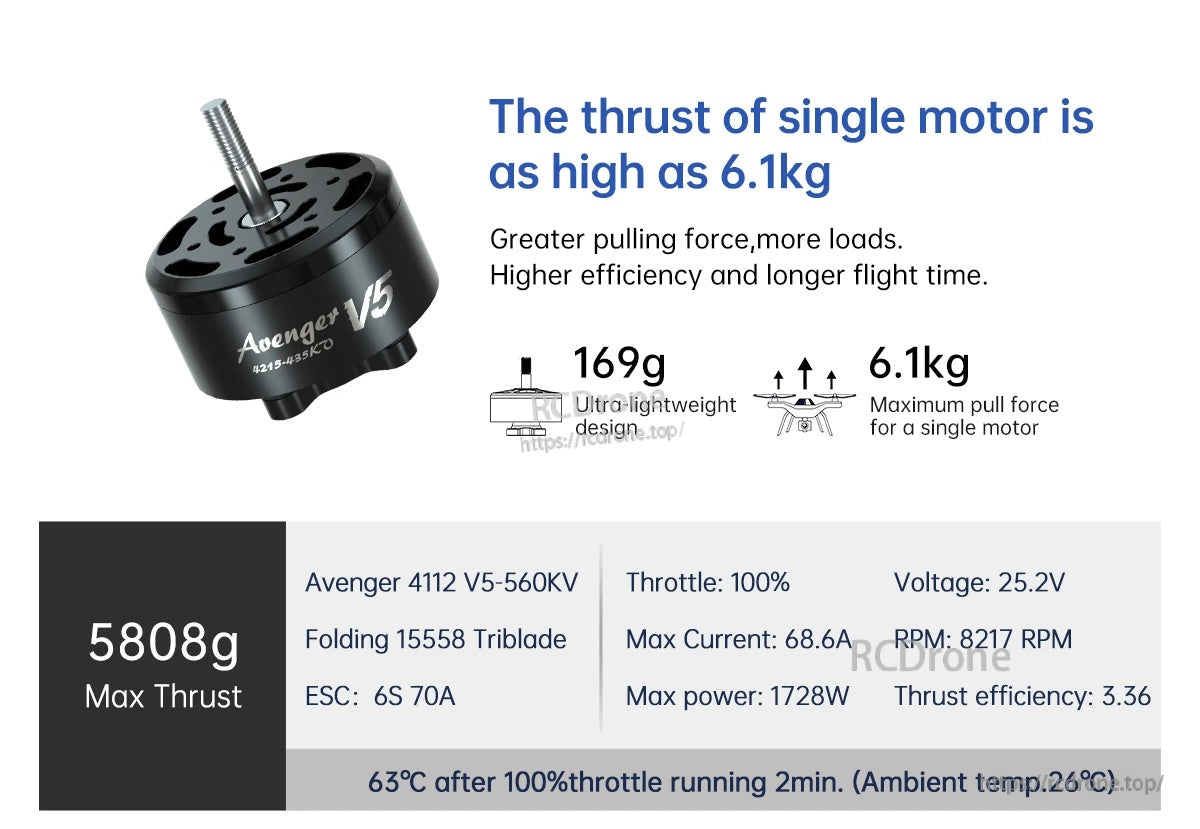

General statement shown: The thrust of single motor is as high as 6.1kg. Also shown: 169g (ultra-lightweight design) and 6.1kg (maximum pull force for a single motor).

Avenger 4112 V5-560KV

• Max thrust: 5808g
• Prop: Folding 15558 Triblade
• ESC: 6S 70A
• Throttle: 100%
• Voltage: 25.2V
• Max current: 68.6A
• Max power: 1728W
• RPM: 8217 RPM
• Thrust efficiency: 3.36
• Temperature: 63°C after 100% throttle running 2min (ambient temp 26°C)

Avenger 4112 V5-720KV

• Max thrust: 5668g
• Prop: Folding 1248 Triblade
• ESC: 6S 80A
• Throttle: 100%
• Voltage: 25.2V
• Max current: 76A
• Max power: 1915W
• RPM: 11459 RPM
• Thrust efficiency: 2.96
• Temperature: 46°C after 100% throttle running 2min (ambient temp 26°C)

Additional reference data shown for other Avenger 4112 V5 KV options

• Avenger 4112 V5-380KV: Max thrust 5649g; Folding 15558 Triblade; ESC 8S 60A; Voltage 33.6V; Max current 43.9A; Max power 1475W; RPM 8087 RPM; Thrust efficiency 3.83; 109°C after 100% throttle running 2min (ambient temp 26°C)
• Avenger 4112 V5-515KV: Max thrust 6101g; Folding 1248 Triblade; ESC 8S 60A; Voltage 33.6V; Max current 58.2A; Max power 1955W; RPM 11819 RPM; Thrust efficiency 3.12; 86°C after 100% throttle running 2min (ambient temp 26°C)

Folding Propeller Notes (as labeled)

• Foldable paddles are referenced as easy to install and convenient to carry.

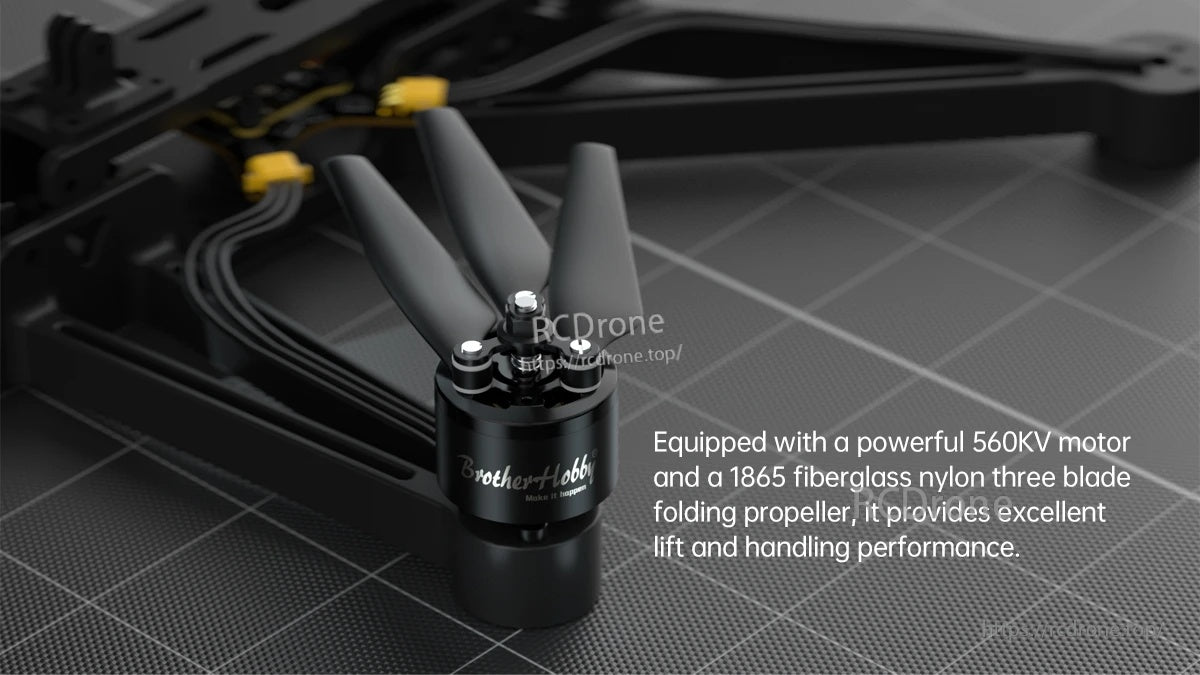

• A pairing example is shown: a 560KV motor with a 1865 fiberglass nylon three blade folding propeller.

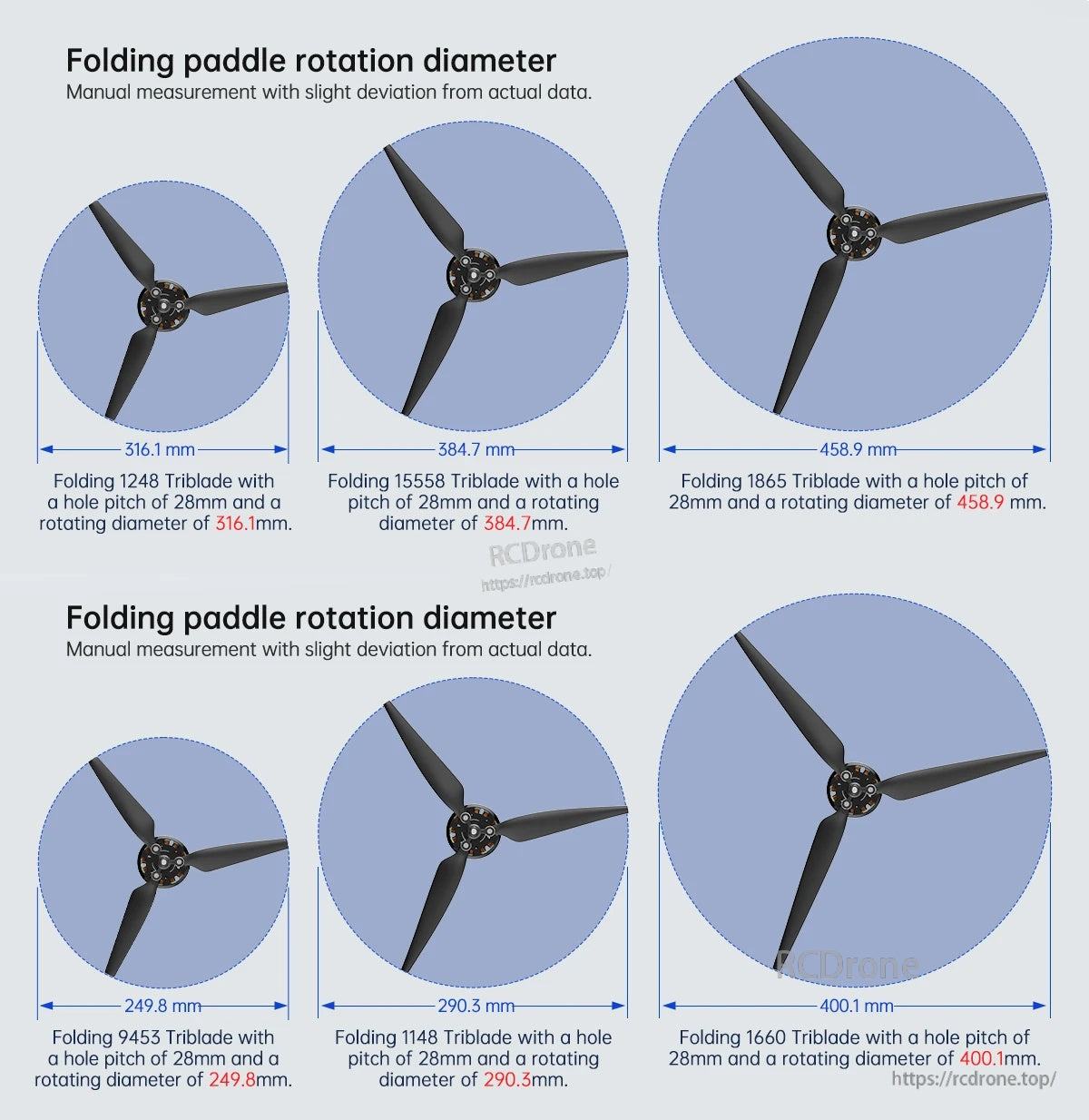

Folding paddle rotation diameter (manual measurement note shown)

• Folding 1248 Triblade: hole pitch 28mm; rotating diameter 316.1mm
• Folding 15558 Triblade: hole pitch 28mm; rotating diameter 384.7mm
• Folding 1865 Triblade: hole pitch 28mm; rotating diameter 458.9mm
• Folding 9453 Triblade: hole pitch 28mm; rotating diameter 249.8mm
• Folding 1148 Triblade: hole pitch 28mm; rotating diameter 290.3mm
• Folding 1660 Triblade: hole pitch 28mm; rotating diameter 400.1mm

Installation Reference (as labeled)

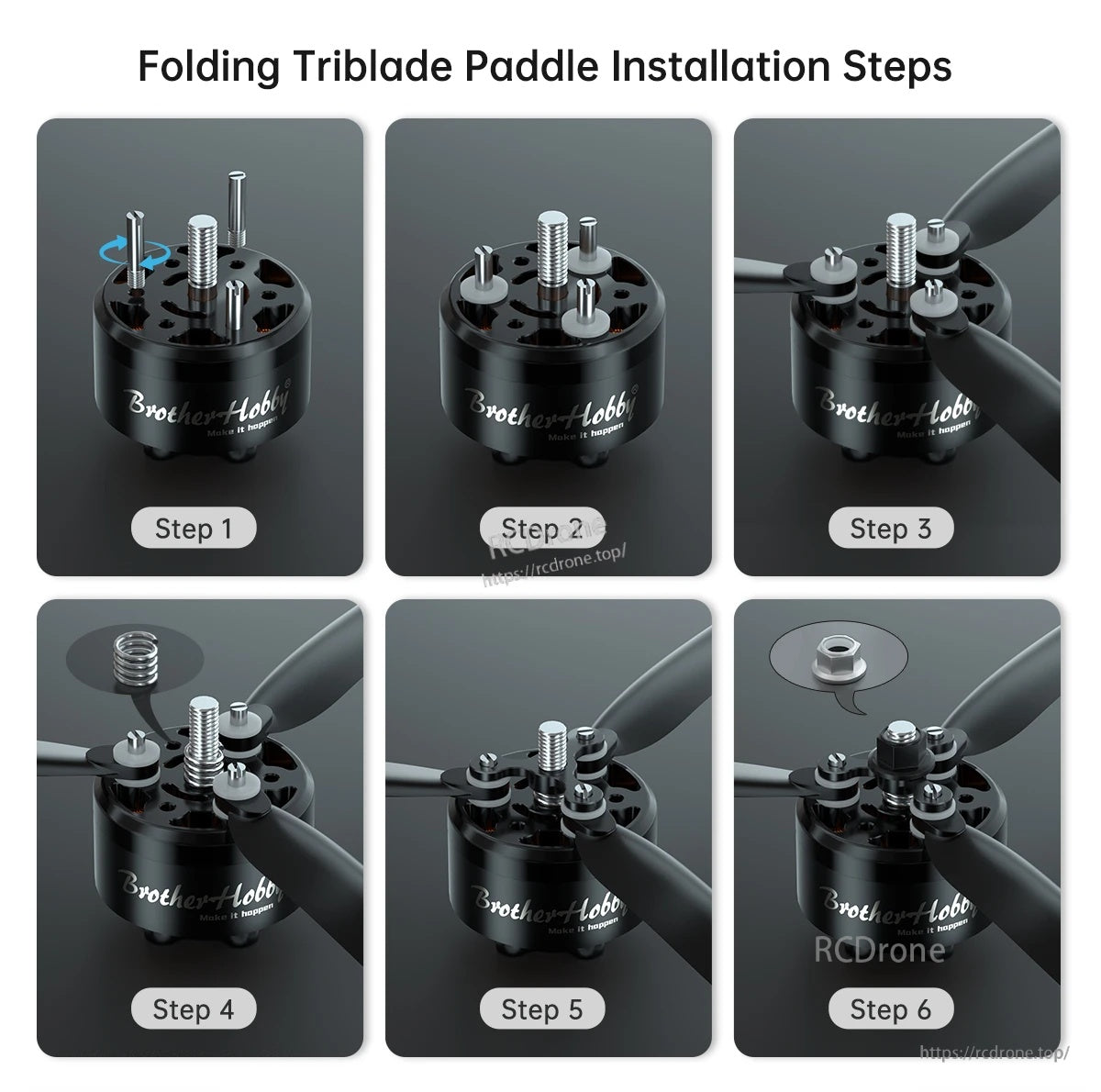

• “Folding Triblade Paddle Installation Steps” are shown (Step 1 to Step 6).

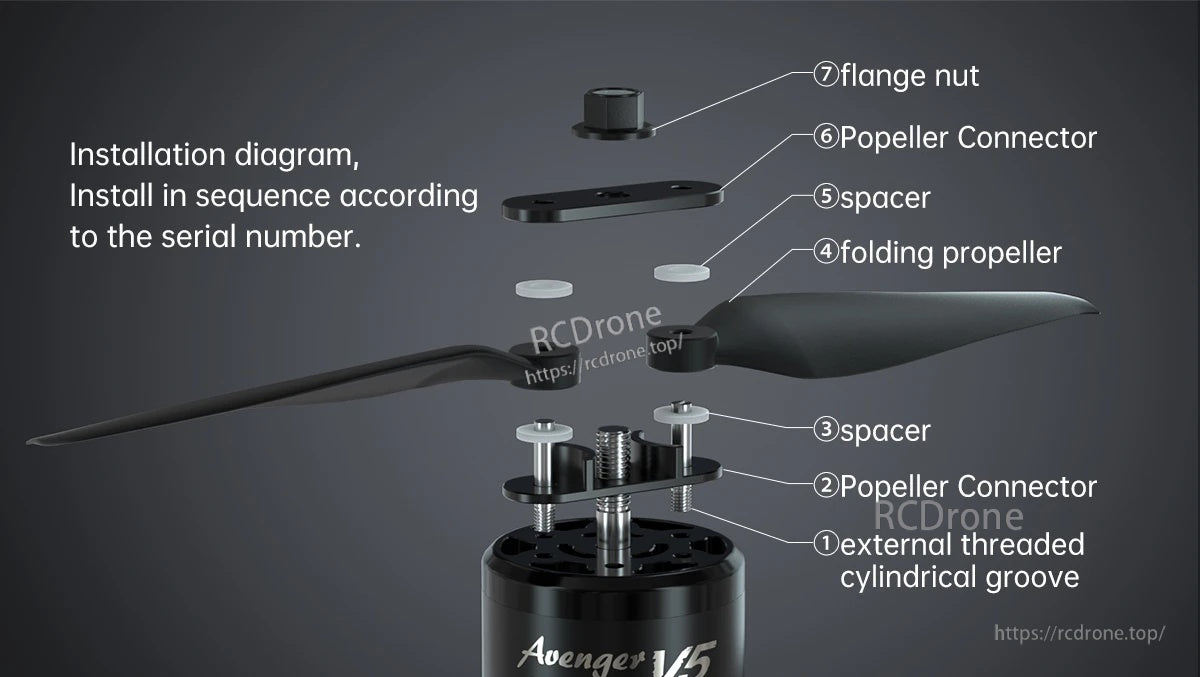

• Installation diagram indicates installing parts in sequence by serial number: (1) external threaded cylindrical groove, (2) Popeller Connector, (3) spacer, (4) folding propeller, (5) spacer, (6) Popeller Connector, (7) flange nut.
• Forward (CW) Folding Triblade and Reverse (CCW) Folding Triblade are referenced as easy to install.

Package Options (as labeled)

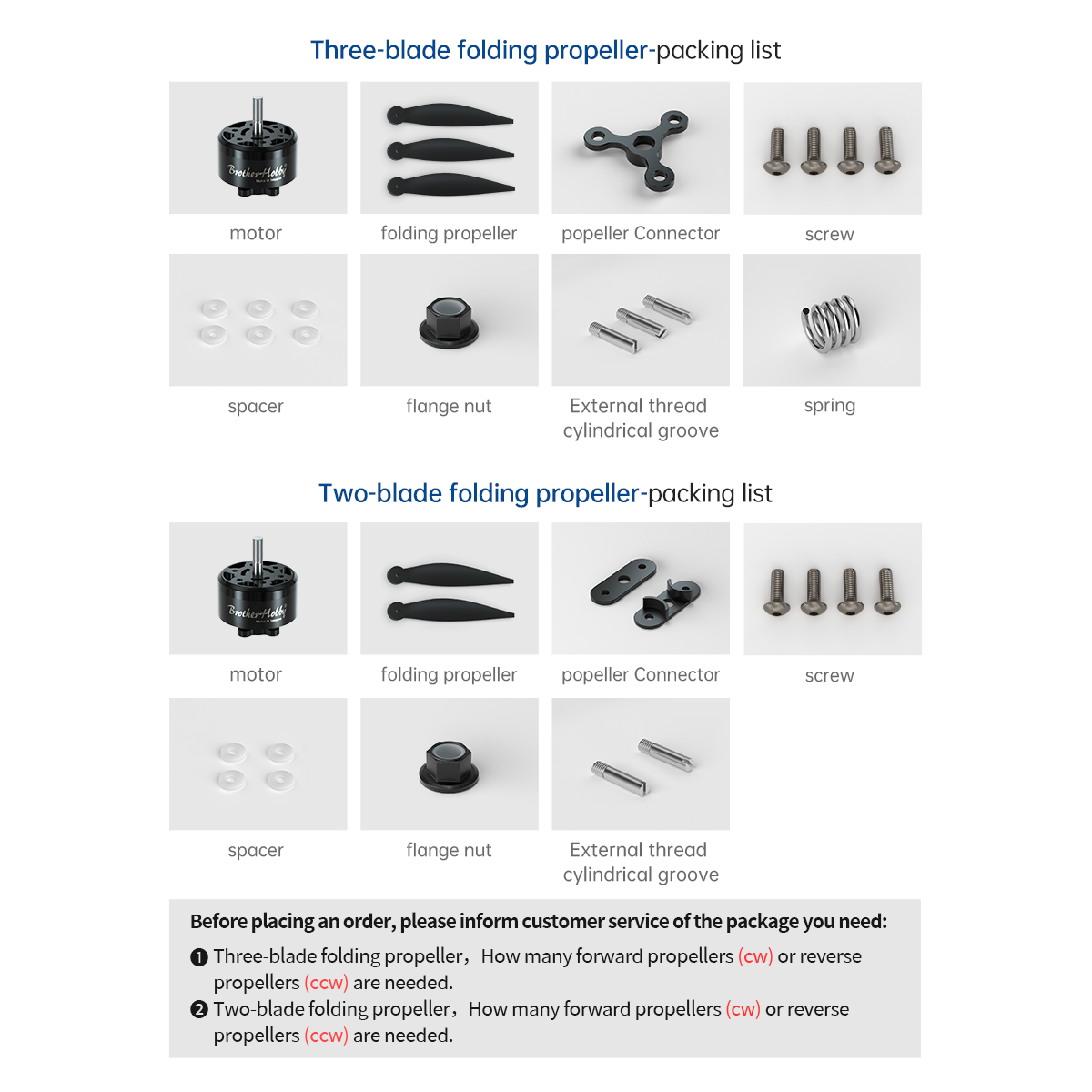

Two packing lists are shown for folding propeller packages (two-blade and three-blade). If a specific package, blade count, or CW/CCW propeller direction is required, confirm the exact configuration with customer service before ordering via https://rcdrone.top/ or support@rcdrone.top.

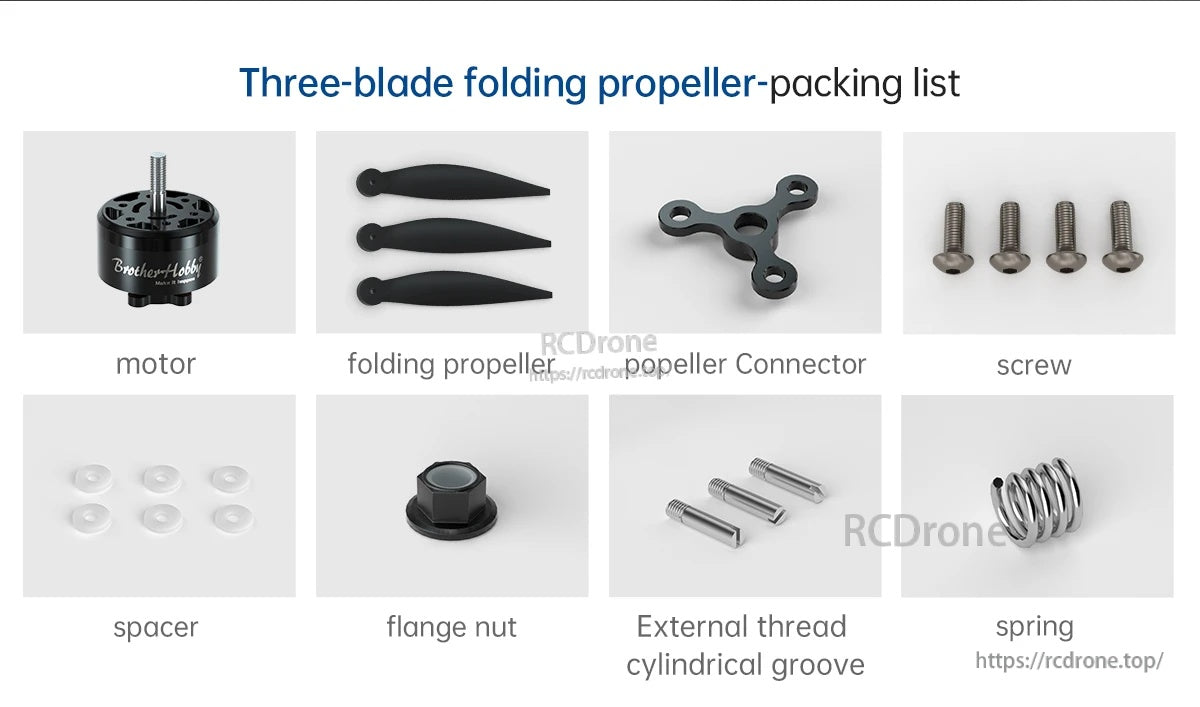

Three-blade folding propeller - packing list (items shown)

• motor
• folding propeller
• popeller Connector
• screw
• spacer
• flange nut
• External thread cylindrical groove
• spring

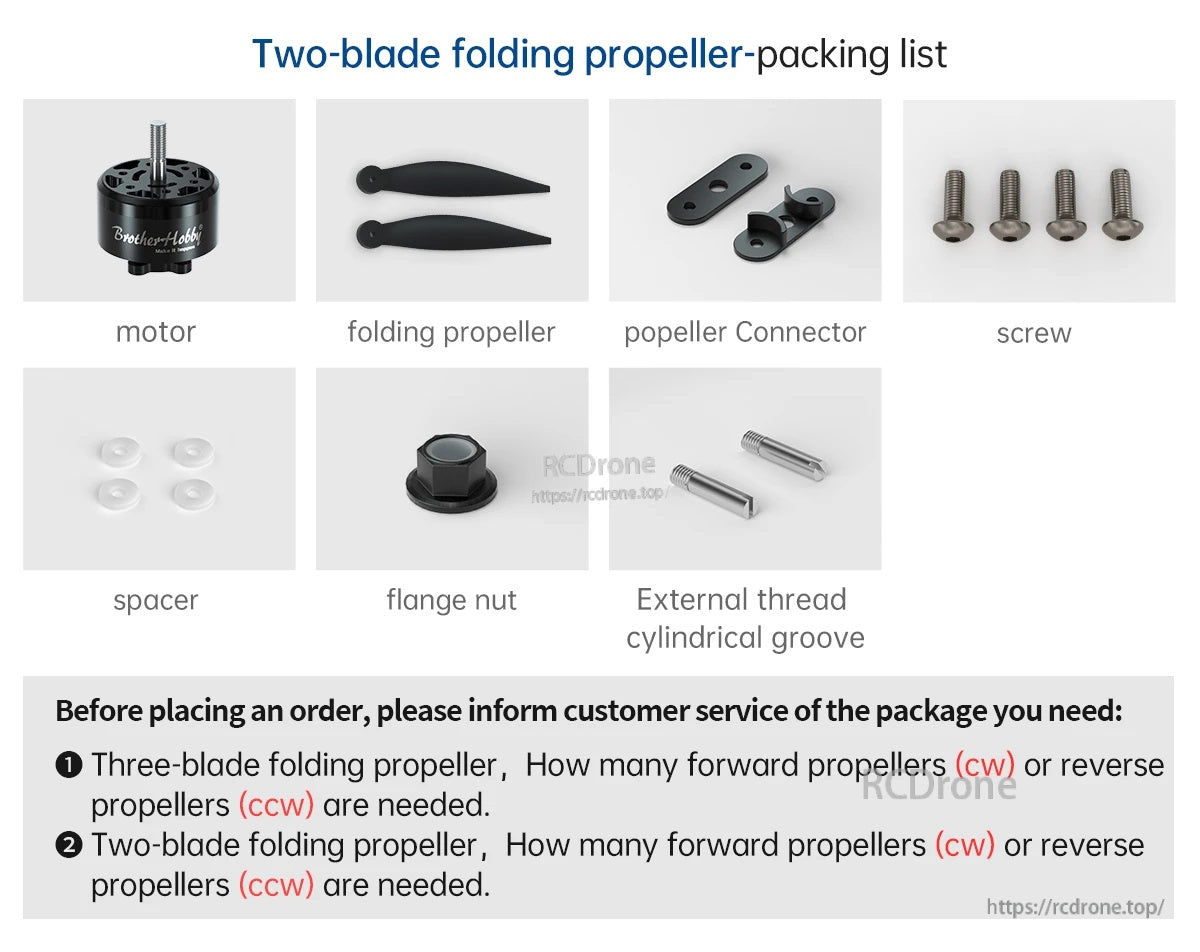

Two-blade folding propeller - packing list (items shown)

• motor
• folding propeller
• popeller Connector
• screw
• spacer
• flange nut
• External thread cylindrical groove

Applications

• Multi-rotor propulsion systems requiring 6-8S compatibility
• Builds using M3 (25 x 25mm) motor mounting and M5 prop adapter shaft thread

Details

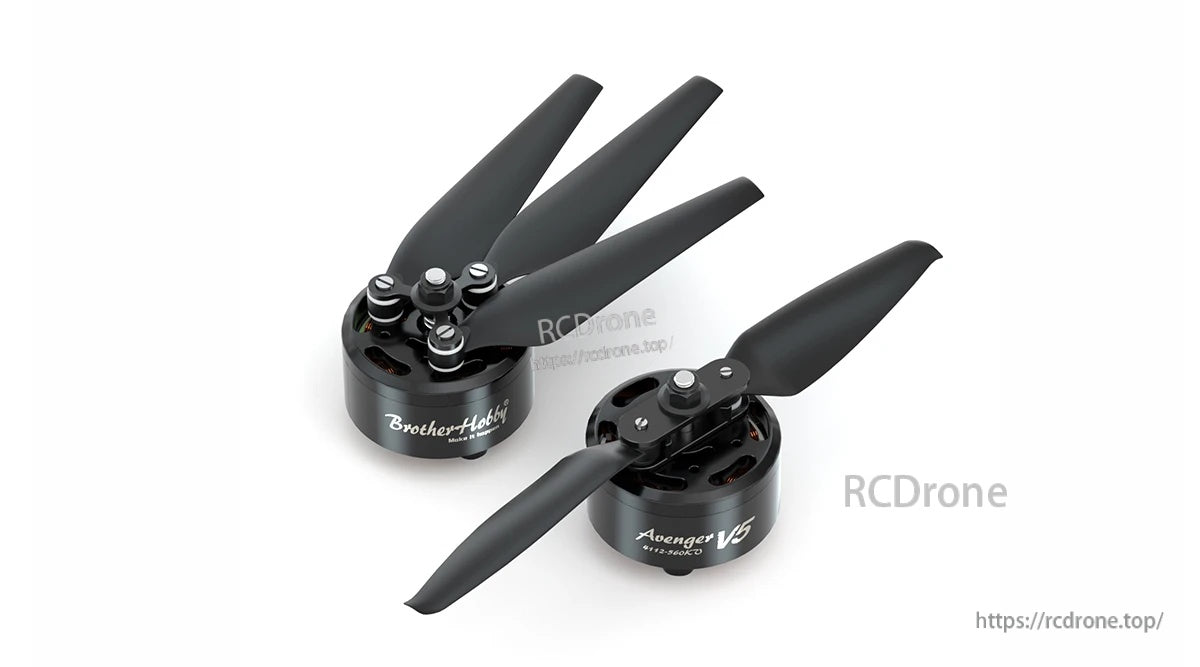

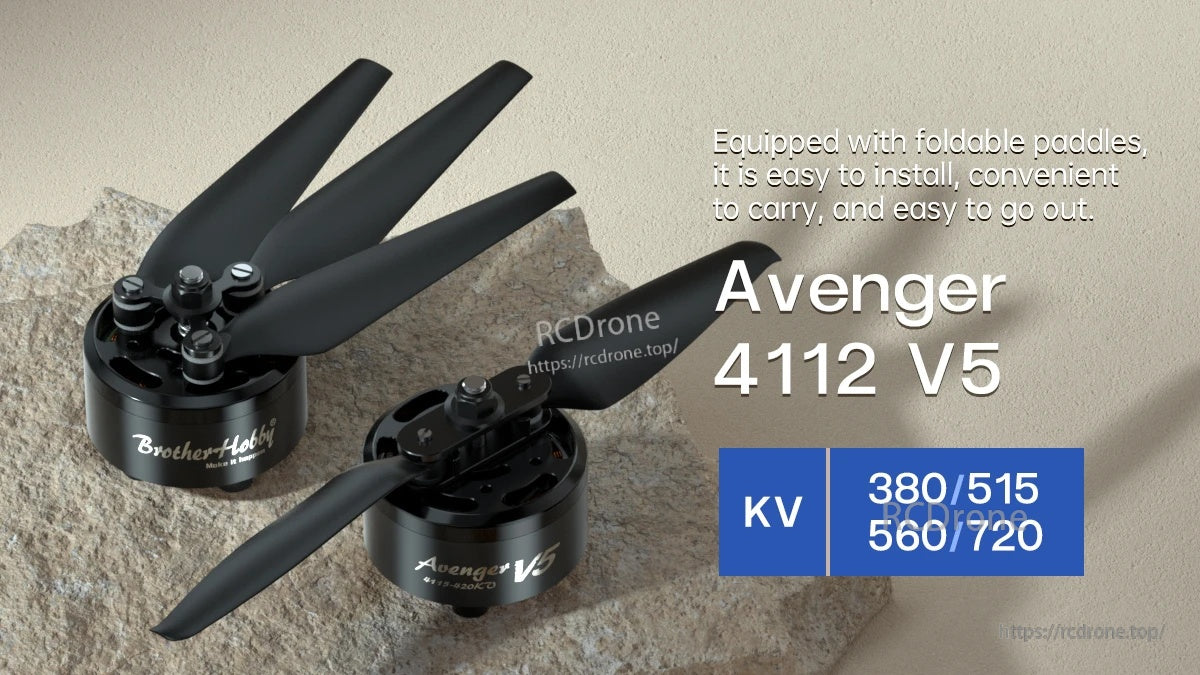

The BrotherHobby Avenger 4112 V5 motor is presented with propellers and listed KV options of 380/515 and 560/720.

The BrotherHobby Avenger 4112 V5 560KV motor is rated up to 5808g max thrust, with test data listing 25.2V, 68.6A max current, and 8217 RPM at full throttle.

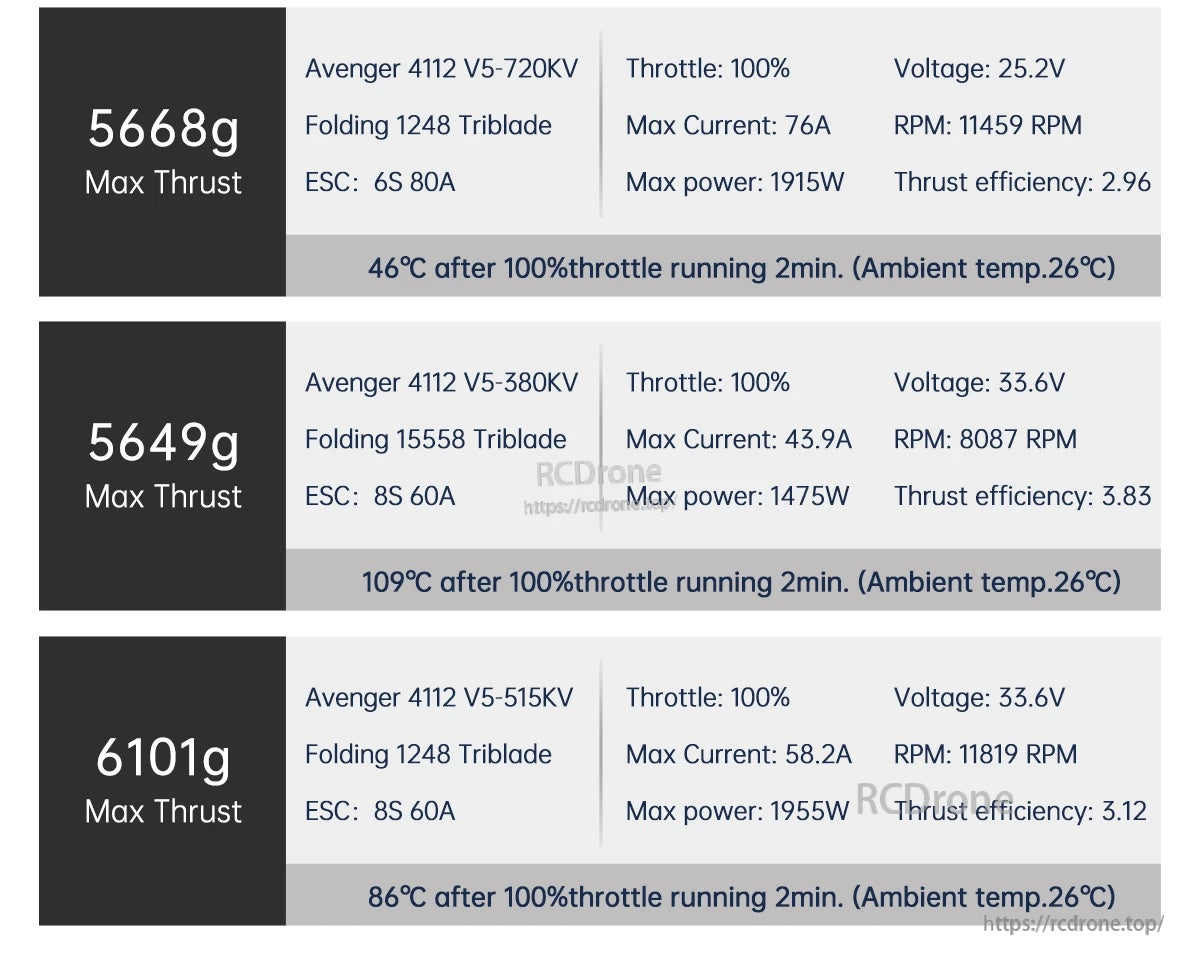

Avenger 4112 V5 test data compares 720KV, 380KV, and 515KV setups, with max thrust figures ranging from 5649g to 6101g under 100% throttle.

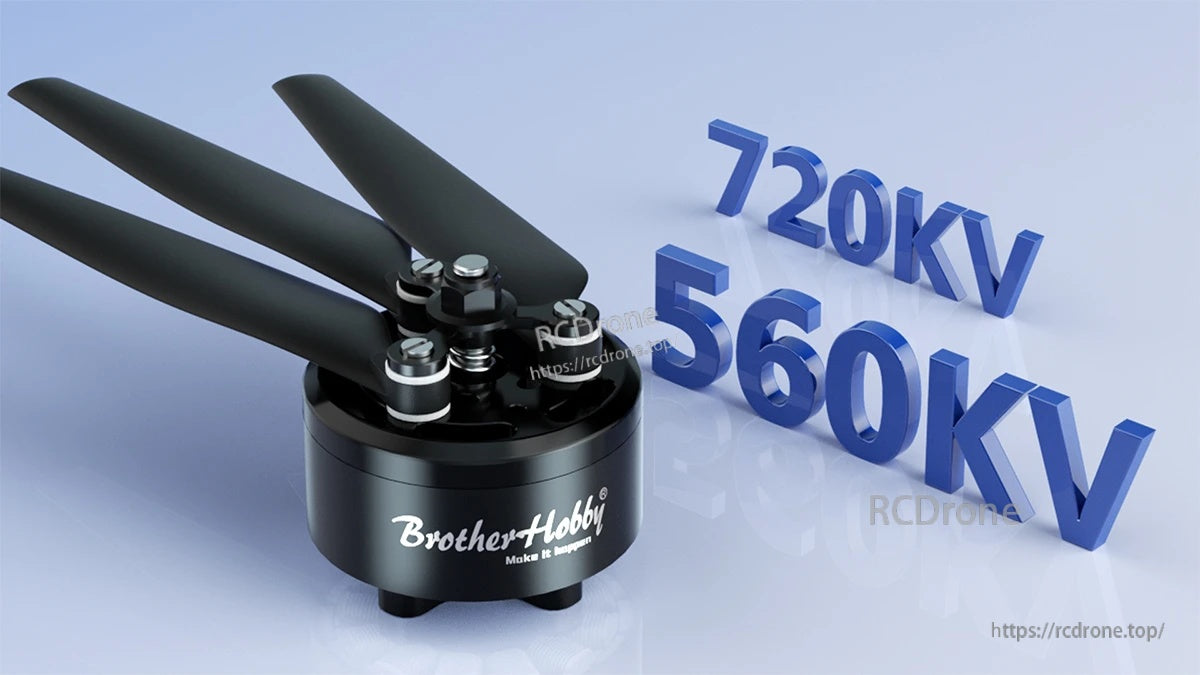

The BrotherHobby Avenger 4112 V5 motor is labeled with 720KV and 560KV KV options for matching your prop and power setup.

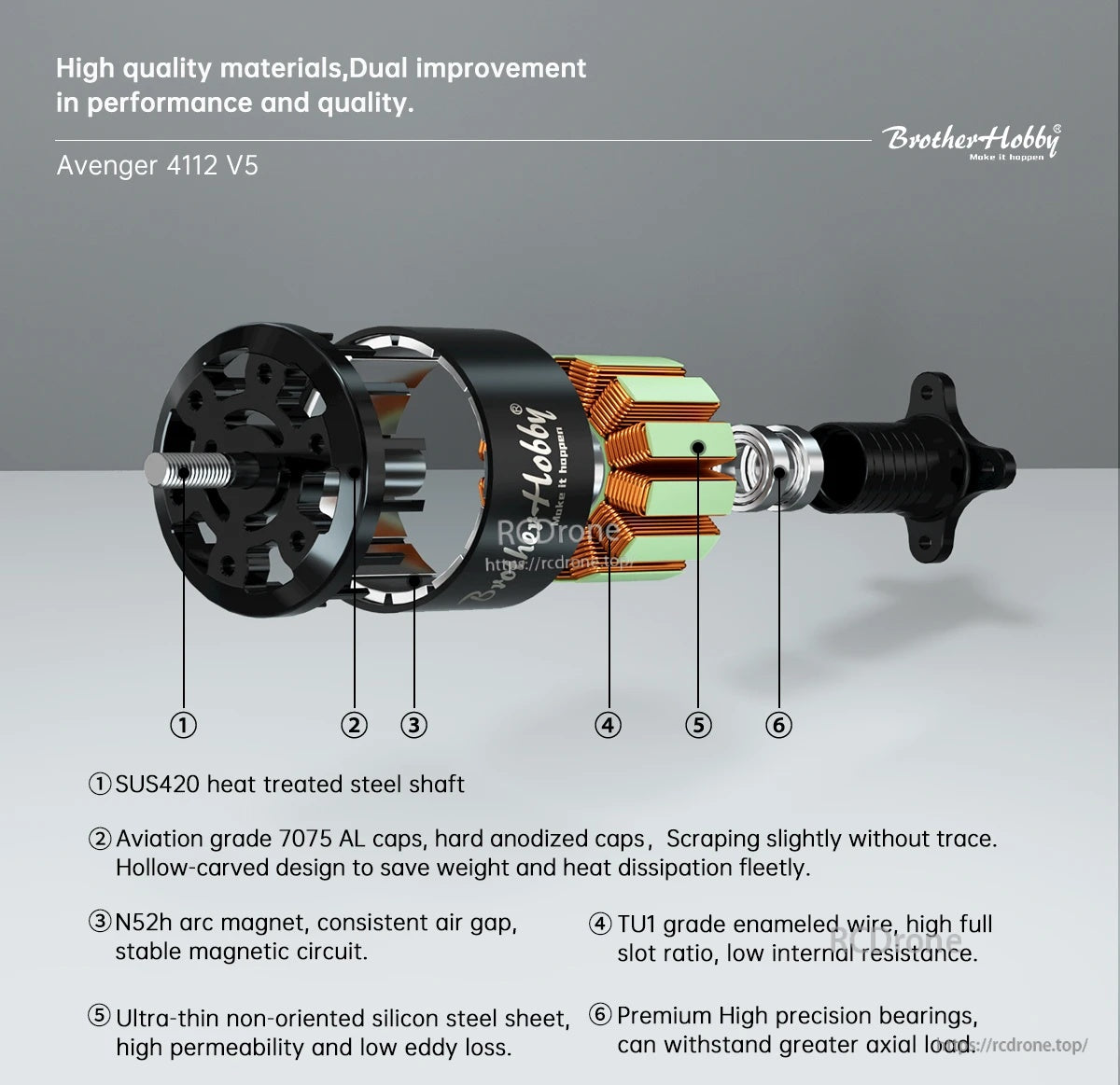

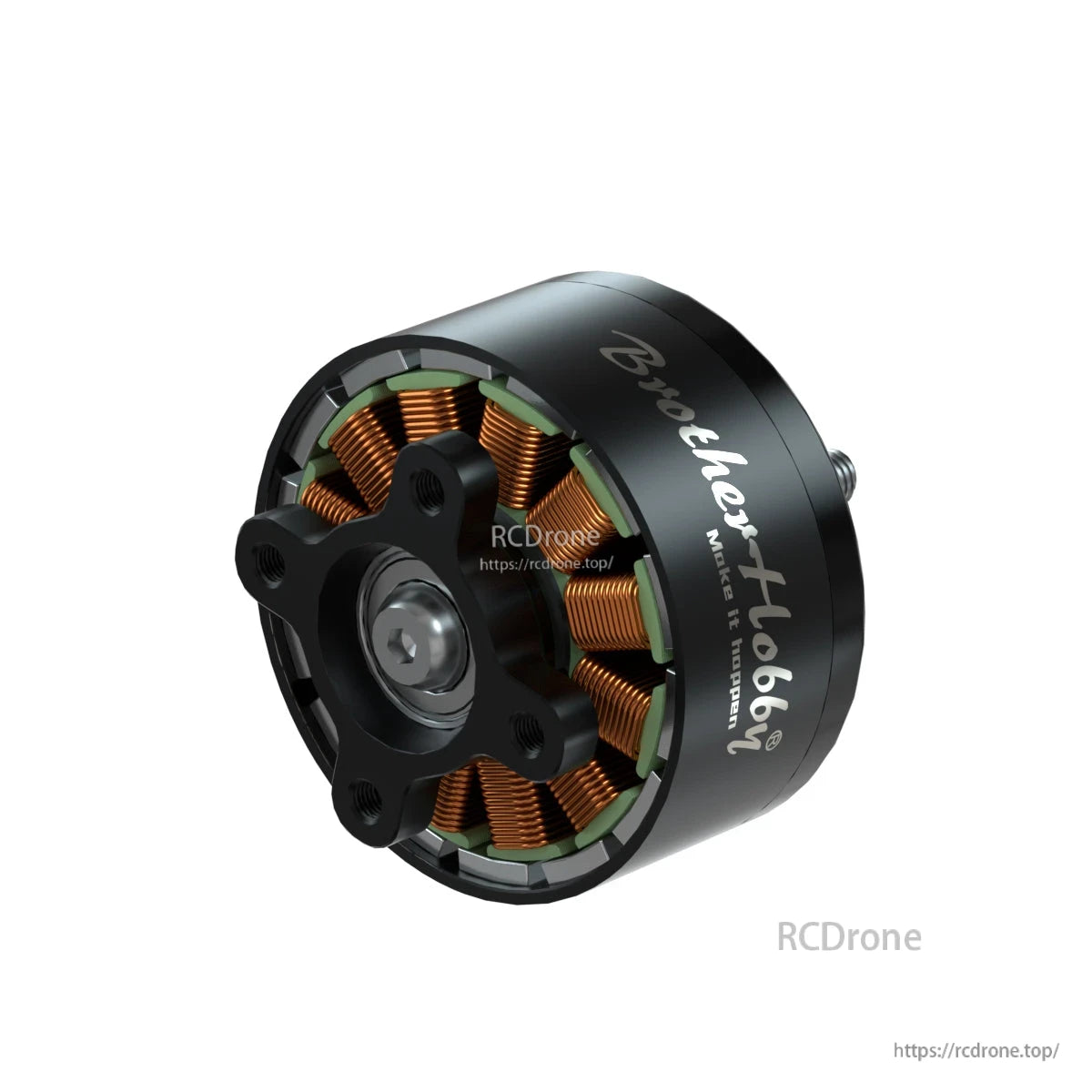

The Avenger 4112 V5 CW motor uses a SUS420 steel shaft, N52H magnets, enamelled copper windings, and precision bearings for a durable build.

The Avenger 4112 V5 motor uses an M5 shaft and M3 mounting pattern, with key outer diameters and lengths provided for fitment planning.

Folding triblade props with a 28mm hole pitch are listed with rotation diameters of 249.8mm, 290.3mm, 316.1mm, 384.7mm, 400.1mm, and 458.9mm.

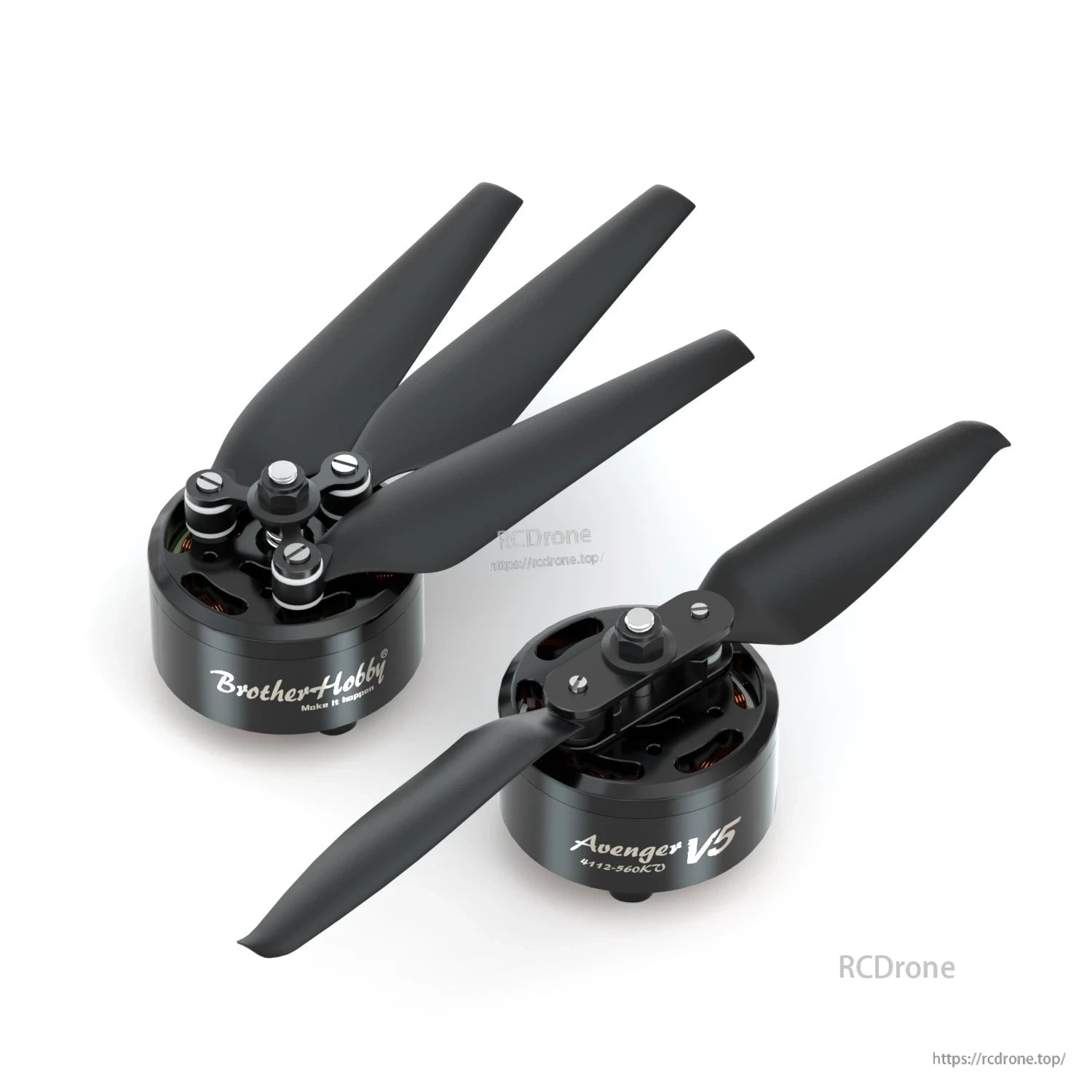

The BrotherHobby Avenger 4112 V5 CW motor is paired with a 560KV setup and a three-blade folding propeller for efficient thrust on multirotor builds.

A clear six-step sequence shows how to stack the screws and spacers, fit the folding tri-blade prop, add the spring, and tighten the lock nut on a BrotherHobby motor.

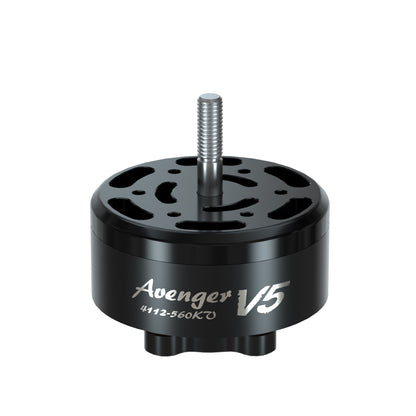

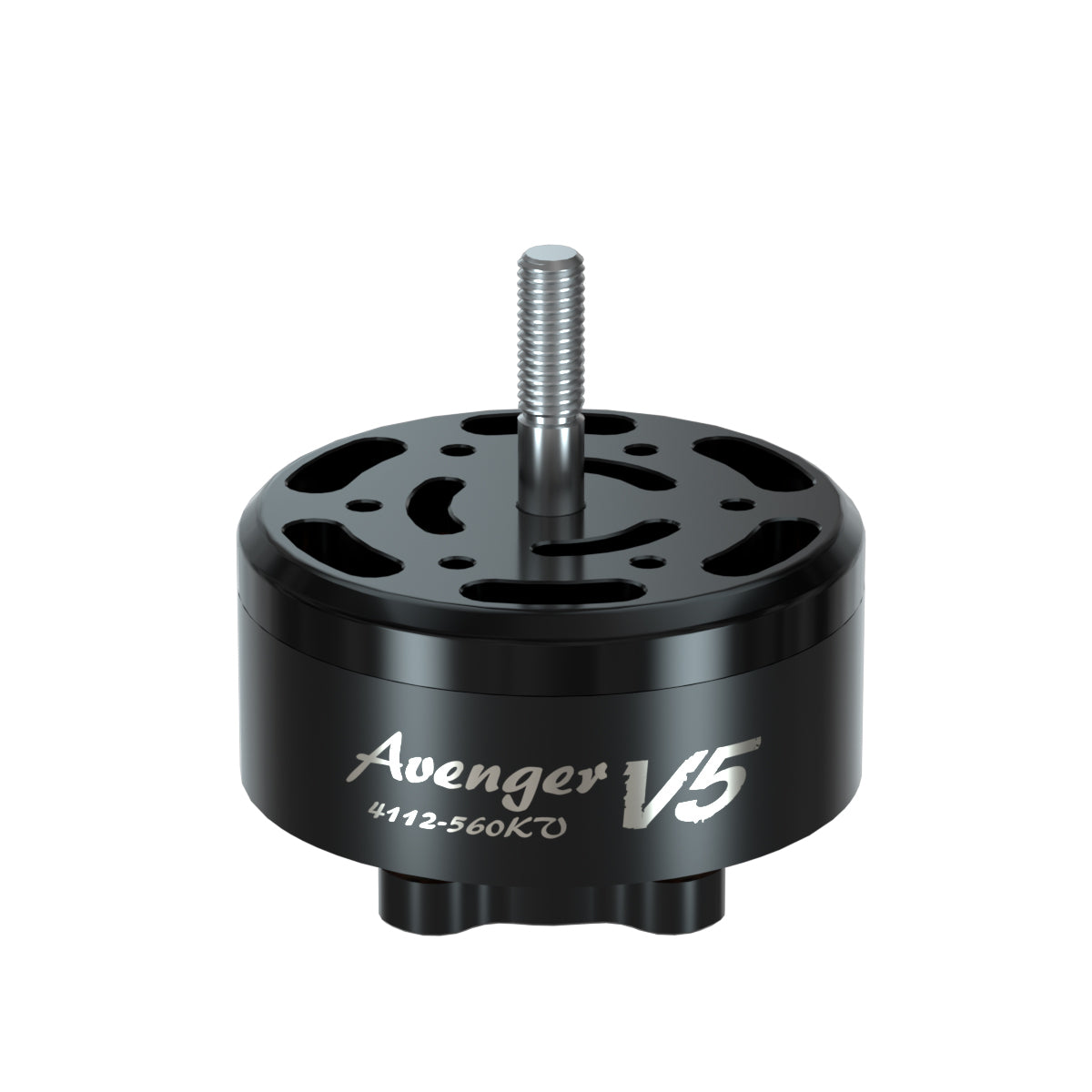

BrotherHobby Avenger 4112 V5 CW motor features a low-profile can design with a top-mounted prop adapter for secure prop installation.

The Avenger V5 motor uses a stacked propeller connector, spacer, folding propeller, and flange nut sequence for secure CW prop installation.

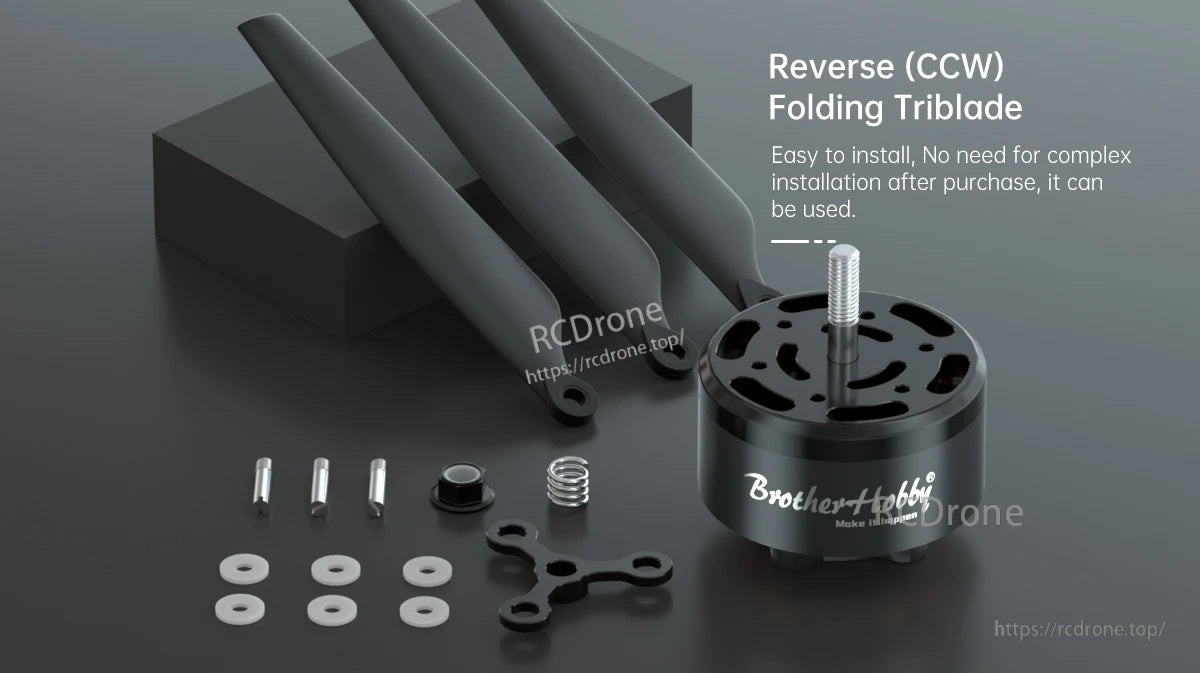

The BrotherHobby motor kit includes a reverse (CCW) folding triblade prop set plus washers, screws, and a mounting plate for assembly.

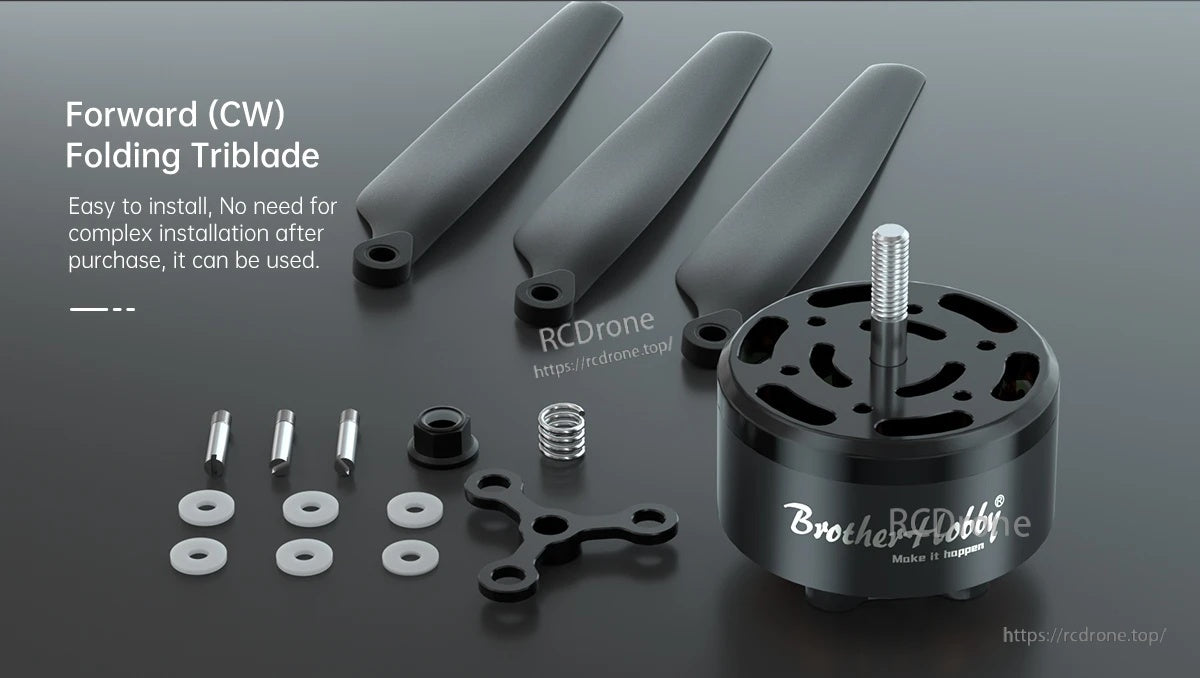

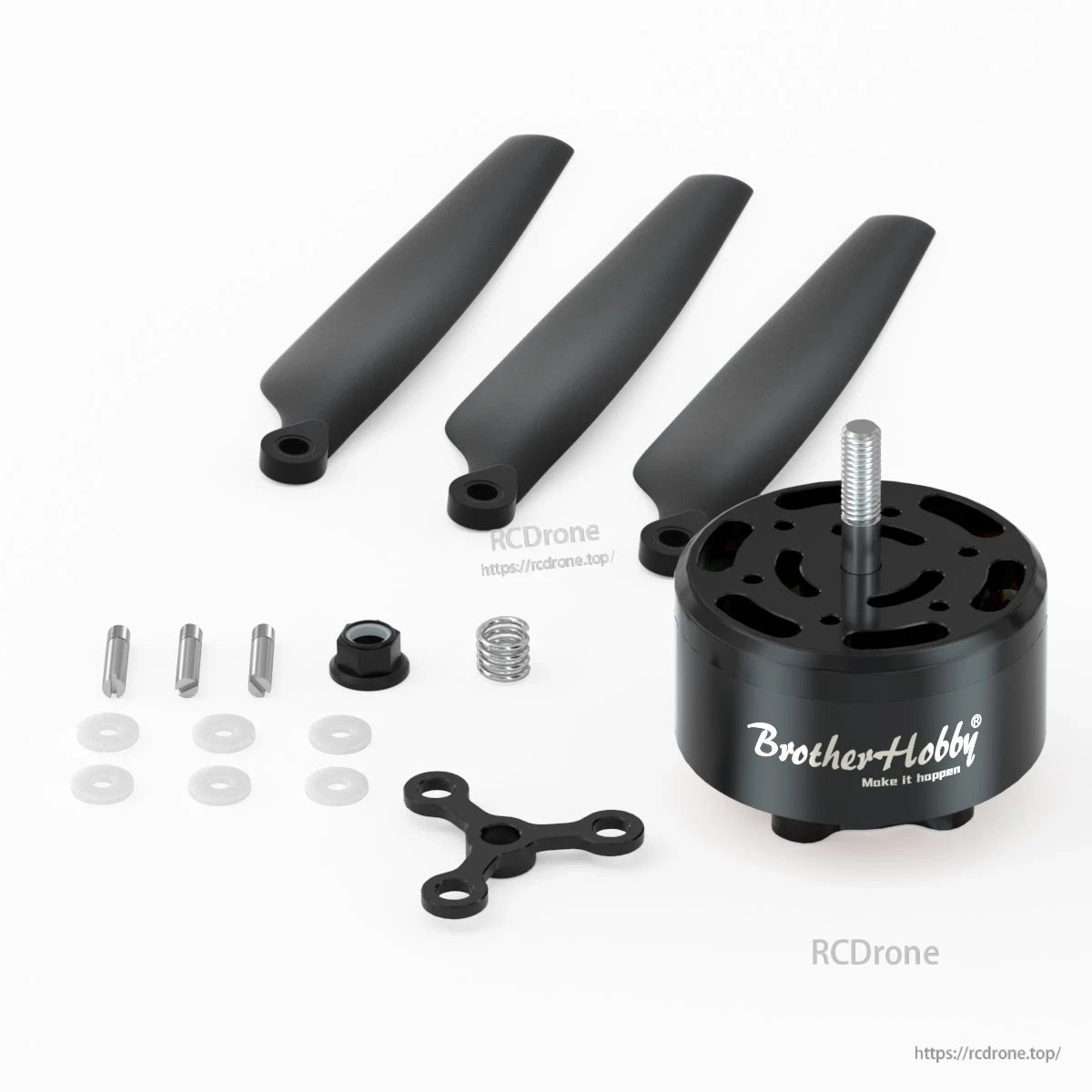

The Avenger 4112 V5 CW motor pairs with forward (CW) folding triblade propellers and includes the small mounting hardware for assembly.

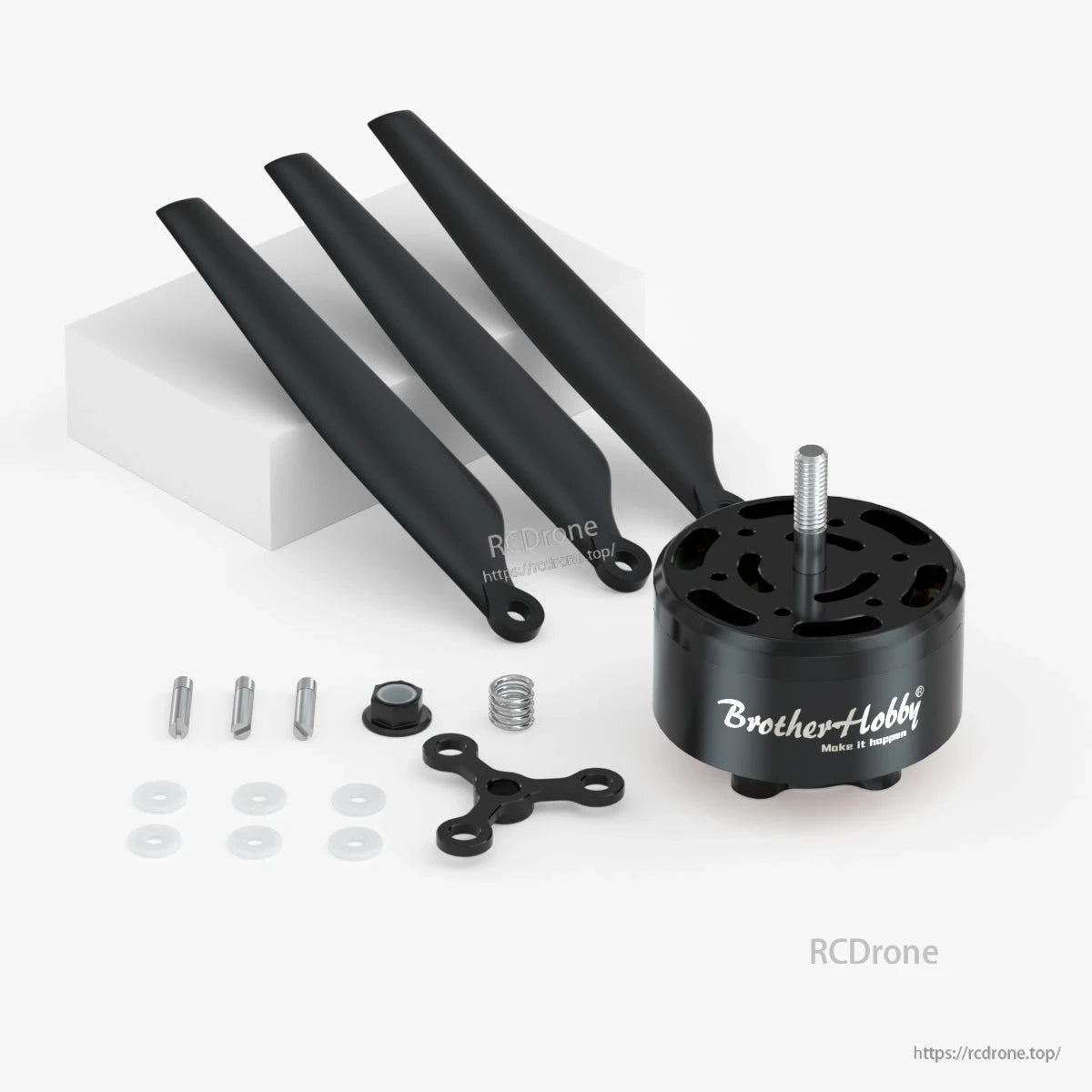

The package includes the motor along with three folding propeller blades, a propeller connector, screws, spacers, a flange nut, and a spring for assembly.

The package includes the motor along with two folding prop blades, propeller connector parts, screws, spacers, and a flange nut for assembly.

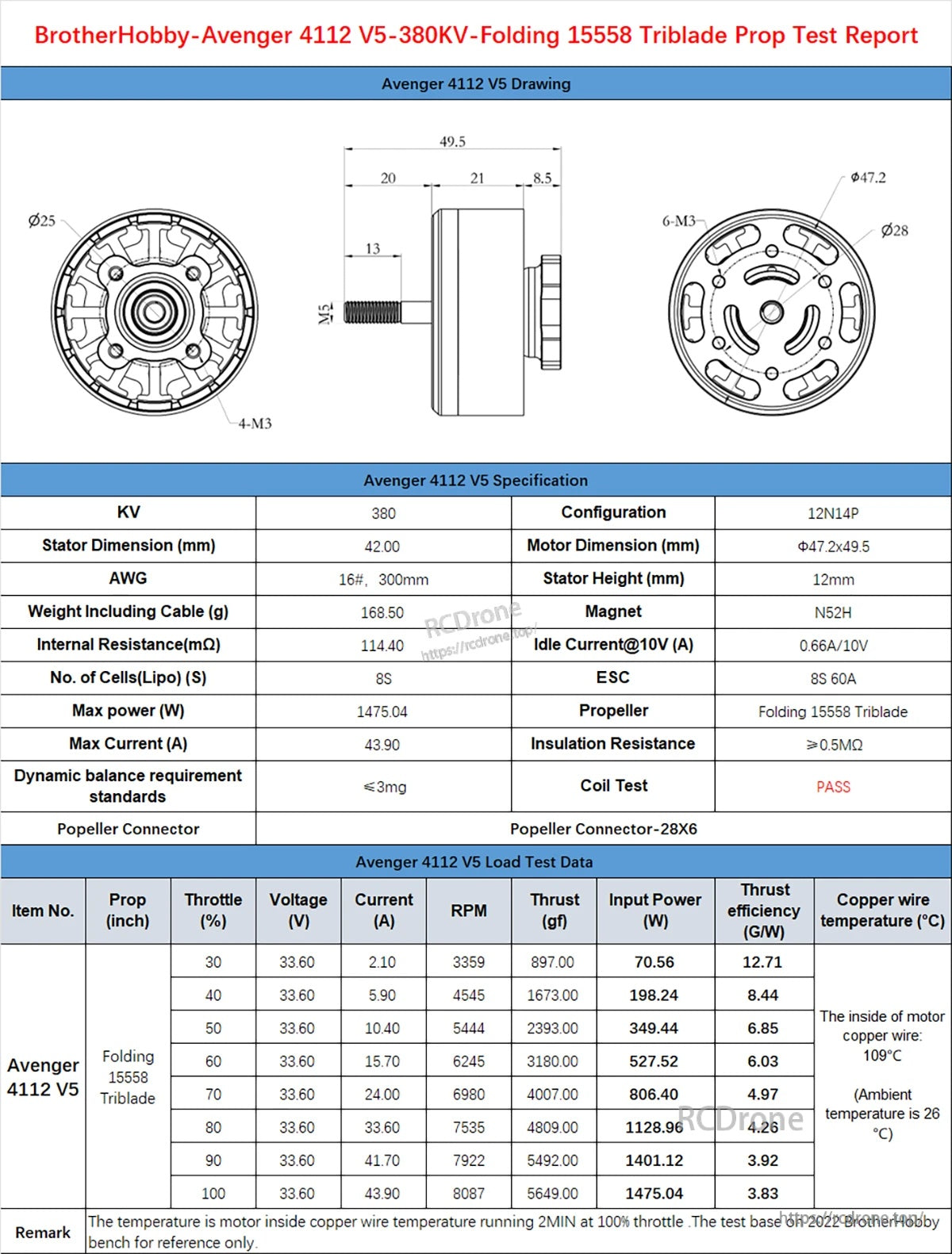

The Avenger 4112 V5 spec sheet lists key details like 380KV, 8S support, 6x M3 mounting holes, and a 28x6 prop connector.

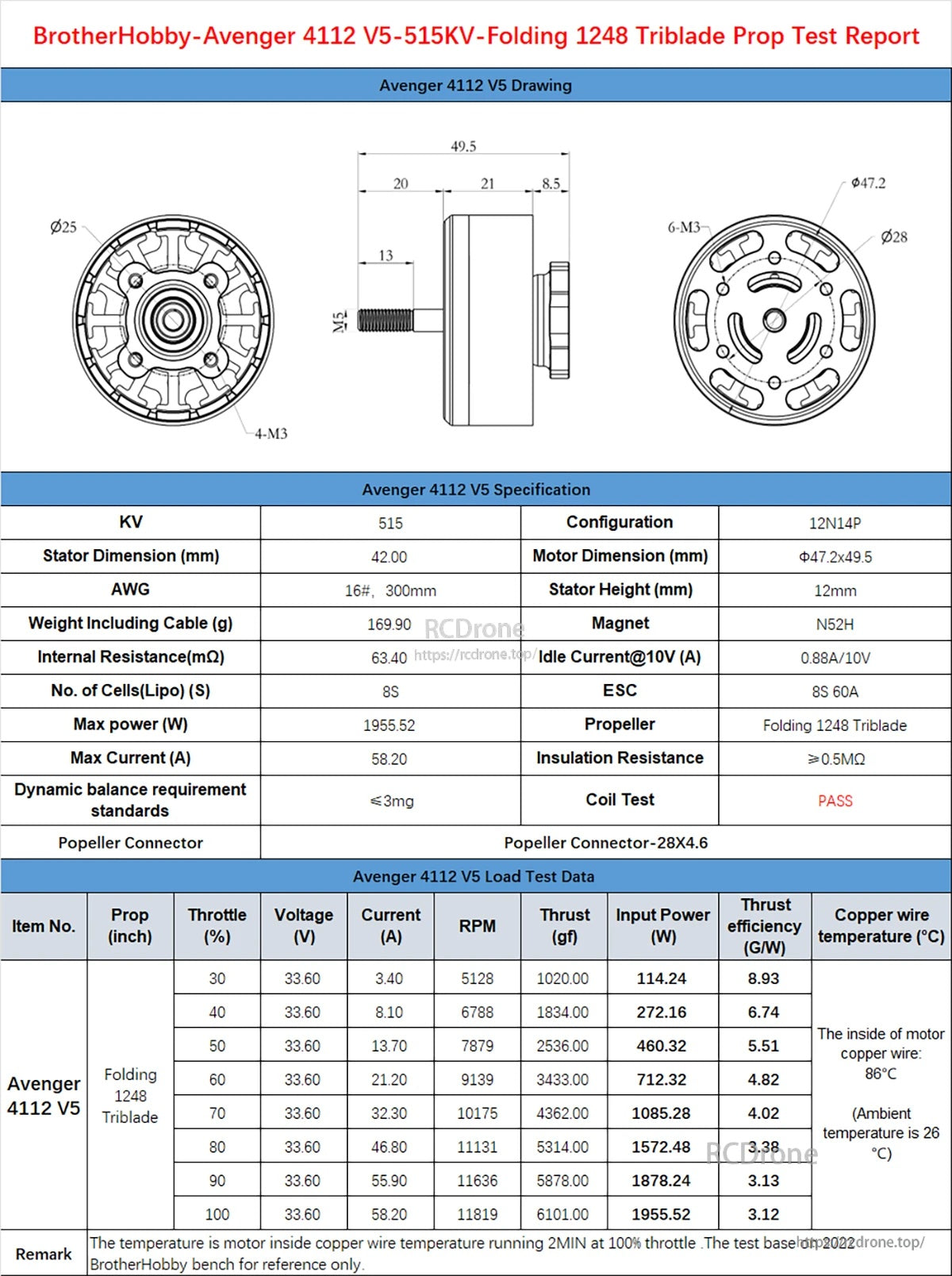

The Avenger 4112 V5 515KV motor includes detailed dimensions, M3 mounting patterns, and 8S load test data with a 1248 triblade prop for build planning.

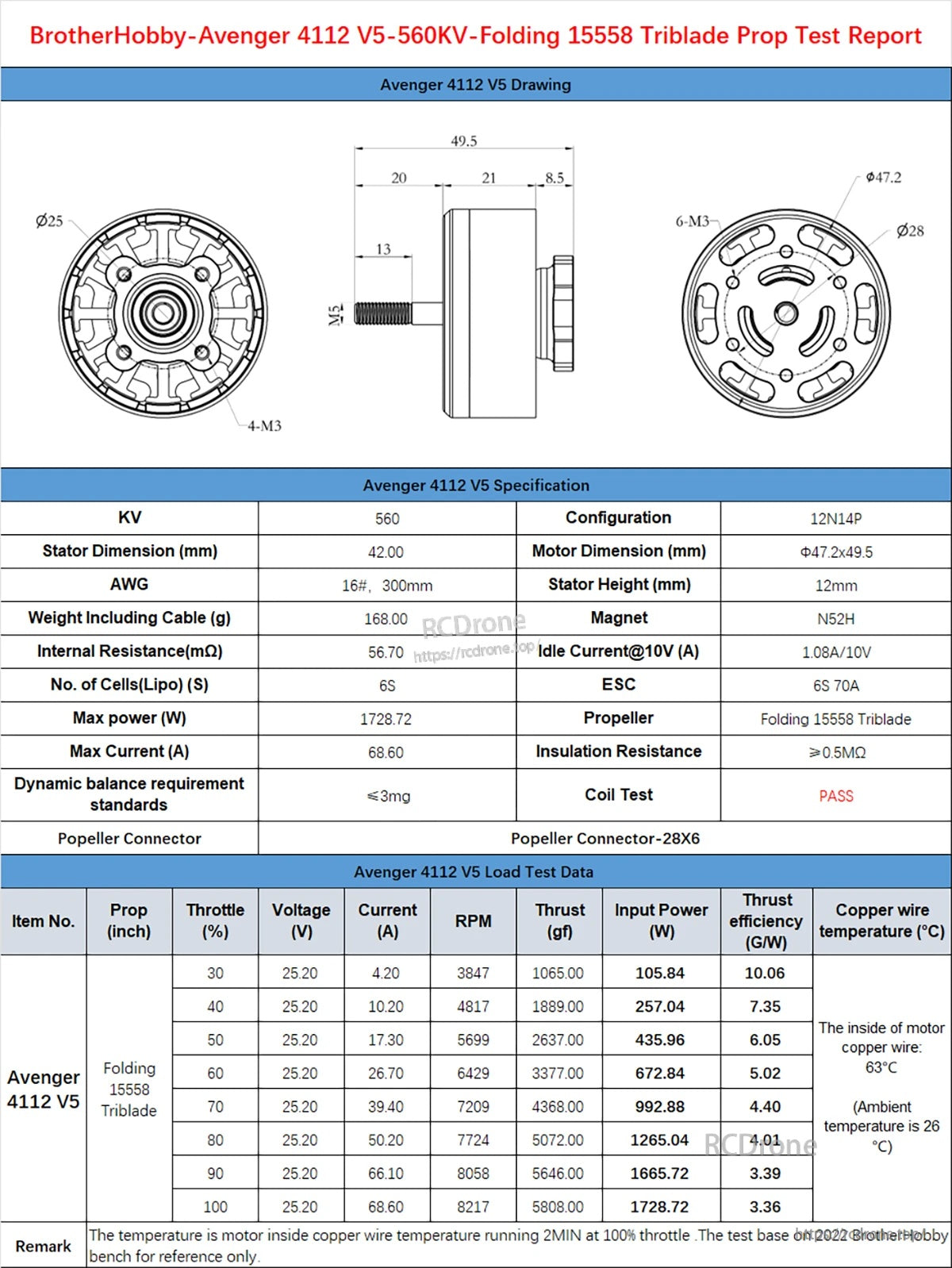

Avenger 4112 V5 560KV motor documentation lists key dimensions, 12N14P configuration, and 15x5.5 triblade load-test results.

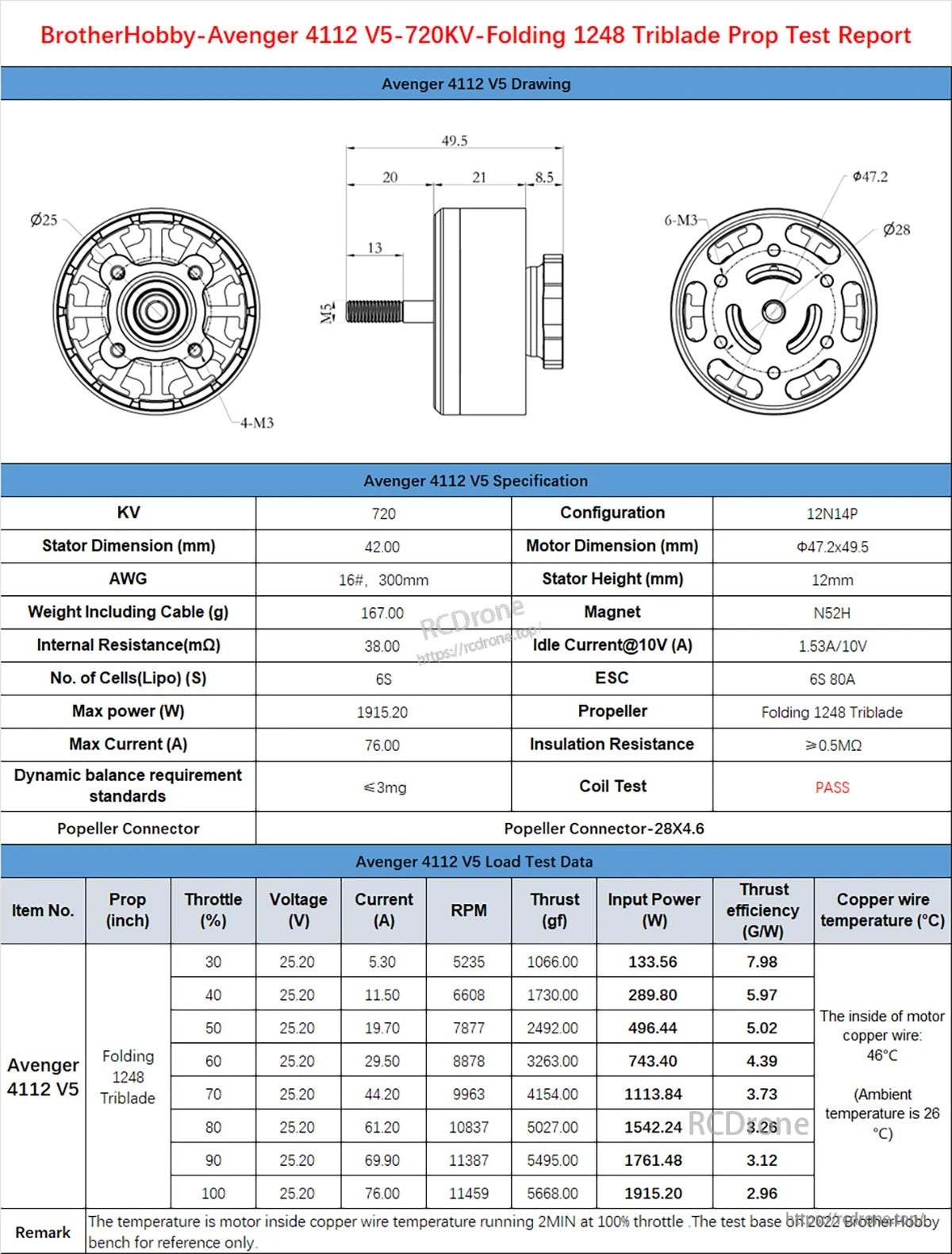

BrotherHobby Avenger 4112 V5 CW 720KV motor documentation includes dimension drawings plus thrust and current test results with a 1248 folding triblade prop.
