Overview
The BrotherHobby Avenger 4110 V5 motor (CW) is available in 375KV / 415KV / 445KV / 560KV options and is designed for 6S LiPo setups. It features a 12N14P configuration, Al 7075 base casing and bell cap, an SUS420 shaft, and N52H arc magnets.
Key Features
- KV options: 375KV / 415KV / 445KV / 560KV
- SUS420 heat-treated steel shaft
- Aviation-grade 7075 aluminum caps with hard anodizing; hollow-carved design for weight saving and heat dissipation
- N52H arc magnet design with consistent air gap and stable magnetic circuit
- TU1 grade enameled wire; high full slot ratio; low internal resistance
- Ultra-thin non-oriented silicon steel sheet with high permeability and low eddy loss
- High-precision bearings designed to withstand greater axial load
- Folding propeller system is described as easy to install and convenient to carry (propeller direction options shown as Forward (CW) and Reverse (CCW))
Specifications
| Model | BrotherHobby Avenger 4110 V5 Motor (CW) |
|---|---|
| KV | 375KV / 415KV / 445KV / 560KV |
| No. of Cells (LiPo) | 6S |
| Configuration | 12N14P |
| Stator | 10mm |
| Base casing | Al 7075 |
| Bell cap | Al 7075 |
| Shaft | SUS420 |
| Prop adapter shaft thread | M5 |
| Bolt pattern | M3 (25X25mm) |
| Bearings | 12X6X4 |
| Rotor | N52H arc magnets |
| Wire | 16#; 30cm length |
| Weight | 140g with 30cm SR wires |

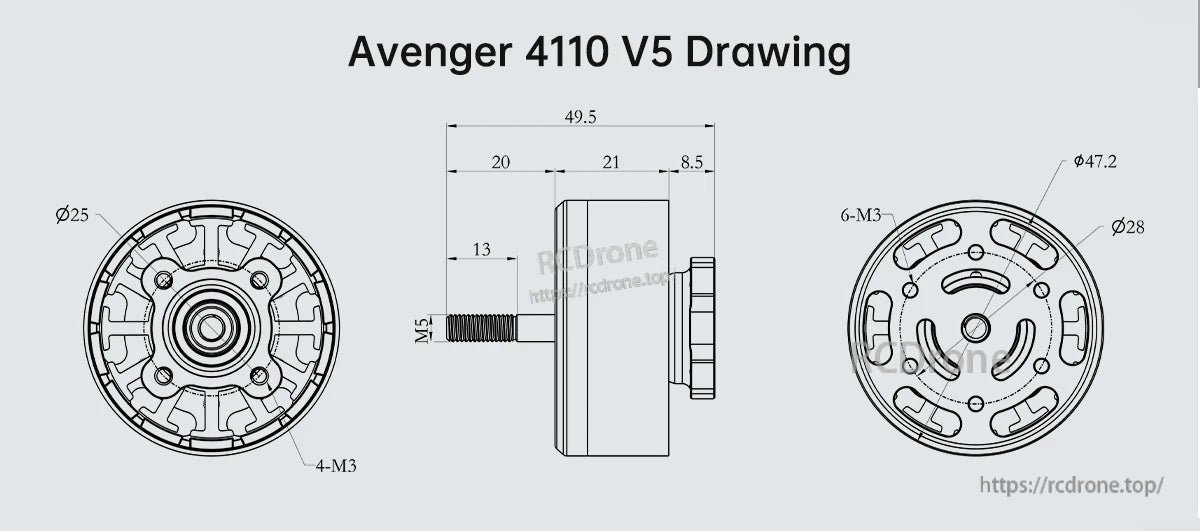

Mechanical Drawing (Key Dimensions)
| Marked lengths | 49.5mm; 20mm; 21mm; 8.5mm; 13mm |
|---|---|
| Marked diameters | Ø47.2; Ø28; Ø25 |
| Thread marking | M5 |
| Hole markings | 4-M3; 6-M3 |

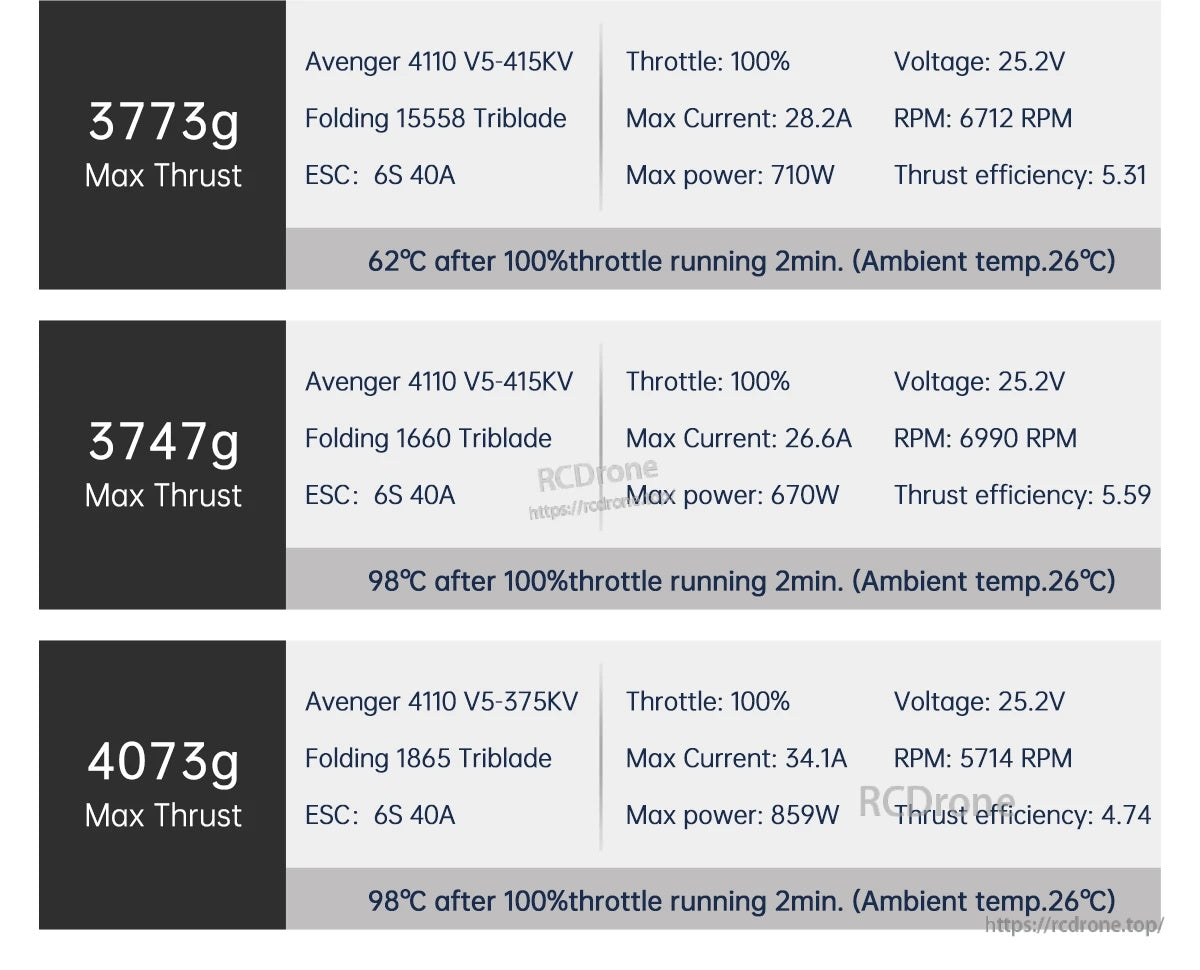

Performance Data (Thrust Test Results Shown)
Test panels list the following conditions/parameters: Throttle 100%, Voltage 25.2V, plus propeller/ESC used, RPM, max current, max power, thrust efficiency, and temperature after 2 minutes at 100% throttle (ambient temp. 26°C).
| Motor KV | Propeller | ESC | Max Thrust | RPM | Max Current | Max Power | Thrust efficiency | Temp after 2 min @ 100% |
|---|---|---|---|---|---|---|---|---|
| 560KV | Folding 15558 Triblade | 6S 65A | 5052g | 7891 RPM | 61.5A | 1549W | 3.26 | 46°C (Ambient temp. 26°C) |
| 445KV | Folding 1660 Triblade | 6S 40A | 4177g | 7438 RPM | 32A | 803W | 5.18 | 73°C (Ambient temp. 26°C) |
| 415KV | Folding 15558 Triblade | 6S 40A | 3773g | 6712 RPM | 28.2A | 710W | 5.31 | 62°C (Ambient temp. 26°C) |
| 415KV | Folding 1660 Triblade | 6S 40A | 3747g | 6990 RPM | 26.6A | 670W | 5.59 | 98°C (Ambient temp. 26°C) |
| 375KV | Folding 1865 Triblade | 6S 40A | 4073g | 5714 RPM | 34.1A | 859W | 4.74 | 98°C (Ambient temp. 26°C) |
Additional claim shown: “The thrust of single motor is as high as 5kg.”

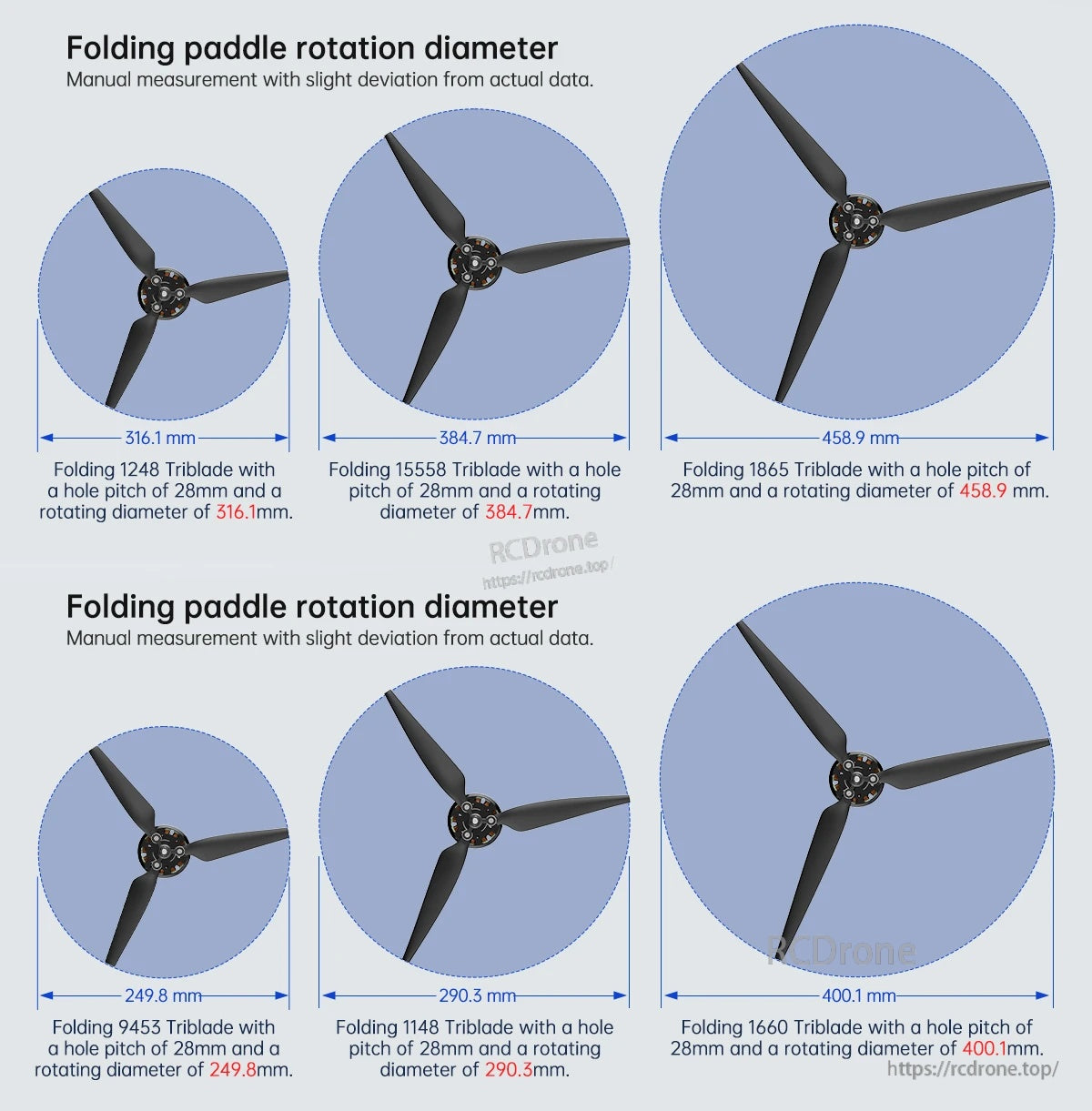

Folding Propeller Rotation Diameter (Manual Measurement)
Note shown: “Manual measurement with slight deviation from actual data.” Hole pitch indicated as 28mm.
| Folding propeller | Rotating diameter |
|---|---|
| Folding 9453 Triblade | 249.8mm |
| Folding 1148 Triblade | 290.3mm |
| Folding 1248 Triblade | 316.1mm |
| Folding 15558 Triblade | 384.7mm |
| Folding 1660 Triblade | 400.1mm |
| Folding 1865 Triblade | 458.9mm |
What’s Included
Packing lists shown indicate the package may include the motor plus folding-propeller hardware. Contents depend on the selected package.
- Motor
- Folding propeller (two-blade or three-blade packing lists are shown)
- Propeller connector
- Screws
- Spacers
- Flange nut
- External thread cylindrical groove
- Spring (shown in the three-blade packing list)
Support
For help selecting the correct KV and package (including Forward (CW) or Reverse (CCW) folding propeller direction), contact support@rcdrone.top or visit https://rcdrone.top/.
Details

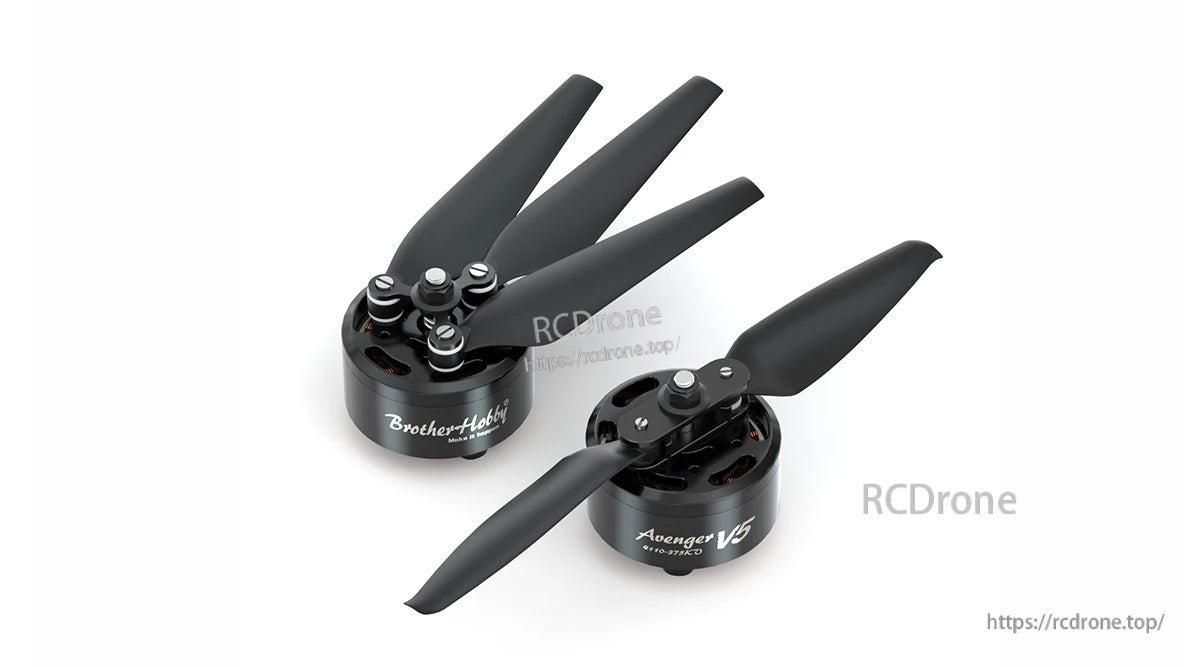

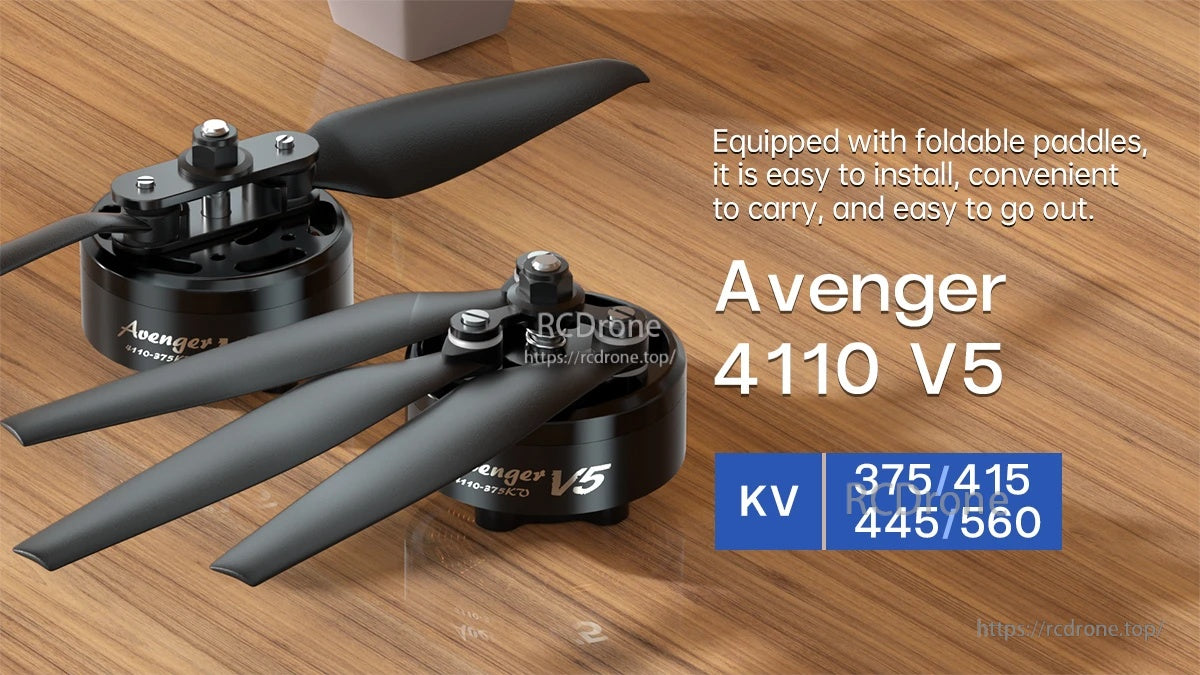

BrotherHobby Avenger 4110 V5 motors pair with foldable propeller blades and come in KV options from 375 to 560 for different setups.

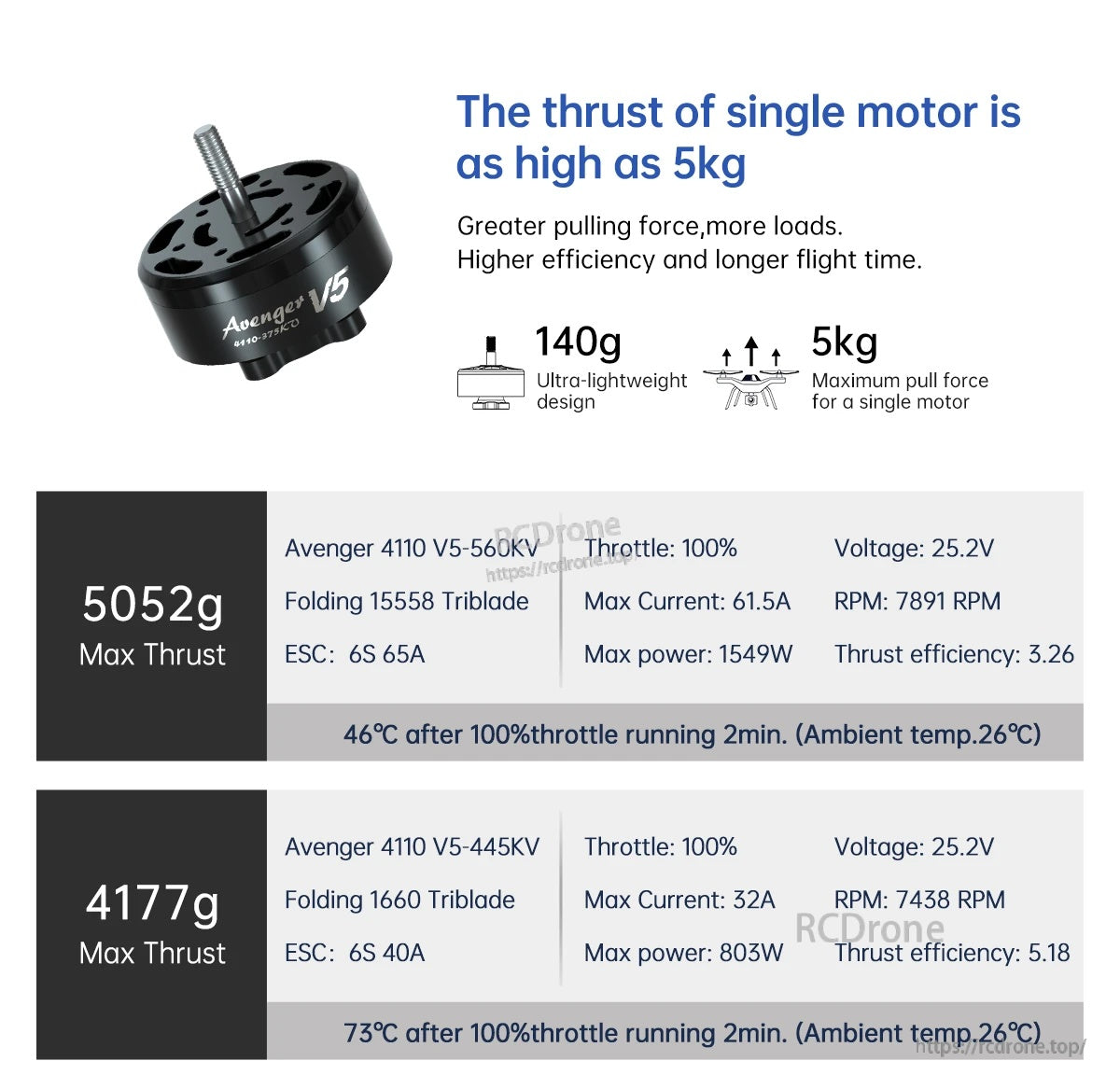

BrotherHobby Avenger 4110 V5 motor thrust testing lists up to 5052g (about 5kg) max thrust at 25.2V with 6S ESC setups.
Avenger 4110 V5 motor thrust test results list up to 4073 g max thrust at 25.2 V and 100% throttle with folding triblade prop setups.
BrotherHobby Avenger motor KV options include 375KV, 415KV, 445KV, and 560KV to match different prop and setup needs.

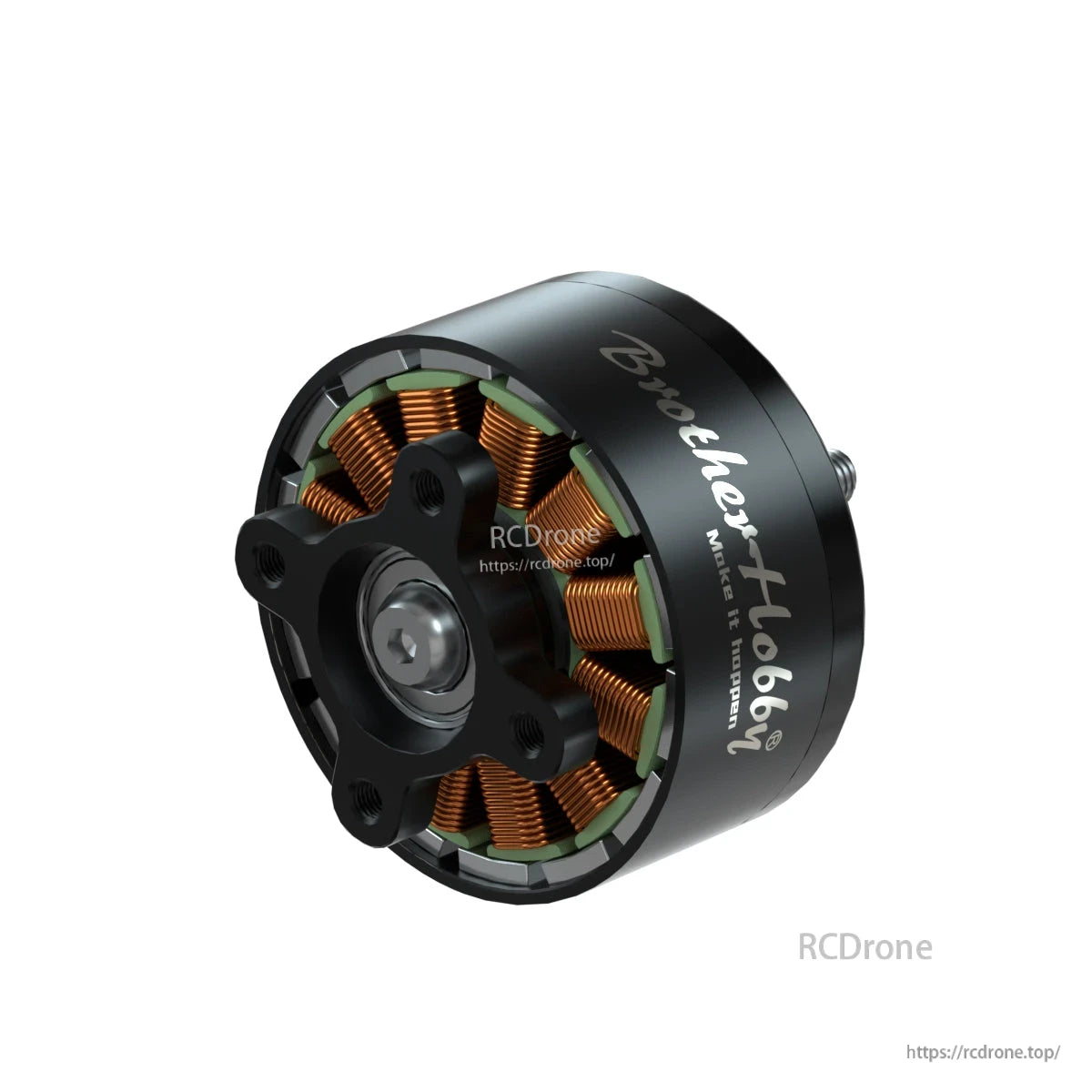

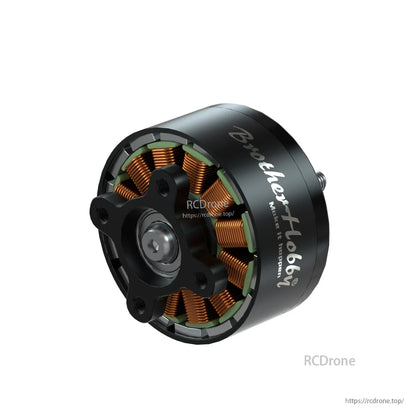

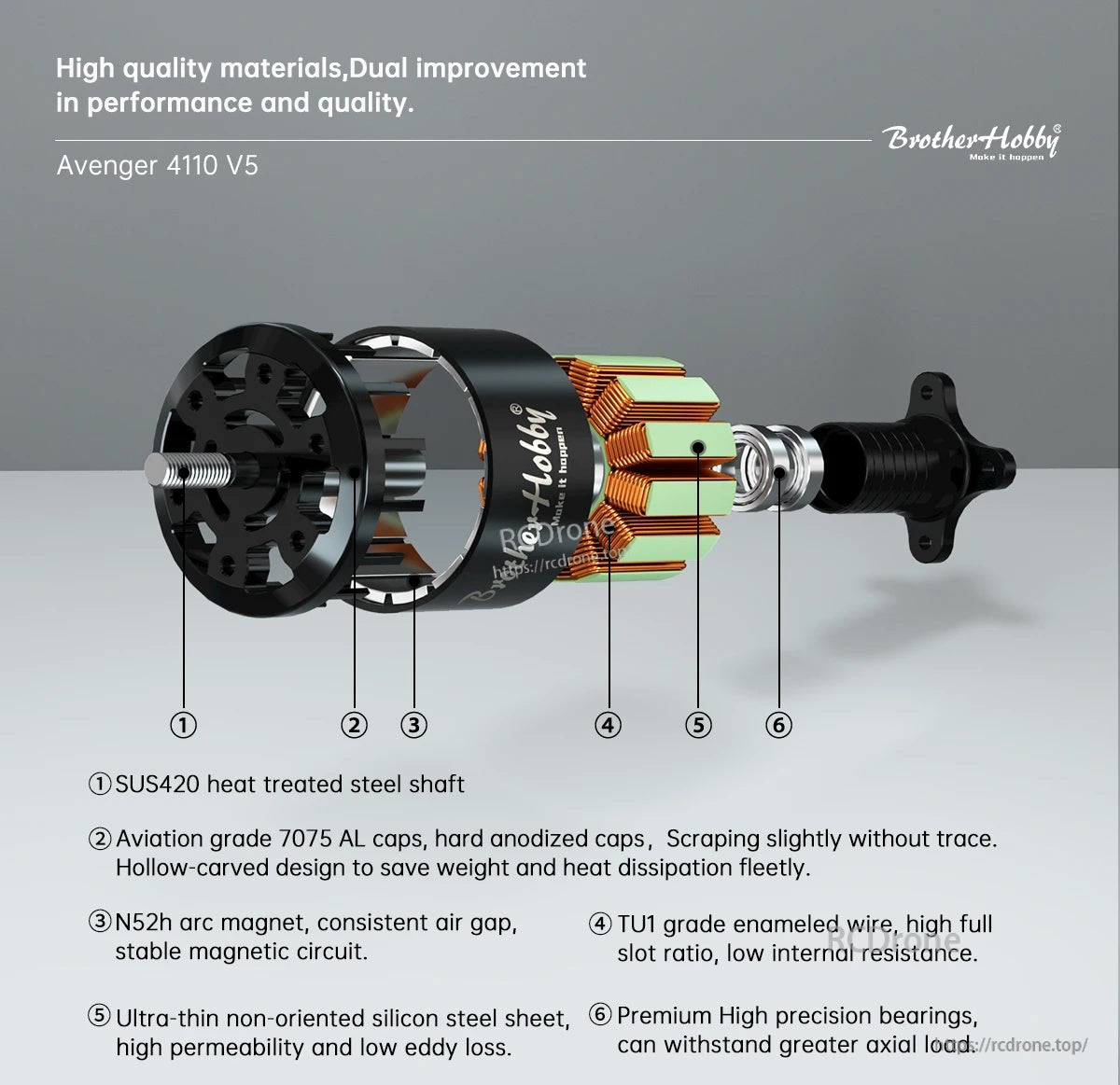

The Avenger 4110 V5 motor uses a heat-treated steel shaft, 7075 aluminum caps, N52H magnets, and high-precision bearings for a robust build.
The BrotherHobby Avenger 4110 V5 motor drawing provides key dimensions, including an M5 shaft and M3 mounting hole patterns for fit checks.
Folding propeller sizes are listed with measured rotation diameters, including 1248 (316.1 mm), 1558 (384.7 mm), and 1865 (458.9 mm).

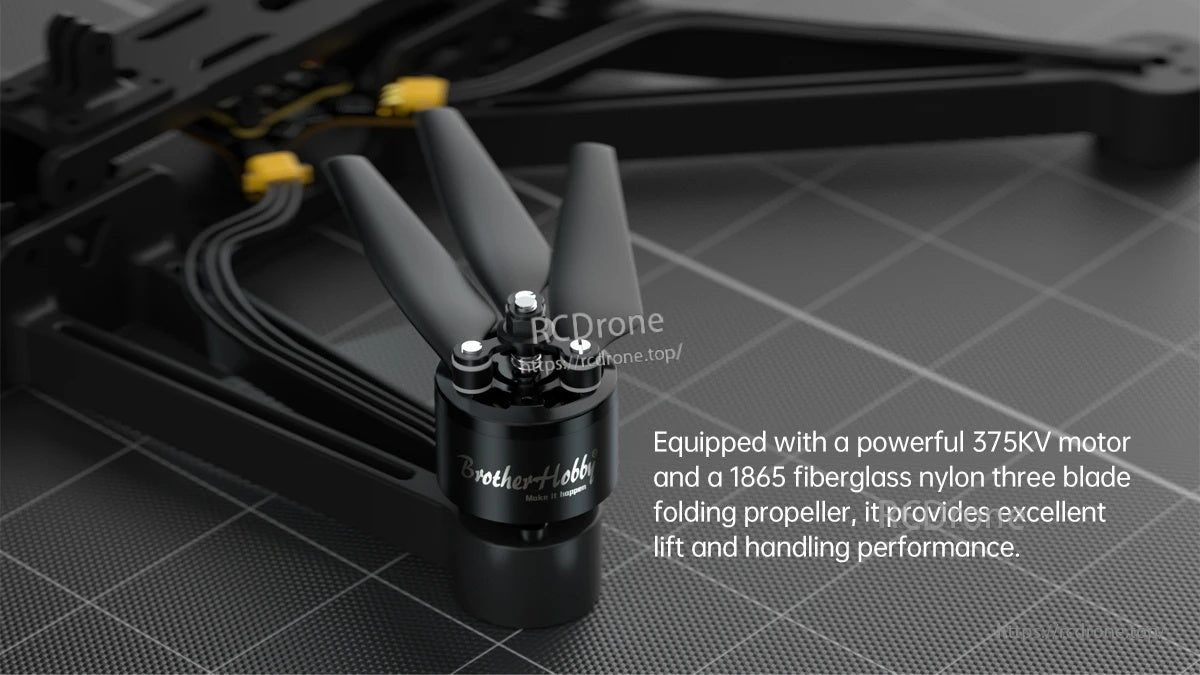

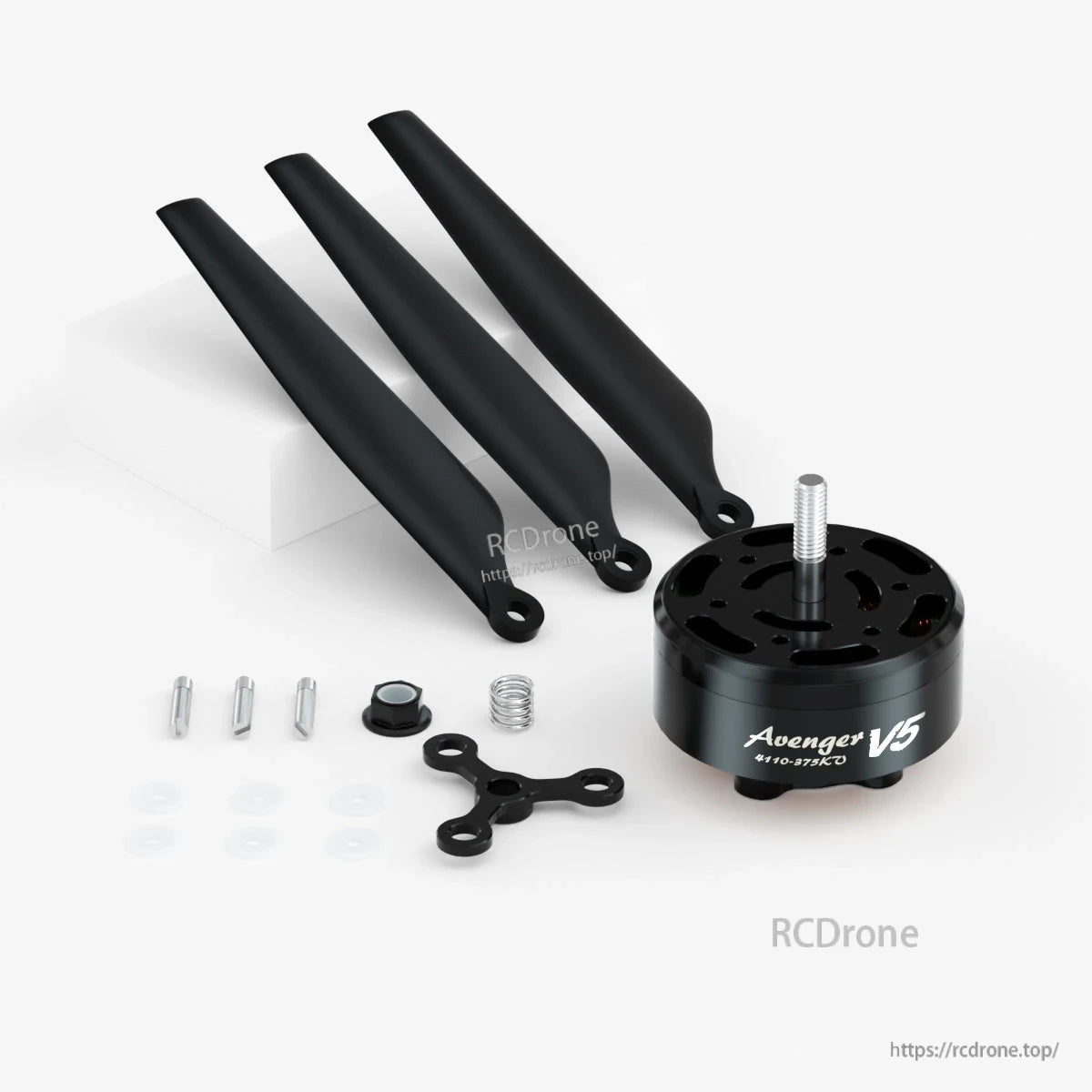

The BrotherHobby Avenger 4110 V5 setup pairs a 375KV motor with a three-blade folding propeller for compact storage and steady lift.

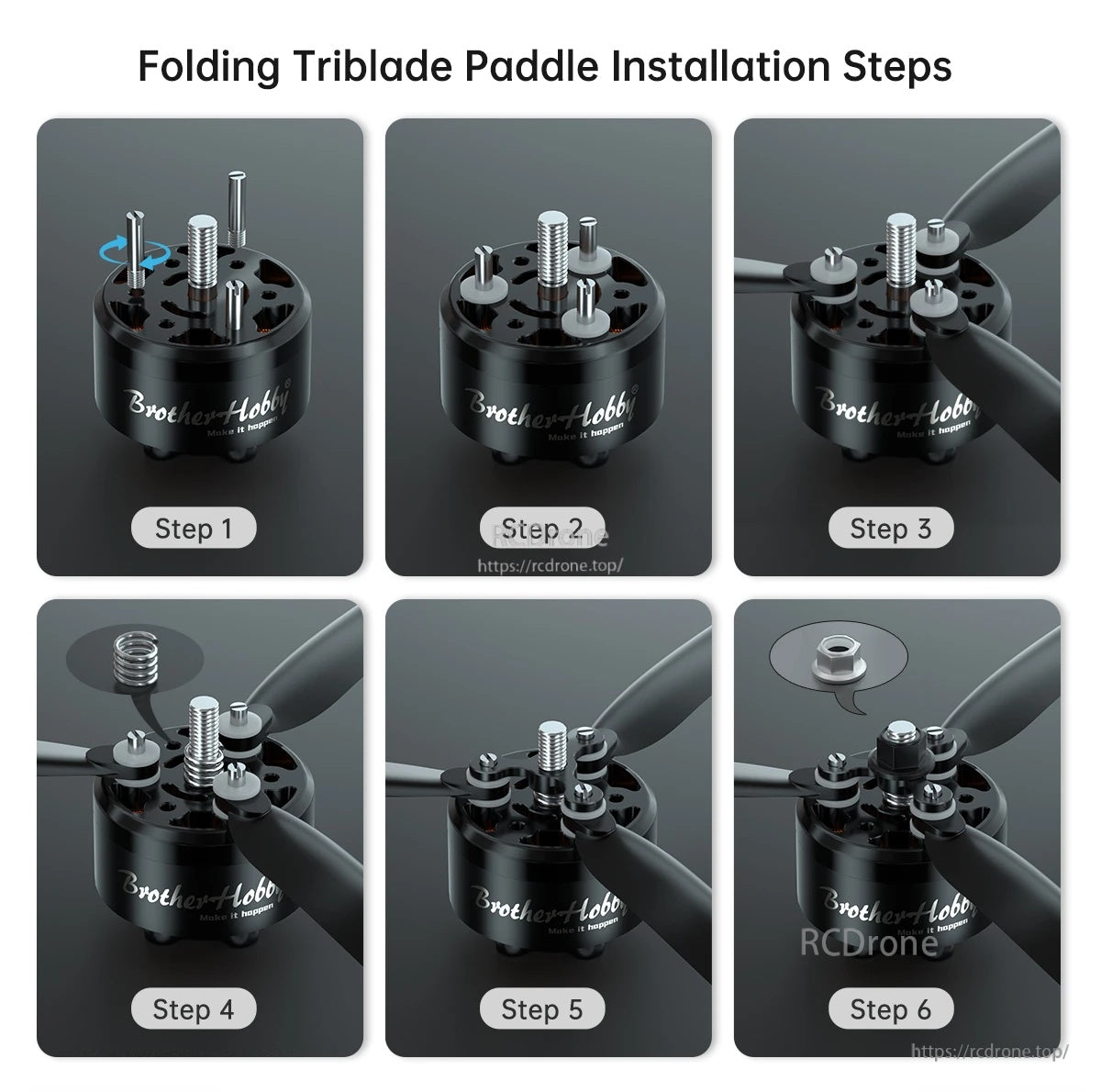

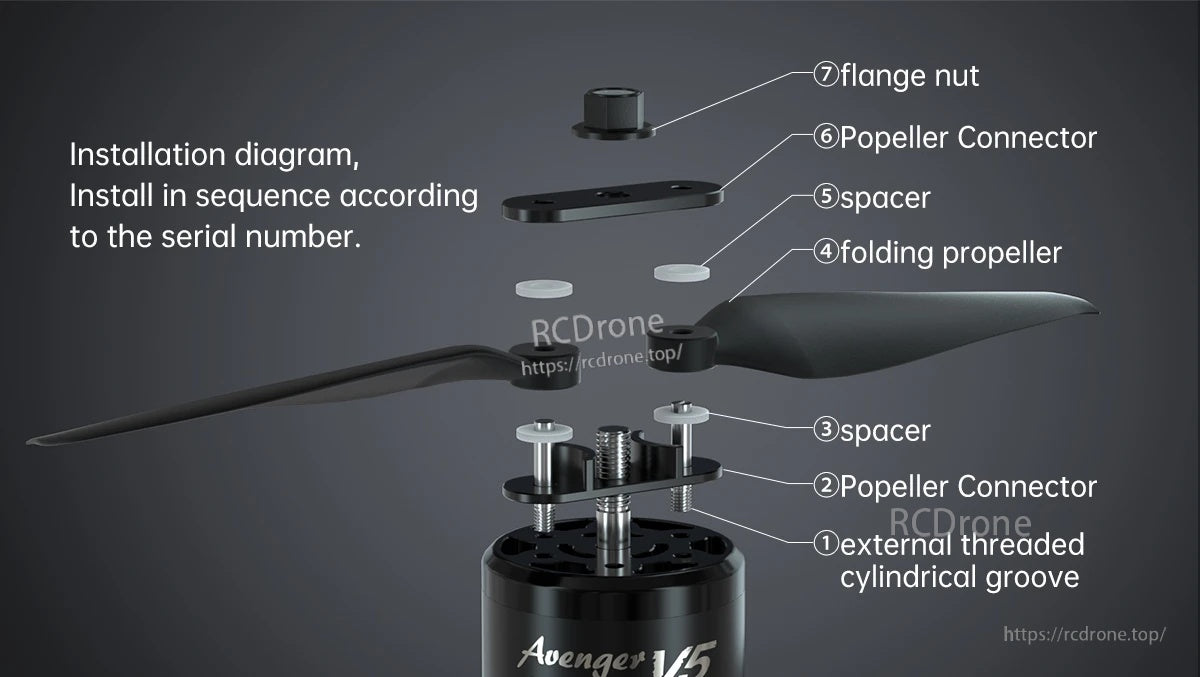

Folding triblade paddle installation uses the center shaft, mounting screws, and a lock nut to secure the prop hub in place.

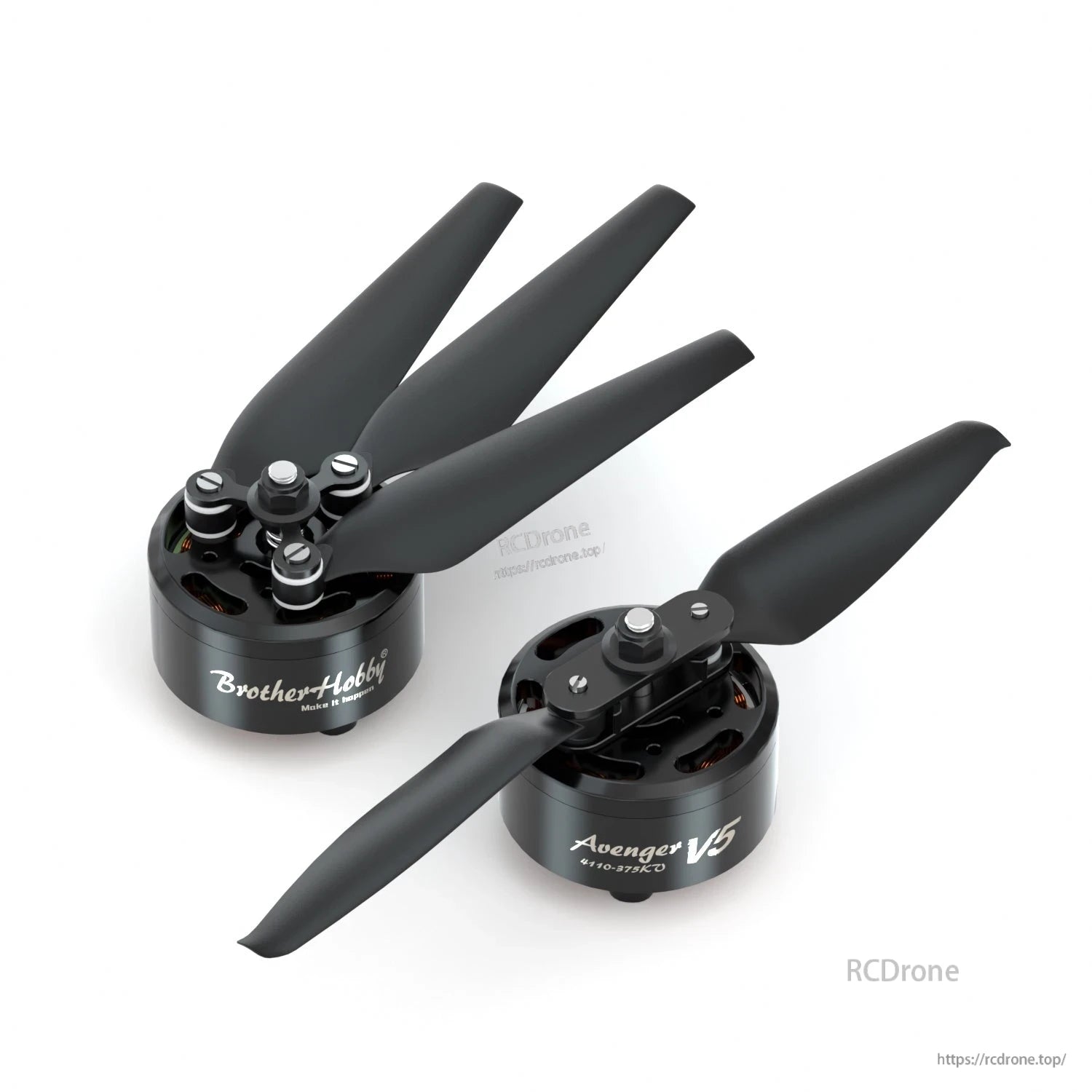

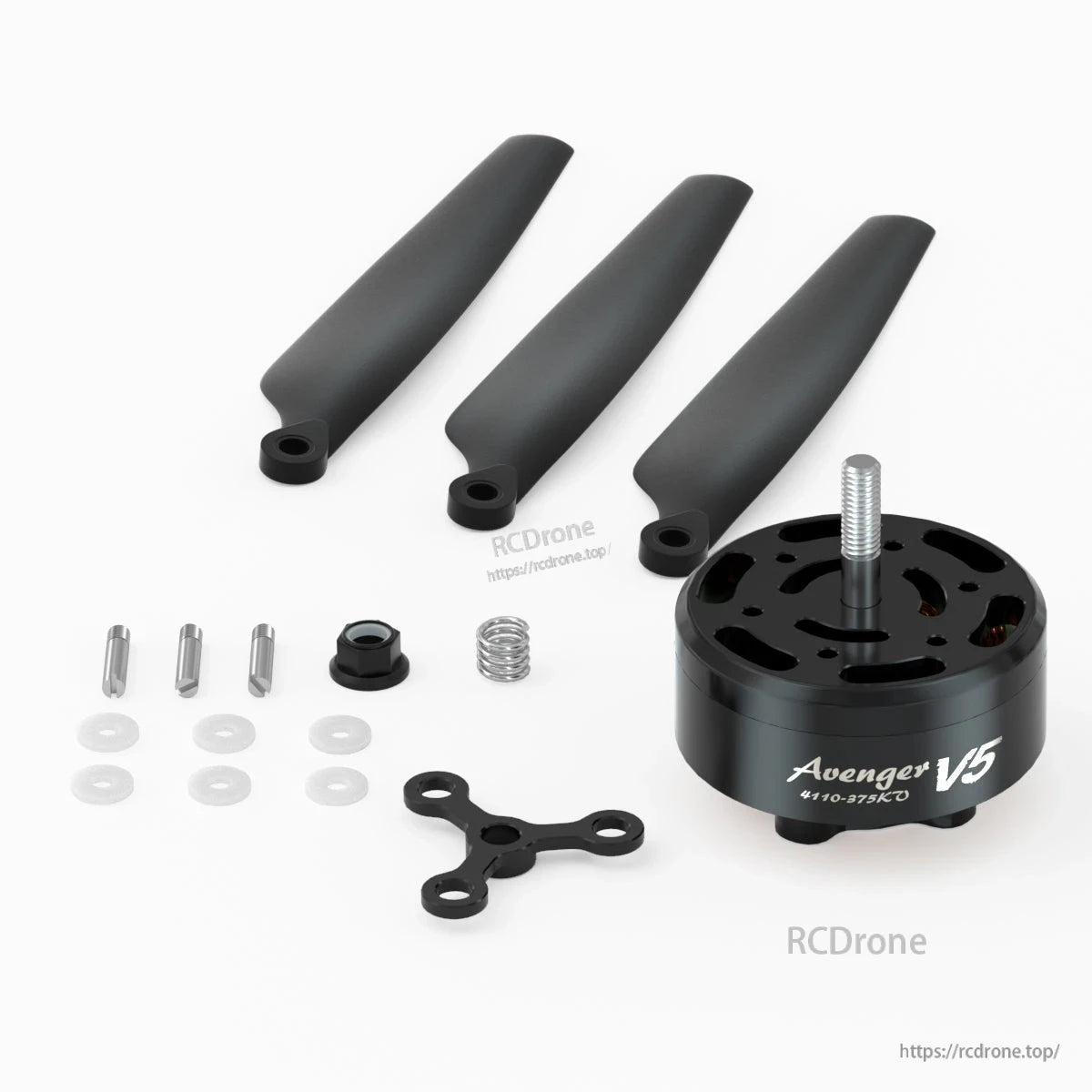

BrotherHobby Avenger 4110 V5 motors come pre-fitted with tri-blade props for a clean, ready-to-mount setup.
The Avenger V5 motor hardware stack uses a flange nut, propeller connector, spacers, and folding propeller for proper assembly.

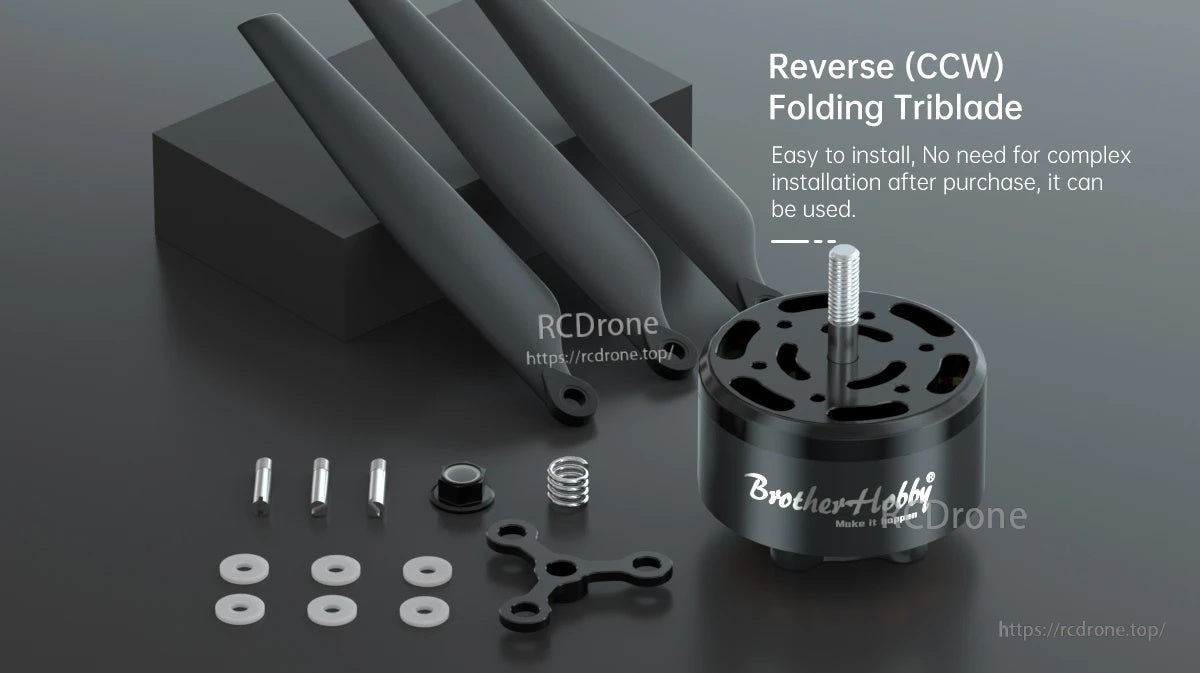

The BrotherHobby Avenger 4110 V5 motor setup includes a reverse (CCW) folding triblade prop and the visible mounting hardware for straightforward installation.

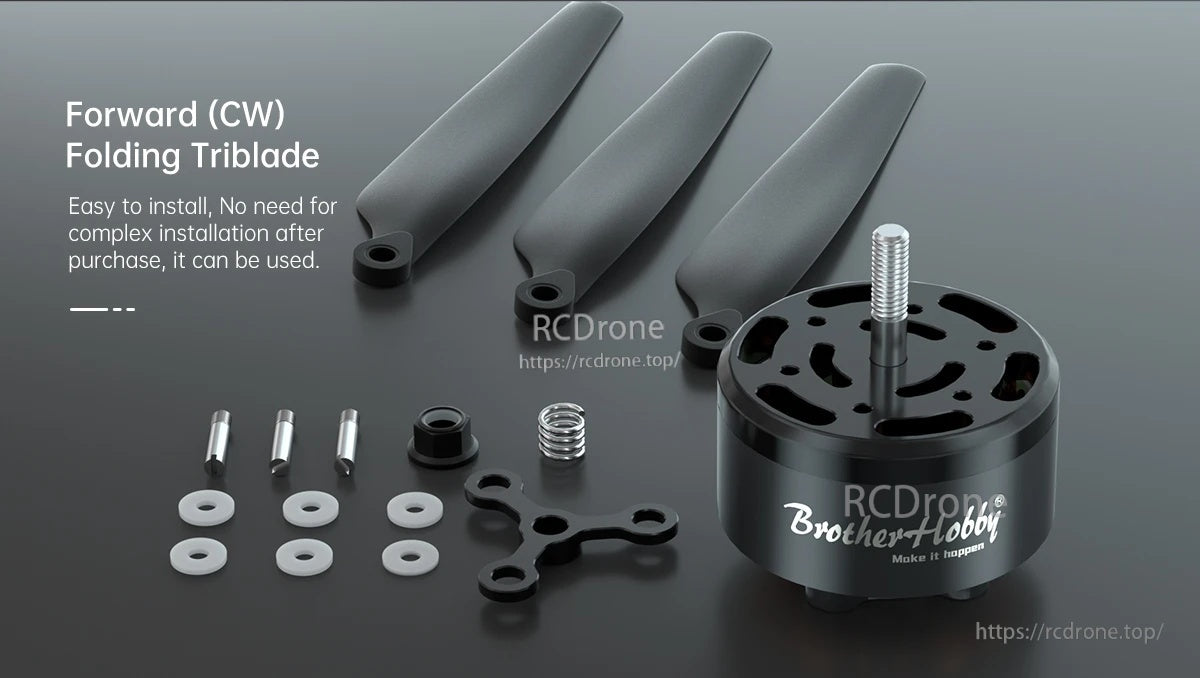

The BrotherHobby Avenger 4110 V5 motor is paired with a forward (CW) folding triblade setup and includes the small hardware parts for installation.

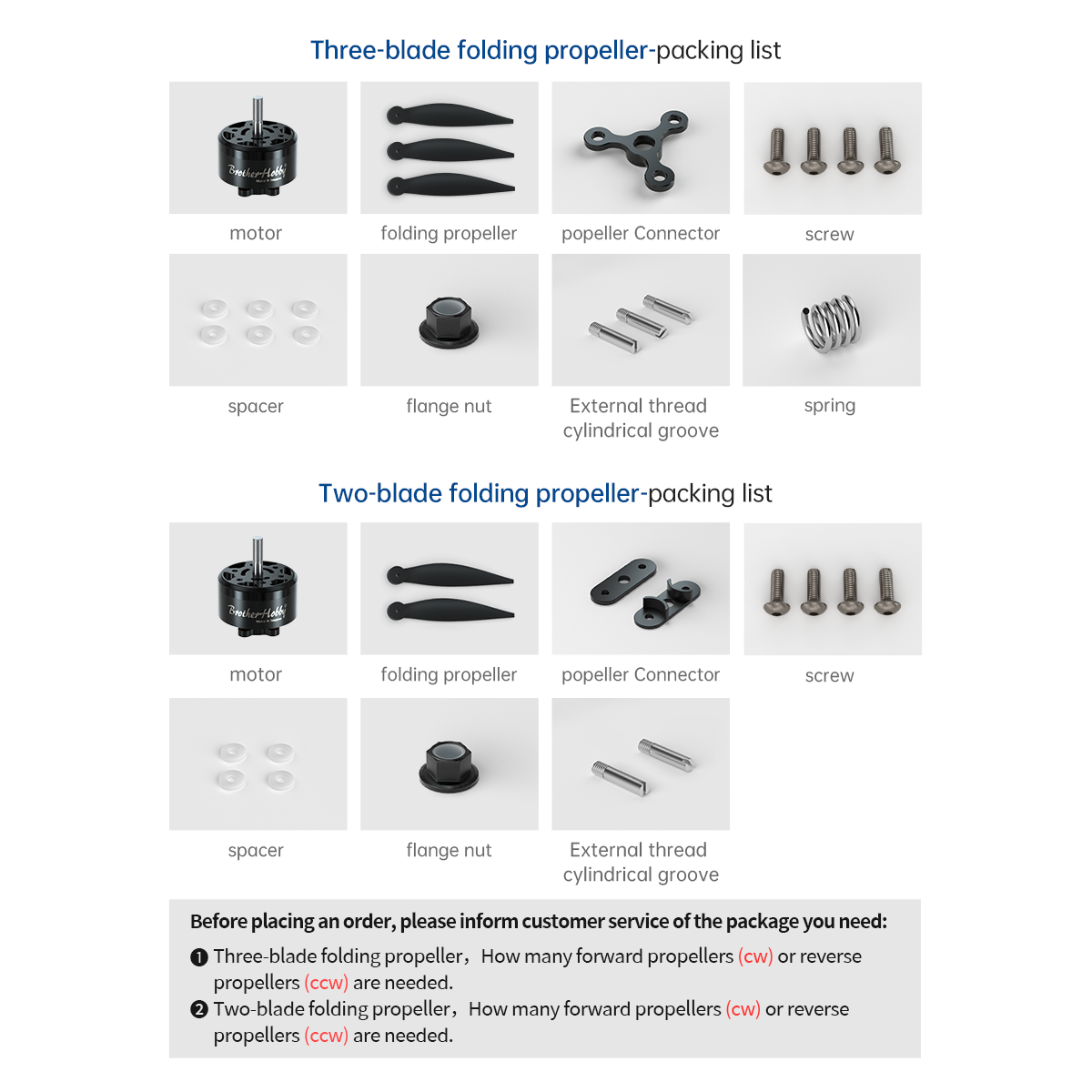

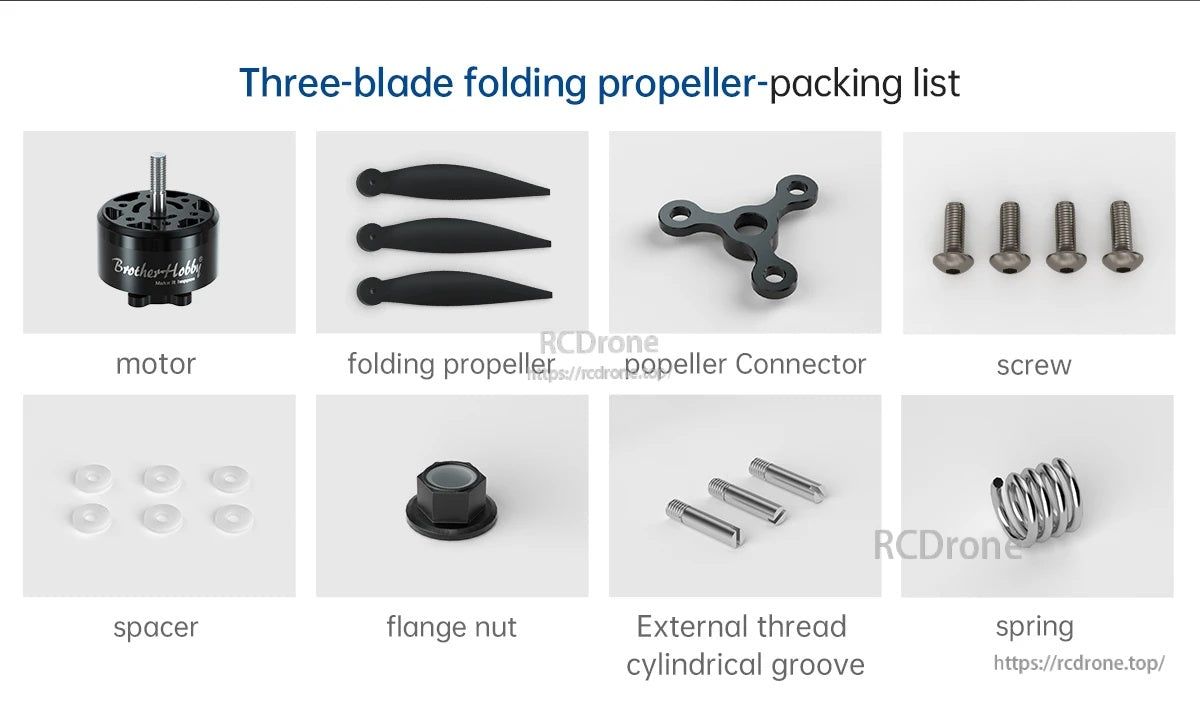

The three-blade folding propeller packing list includes the motor, propeller blades, connector, screws, spacers, a flange nut, and a spring.

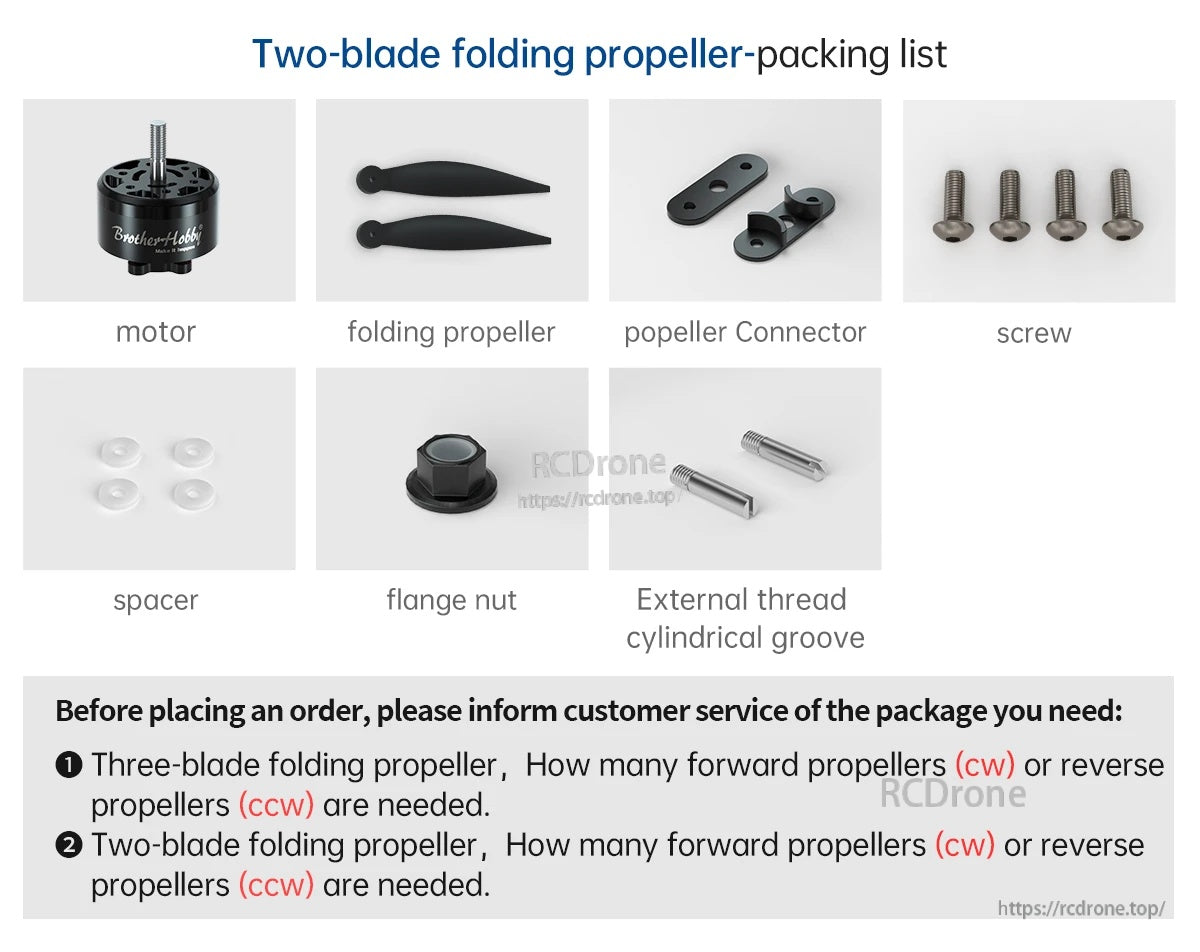

The two-blade folding propeller set includes the motor, propeller blades, connector parts, screws, spacers, a flange nut, and cylindrical grooves, with CW/CCW direction specified when ordering.

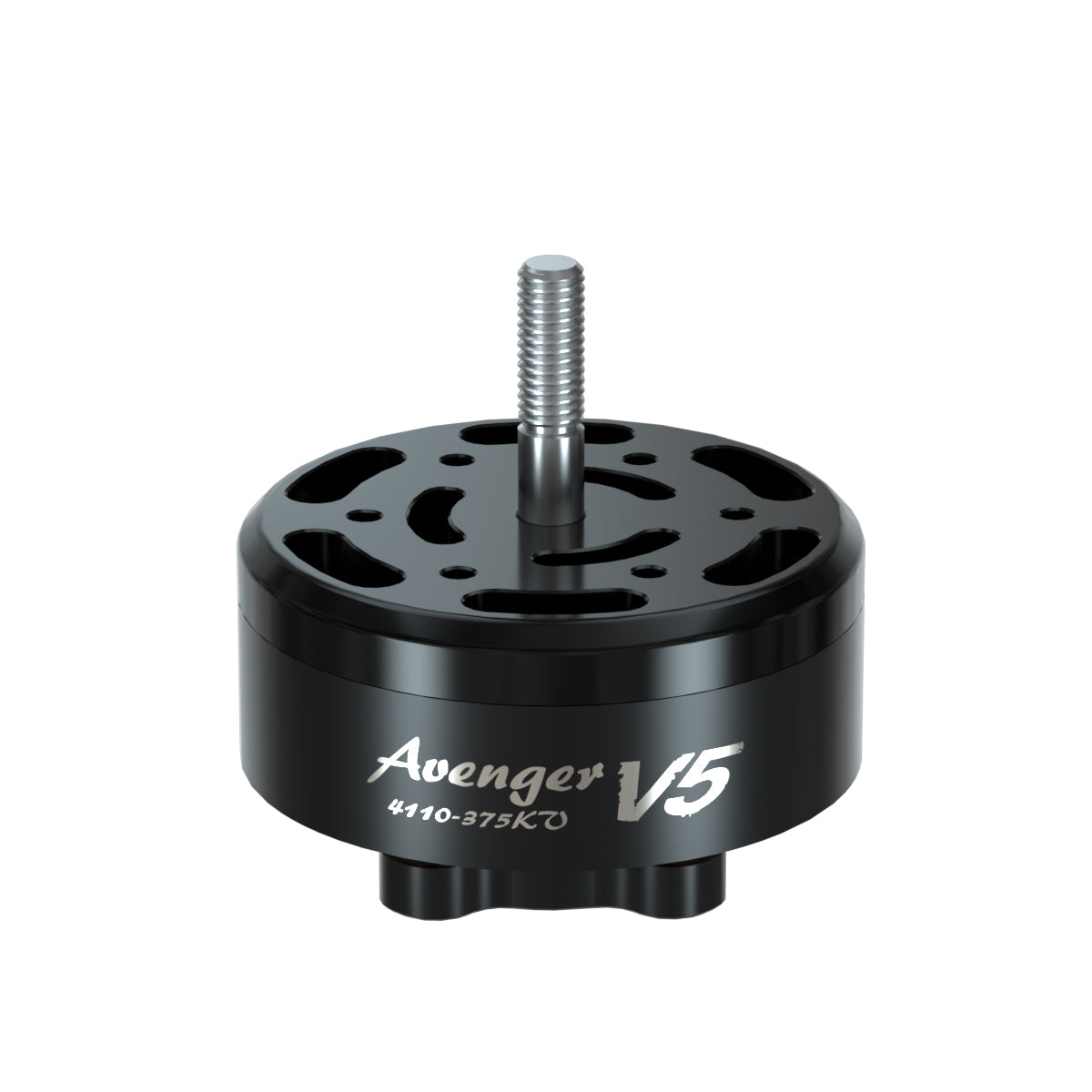

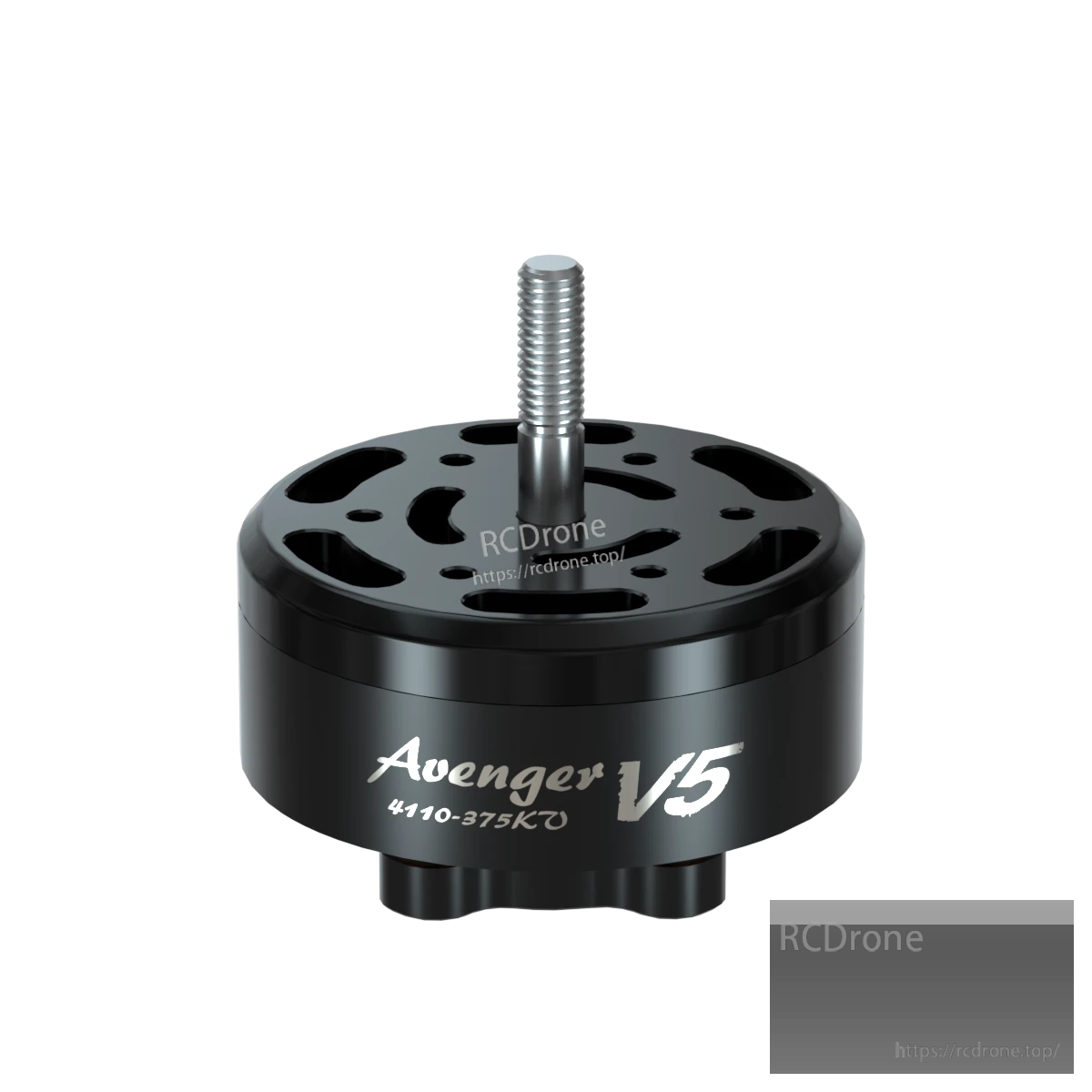

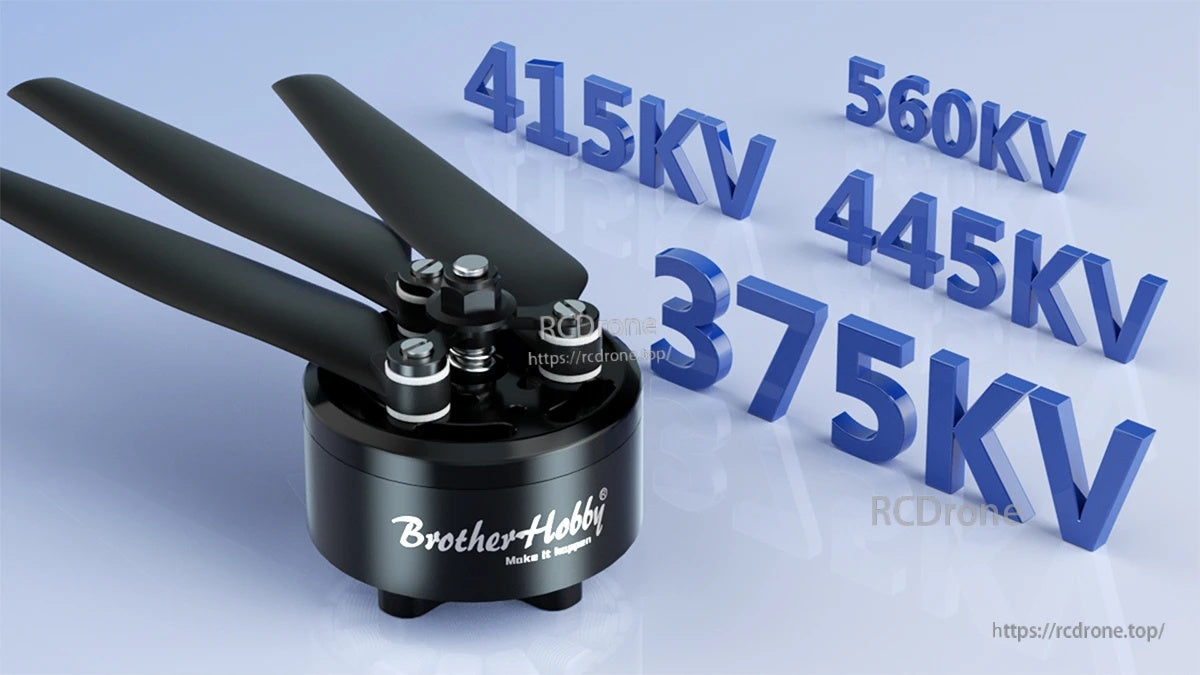

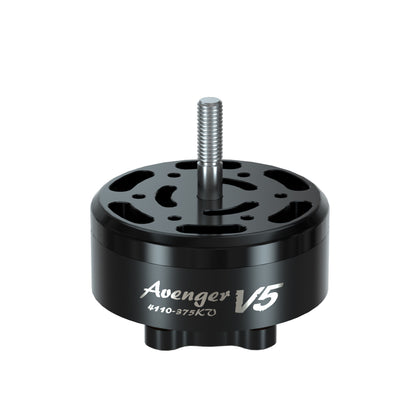

BrotherHobby Avenger 4110 V5 brushless motor features a black can design with a top-mounted shaft for multirotor builds.

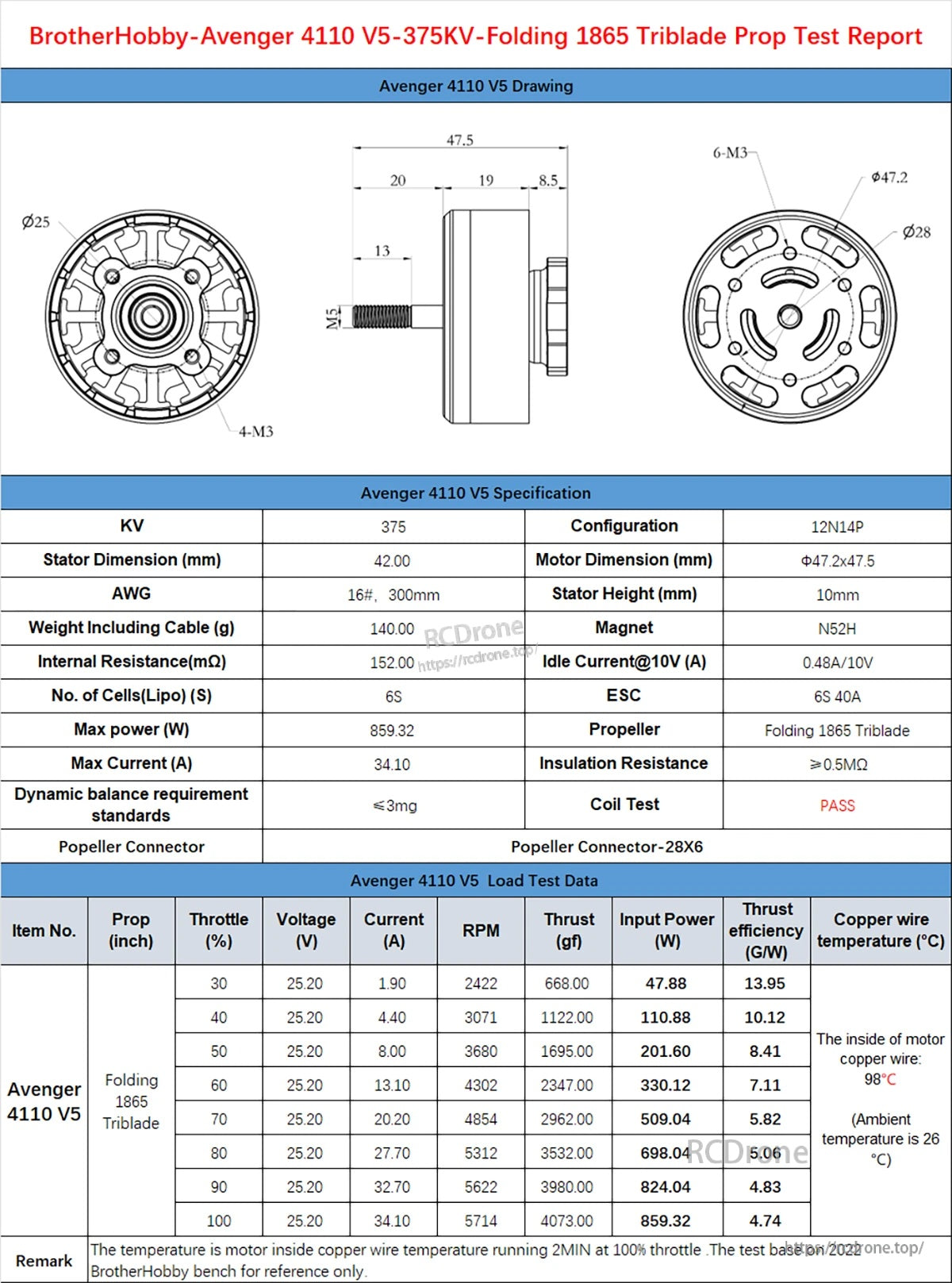

BrotherHobby Avenger 4110 V5 375KV motor specifications and 1865 triblade prop test data make it easier to match your ESC, battery voltage, and thrust target.

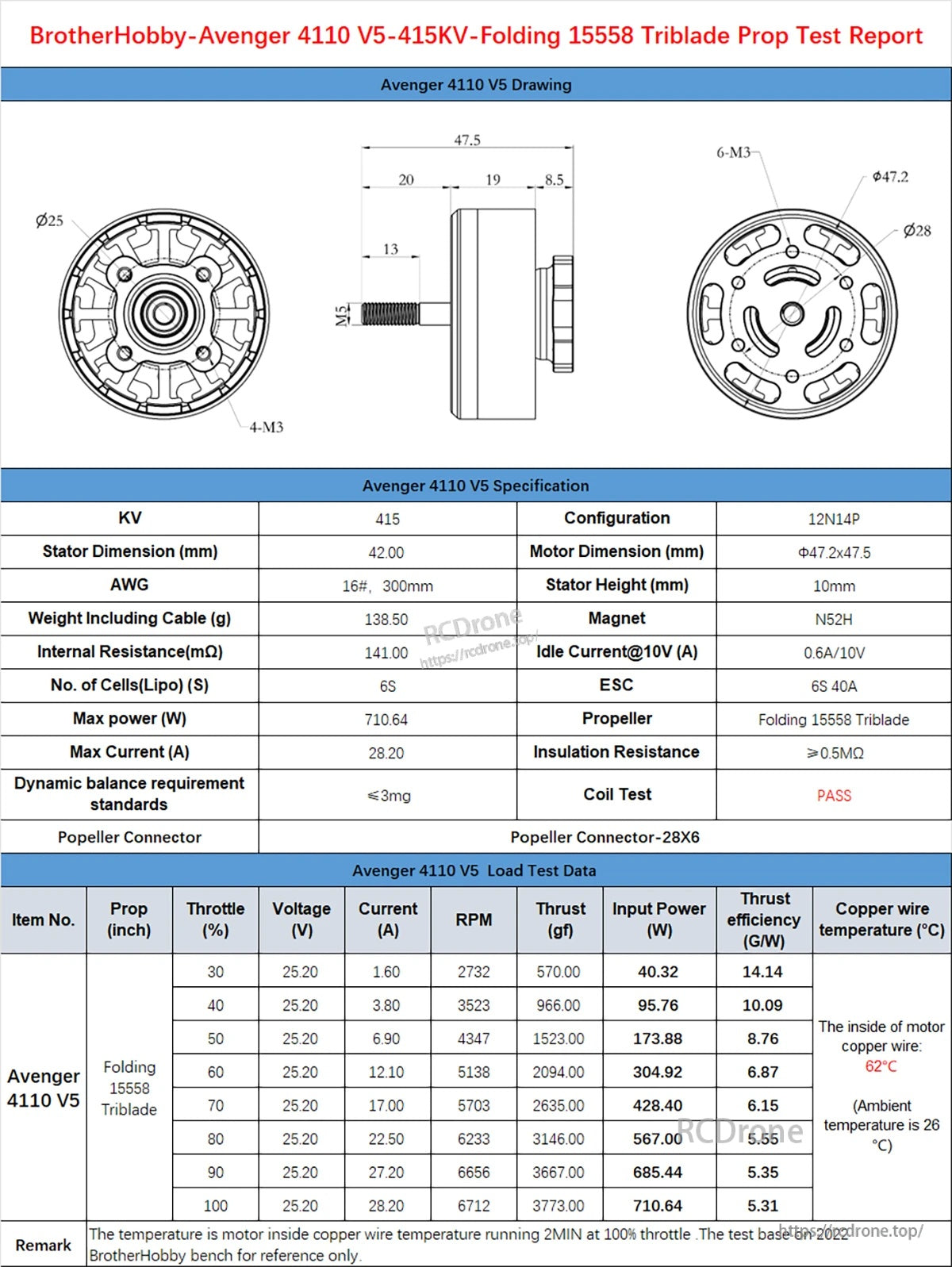

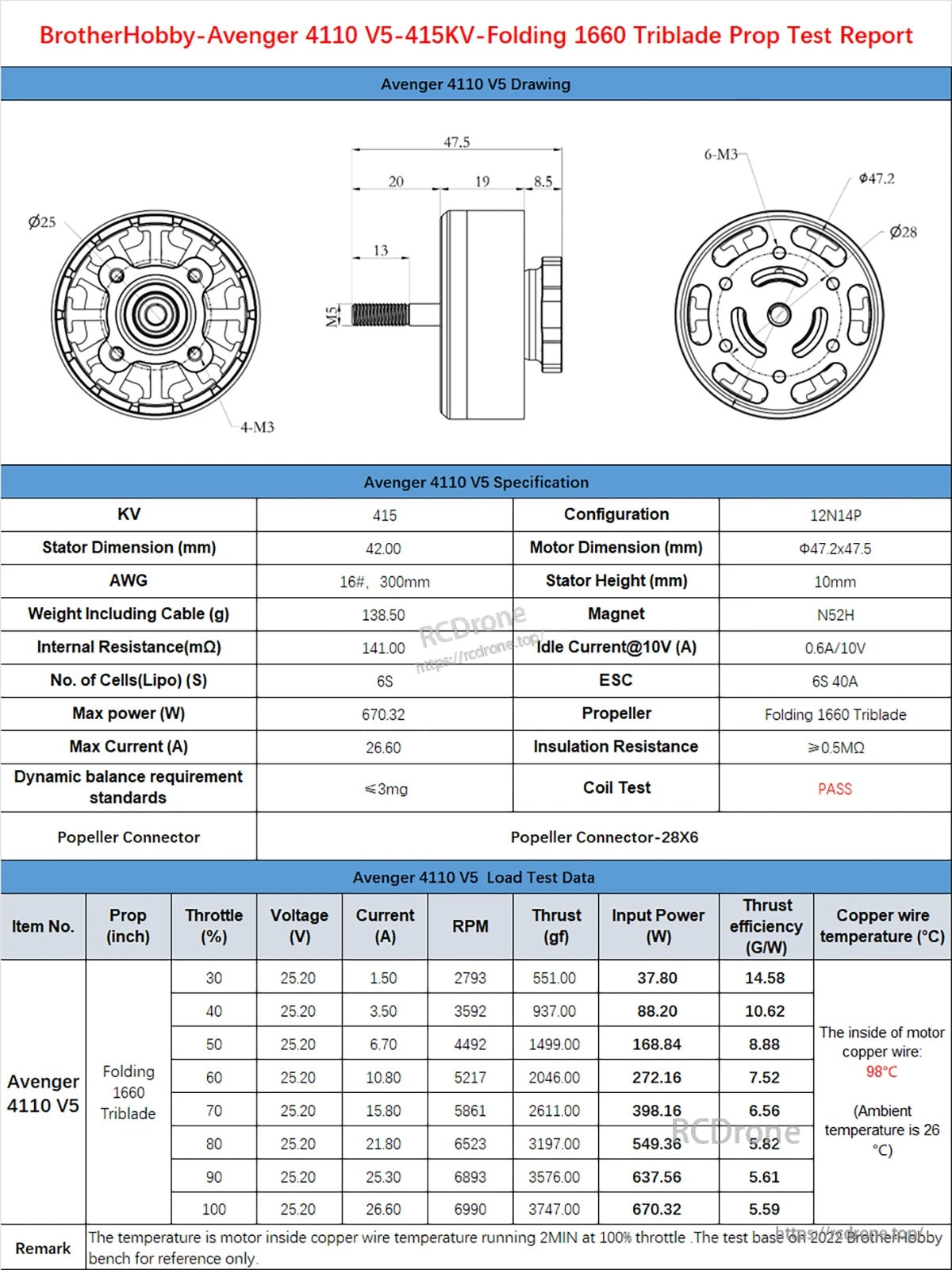

The BrotherHobby Avenger 4110 V5 415KV motor is listed with key specs and 16x6.0 folding tri-blade prop load-test values to help plan thrust and power requirements.
The Avenger 4110 V5 415KV motor spec sheet includes a dimension drawing plus key details like 12N14P configuration and 42×10mm stator size.

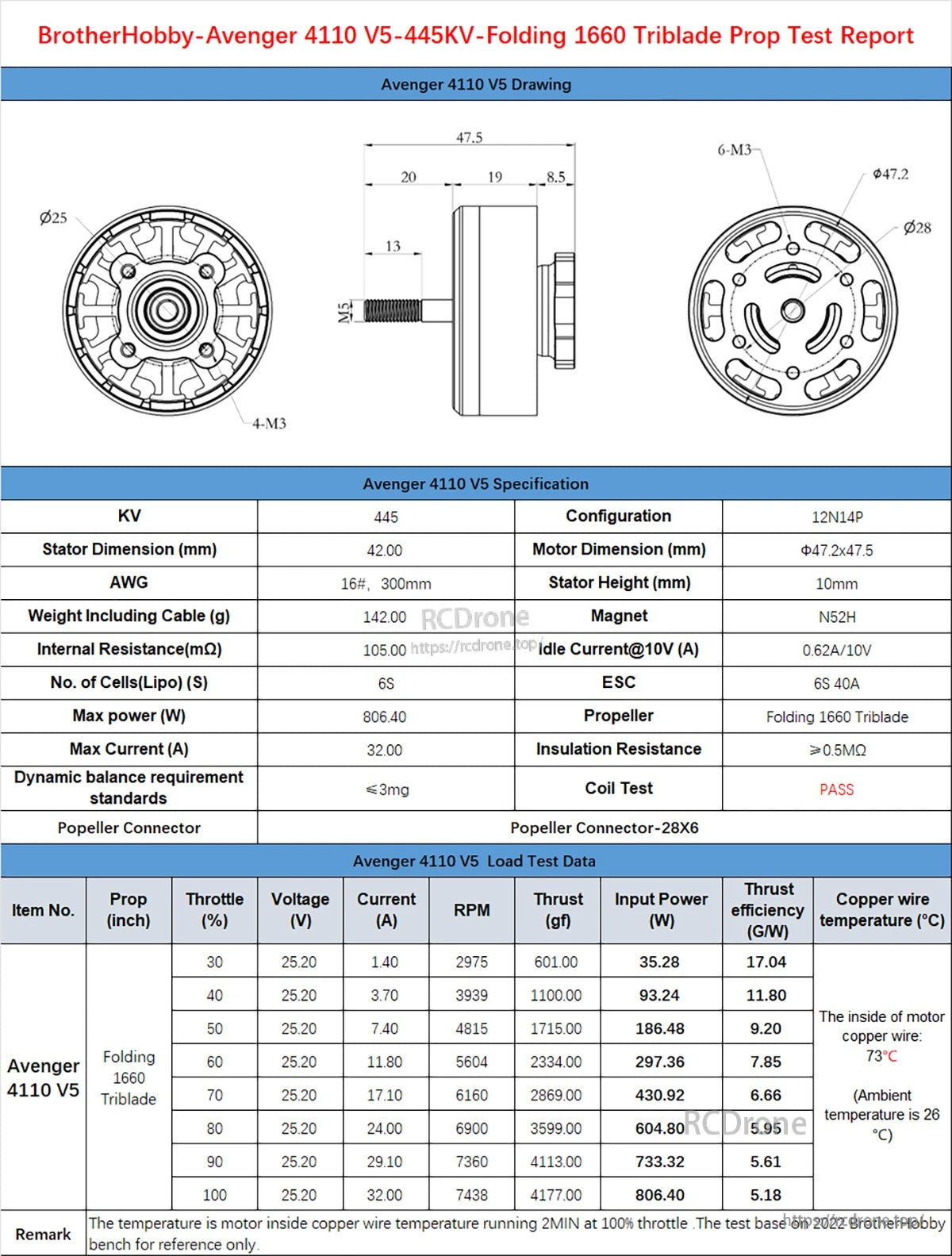

The BrotherHobby Avenger 4110 V5 motor sheet lists key dimensions, 445KV rating, and test results for a 1660 triblade prop.

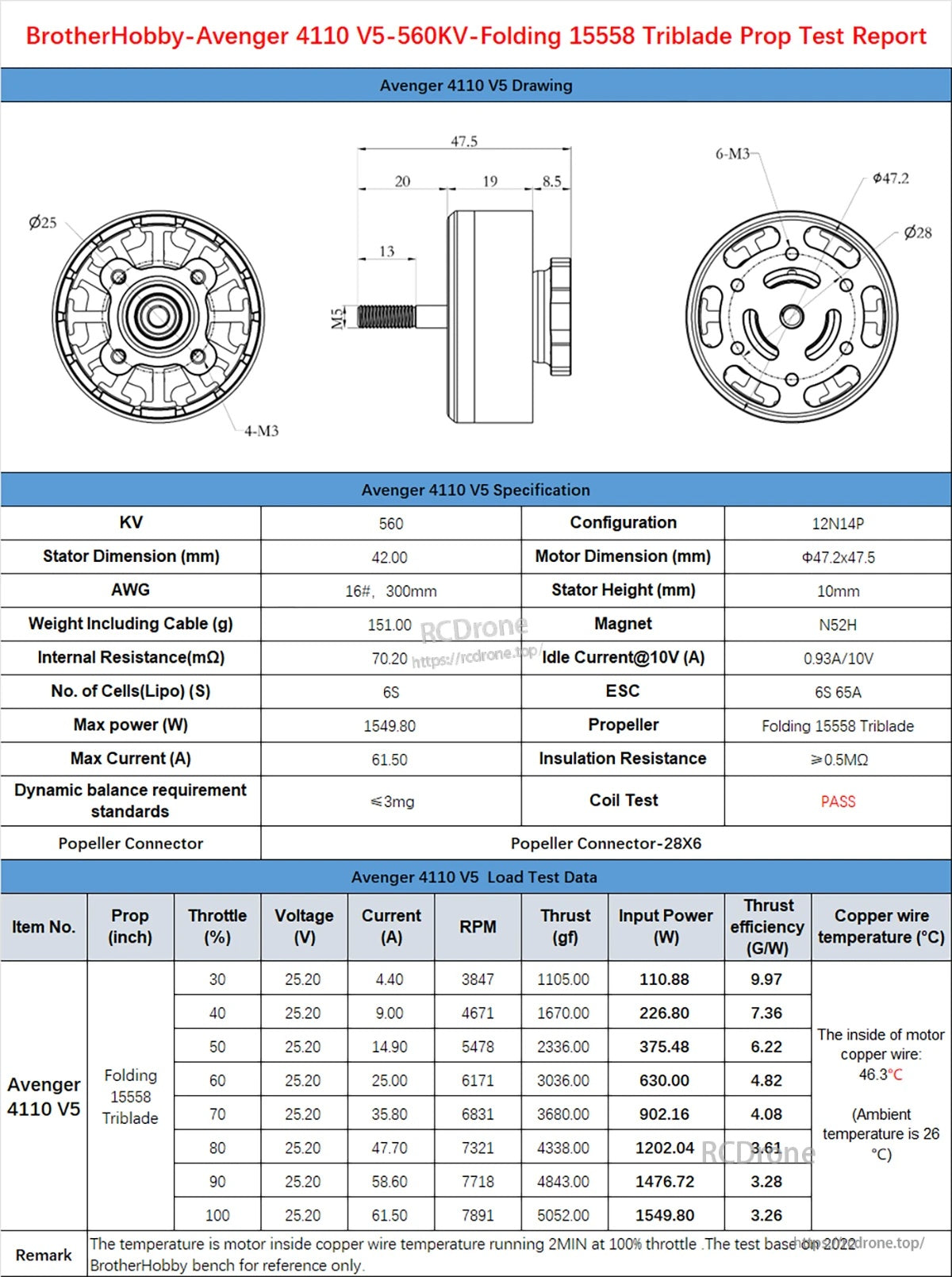

The BrotherHobby Avenger 4110 V5 560KV motor includes a dimensional drawing and a 6S 15×5.5 folding prop load table to help with fitment and power planning.
