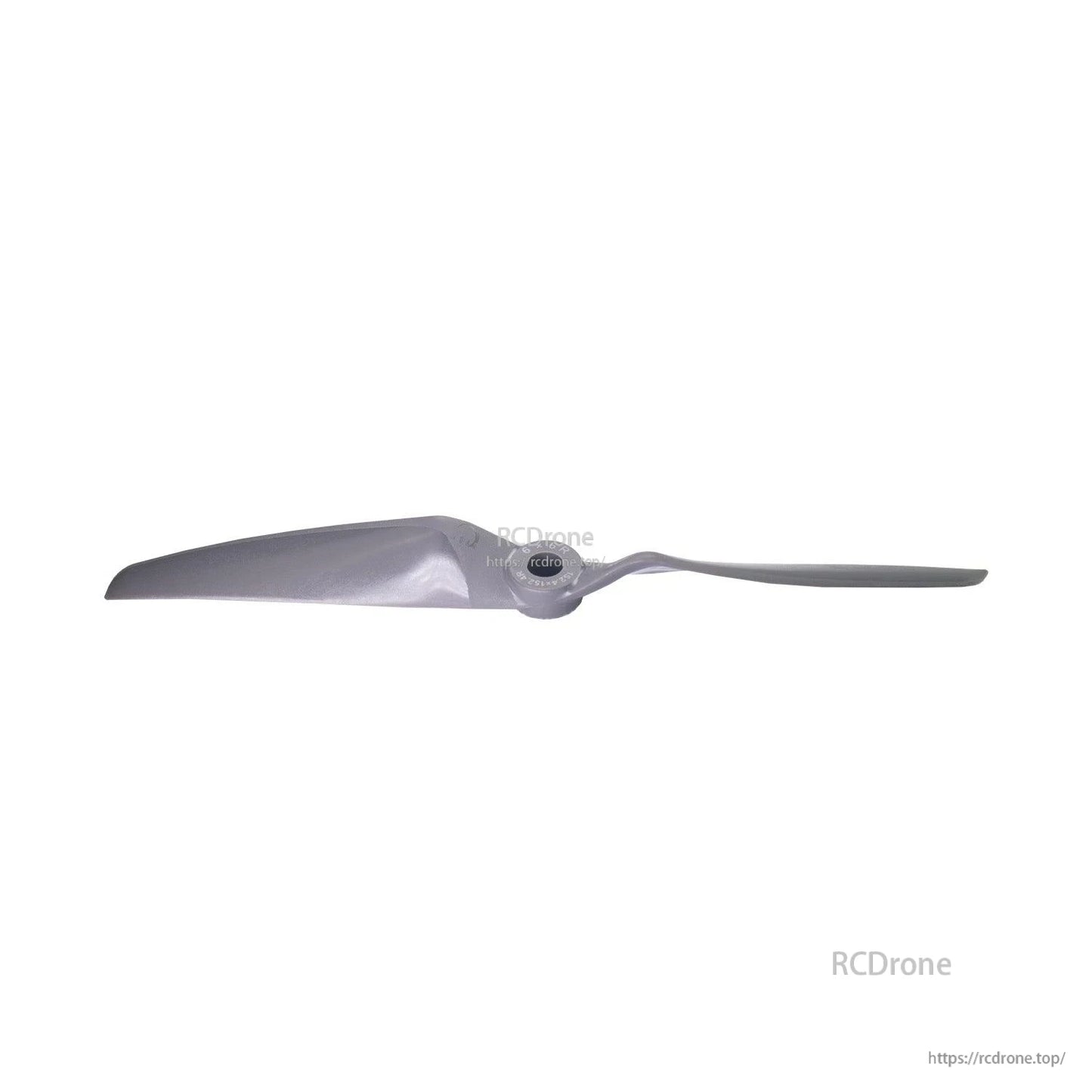

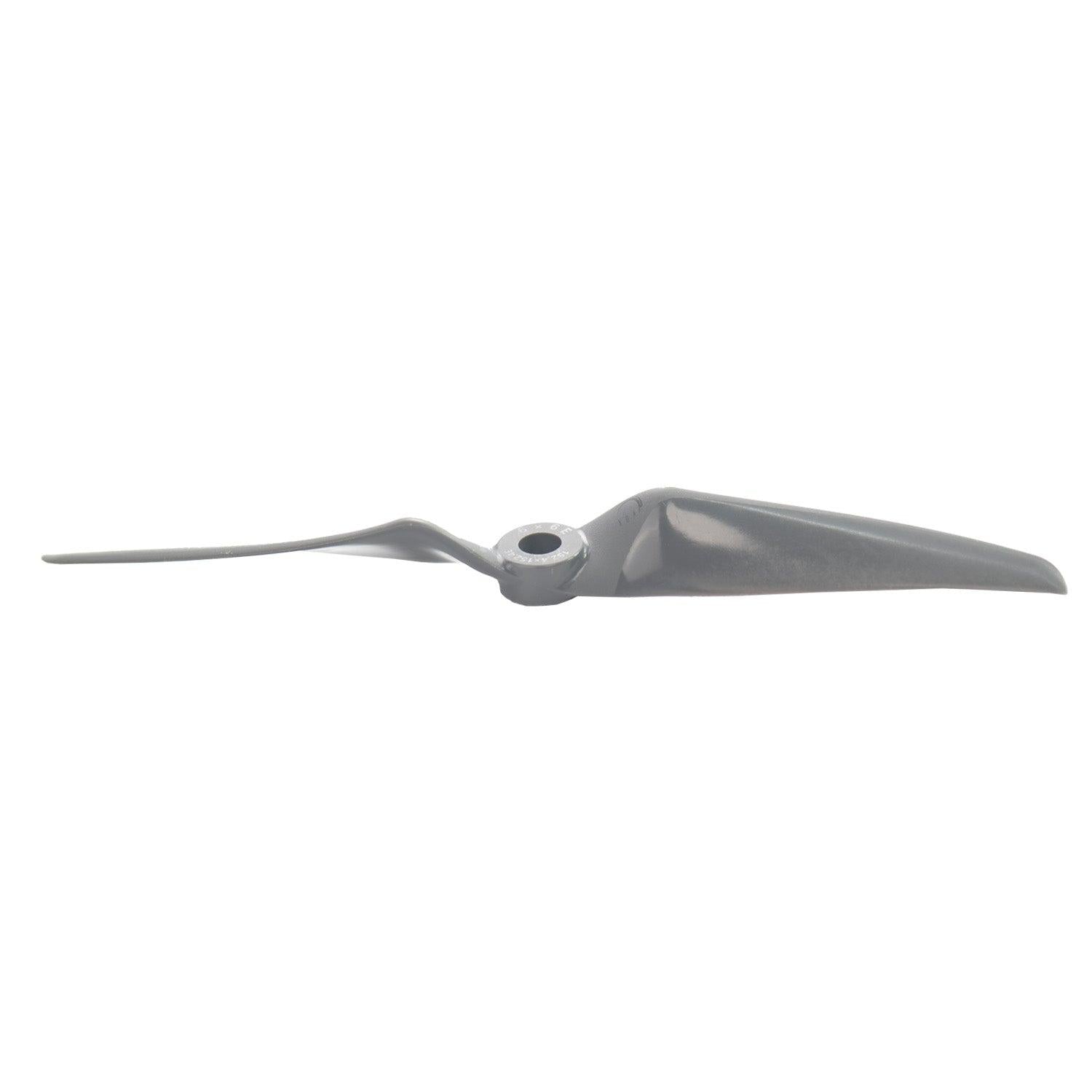

• Side profile of 6-inch propeller showing blade pitch and hub thickness

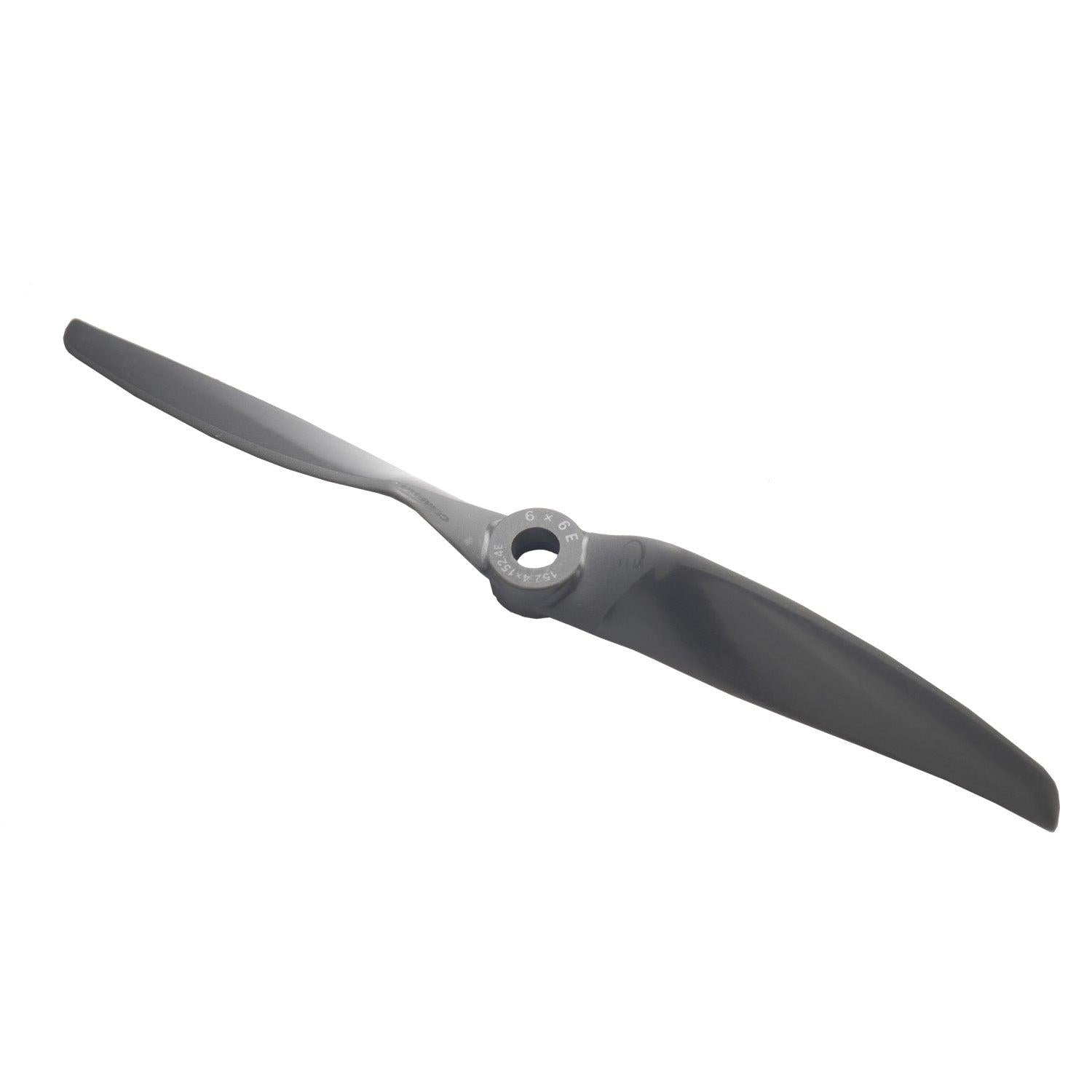

  • Gemfan VORTEX 6x6E/6x6R electric propeller, 6-inch two-blade, gray

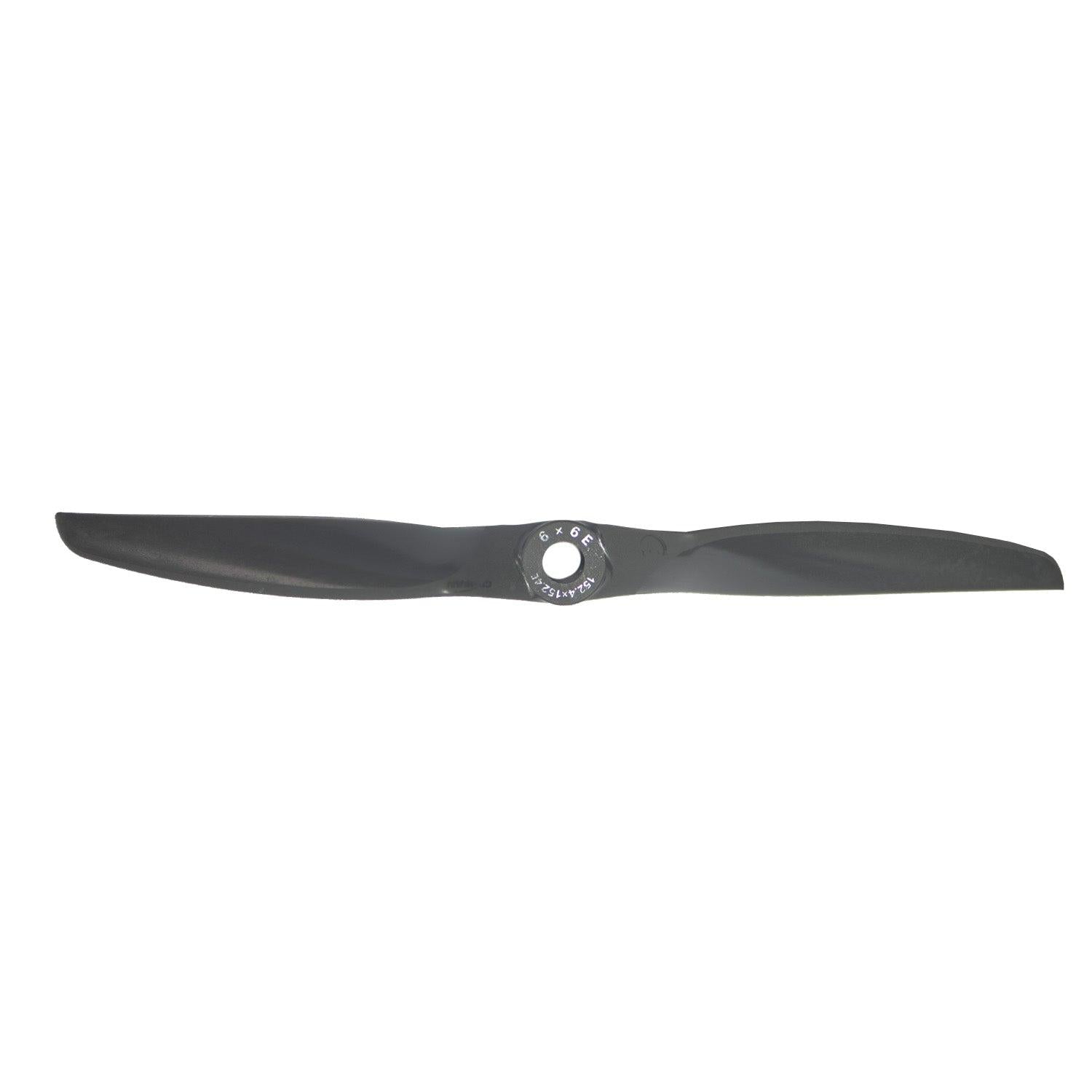

  • Two-blade propeller front view with 6x6 marking on hub, gray finish
  • Gemfan VORTEX 6X6E electric propeller package label, glass fiber nylon gray

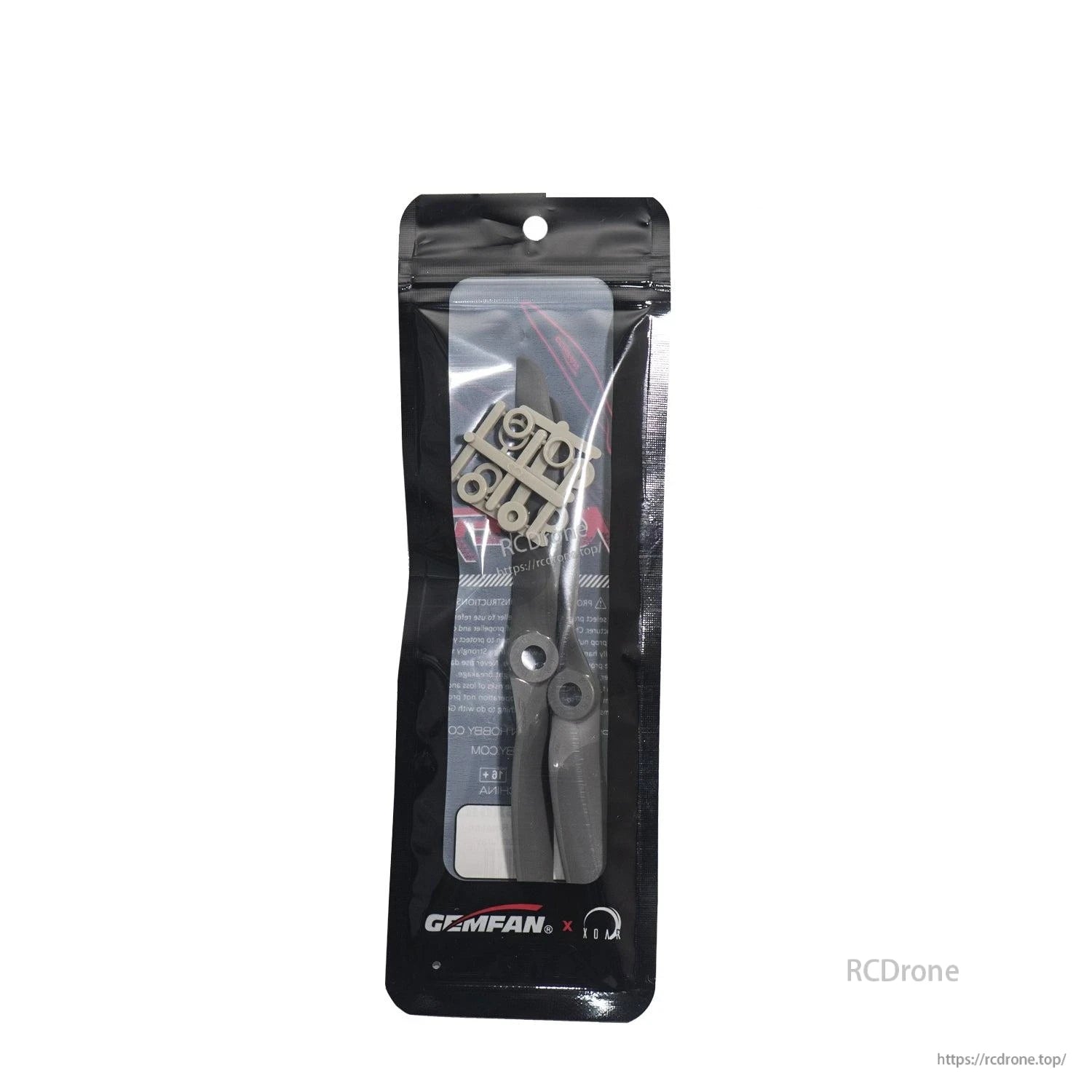

  • Retail bag showing VORTEX propeller and included hub adapter rings inside

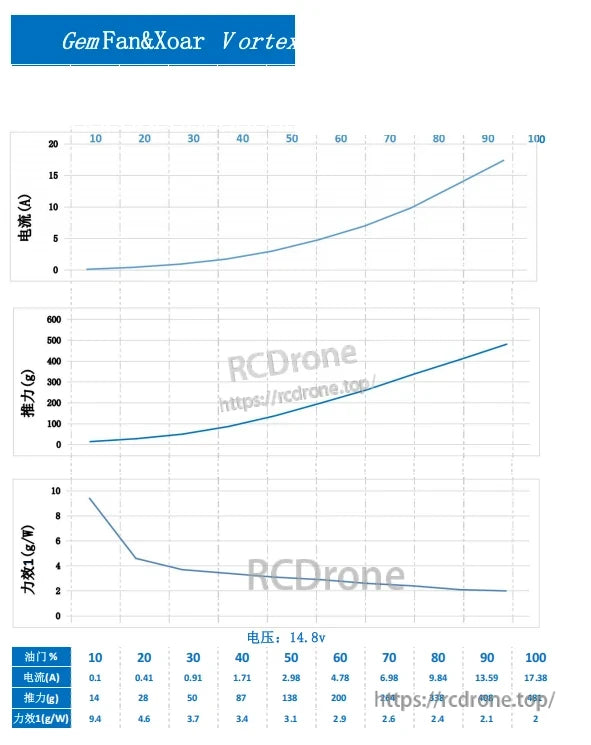

  • Performance test chart for GemFan & Xoar Vortex prop at 14.8V with current and thrust graphs

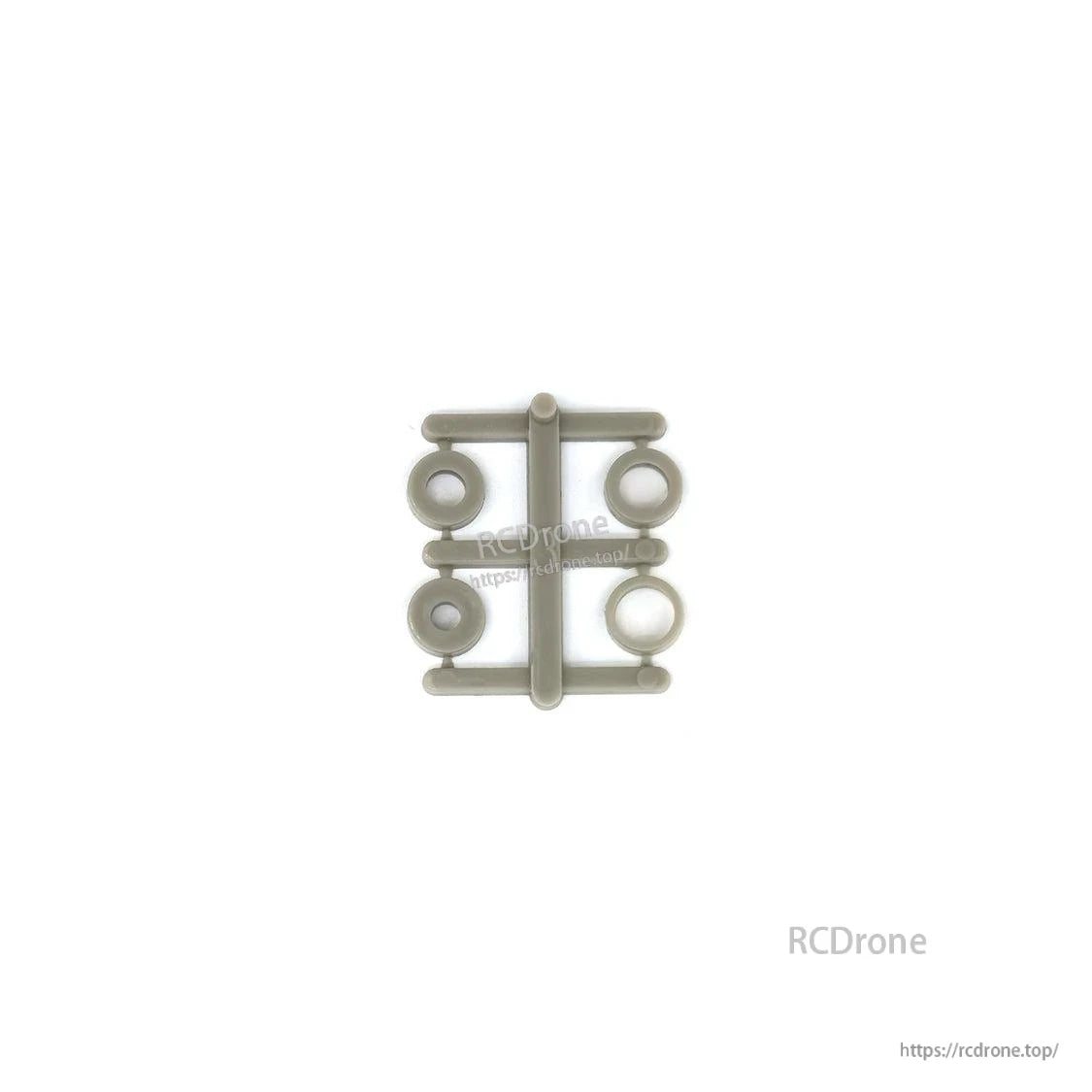

  • Included plastic hub adapter ring set for propeller mounting, four-piece sprue

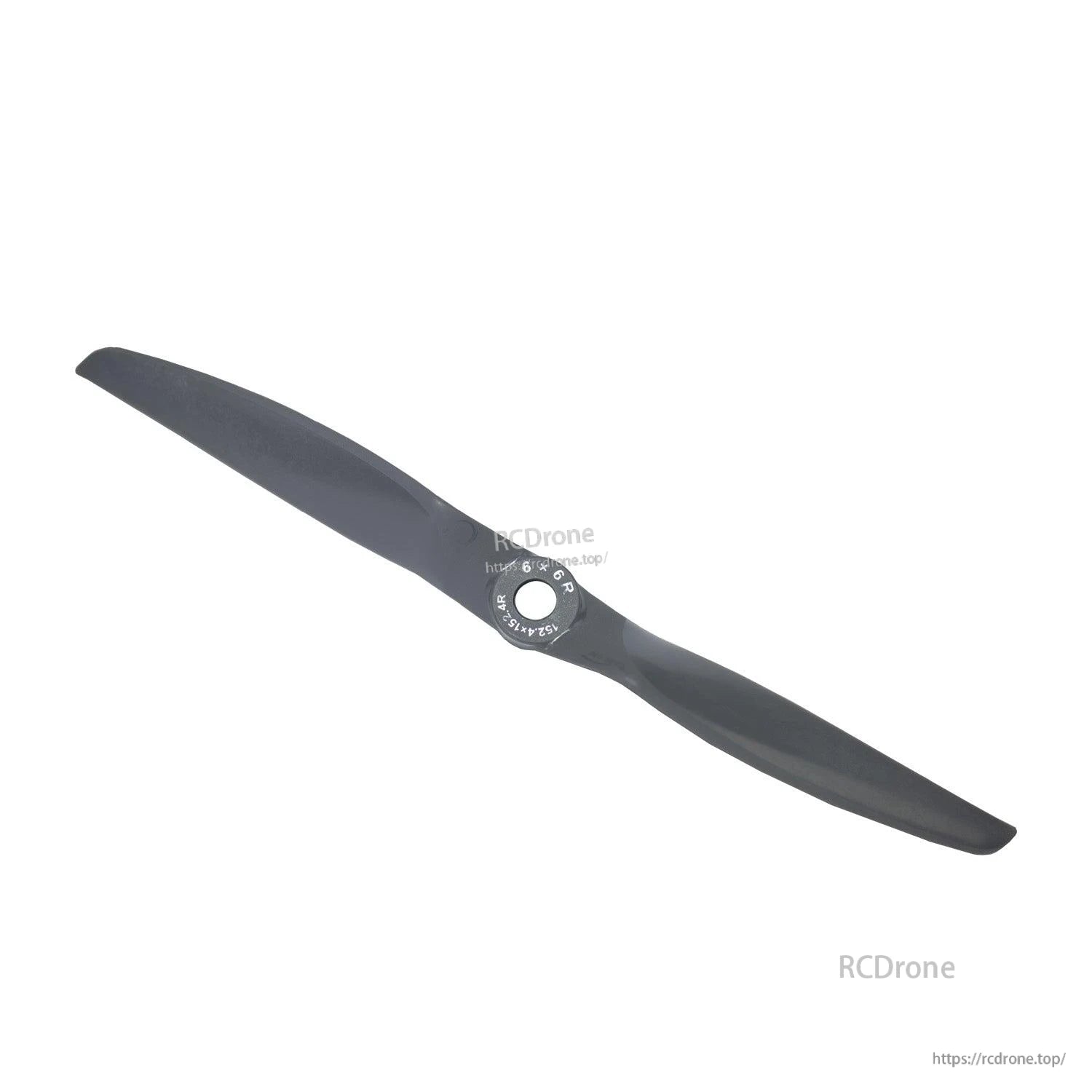

  • Diagonal top view of gray two-blade propeller with printed hub markings

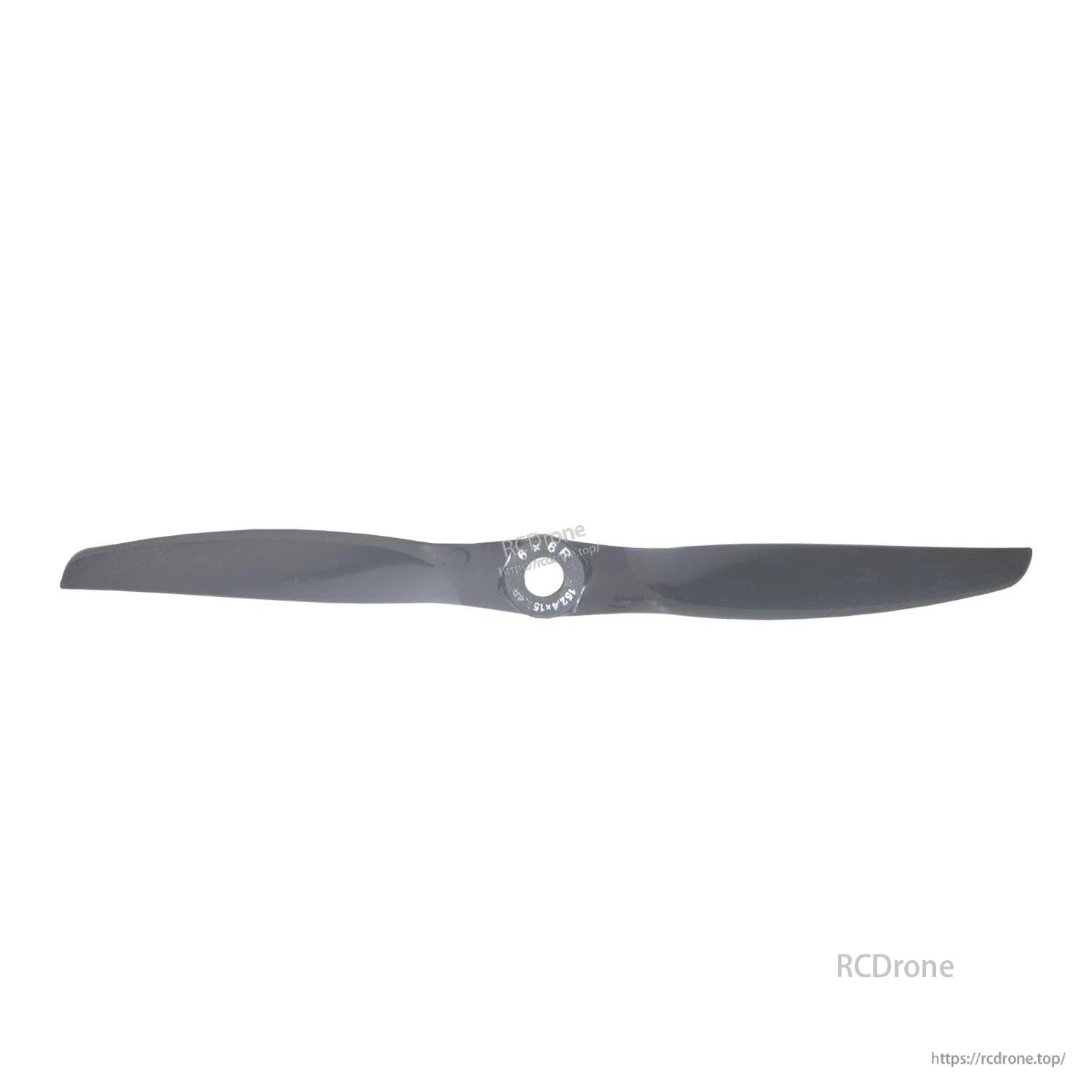

  • Wide horizontal view of gray two-blade propeller centered on hub opening

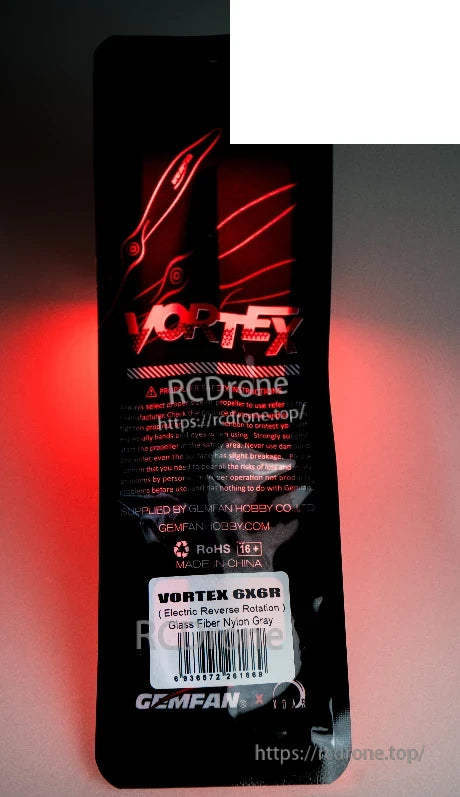

  • VORTEX 6X6R electric reverse rotation propeller package label, glass fiber nylon gray
  • Sealed Gemfan VORTEX package showing propeller and adapter rings, full front view
1 11

Gemfan VORTEX 6x6E/6x6R Electric Propeller, 6in 6in Pitch Glass Fiber Nylon, 2pcs/Bag

Gemfan VORTEX 6x6E/6x6R Electric Propeller, 6in 6in Pitch Glass Fiber Nylon, 2pcs/Bag

Gemfan

$10.69 USD
$10.69 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Types
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Gemfan VORTEX 6X6E/6X6R propeller is an electric propeller made from glass fiber nylon. It features a 6 inch blade diameter and 6 inch pitch, supplied as 2 pieces per bag.

Key Features

  • Model: VORTEX 6X6E/6X6R
  • Material: Glass fiber nylon
  • 6 inch diameter / 6 inch pitch electric propeller

Specifications

Blade Diameter 6 inch
Pitch 6 inch
Hub Diameter 13 mm
Hub Thickness 6.5 mm
Center Hole Diameter 6.35 mm / 0.25 inch
Weight (single blade) 5.2 g
Product Weight (including packaging) 15.48 g

Static Test Data

Voltage: 14.8 V. Test setup label: 2212 1400KV.

Throttle (%) 10 20 30 40 50 60 70 80 90 100
Current (A) 0.1 0.41 0.91 1.71 2.98 4.78 6.98 9.84 13.59 17.38
Thrust (g) 14 28 50 87 138 200 264 338 408 481
Efficiency (g/W) 9.4 4.6 3.7 3.4 3.1 2.9 2.6 2.4 2.1 2

What’s Included

  • Gemfan VORTEX 6X6E/6X6R electric propeller (2 pieces/bag)

For product selection help and after-sales support, contact https://rcdrone.top/ or support@rcdrone.top.

Gemfan VORTEX 6X6E/6X6R Electric Glass Fiber Nylon Propeller

Details

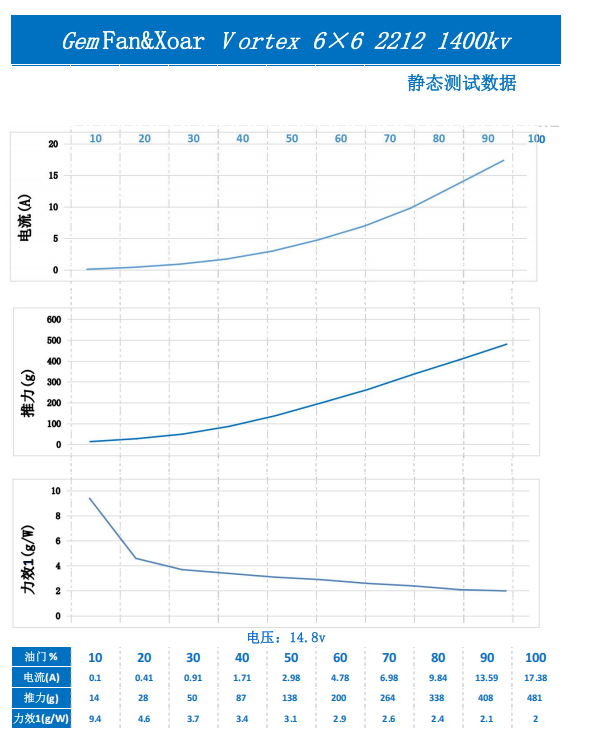

Static test data chart for Gemfan VORTEX 6x6E/6x6R electric propeller at 14.8V (current, thrust, efficiency vs throttle)

Static performance data at 14.8V helps compare current draw, thrust, and efficiency across the throttle range.
