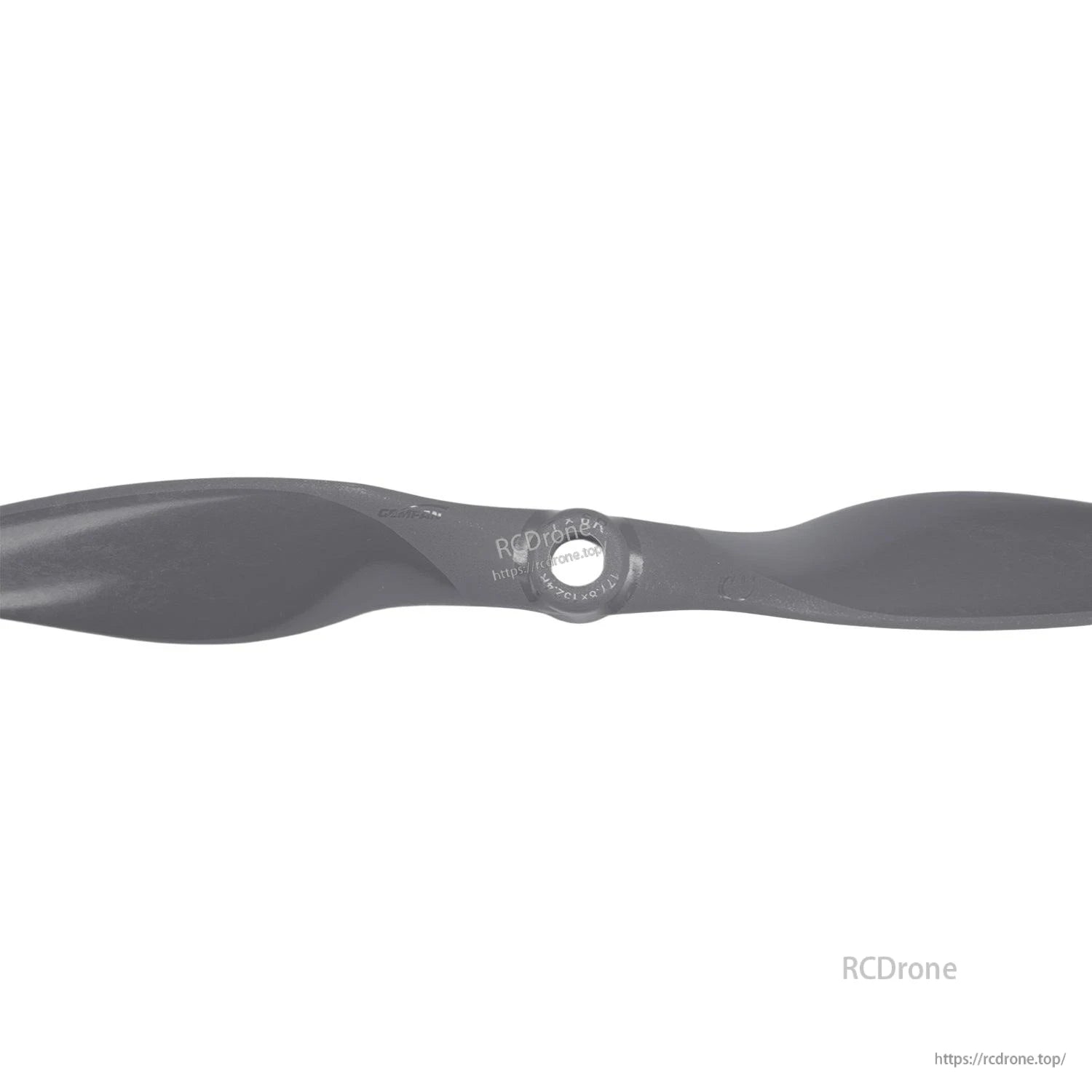

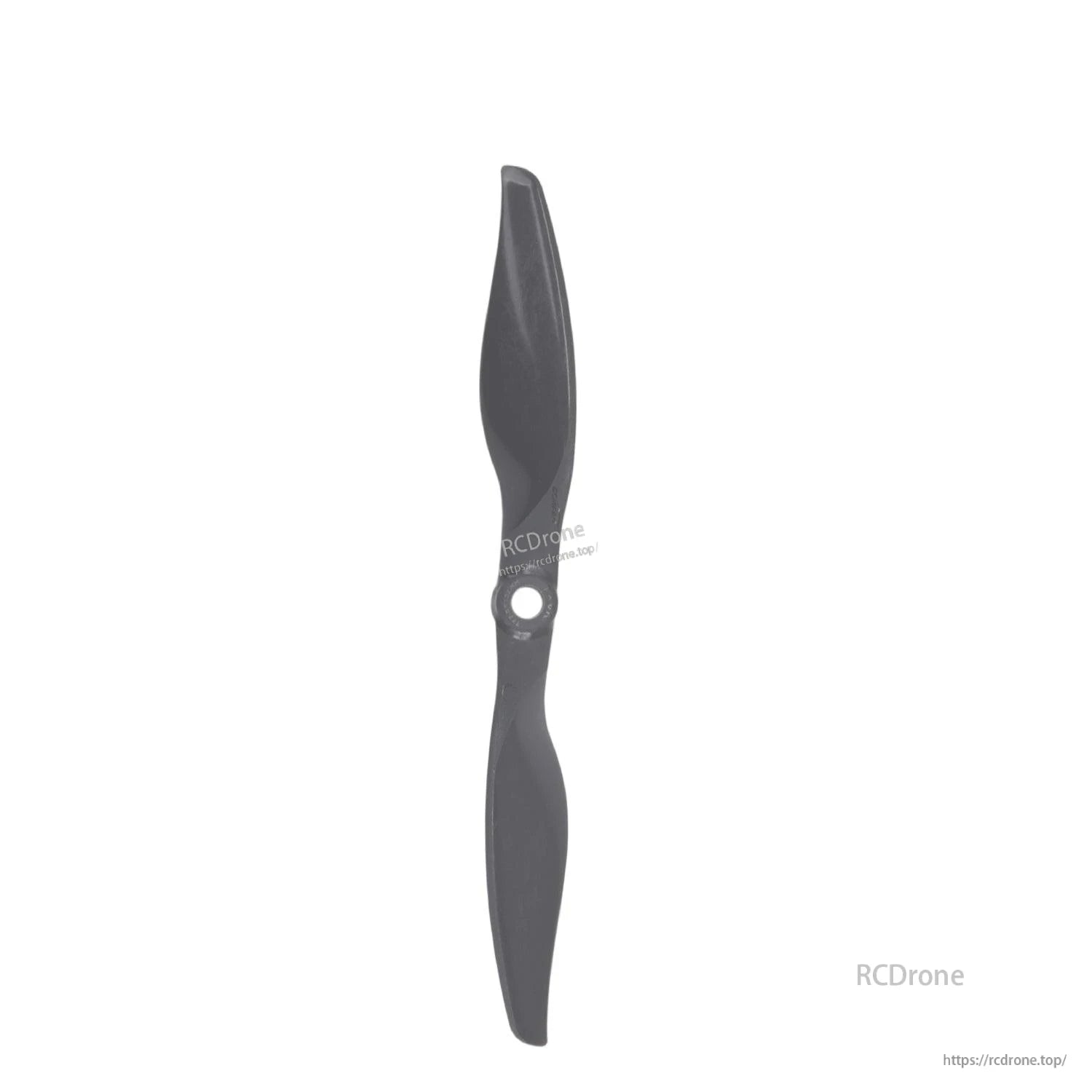

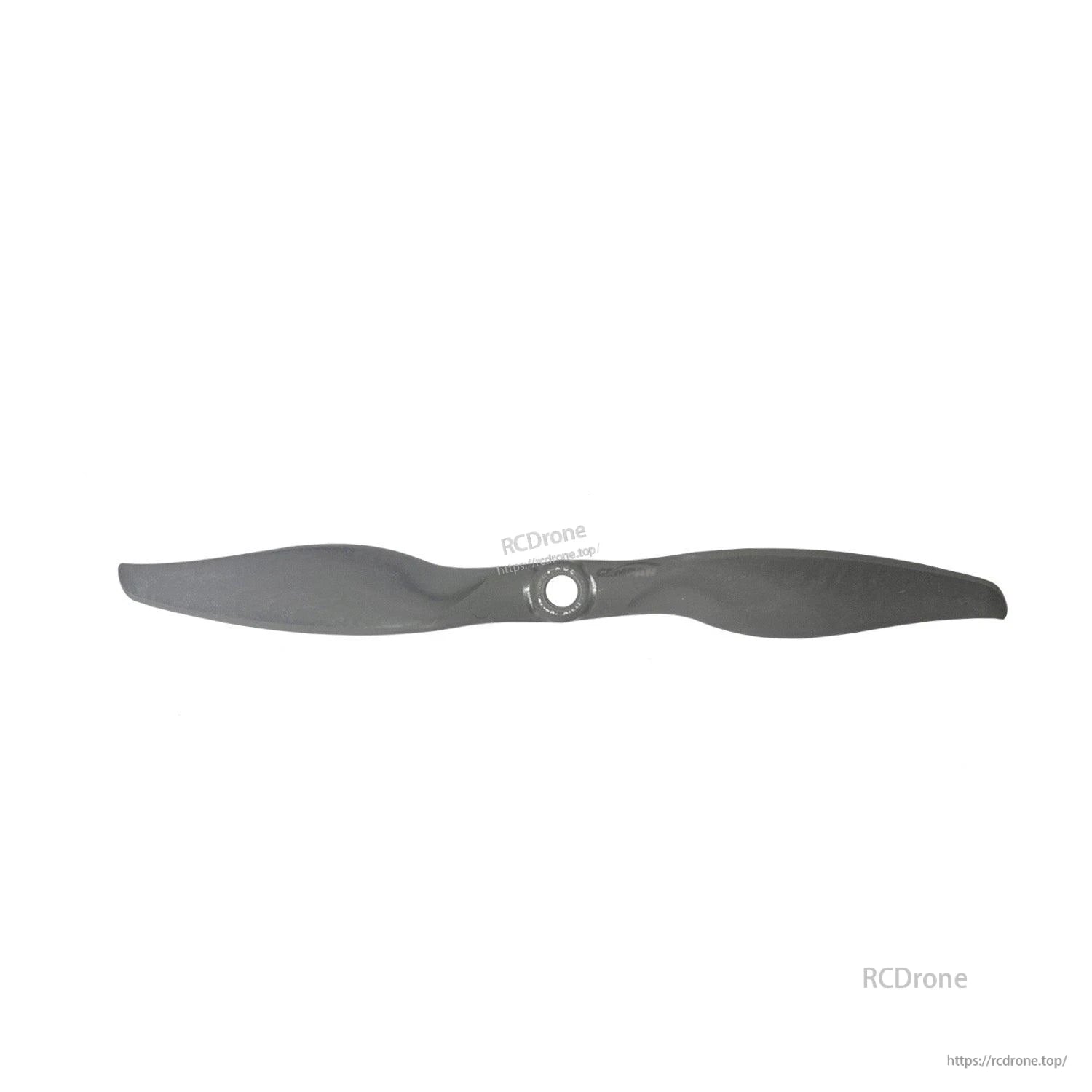

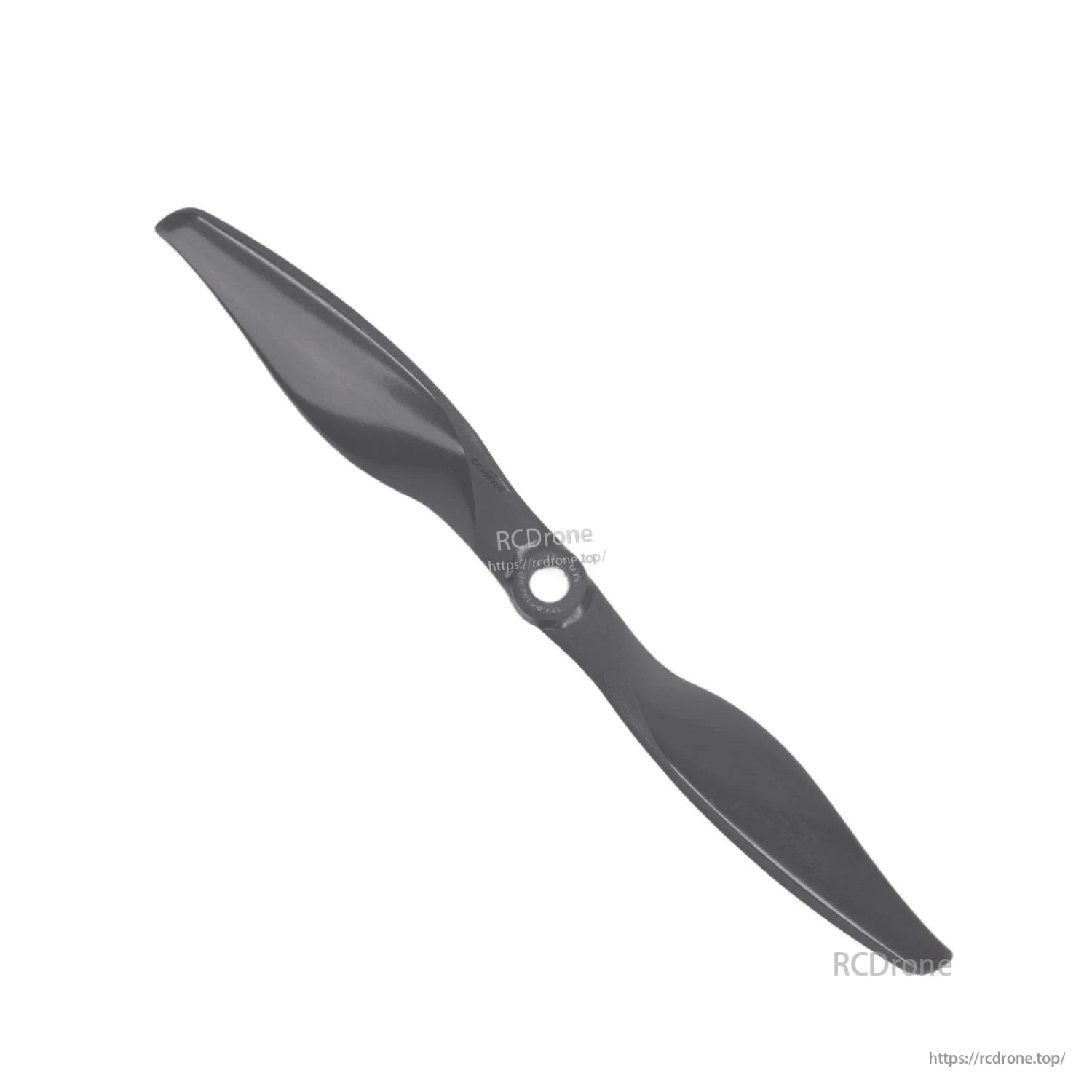

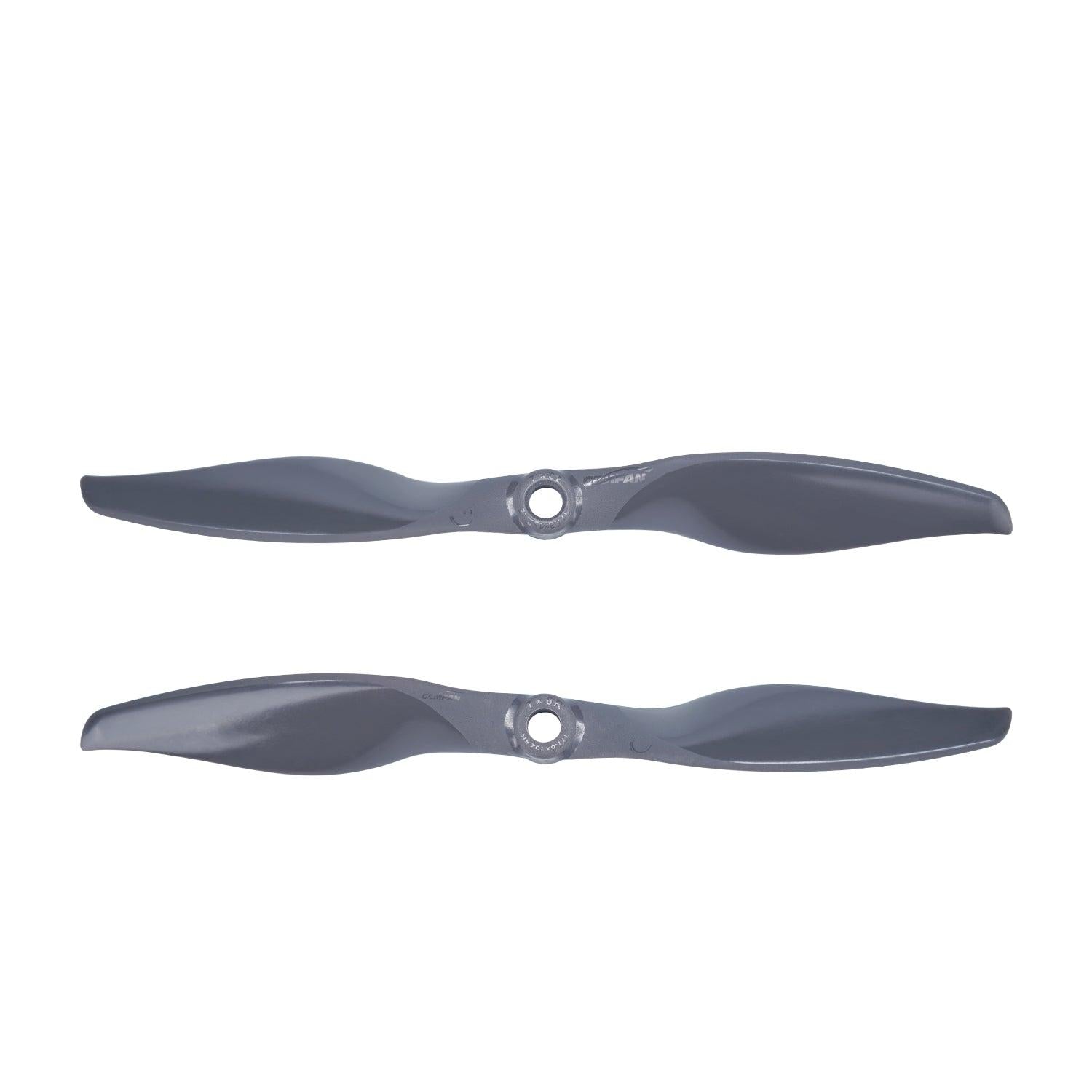

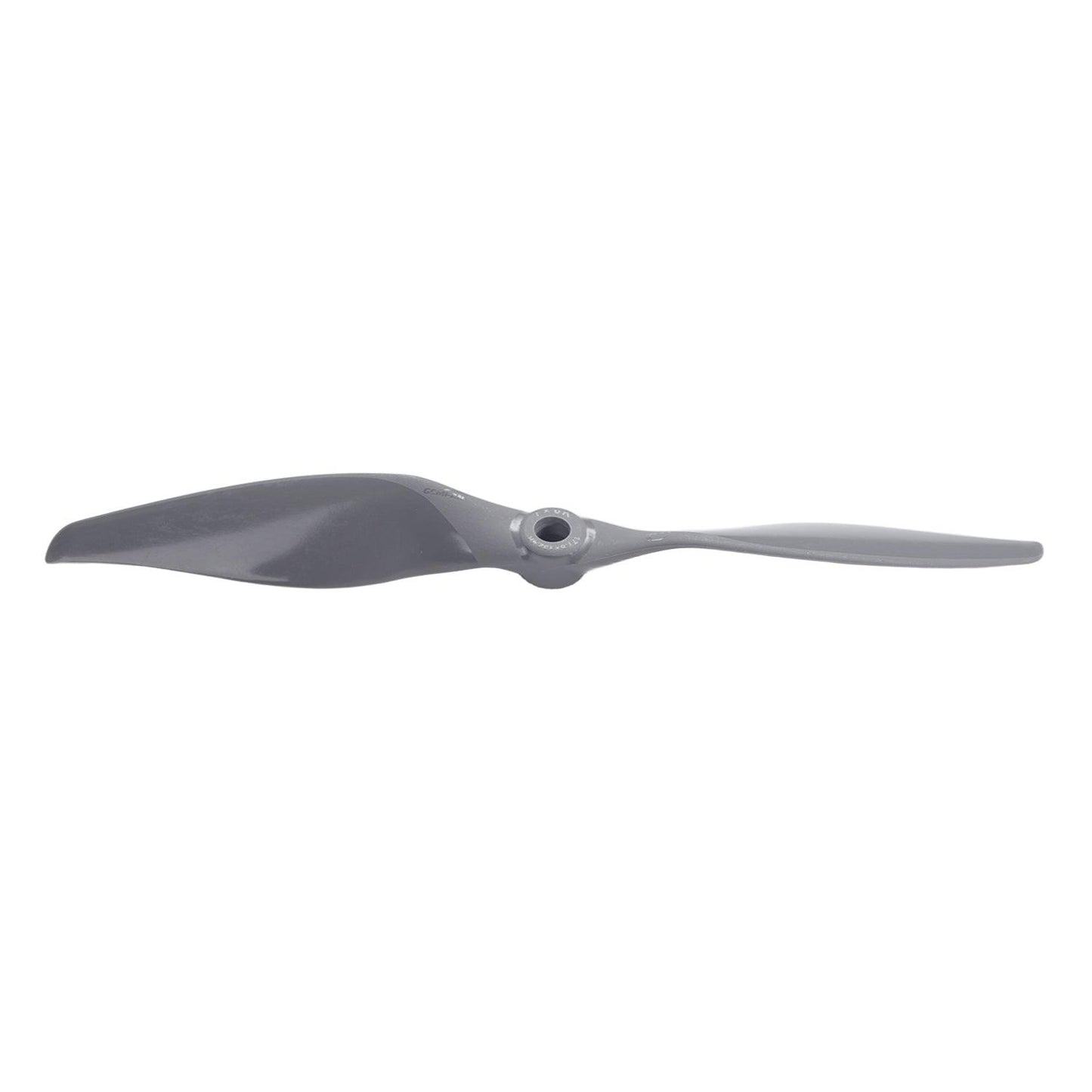

Gemfan Vortex 7x6E/7x6R Electric Propeller Glass Fiber Nylon 7in 6in Pitch 2pcs/Bag + Adapters

Gemfan

$10.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Types 7X6E 7X6R

Options 1Bag 4Bags

Quantity

View full details

Overview

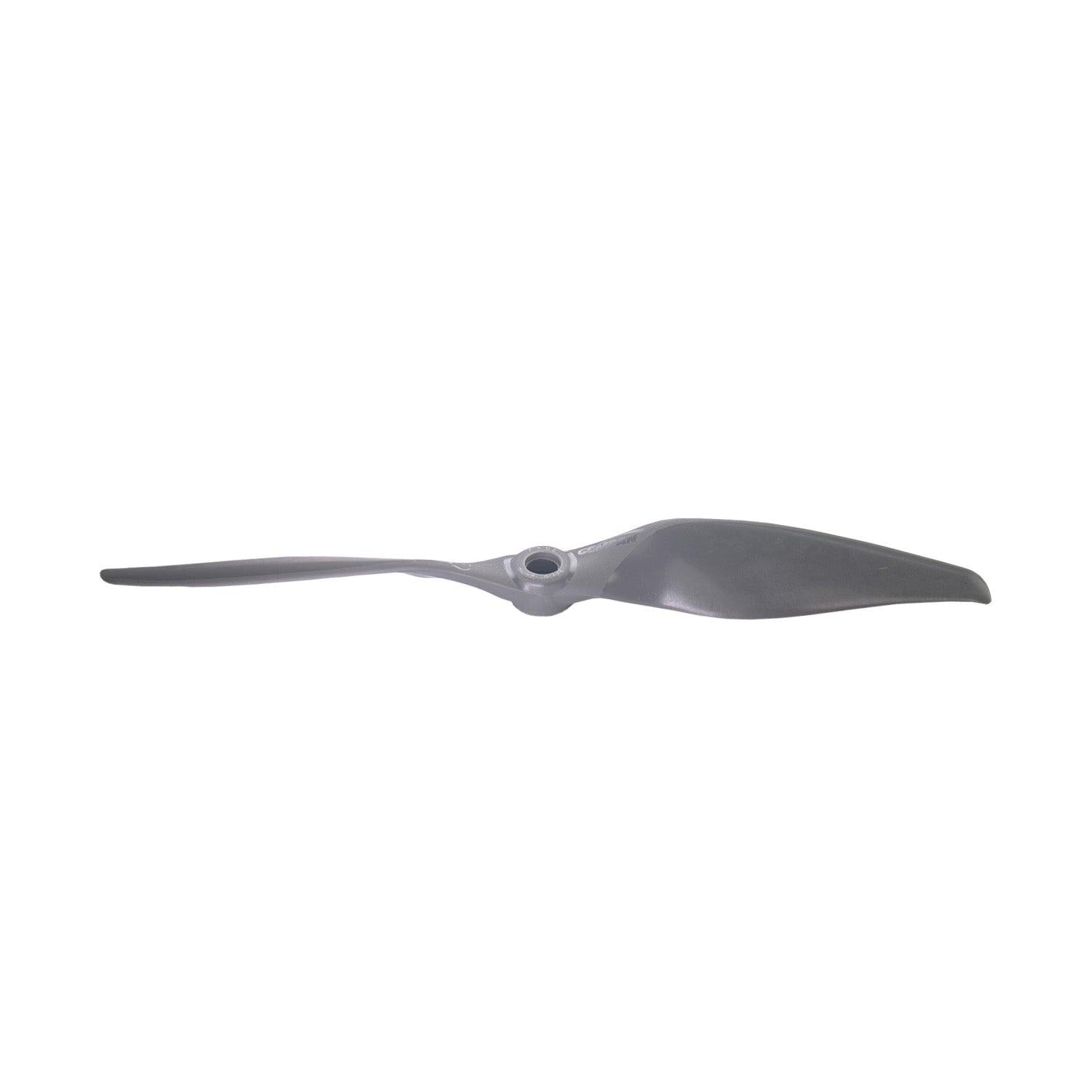

Gemfan Vortex 7x6E/7x6R is an electric propeller set made from glass fiber nylon. Each bag includes 2 propellers and a set of bore adapters for common shaft sizes.

Key Features

7-inch diameter with 6-inch pitch (7x6E/7x6R)
Glass fiber nylon construction
Includes 5 bore adapters: 3 mm / 4 mm / 5 mm / 6 mm / 7 mm

Specifications

Model	7x6E / 7x6R
Propeller diameter	7 inches
Pitch	6 inches
Hub diameter	12.8 mm
Center thickness	8.1 mm
Center hole diameter	6.35 mm / 0.25 inches
Weight (single propeller)	9.7 g
Product weight (including packaging)	24.68 g
Adapter sizes (included)	3 mm / 4 mm / 5 mm / 6 mm / 7 mm (5 pieces)

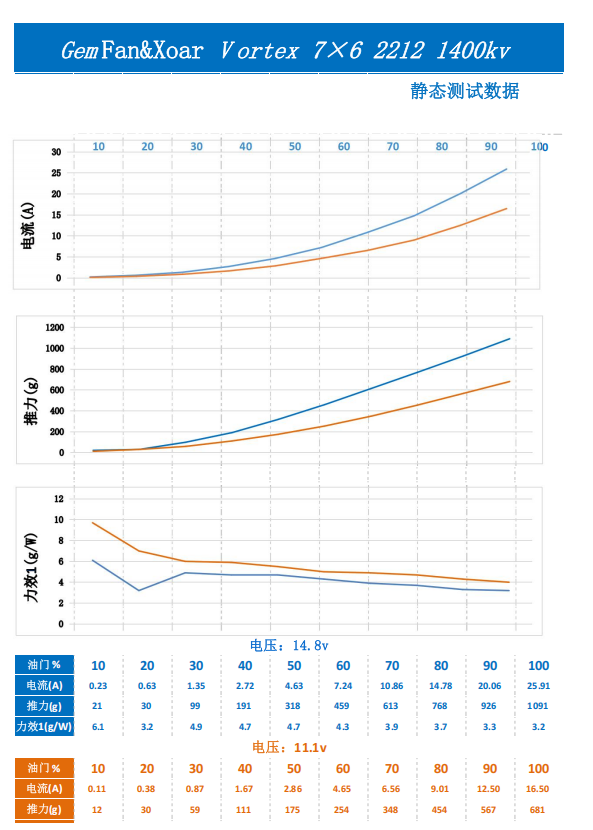

Static test data (GemFan&Xoar Vortex 7x6 with 2212 1400KV motor)

Voltage	Throttle %	Current (A)	Thrust (g)	Efficiency (g/W)
14.8 V	10	0.23	21	6.1
	20	0.63	30	3.2
	30	1.35	99	4.9
	40	2.72	191	4.7
	50	4.63	318	4.7
	60	7.24	459	4.3
	70	10.86	613	3.9
	80	14.78	768	3.7
	90	20.06	926	3.3
	100	25.91	1091	3.2
11.1 V	10	0.11	12	9.8
	20	0.38	30	7.1
	30	0.87	59	6.1
	40	1.67	111	6.0
	50	2.86	175	5.5
	60	4.65	254	4.9
	70	6.56	348	4.8
	80	9.01	454	4.5
	90	12.50	567	4.1
	100	16.50	681	3.7
