Gemfan Vortex 6x8E/6x8R Electric Propeller, Glass Fiber Nylon, 2pcs/Bag, 3-7mm Adapters

Gemfan

$10.69 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Types 6X8E 6X8R

Options 1Bag 4Bags

Quantity

View full details

Overview

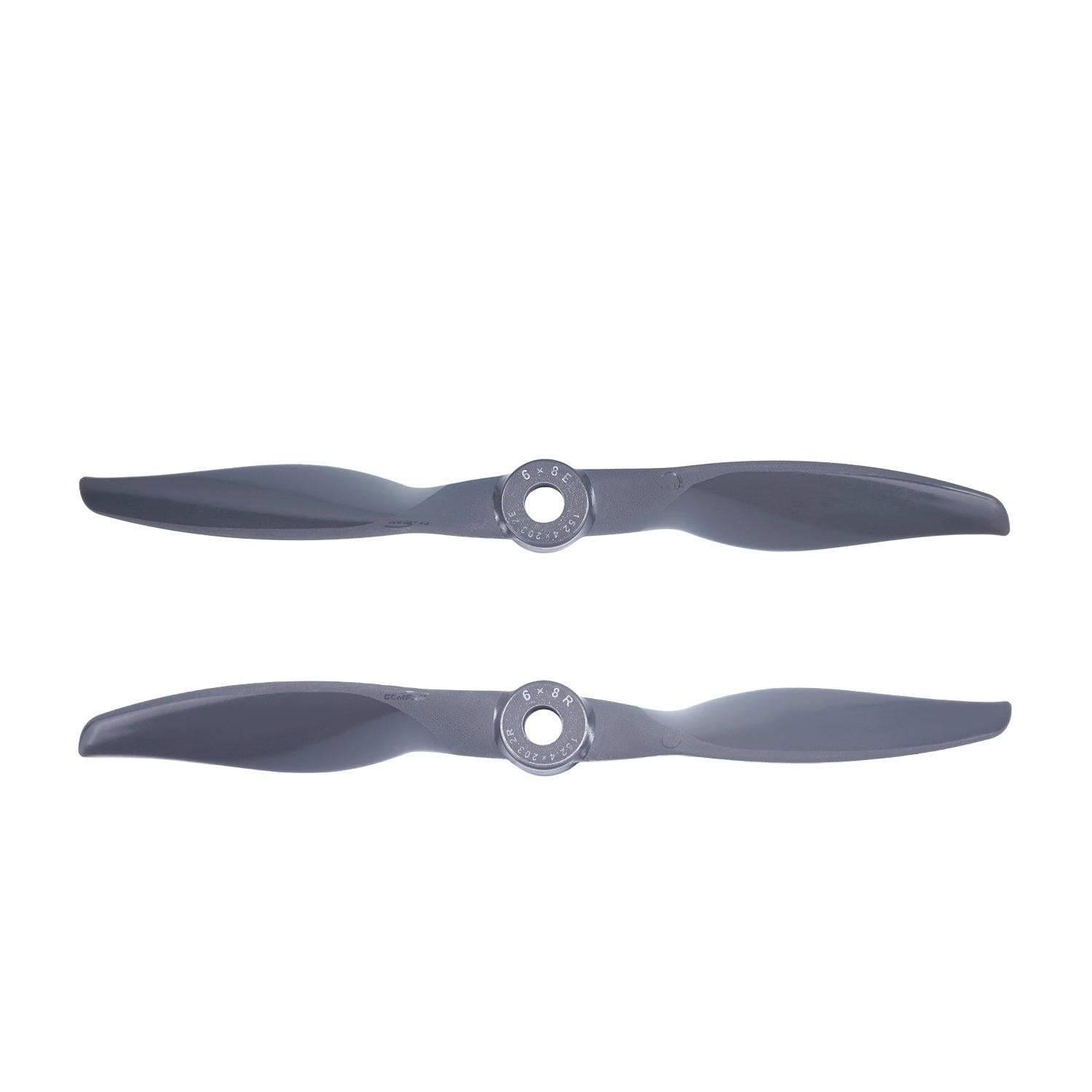

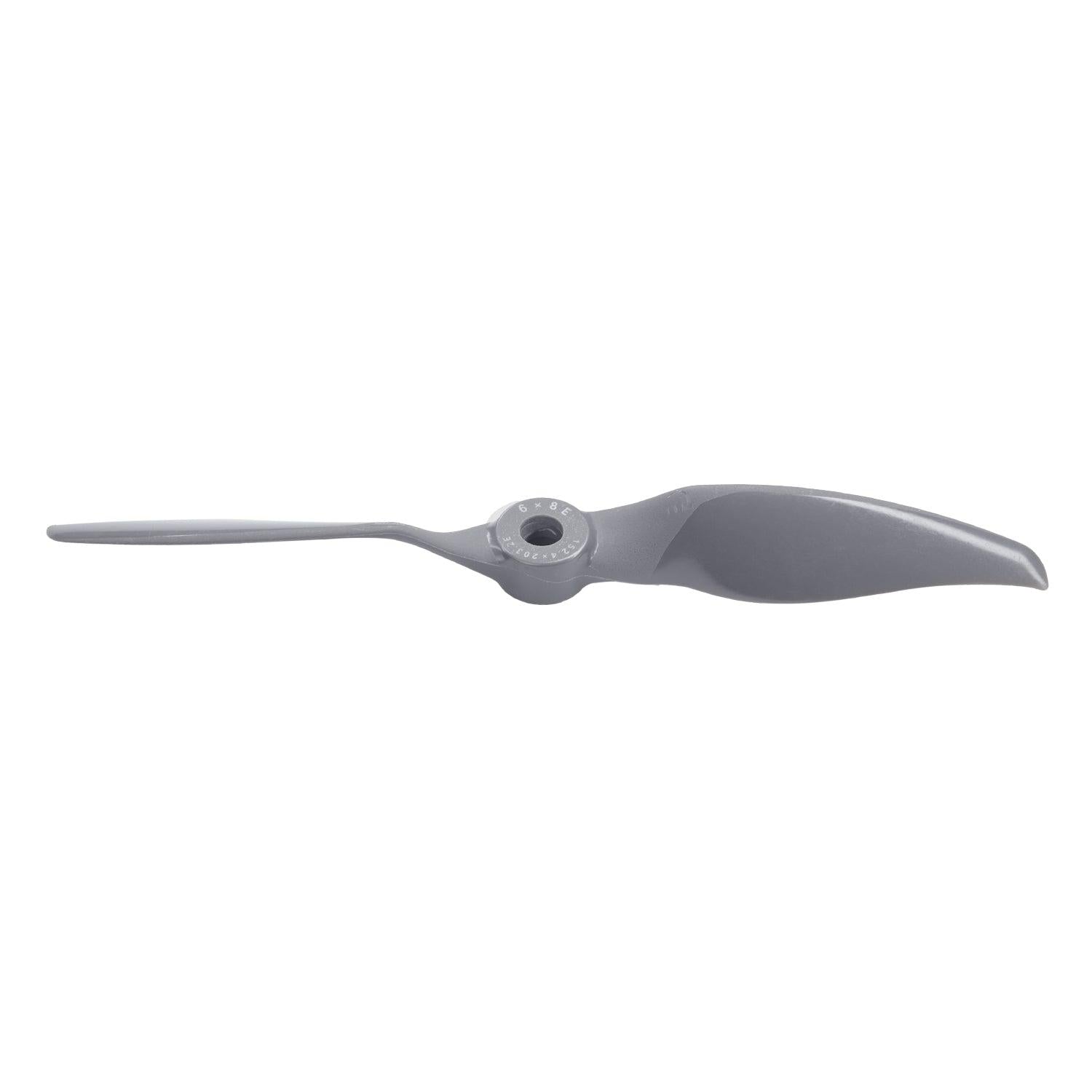

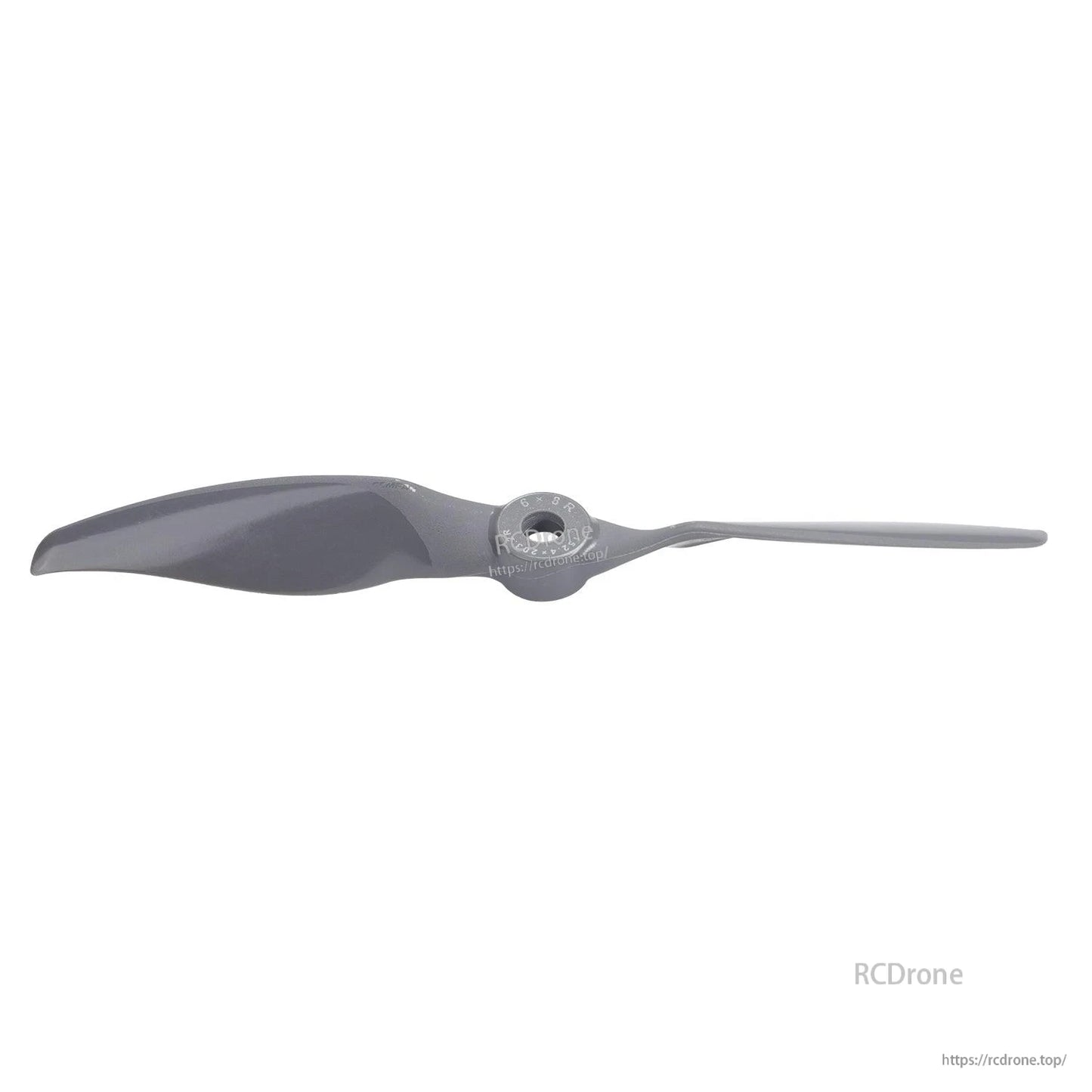

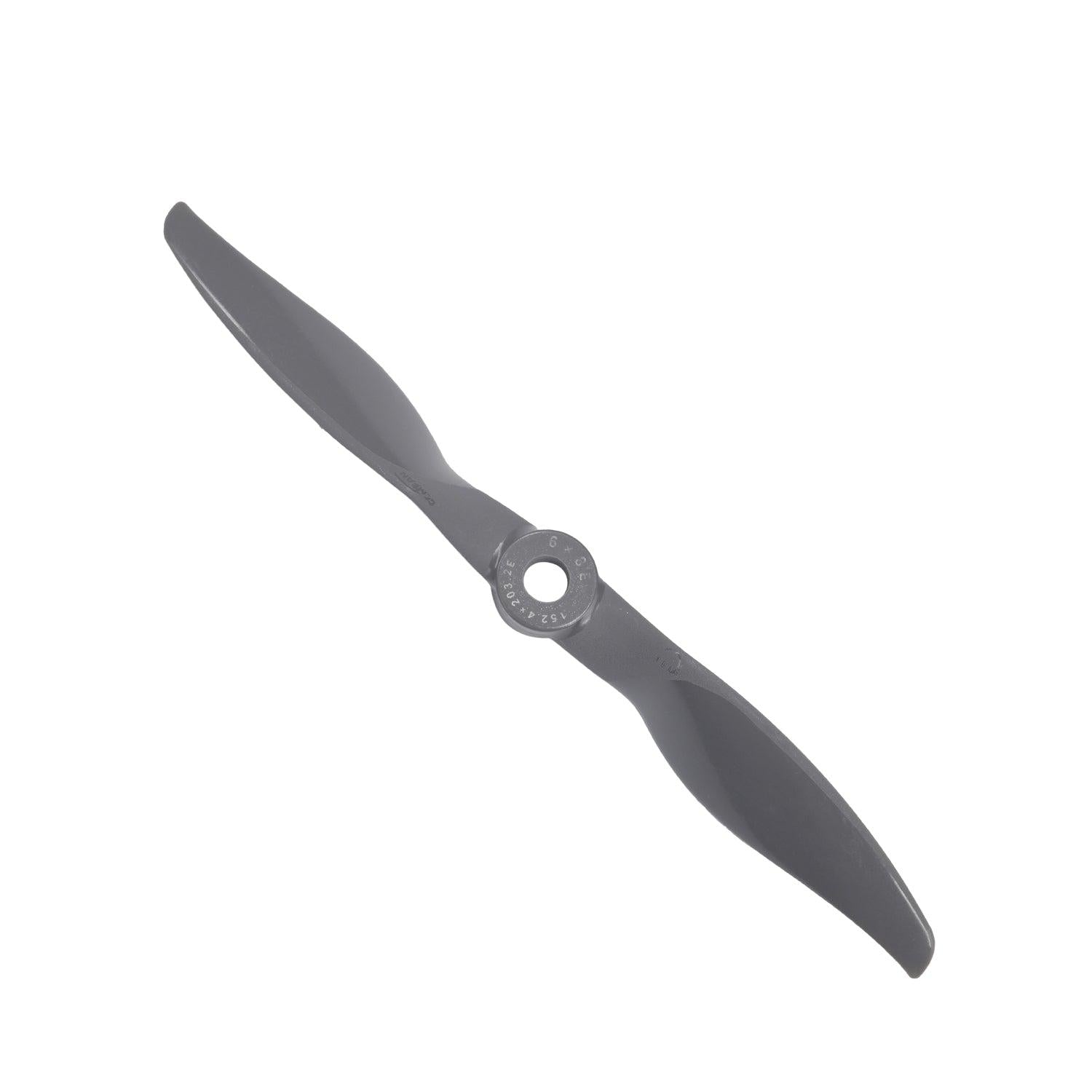

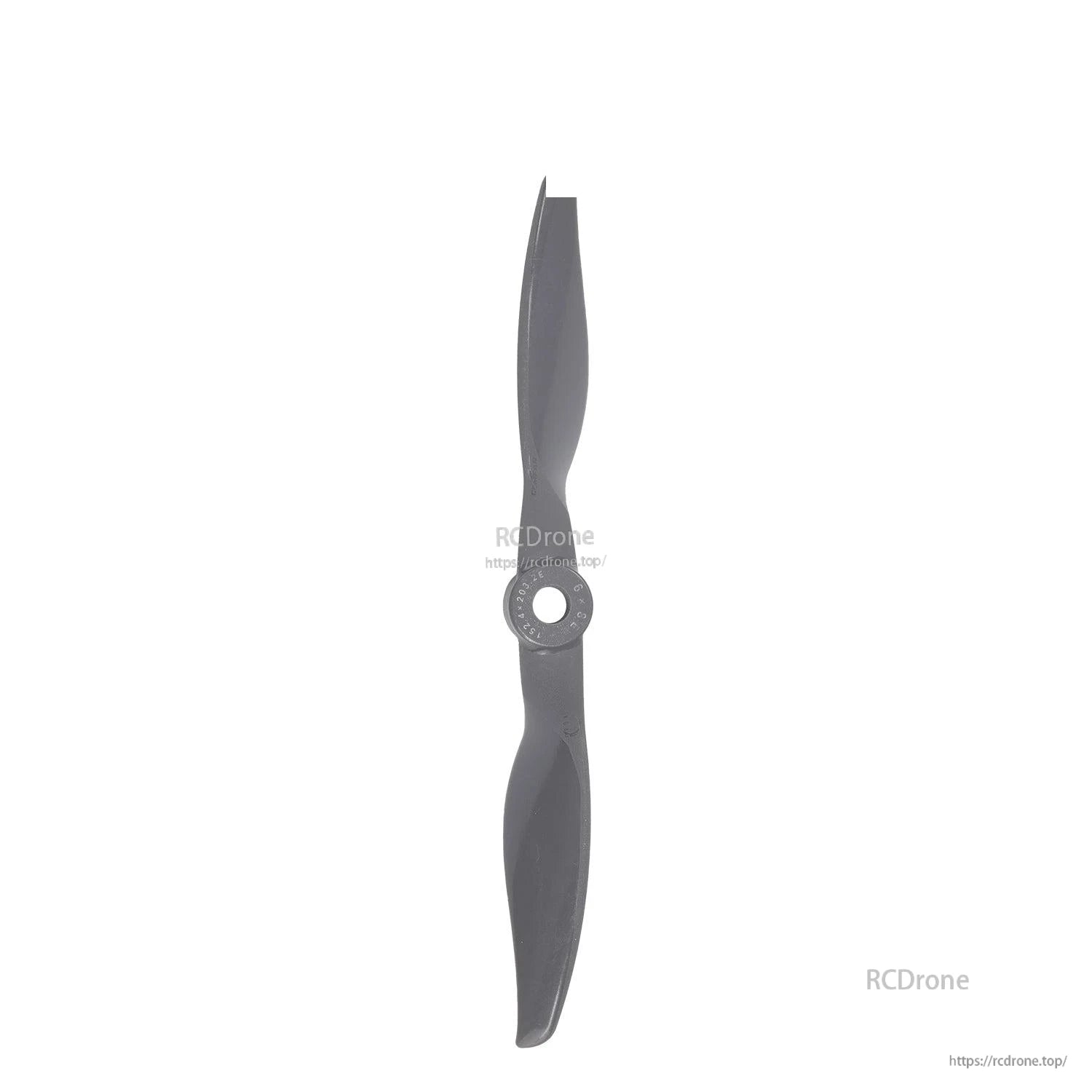

Gemfan Vortex 6×8E/6×8R is an electric propeller made from glass fiber nylon, supplied as 2 pieces per bag. It is sized for a 6-inch diameter with 8-inch pitch and includes a set of shaft adapters for common motor shaft diameters.

Key Features

Model: 6×8E / 6×8R
Material: glass fiber nylon
Includes 5 shaft adapters: 3 mm / 4 mm / 5 mm / 6 mm / 7 mm

Specifications

Propeller diameter	6 inches
Pitch	8 inch
Hub diameter	14.8 mm
Center thickness	9 mm
Center hole diameter	6.35 mm / 0.25 inches
Weight (single propeller)	7.3 g
Product weight (including packaging)	18.2 g
Adapter sizes (included)	3 mm / 4 mm / 5 mm / 6 mm / 7 mm (5 pieces)

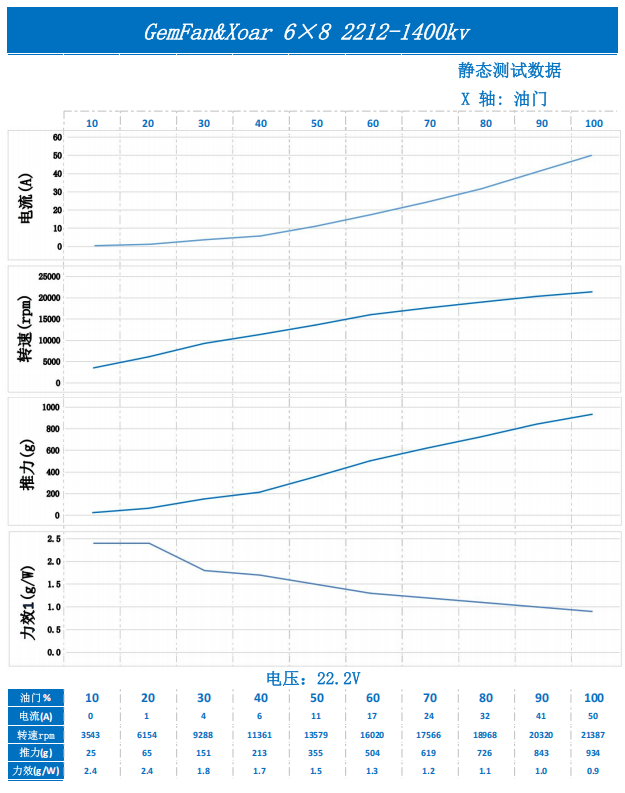

Static Test Data

Test motor	2212-1400KV
Voltage	22.2 V

Throttle (%)	10	20	30	40	50	60	70	80	90	100
Current (A)	0	1	4	6	11	17	24	32	41	50
RPM	3543	6154	9288	11361	13579	16020	17566	18968	20320	21387
Thrust (g)	25	65	151	213	355	504	619	726	843	934
Efficiency (g/W)	2.4	2.4	1.8	1.7	1.5	1.3	1.2	1.1	1.0	0.9

What’s Included

Gemfan Vortex 6×8E/6×8R electric propeller: 2 pieces/bag
Adapters: 5 pieces (3 mm / 4 mm / 5 mm / 6 mm / 7 mm)

For pre-sales compatibility questions (motor shaft size, mounting fit, and adapter selection), contact support@rcdrone.top or visit https://rcdrone.top/.

Gemfan Vortex 6X8E/6X8R Electric Propeller Glass fiber nylon
