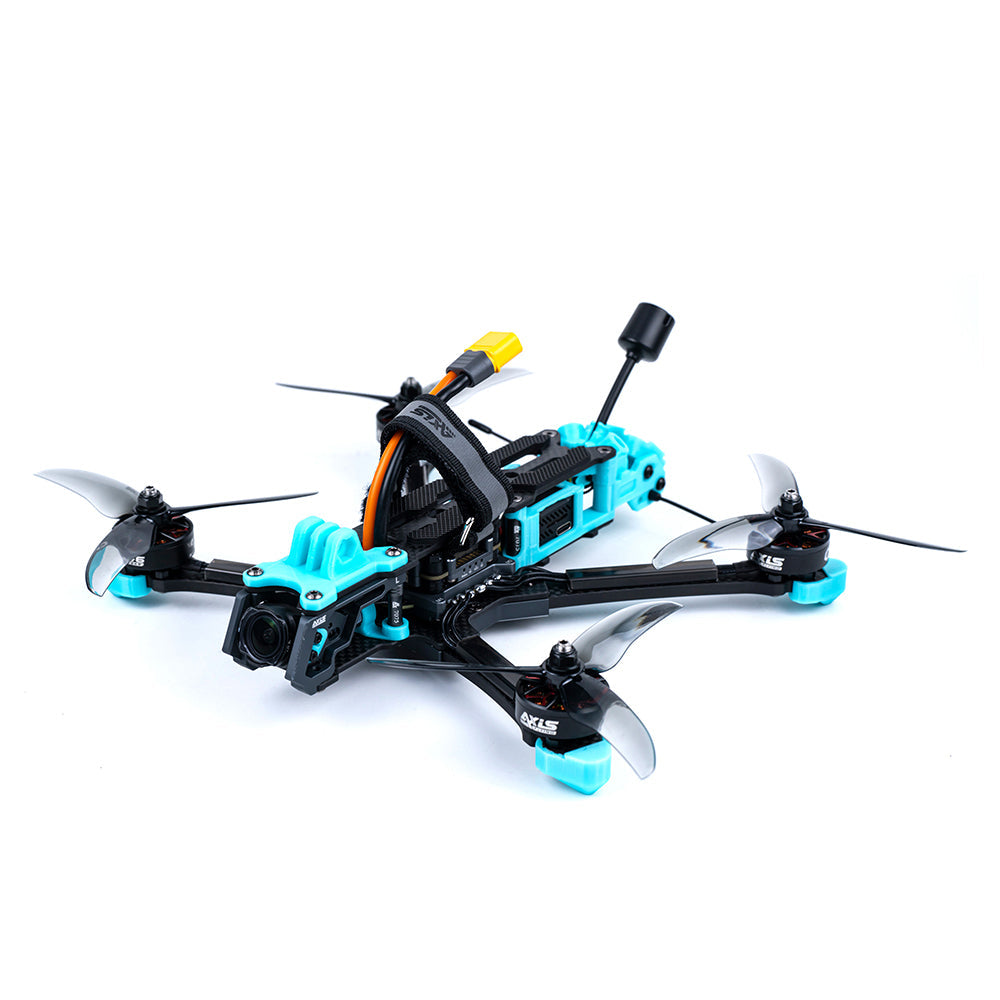

• Axisflying MANTA5 DeadCat 5-inch FPV freestyle frame build with carbon arms, top battery strap and front camera mount

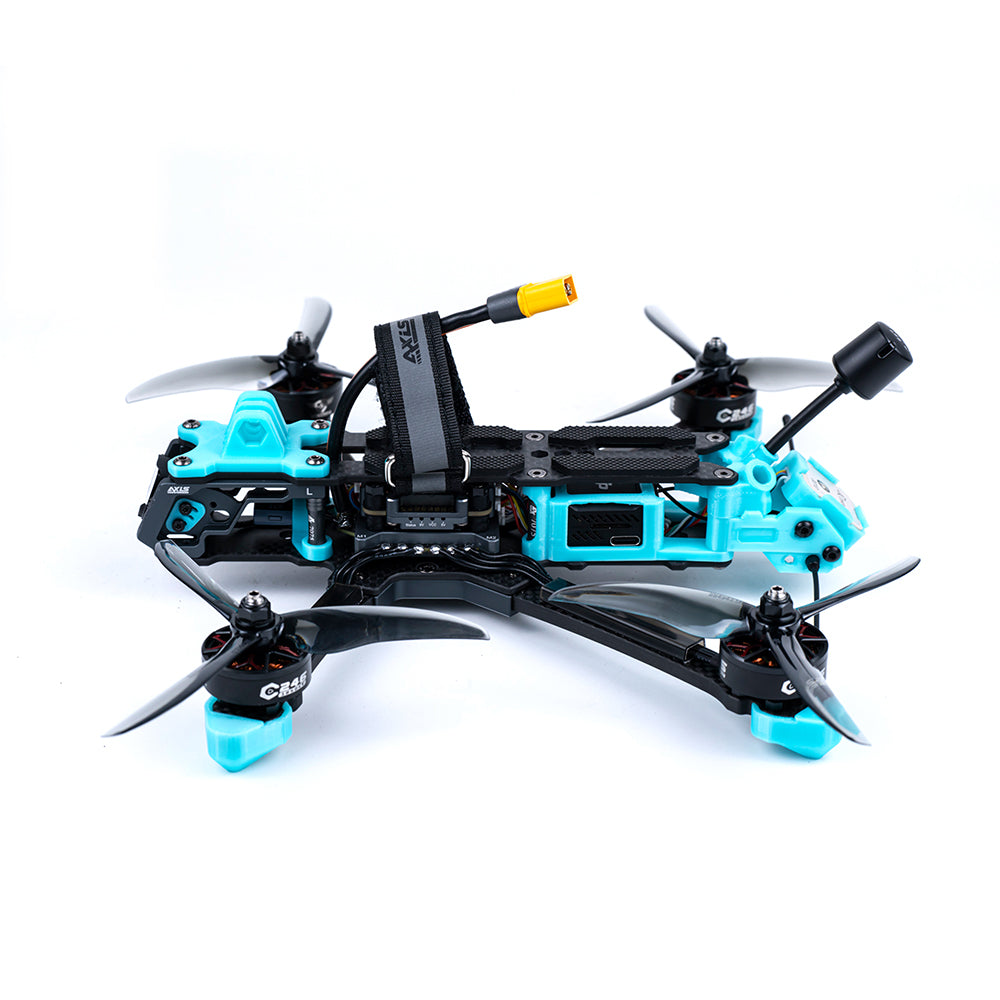

  • Axisflying MANTA5 DeadCat 5-inch FPV freestyle frame build with top battery strap, XT60 lead, and blue TPU parts

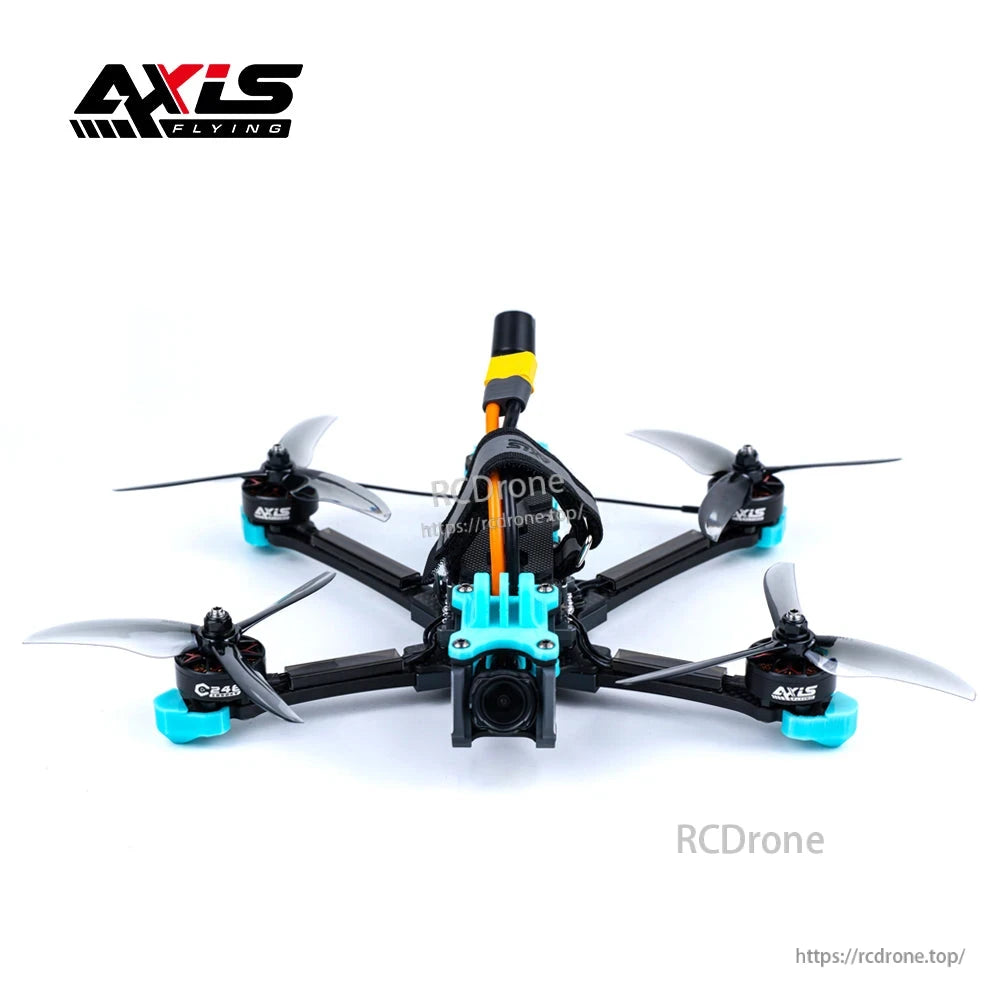

  • Axisflying MANTA5 DeadCat-DC 5-inch FPV freestyle frame layout with front camera mount and teal TPU parts

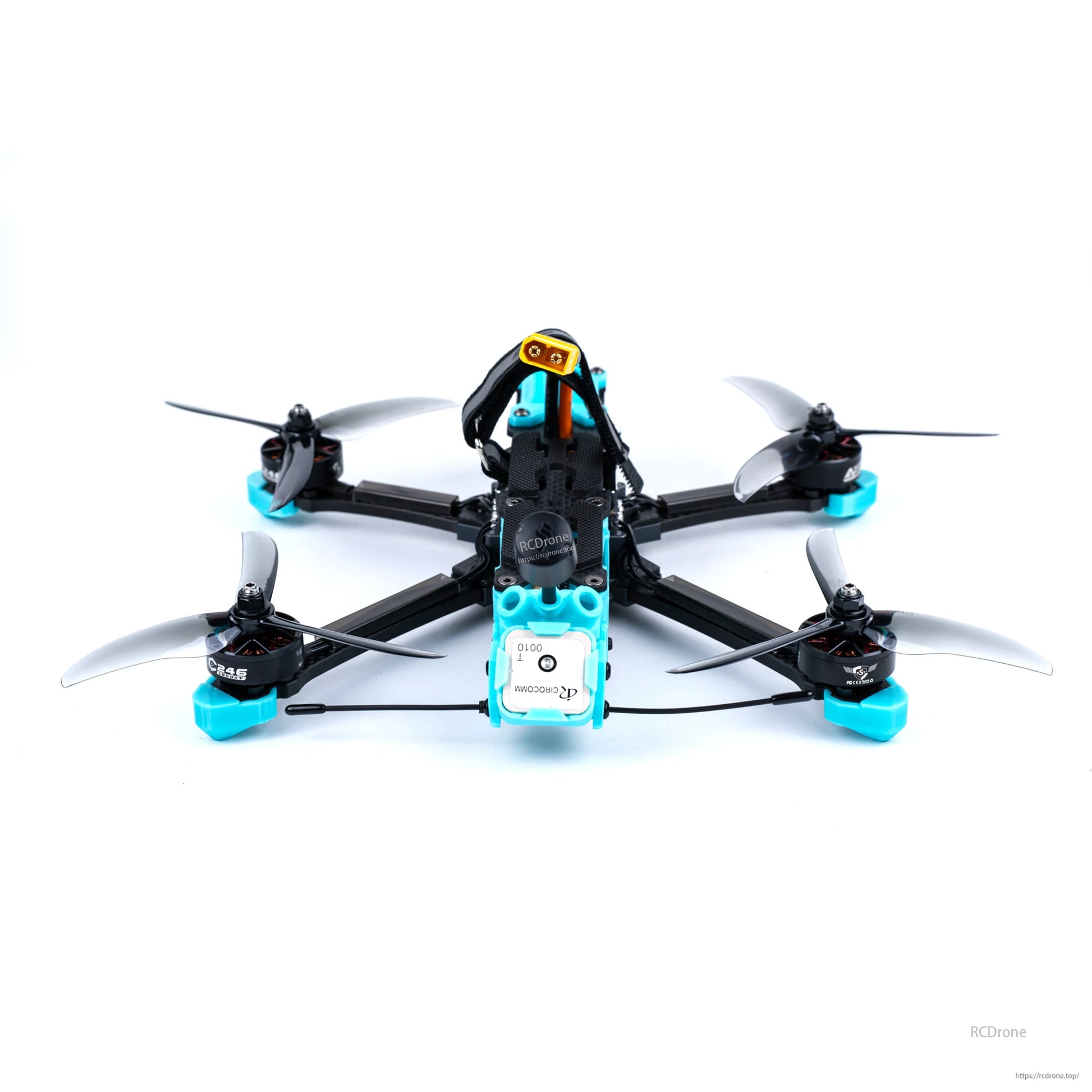

  • Axisflying MANTA5 DeadCat 5-inch FPV freestyle frame build with carbon arms, blue TPU parts, and top battery strap
1 4

Axisflying MANTA5 DeadCat-DC 5 Inch FPV Freestyle Frame, 229mm Wheelbase, T700 Carbon, Max 5.1in

Axisflying MANTA5 DeadCat-DC 5 Inch FPV Freestyle Frame, 229mm Wheelbase, T700 Carbon, Max 5.1in

Axisflying

$572.60 USD
$572.60 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Drone
Type
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Axisflying MANTA5 DeadCat-DC is a 5 inch FPV freestyle frame that combines CNC aluminum structure parts with high-strength carbon plates for a strong, stable build layout. It supports common stack and VTX mounting patterns, and is designed around 19–20 mm wide FPV cameras with aluminum side-plate protection.

Key Features

  • CNC aluminum structure design combined with high-strength carbon plate for a strong and stable overall structure.
  • Stack mounting compatibility: 20*20MM and 30.5*30.5MM.
  • VTX mounting compatibility: movable M2* (20*20MM) and M3 (30.5*30.5MM); supports analog VTX and HD VTX (DJI Air Unit and Vista).
  • Compatible with 19–20MM wide FPV cameras; aluminum side plates help protect the camera.
  • Upgraded print section to fix the lens more firmly, reducing jelly.
  • Motor mounting holes: 16*16MM.
  • Recommended prop size range: 4.9"–5.1" freestyle propellers (max 5.1inch).

Specifications

Wheelbase 229mm
Weight 482g
Carbon Fiber T700
Max Prop Size 5.1inch
Stack Mounting 20*20MM, 30.5*30.5MM
VTX Mounting Movable M2* (20*20MM), M3 (30.5*30.5MM)
FPV Camera Compatibility 19–20MM width
Motor Mounting Holes 16*16MM

Recommended Configuration

  • Motors: Axisflying C246 cinematic motor
  • LiPos: 1050–1500mAh 4/6S
  • Stack: Axisflying ArgusPRO 55A / F7 STACK
  • Propellers: Axisflying / Gemfan / HQ 4.9"–5.1" freestyle props

For build compatibility questions (stack/VTX/camera fitment), contact support@rcdrone.top or visit https://rcdrone.top/.

Details

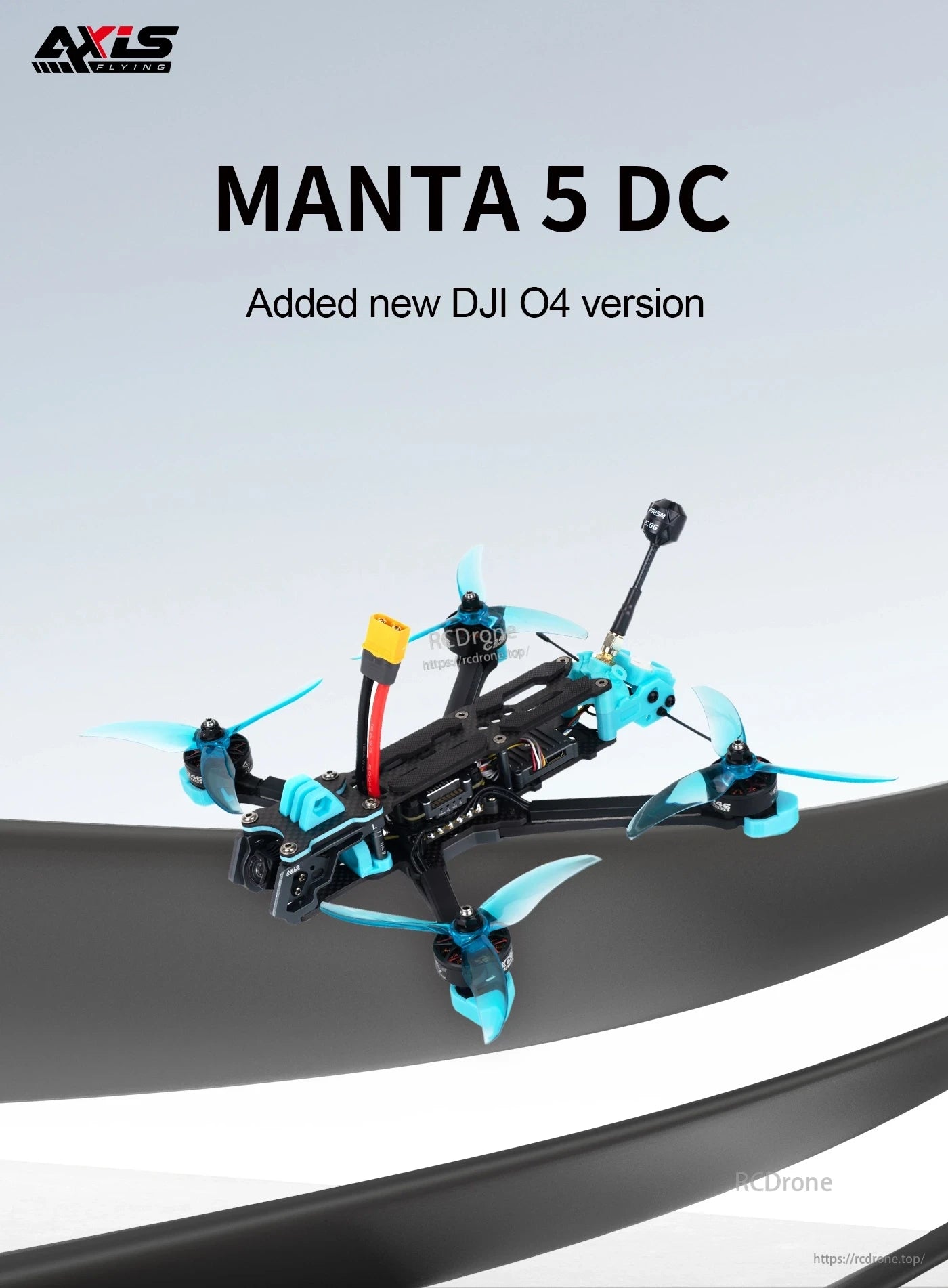

Axisflying MANTA 5 DC DeadCat 5-inch FPV frame build with blue prop guards, camera mount, and rear antenna

The MANTA 5 DC DeadCat layout keeps the front camera view clear while providing mounting points for a rear antenna and top battery strap.

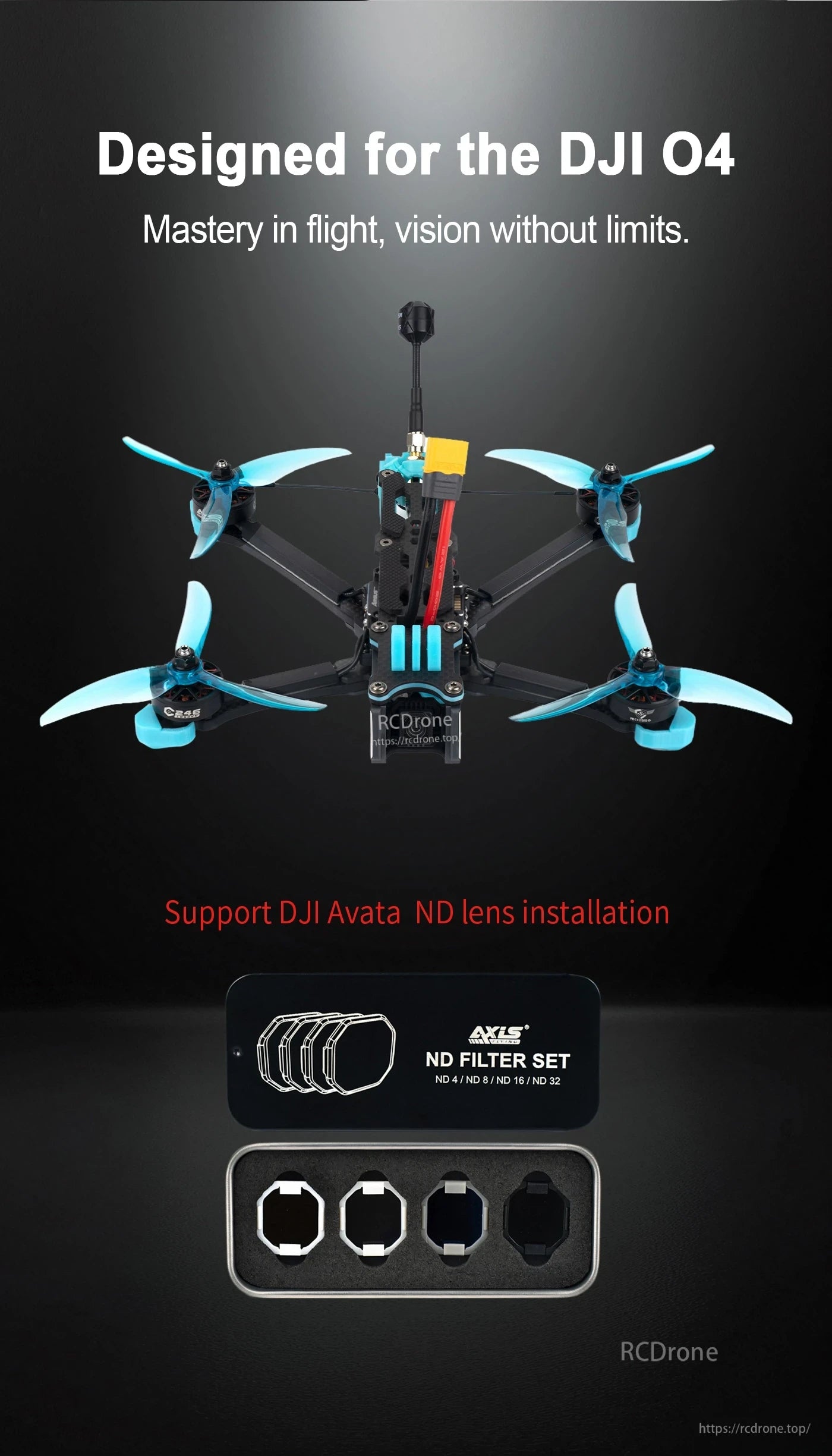

FPV freestyle quad frame with blue propellers, designed for DJI O4 camera and supporting Avata ND filters

The MANTA5 DeadCat-style 5-inch frame layout is designed for DJI O4 setups and supports DJI Avata ND lens installation.

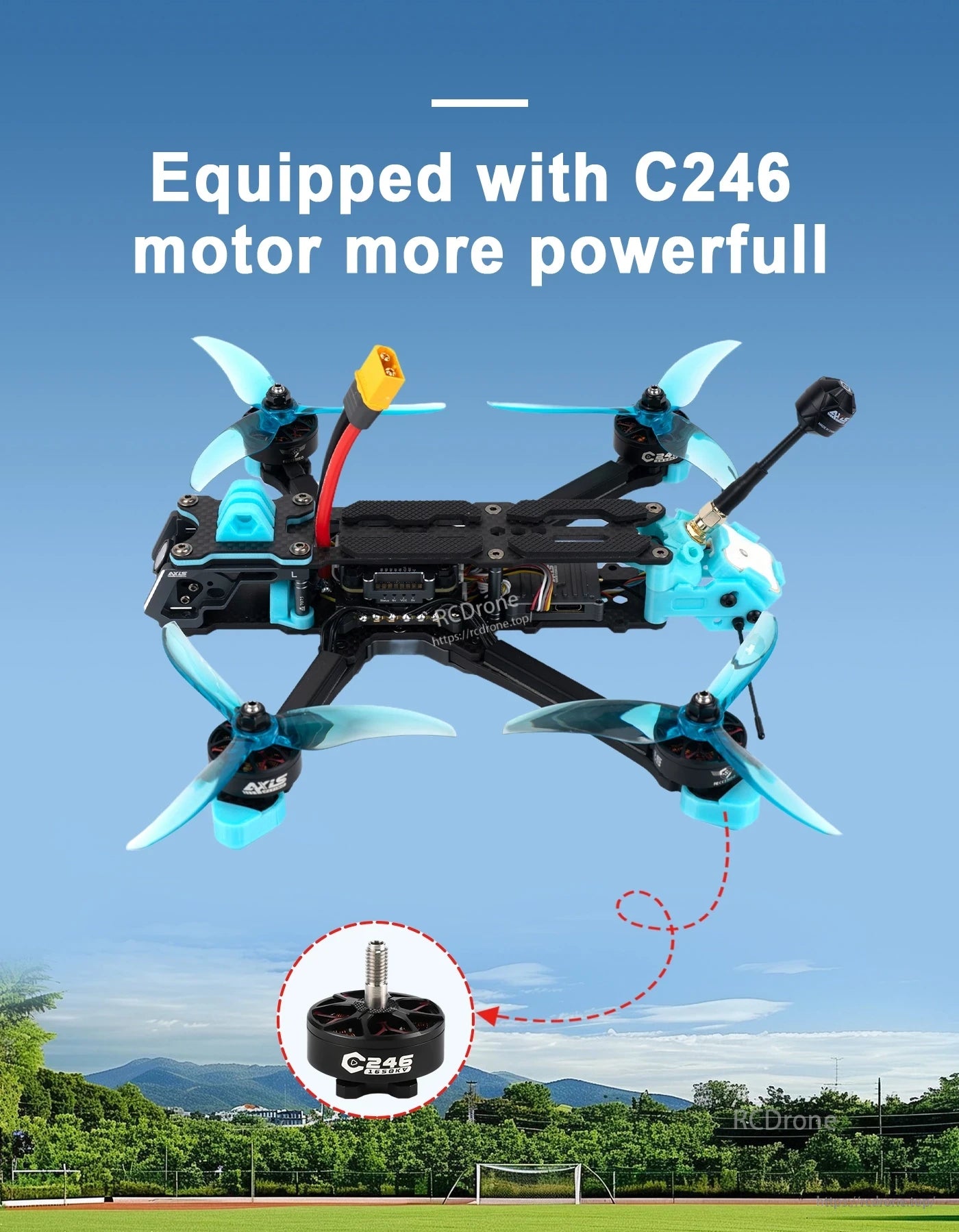

FPV freestyle quadcopter with DeadCat-style frame, blue propellers, and C246 motors on a carbon top plate

A DeadCat-style 5-inch FPV quad layout with C246 motors and a low-profile carbon frame keeps the build compact and balanced.

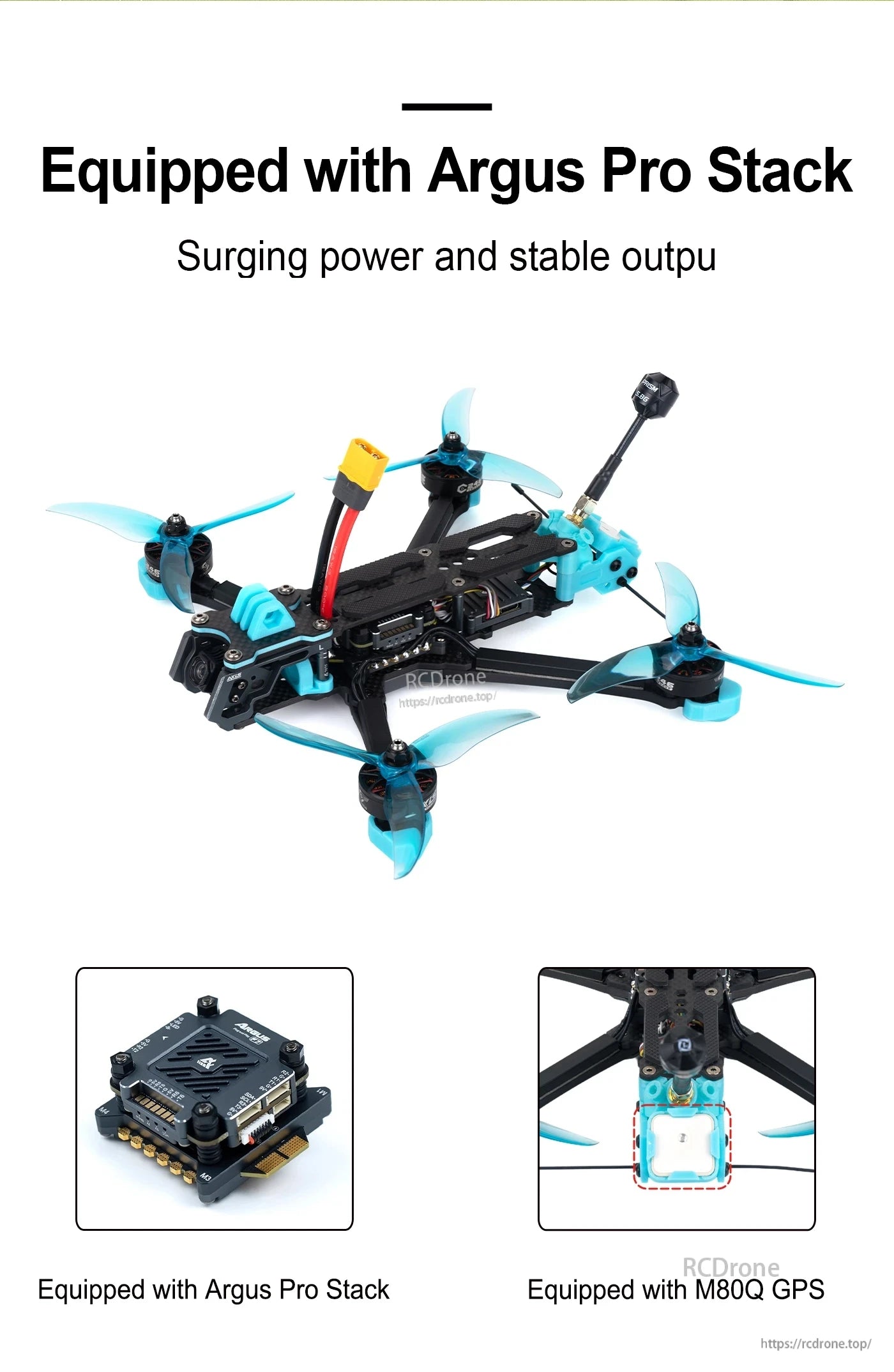

5-inch FPV quad on a carbon DeadCat-style frame with blue props, front camera mount, and GPS antenna

The DeadCat-style carbon frame layout leaves room for a flight stack and a rear-mounted GPS module.

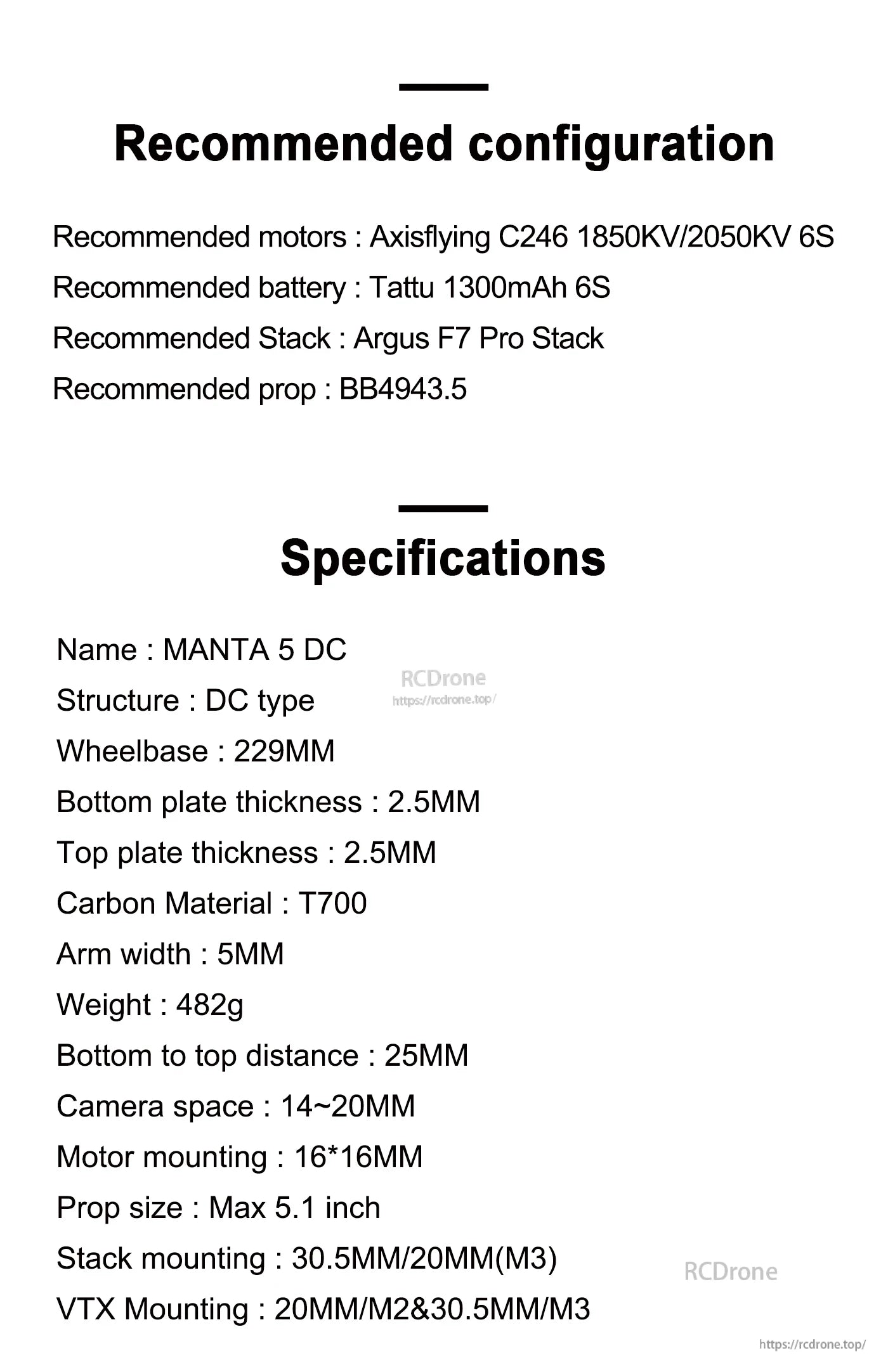

Axisflying MANTA 5 DC DeadCat 5-inch FPV frame specs and recommended setup list, including 229mm wheelbase

MANTA 5 DC DeadCat frame specs list a 229mm wheelbase, T700 carbon, 5mm arms, and support for up to 5.1-inch props.

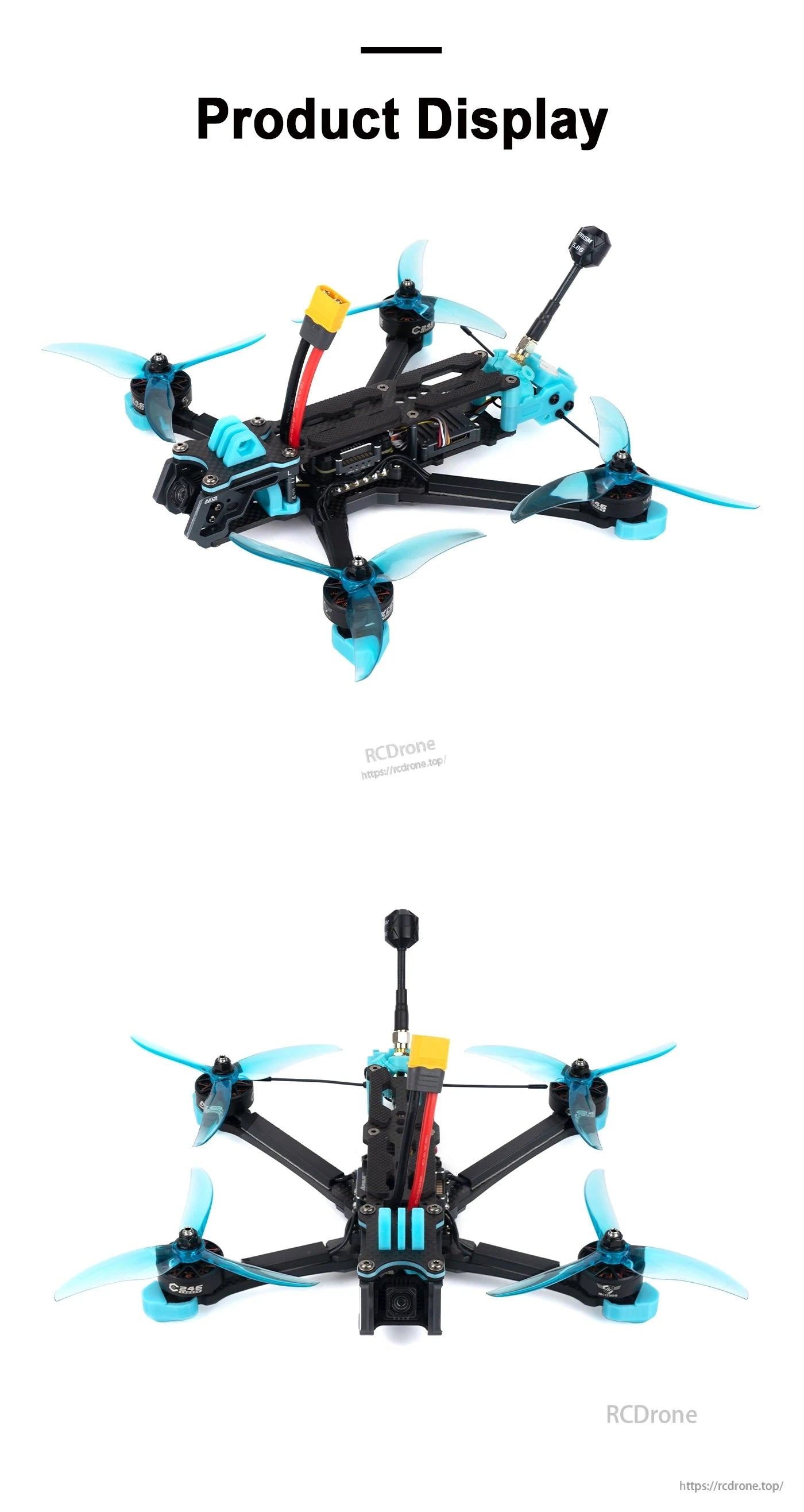

Axisflying MANTA5 5-inch deadcat FPV freestyle frame build with carbon arms, front camera mount, and antenna

The MANTA5 DeadCat frame uses a low-profile carbon layout with a front FPV camera mount and rear antenna support for a clean freestyle build.

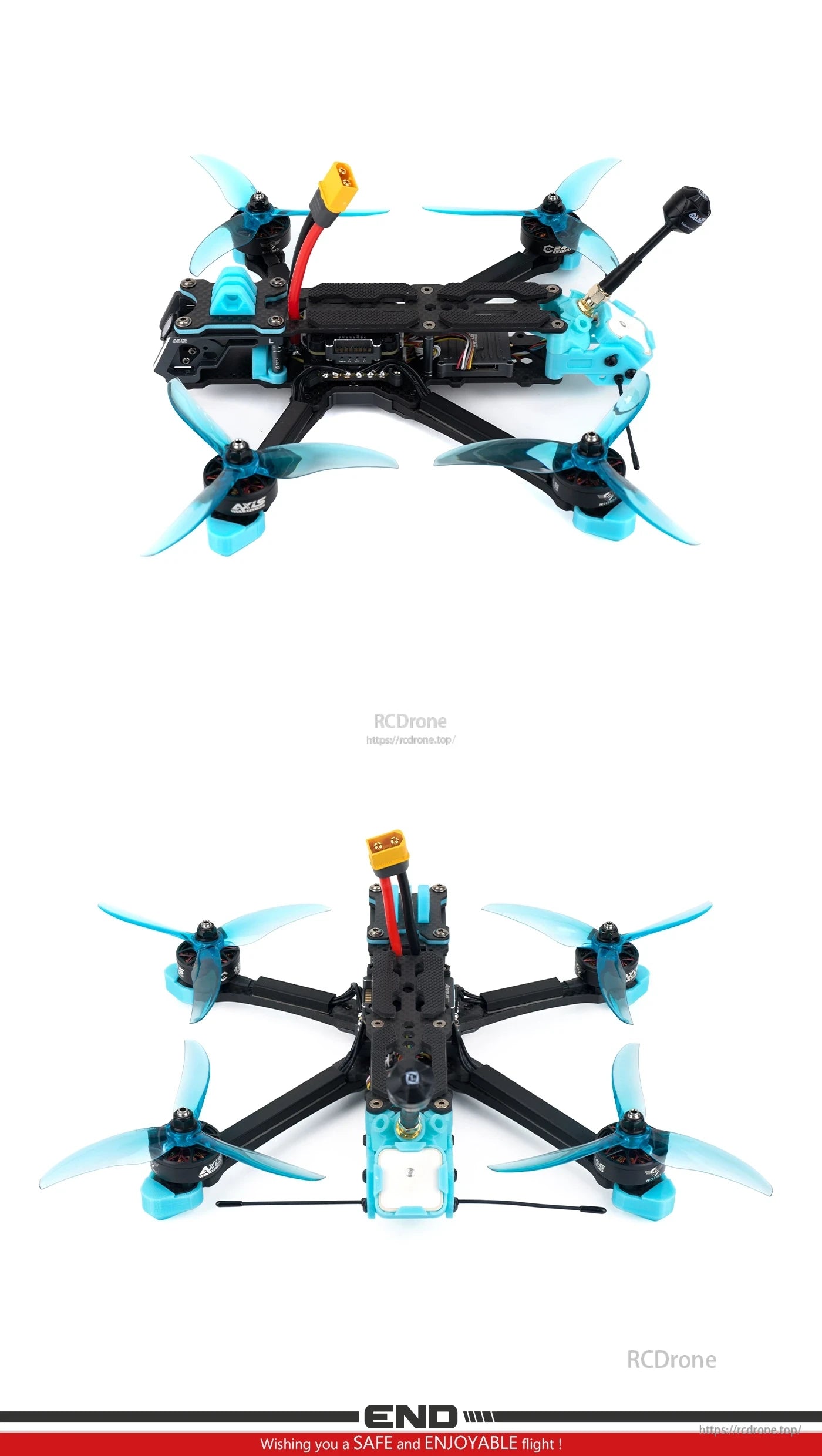

Axisflying MANTA5 DeadCat-DC 5-inch FPV quad frame in carbon fiber, top and bottom views with blue props

The DeadCat-DC carbon frame layout leaves a roomy center stack area with top-plate strap slots, plus a rear antenna mount and battery lead routing.
