T-Motor A8-X KV115 12-14S Modular Propulsion System Kit for 10L/16L Agriculture Drones (80A ESC)

T-Motor A8-X KV115 12-14S Modular Propulsion System Kit for 10L/16L Agriculture Drones (80A ESC)

T-MOTOR

$385.00 USD
$385.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
Rotation
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

T-Motor A8-X is a Modular Propulsion System Kit designed for 10L quadcopter or 16L hexacopter agriculture drones. The setup combines an A8-X KV115 motor, a 14S FOC 80A ESC, and MF3119P polymer folding propellers for 12~14S (LiPo) power systems.

Key Features

  • Recommended airframe: 10L agriculture quadcopter or 16L agriculture hexacopter
  • Recommended take-off weight: 22~30kg (quadcopter), 30~42kg (hexacopter)
  • Rated thrust: 5~7kg; max thrust: 19kg
  • Efficiency at rated thrust: 9.53g/W (5.2kg)
  • Ingress protection: IPX6
  • ESC control method: PWM/CAN; protocol support: DRONE CAN, UAV CAN, CUBE CAN

For installation or compatibility questions (battery, CAN/PWM wiring, and controller setup), contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Model No. A8-X KV115
Tube Size 40mm
Setup A8-X (Motor) + 14S FOC 80A (ESC) + MF3119P (Propellers)
Recommended Battery 12~14S (LiPo)
Rated Thrust 5~7kg
Max Thrust 19kg
Efficiency at Rated Thrust 9.53g/W (5.2kg)
IP Rating IPX6
Recommended Ambient Temperature -30~50°C
Weight 1180±2%g (Incl. Wires + Prop)
Wire Length 1100±10mm
Wire Material, Wire Gauge, Color Power Wires: 12#AWG Red & Black
Signal Wires: 5P Teflon

Motor Specs

Stator Size 81*20mm
KV 115

ESC Specs

Throttle Range 1100~1940us (Fixed)
Max Voltage 61V
Protocol DRONE CAN, UAV CAN, CUBE CAN
Peak Current (For a Short Time) 80A (Open environment and temperature <= 60°C)
Control Method PWM/CAN
BEC NO

Prop Specs

Model No. MF3119P (Polymer Folding)
Length 31 Inch (784mm)

What’s Included

  • A8-X Modular Propulsion System x 1 (Excl. Carbon Tube)
  • Parts Bag x 1

Applications

  • 10L agriculture quadcopter drones
  • 16L agriculture hexacopter drones

Details

T-Motor A8-X Modular Propulsion System

The T-Motor brushless motor comes pre-fitted with a two-blade propeller for a clean, ready-to-install setup.

A8-X Technical Drawing

The propeller’s measured hub layout and blade profile help confirm mounting fit and overall clearance during setup.

A8-X Analysis Chart

T-Motor performance data maps thrust against torque, RPM, current, efficiency, and power to help with propulsion selection.

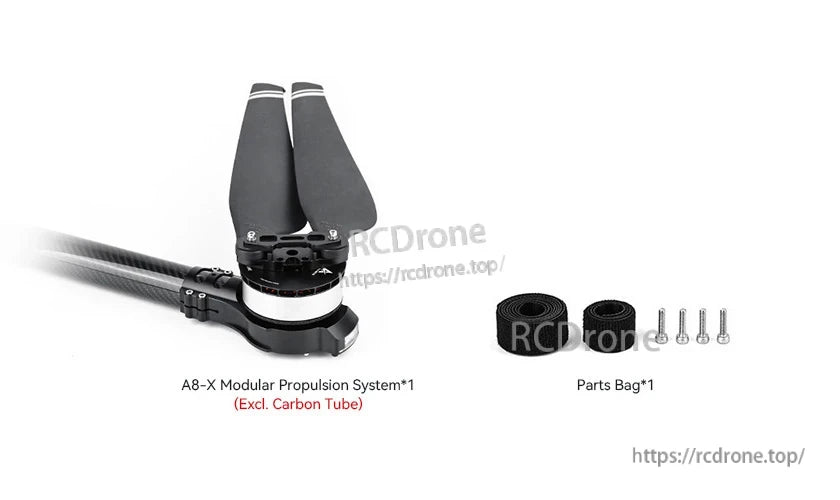

A8-X Packing List

The T-Motor A8-X modular propulsion system includes the motor and prop unit plus a parts bag with straps and mounting screws (carbon tube not included).
