Beitian BF-180 GPS Module GNSS Antenna for SEEKER 5 Drone, B1301Y, 100ch, 1-20Hz, NMEA/UBX

Beitian BF-180 GPS Module GNSS Antenna for SEEKER 5 Drone, B1301Y, 100ch, 1-20Hz, NMEA/UBX

Deep Space

$26.60 USD
$26.60 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Beitian BF-180 is a GPS module (GNSS module) antenna module for the SEEKER 5 drone, featuring the B1301Y chip and TTL-level UART output for NMEA/UBX data.

Key Features

  • GNSS bands: GPS L1 / BDS B1 / Galileo E1 / QZSS L1 / SBAS L1
  • 100 channels
  • Update rate: 1-20Hz (default: 10Hz)
  • Protocols: NMEA, UBX
  • TTL output level
  • Connector: 1.00 pitch 4-pin socket
  • Module markings include: Beitian BF-180 GNSS Module; pads labeled PPS / RX / TX / VCC / GND

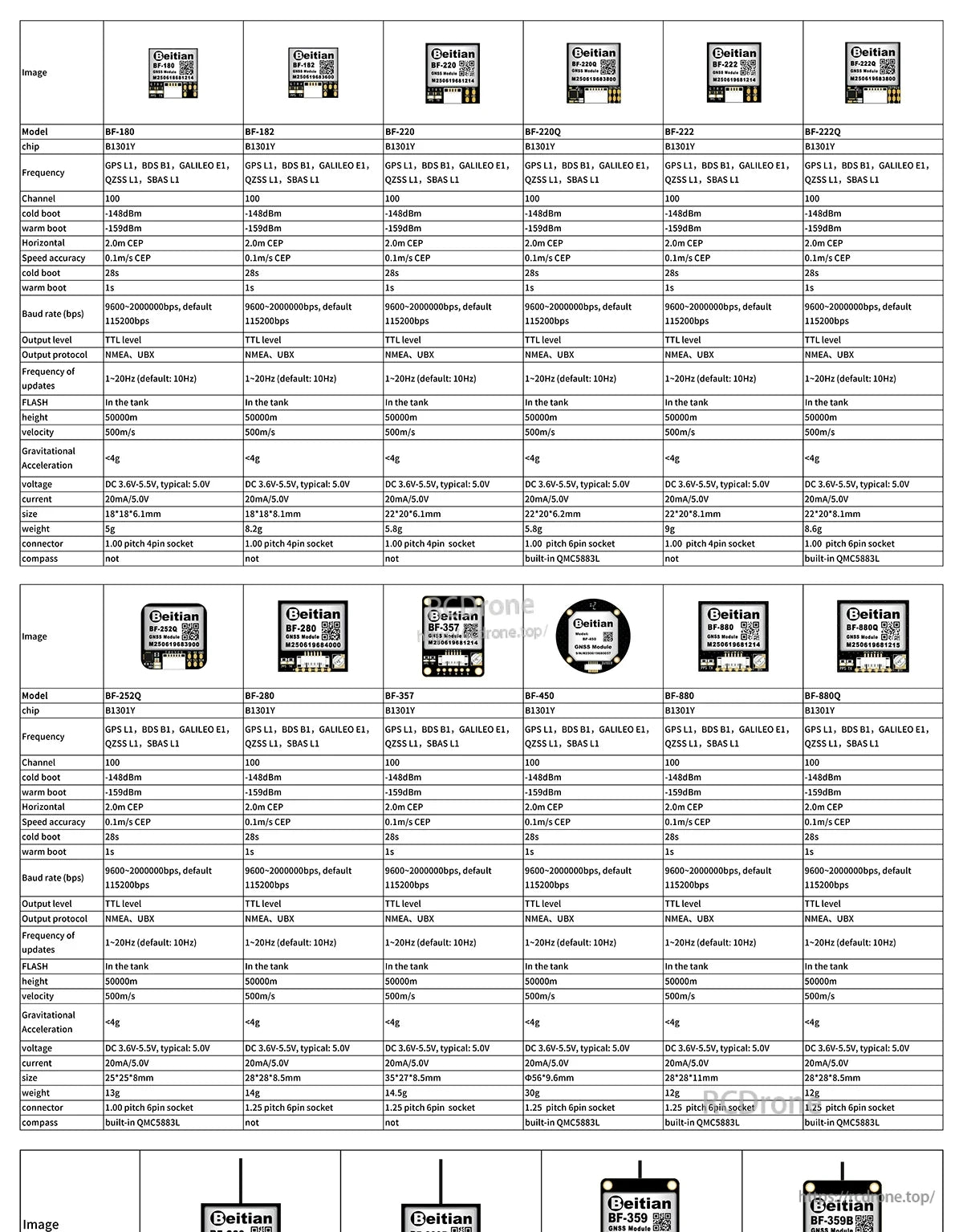

Specifications

Model BF-180
Chip B1301Y
Frequency GPS L1, BDS B1, GALILEO E1, QZSS L1, SBAS L1
Channel 100
Cold boot (sensitivity) -148dBm
Warm boot (sensitivity) -159dBm
Horizontal 2.0m CEP
Speed accuracy 0.1m/s CEP
Cold boot (time) 28s
Warm boot (time) 1s
Baud rate (bps) 9600-2000000bps, default 115200bps
Output level TTL level
Output protocol NMEA, UBX
Frequency of updates 1-20Hz (default: 10Hz)
FLASH In the tank
Height 50000m
Velocity 500m/s
Gravitational Acceleration <4g
Voltage DC 3.6V-5.5V, typical: 5.0V
Current 20mA/5.0V
Size 18*18*6.1mm
Weight 5g
Connector 1.00 pitch 4pin socket
Compass not

For compatibility questions or integration support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

Beitian BF-180 GPS Module Antenna Module GNSS For SEEKER 5 Drone

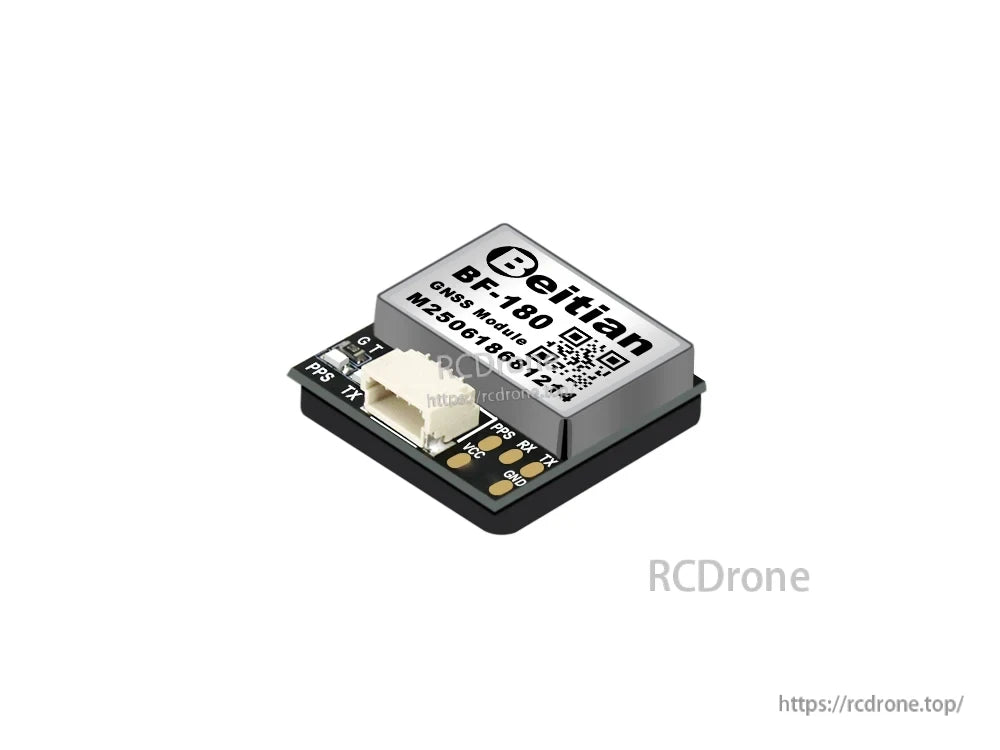

The Beitian BF-180 GNSS module includes a JST plug and clearly labeled pads for VCC, GND, TX, RX, and PPS wiring.

Beitian BF-180 GPS Module Antenna Module GNSS For SEEKER 5 Drone

Beitian BF-180 uses the B1301Y chipset with multi-GNSS support (GPS L1, BDS B1, GALILEO E1) in an 18×18×6.1 mm module with a 1.0‑pitch 4‑pin socket.
