Flywoo 5V/12V 2A BEC Module V2.0 w/ Remote Switch Control, 2-6S Input, 17.5x6.5mm

Overview

The Flywoo 5V/12V 2A BEC module V2.0 is a compact BEC module for regulated power output from a 2–6S input, with selectable 5V or 12V output (default 5V). It supports remote-controlled switching via a control signal, eliminating the need for a physical switch.

Key Features

• Selectable output: 5V/2A or 12V/2A (default: 5V/2A)
• Remote-controlled switch function (control signal input)
• Switch BEC mode
• High-efficiency synchronous design
• Wide input voltage range: 7V to 26V
• Stable power supply: 2A output

Specifications

Wiring & Control Notes

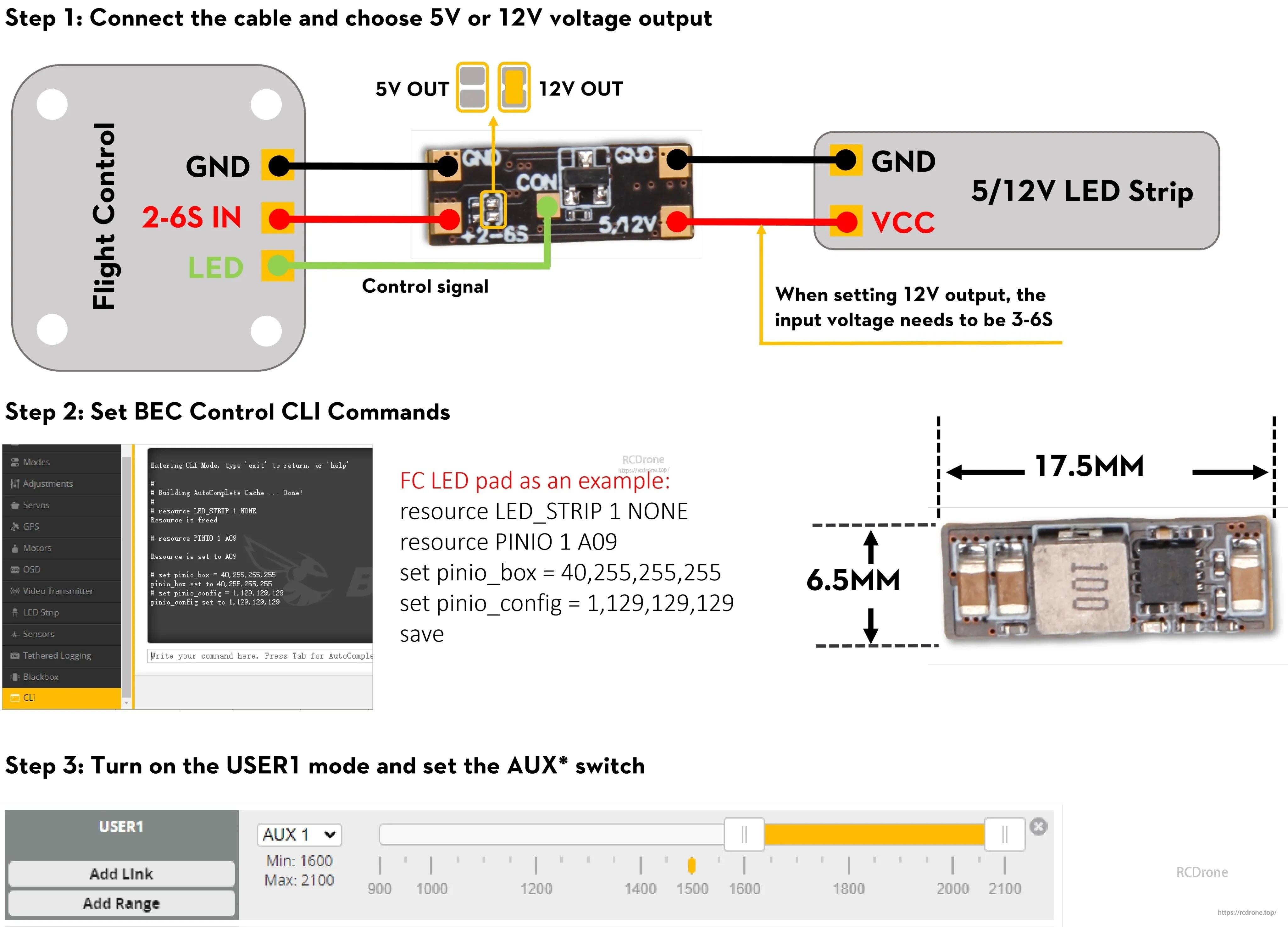

• Connection labels used in the wiring diagram: GND, 2-6S IN, LED (control signal), and output selection 5V OUT / 12V OUT.
• Example load connection shown: a 5/12V LED Strip with GND and VCC.

Example Betaflight CLI (BEC Control)

FC LED pad example commands:

resource LED_STRIP 1 NONE
resource PINIO 1 A09
set pinio_box = 40,255,255,255
set pinio_config = 1,129,129,129
save

Step text provided: “Turn on the USER1 mode and set the AUX* switch”.

Important Notice

• If the BEC input is a 6S battery, a 6S voltage capacitor needs to be added.
• If the BEC input is FC or ESC, no capacitor is needed.

What’s Included

• 1 x Flywoo 2–6S BEC
• 1 x Connecting cable set

Support

For installation questions and compatibility checks, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

The Flywoo BEC connects to 2–6S input power and provides selectable 5V or 12V output for powering an LED strip with a control signal from the flight controller.
