A30-F 80mm 20AWG Connector Pigtail (Female) 5-Pack | A30 High Current Lead, 15A Continuous

Name: A30-F 80mm 20AWG Connector Pigtail (Female) 5-Pack | A30 High Current Lead, 15A Continuous
Brand: FLYWOO
SKU: flywoo-GH204
Price: 8.99 USD
Availability: InStock

A30-F 80mm 20AWG Connector Pigtail (Female) 5-Pack | A30 High Current Lead, 15A Continuous

FLYWOO

$8.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

View full details

Overview

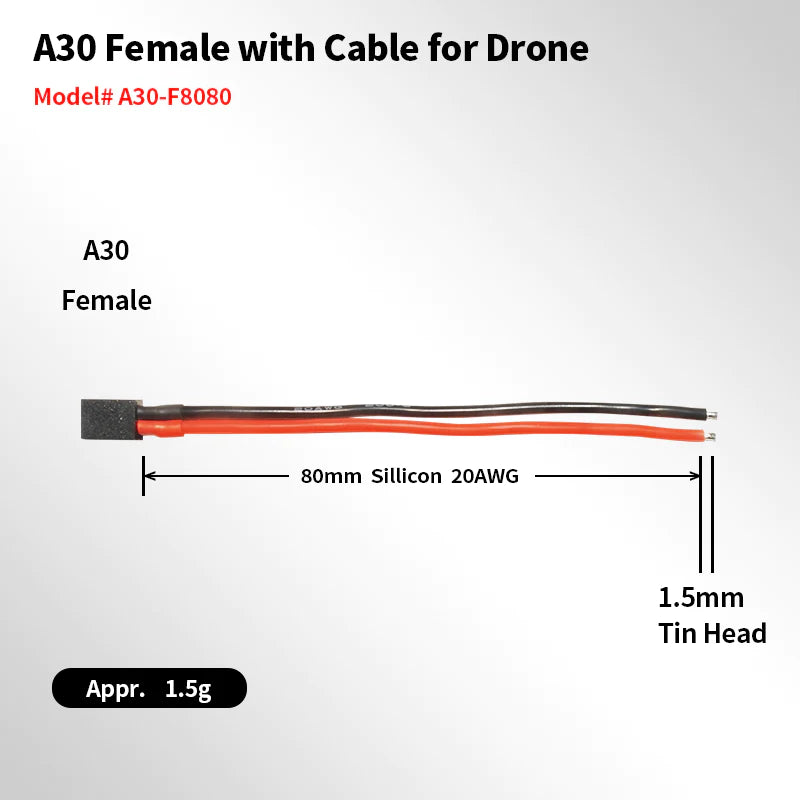

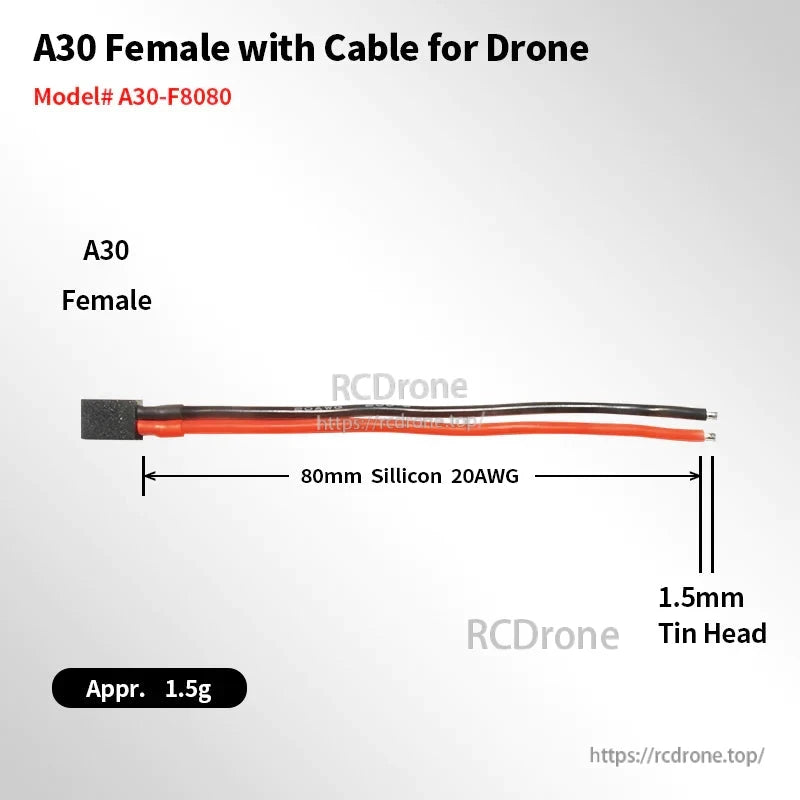

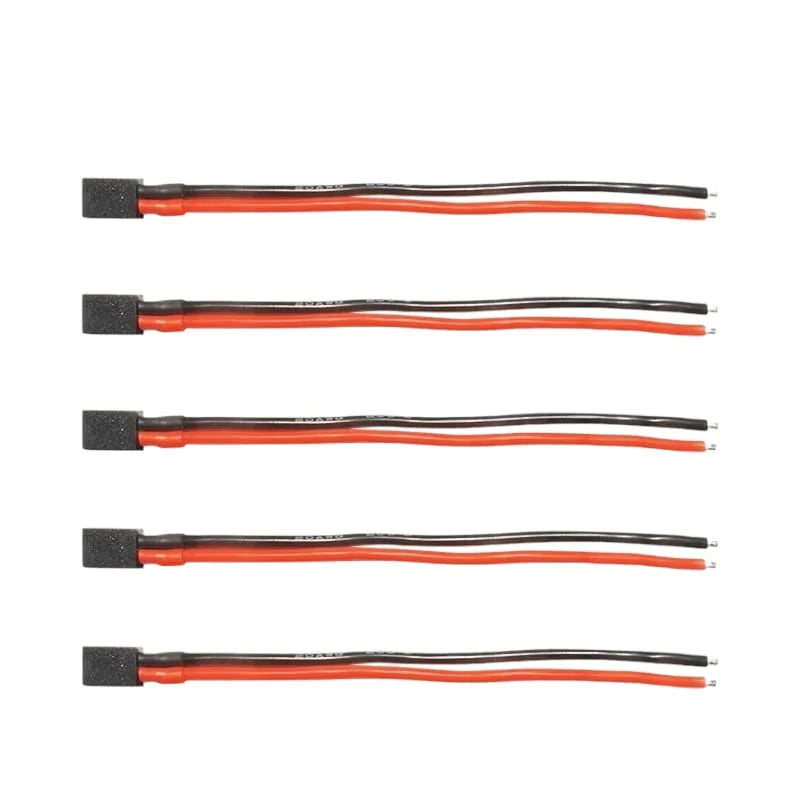

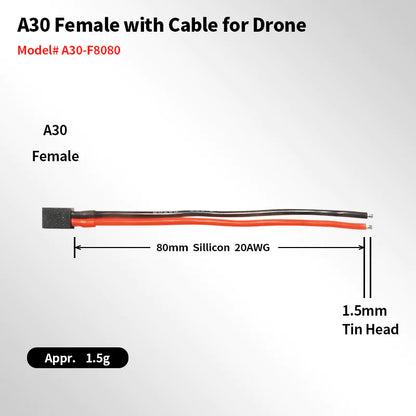

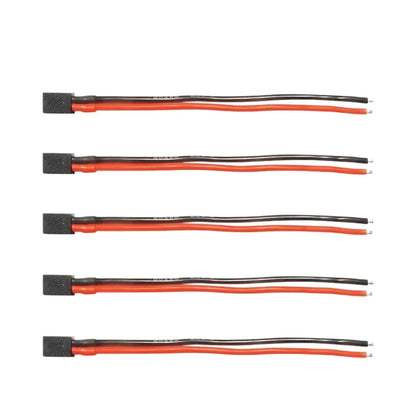

This A30-F connector pigtail set includes 5 pcs of A30-F 80mm 20AWG pigtails for drone power wiring, including ESC leads. A30 connectors are described as a higher-performance alternative to PH2.0 connectors and are rated for up to 15A of continuous current.

Key Features

A30 connector system rated for 15A continuous current (A30); peak discharge rate listed as 30A
80mm pigtail length per lead
20AWG wire (title); wire specification listed as 20#/22# (A30 series)
Alternative to PH2.0 connectors (PH2.0 stated as up to 4.5A continuous current)

For compatibility questions before purchase, contact support at support@rcdrone.top or https://rcdrone.top/.

Specifications

Product	A30-F 80mm 20AWG pigtail
Quantity	5 pcs
Continuous current (A30)	15A
Peak discharge rate (A30)	30A
Contact impedance (A30)	1.6 mΩ
Withstand voltage (A30)	DC 500V
Operating temperature (A30)	-20~120°C
Flame retardant rating (A30)	UL94 V0
Insulating material (A30)	PA66
Metallic material (A30)	Brass gliding
Plug color (A30)	Black
Wire	20AWG (title); 20#/22# (A30 series listing)

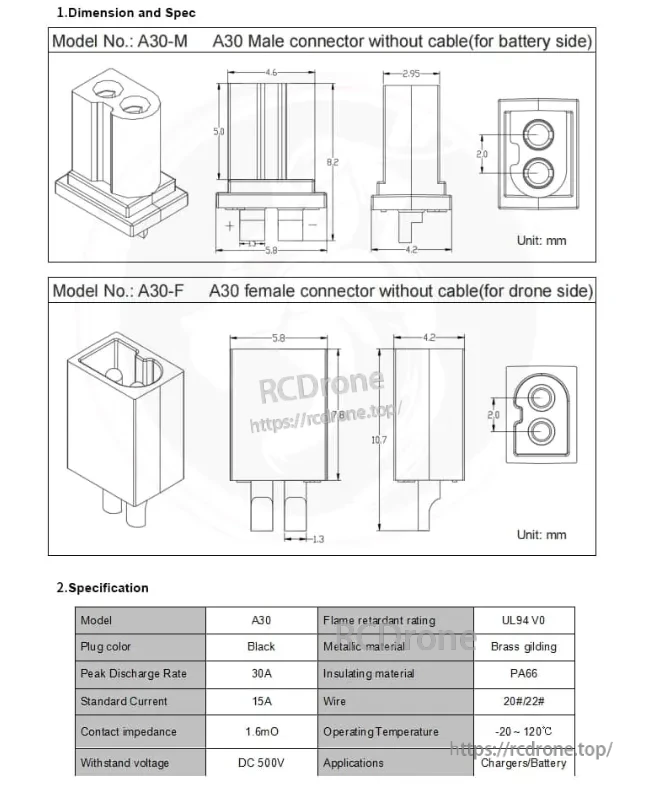

Connector Dimensions (without cable)

Model shown	A30-F (female connector without cable; for drone side)
Dimensions	5.8 mm, 10.7 mm, 4.2 mm, 2.0 mm, 1.3 mm (unit: mm)
Additional reference shown	A30-M (male connector without cable; for battery side): 4.6 mm, 2.95 mm, 5.0 mm, 8.2 mm, 5.8 mm, 4.2 mm, 2.0 mm (unit: mm)
