Flywoo Flexible LED Strip 2.7mm x 1M + 3.3V/1.5A BEC Module (5-26V In, Switch Control)

Overview

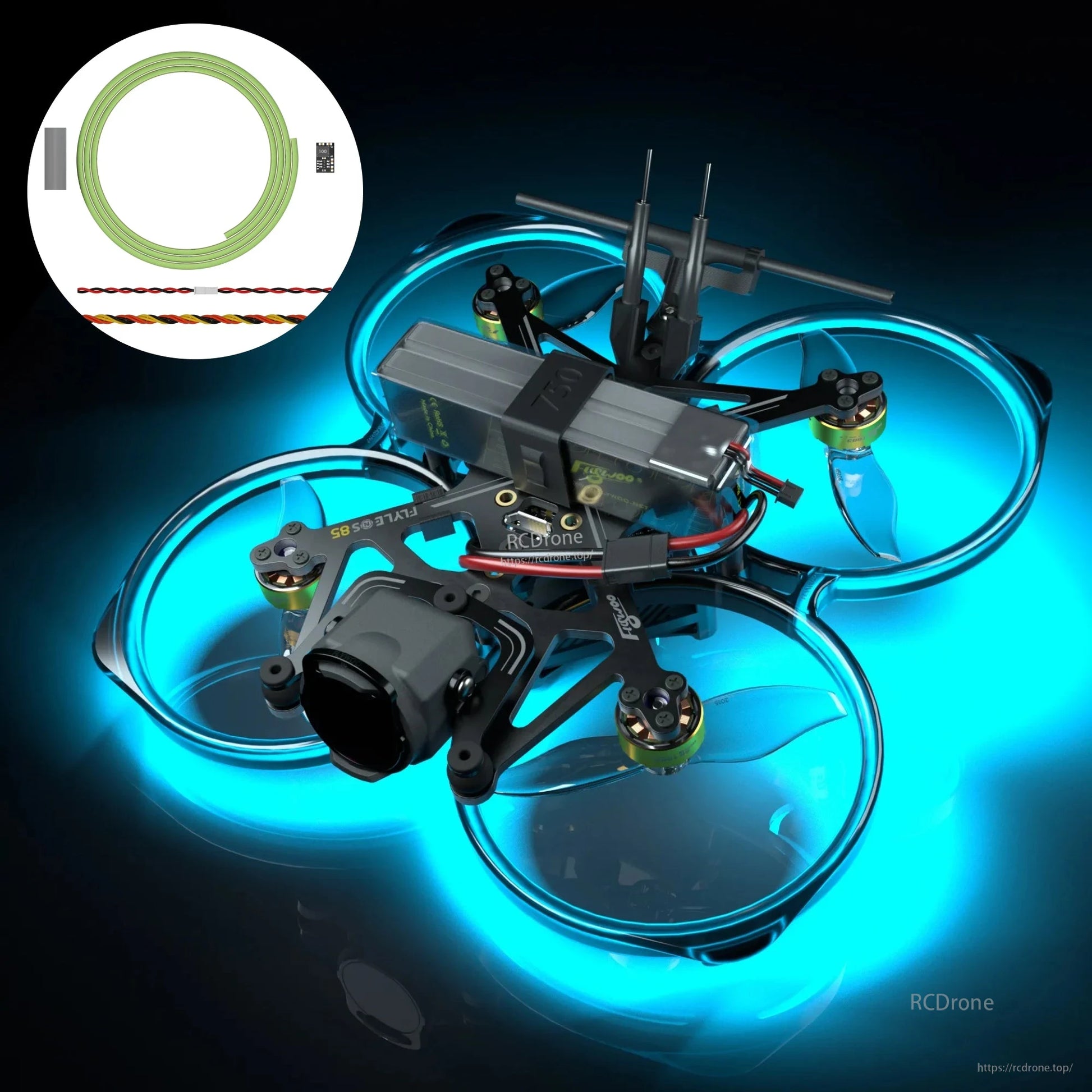

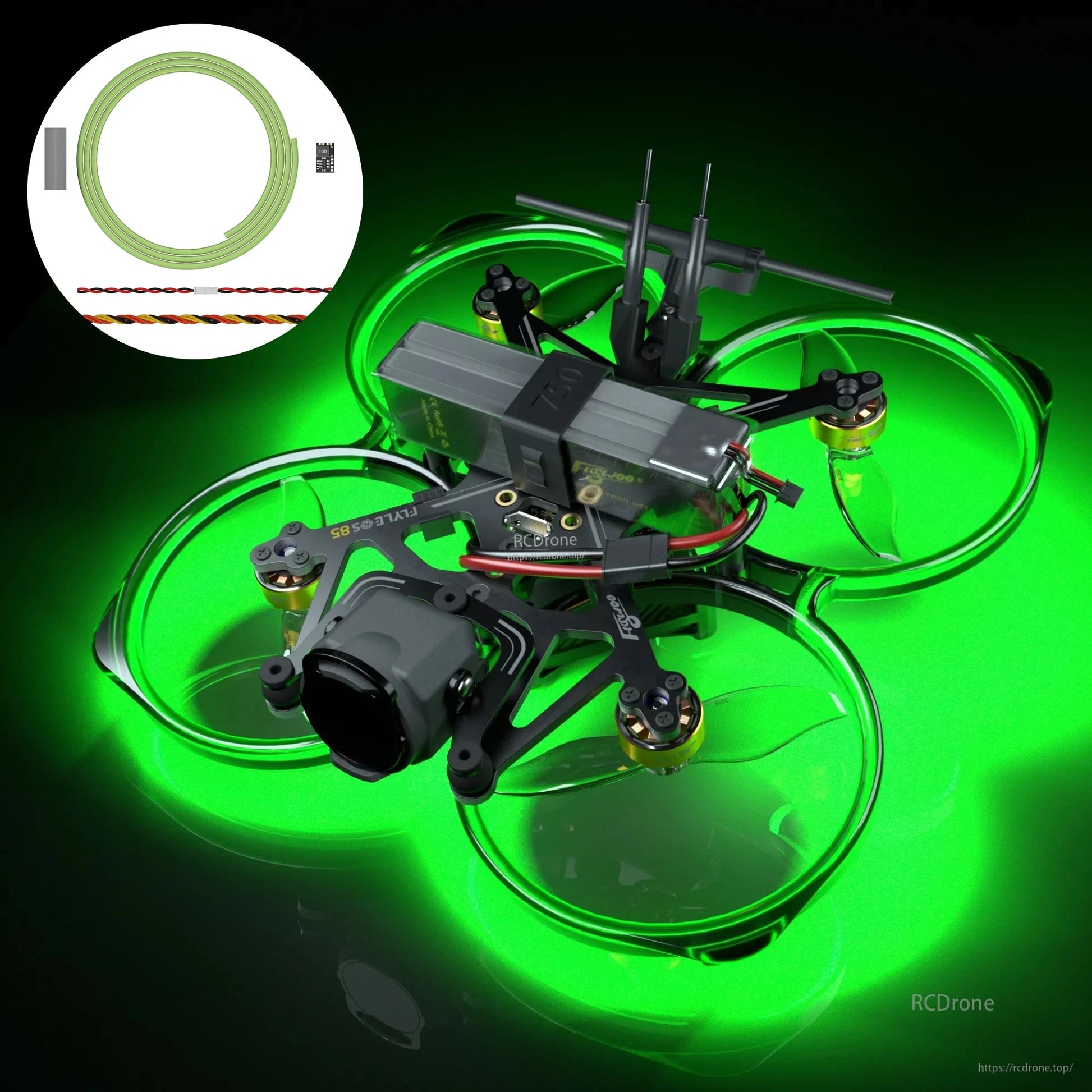

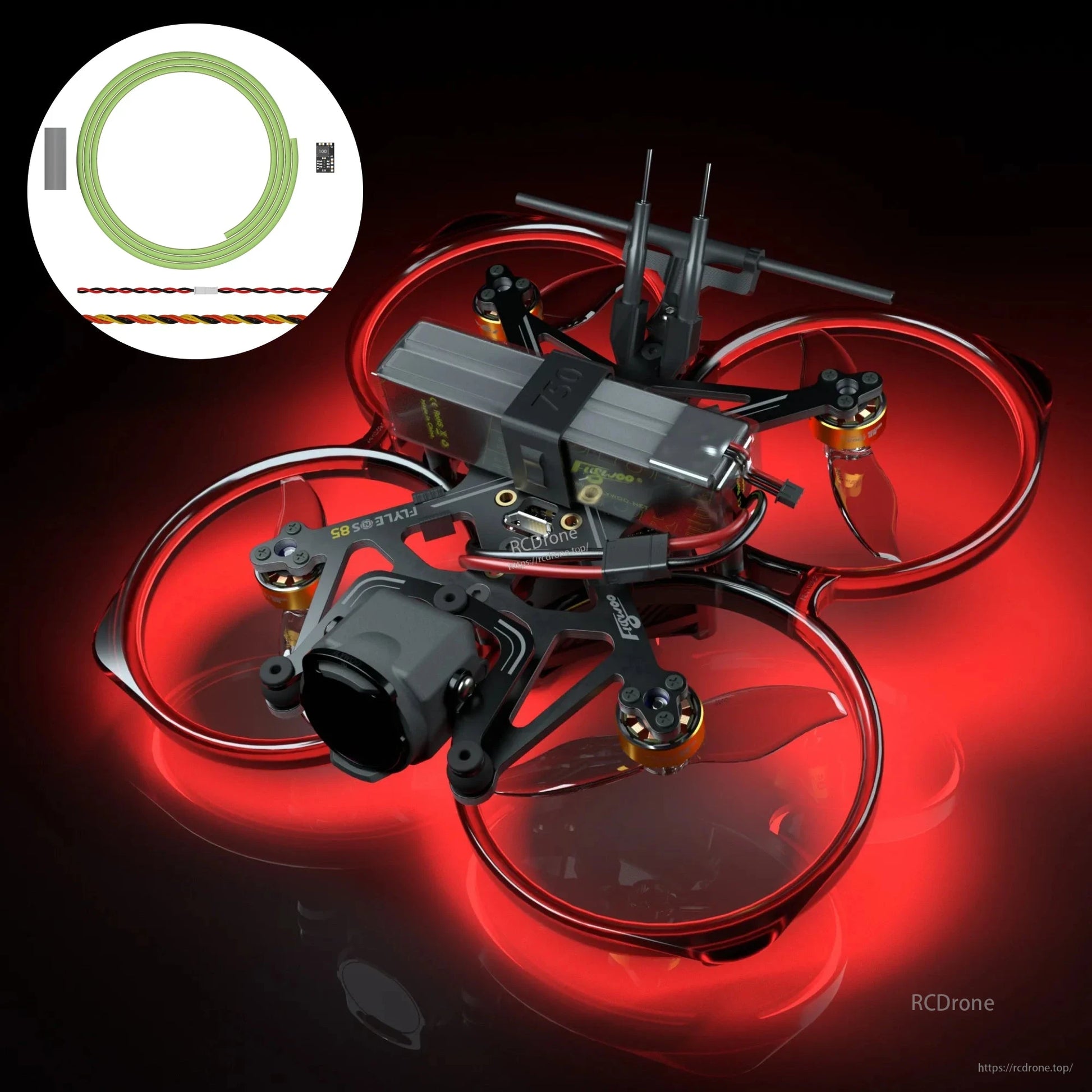

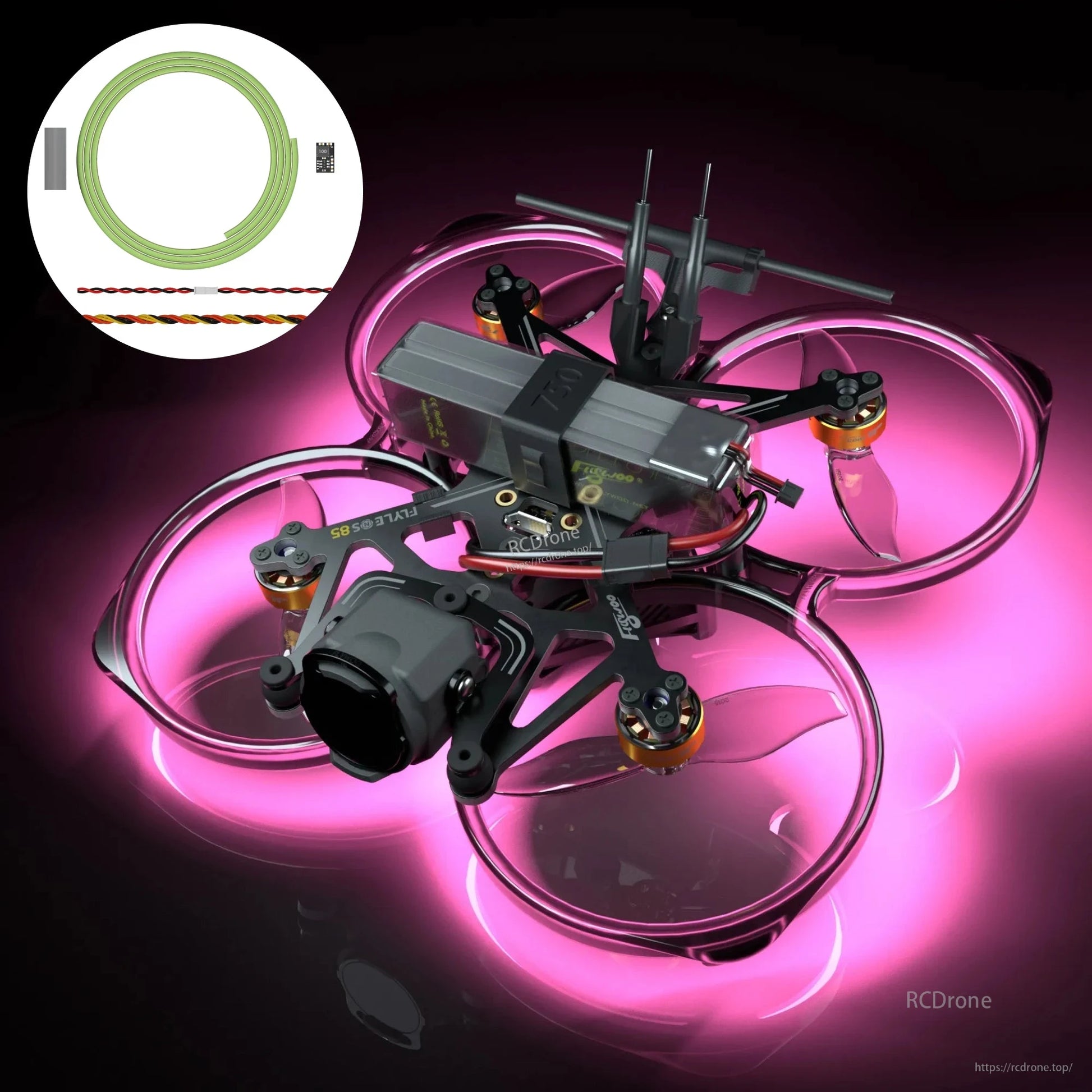

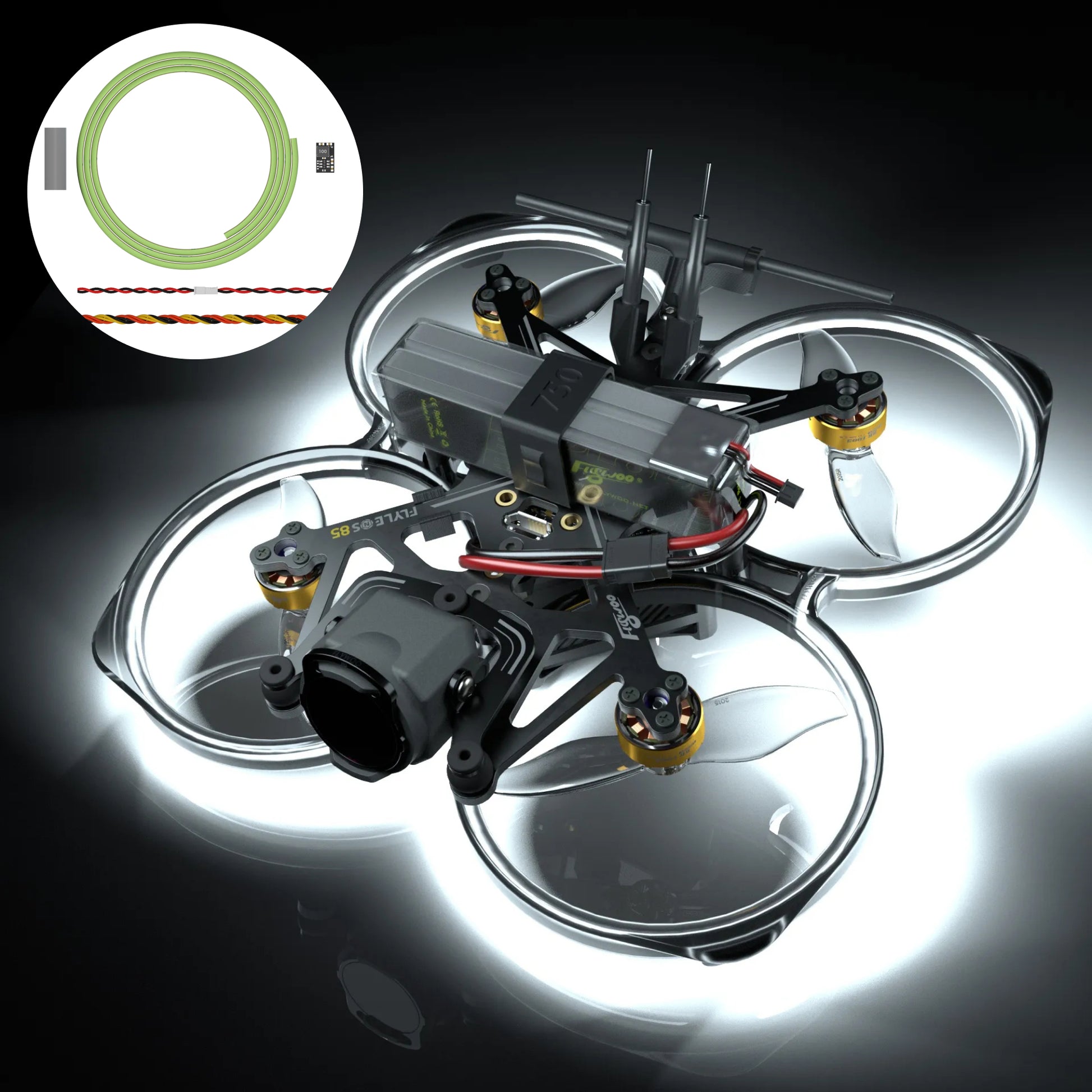

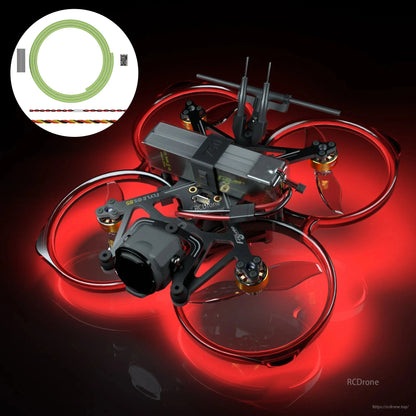

The Flywoo Flexible LED + 3.3V BEC kit combines a flexible LED strip with a 3.3V BEC module (switch control) for RC builds where a regulated 3.3V output and LED control via flight controller are required.

Key Features

• Switch BEC mode, high-efficiency synchronous design
• Wide BEC input voltage range: 5-26V
• LED strip/equipment output range shown: 3V-5V (VCC/GND)
• Compact and lightweight components
• PH1.25 2PIN power cable options (Male/Female) included

Specifications

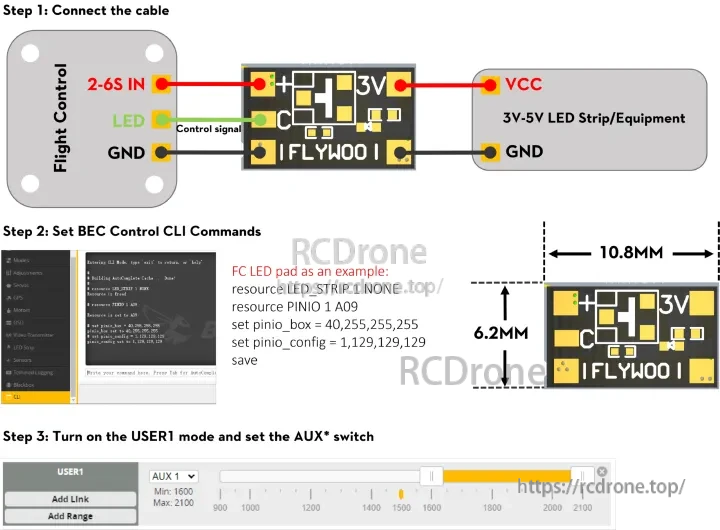

Wiring & Setup (from diagram)

• Step 1: Connect the cable
  • Flight controller side: 2-6S IN, LED Control signal, GND
  • LED strip/equipment side: VCC and GND (labeled 3V-5V LED Strip/Equipment)
• Step 2: Set BEC Control CLI Commands (example text shown)

  resource LED_STRIP 1 NONE
  resource PINIO 1 A09
  set pinio_box = 40,255,255,255
  set pinio_config = 1,129,129,129
  save

• Step 3: Turn on the USER1 mode and set the AUX* switch

Notes

• If the BEC input is a 6S battery, a 6S voltage capacitor needs to be added.
• If the BEC input is FC or ESC, no capacitor is needed.

What’s Included

• 1 x 3.3V BEC module
• 1 x connecting cable set
• 1 x Flexible LED strip
• 1 x Power cable with PH1.25 2PIN (Male)
• 1 x Power cable with PH1.25 2PIN (Female)

For compatibility questions about wiring, connectors, or integration with a specific flight controller/ESC, contact support at https://rcdrone.top/ or email support@rcdrone.top.

Details

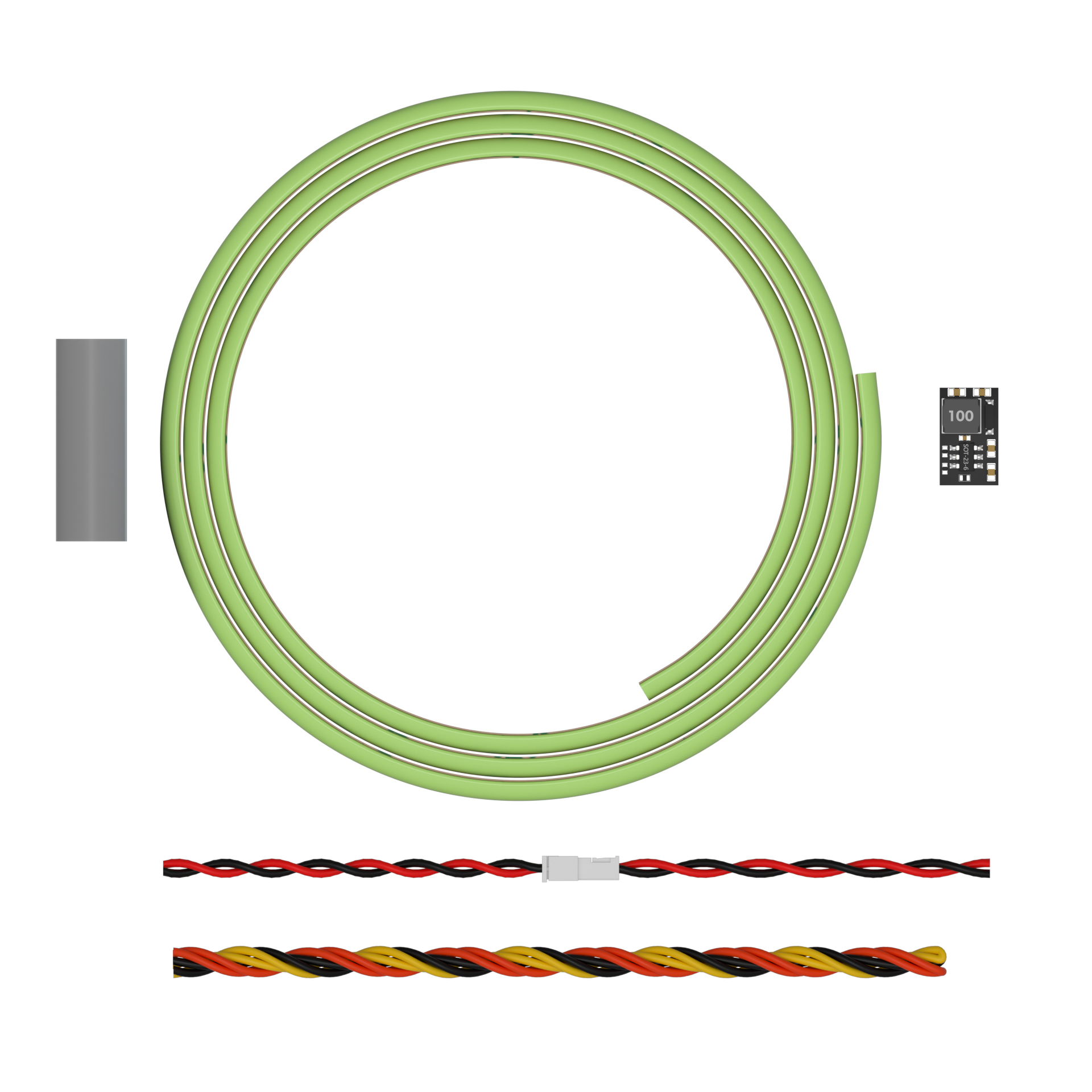

The kit includes a slim flexible LED strip, a compact BEC module, and pre-wired leads to simplify installation.

The Flywoo 3.3V BEC module takes 2–6S input and provides VCC/GND output for a 3–5V LED strip with a flight-controller control signal.
