Flywoo GOKU F722 PRO V2 30x30 Flight Controller Plug&Play O4/O4 Pro, 16MB Black Box, 10V/5V

Overview

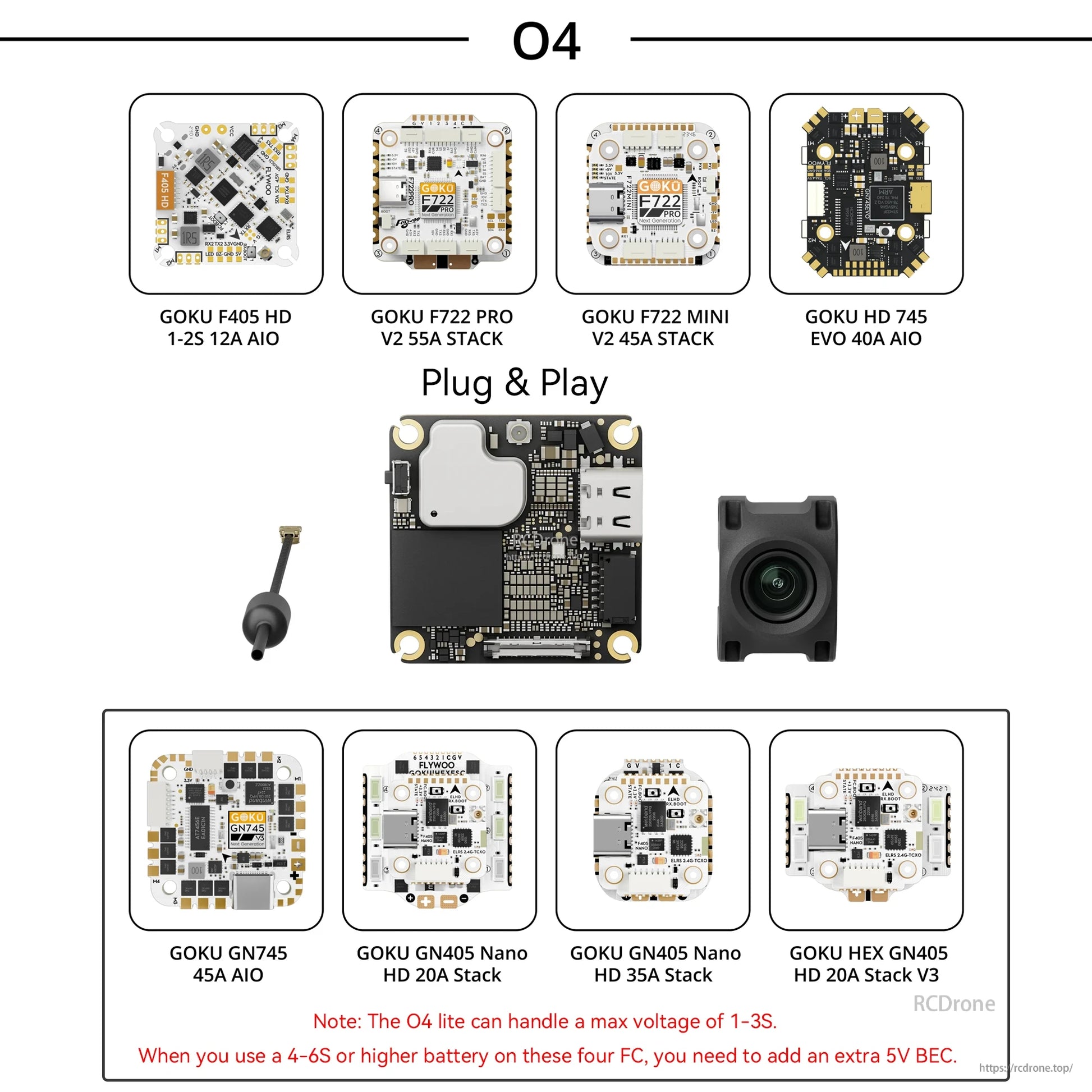

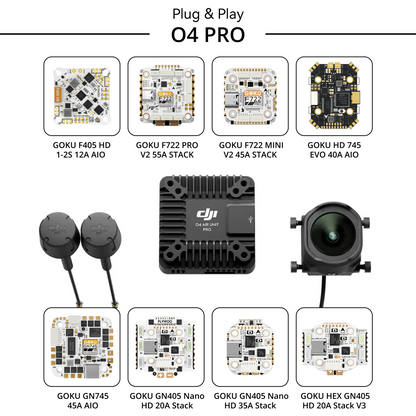

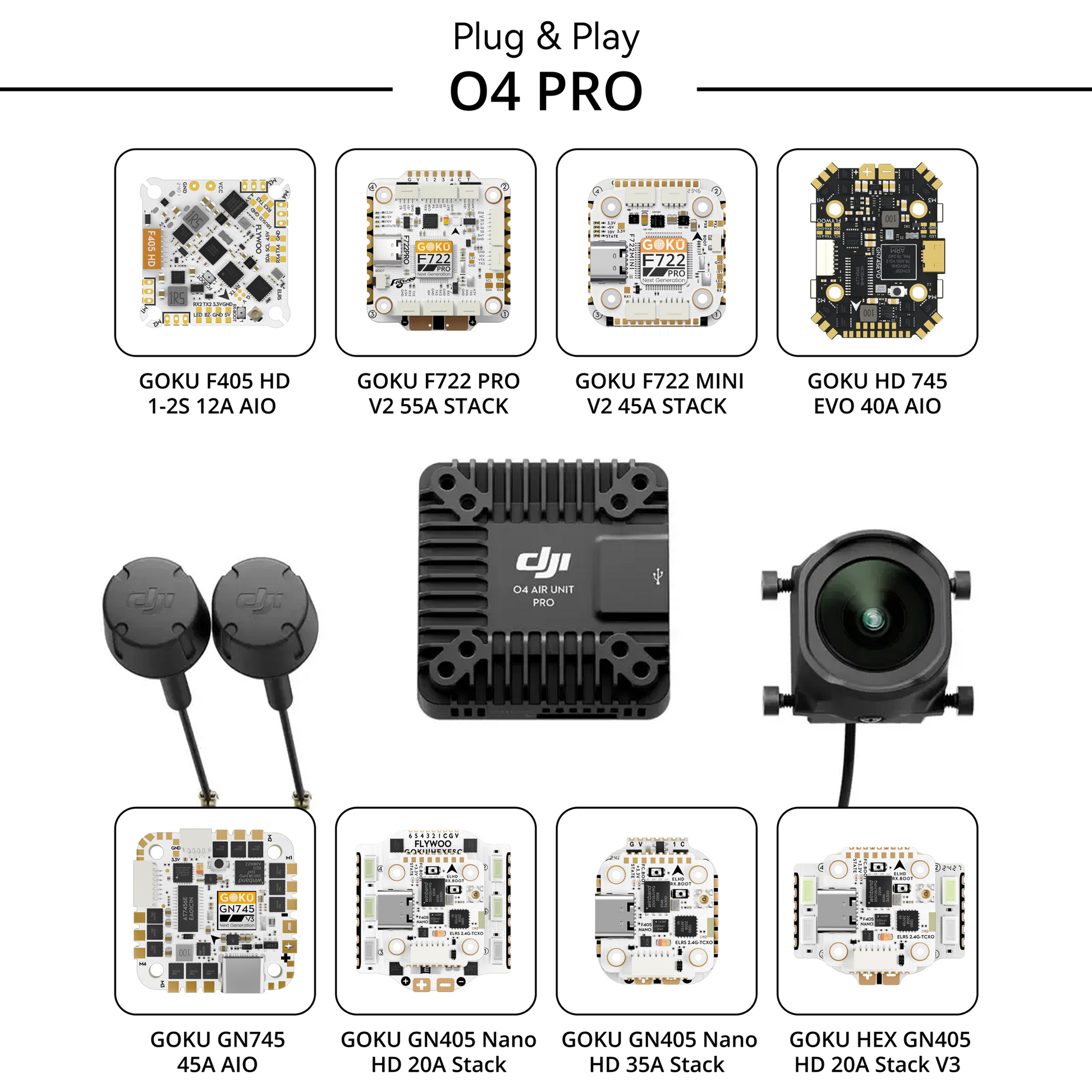

The Flywoo GOKU F722 PRO V2 is a 30x30 flight controller designed for modular, socket-based wiring and efficient builds. It uses an STM32F722 MCU and supports plug-and-play connections, while keeping solder pads available for flexible installations. The board supports up to 8 motor outputs and provides dual 4-in-1 ESC sockets for simplified ESC connectivity. Plug-and-play wiring is provided for digital video system integration (a DJI O3 connection cable is included; this model is also marketed as Plug&Play O4 / O4 Pro).

Key Features

• MCU: STM32F722 (up to 216MHz processing speed)
• Gyroscope options: MPU6000 / ICM42688
• Gyro/PID dual 8KHz refresh rate (stated)
• Socket-based, modular plug-in design for easier installation; solder pads retained
• 16MB black box for flight data logging
• Onboard BEC outputs: 10V/3A and 5V/3A
• Supports 8 motor outputs; dual 4-in-1 ESC sockets reserved
• Immersion gold (gold-plated) PCB process for durability
• 10V pad power can be enabled/disabled via Betaflight (USER1 mode shown)

Specifications

Wiring / Pinout Notes (from diagrams)

• Buzzer/LED connector labels: BZ-, LED, 5V, GND
• Camera connector labels: 5V, GND, CAM
• VTX/UART pad labels shown: 10V, VTX, TX3, GND (and 3.3V label also shown)
• Additional pad/port labels shown: RX1/RX2/RX3/RX4/RX5/RX6; TX2/TX3/TX4/TX5; S1-S8; CUR; BAT; GND; 4.5V; SCL/SDA
• USB pads shown: VUSB, D-, D+, GND
• Compass/GPS wiring diagram shows UART (RX/TX) plus I2C (SCL/SDA) with 4.5V and GND

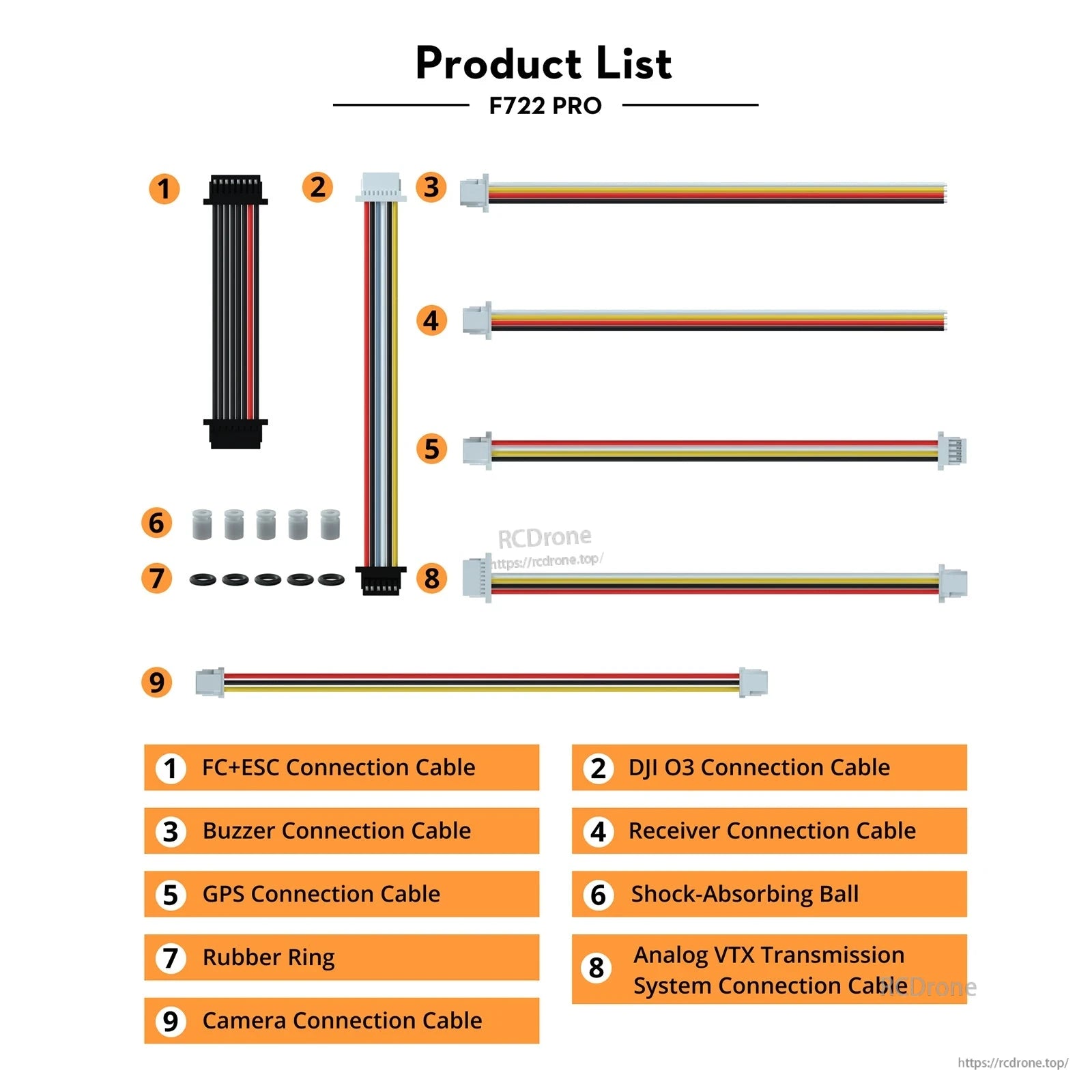

What’s Included

• 1 x FC&ESC connection cable
• 1 x Buzzer connection cable
• 1 x GPS connection cable
• 1 x DJI O3 connection cable
• 1 x Receiver connection cable
• 4 x M3 shock-absorbing ball
• 7 x M3 rubber ring
• 1 x Analog VTX connection cable
• 1 x Camera connection cable

Applications

• FPV multirotor builds requiring a 30x30 M3 mounting flight controller
• Builds needing multiple UARTs for peripherals (receiver, GPS/compass, VTX control)
• Installations requiring 10V/5V regulated outputs for onboard electronics

For compatibility questions (wiring, firmware targets, or digital VTX integration), contact support@rcdrone.top or visit https://rcdrone.top/.

Details

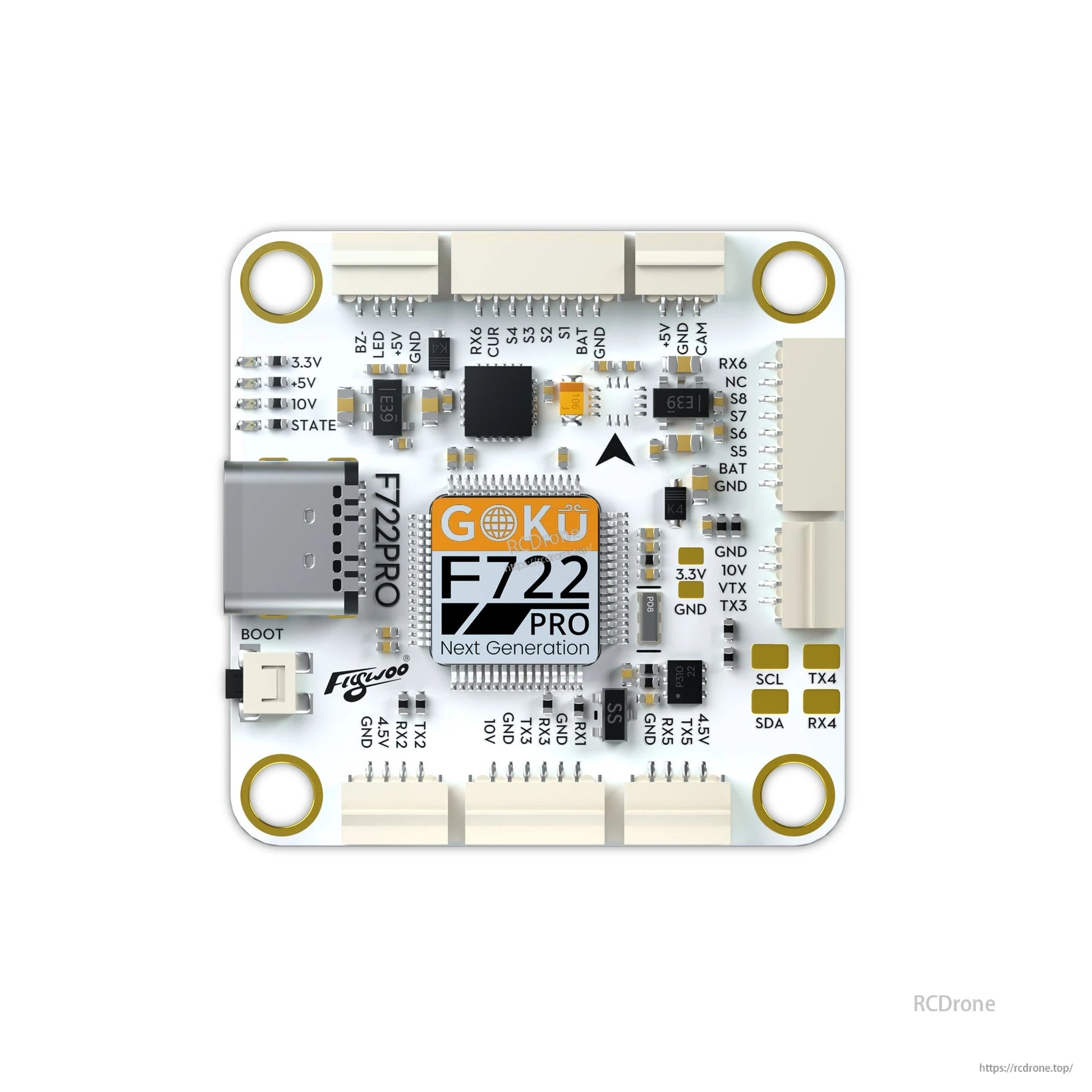

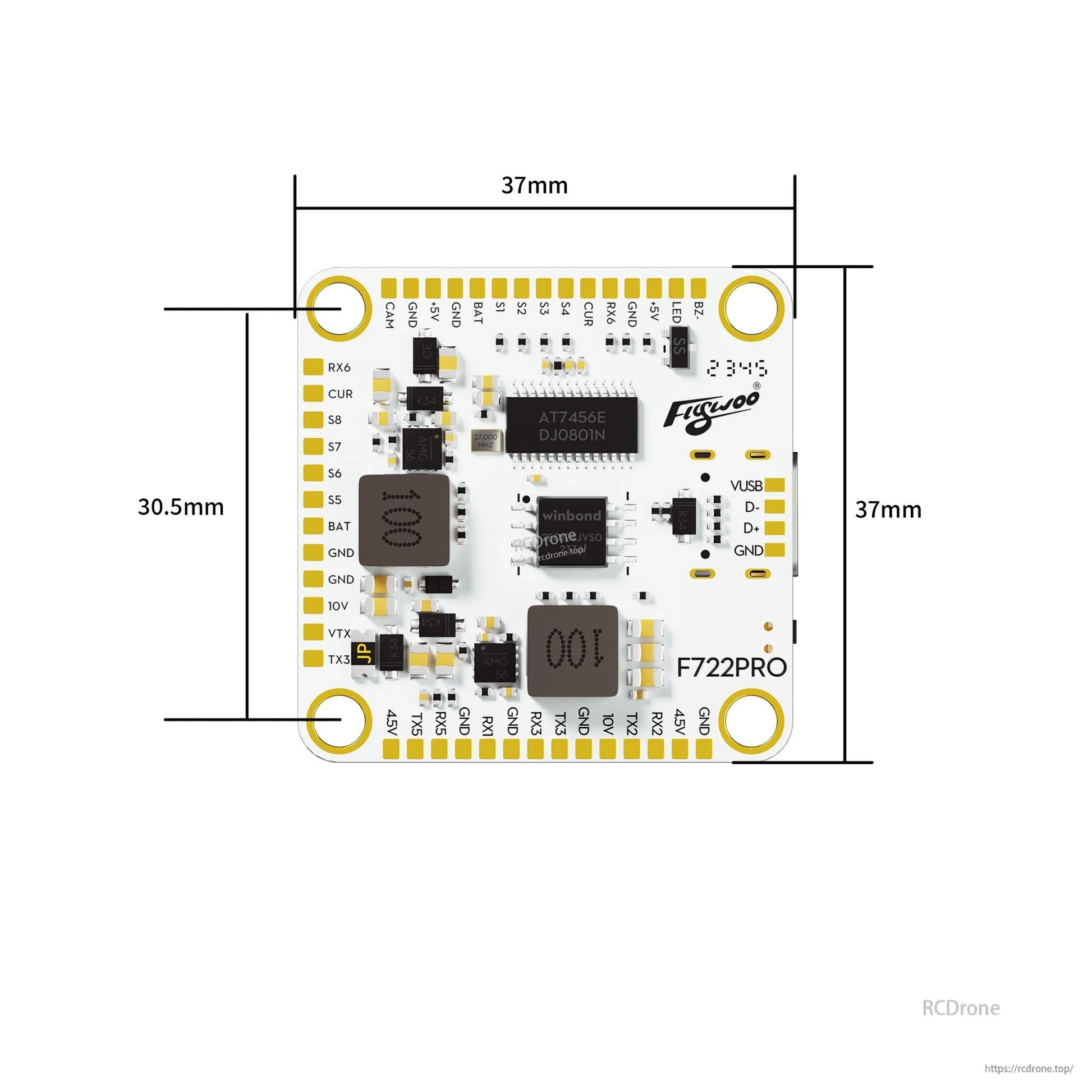

The Flywoo GOKU F722 Pro V2 flight controller uses a modular plug-in layout with a USB-C port, labeled pads, and 5V/10V power outputs for tidy wiring.

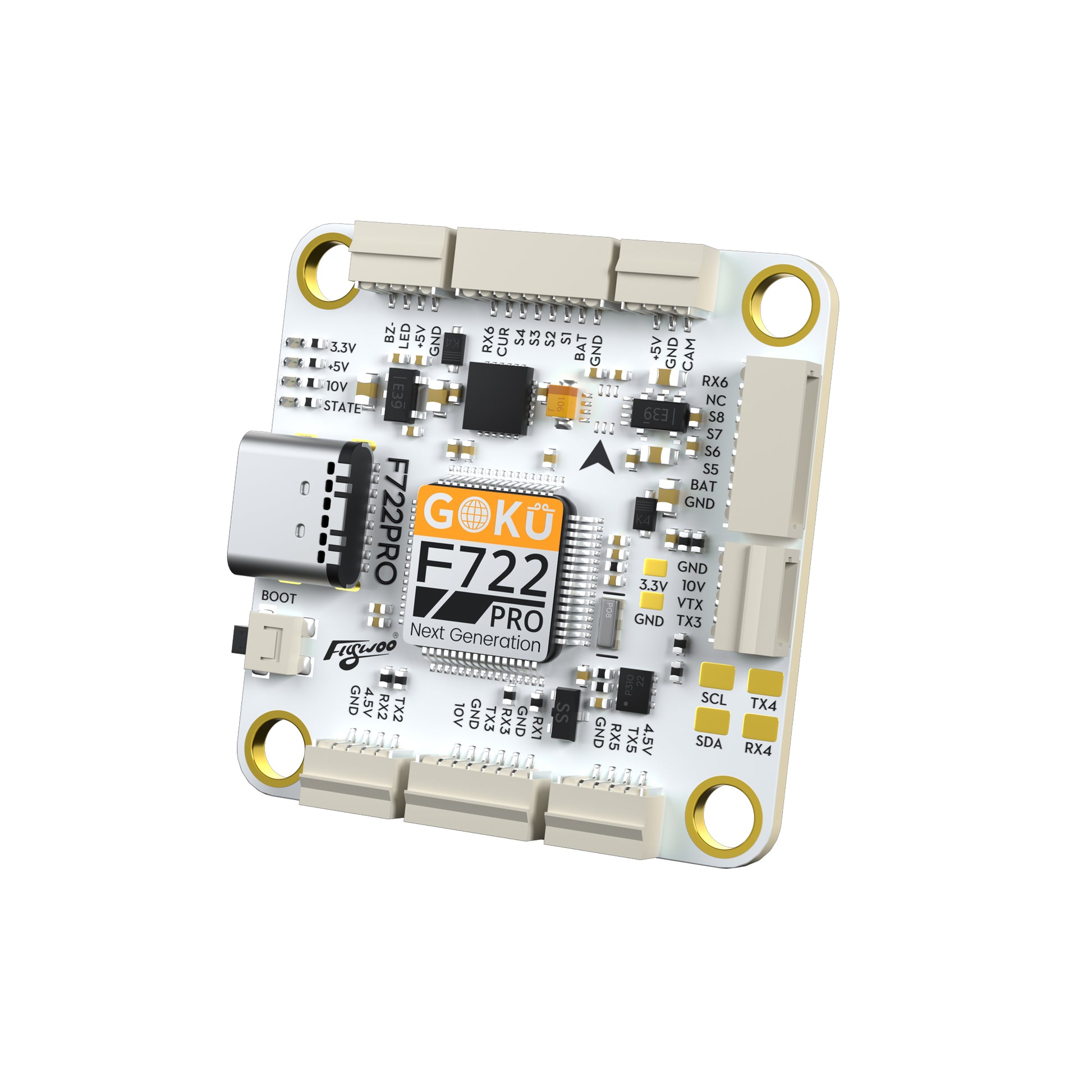

The Flywoo GOKU F722 PRO V2 flight controller uses an STM32F722 processor, MPU6000 gyro, plug-in sockets, and a switchable 10V pad.

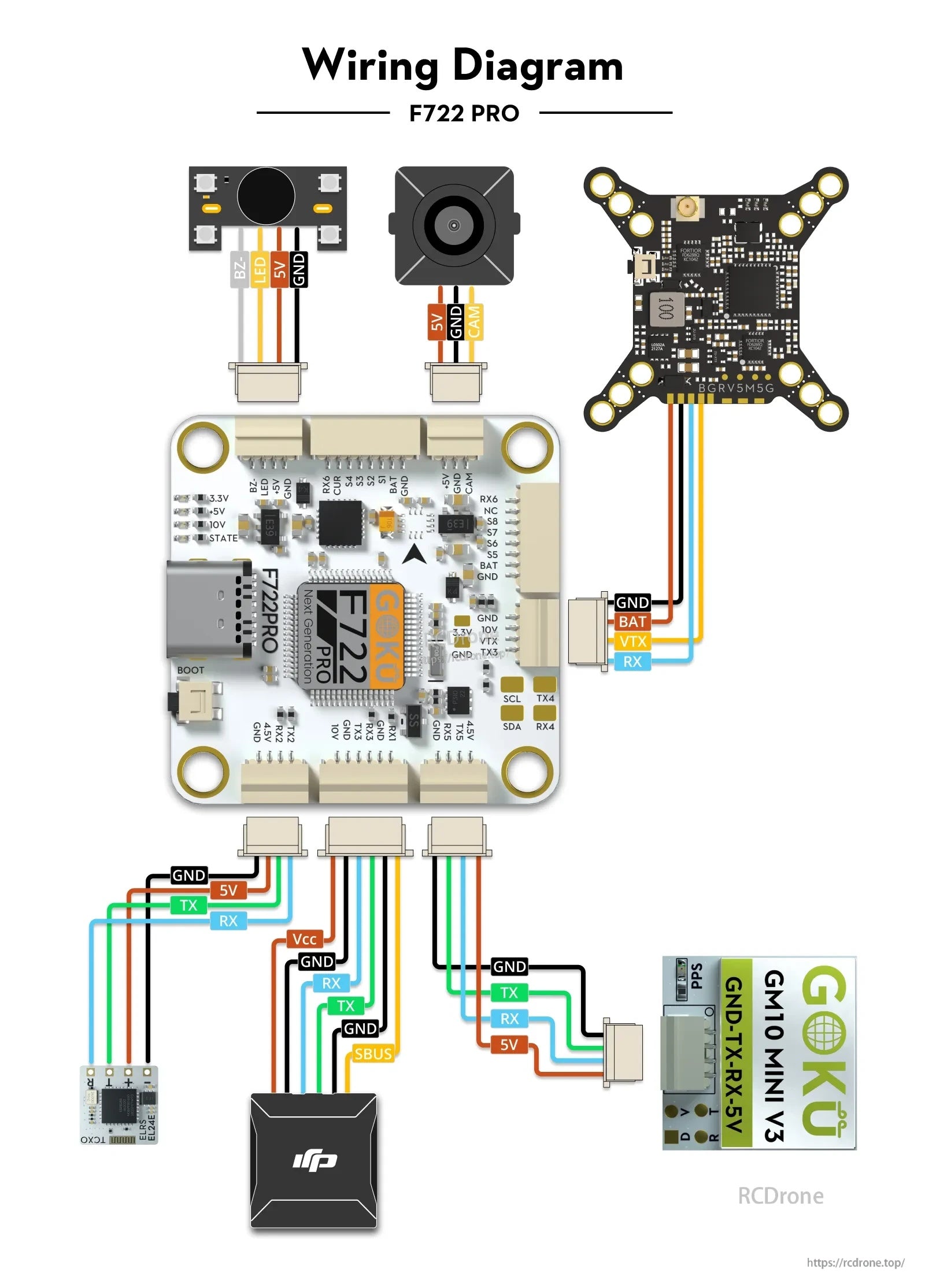

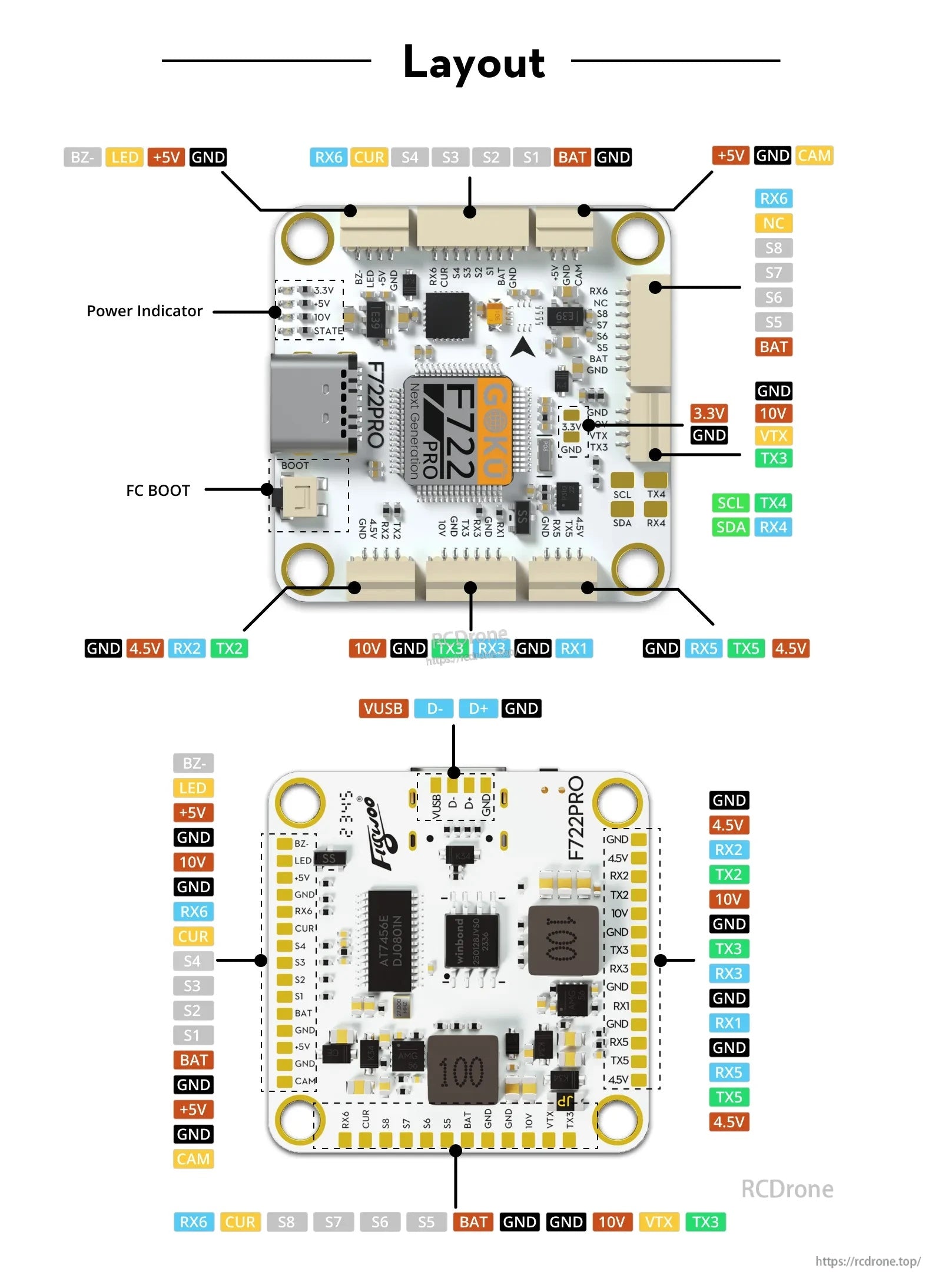

The GOKU F722 PRO V2 wiring layout labels common pads and plugs for camera, VTX, receiver, and power connections to simplify a clean 30x30 build.

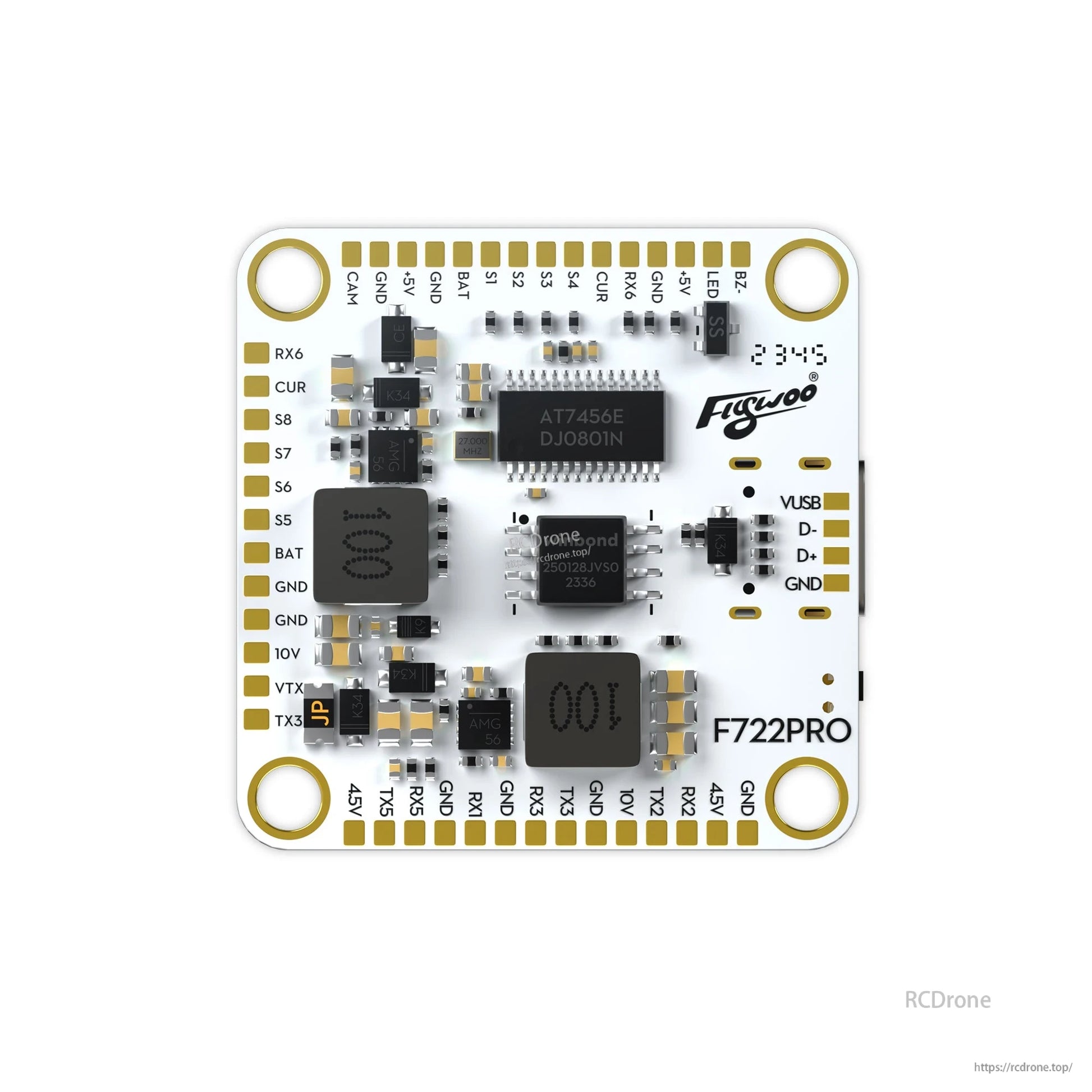

The GOKU F722 PRO V2 uses clearly labeled solder pads for RX/TX, 5V/10V/BAT power, CAM/VTX, and SCL/SDA connections to simplify wiring.

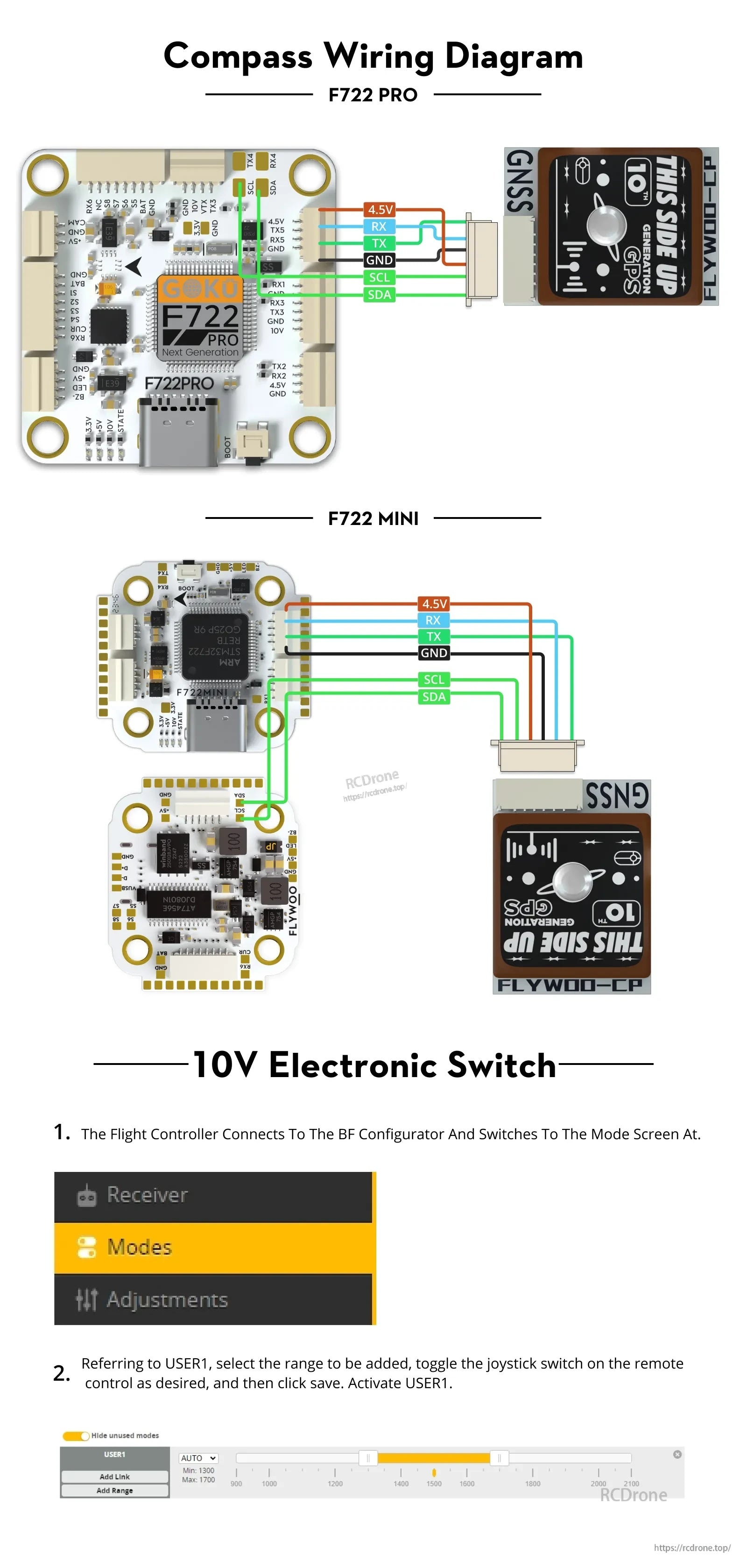

Compass and GPS wiring for the GOKU F722 PRO uses 4.5V power with UART RX/TX plus I2C SCL/SDA and ground for clean navigation hookups.
