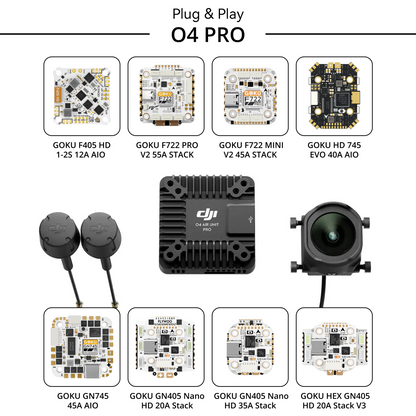

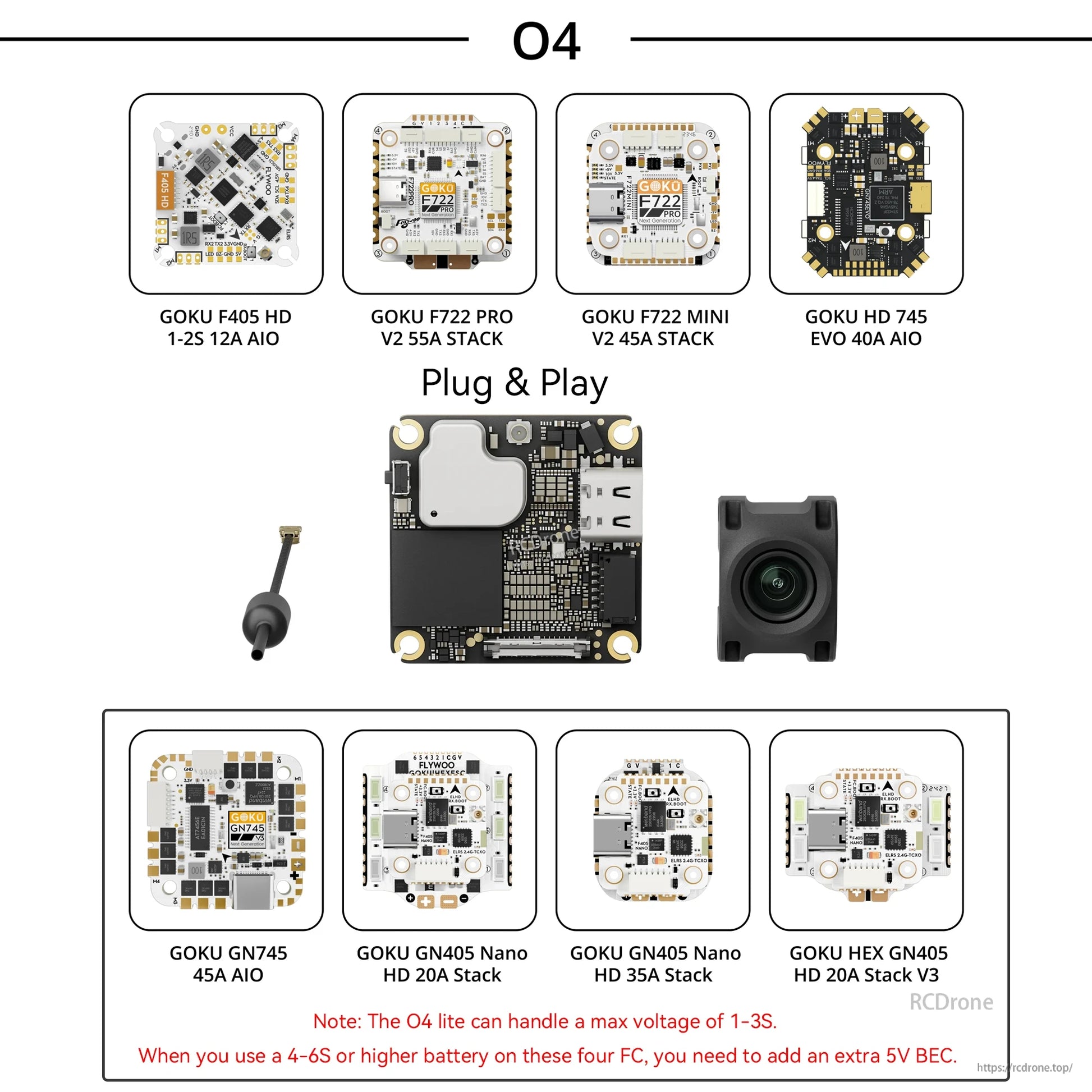

FLYWOO GOKU F722 PRO Mini V2 20x20 Flight Controller Plug&Play O4 / O4 Pro, STM32F722, 16MB Blackbox

Overview

The FLYWOO GOKU F722 PRO Mini V2 is a 20x20 flight controller designed for modular, plug-in installation with socketed ports while keeping solder pads available for custom builds. It uses an STM32F722 main controller and supports up to 8 motor outputs with dual reserved 4-in-1 ESC sockets for simplified wiring.

Key Features

• High-performance MCU: STM32F722 (up to 216MHz processing speed)
• Gyroscope: ICM42688 (product materials also reference ICM42688 / MPU6000)
• 16MB black box for flight data logging
• Socketed, plug-and-play port design for easier installation and maintenance; solder pads retained
• Supports 8 motor outputs; dual reserved 4-in-1 ESC sockets
• Onboard BEC outputs: 10V/2A and 5V/2A for VTX and peripherals
• Immersion gold (gold-plated) PCB process for durability
• 10V pad can be enabled/disabled via Betaflight

Specifications

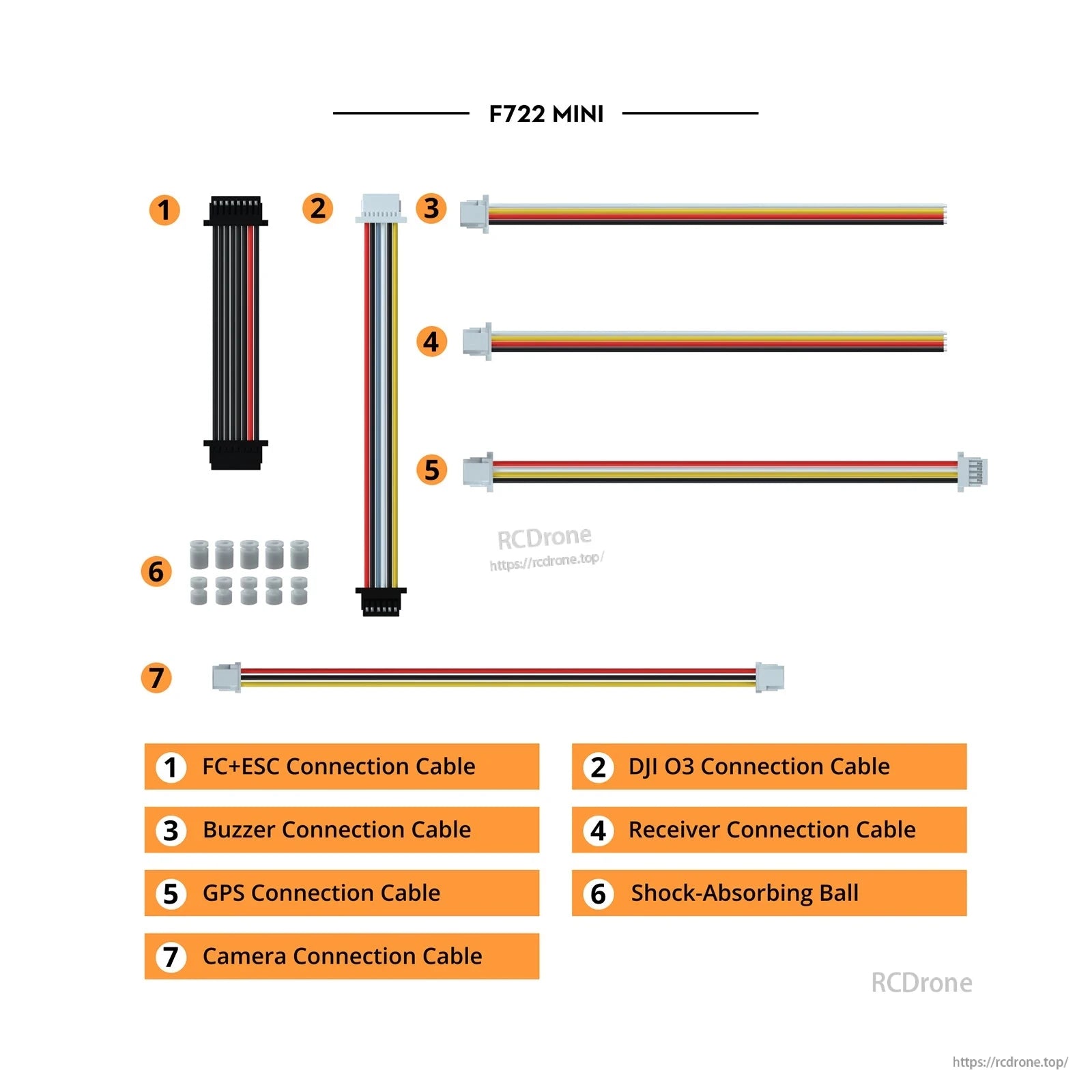

What’s Included

• 1 x FC & ESC connection cable
• 1 x Buzzer connection cable
• 1 x GPS connection cable
• 1 x DJI O3 connection cable
• 1 x Receiver connection cable
• 5 x M3 shock-absorbing ball
• 5 x M2 shock-absorbing ball
• 1 x Camera connection cable

Applications

• 20x20 FPV drone builds needing a socketed, modular wiring approach
• Multi-peripheral setups using up to 6 UARTs (receiver, GPS/compass, VTX/peripherals, etc.)

Manuals / Firmware

• INAV firmware (FLYWOO F722PRO): Download link

For wiring and firmware target selection help, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

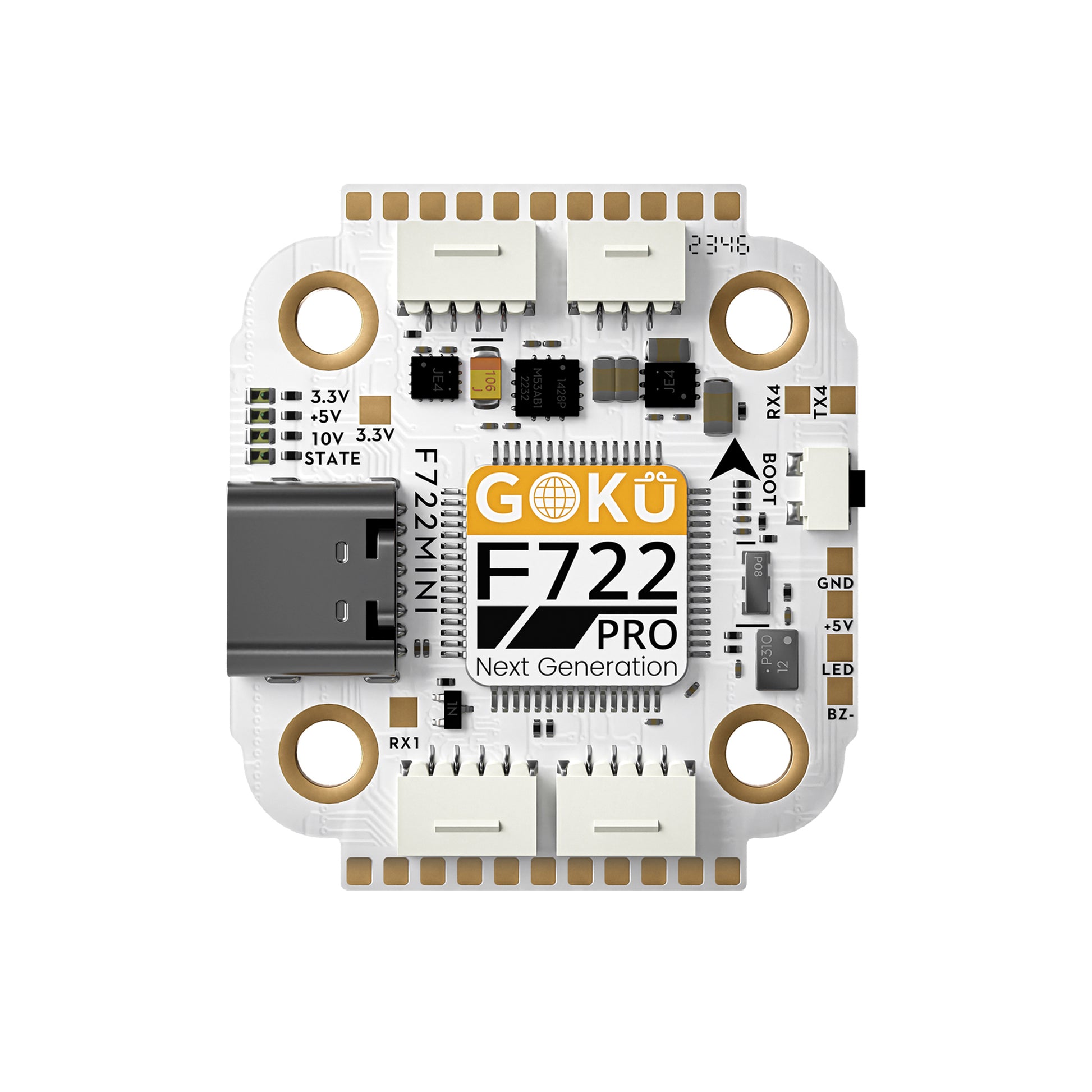

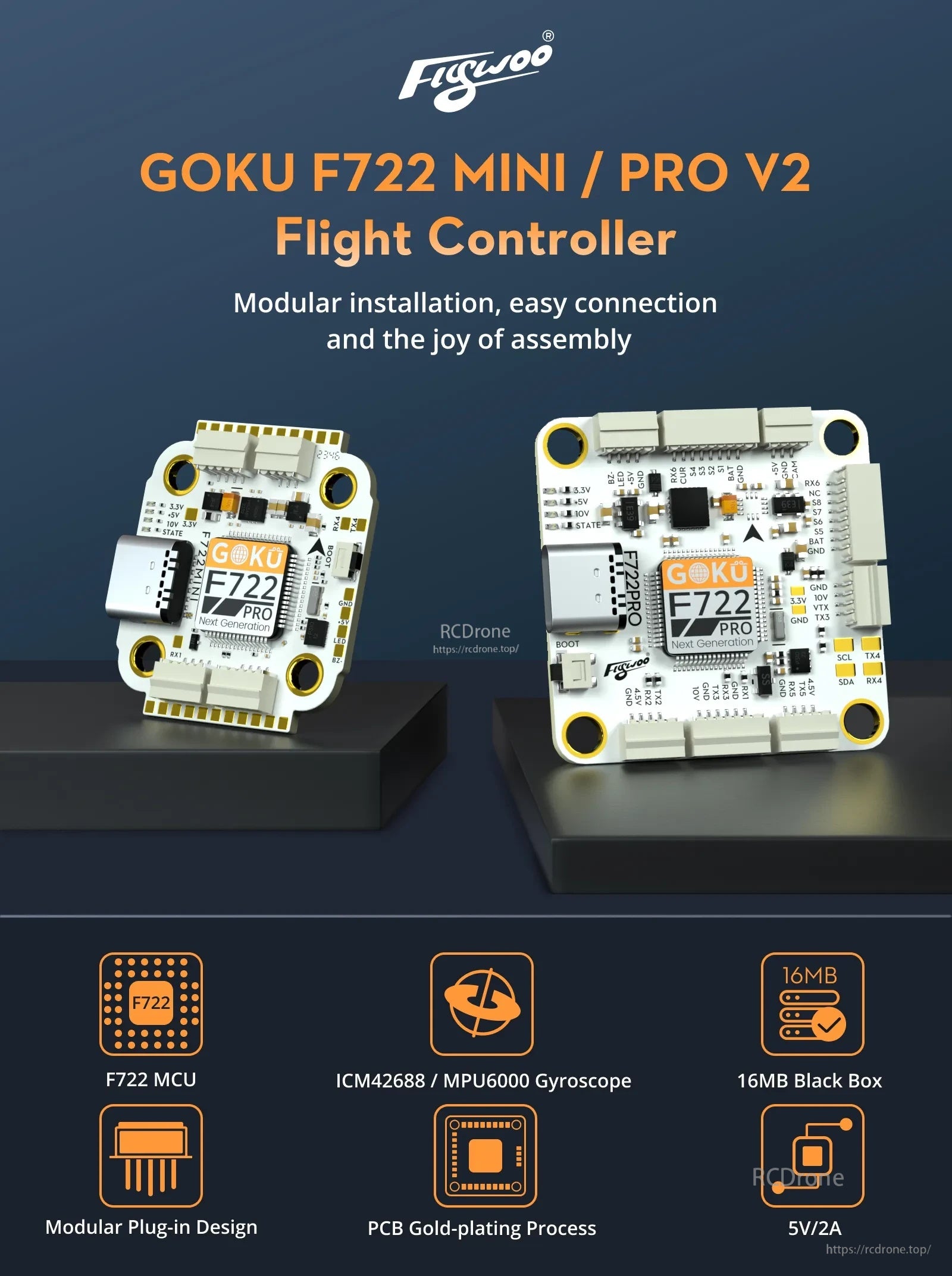

The Flywoo GOKU F722 Mini/Pro V2 flight controller uses a modular plug-in layout with USB-C and built-in 16MB blackbox for clean, serviceable builds.

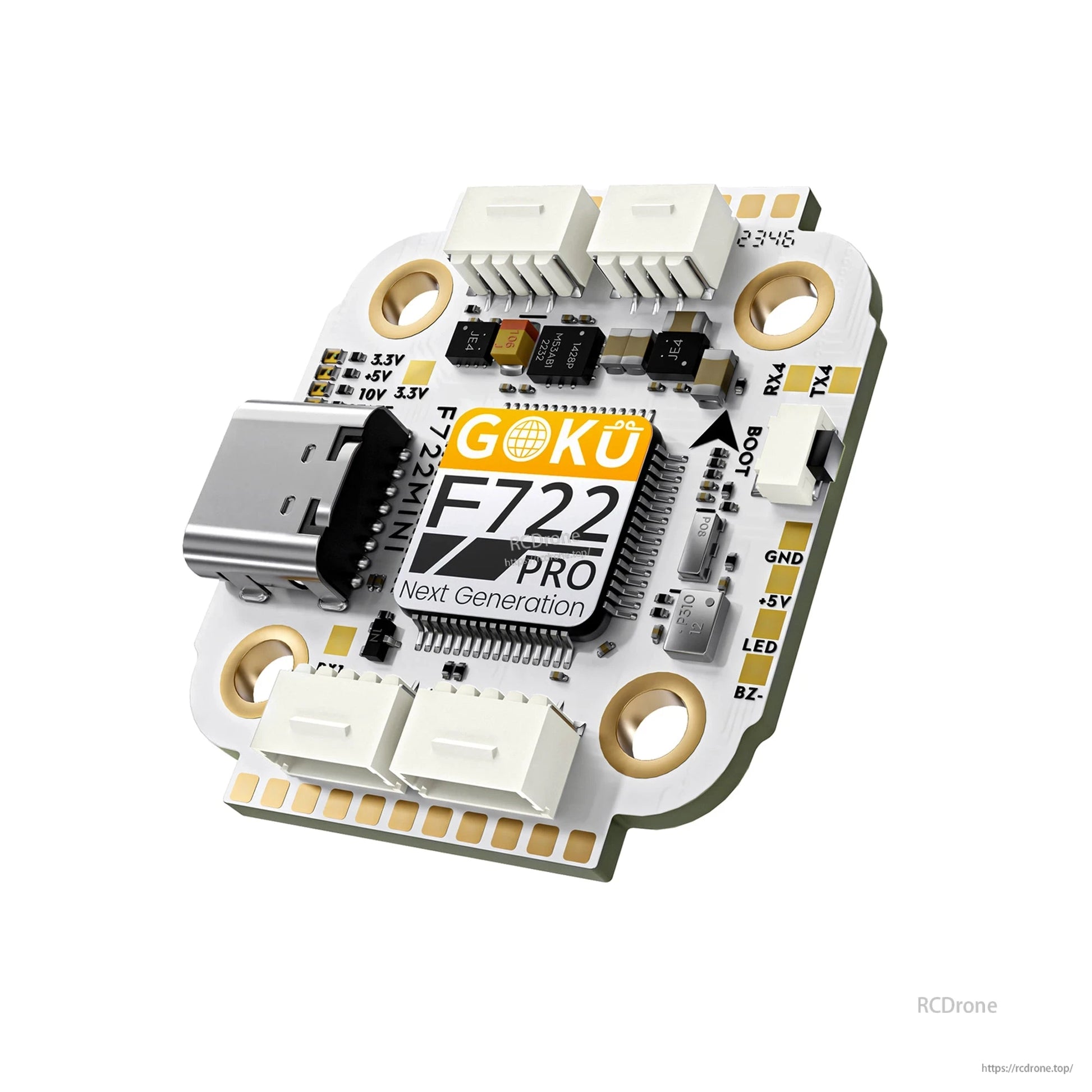

The GOKU F722 Mini/Pro V2 combines an STM32F722 MCU with plug-in sockets, an MPU6000 gyro, and 16MB blackbox storage for clean builds and logging.

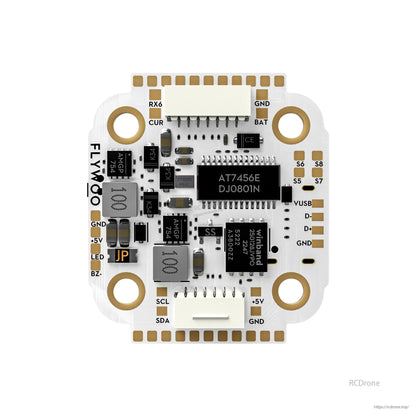

The F722 Mini flight controller uses labeled plugs and pads for SBUS, RX/TX, 5V and GND to simplify wiring common FPV components.

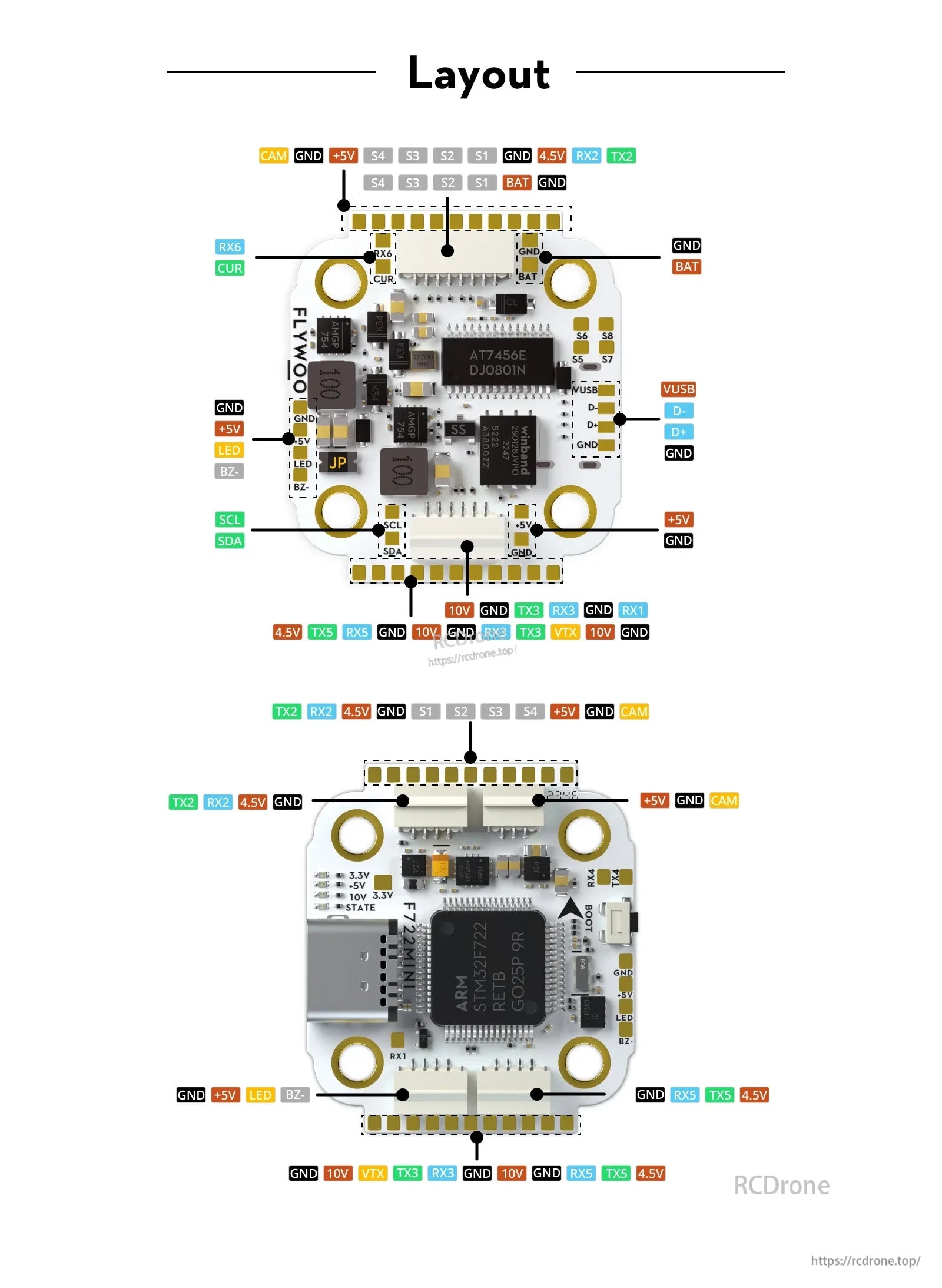

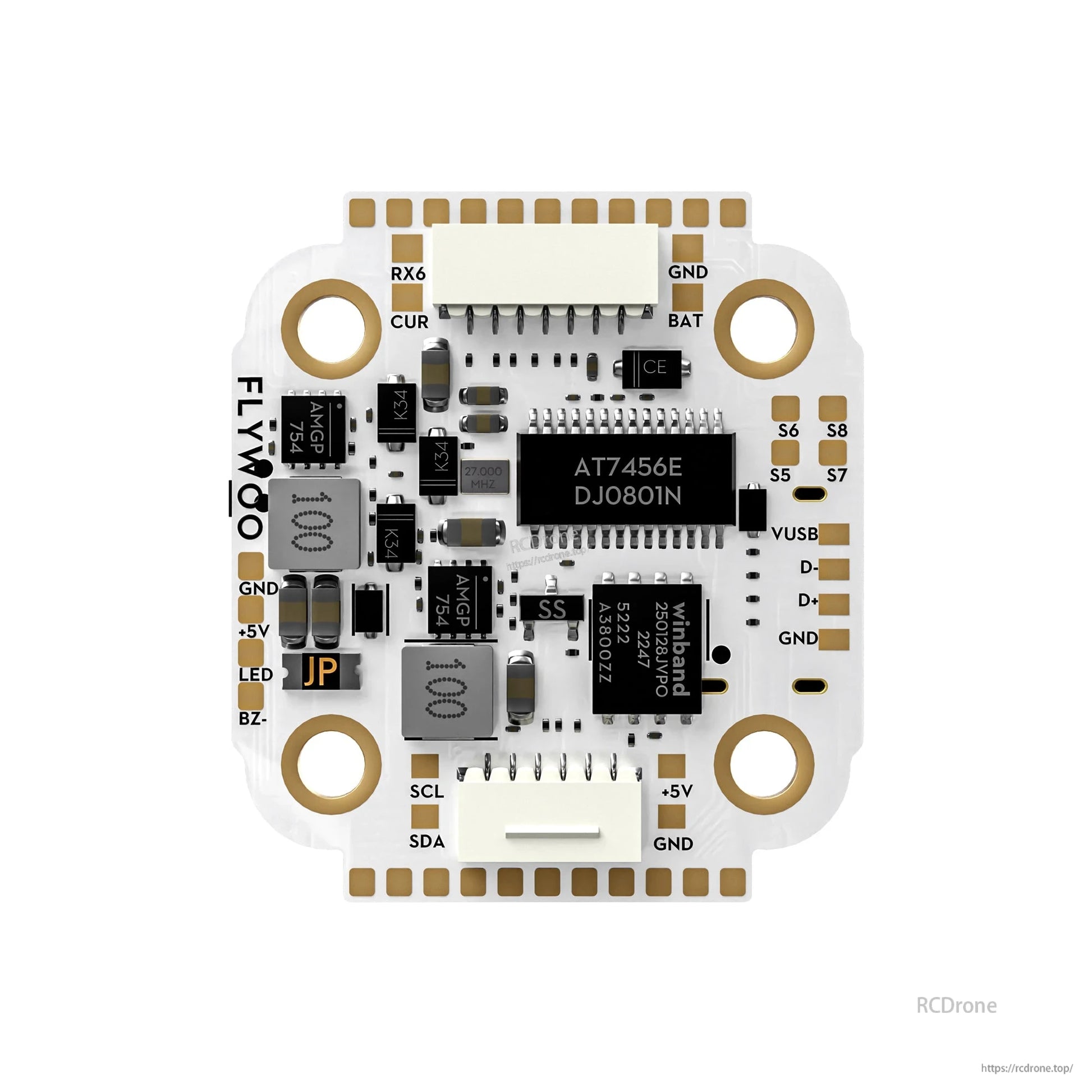

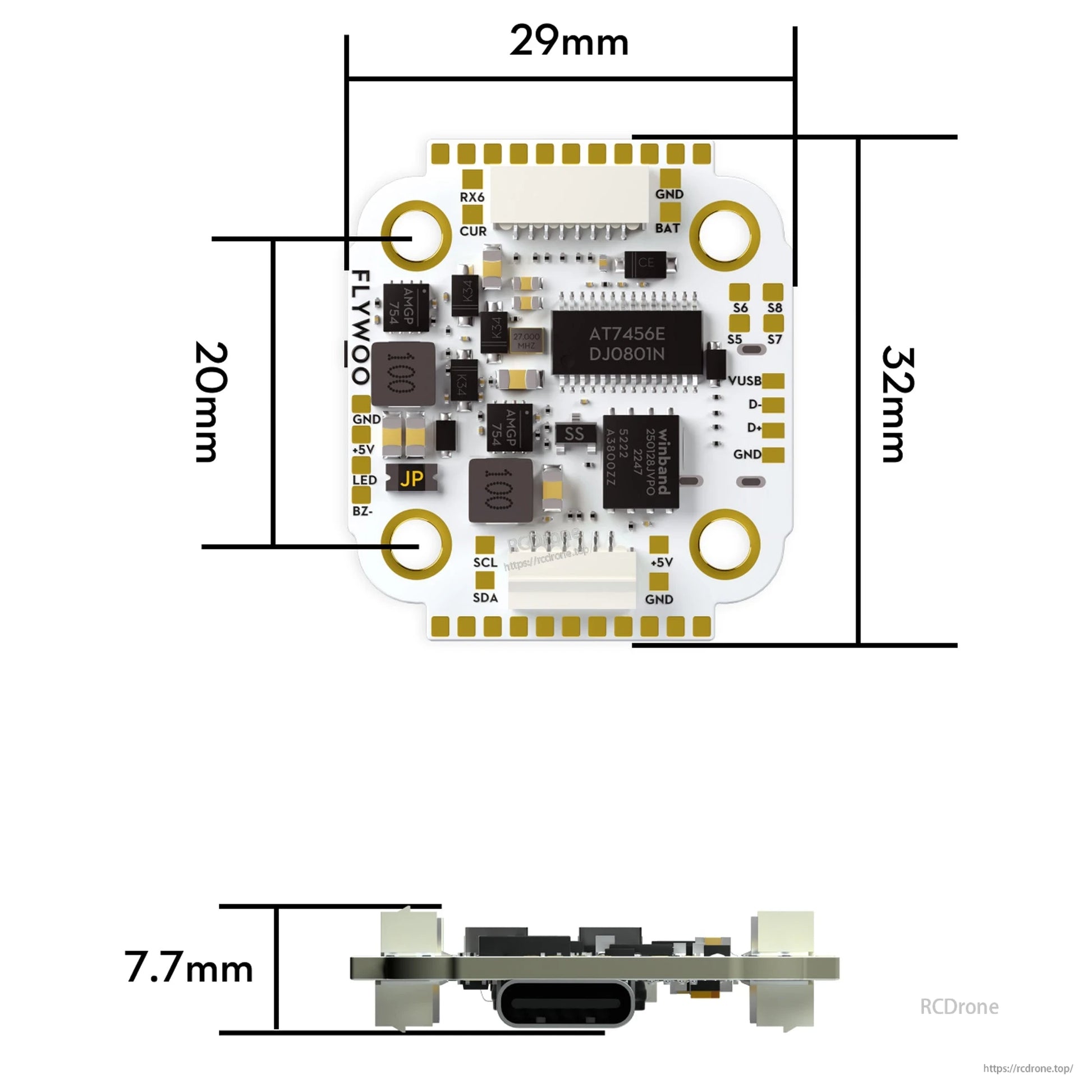

The board layout labels CAM, VTX, RX/TX UARTs, BAT/GND, and 5V/4.5V/10V power pads to simplify wiring and setup.

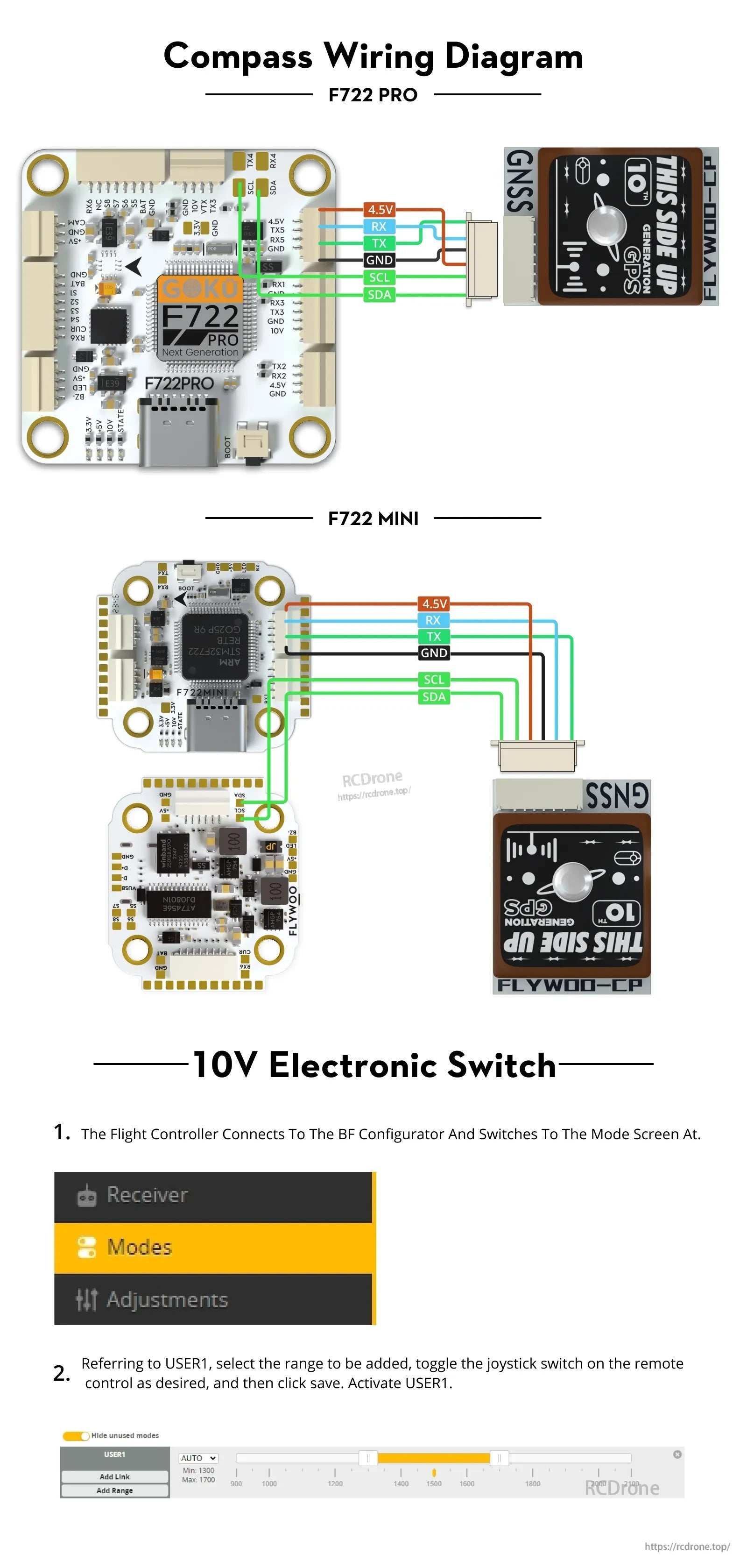

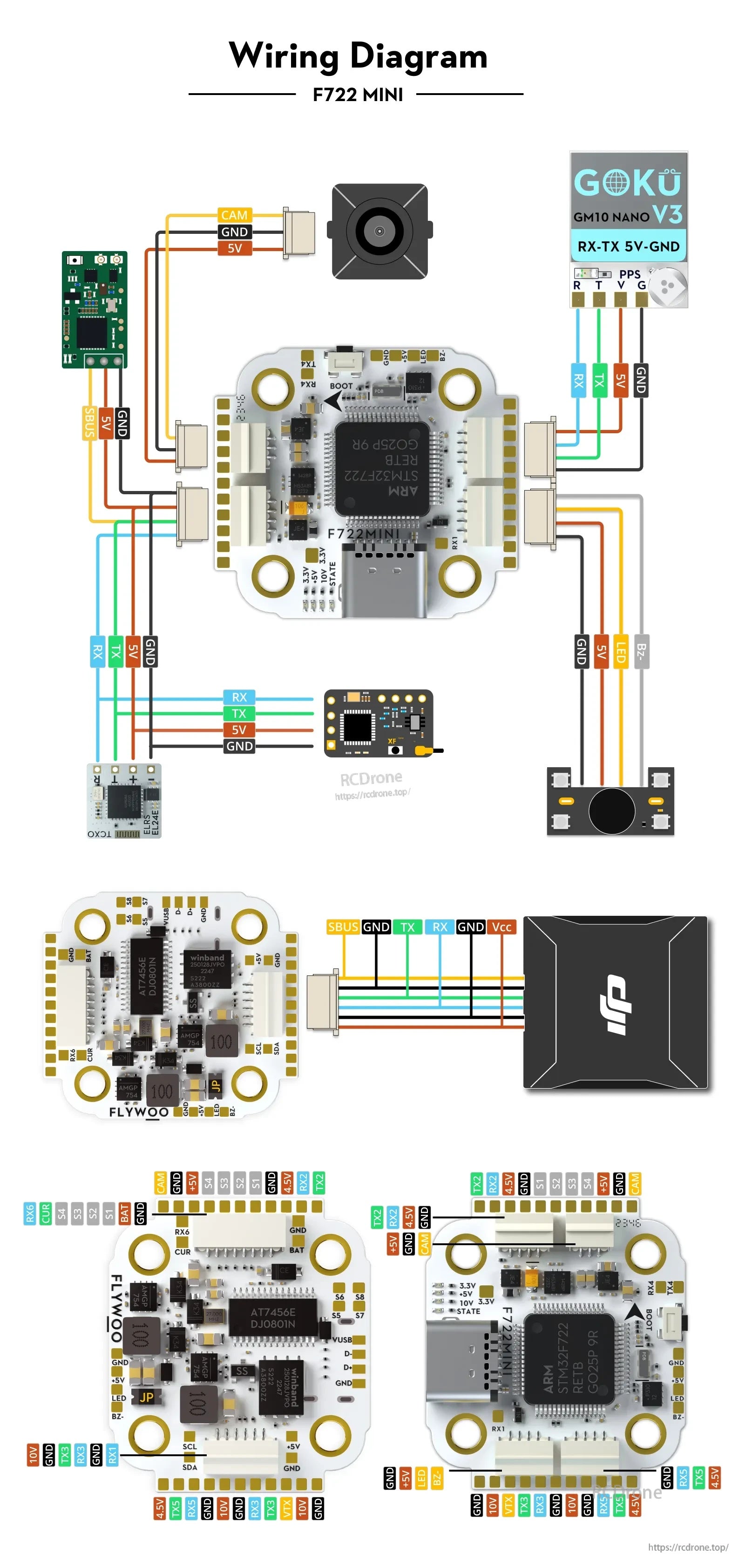

The GOKU F722 wiring guide maps GPS/compass connections (4.5V, RX/TX, GND, SCL/SDA) and shows Betaflight mode setup for the 10V electronic switch.

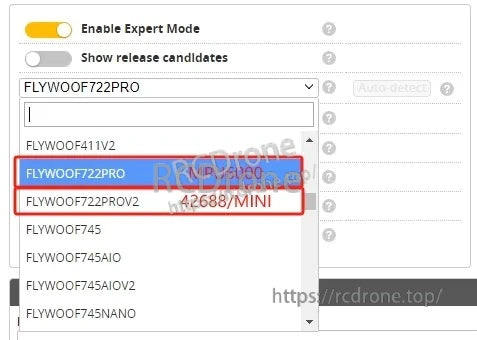

The FLYWOO GOKU F722 Pro Mini V2 uses the FLYWOOF722PROV2 firmware target for flashing in Betaflight Configurator.
