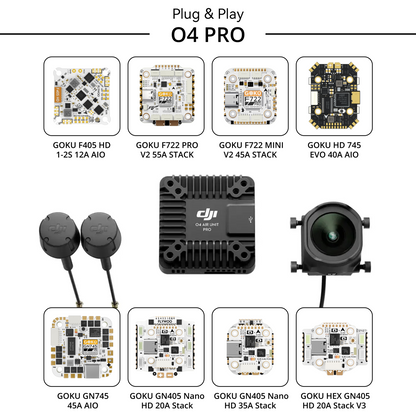

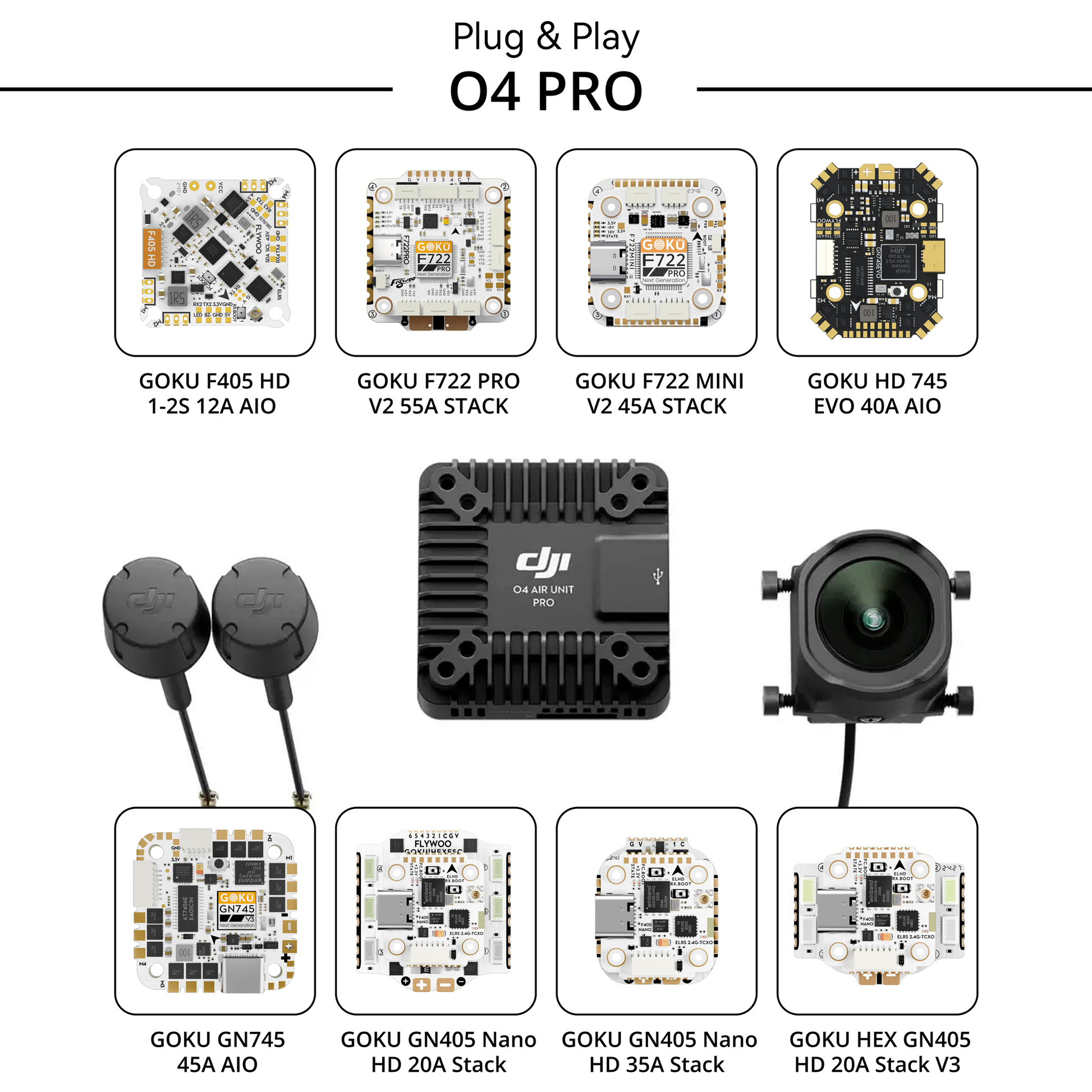

Flywoo GOKU GN745 V3 45A AIO Flight Controller 32bit AM32 Type-C Plug&Play for O4 / O4 Pro

Overview

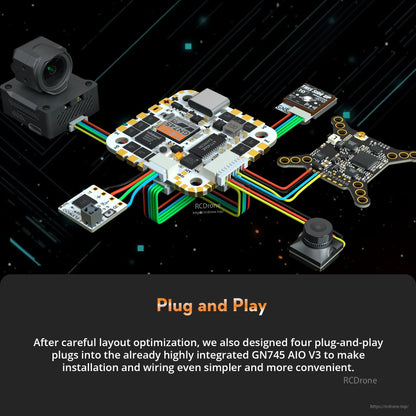

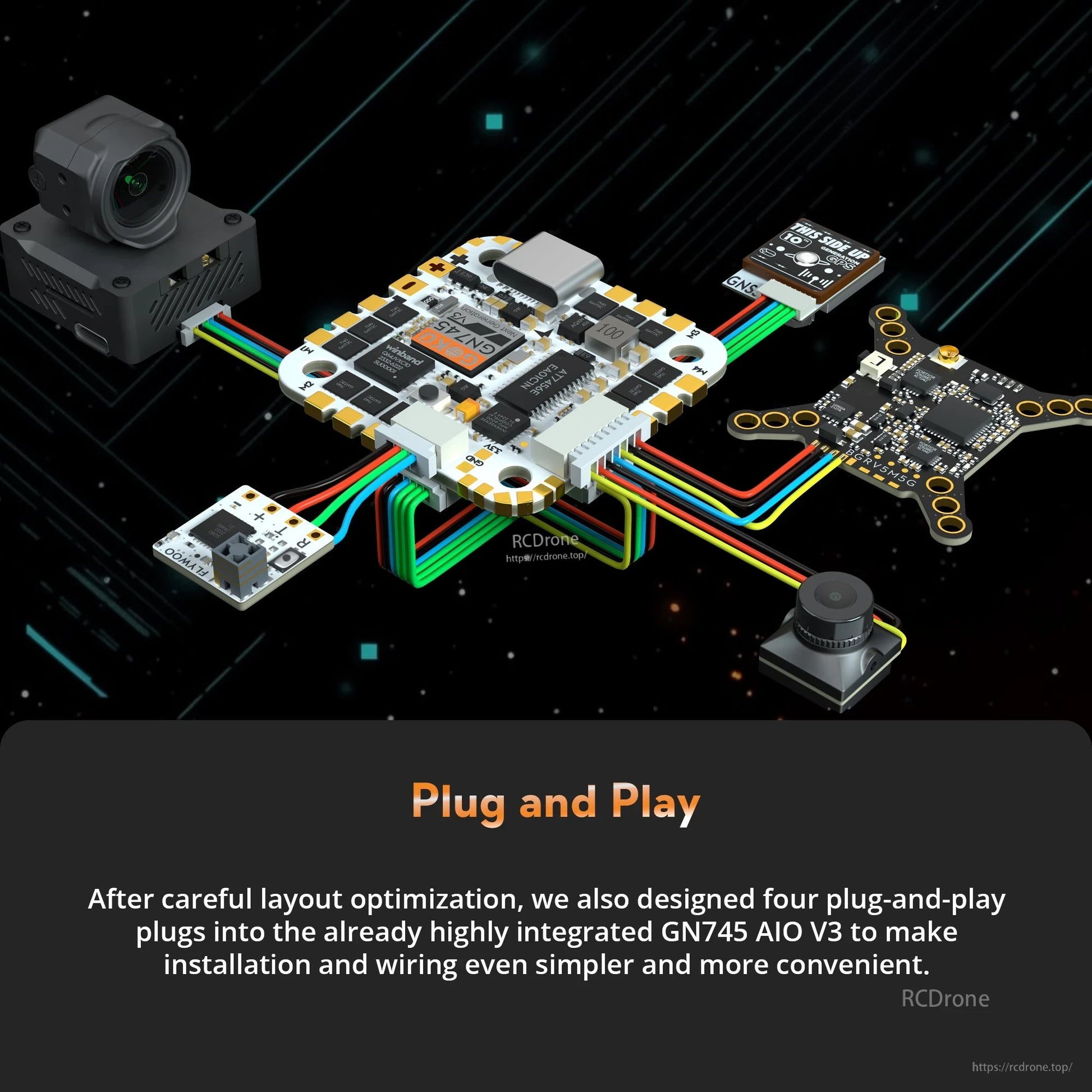

The Flywoo GOKU GN745 45A AIO is a 32-bit AIO flight controller with onboard 4-in-1 ESC, updated to the V3 version with a new ESC two-in-one drive solution, direct-plug UART ports, and a Type-C connector. It is designed for Plug & Play builds and is compatible with Betaflight (BF), INAV, and Ardupilot, and supports connection to O3 air unit, GPS, camera, analog VTX, and receiver without soldering (with supported cable harnesses).

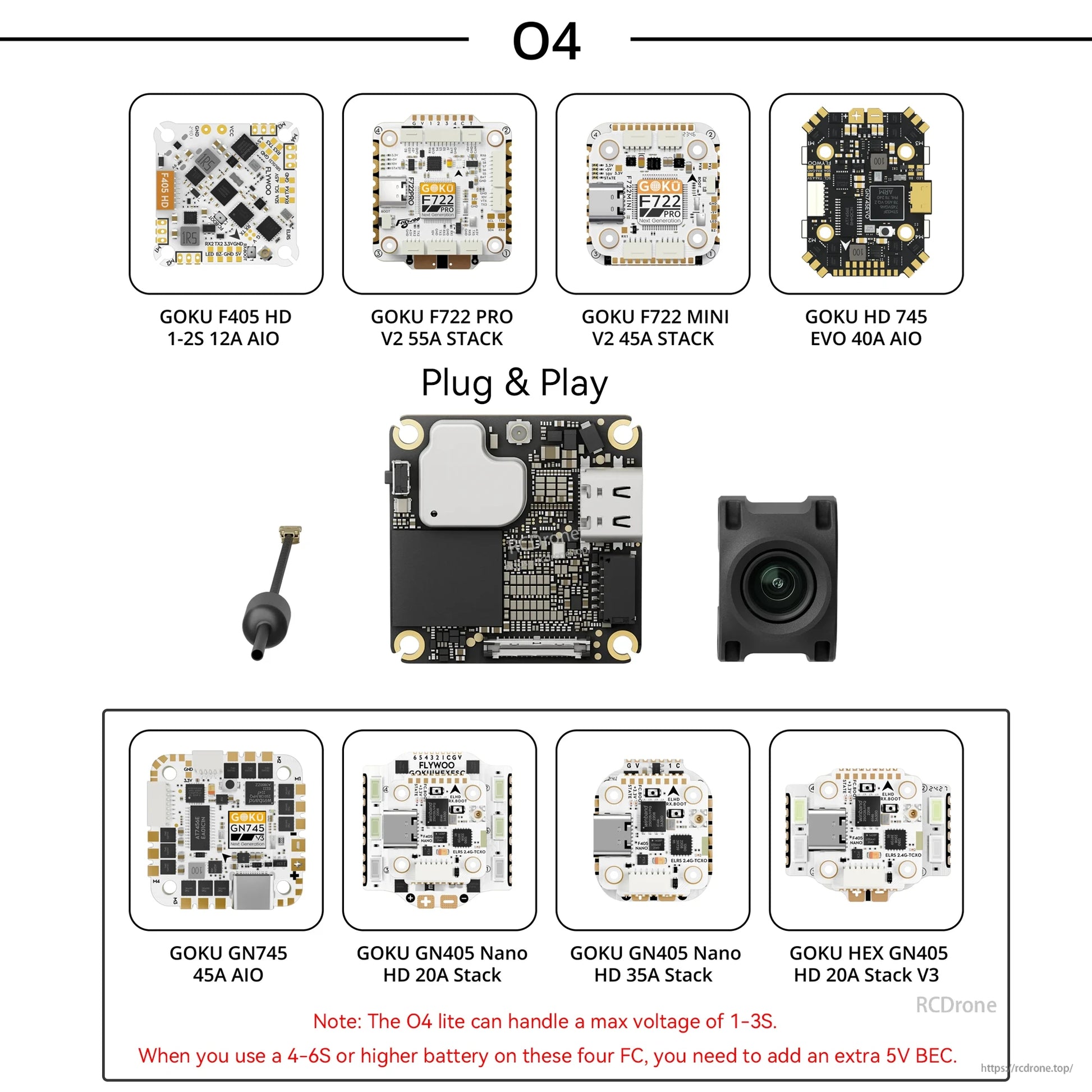

Note: The O4 lite can handle a max voltage of 1-3S. When using a 4-6S (or higher) battery, an extra 5V BEC is required.

Key Features

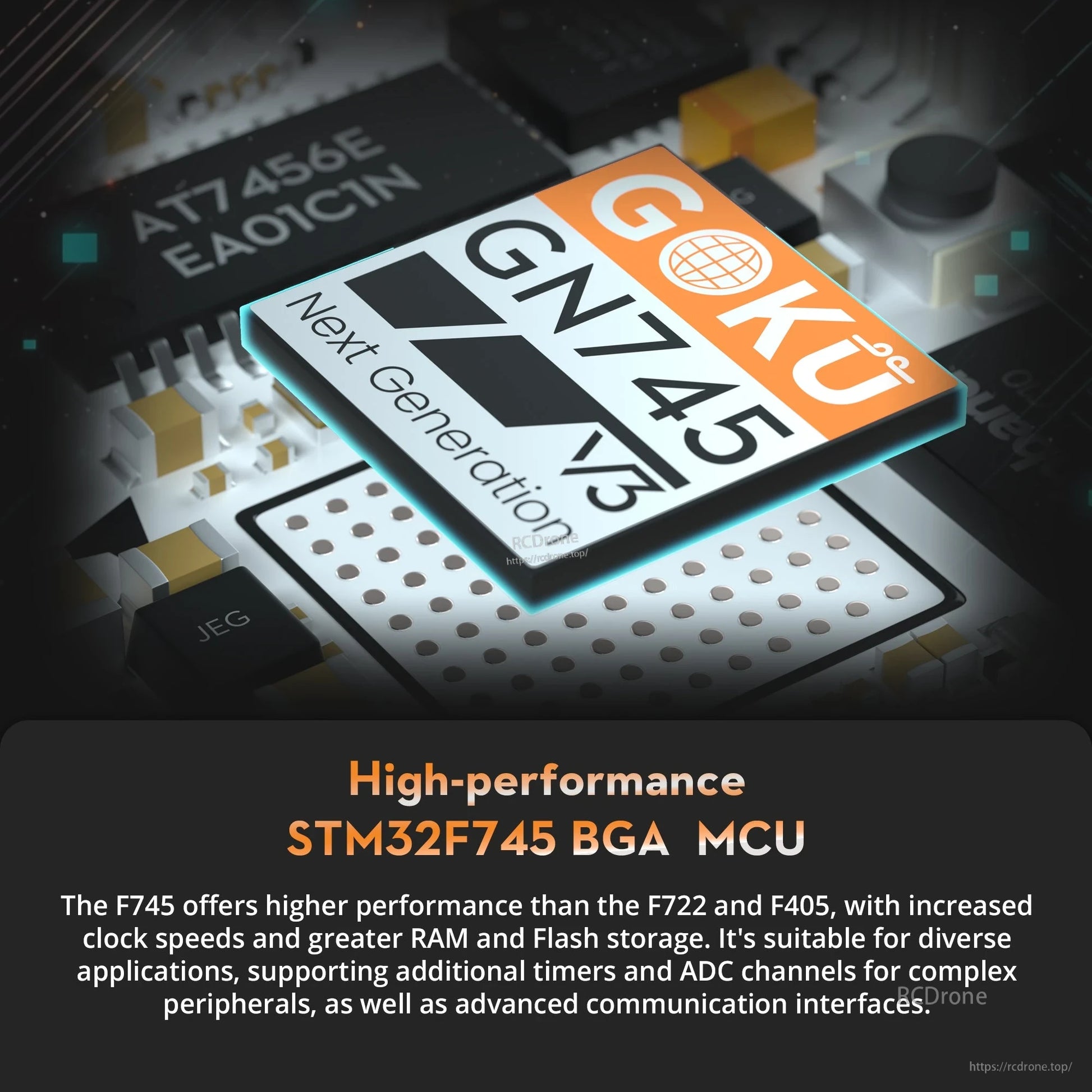

• MCU: STM32F745 BGA, 32-bit, 216MHz, 1MB Flash
• Gyro: MPU6000

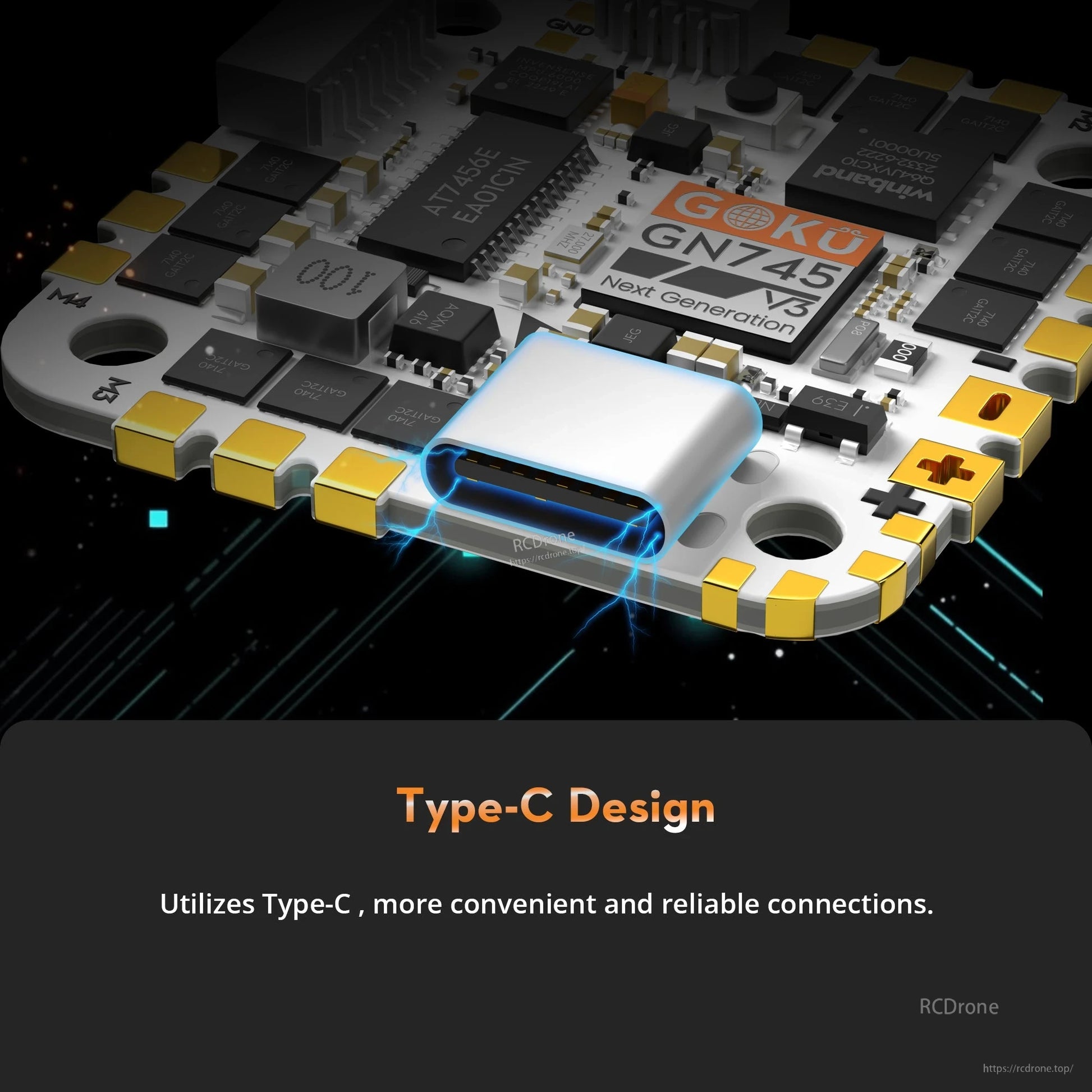

• Type-C interface
• OSD: AT7456E
• USB VCP driver (USB does not take up a UART; all UARTs usable simultaneously)
• 7 hardware UARTs: UART1, UART2, UART3, UART4, UART5, UART6, UART7
• I2C supported
• Onboard blackbox logging: 16Mbytes (also listed as 16mb)
• Serial receivers supported: SBUS, iBus, Spektrum, Crossfire (PPM and PWM receivers not supported)

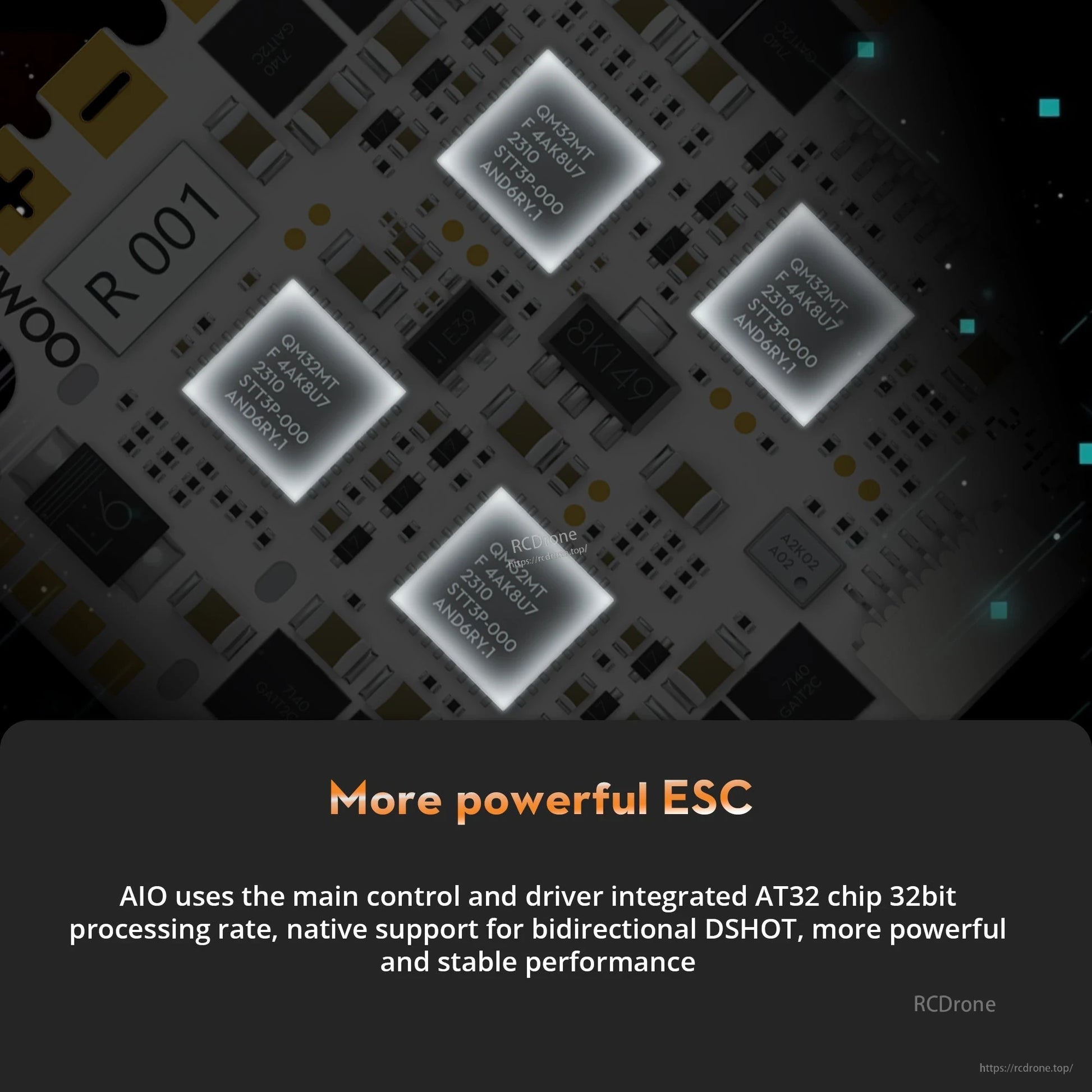

• ESC supports AM32 and bidirectional DSHOT (stated); ESC control/driver uses an integrated AT32 chip (stated)

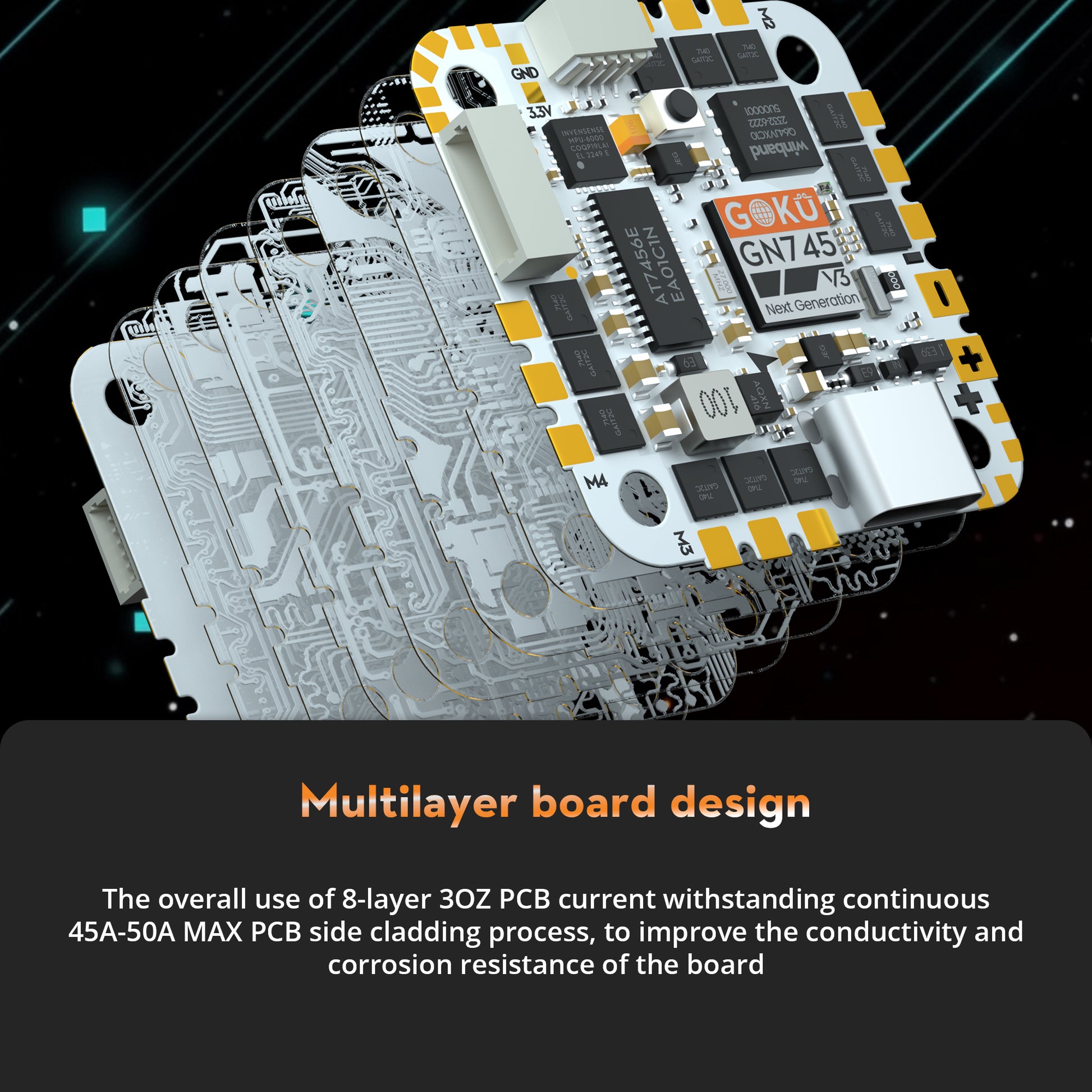

• Multilayer board design: 8-layer 3OZ PCB (stated)

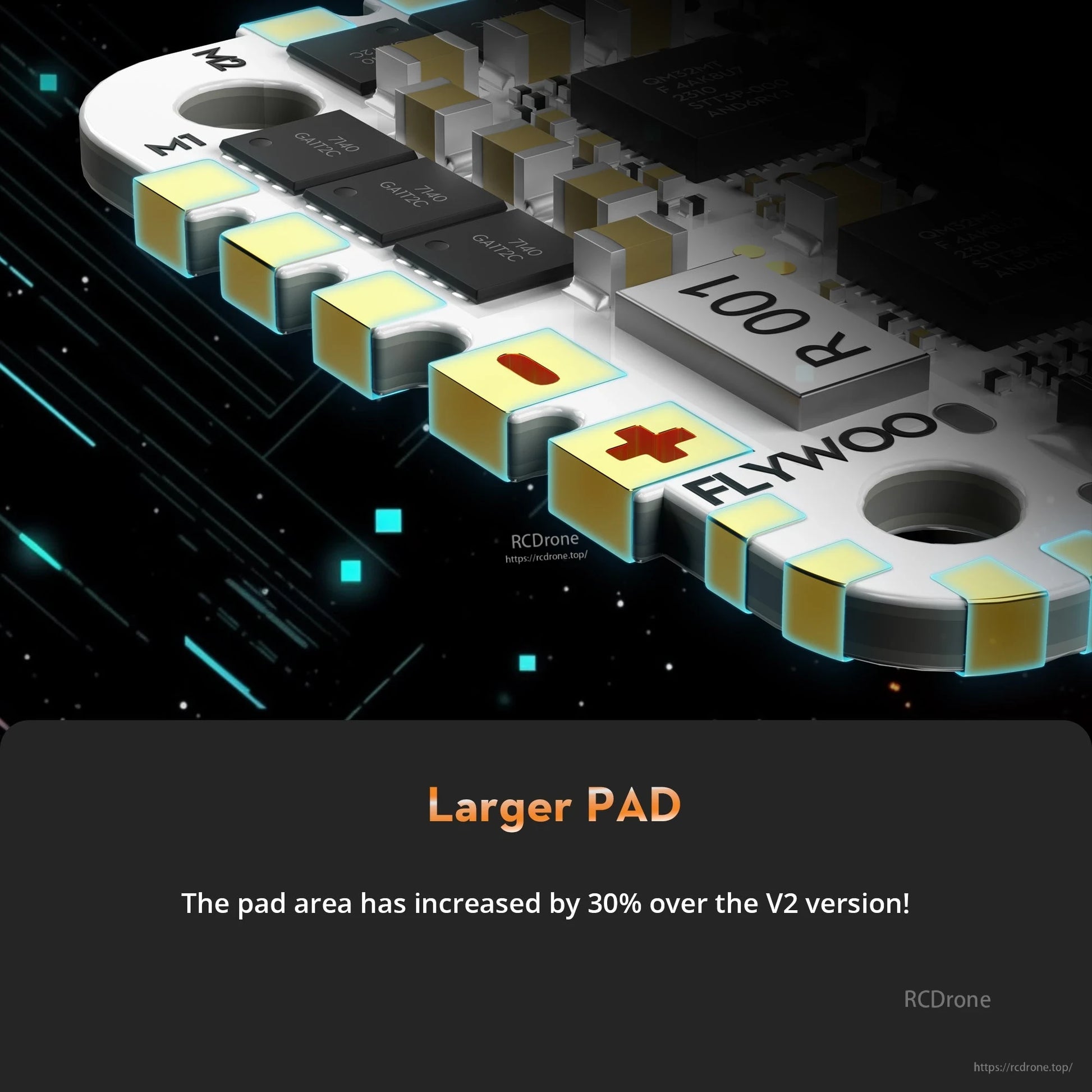

• Larger motor pad area (stated as +30% vs V2) with improved overcurrent protection (stated)

For wiring help or firmware target selection, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Flight Controller

Onboard 4-in-1 ESC

V3 vs V1.2 (values listed for reference)

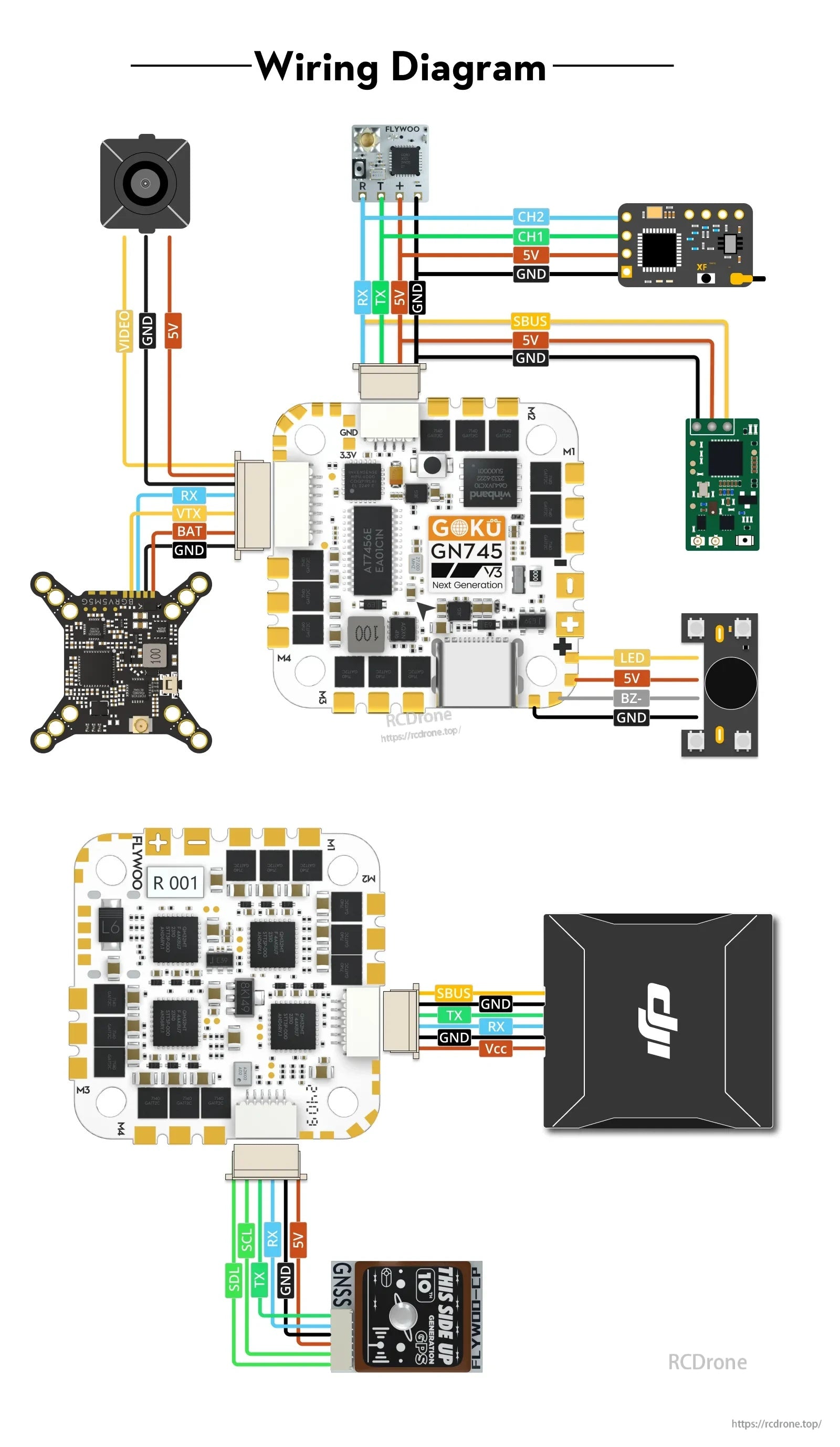

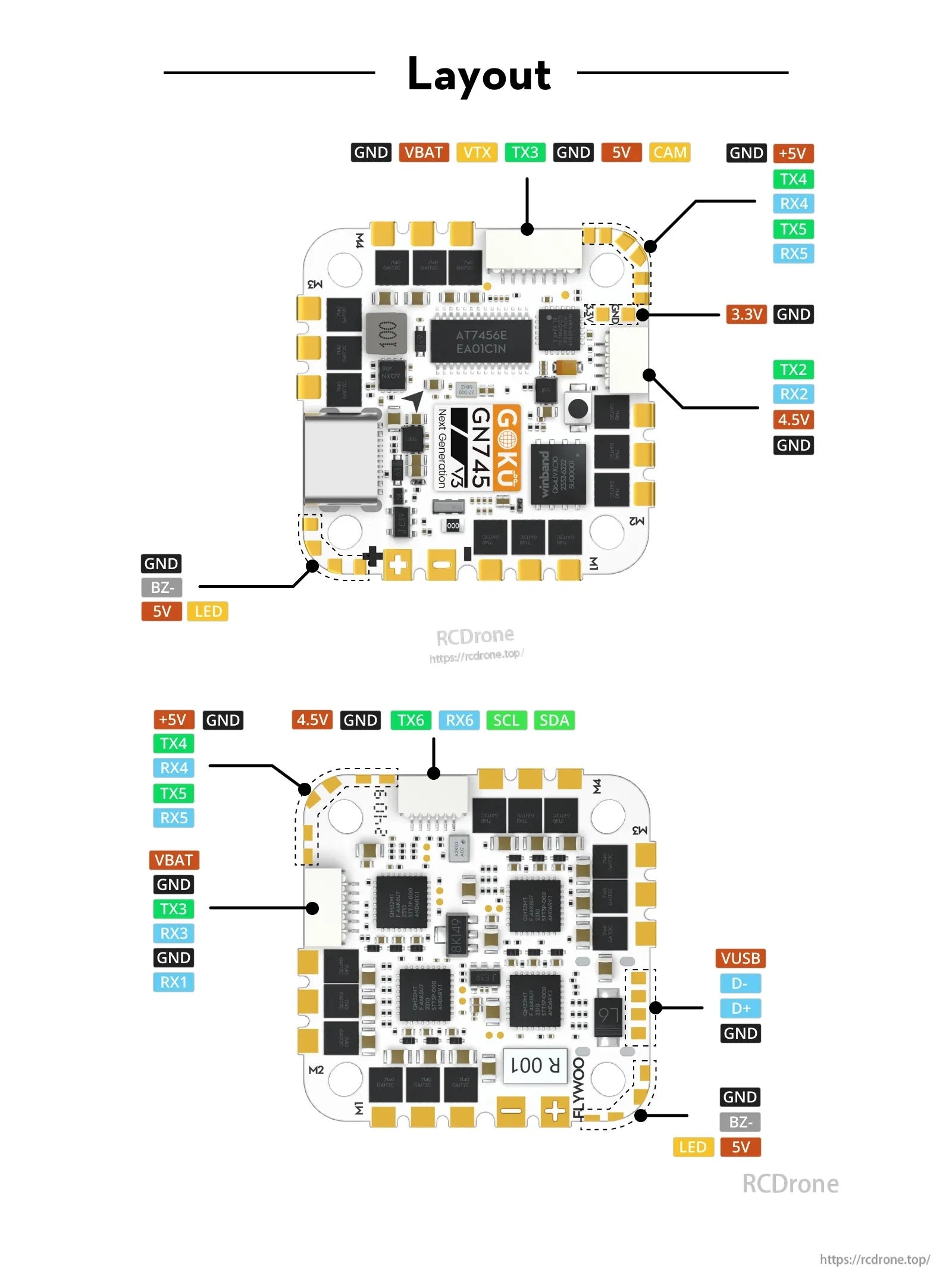

Pinout / Diagram Labels (text on wiring/layout diagrams)

• Main pads/labels include: GND, VBAT, VTX, TX3, 5V, CAM, +5V, 3.3V, TX2, RX2, 4.5V, RX1, RX3, VUSB, D-, D+, BZ-, LED, SCL, SDA, TX4, RX4, TX5, RX5, TX6, RX6, M1, M2, M3, M4.
• Diagram labels also include: VIDEO, RX, TX, BAT, CH1, CH2, SBUS, Vcc.

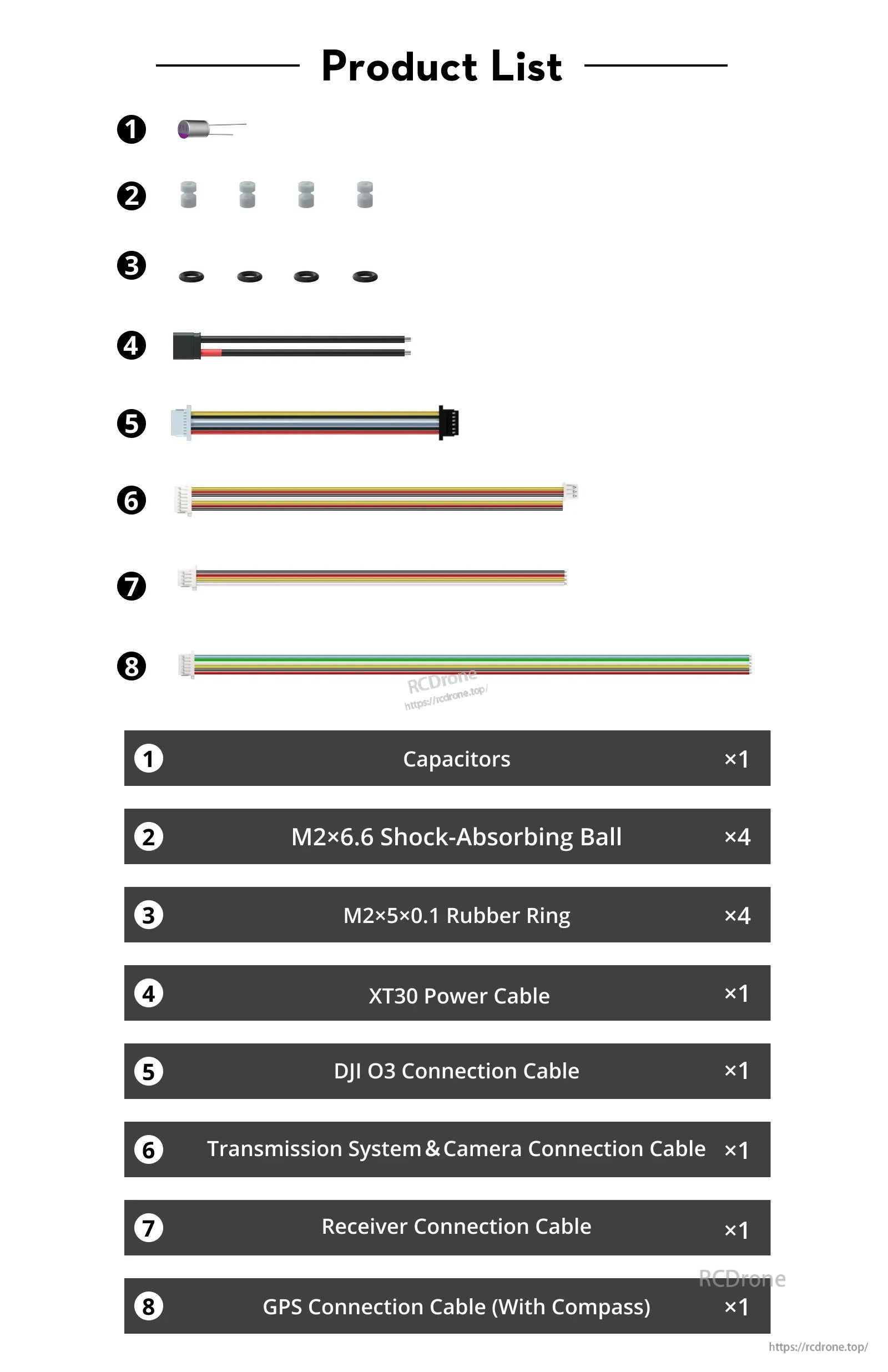

What’s Included

• 1x UNICON UPL capacitor 25V 470UF
• 4x M2x6.6 shock-absorbing ball
• 4x M2 rubber ring (also listed as M2×5×0.1 rubber ring)
• 1x XT30 power cable
• 1x DJI O3 connection cable
• 1x VTX & camera (transmission system & camera) connection cable
• 1x receiver connection cable
• 1x GPS connection cable (with compass)

Applications

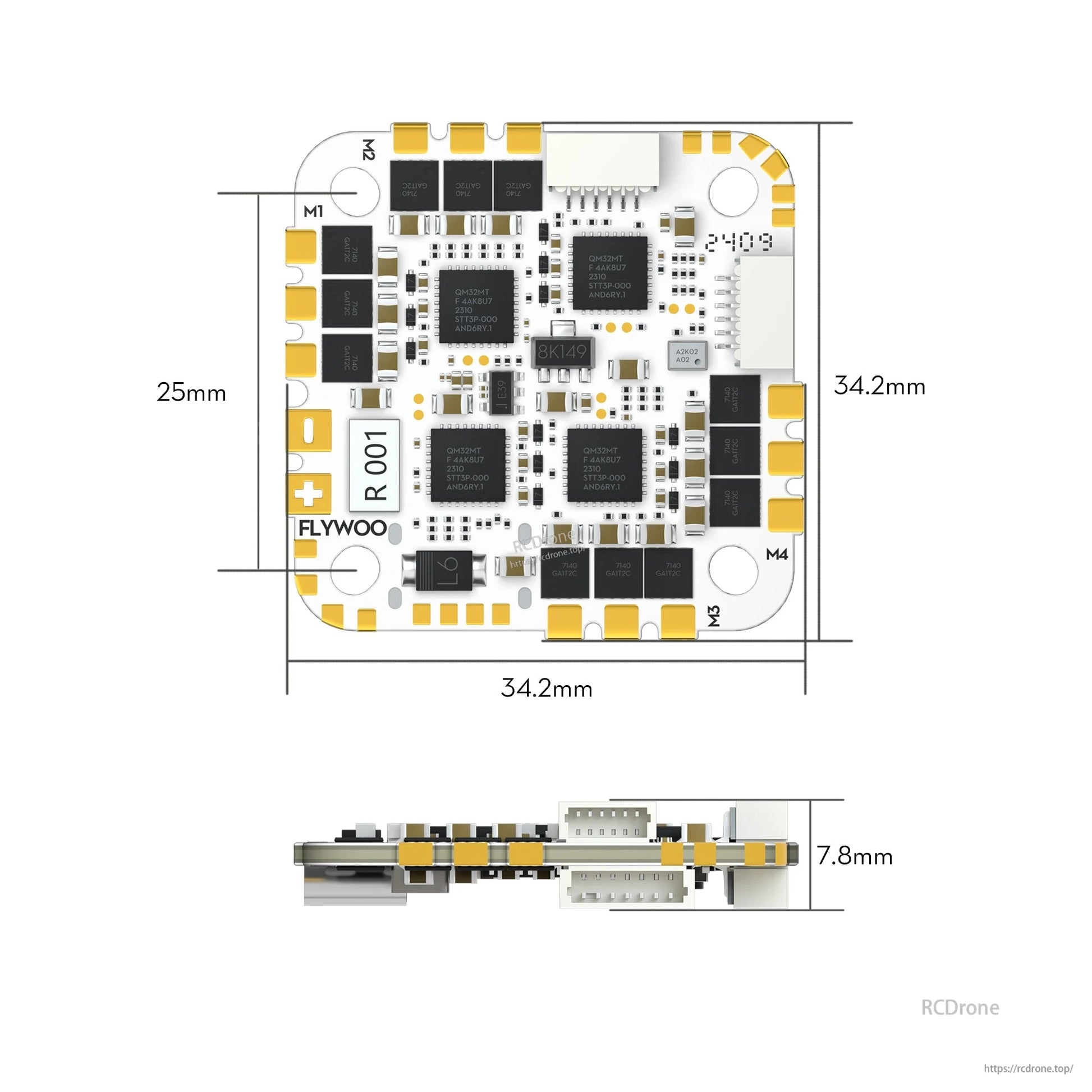

• FPV drone builds requiring a 25.5x25.5mm mounting AIO flight controller with 32-bit 45A-class 4-in-1 ESC
• Betaflight / INAV / Ardupilot configurations using serial receivers and multiple UART peripherals (GPS, VTX, camera)

Details

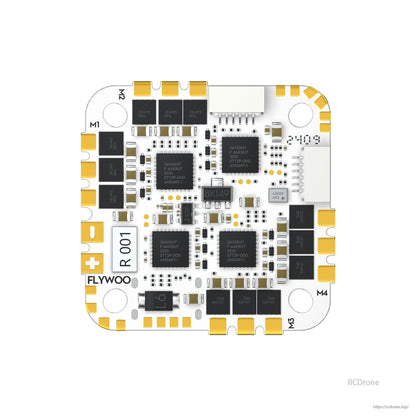

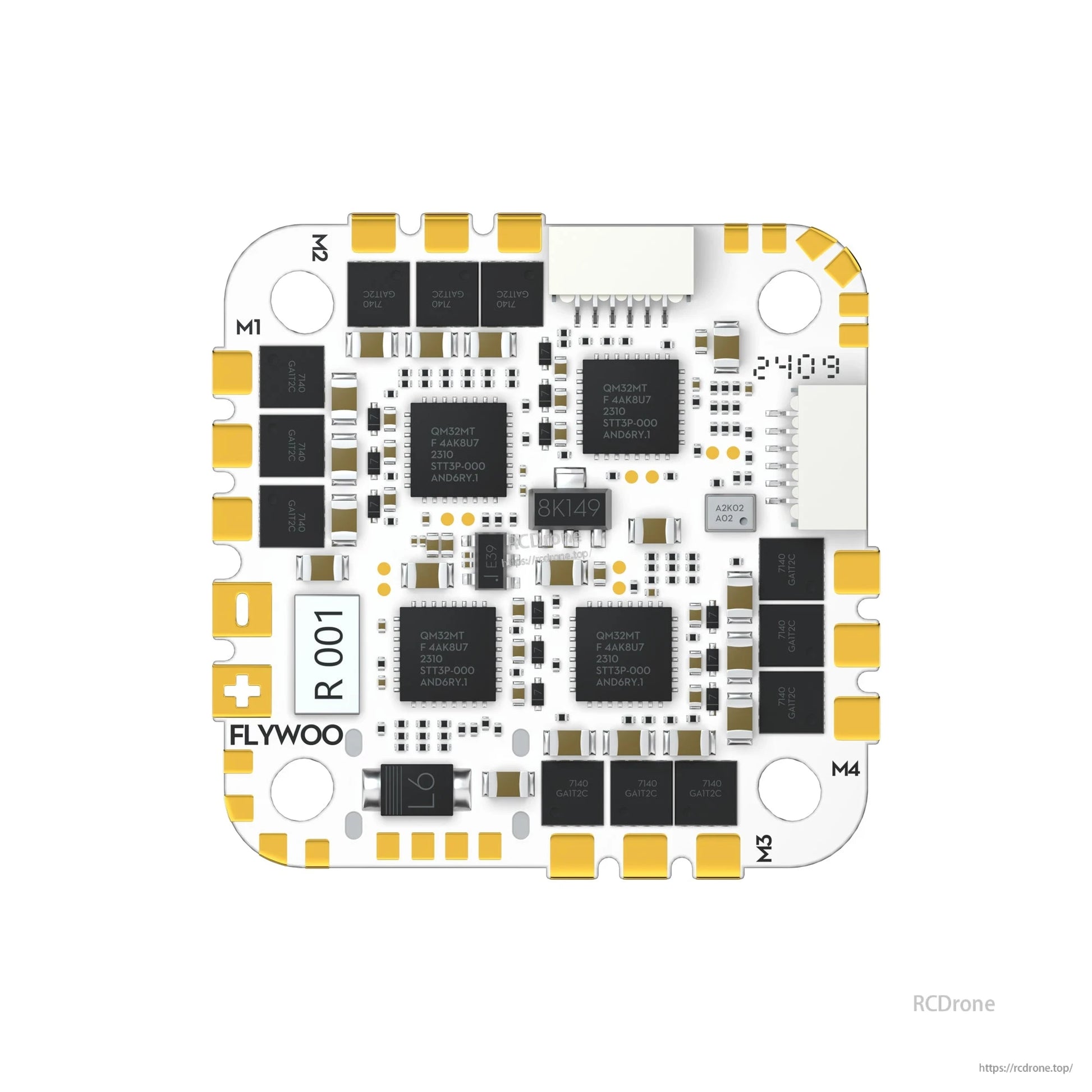

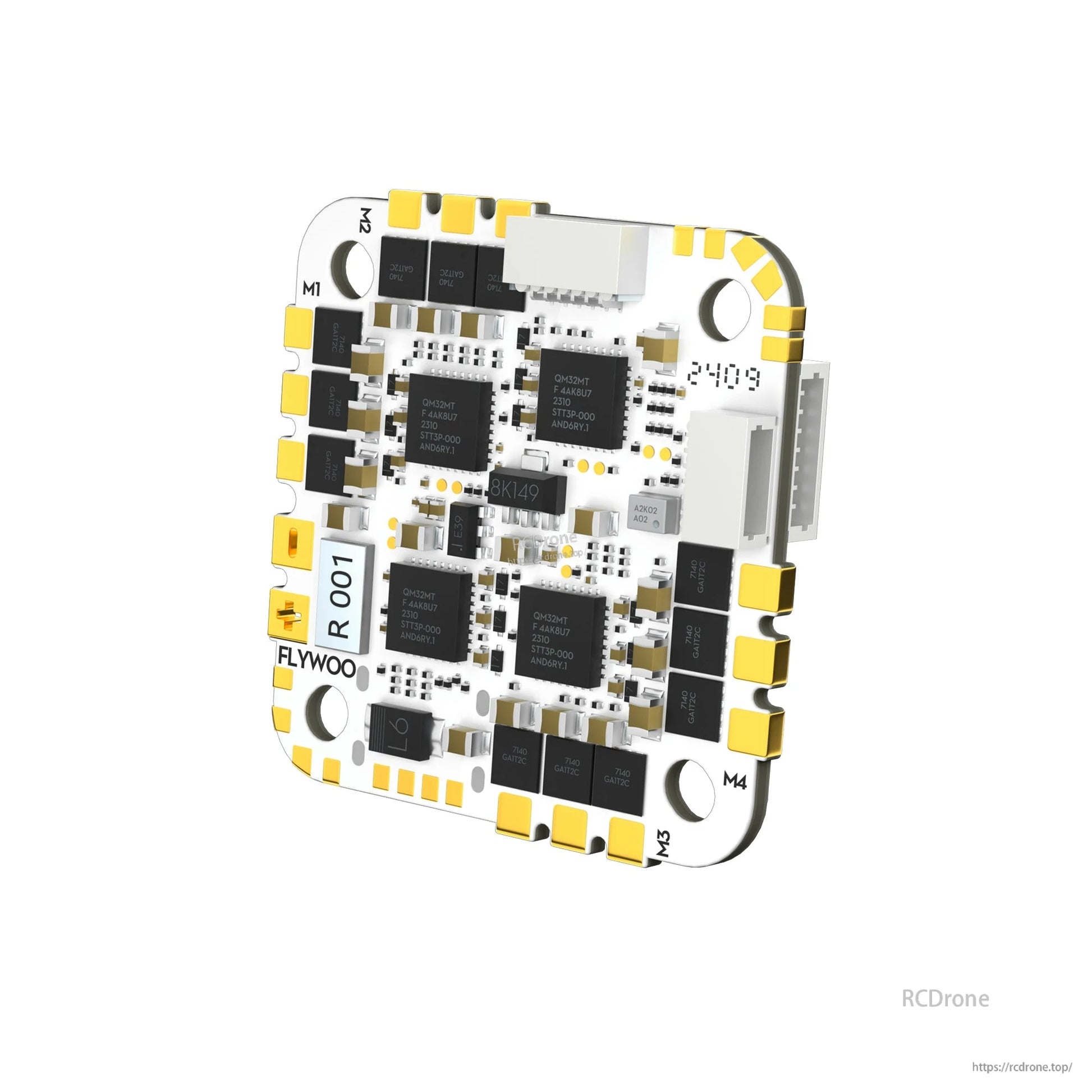

The Flywoo GOKU GN745 V3 AIO flight controller features clearly labeled motor pads (M1–M4) and power pads for straightforward wiring.

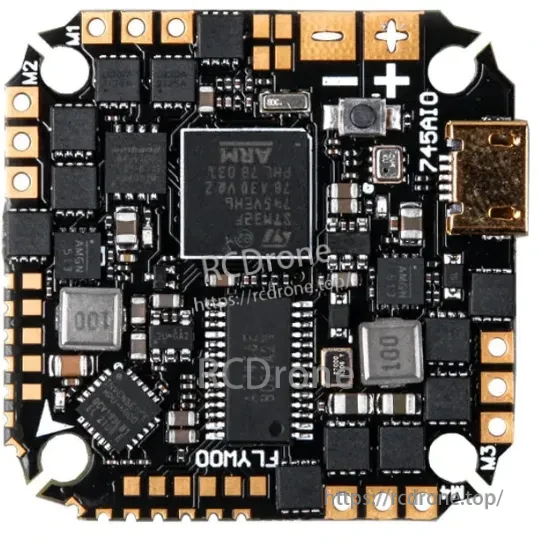

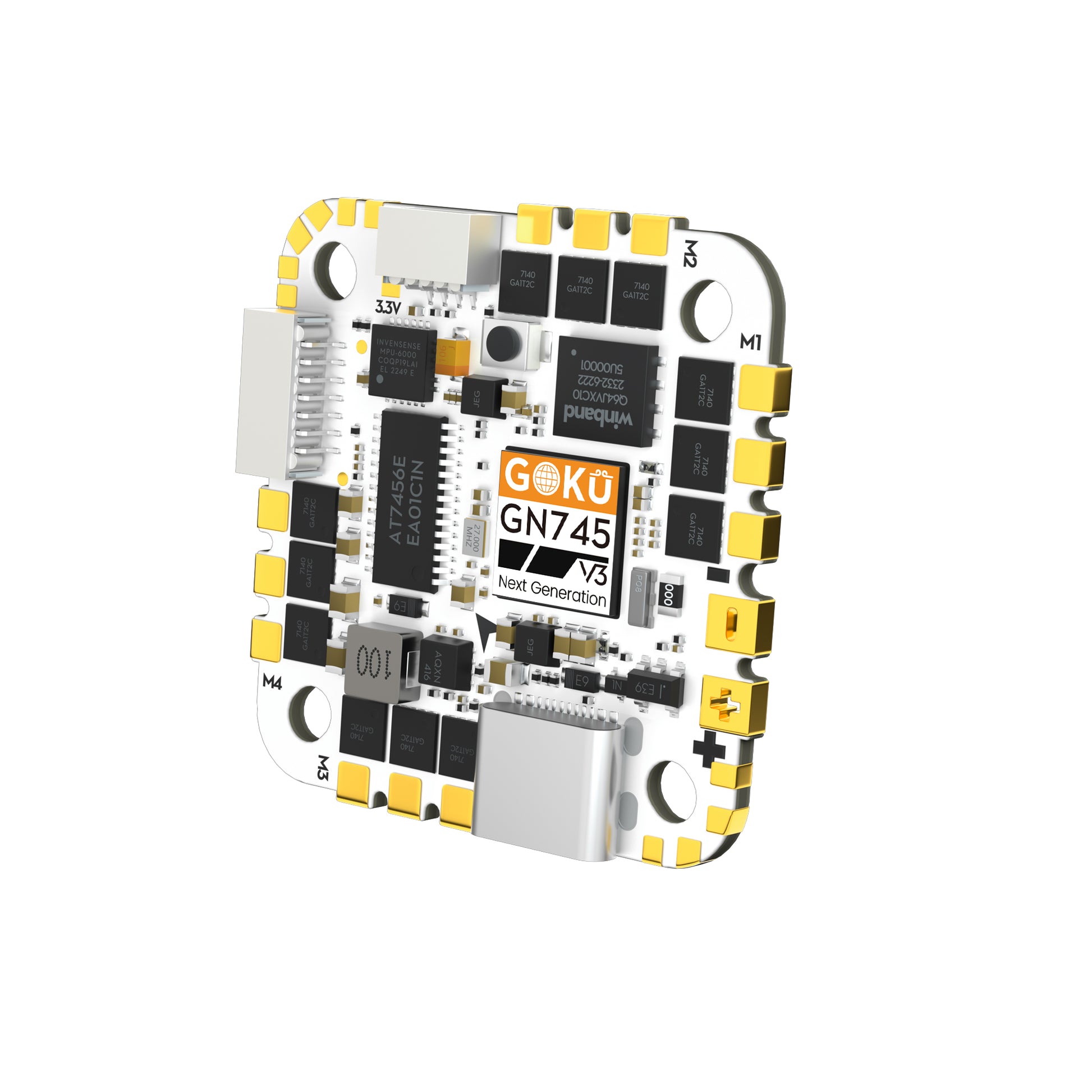

The Flywoo GOKU GN745 V3 AIO flight controller features clearly marked battery pads and a side USB port for convenient setup and configuration.

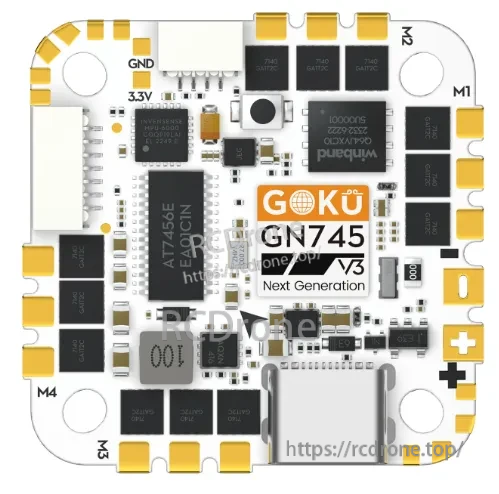

The Flywoo GOKU GN745 V3 AIO combines a 45A ESC with a USB-C port, F745 MCU, and MPU6000 gyroscope for streamlined builds.

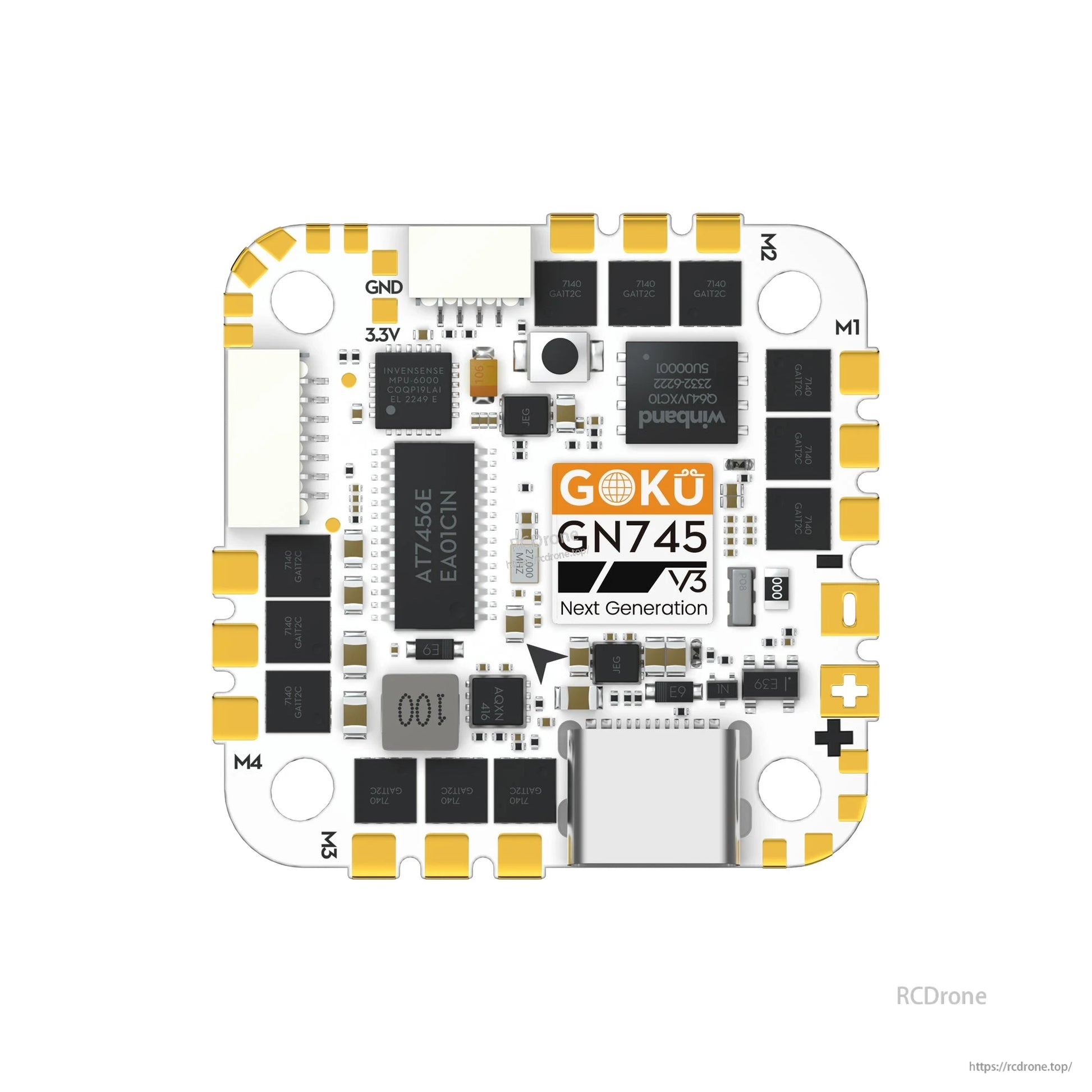

The Flywoo GOKU GN745 V3 45A AIO pairs an STM32F745 MCU with a Type‑C port, larger solder pads, and Betaflight/INAV/Ardupilot compatibility.

The GOKU GN745 V3 AIO uses clearly labeled pads for camera/VTX connections, receiver SBUS, and power (5V, GND, BAT) to simplify wiring.

Clearly labeled VBAT, 5V/4.5V/3.3V, GND, CAM/VTX, UART TX/RX, and USB pads help simplify wiring for a clean FPV build.

The package includes a capacitor, XT30 power lead, shock-absorbing mounting hardware, and wiring harnesses for DJI O3, receiver, camera/VTX, and GPS (with compass).
