Flywoo Naked O3 Upgrade Case Kit for DJI O3 Air Unit, 7075 CNC Frame, Lite/Ultra 18.3g/23.2g
Flywoo Naked O3 Upgrade Case Kit for DJI O3 Air Unit, 7075 CNC Frame, Lite/Ultra 18.3g/23.2g
Flywoo
Couldn't load pickup availability
Overview
The Naked O3 Upgrade Case kit is a 7075 CNC aluminum upgrade kit designed to reduce the size and weight of a DJI O3-based FPV digital transmission setup for micro drones. It supports HD real-time video transmission and 4K video recording with low latency, aiming to improve control feel and increase flight time in indoor or tight spaces.
Key Features
- 7075 CNC upgrade kits and reasonable design to help protect the naked O3 module and prevent unnecessary damage.

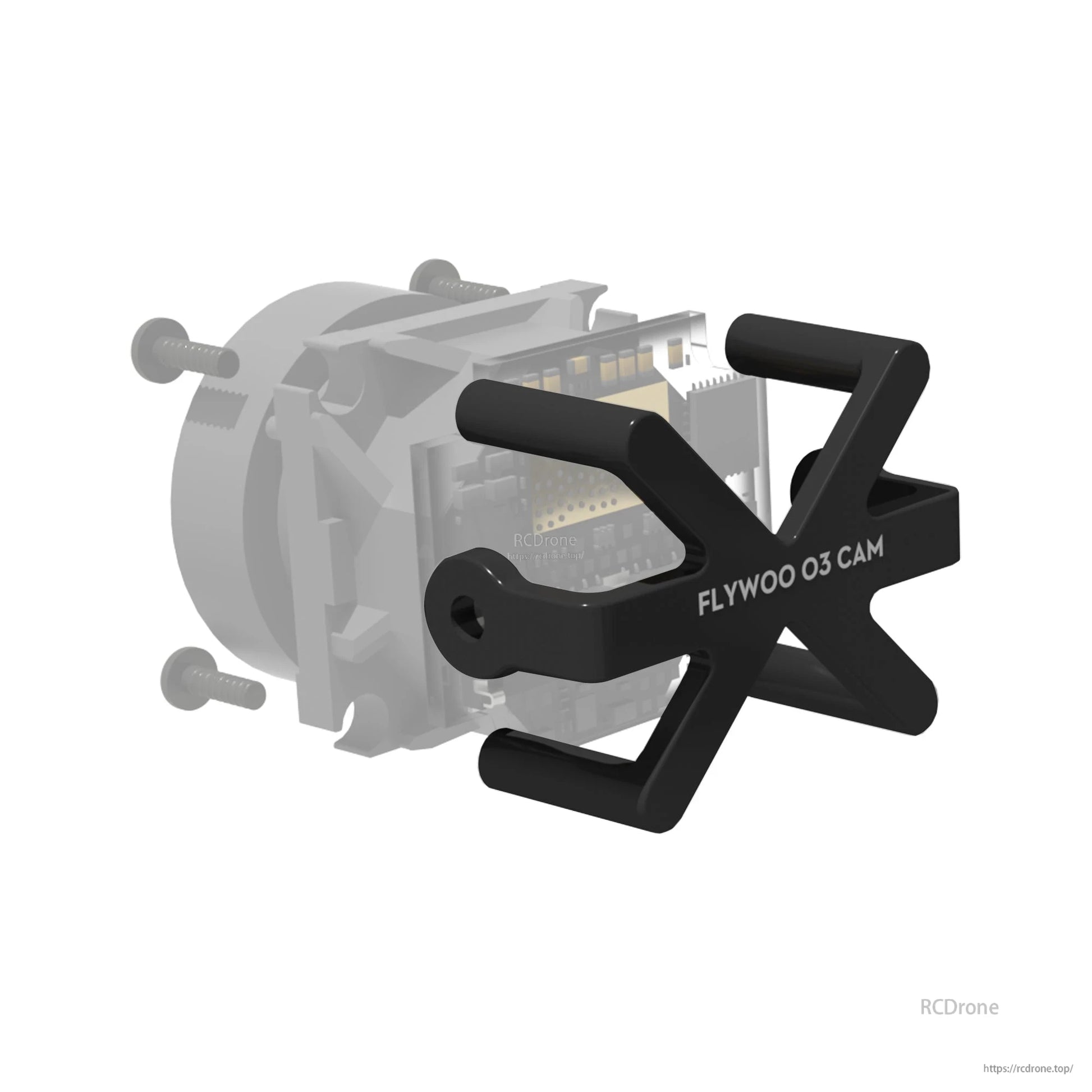

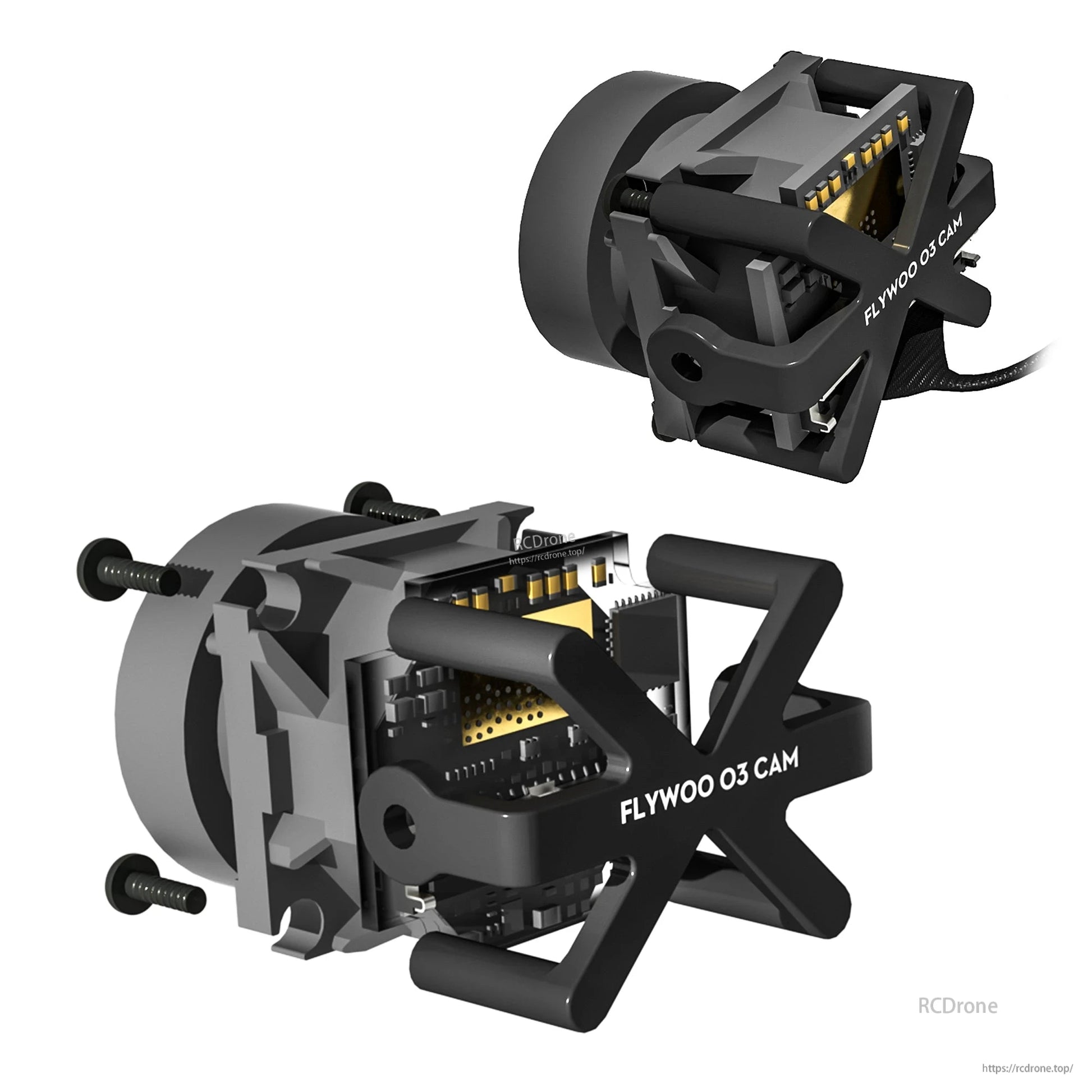

- Claw-style camera protection design; save up to 4 g (noted for micro drone builds where every 1 g matters).

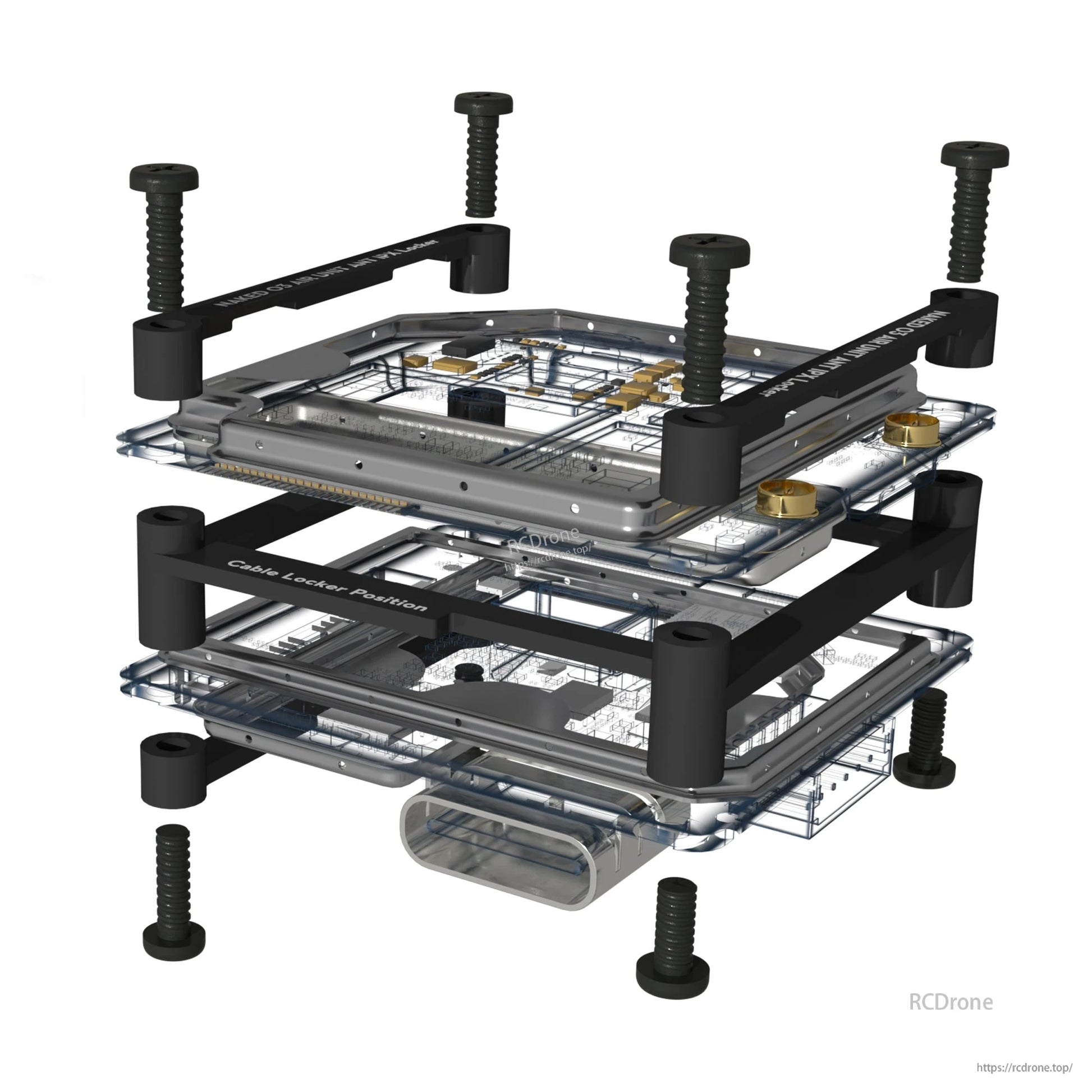

- Layered design for enhanced stability and heat dissipation; designed to maximize heat dissipation area and reduce contact issues from collisions.
- Antenna buckle design to help avoid pulling the 5.8G antenna loose during flight or installation.

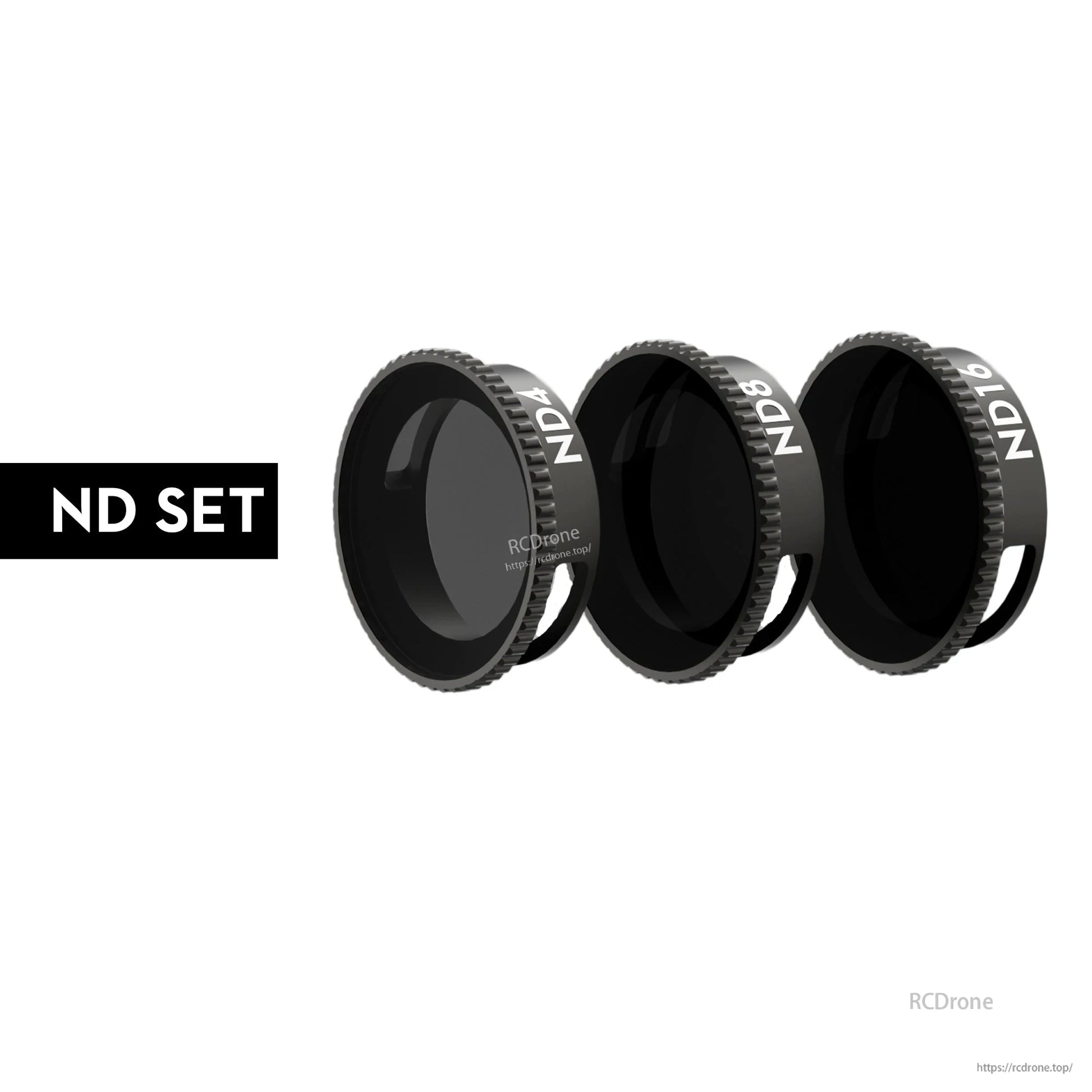

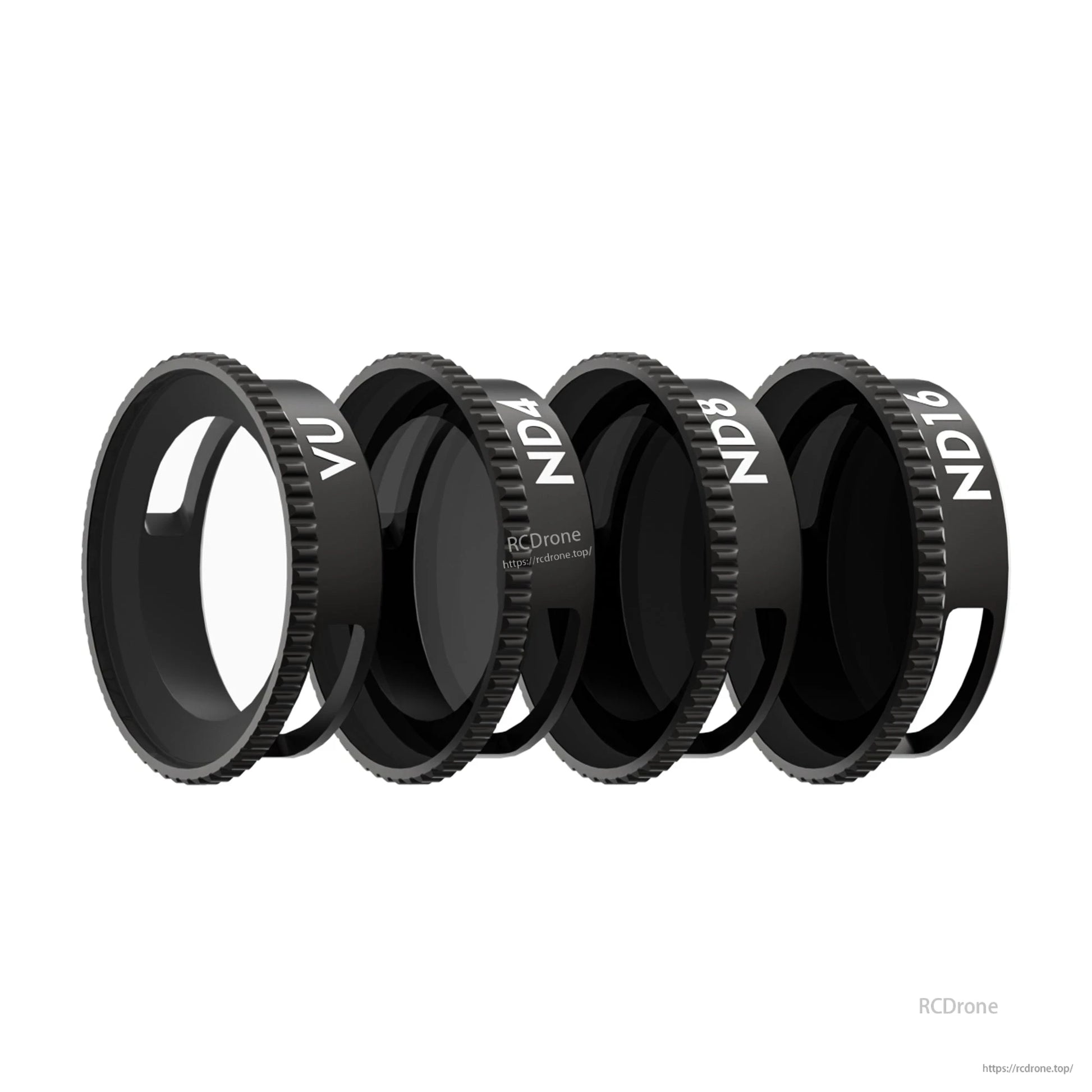

- Custom O3 Lite filters for enhanced shooting experience; compatible with O3 Lite and O3 Ultra lenses. Options: UV, ND4, ND8, ND16.
Specifications
| Product model | FLYWOO O3 LITE / O3 Ultra |
| Product dimensions | 21.2*20*17.9 mm (CAM) / 29.8*28.8*13.3 mm (VTX) |
| Product weight | 23.2 g (O3 LITE) / 18.3 g (O3 Ultra) |
| Input voltage | 7V-26V |
| Transmission resolution | 1080/4K 120FPS |
| Weight reduction | Lite: 37% / Ultra: 50% |
Size reference shown
| DJI O3 | 30.5 mm * 32.4 mm * 13.8 mm |
| Ultra size | 28.5 mm * 28.5 mm * 10 mm |
| Lite size | 28.5 mm * 28.5 mm * 12.5 mm |
| Weight reference shown | DJI O3 36.8 g / Ultra 18.3 g (↓50%) / Lite 23.2 g (↓37%) |

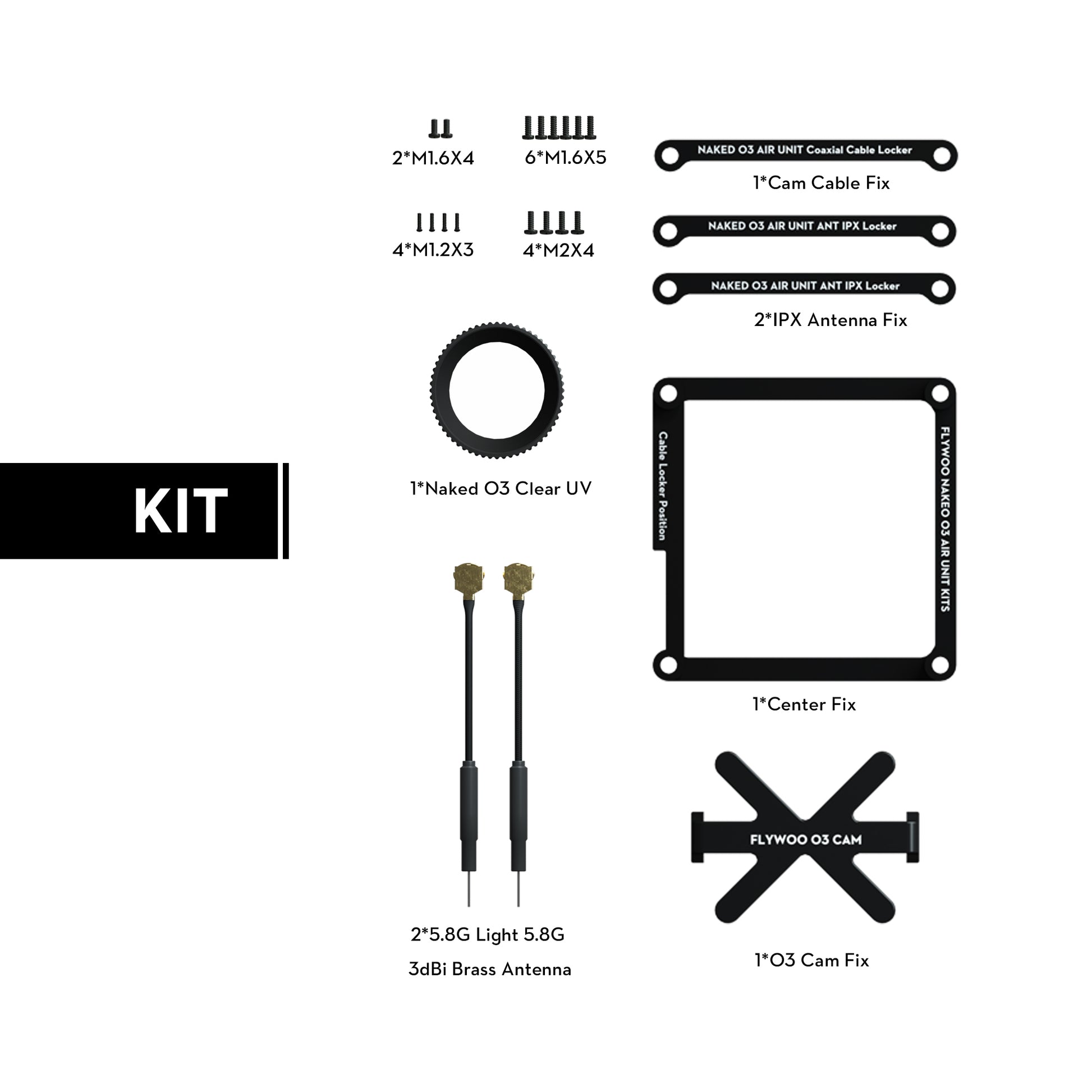

What’s Included
- 1* Cam Cable Fix
- 2* IPX Antenna Fix
- 1* Center Fix
- 1* O3 Cam Fix

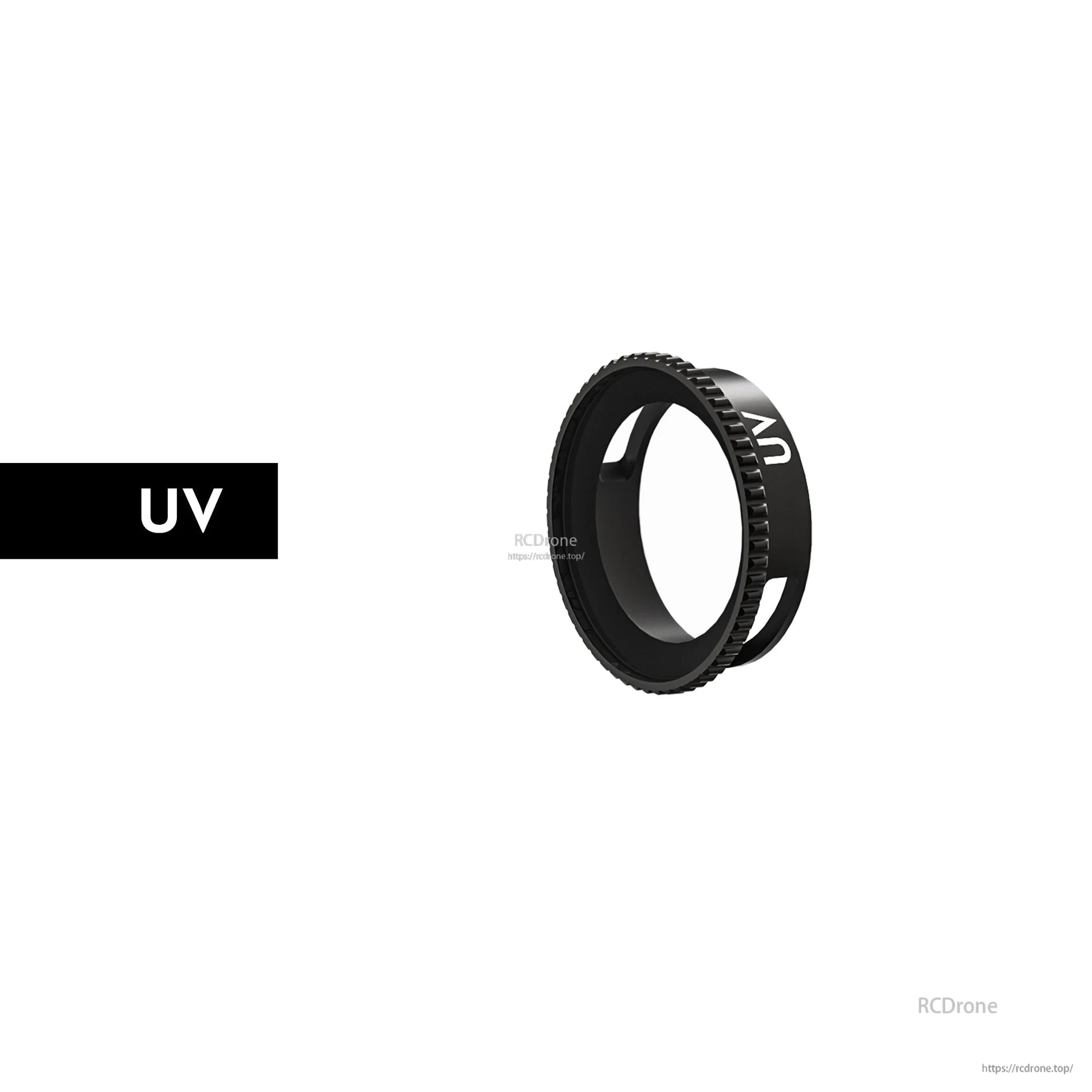

- 1* Naked O3 Clear UV
- 2* 5.8G Light 5.8G 3dBi Brass Antenna
- Screws: 2*M1.6X4, 6*M1.6X5, 4*M2X4, 4*M1.2X3
- NAKED O3 AIR UNIT Coaxial Cable Locker

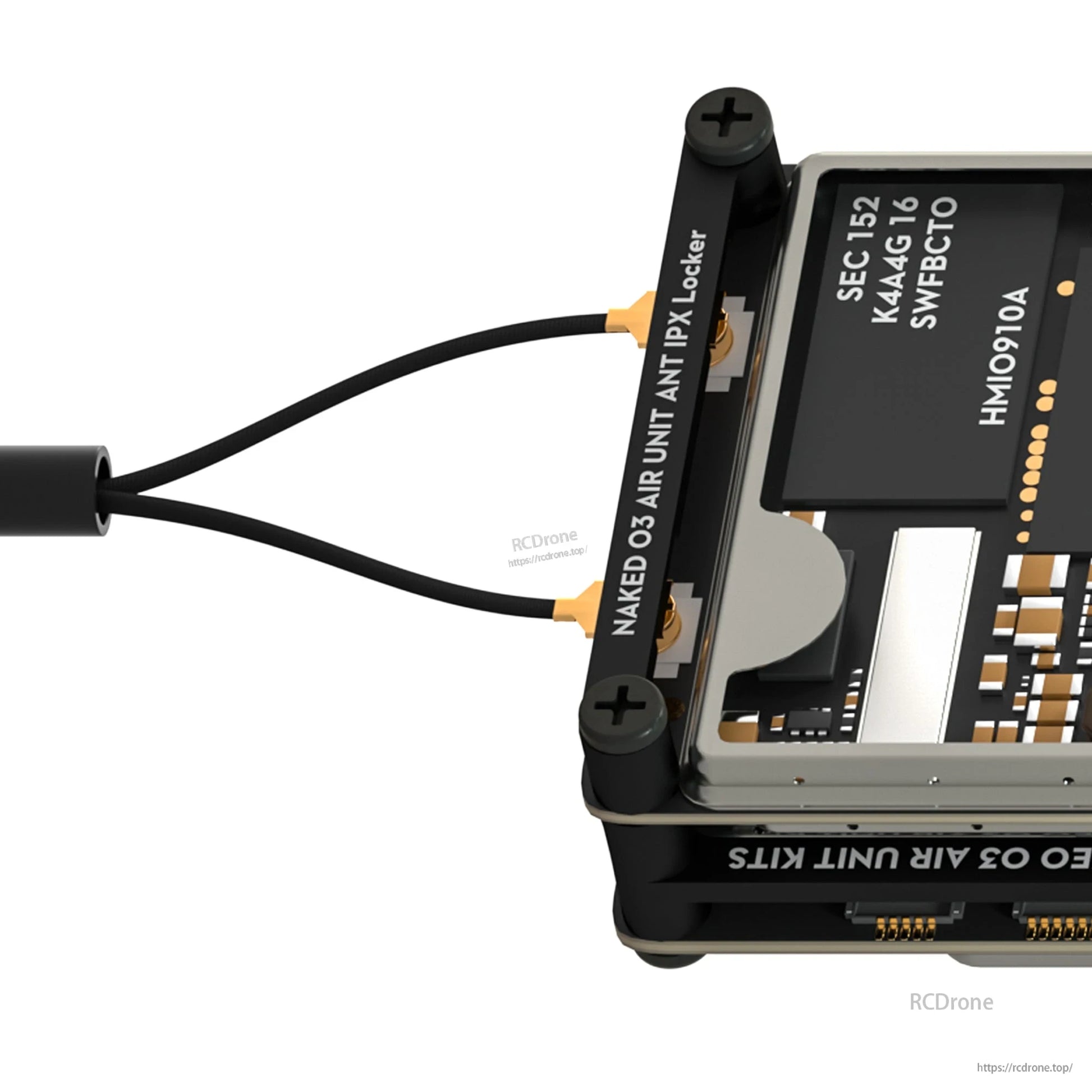

- NAKED O3 AIR UNIT ANT IPX Locker (x2 shown)
Notes
- Lite and Ultra differences: The Naked O3 Ultra is designed for extreme lightweight performance, resulting in the removal of the SD card slot. If SD card use is required, consider the Naked O3 Lite (retains the SD card slot).
- After disassembly of a Naked O3 Air unit, it is no longer eligible for DJI after-sales service.
- For product support from this store, contact https://rcdrone.top/ or email support@rcdrone.top.
Manuals
Details

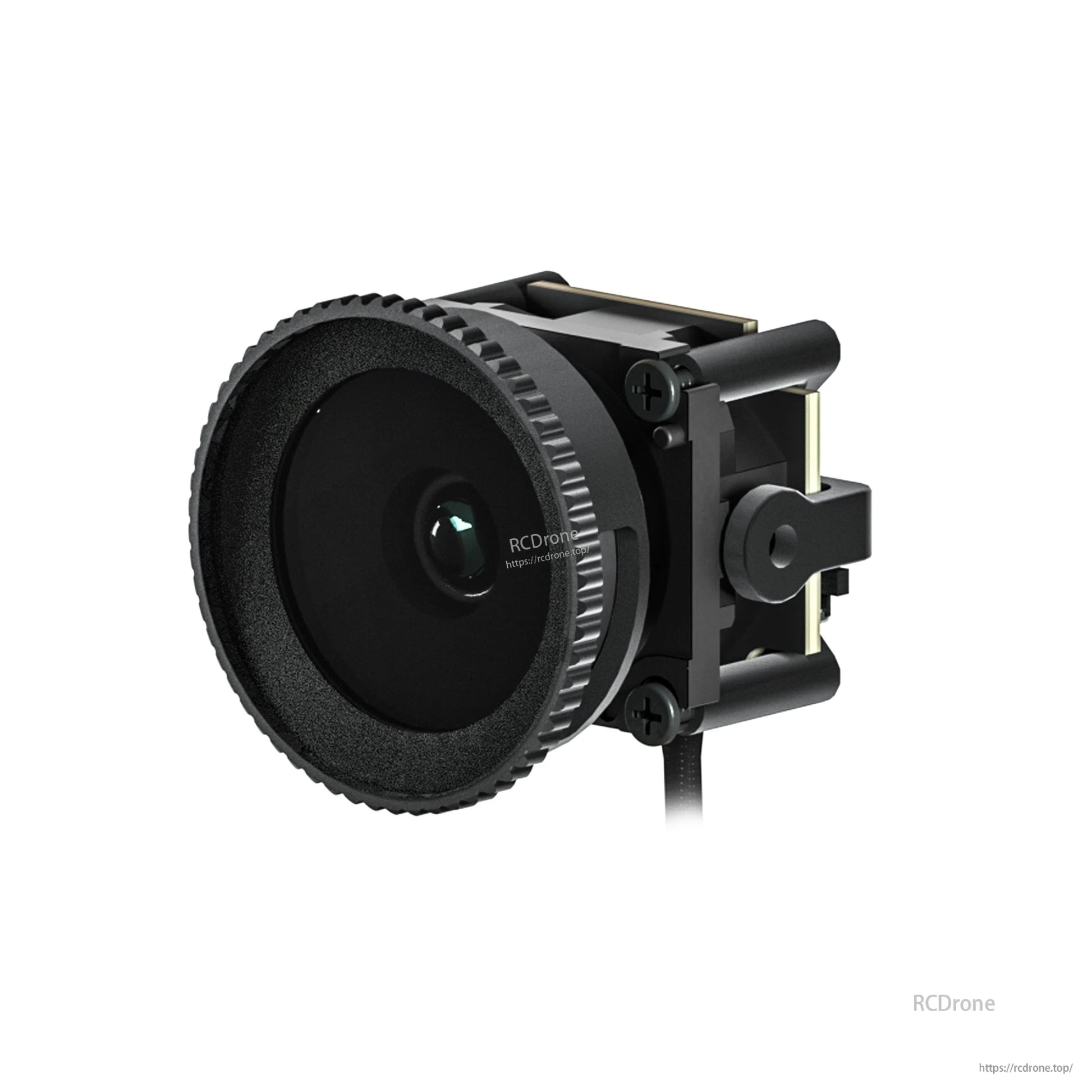

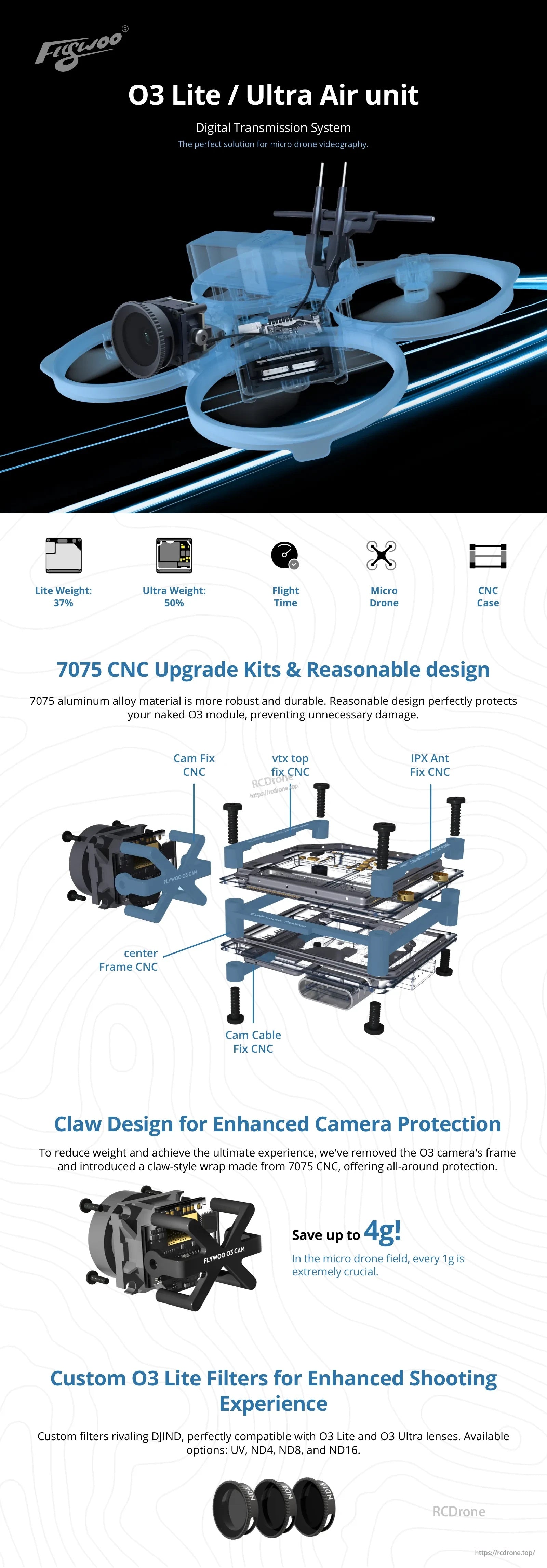

The Flywoo Naked O3 upgrade case uses a 7075 CNC frame with a claw-style camera protector and modular mounting parts.

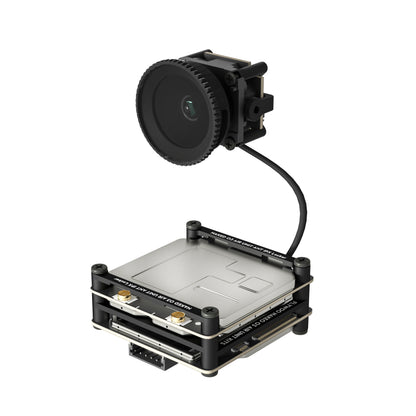

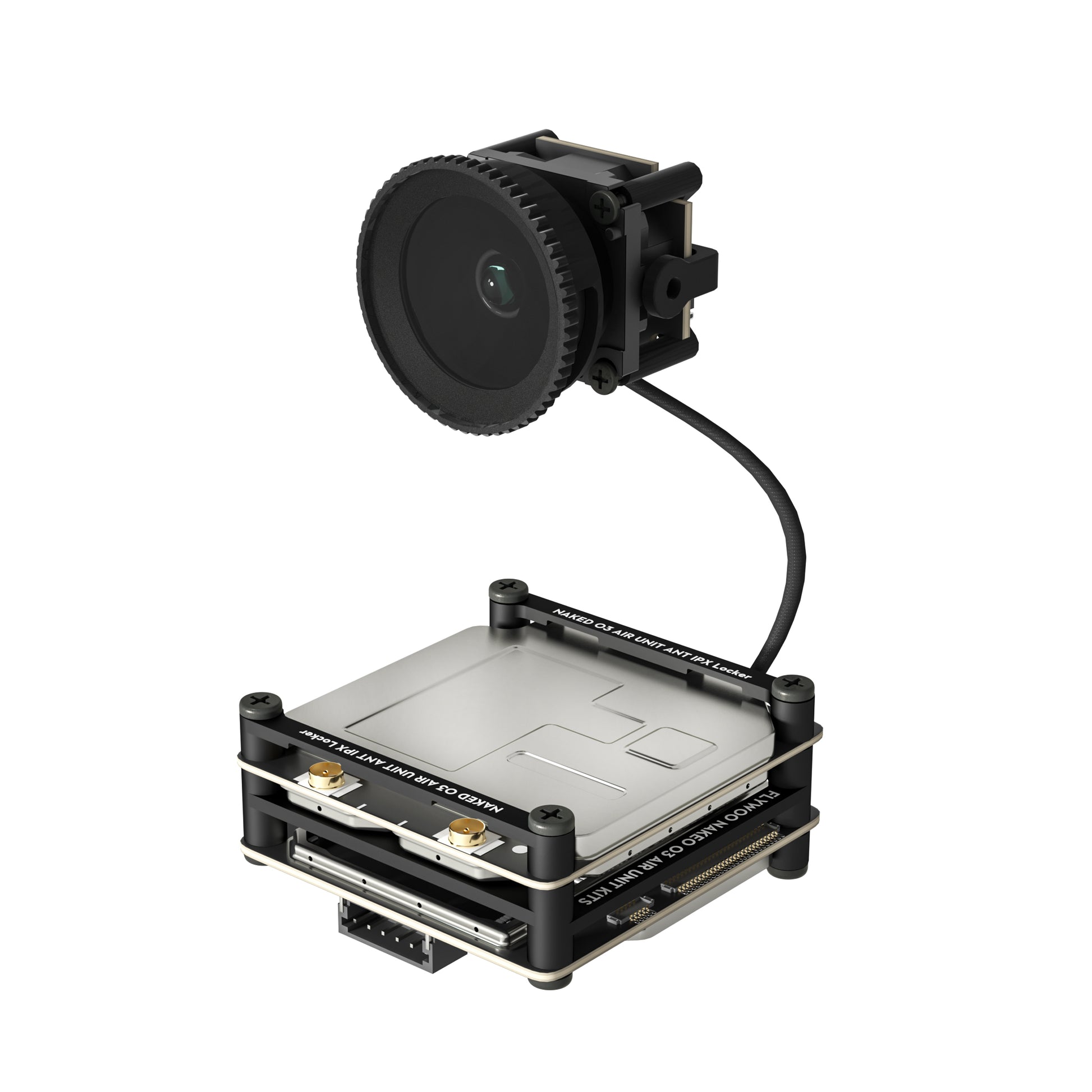

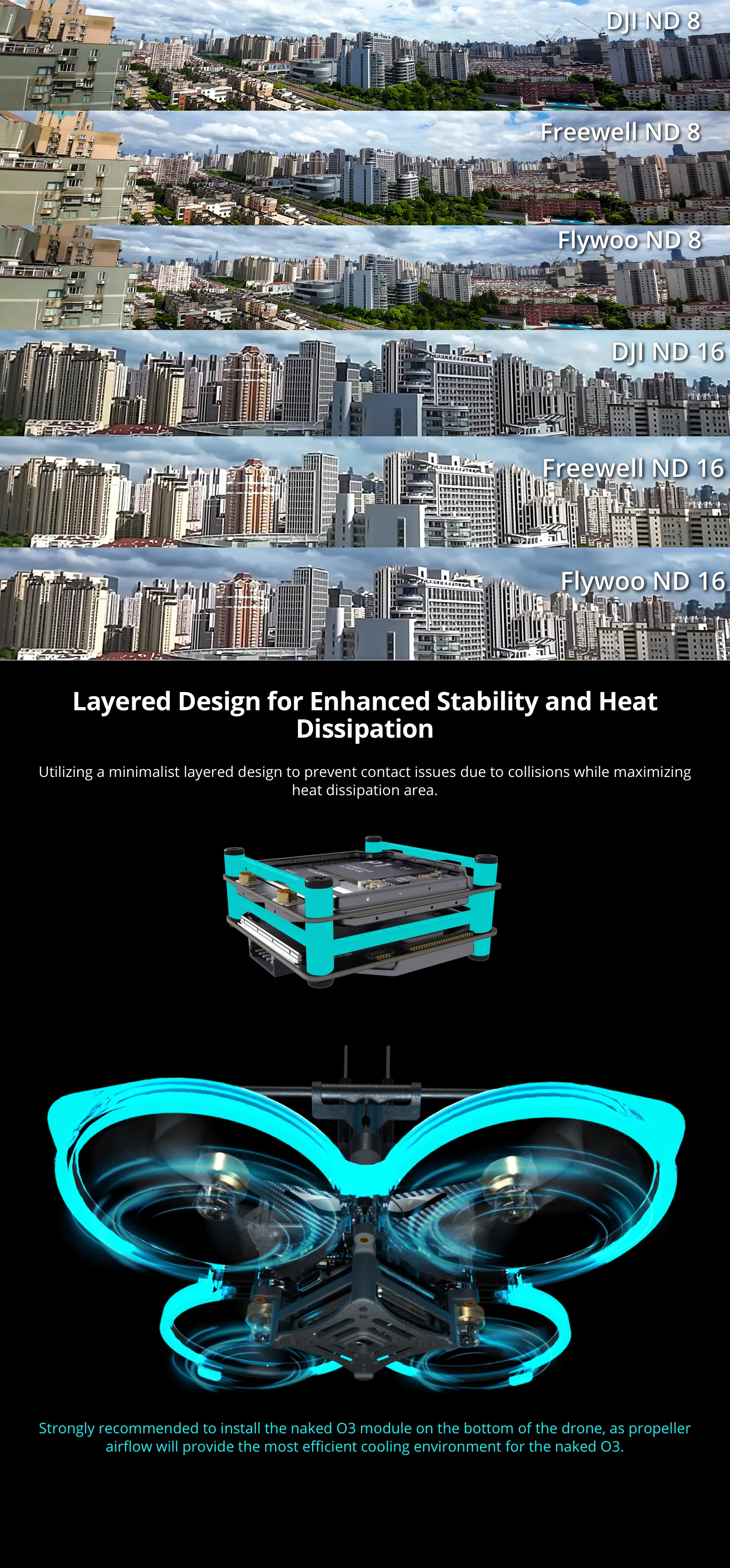

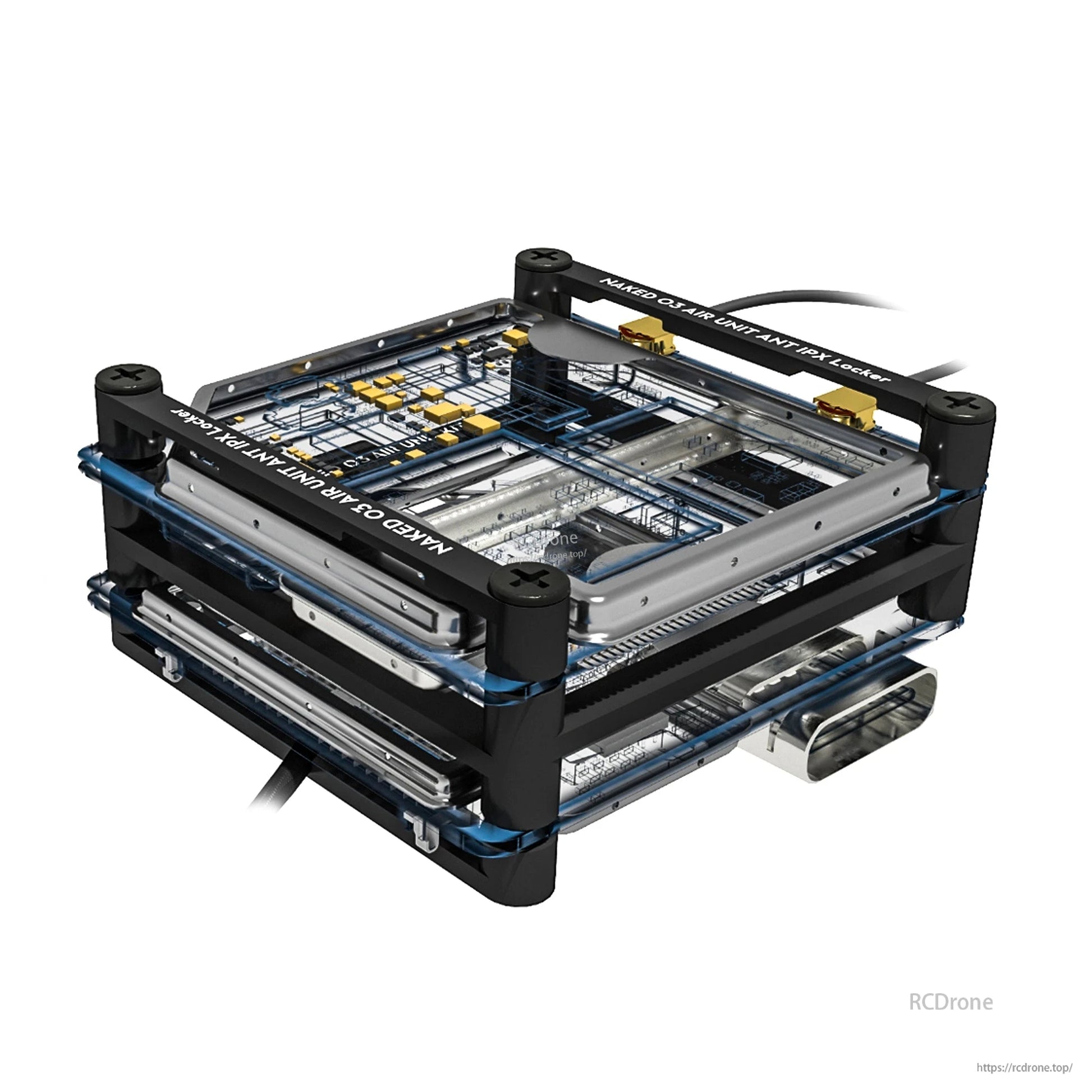

The layered Flywoo Naked O3 upgrade case is designed to improve stability and heat dissipation, with bottom mounting recommended for prop wash cooling.

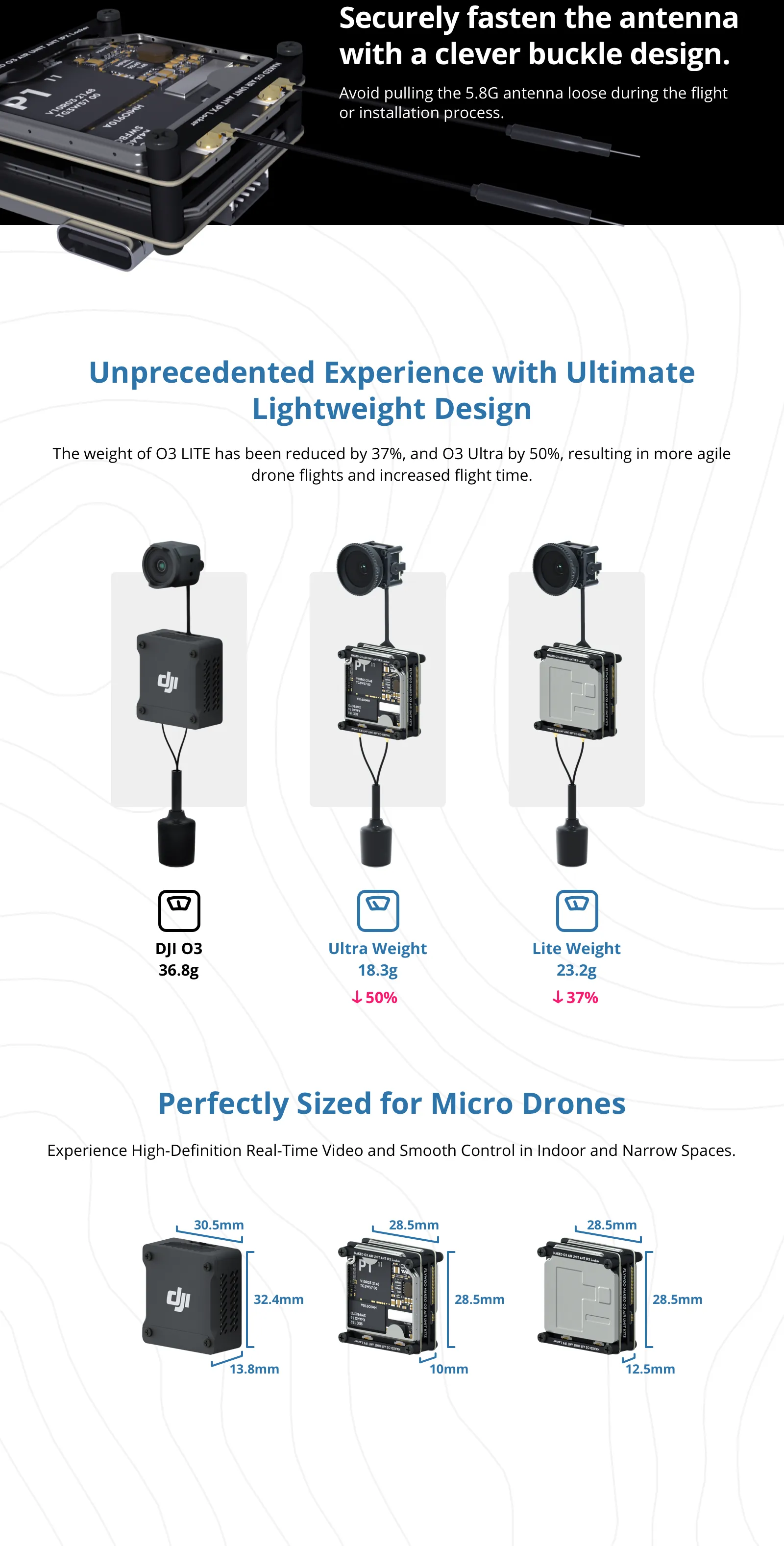

The Flywoo Naked O3 upgrade case uses a buckle-style strap to help keep the 5.8G antenna secured, with compact 28.5 mm module dimensions for micro drone builds.

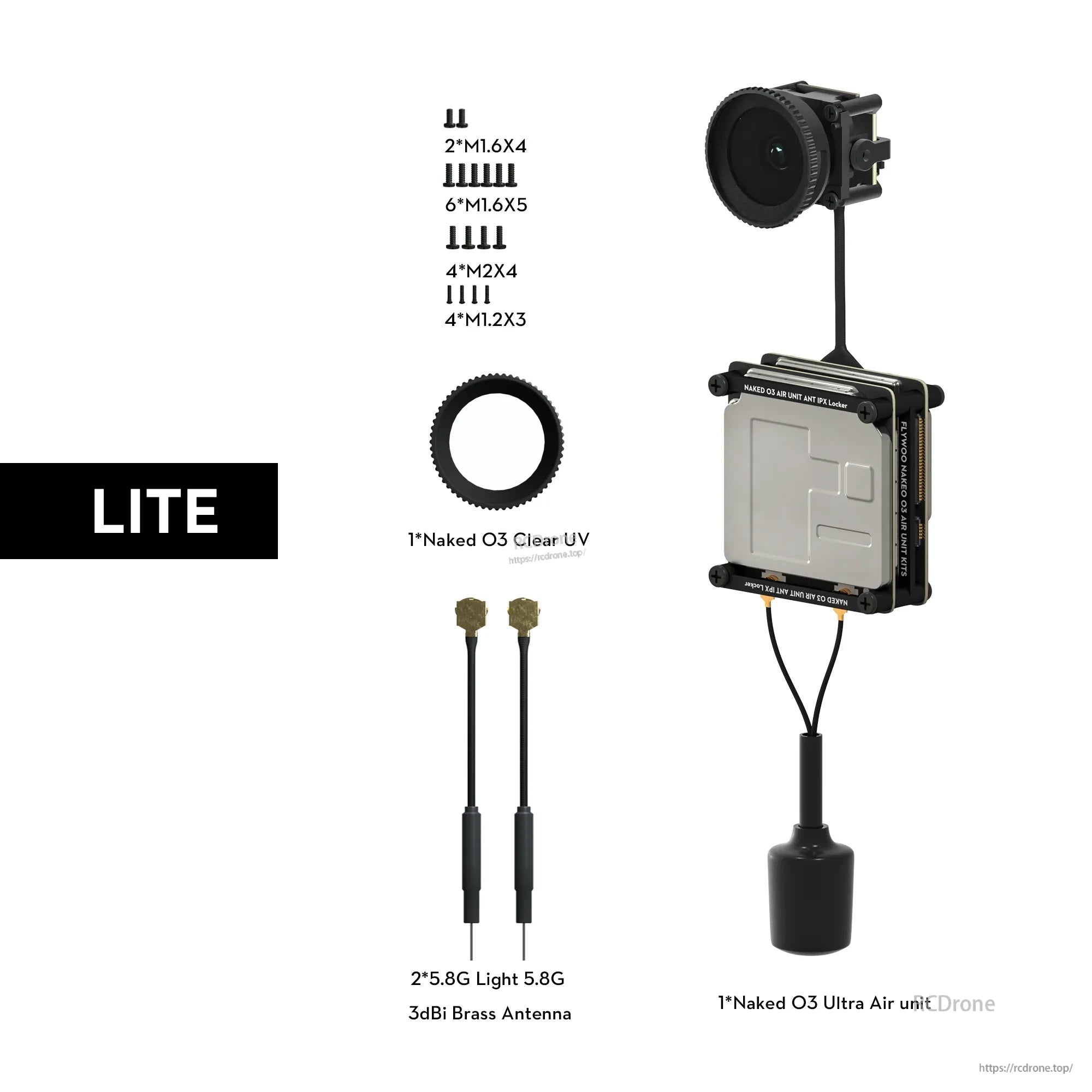

The Flywoo Naked O3 upgrade case kit includes the camera mount, air unit housing, UV ring, 5.8G antennas, and mounting screws for a tidy install.

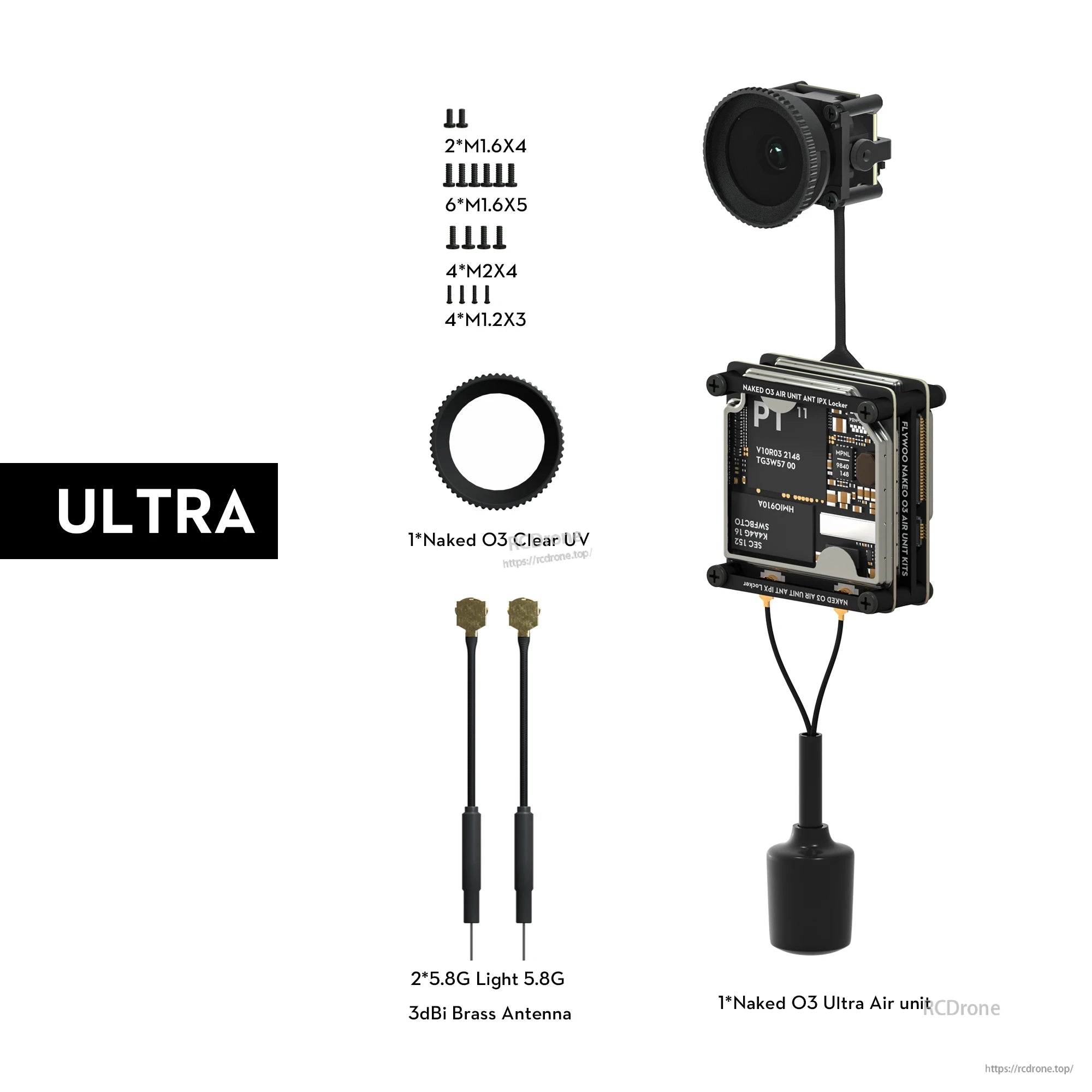

The Flywoo Naked O3 upgrade case includes the Naked O3 Ultra air unit, 5.8G 3dBi brass antennas, clear UV lens ring, and mounting screws for a tidy install.
