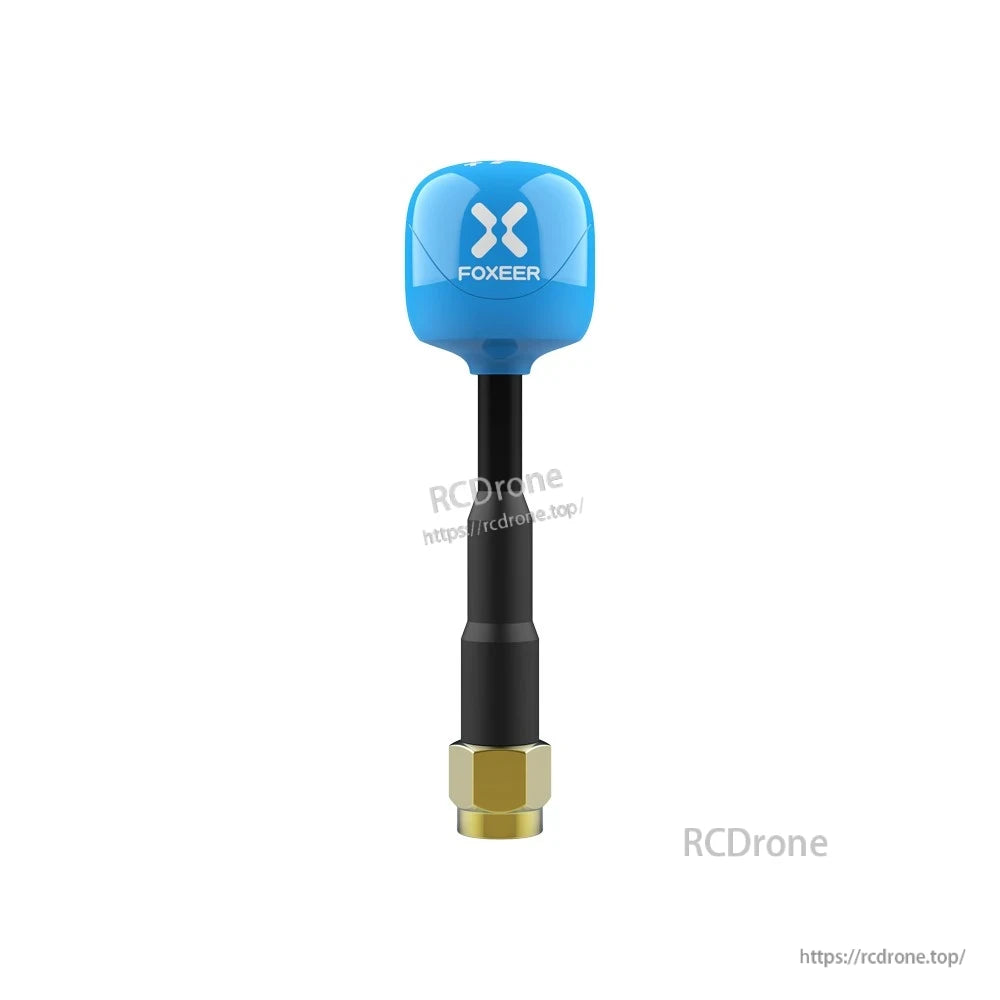

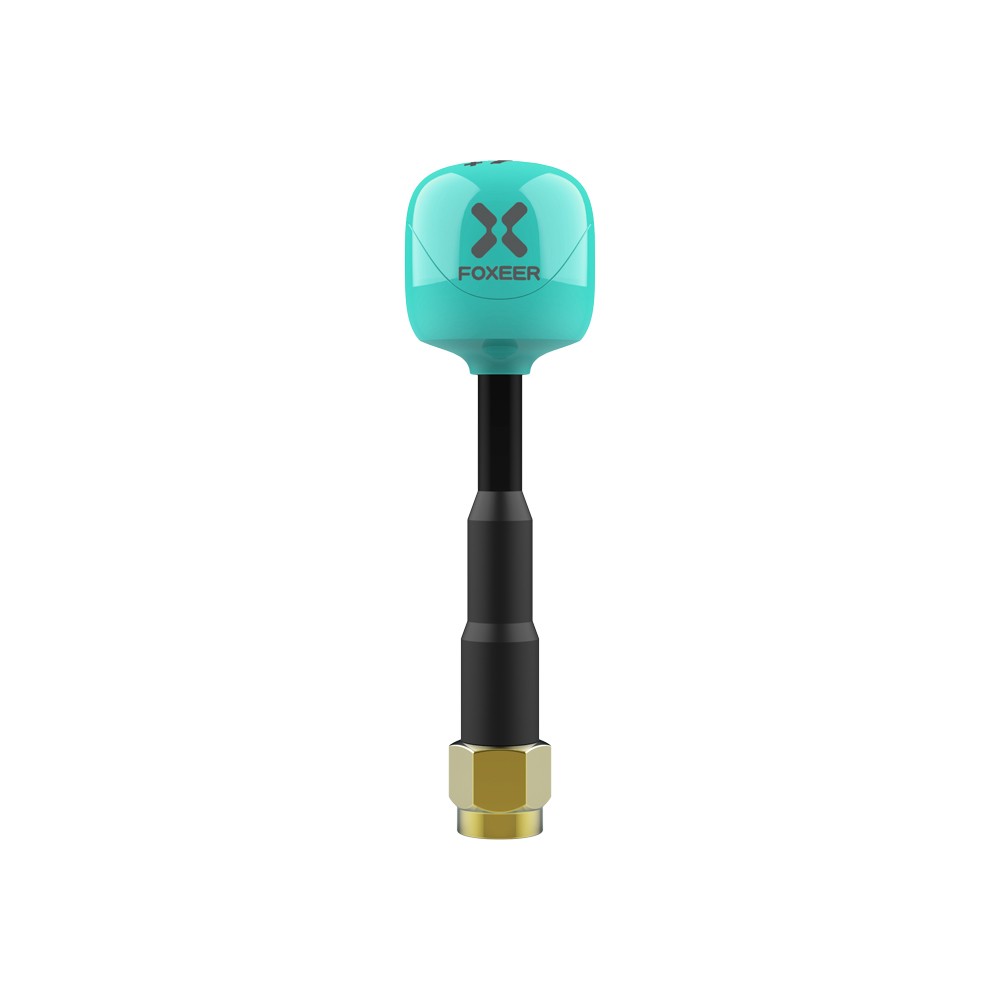

Foxeer Lollipop 4 Plus 5.8GHz 2.6dBi FPV Omni Antenna, RHCP/LHCP, SMA

Overview

Foxeer Lollipop 4 Plus is a 5.8GHz FPV omni antenna with 2.6dBi gain, designed for circular polarization options (RHCP/LHCP) across the 5.8G video band.

Key Features

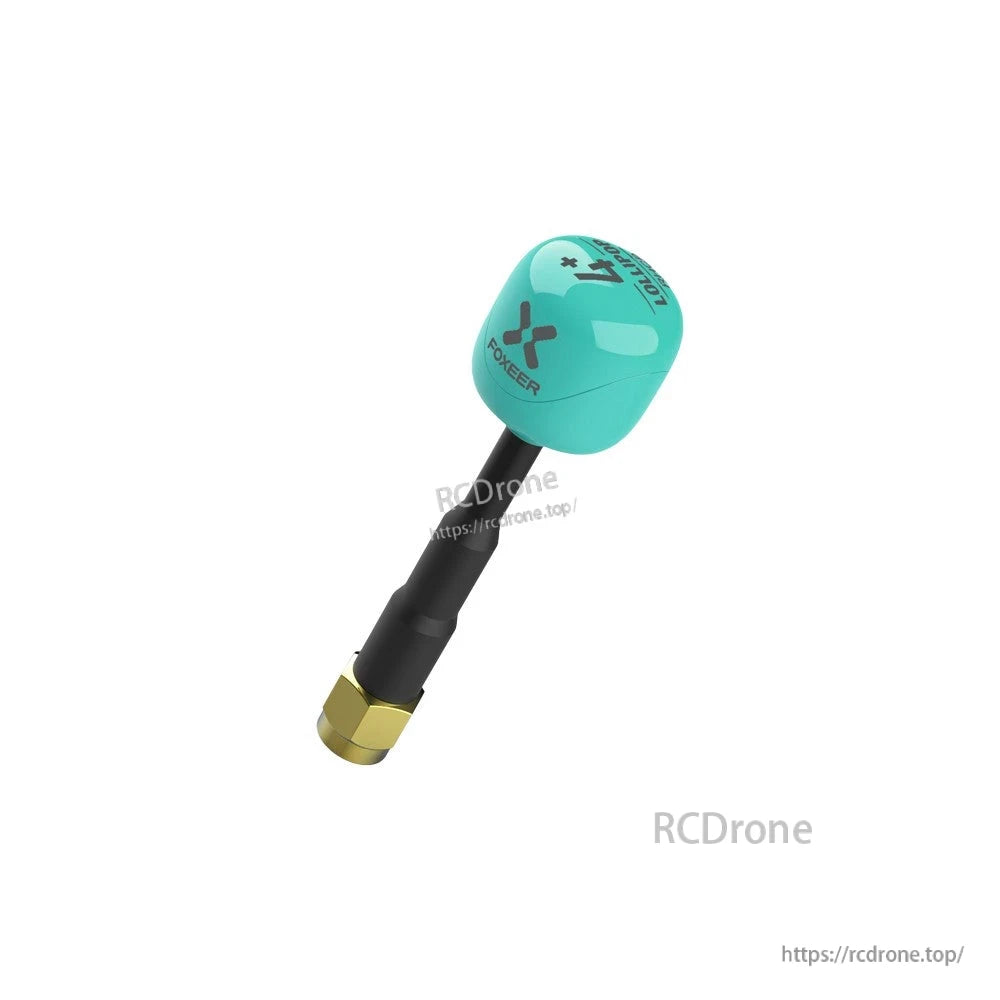

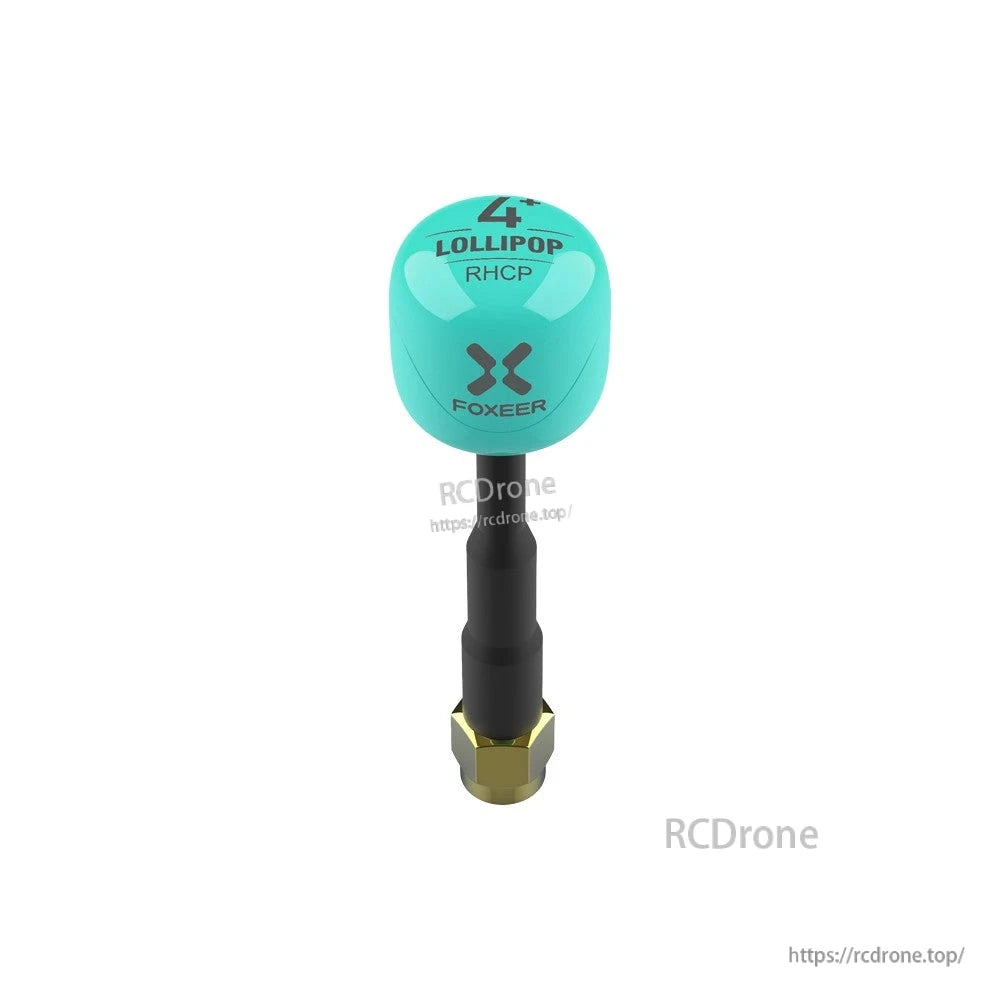

LOLLIPOP 4+ branding with 2.6dBi label
Printed Circuit & Gold Plating; “The Uniformity of the Quality”
“Beautiful Apple”; “The Uniformity of the Directivity” (a 5800.000MHz test visualization is shown)
Elegant curved, streamlined design
“All Feeders Adjust to the Best Signals”; “All Connector Antennas Stand on the Highest Level” (SMA / UFL / MMCX shown)
High quality material & oxidation resistance; “All Connectors with 48HS Salt Spray Testing”

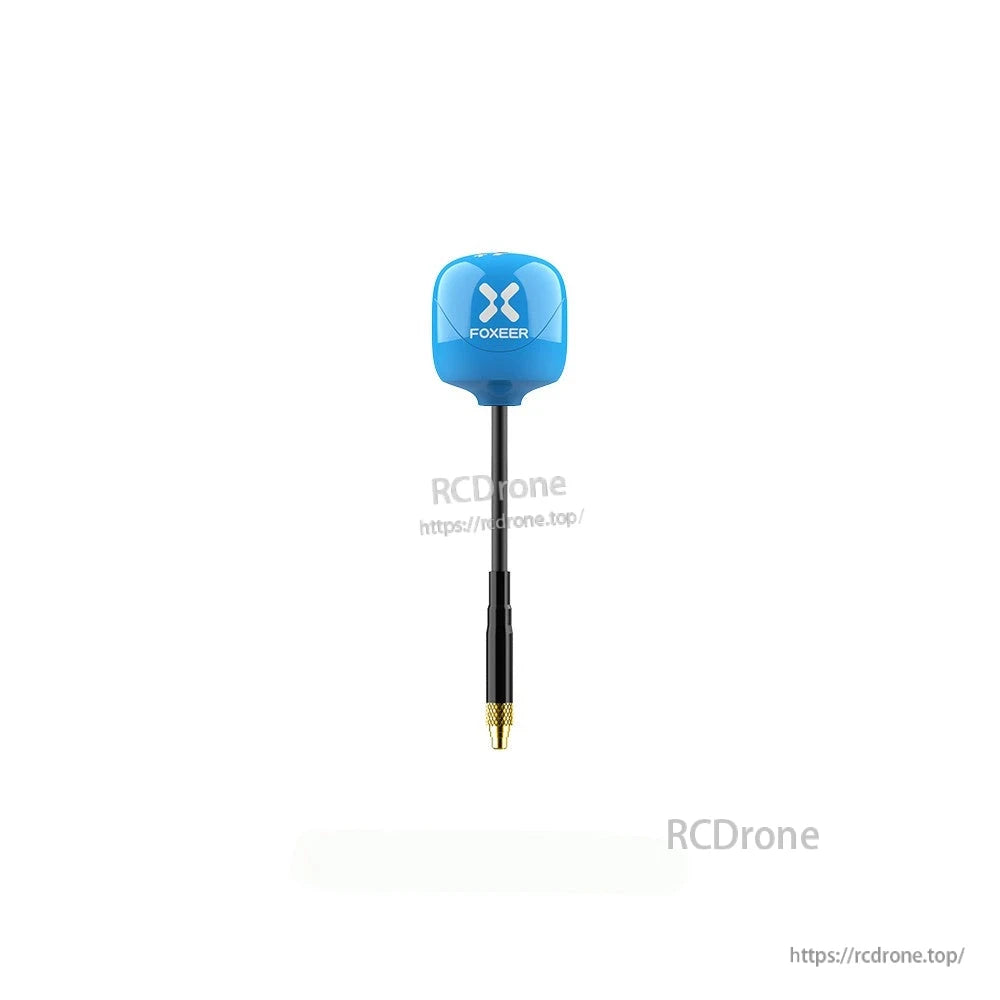

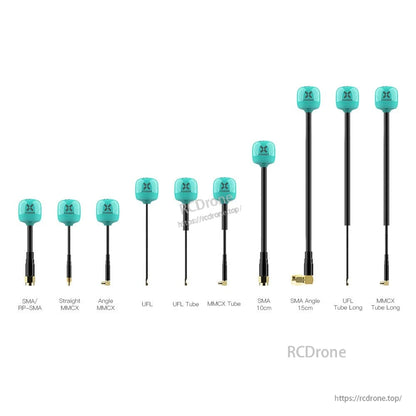

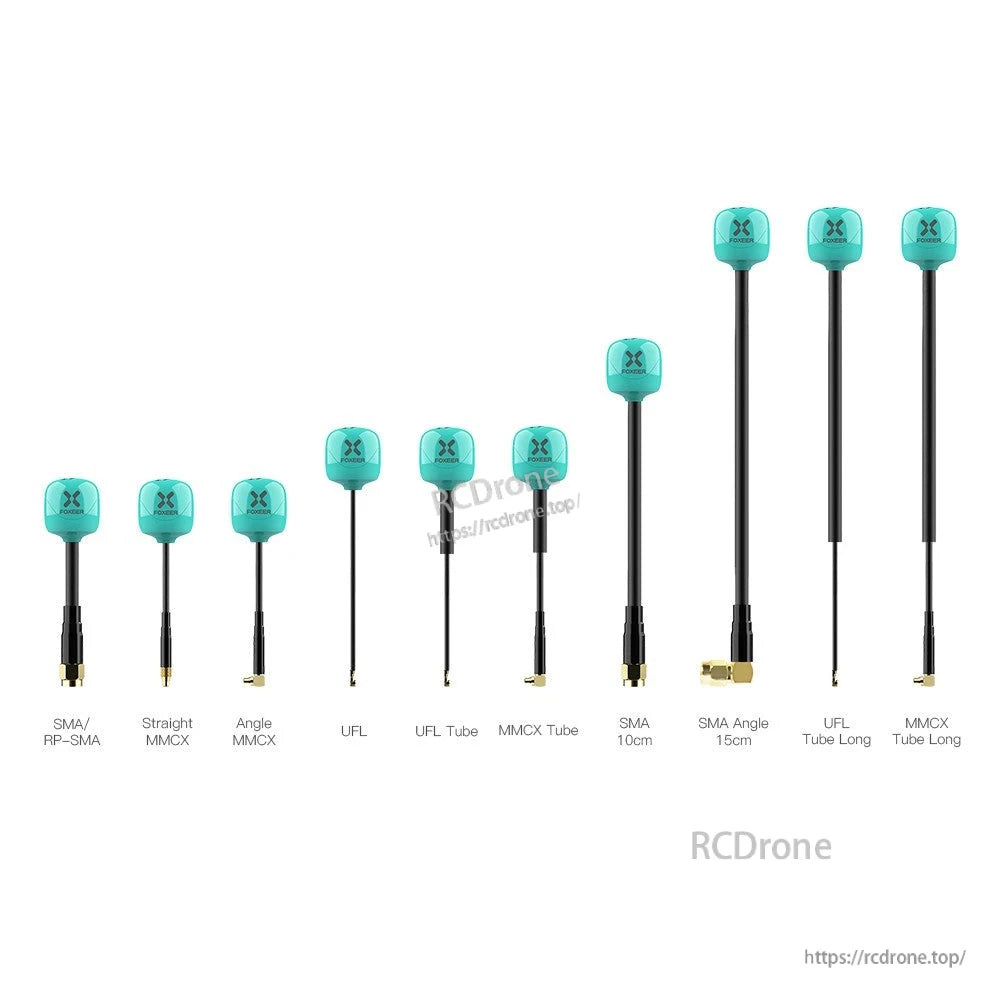

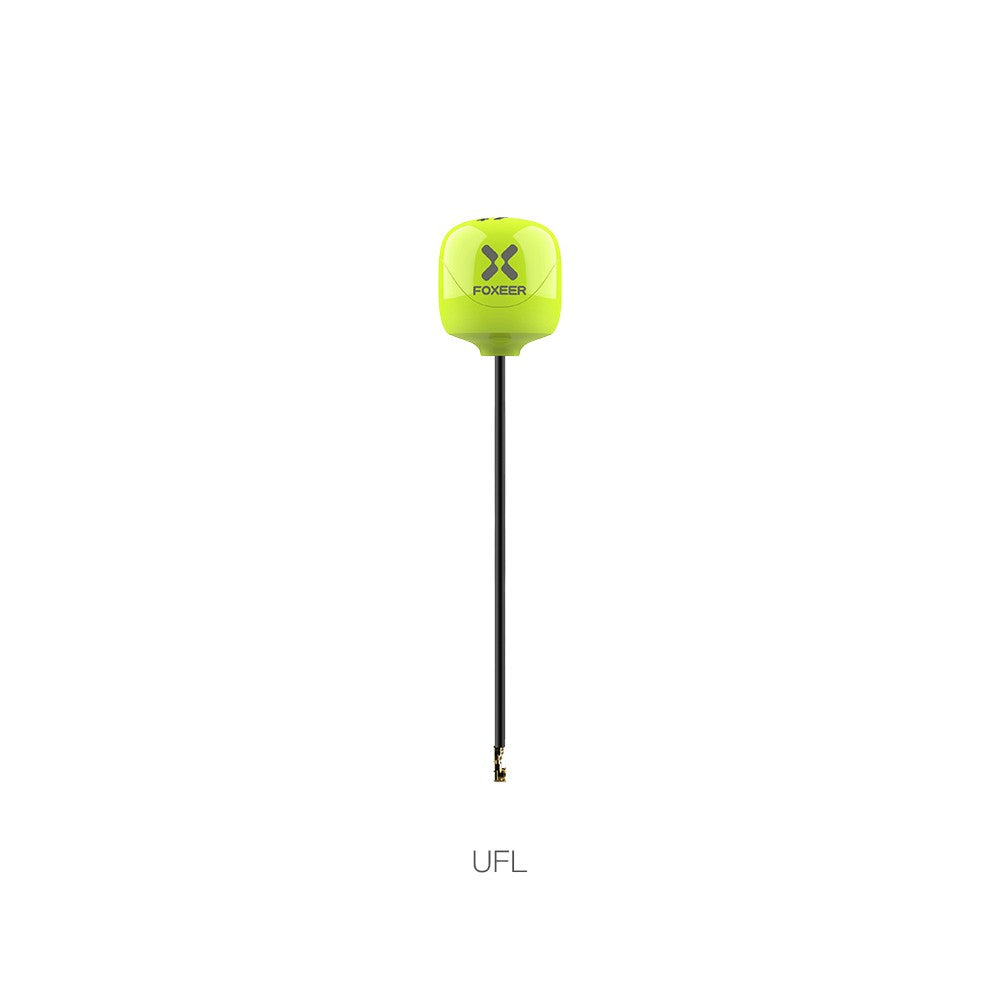

Connector types shown: Straight MMCX, UFL, Angle MMCX, RP-SMA, SMA, Angle SMA

For product selection help (connector/polarization) or order support, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Center Frequency	5.75GHz
Gain	2.6dBi
Axial Ratio	Close to 1
Band Width	5.5G~6GHz
Radiation Efficiency	98%
SWR	1.07 at Center Frequency

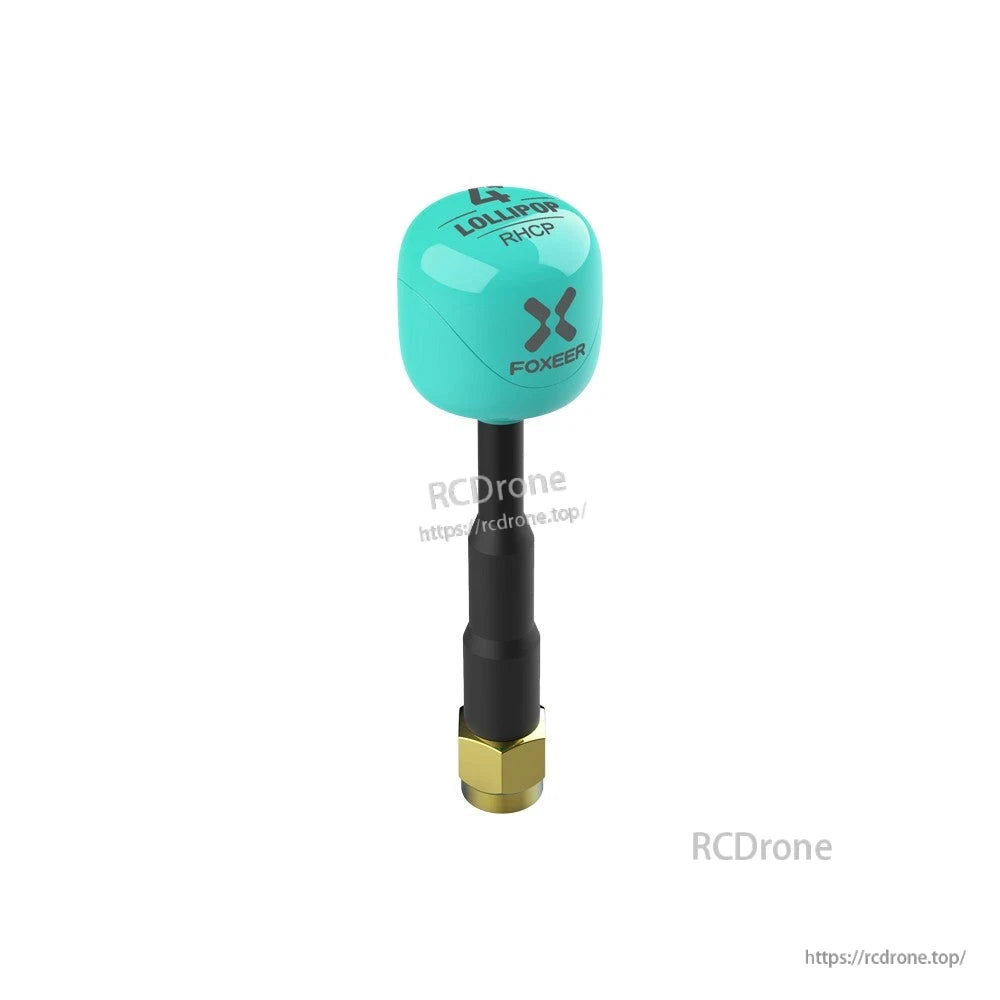

Polarization	RHCP/LHCP
Case Material	PC+ABS

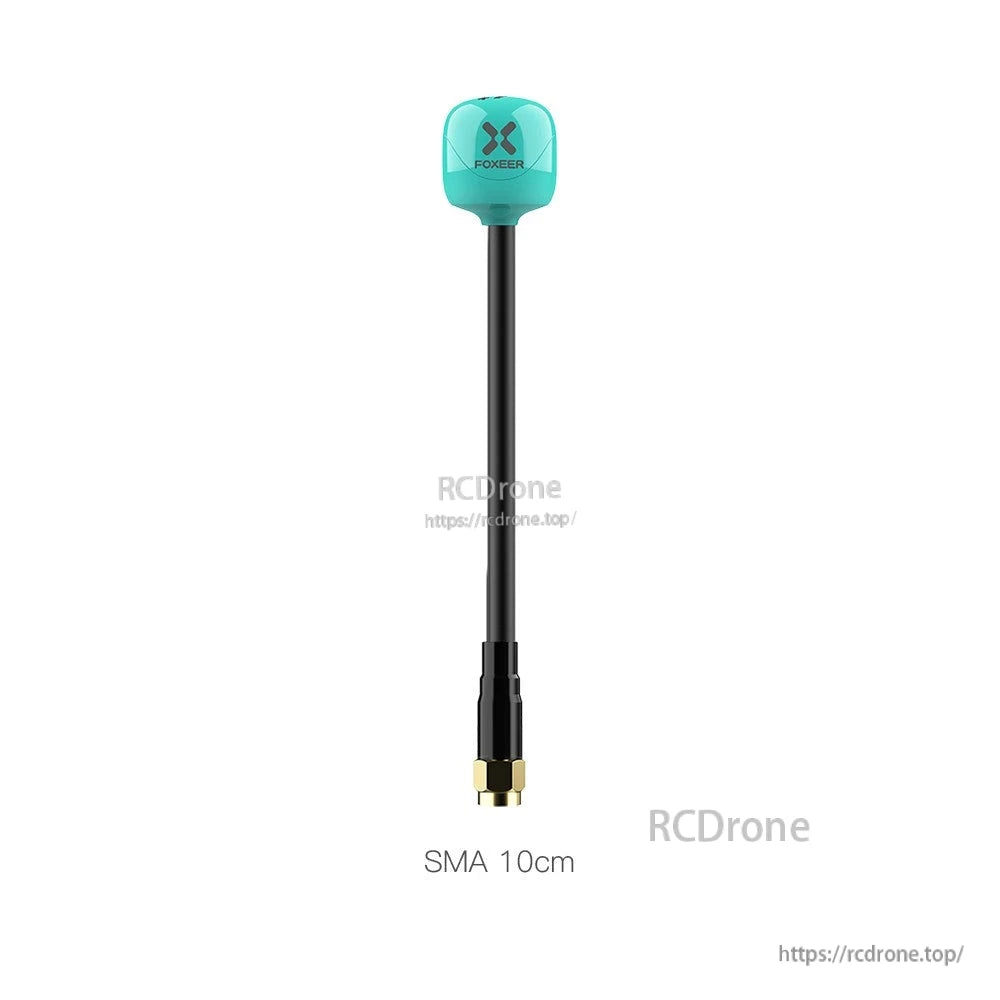

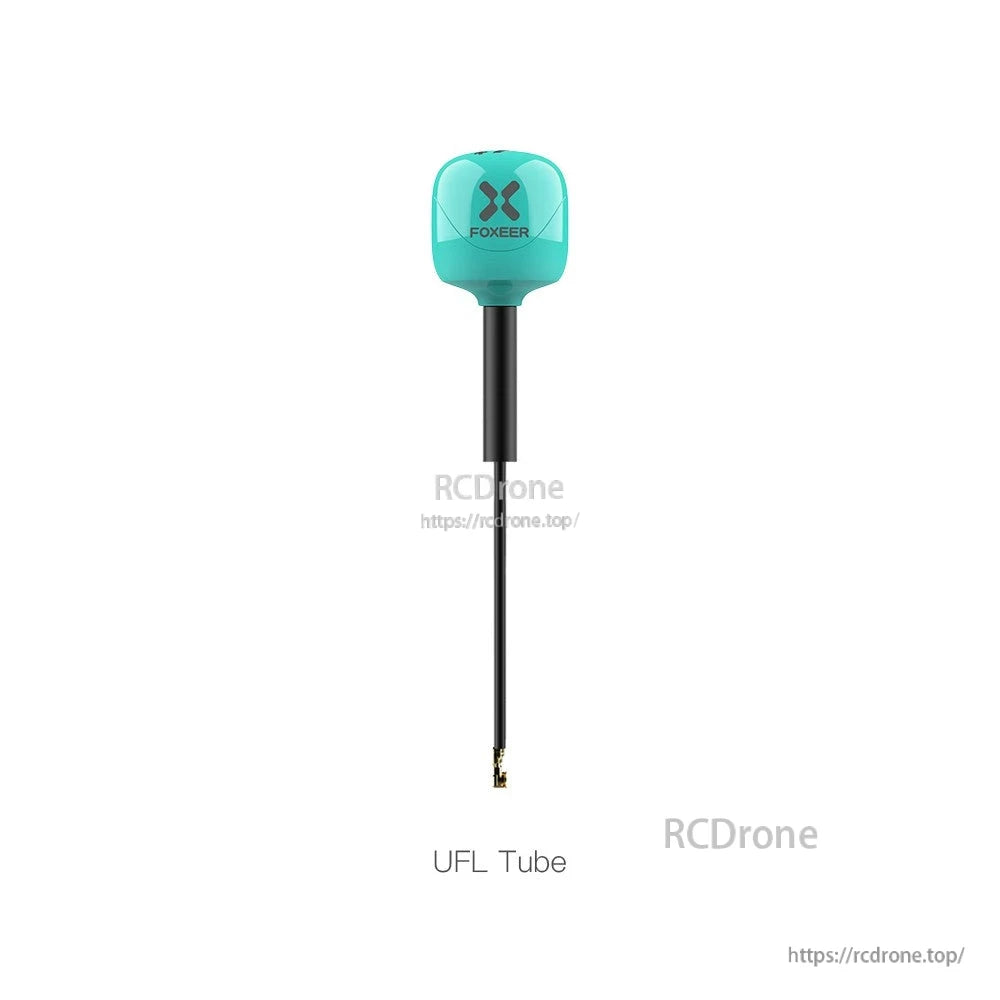

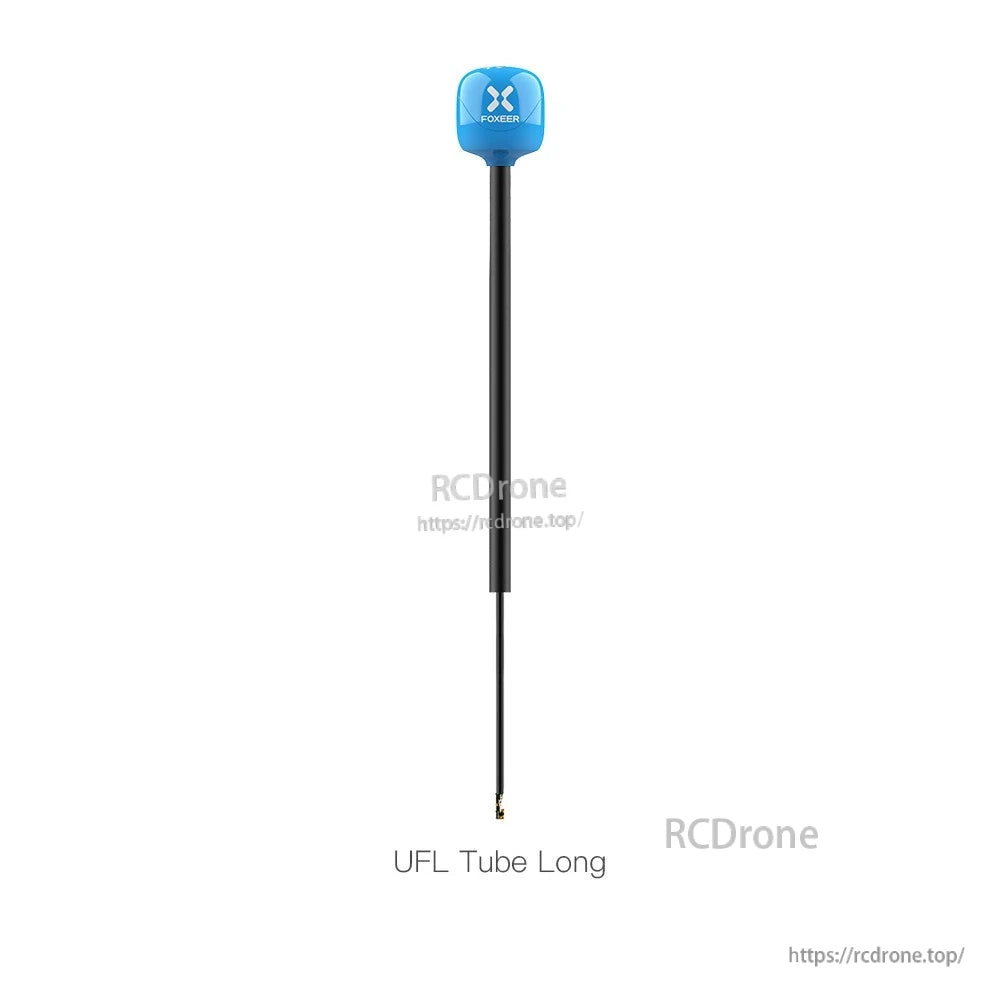

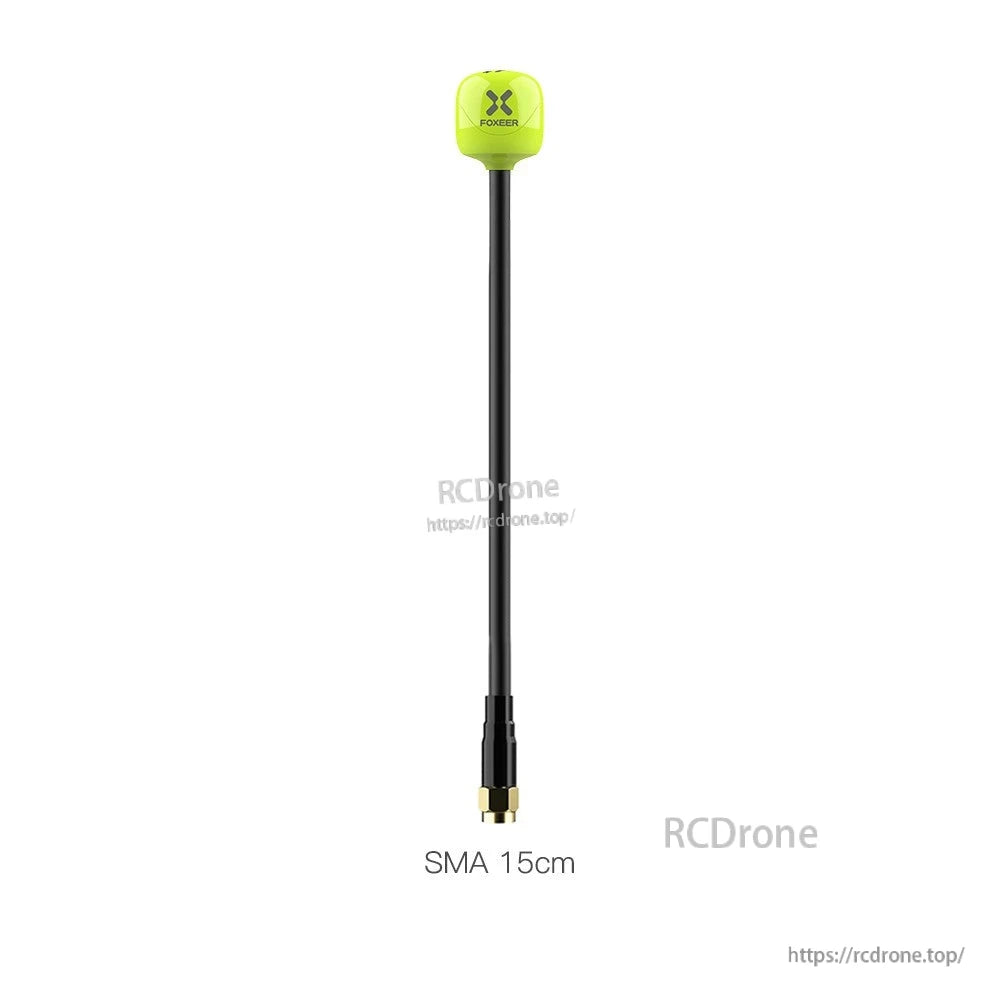

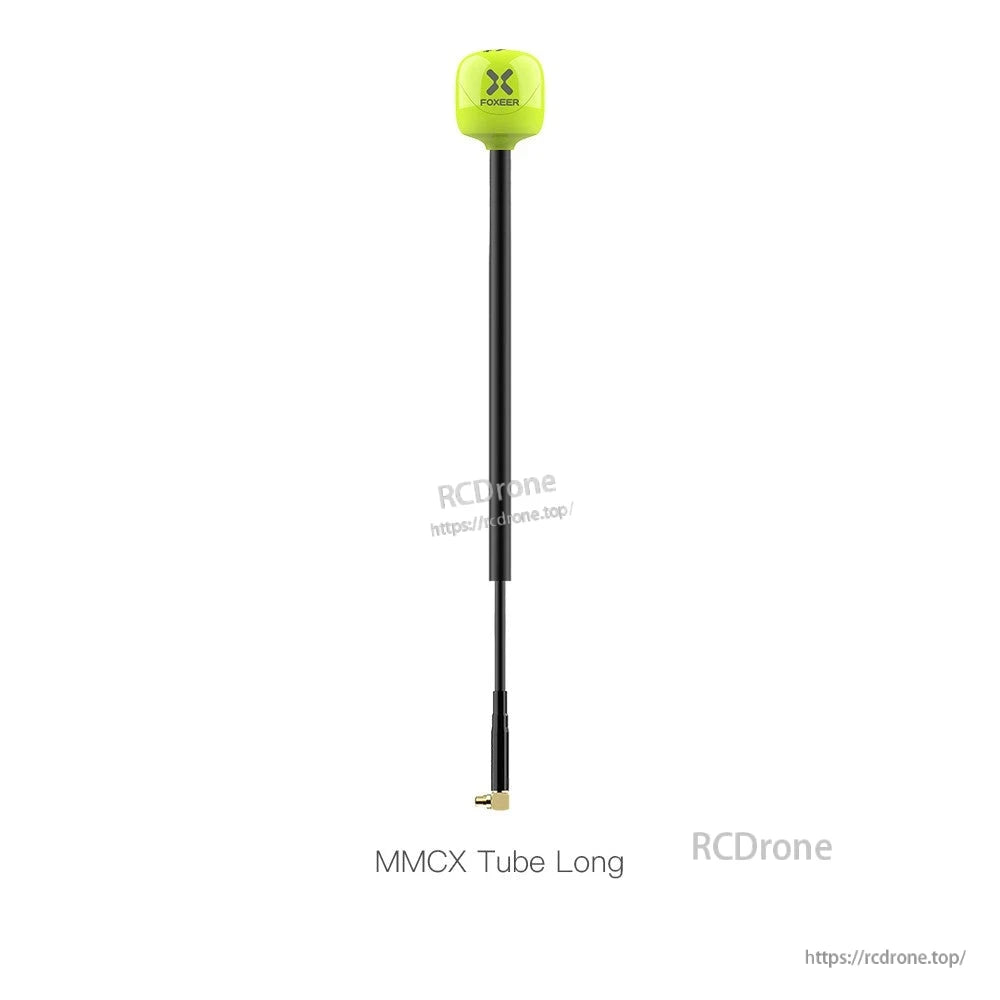

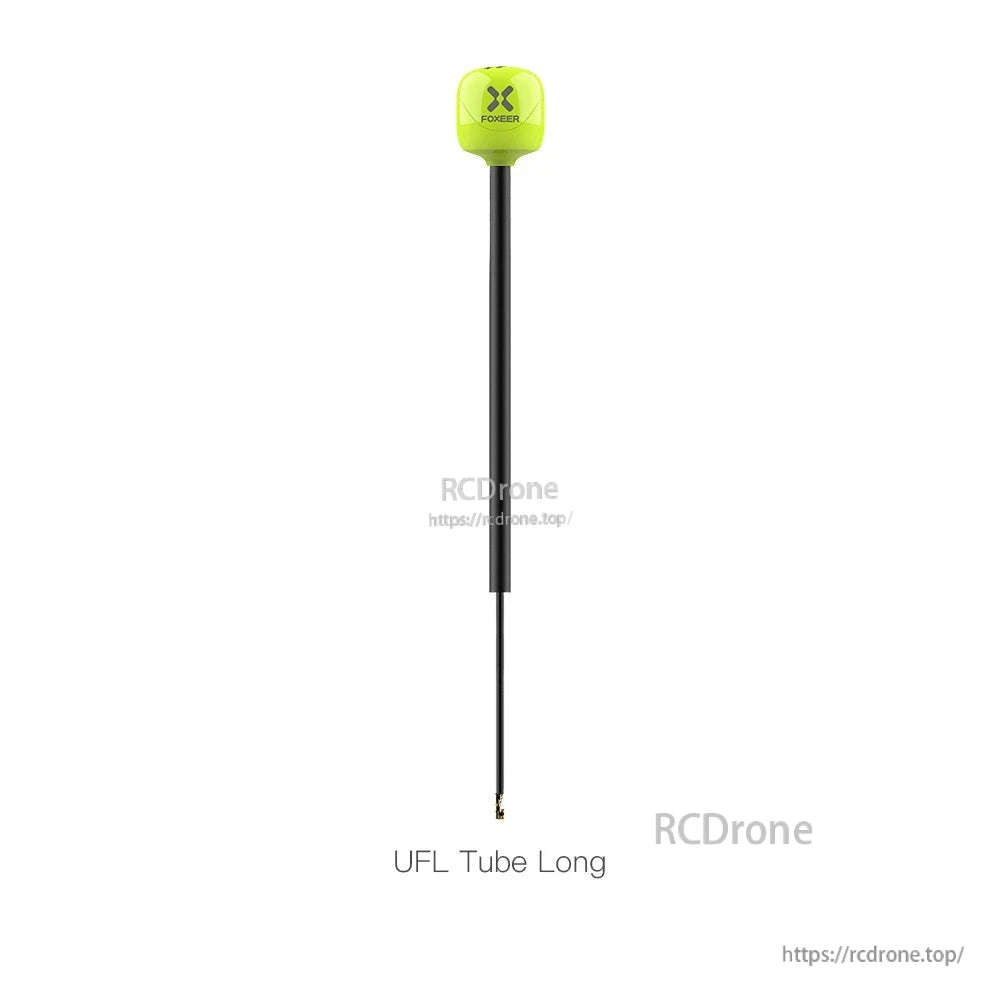

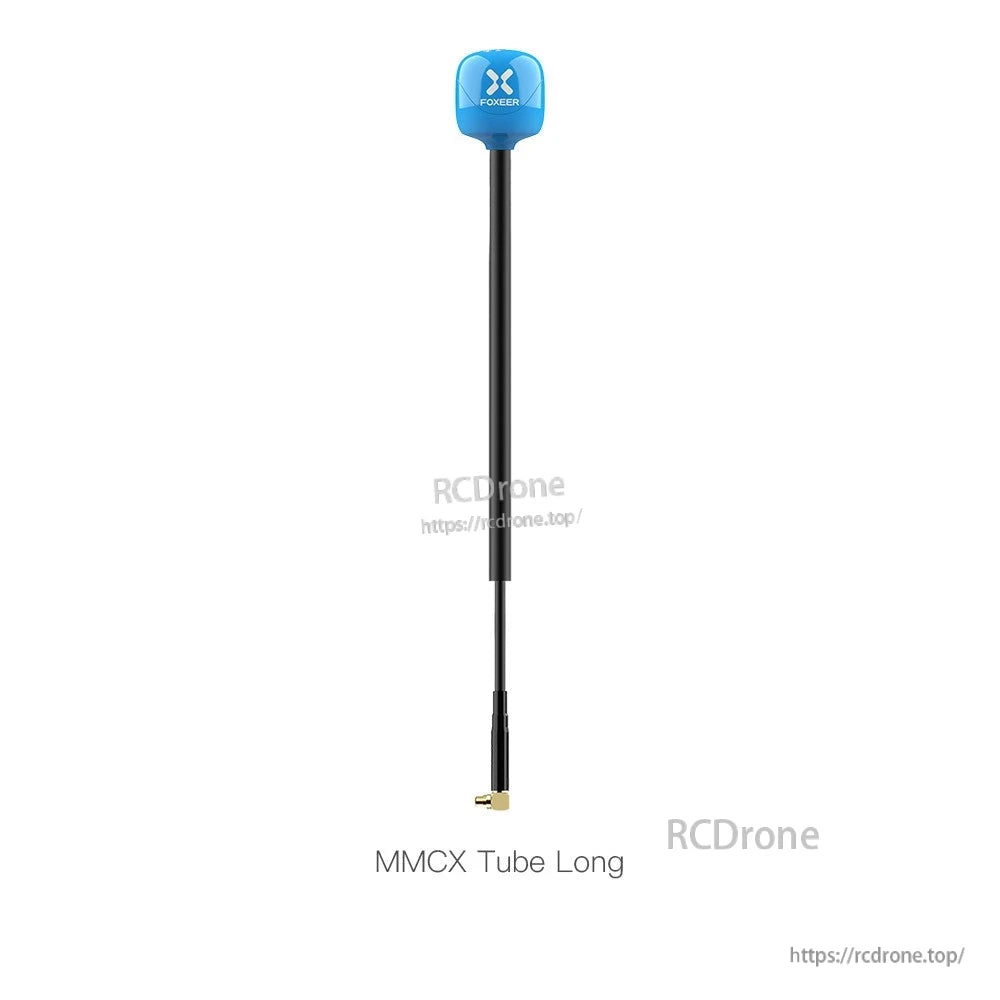

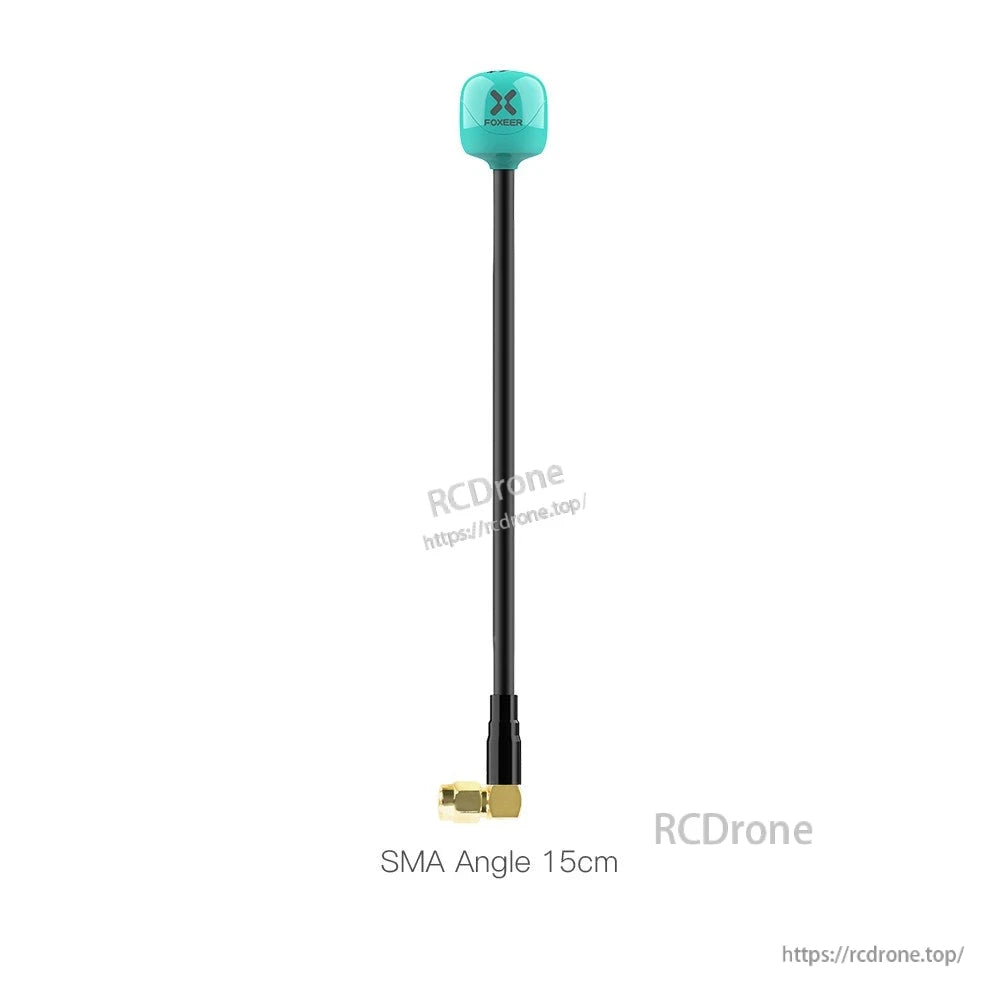

Weight	SMA/RPSMA: 7.8g Straight MMCX: 4.4g Angle MMCX: 4.5g SMA-10CM: 9.7g Angle SMA-15CM: 13.9g UFL: 2.8g UFL Tube Short: 2.9g UFL Tube Long: 3.8g Angle MMCX Tube Short: 4.8g Angle MMCX Tube Long: 6.8g
Connector & Length	SMA/RPSMA/Straight MMCX/Angle MMCX: Dia 11 x 60mm UFL: Dia 11 x 85mm UFL Tube Short/Angle MMCX Tube Short: Dia 11 x 95mm SMA-10CM: Dia 11 x 100mm SMA 15CM Angle: Dia 11 x 150mm UFL Tube Long/Angle MMCX Tube Long: Dia 11 x 165mm
