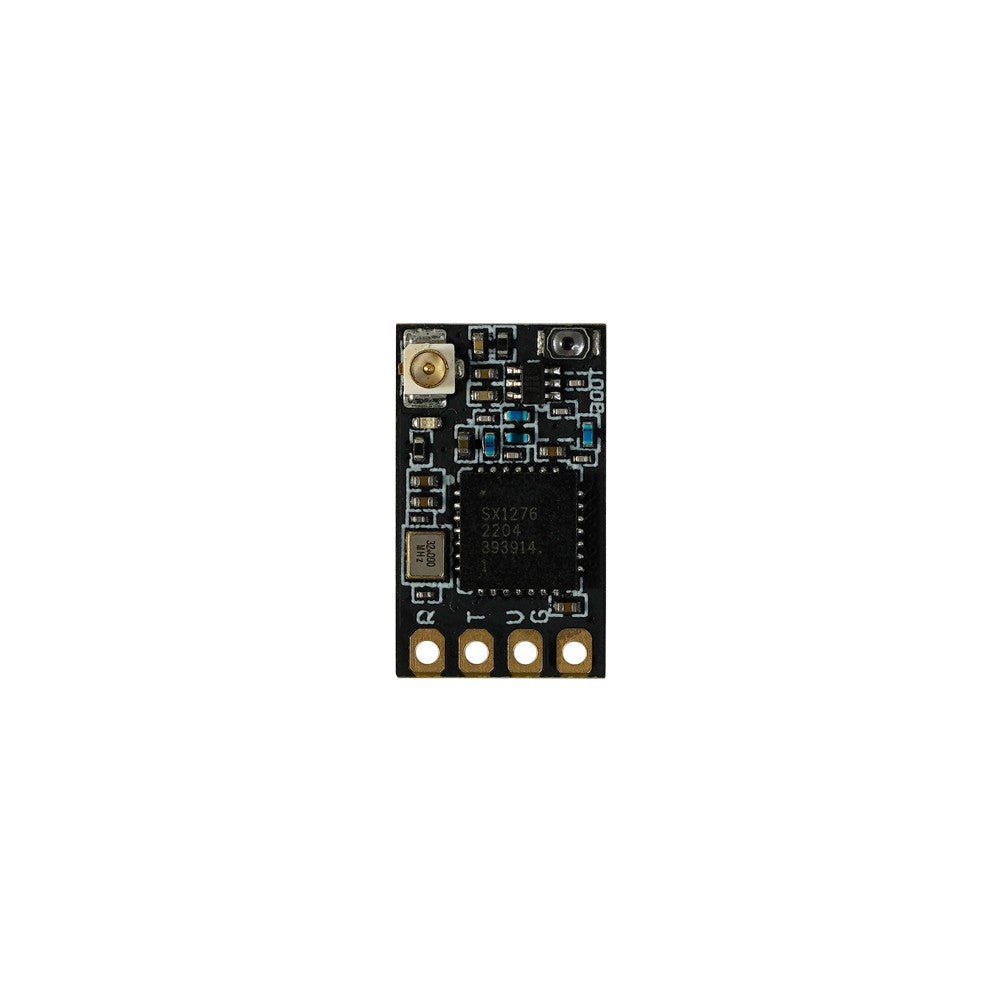

• Foxeer ELRS 915/868MHz receiver module PCB with u.FL antenna connector, bind button, and R/T/V/G pads

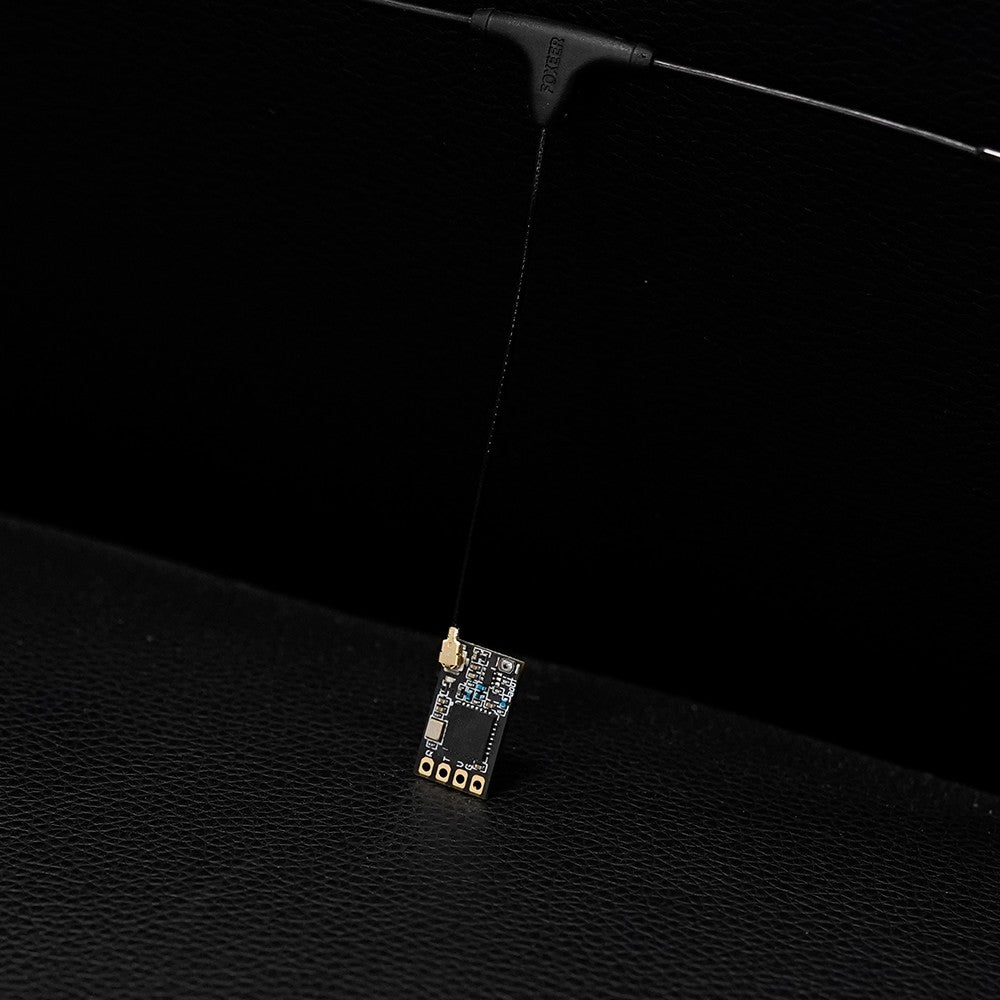

  • Foxeer ELRS 915/868MHz receiver module with u.FL antenna connector and long whip antenna on a small PCB

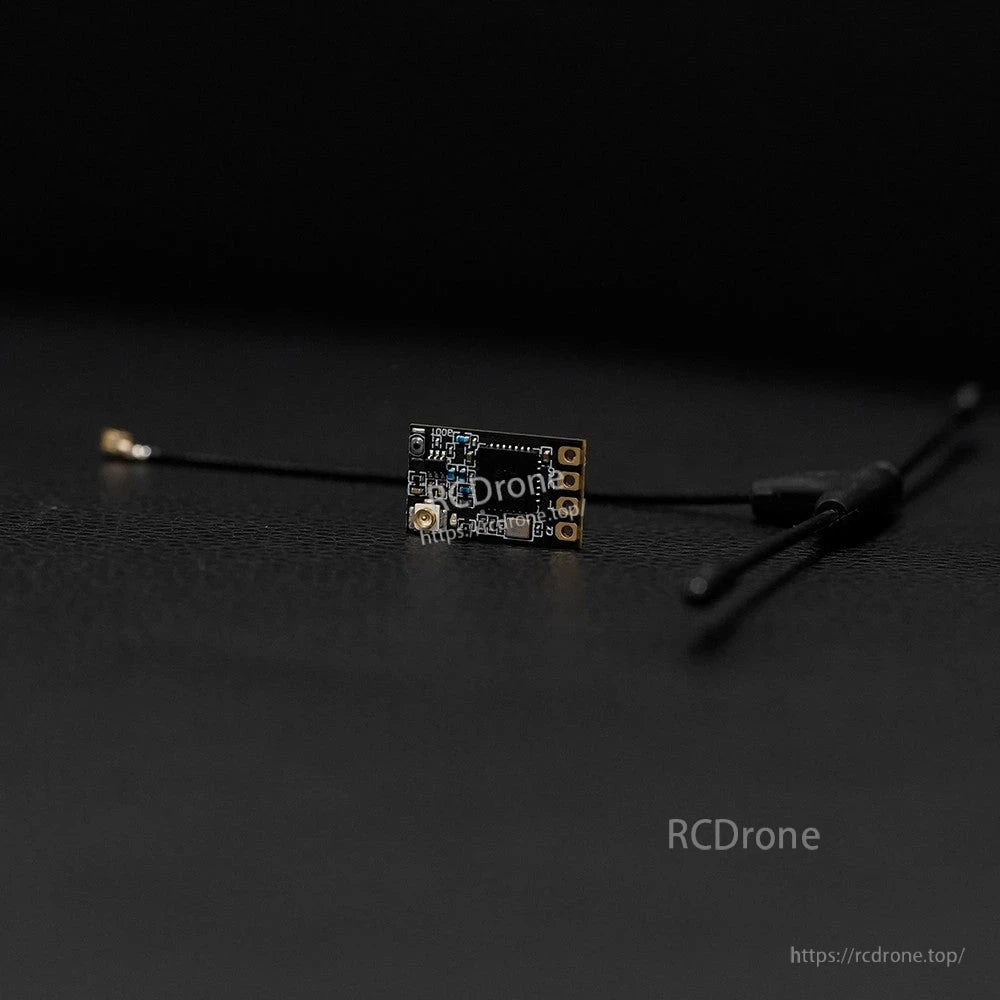

  • Foxeer ELRS 915/868MHz receiver module with compact PCB, solder pads, and coax antenna lead

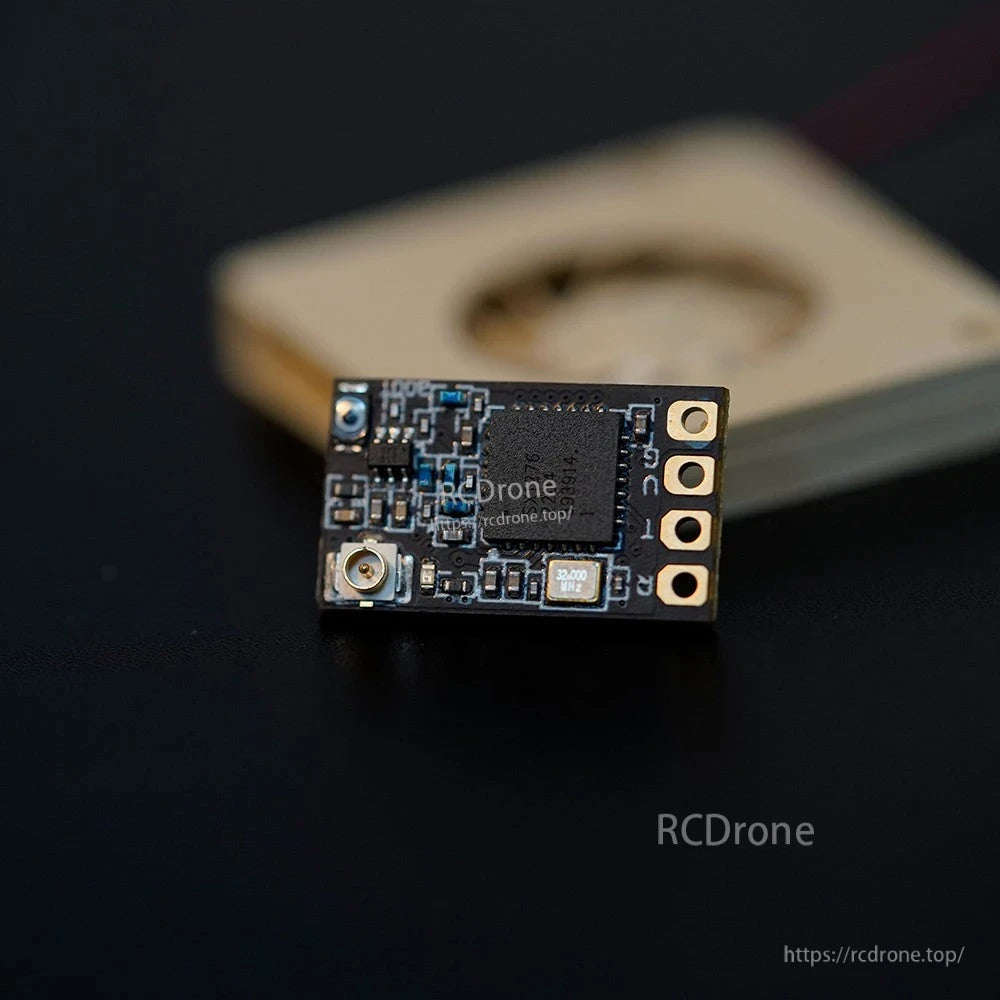

  • Foxeer ELRS 915/868MHz Receiver, Foxeer ELRS 915/868MHz micro receiver module with u.FL antenna connector, solder pads, and 32.000 MHz crystal

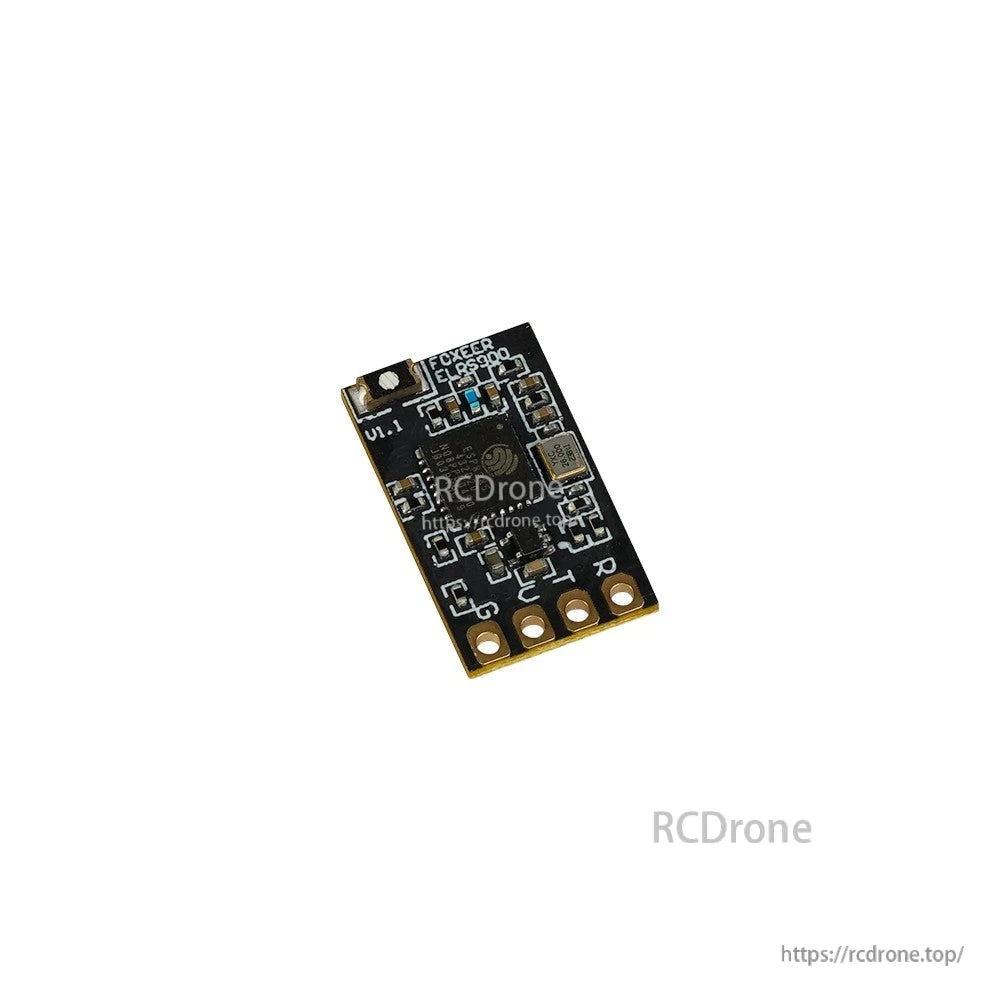

  • Foxeer ELRS 915/868MHz receiver board with surface-mount components and four solder pads for wiring

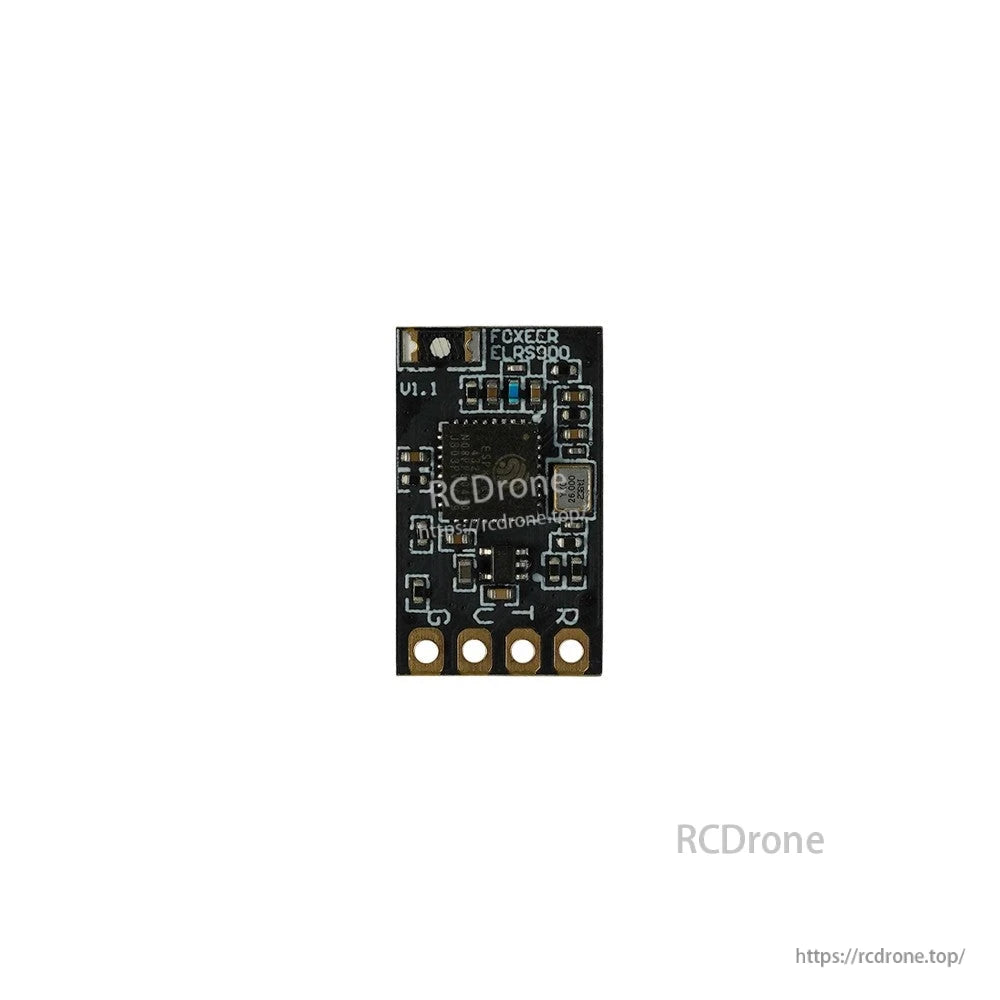

  • Foxeer ELRS 915/868MHz Receiver, Foxeer ELRS900 long-range receiver PCB with solder pads and onboard components for 915/868MHz setups

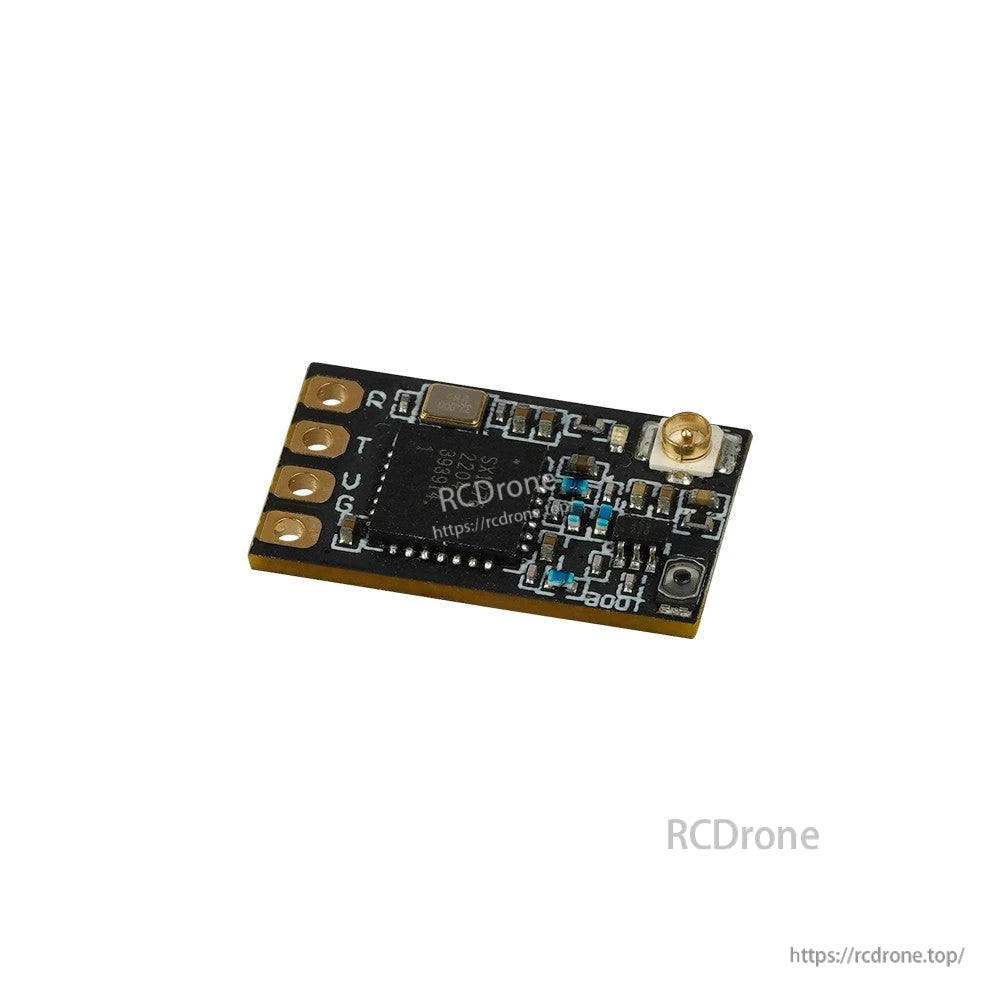

  • Foxeer ELRS 915/868MHz Receiver, ELRS 915/868MHz RC receiver board with u.FL antenna connector, bind button, and R/T/U/G solder pads

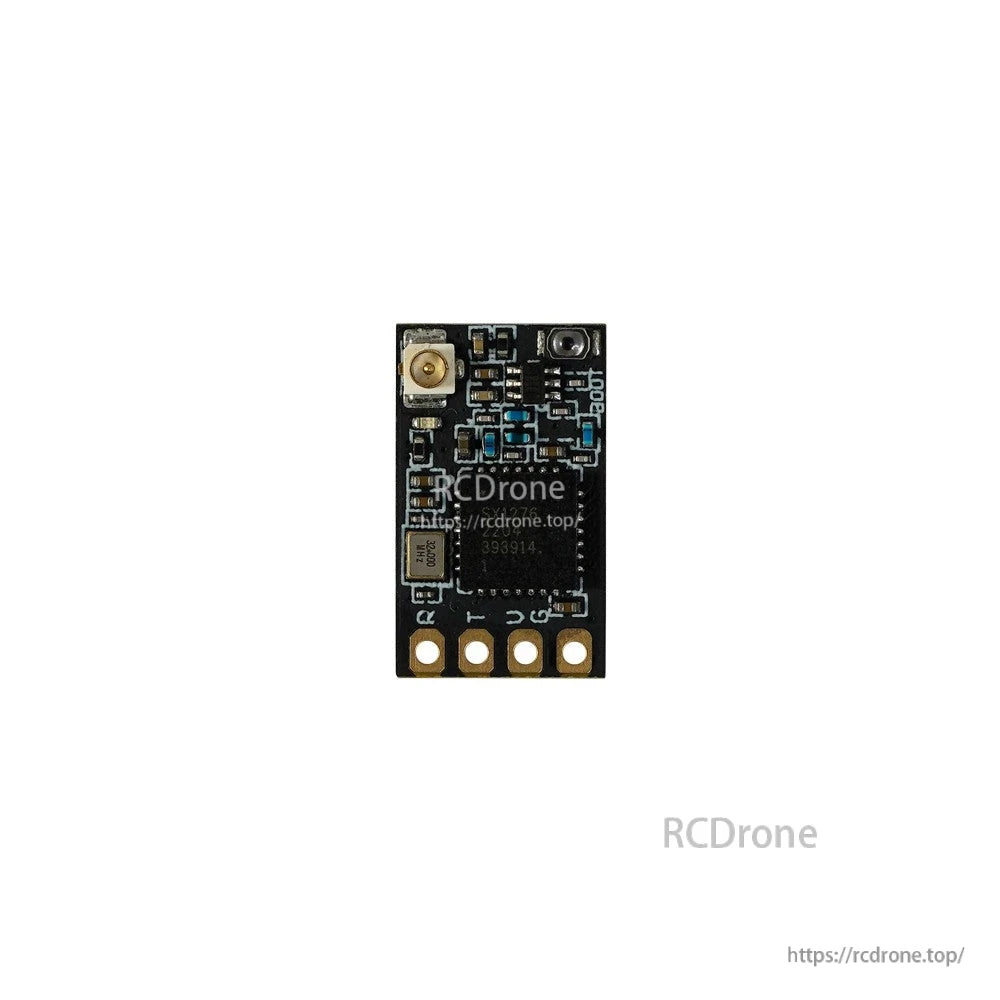

  • Foxeer ELRS 915/868MHz receiver board with u.FL antenna connector and solder pads for wiring
1 8

Foxeer ELRS 915/868MHz Receiver (ELRS900 RX) CRSF U.FL, ESP8285+SX1276, 200Hz, 1g

Foxeer ELRS 915/868MHz Receiver (ELRS900 RX) CRSF U.FL, ESP8285+SX1276, 200Hz, 1g

Foxeer

$25.06 USD
$25.06 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Foxeer ELRS 915/868MHz Receiver (ELRS 915 RX / ELRS900 RX) is a compact ExpressLRS receiver with CRSF bus interface for connecting to a flight controller. It features up to 200Hz high refresh rate and supports telemetry RF power up to 50mW max.

Key Features

  • Work frequency: 915/868MHz
  • Flash frequency: 25~200Hz (up to 200Hz high refresh rate)
  • Telemetry RF power: 50mW max
  • Improved RF design
  • CRSF bus interface
  • U.FL antenna connector
  • Blue LED indicator
  • Firmware version: V3.2.0 pre-installed (FW target: Foxeer 900 RX)

For installation and compatibility questions, contact support at https://rcdrone.top/ or email support@rcdrone.top.

Specifications

Processor ESP8285+SX1276
Work Frequency 915/868MHz
Flash Frequency 25~200Hz
Telemetry RF Power 50mW Max
FW Version V3.2.0 pre-installed
FW Target Foxeer 900 RX
Bus Interface CRSF
Indicator Blue LED
Antenna Connector U.FL
Input 4~5.5V
Weight 1g (without antenna)
Size 11*18.5mm
Module thickness (shown) 3.5mm
Antenna dimensions (shown) 145mm, 85mm

Wiring (CRSF)

  • FC TX → RX pad
  • FC RX → TX pad
  • 5V → 5V
  • GND → GND

What’s Included

  • 1 x Rx
  • 1 x Antenna
  • 1 x Heat Shrink Tube
  • 1 x Cable

Details

Foxeer ELRS 915/868MHz Receiver

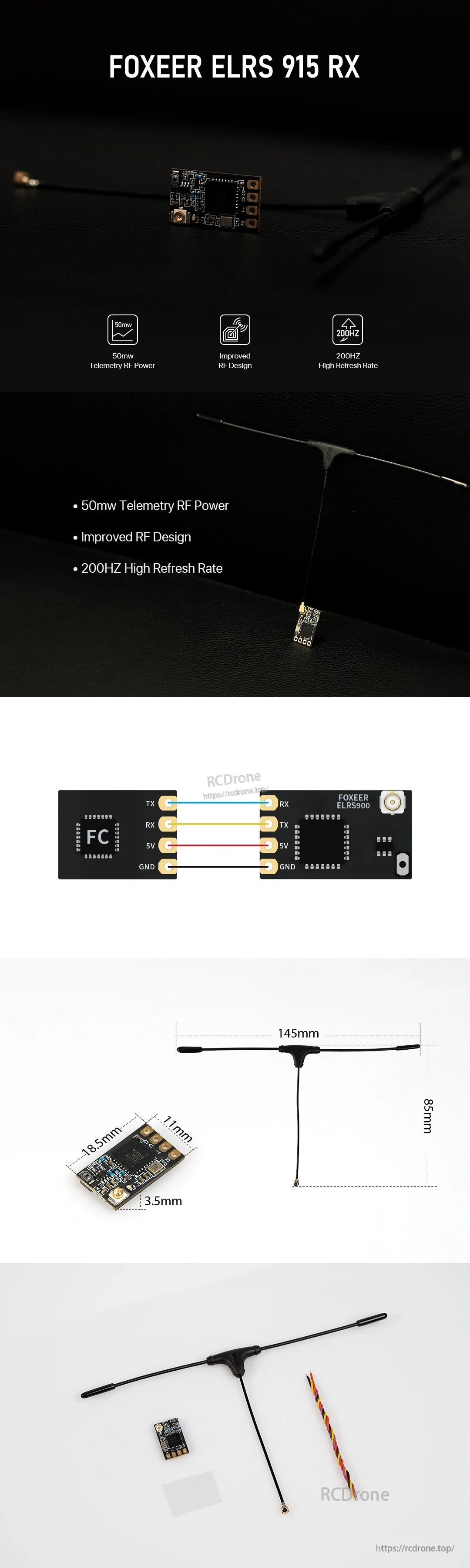

Foxeer ELRS 915/868MHz receiver uses simple TX/RX, 5V and GND connections and includes a compact T-style antenna for installation.
