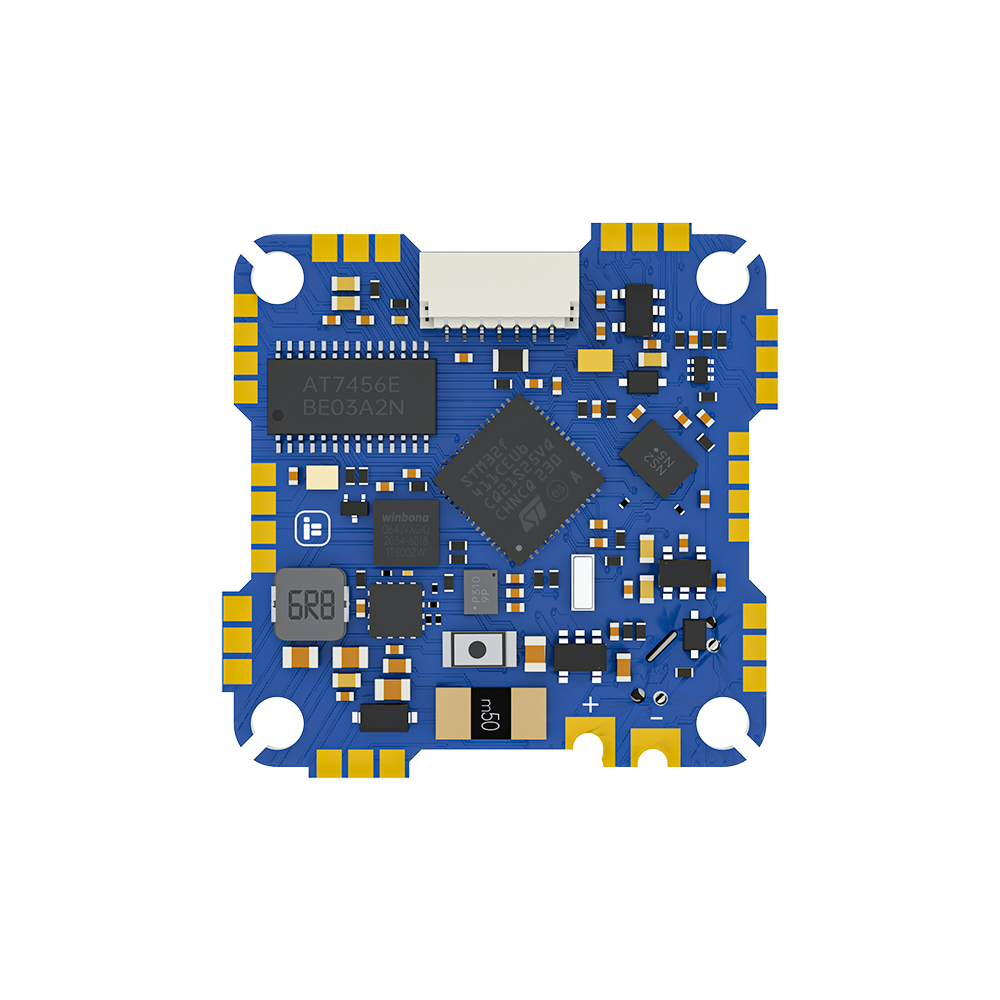

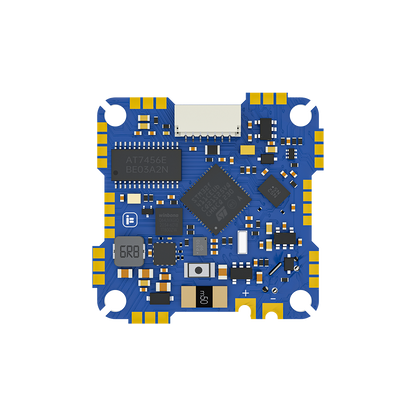

• iFlight BLITZ Whoop AIO flight controller + ESC board with top plug connector, solder pads, and MCU chip

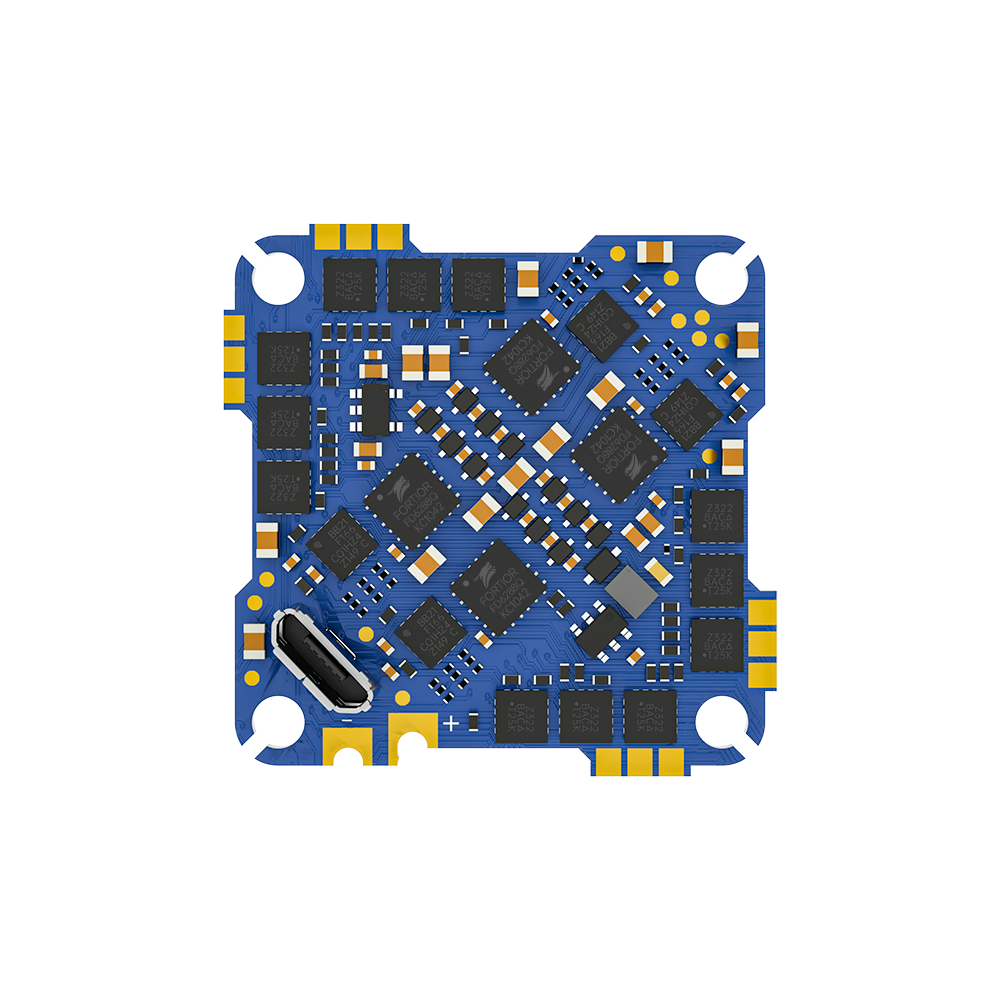

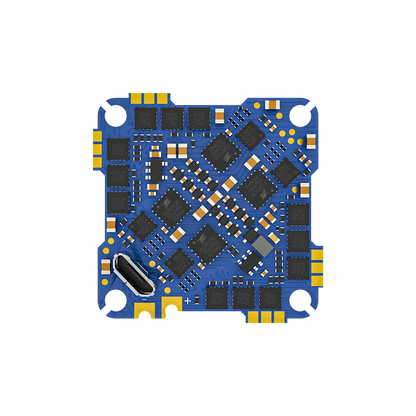

  • Top view of iFlight BLITZ Whoop AIO flight controller board with USB-C port, four mounting holes and solder pads

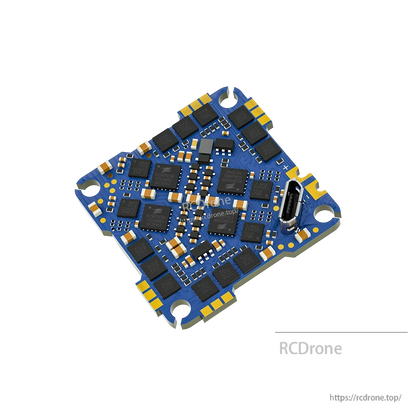

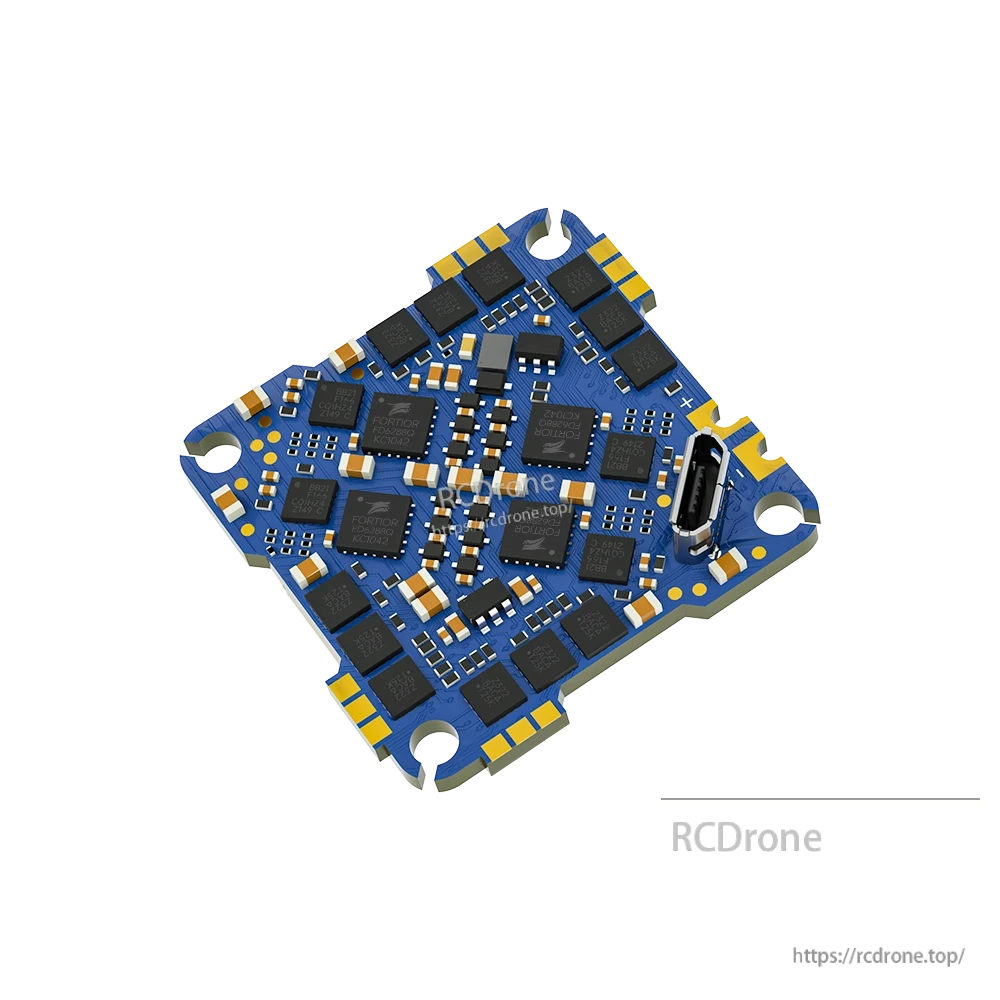

  • iFlight BLITZ Whoop AIO flight controller + ESC board with blue PCB, USB port, and four mounting holes

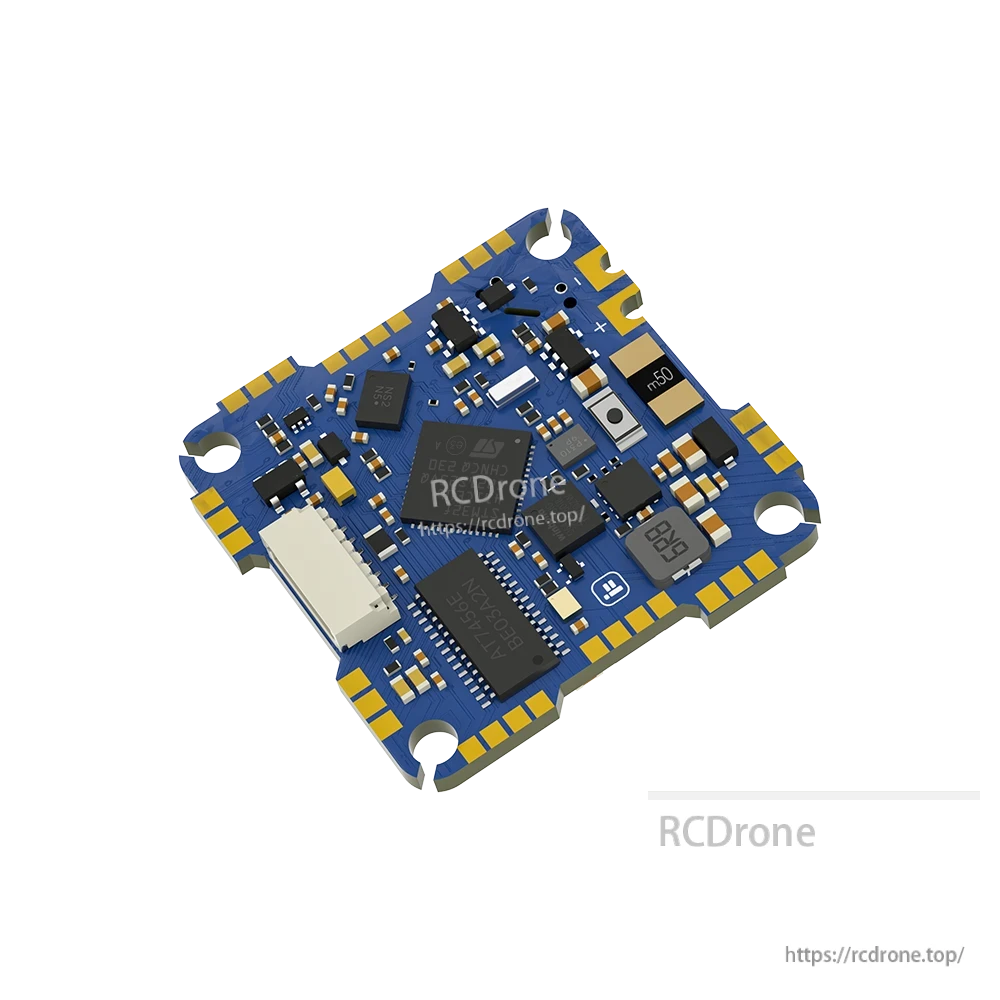

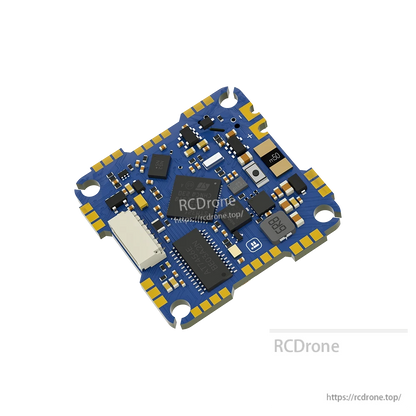

  • iFlight BLITZ Whoop AIO flight controller/ESC board with gold solder pads, mounting holes, and a white JST connector

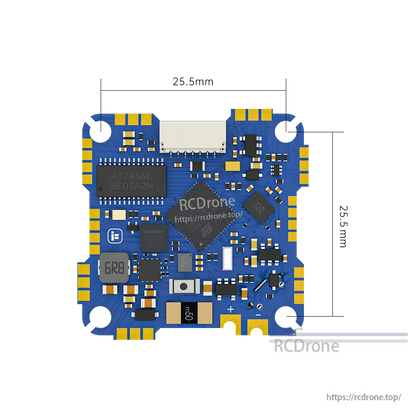

  • iFlight BLITZ Whoop AIO F411 flight controller/ESC board with white plug connector, solder pads, and corner mounting holes
1 5

iFlight BLITZ Whoop AIO F411 20A/25A (Burst) 2-4S AIO Flight Controller + ESC, BMI270, 8MB Blackbox

iFlight BLITZ Whoop AIO F411 20A/25A (Burst) 2-4S AIO Flight Controller + ESC, BMI270, 8MB Blackbox

iFlight

$83.71 USD
$83.71 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

iFlight BLITZ Whoop AIO F411 is a compact AIO flight controller + ESC board for 2-4S builds, combining an STM32F411 MCU, BMI270 gyro, 8MB blackbox, and a 5V 2A BEC output.

Key Features

  • STM32F411 MCU
  • BMI270 gyro
  • 8MB blackbox
  • BEC output: 5V 2A
  • ESC constant current: 20A, 25A (Burst)
  • Input voltage: 2-4S
  • Current sensor: yes
  • BLHeli: BLHeli-S
  • ESC firmware: Bluejay Q-H-50
  • Firmware target: IFLIGHT_F411_PRO
  • Config: IFLIGHT_F411_PRO.config
  • Barometer: No
  • ESC Telemetry: no

Specifications

Size 30.5*30.5mm
Mounting pattern 25.5*25.5mm/φ3mm
Weight 7.5g
MCU STM32F411
Gyro BMI270
Blackbox 8MB
BEC output 5V 2A
INA pad nR2
Barometer No
ESC constant current 20A, 25A (Burst)
Input 2-4S
Current sensor yes
BLHeli BLHeli-S
ESC Telemetry no
Firmware Target IFLIGHT_F411_PRO
Config IFLIGHT_F411_PRO.config
ESC Firmware Bluejay Q-H-50

What’s Included

  • 1 x BLITZ Whoop AIO F411

Note

iFlight product is for fun purposes only and does not support autonomous flight.

For pre-sales compatibility questions (frame mounting, 2-4S input, firmware target IFLIGHT_F411_PRO) or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.
