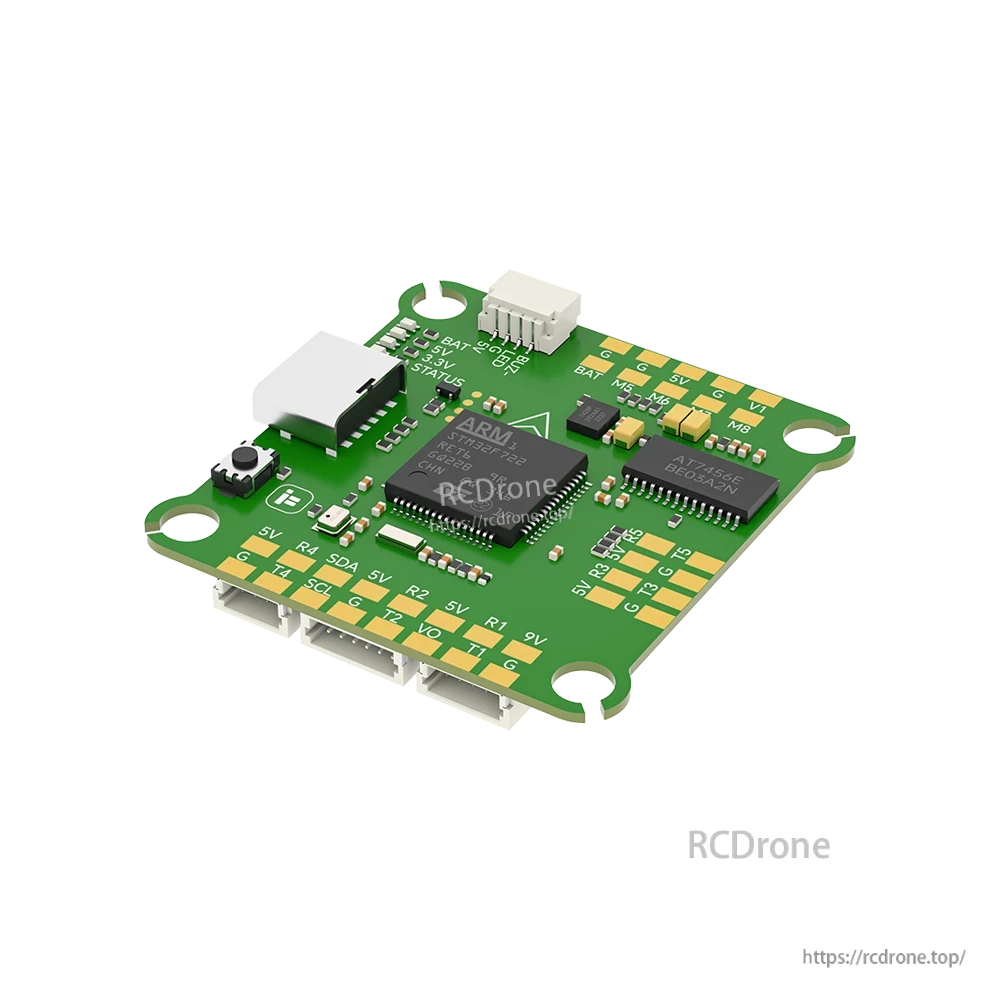

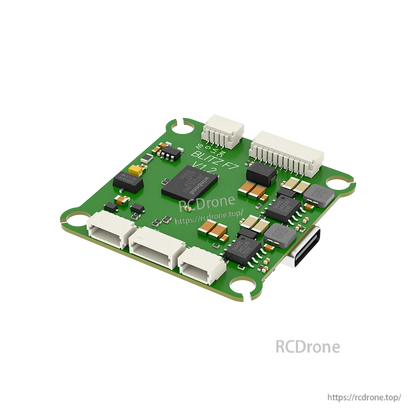

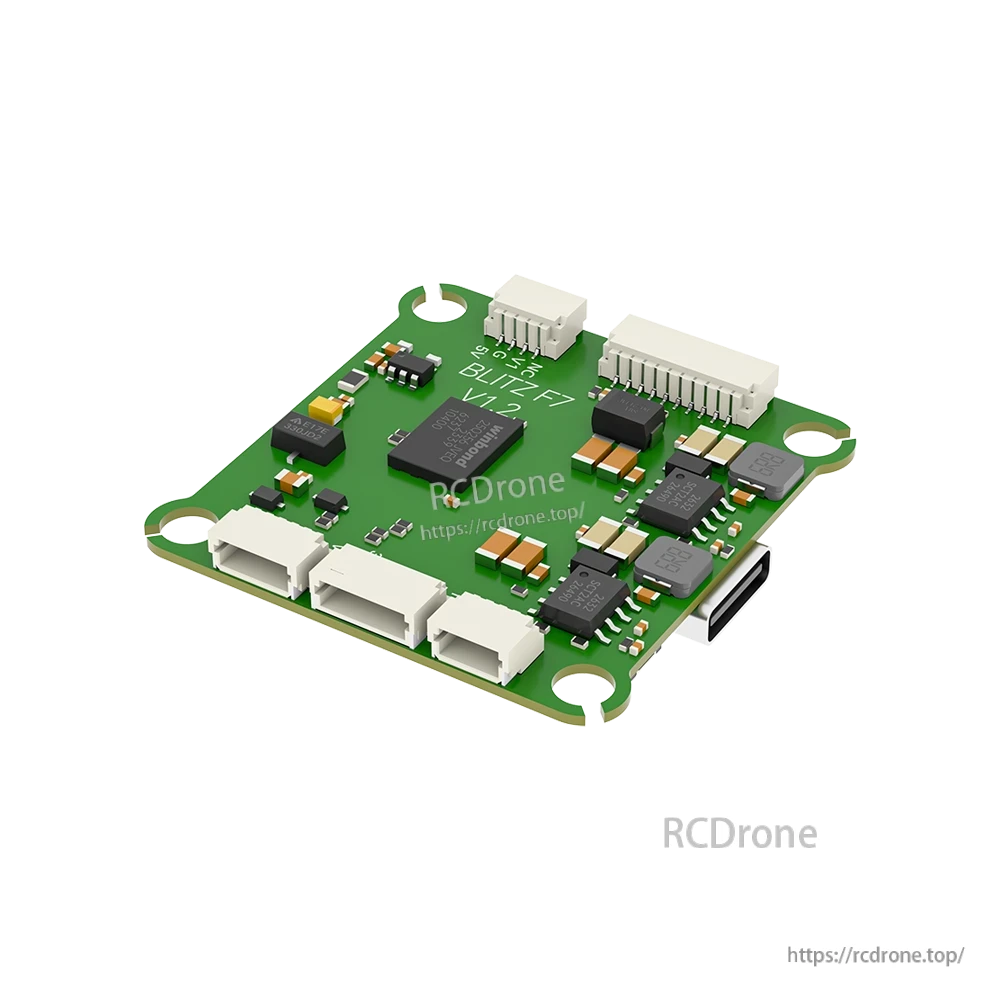

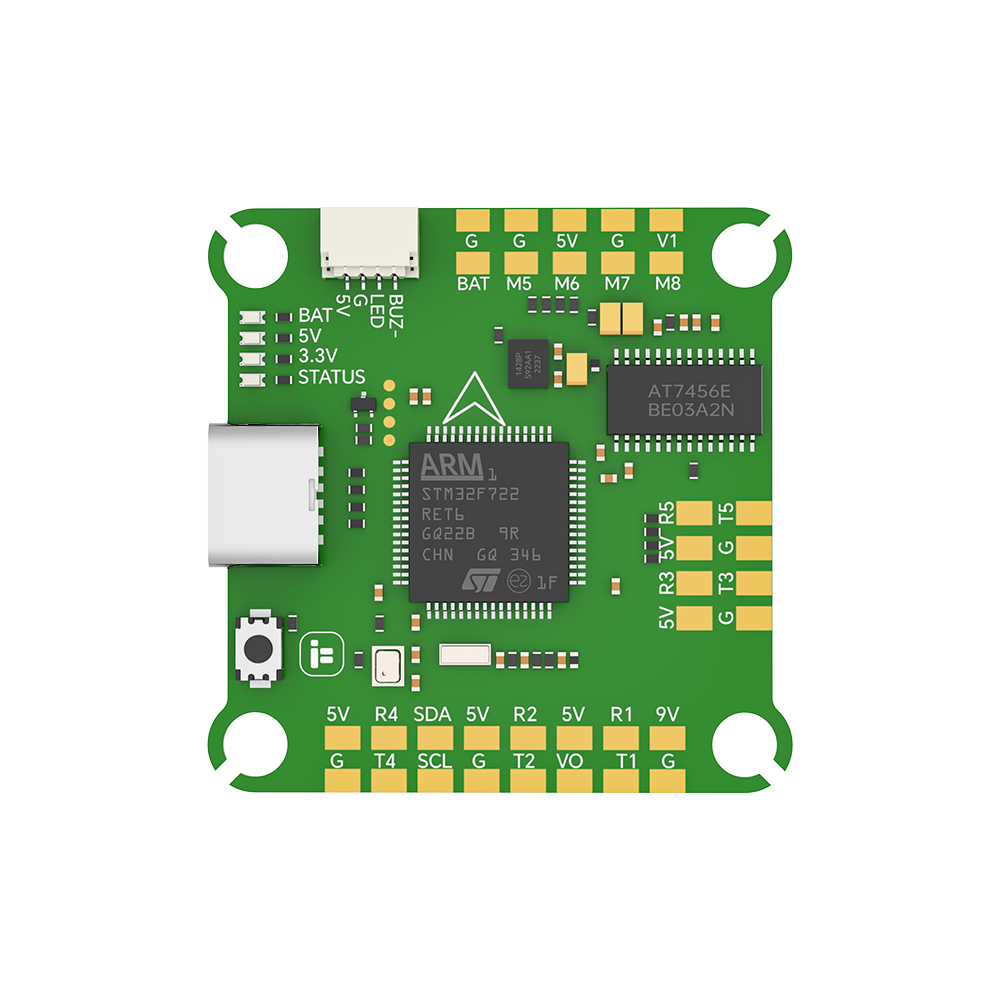

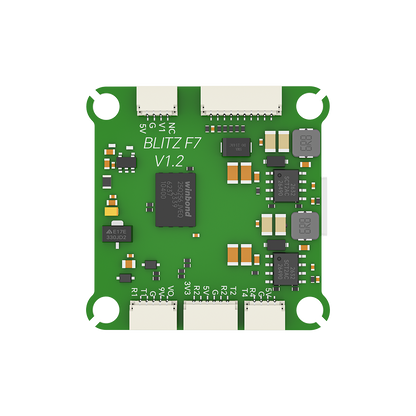

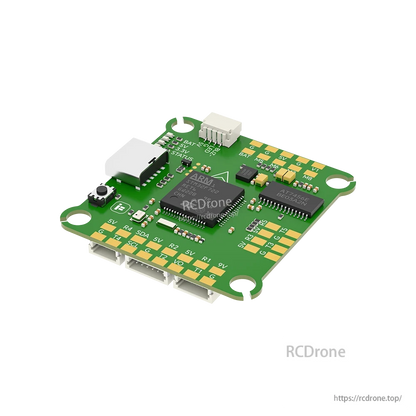

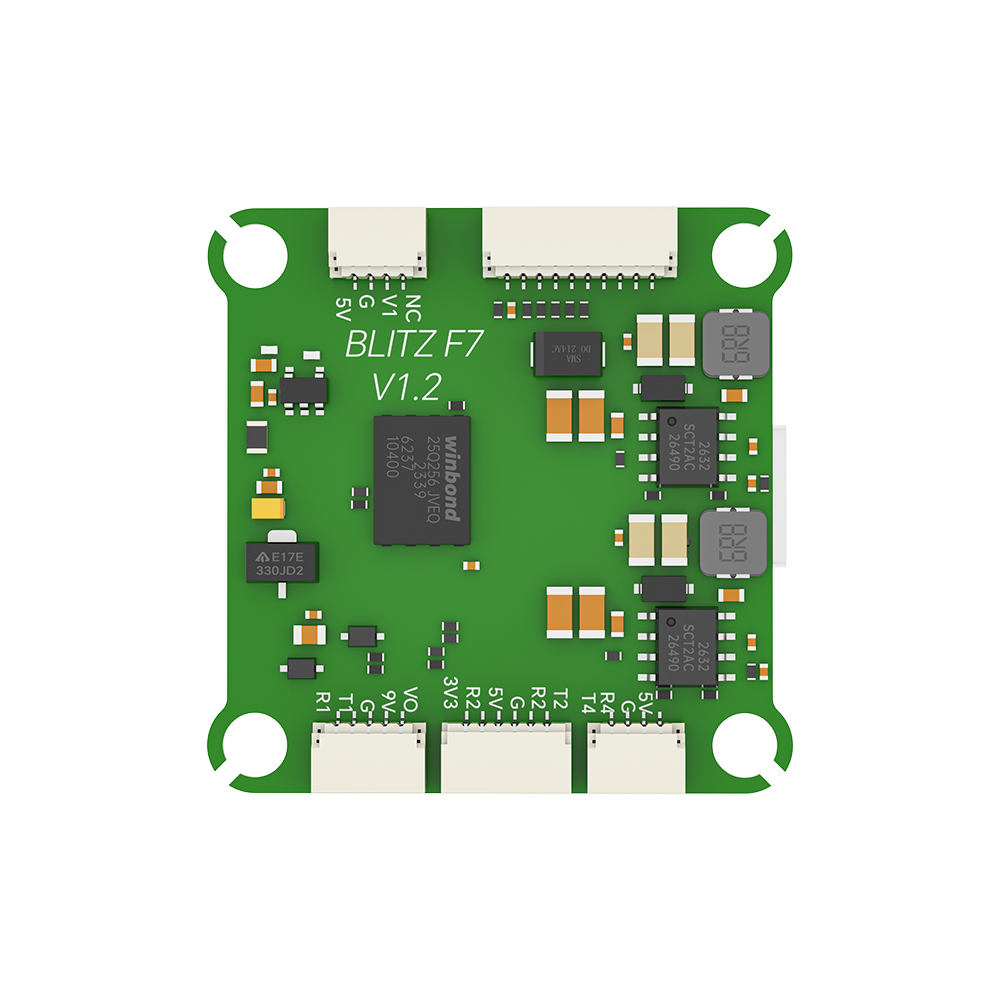

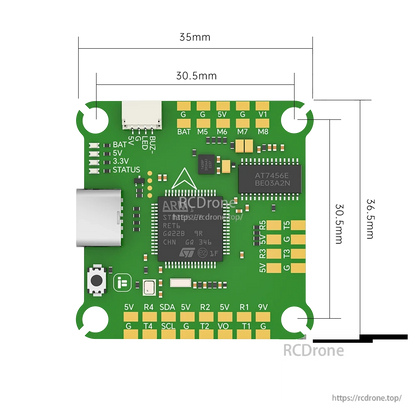

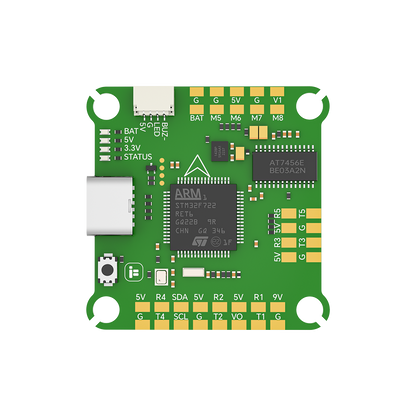

iFlight BLITZ F7 V1.2 Flight Controller – STM32 F722, ICM42688, DPS310, 32MB, DJI HD Plug

Overview

The iFlight BLITZ F7 V1.2 flight controller features an improved circuit design with better components to help reduce electrical noise. It includes a DJI HD VTX connector for plug-and-play wiring (no soldering required), onboard indicator LEDs for visual debugging, and an integrated LC filter.

Key Features

• Improved circuit design with lower electrical noise
• DJI HD VTX connector (plug-and-play / no soldering required)
• FC indicator LEDs for visual debugging
• LC filter
• Smartaudio / IRC Tramp VTX protocol support

Changelog

• Jan. 12, 2024: Gyroscope changed from BMI270 to ICM42688. Product name updated to BLITZ F7 V1.2 Flight Controller.

Specifications

Wiring Suggestion

• UART 1 for VTX HD / Analog
• UART 2 for a Receiver
• UART 3/4/5 for GPS or other sensors that require a serial port
• UART 6 for ESC Telemet

What’s Included

• 1 x BLITZ F7 V1.2 Flight Controller
• 1 x FC connectors
• 1 x silicon grommets

Note

iFlight product is for fun purposes only and does not support autonomous flight.

For compatibility questions (DJI HD VTX wiring, UART mapping, or firmware target IFRC-IFLIGHT_BLITZ_F722), contact support@rcdrone.top.
