MAD FLUXER VTOL Carbon Fiber Propeller 24.1x9.6 Inch (612.14x243.84mm) 65g, 2pcs Kit

MAD

$178.50 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Mount hole size D10-D20(M3*4) customize

Quantity

View full details

Overview

MAD FLUXER VTOL carbon fiber propeller (24.1x9.6 inch) with an integrated structure design for higher strength. The VTOL-optimized prop profile reduces prop surface area to lower air resistance during cruise, while the larger pitch supports higher thrust and faster response. Reinforced installation positions improve durability and operational safety. Designed to pair well with MAD brushless motors.

For compatibility checks (motor KV, hub pattern, and installation hardware), contact https://rcdrone.top/ or email support@rcdrone.top.

Key Features

Integrated structure design for higher intensity
VTOL-optimized profile for reduced cruise air resistance
Larger pitch for higher thrust and faster startup/response
Reinforced mounting areas for improved durability
High quality carbon fiber + resin construction

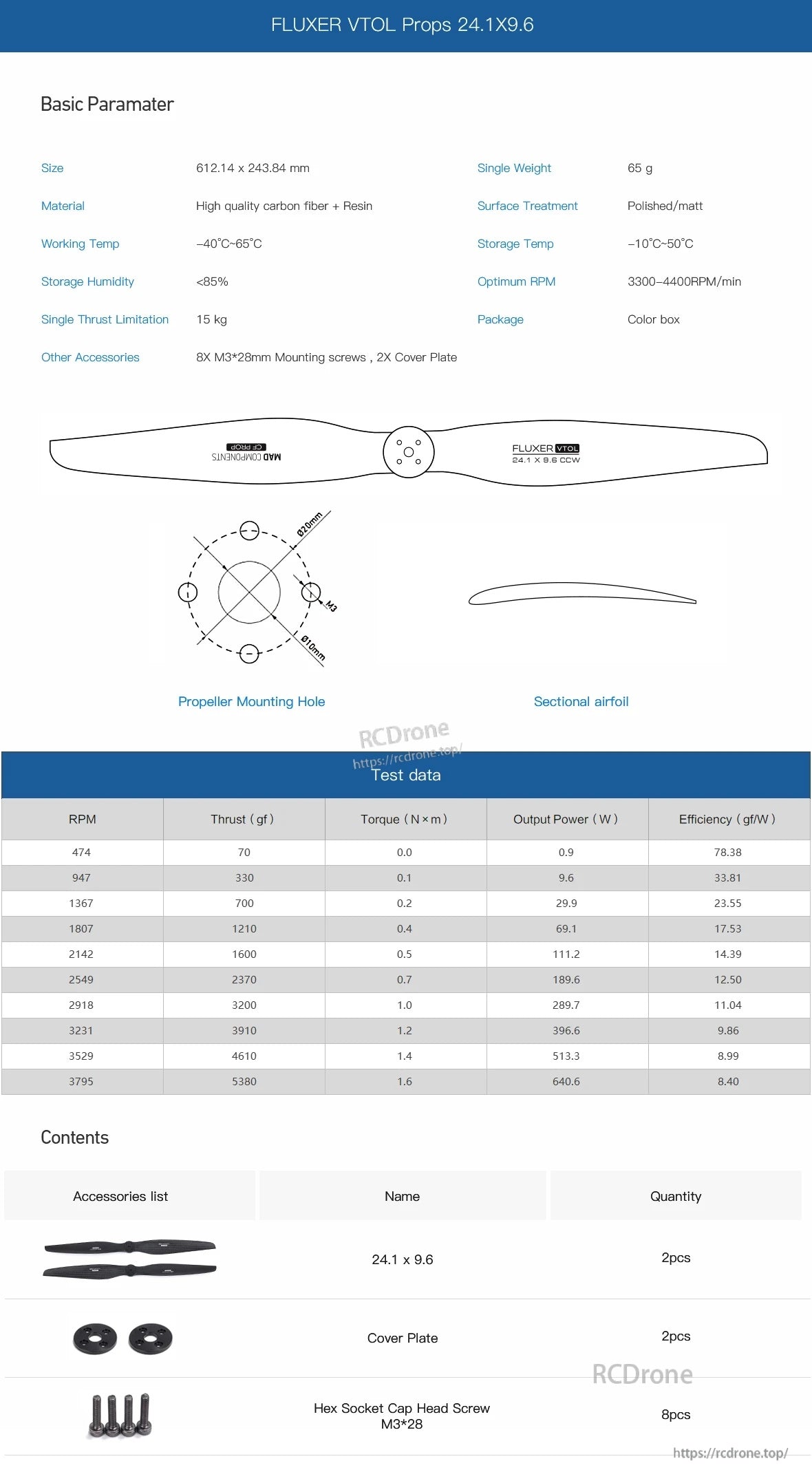

Specifications

Model	FLUXER VTOL Props 24.1x9.6
Size	612.14 x 243.84 mm
Material	High quality carbon fiber + Resin
Single weight	65 g
Surface treatment	Polished/matt
Working temperature	-40°C to 65°C
Storage temperature	-10°C to 50°C
Storage humidity	<85%
Optimum RPM	3300-4400RPM/min
Single thrust limitation	15 kg

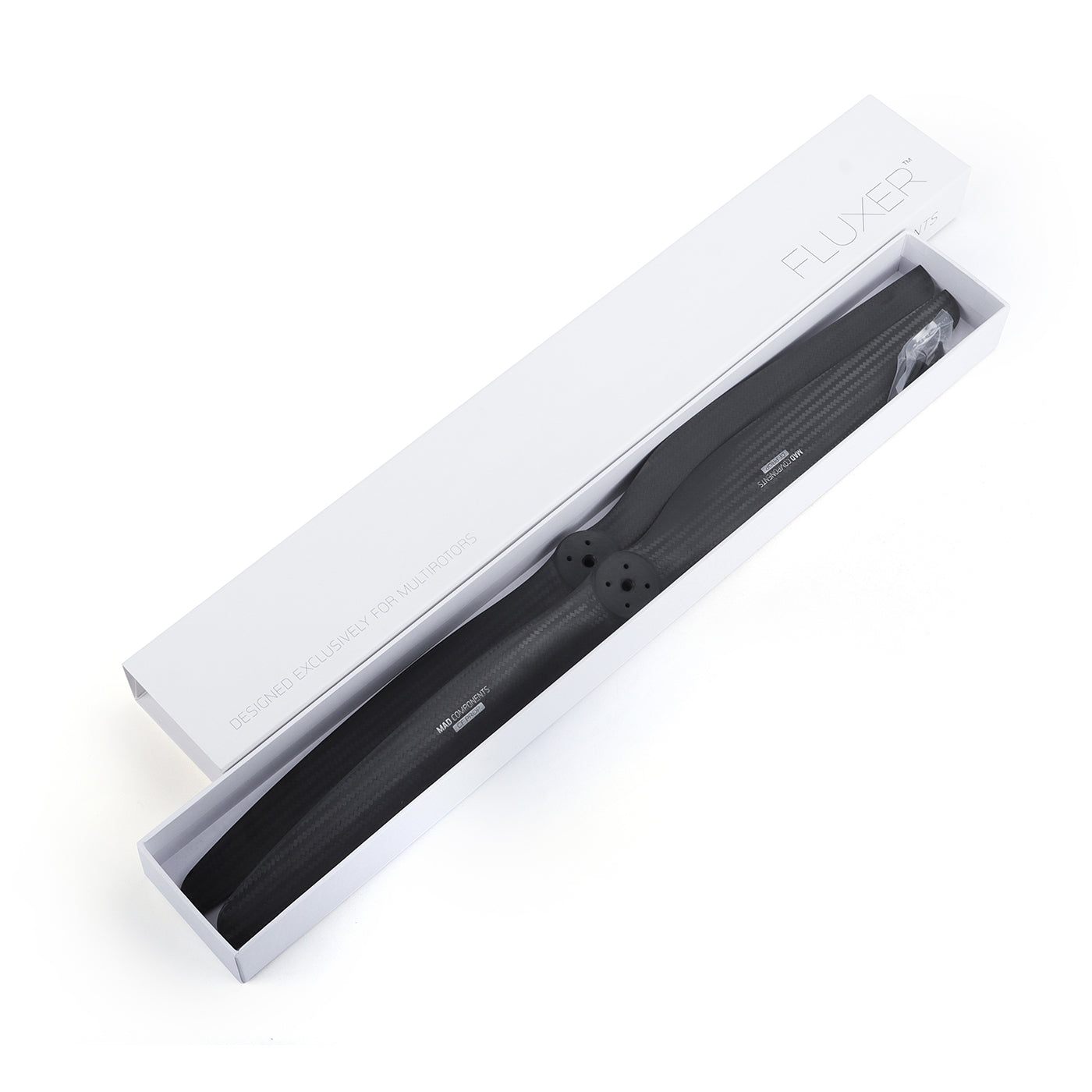

Package	Color box

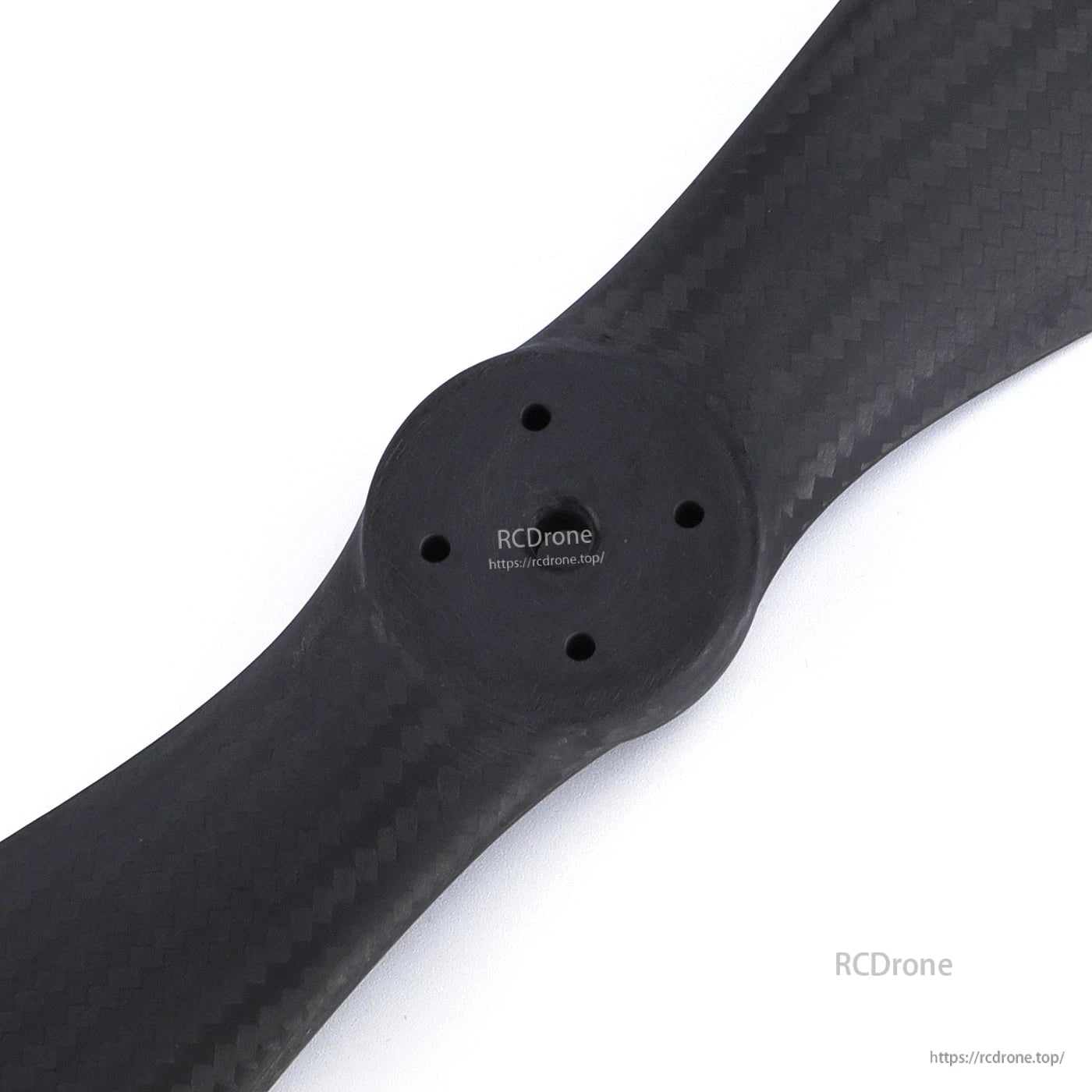

Mounting hole (diagram)	4x M3; PCD: φ20 mm; center hole: φ10 mm
Blade marking	24.1 x 9.6 CCW

Test Data

RPM	Thrust (gf)	Torque (N*m)	Output Power (W)	Efficiency (gf/W)
474	70	0.0	0.9	78.38
947	330	0.1	9.6	33.81
1367	700	0.2	29.9	23.55
1807	1210	0.4	69.1	17.53
2142	1600	0.5	111.2	14.39
2549	2370	0.7	189.6	12.50
2918	3200	1.0	289.7	11.04
3231	3910	1.2	396.6	9.86
3529	4610	1.4	513.3	8.99
3795	5380	1.6	640.6	8.40
