MAD 16.1x6.4in FLUXER VTOL Carbon Fiber Propeller Set (2pcs) - 23g, 408.94x162.56mm

MAD

$67.35 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Holes Position D6-D12(M3*2)

Quantity

View full details

Overview

MAD FLUXER VTOL carbon fiber propeller (16.1x6.4 inch) features an integrated structure design for higher intensity. The optimized VTOL prop profile uses a smaller prop surface to reduce air resistance during cruise. A larger prop pitch helps draw more thrust for faster response and start-up. Reinforced installation positions improve durability and safety. Designed to pair well with MAD brushless motors.

Key Features

Integrated structure design for higher strength
VTOL-oriented profile with reduced cruise air resistance
Large pitch for increased thrust and quicker response
Reinforced mounting areas for improved durability
Carbon fiber + resin construction

Specifications

Model	FLUXER VTOL Props 16.1x6.4
Size	408.94 x 162.56 mm
Material	High quality carbon fiber + resin
Surface treatment	Polished/matt
Single weight	23 g
Working temp	-40°C~65°C
Storage temp	-10°C~50°C
Storage humidity	<85%
Optimum RPM	4100-5700RPM/min
Single thrust limitation	8 kg
Propeller mounting hole	Φ12 mm / Φ6 mm, M3
Package	Color box

Test Data

RPM	Thrust (gf)	Torque (N×m)	Output Power (W)	Efficiency (gf/W)
2137	344	0.1	17.0	20.20
2419	444	0.1	24.4	18.20
2649	541	0.1	31.9	17.00
2918	659	0.1	41.9	15.70
3234	829	0.2	57.4	14.50
3630	1053	0.2	81.7	12.90
3848	1187	0.2	96.7	12.30
4085	1360	0.3	116.8	11.60
4286	1493	0.3	133.6	11.20
4492	1625	0.3	153.6	10.60
4703	1796	0.4	176.6	10.20
4872	1925	0.4	196.3	9.80
5009	2027	0.4	213.0	9.50
5115	2129	0.4	227.7	9.40
5278	2255	0.5	248.8	9.10

What’s Included

16.1 x 6.4 propeller: 2pcs
Cover plate: 2pcs
Ø6/Ø4 adapter ring: 2pcs
Hex socket cap head screw M3*18: 4pcs

Description

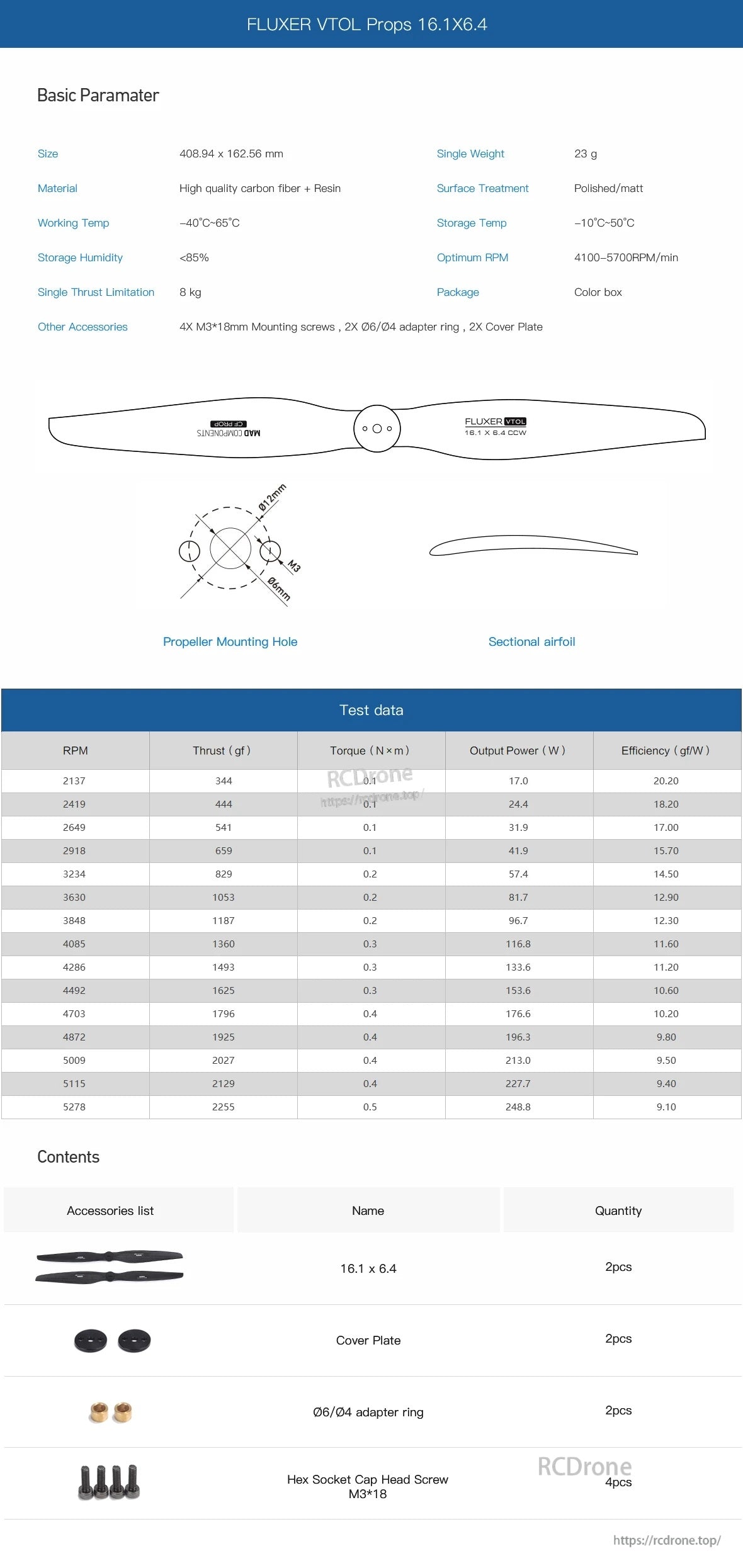

MAD 16.1x6.4in FLUXER VTOL Carbon Fiber Propeller, FLUXER VTOL 16.1x6.4 carbon fiber propeller spec sheet with dimensions, test data table, and included accessories list

The FLUXER VTOL 16.1x6.4 carbon fiber propeller set includes props plus center plates, adapter rings, and mounting screws for installation.

For compatibility questions (motor pairing, mounting adapters, or prop selection), contact support@rcdrone.top or visit https://rcdrone.top/.

Details

MAD 16.1x6.4 Inch FLUXER VTOL Carbon Fiber propeller

The FLUXER VTOL 16.1x6.4 propeller kit lists thrust test data and includes two props plus mounting hardware like cover plates, an adapter ring, and screws.
