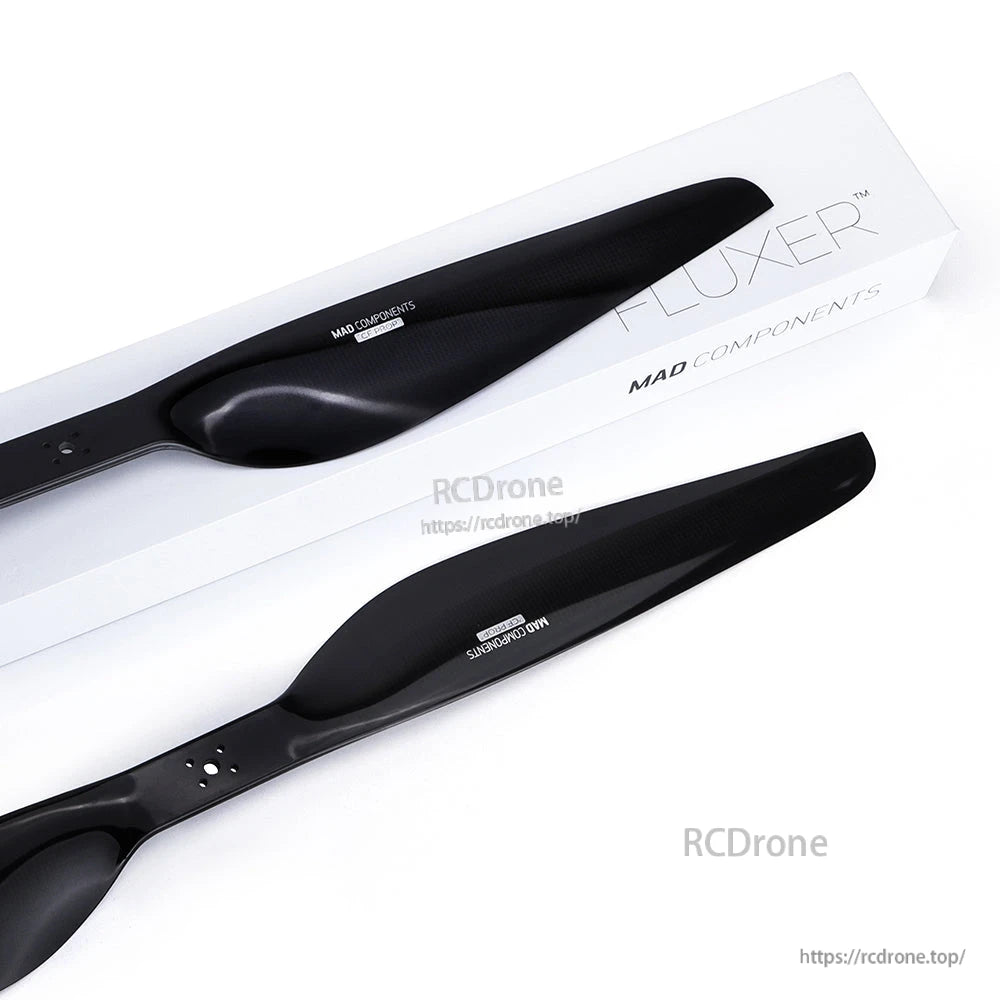

MAD FLUXER Pro Shine 30x10 in Carbon Fiber Propeller, 762x254 mm, 132 g, 1800-3500 RPM

MAD

$420.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Holes position D10-D20(M3*4)

Quantity

View full details

Overview

MAD FLUXER Pro Shine 30x10 in propeller made from imported carbon fiber + resin with a glossy (shine) surface treatment. Designed for efficient performance with dynamic balancing for low vibration, a larger pitch for faster throttle response, and an optimized airfoil for endurance flight.

Key Features

Imported carbon fiber + resin construction
Shine (glossy) surface treatment
Dynamic balanced design for low vibration
Optimized airfoil design for performance and efficiency

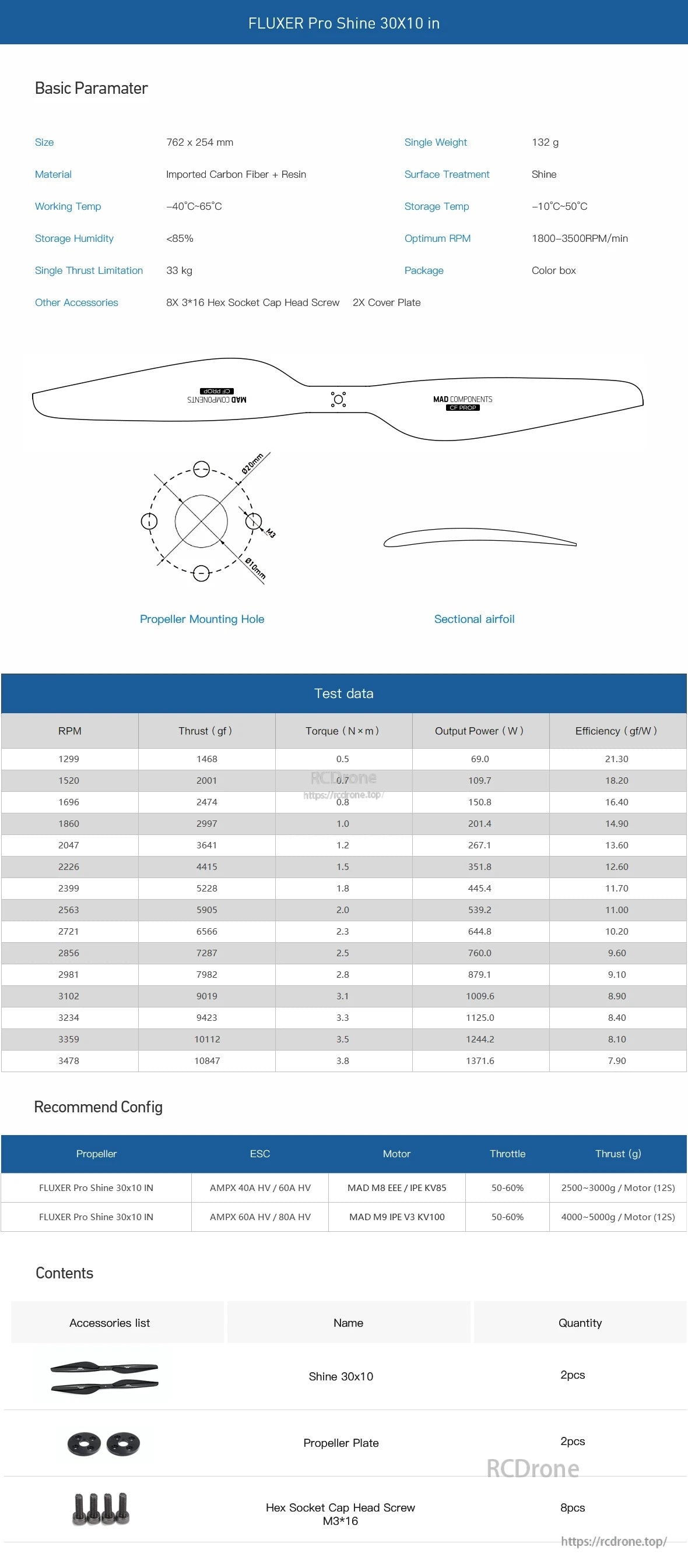

Specifications

Model	FLUXER Pro Shine 30x10 in
Size	762 x 254 mm
Material	Imported Carbon Fiber + Resin
Surface treatment	Shine
Single weight	132 g
Optimum RPM	1800-3500 RPM/min
Single thrust limitation	33 kg
Working temperature	-40°C to 65°C
Storage temperature	-10°C to 50°C
Storage humidity	<85%
Package	Color box
Mounting (propeller mounting hole)	Center bore: Ø20 mm; Bolt circle: Ø100 mm; Holes: M8 (x4)

Test Data

RPM	Thrust (gf)	Torque (N*m)	Output Power (W)	Efficiency (gf/W)
1299	1468	0.5	69.0	21.30
1520	2001	0.7	109.7	18.20
1696	2474	0.8	150.8	16.40
1860	2997	1.0	201.4	14.90
2047	3641	1.2	267.1	13.60
2226	4415	1.5	351.8	12.60
2399	5228	1.8	445.4	11.70
2563	5905	2.0	539.2	11.00
2721	6566	2.3	644.8	10.20
2856	7287	2.5	760.0	9.60
2981	7982	2.8	879.1	9.10
3102	9019	3.1	1009.6	8.90
3234	9423	3.3	1125.0	8.40
3359	10112	3.5	1244.2	8.10
3478	10847	3.8	1371.6	7.90

Recommended Config

Propeller	ESC	Motor	Throttle	Thrust (g)
FLUXER Pro Shine 30x10 IN	AMPX 40A HV / 60A HV	MAD M8 EEE / IPE KV85	50-60%	2500-3000g / Motor (12S)
FLUXER Pro Shine 30x10 IN	AMPX 60A HV / 80A HV	MAD M9 IPE V3 KV100	50-60%	4000-5000g / Motor (12S)
