MAD FLUXER VTOL carbon fiber propeller 30.1x12 inch CCW, 2pcs set with cover plates & M3*28 screws
MAD FLUXER VTOL carbon fiber propeller 30.1x12 inch CCW, 2pcs set with cover plates & M3*28 screws
MAD
Regular price
$283.50 USD
Regular price
Sale price
$283.50 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview

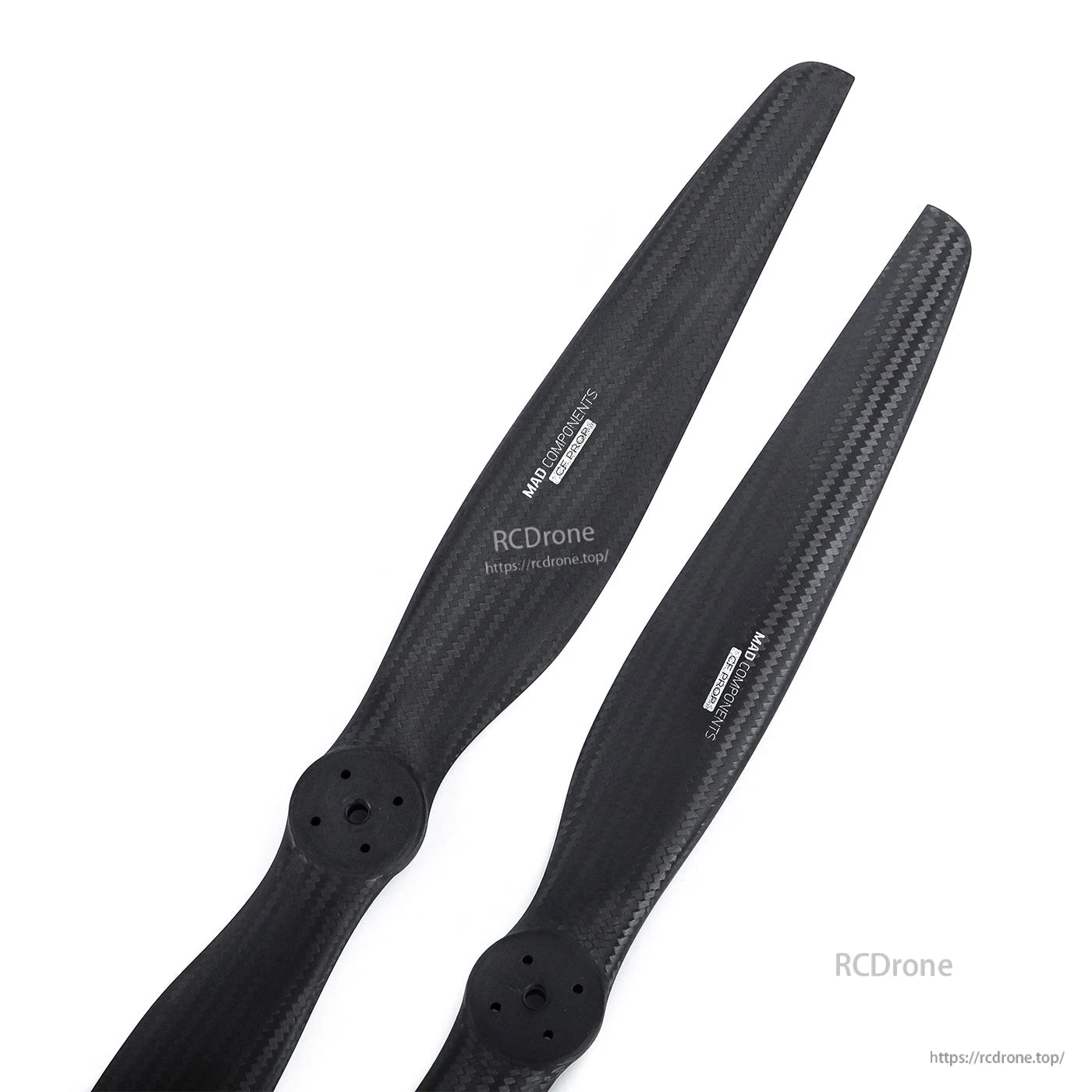

MAD FLUXER VTOL carbon fiber propeller in 30.1x12 size, designed with an integrated structure for higher strength.Optimized VTOL prop profile with a smaller prop surface for less air resistance during cruise.
Larger prop pitch for increased thrust, with faster response and start-up.
Reinforced installation positions for improved durability.
Recommended pairing: MAD brushless motors.
Key Features
- Integrated structure design for higher intensity
- Optimized VTOL profile to reduce air resistance during cruise
- 30.1x12 pitch design for higher thrust and quicker response
- Strengthened mounting areas for higher durability
- Polished/matt surface treatment
Specifications
| Model | FLUXER VTOL Props 30.1x12 |
| Size | 764.54 x 304.8 mm |
| Material | High quality carbon fiber + Resin |
| Single weight | 96 g |
| Surface treatment | Polished/matt |
| Working temperature | -40°C~65°C |
| Storage temperature | -10°C~50°C |
| Storage humidity | <85% |
| Optimum RPM | 3000-3500RPM/min |
| Single thrust limitation | 19 kg |

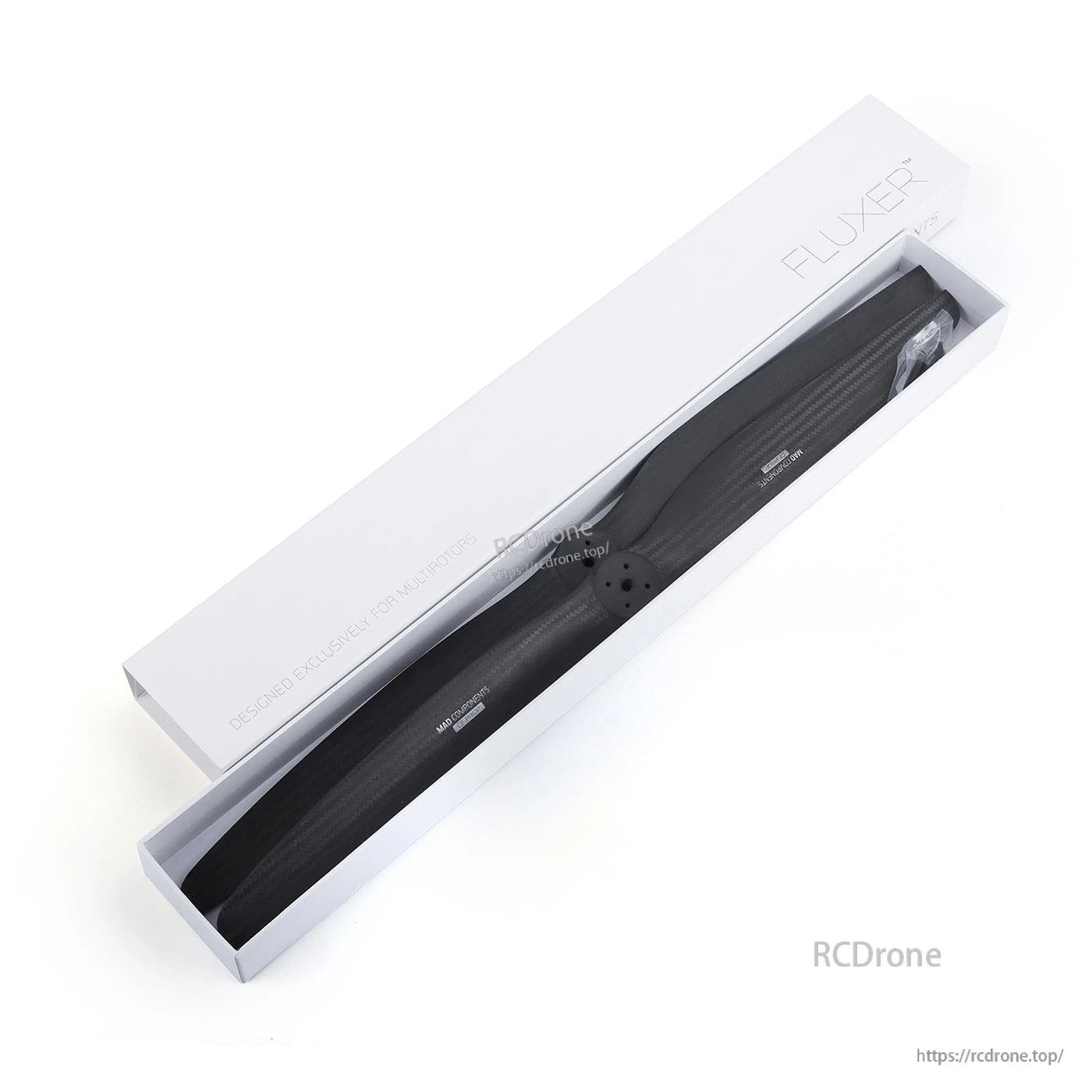

| Package | Color box |
| Other accessories | 8X M3*28mm Mounting screws, 2X Cover Plate |
| Prop marking (visible) | FLUXER VTOL 30.1 x 12 CCW |

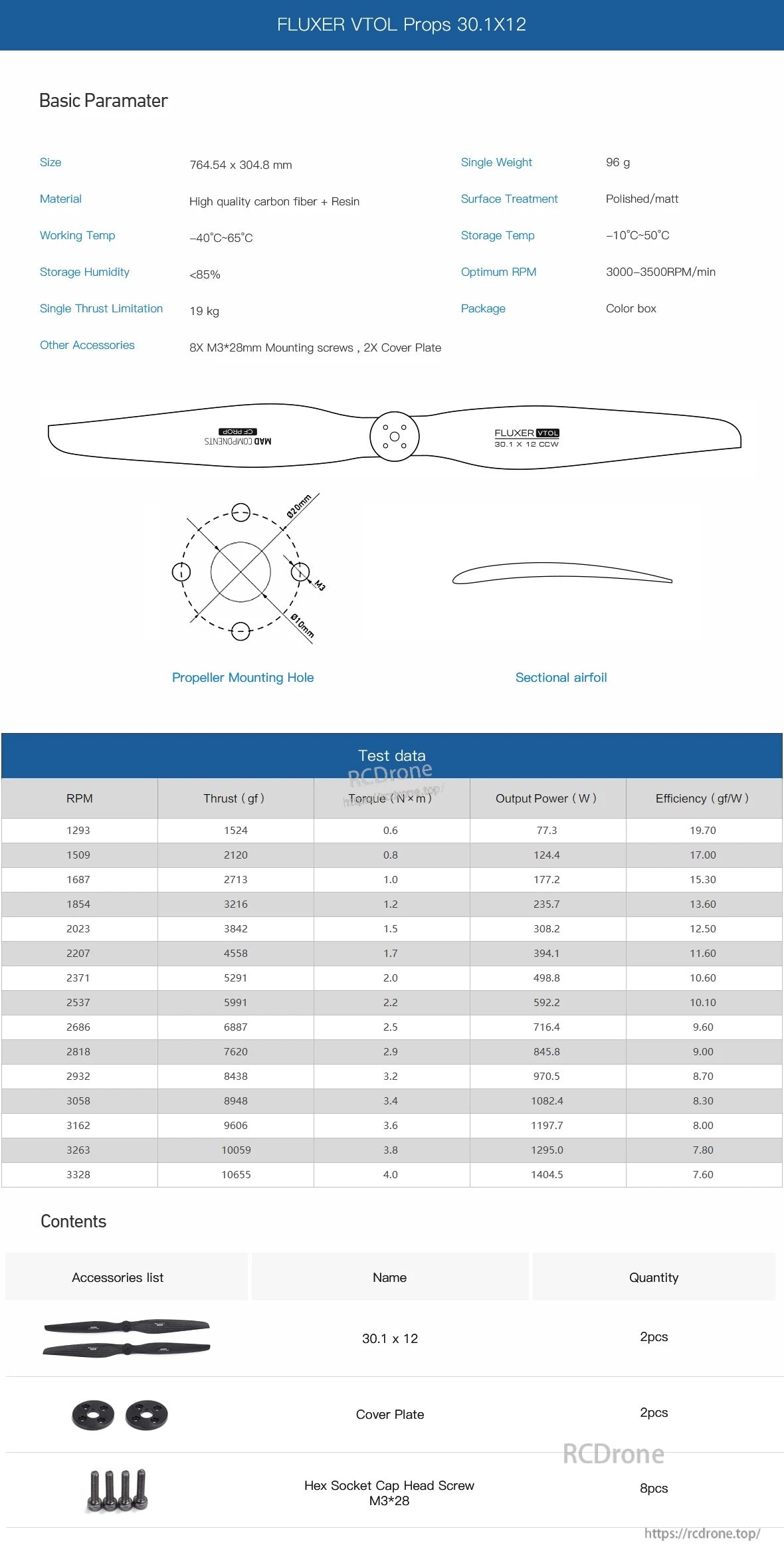

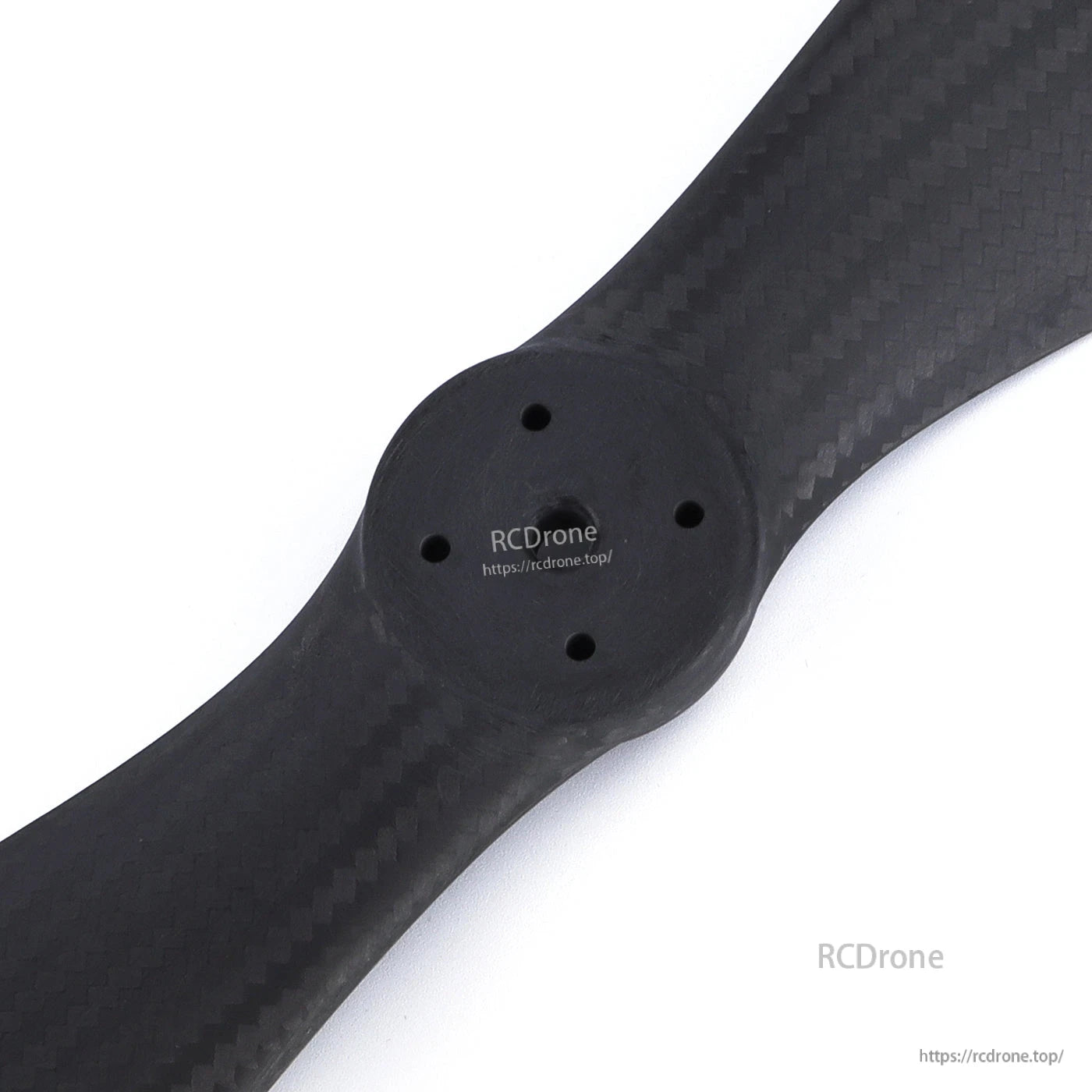

| Mounting hole diagram labels (visible) | Φ20mm, M4.3, Φ10mm |
Test Data
| RPM | Thrust (gf) | Torque (N*m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 1293 | 1524 | 0.6 | 77.3 | 19.70 |
| 1509 | 2120 | 0.8 | 124.4 | 17.00 |
| 1687 | 2713 | 1.0 | 177.2 | 15.30 |
| 1854 | 3216 | 1.2 | 235.7 | 13.60 |
| 2023 | 3842 | 1.5 | 308.2 | 12.50 |
| 2207 | 4558 | 1.7 | 394.1 | 11.60 |
| 2371 | 5291 | 2.0 | 498.8 | 10.60 |
| 2537 | 5991 | 2.2 | 592.2 | 10.10 |
| 2686 | 6887 | 2.5 | 716.4 | 9.60 |
| 2818 | 7620 | 2.9 | 845.8 | 9.00 |
| 2932 | 8438 | 3.2 | 970.5 | 8.70 |
| 3058 | 8948 | 3.4 | 1082.4 | 8.30 |
| 3162 | 9606 | 3.6 | 1197.7 | 8.00 |
| 3263 | 10059 | 3.8 | 1295.0 | 7.80 |
| 3328 | 10655 | 4.0 | 1404.5 | 7.60 |

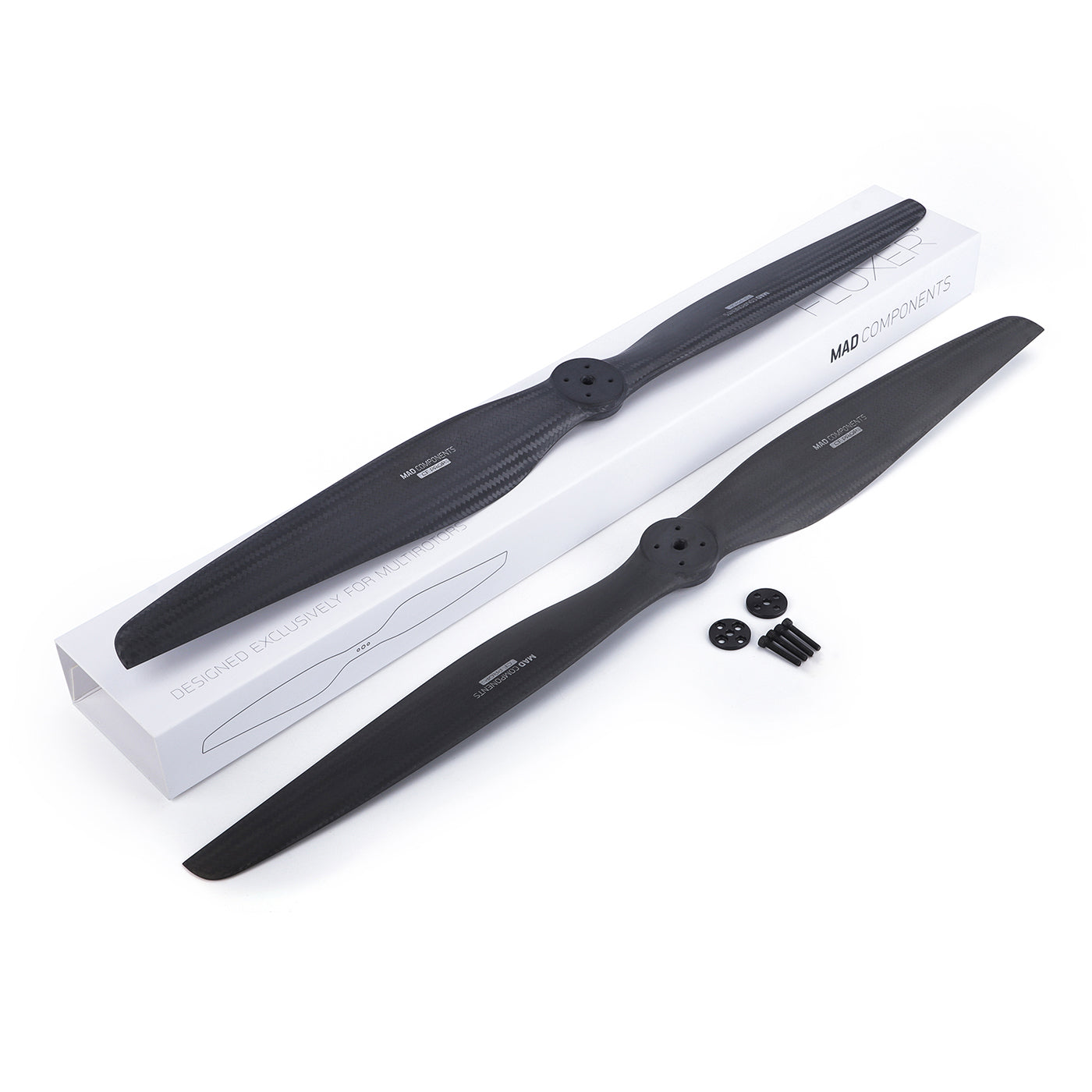

What’s Included

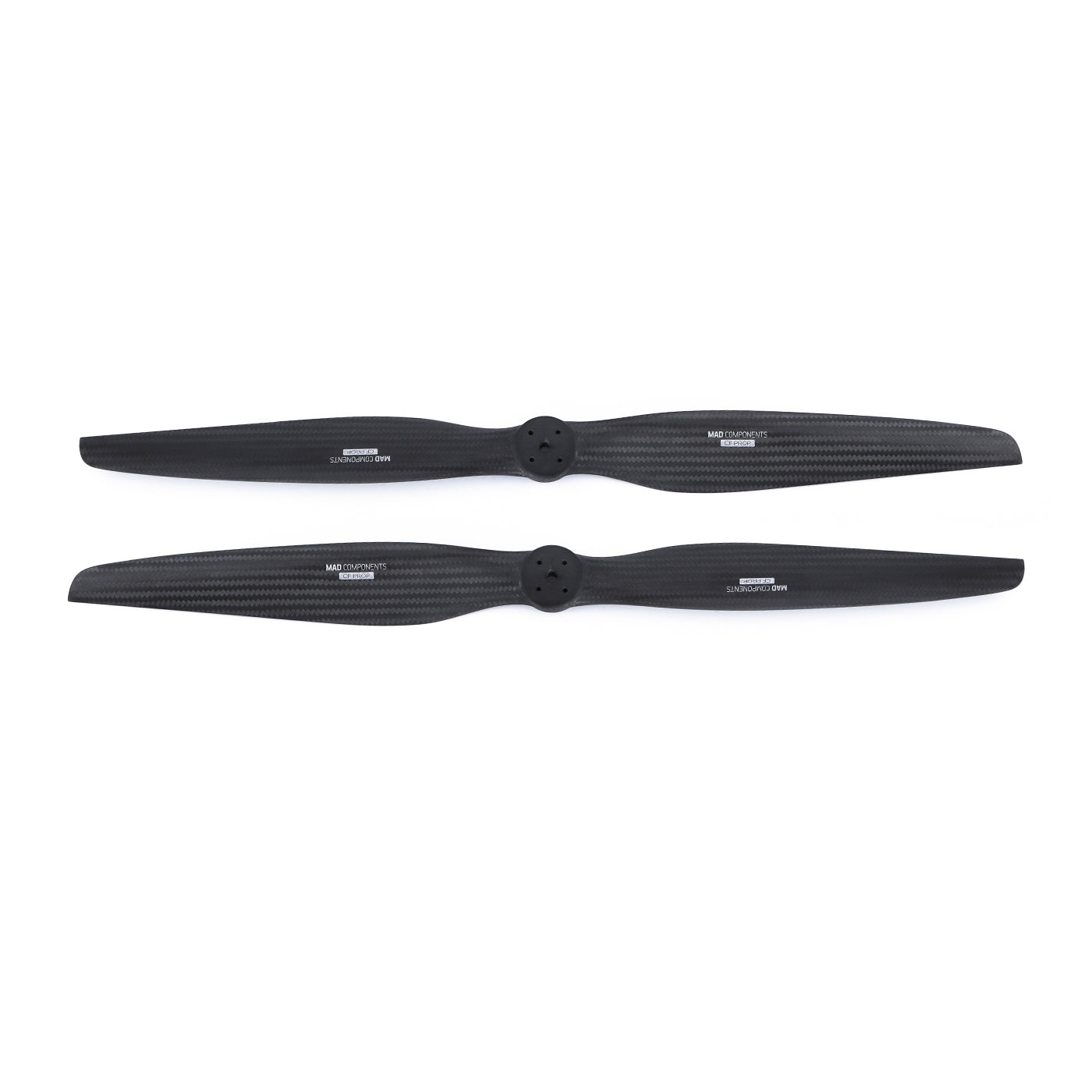

- 30.1 x 12 propellers: 2 pcs
- Cover plate: 2 pcs
- Hex socket cap head screw M3*28: 8 pcs
Applications
- VTOL aircraft and UAV propulsion setups requiring 30.1x12 carbon fiber propellers
Description
For compatibility checks (motor, hub pattern, and installation hardware), contact support@rcdrone.top or visit https://rcdrone.top/.
Details
The MAD FLUXER VTOL 30.1x12 carbon fiber propeller includes mounting details, performance test data, and a parts list with cover plates and screws.
