MAD FLUXER 32.1x12.8in Carbon Fiber eVTOL Propeller 117g, 4xM3 Mount, 21kg Thrust Limit

MAD

$313.50 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Holes Position D10-D20(M3*4)

Quantity

View full details

Overview

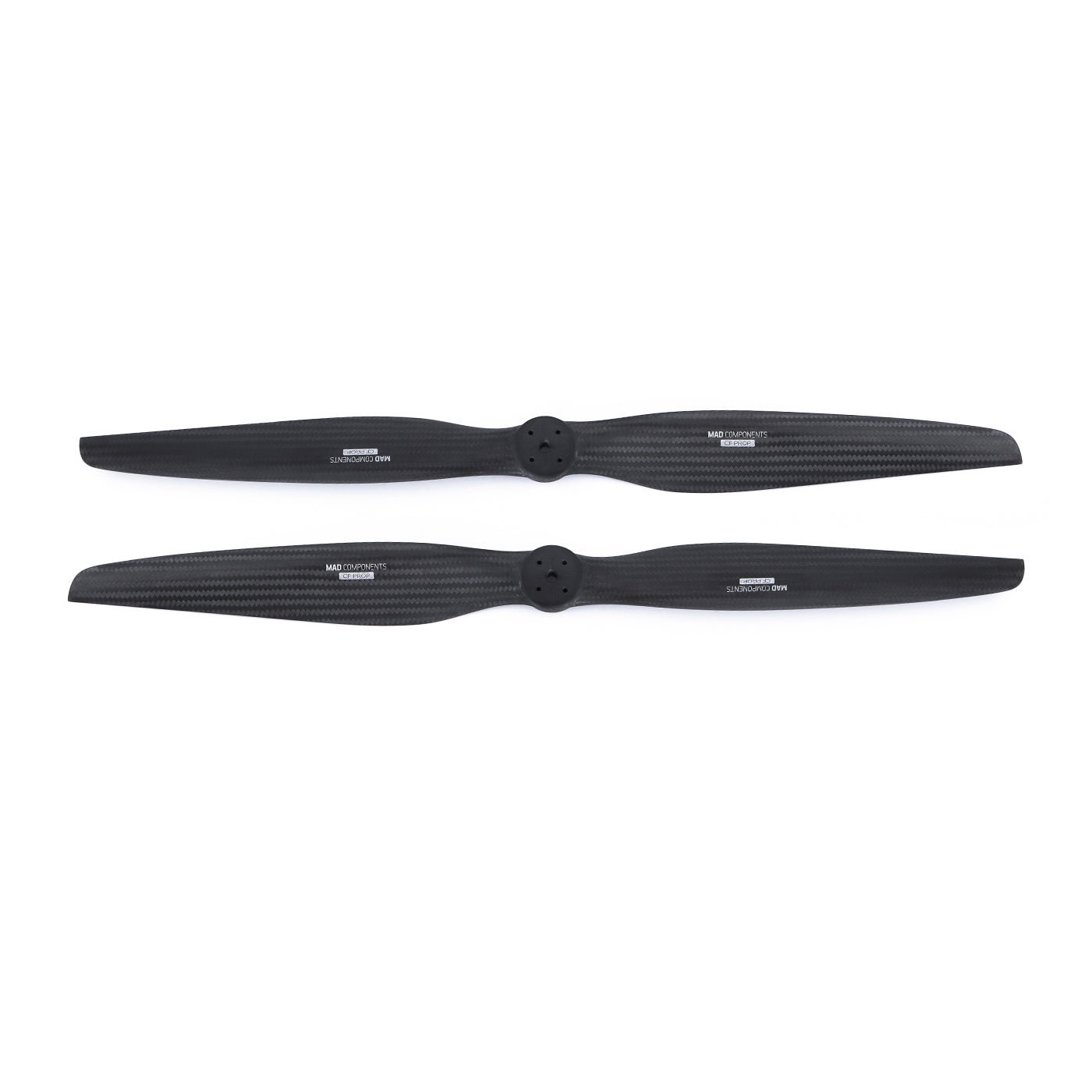

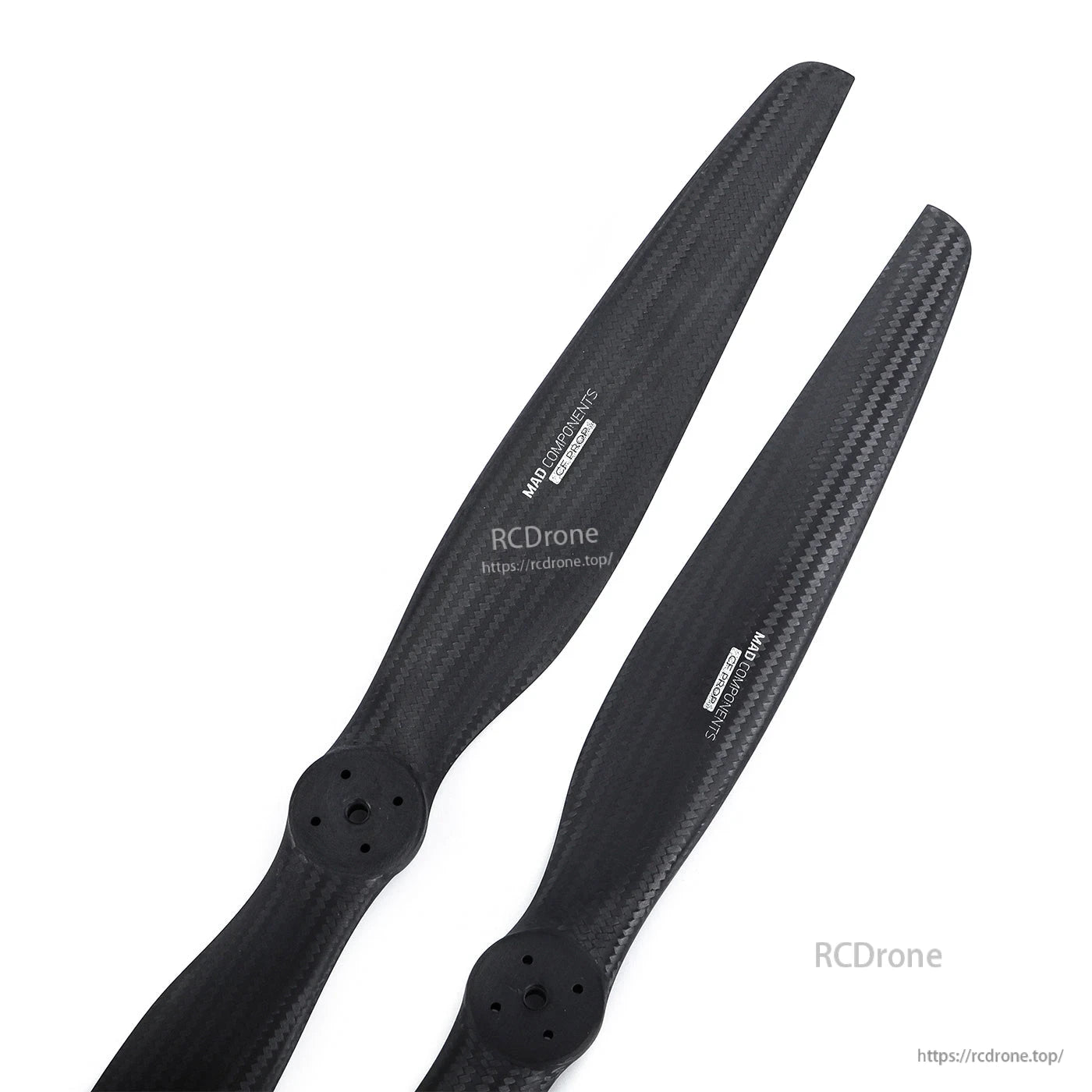

The MAD FLUXER 32.1 x 12.8 carbon fiber eVTOL propeller uses an integrated structure design with an optimized eVTOL prop profile to reduce air resistance during cruise. A larger prop pitch is intended to draw more thrust, while reinforced mounting positions improve durability. Designed to pair with MAD brushless motors.

Key Features

Integrated structure design
Optimized eVTOL prop profile with smaller prop surface for lower cruise air resistance
Larger pitch design intended for higher thrust output
Reinforced mounting area for improved durability
Surface treatment: polished/matt

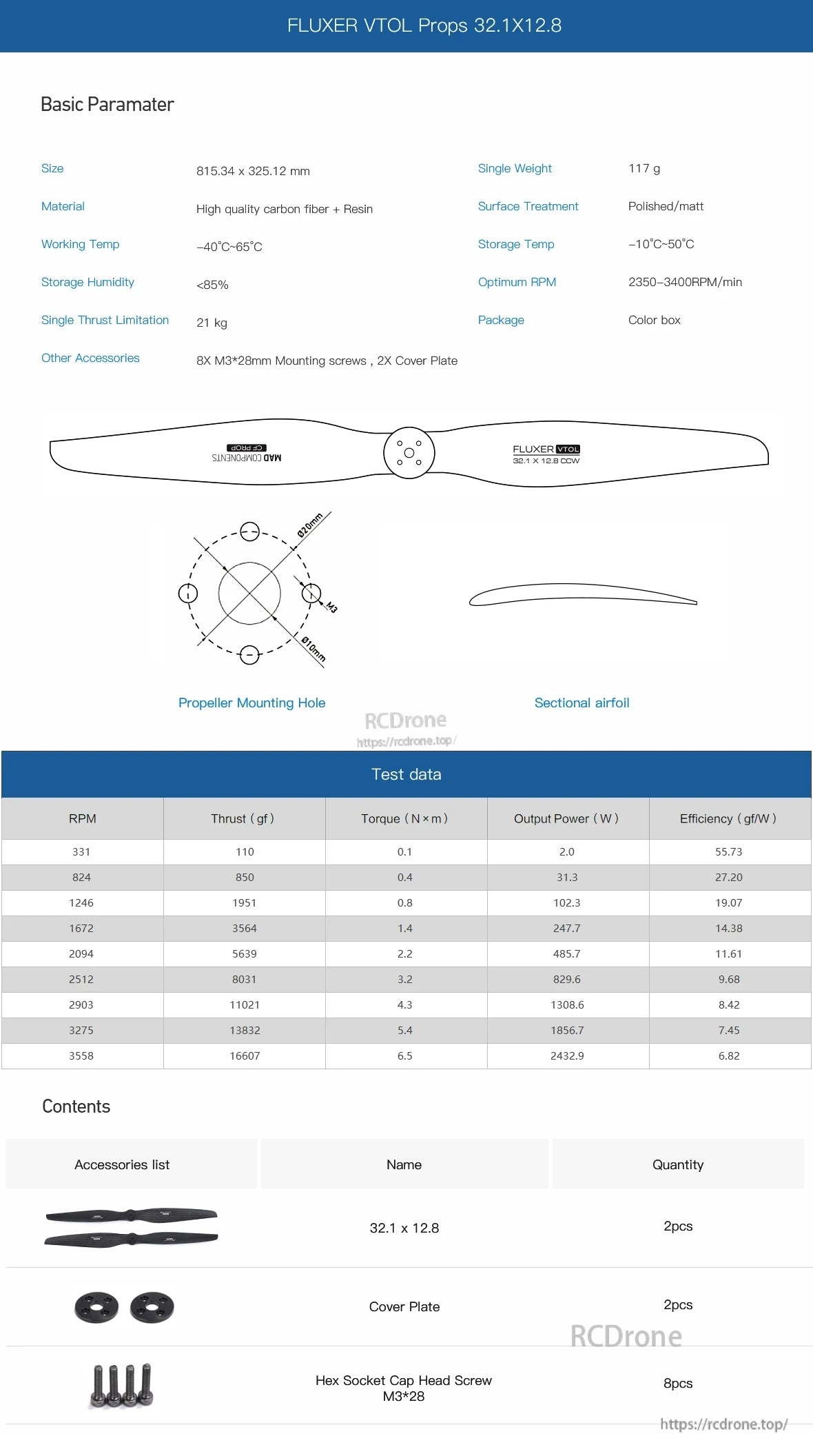

Specifications

Model	FLUXER VTOL Props 32.1 x 12.8
Size	815.34 x 325.12 mm
Material	High quality carbon fiber + Resin
Single Weight	117 g
Surface Treatment	Polished/matt
Working Temp	-40°C~65°C
Storage Temp	-10°C~50°C
Storage Humidity	<85%
Optimum RPM	2350-3400RPM/min
Single Thrust Limitation	21 kg

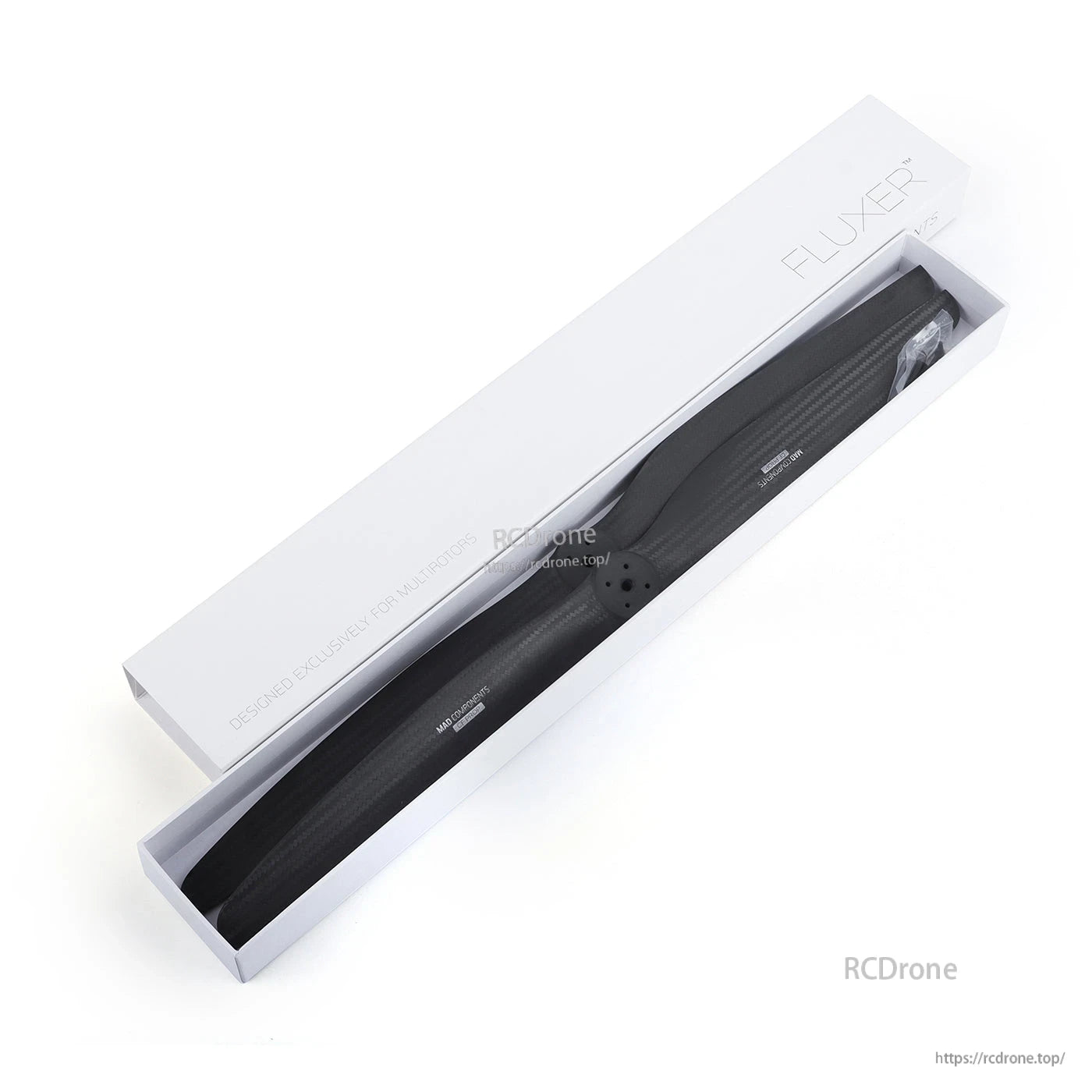

Package	Color box

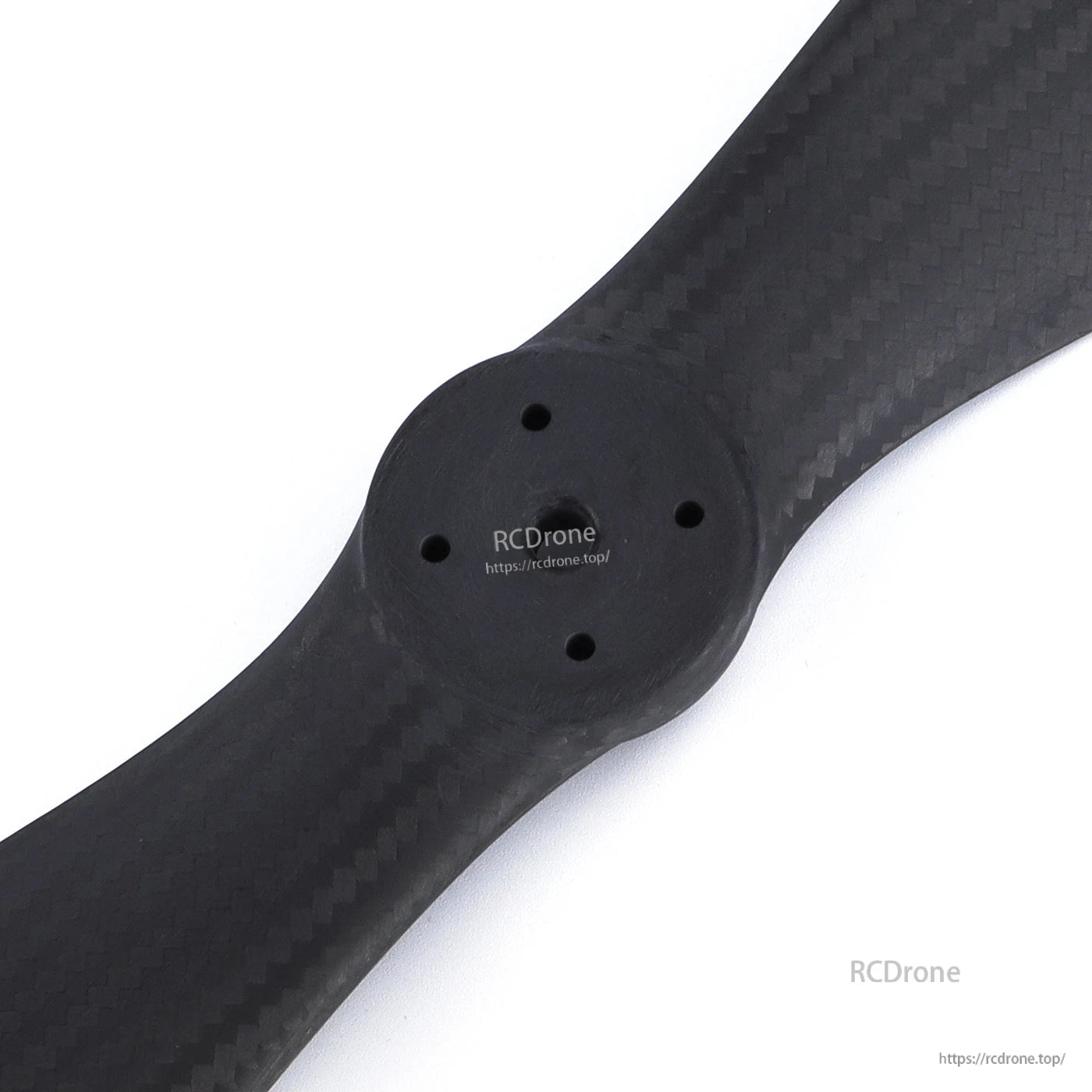

Propeller Mounting Hole	4-M3; Ø20 mm; Ø10 mm

Test Data

RPM	Thrust (gf)	Torque (N*m)	Output Power (W)	Efficiency (gf/W)
331	110	0.1	2.0	55.73
824	850	0.4	31.3	27.20
1246	1951	0.8	102.3	19.07
1672	3564	1.4	247.7	14.38
2094	5639	2.2	485.7	11.61
2512	8031	3.2	829.6	9.68
2903	11021	4.3	1308.6	8.42
3275	13832	5.4	1856.7	7.45
3558	16607	6.5	2432.9	6.82

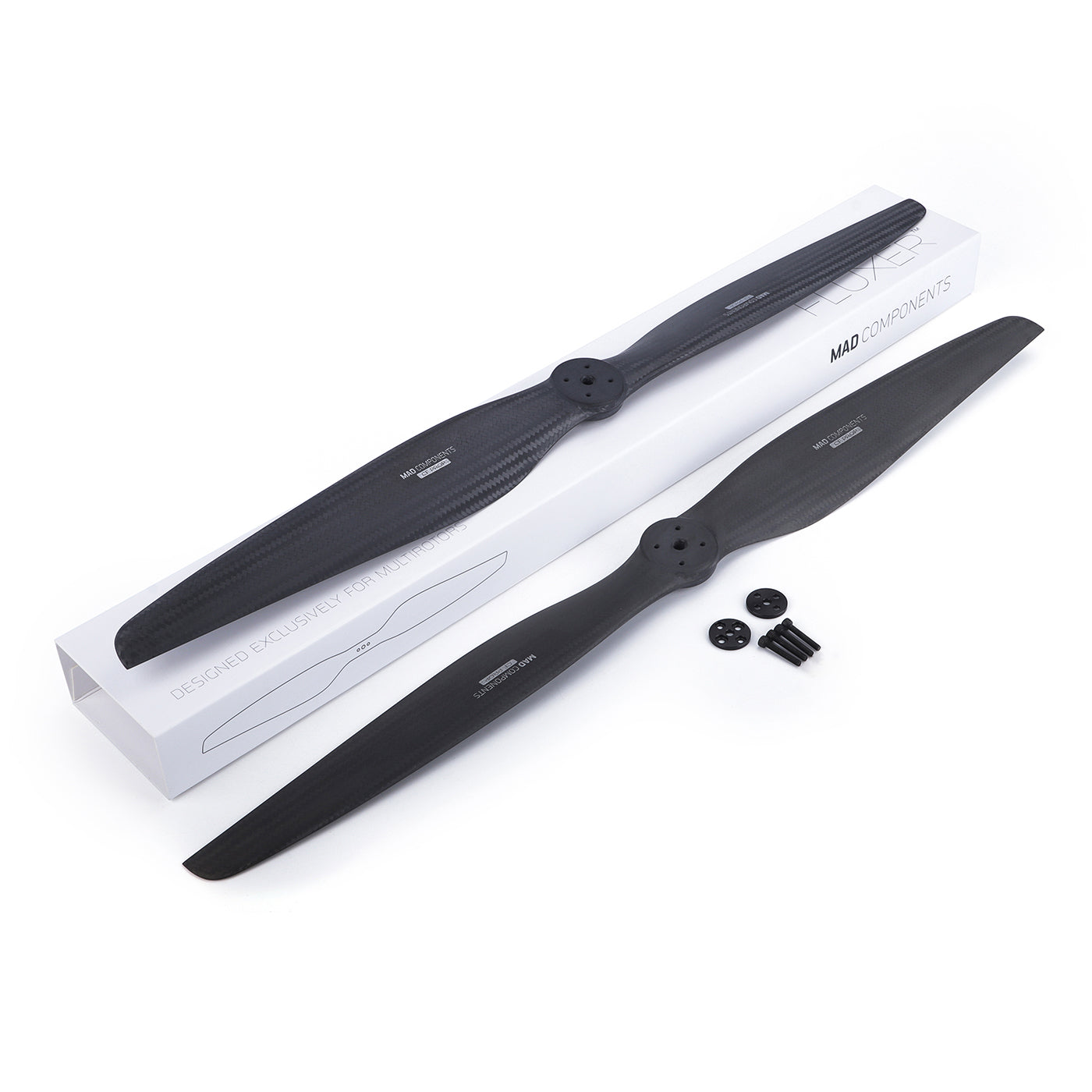

What’s Included

32.1 x 12.8 propeller: 2 pcs
Cover plate: 2 pcs
Hex socket cap head screw M3*28: 8 pcs

Applications

eVTOL multirotor or lift+cruise aircraft builds requiring 32.1 x 12.8 propellers

For compatibility and setup questions (motor matching, mounting fitment, and operating RPM range), contact support@rcdrone.top or visit https://rcdrone.top/.
