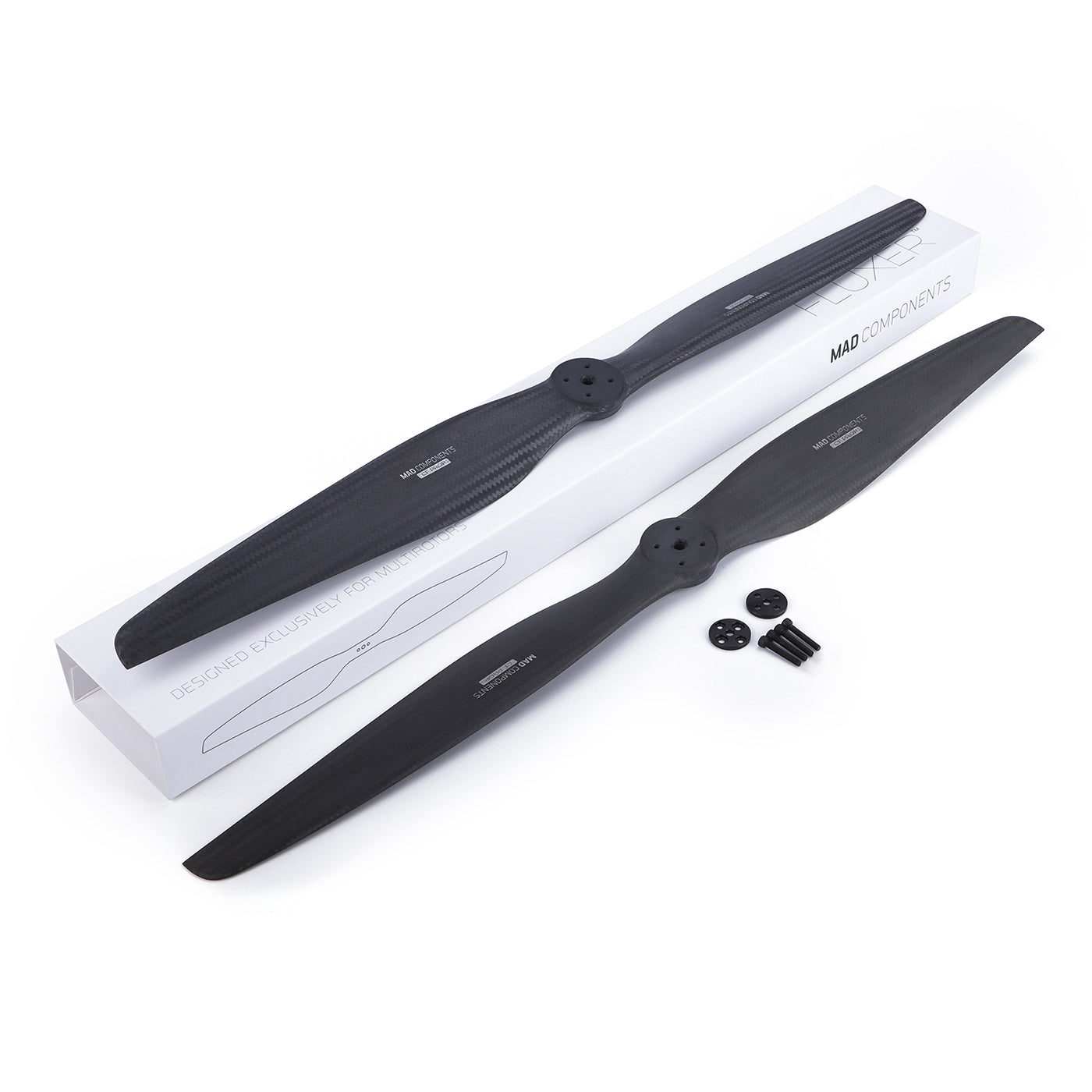

• MAD FLUXER VTOL 36.1x14.4 Carbon Fiber Propeller, MAD FLUXER VTOL carbon fiber propeller set with two long black blades, mounting plates, and screws

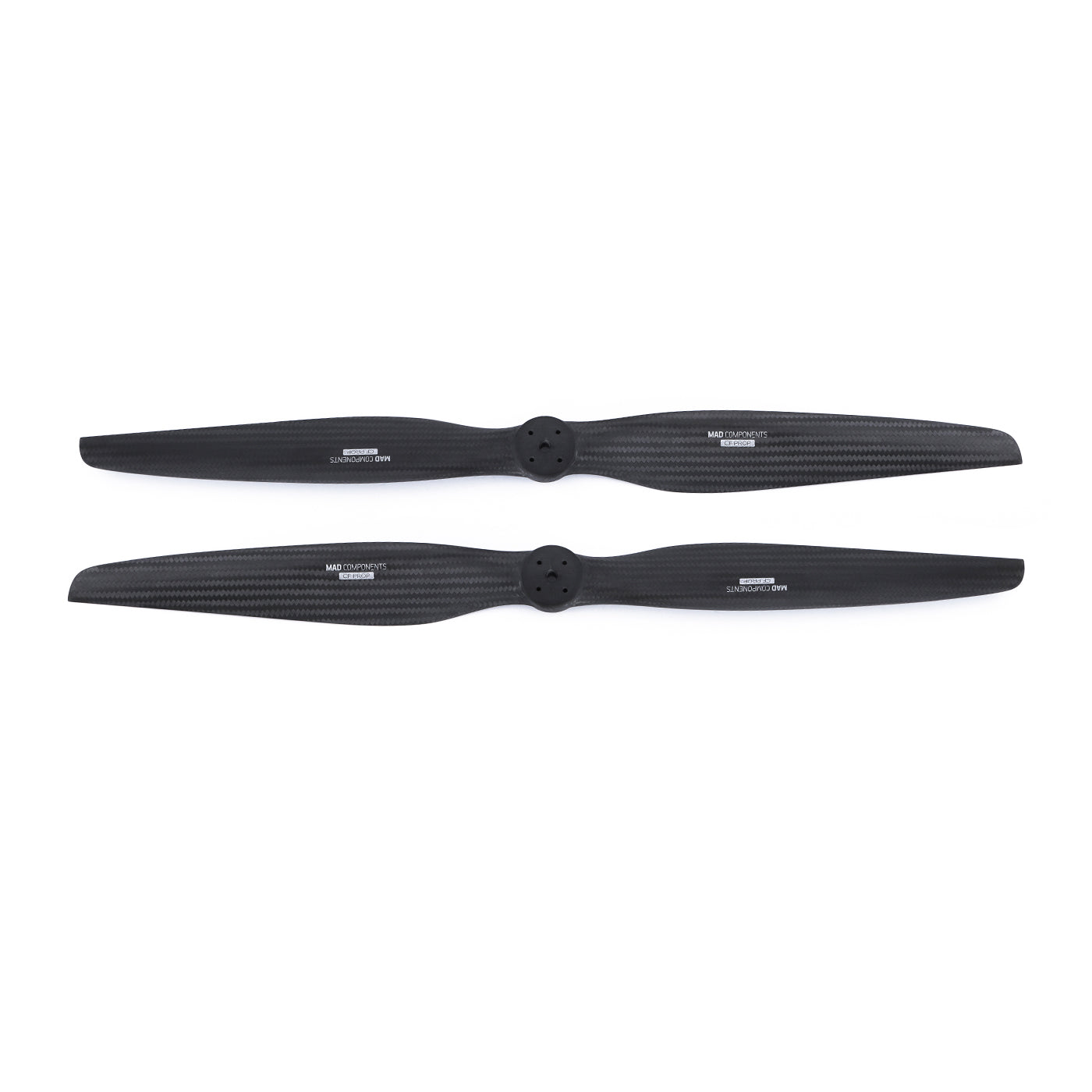

  • MAD FLUXER VTOL 36.1x14.4 Carbon Fiber Propeller, Pair of MAD FLUXER VTOL carbon fiber propeller blades with center mounting hub on a white background

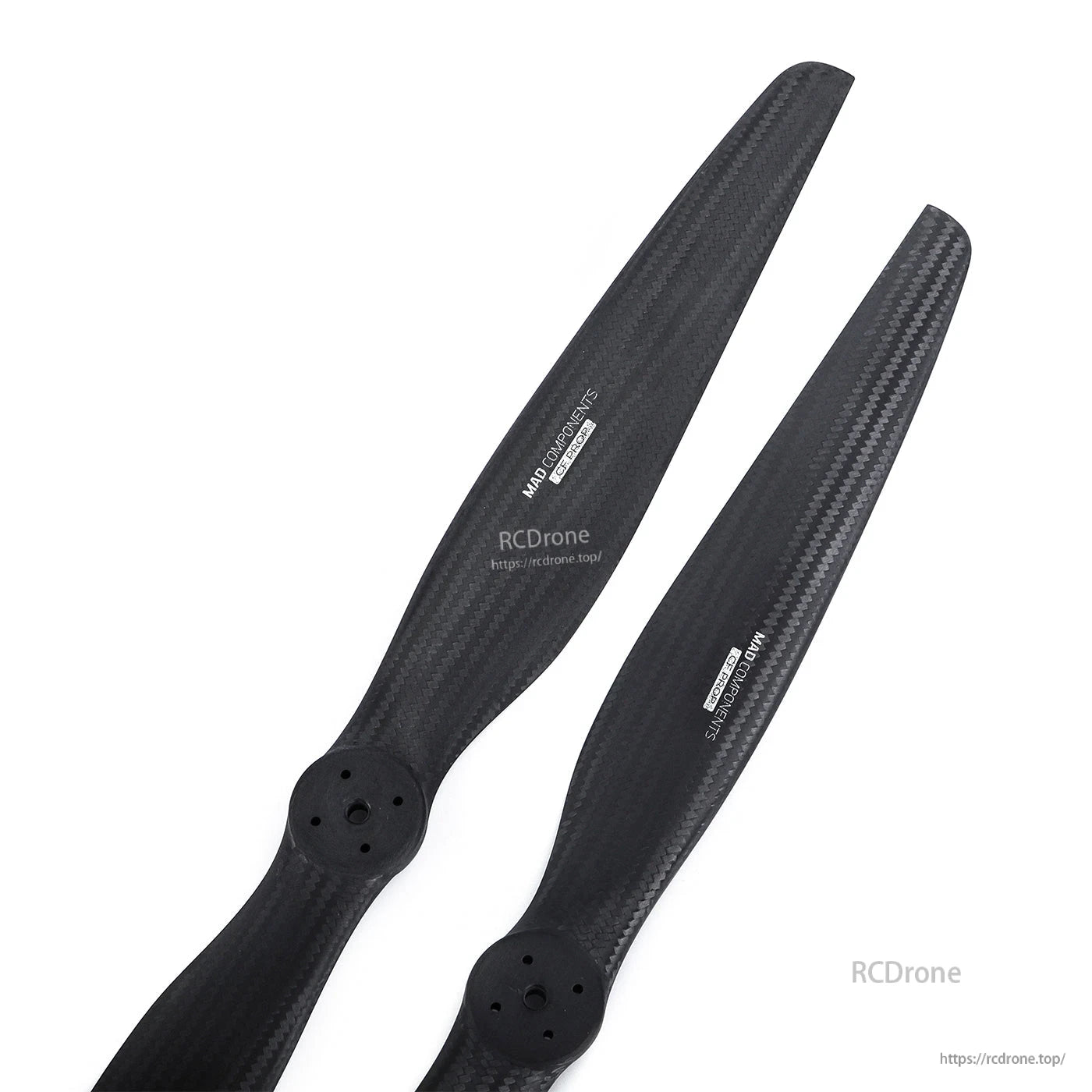

  • MAD FLUXER VTOL 36.1x14.4 Carbon Fiber Propeller, MAD FLUXER carbon fiber VTOL propeller set with two blades and multi-hole hub mounts

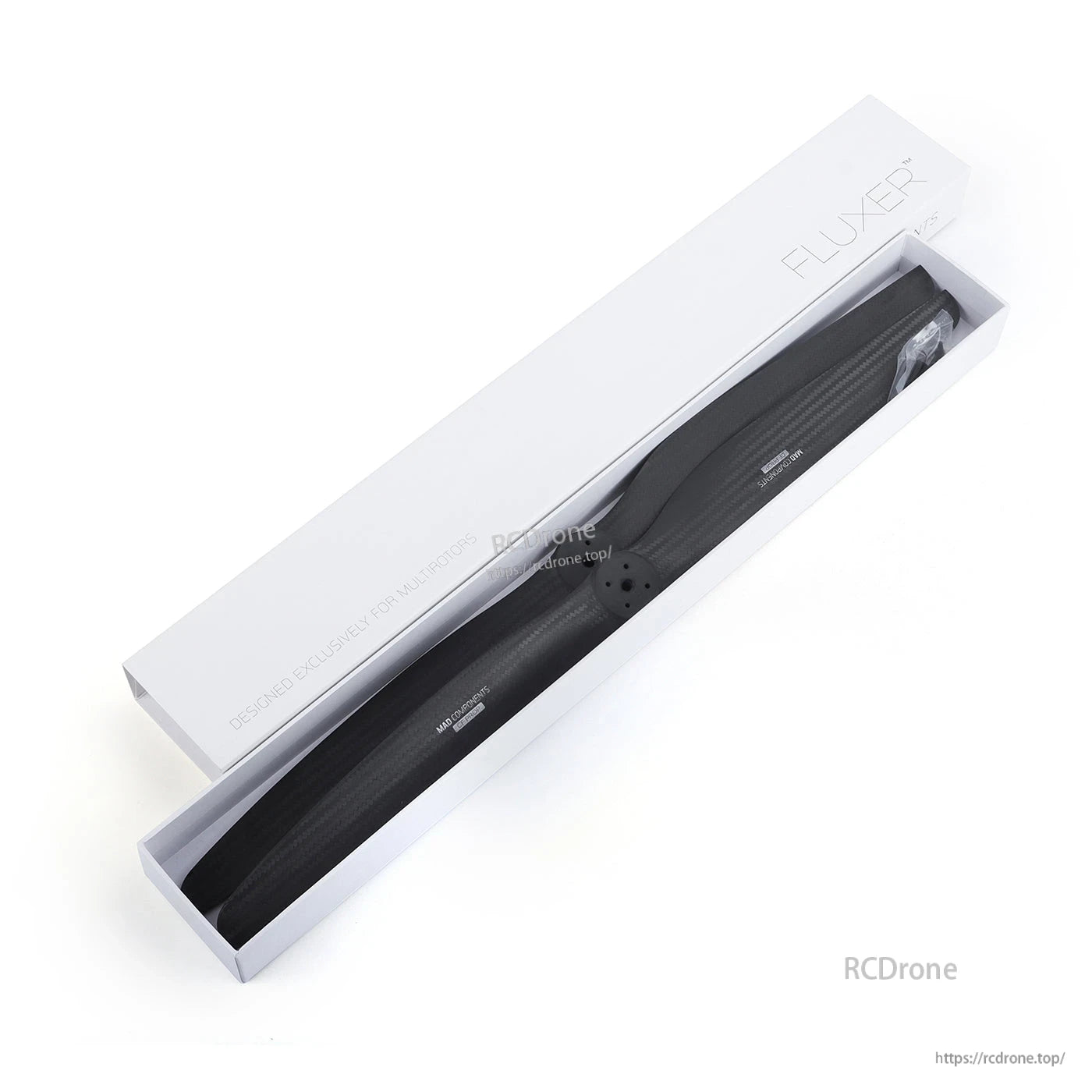

  • MAD FLUXER VTOL 36.1x14.4 Carbon Fiber Propeller, Carbon fiber VTOL propeller in white FLUXER box, black two-blade prop with center mounting holes

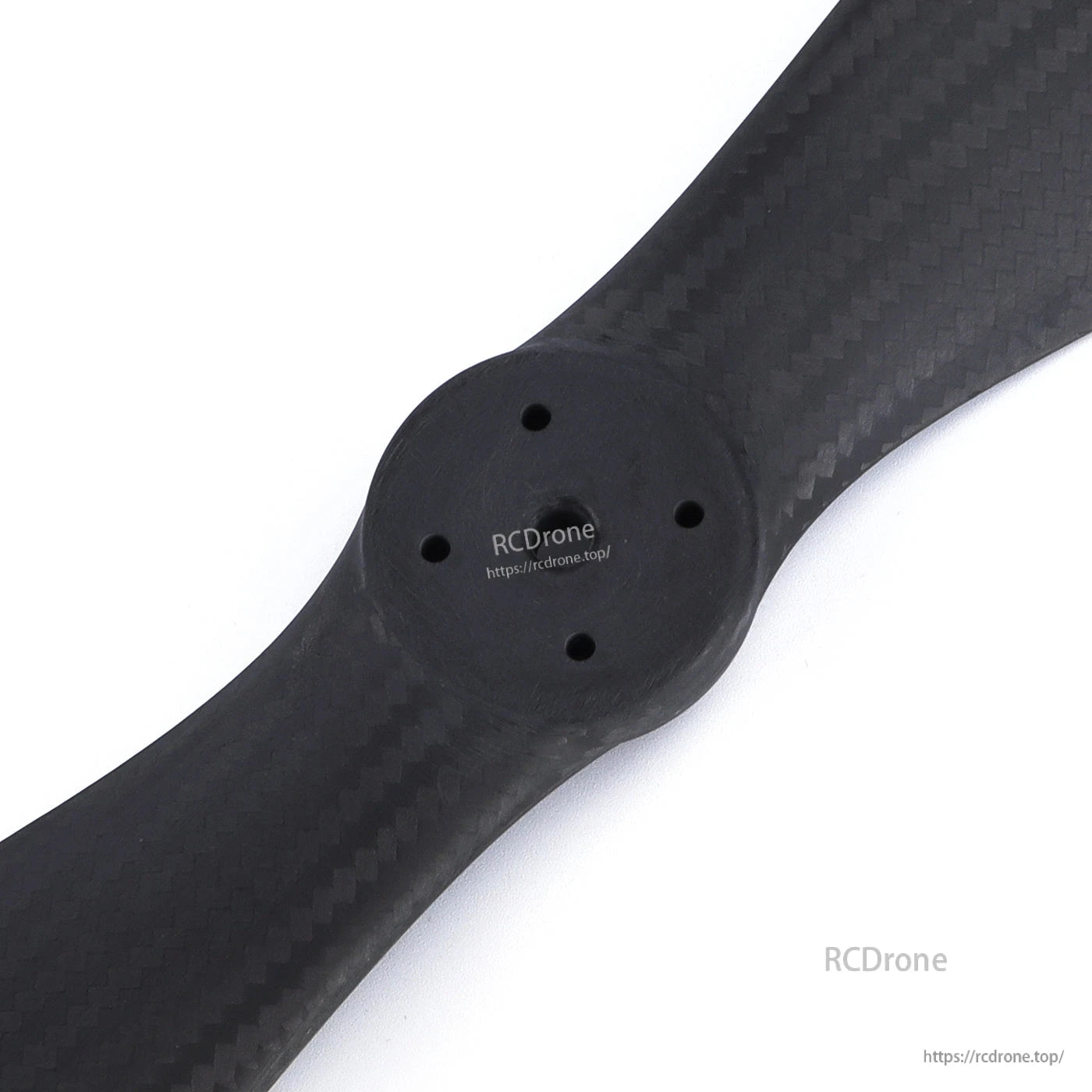

  • MAD FLUXER VTOL 36.1x14.4 Carbon Fiber Propeller, Close-up of MAD FLUXER VTOL carbon fiber propeller hub with multiple mounting holes and carbon weave finish
1 5

MAD FLUXER VTOL 36.1x14.4 Carbon Fiber Propeller Set (CCW), 916.94x365.76mm, 170g

MAD FLUXER VTOL 36.1x14.4 Carbon Fiber Propeller Set (CCW), 916.94x365.76mm, 170g

MAD

$479.85 USD
$479.85 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV Option
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MAD FLUXER VTOL 36.1 x 14.4 carbon fiber propeller is an eVTOL propeller set designed for reliable thrust performance with a carbon fiber + resin construction and polished/matt surface treatment.

Key Features

  • 36.1 x 14.4 size propellers (marked CCW)
  • High quality carbon fiber + resin material
  • Specified working and storage temperature ranges
  • Includes cover plates and mounting screws (M3/M4 options)

Specifications

Product series FLUXER VTOL Props
Prop size 36.1 x 14.4
Size (mm) 916.94 x 365.76 mm
Material High quality carbon fiber + Resin
Surface treatment Polished/matt
Single weight 170 g
Working temperature -40°C~65°C
Storage temperature -10°C~50°C
Storage humidity <85%
Optimum RPM 2000–2750RPM/min
Single thrust limitation 40 kg
Package Color box
Other accessories 8X M3*30mm / M4*30mm Mounting screws, 2X Cover Plate
Propeller mounting hole options 20 mm pattern with M3 holes; 24 mm pattern with M4 holes; 8 mm center hole

Test data

RPM Thrust (gf) Torque (N×m) Output Power (W) Efficiency (gf/W)
1290 3240 1.5 201.2 16.10
1976 7870 3.5 713.5 11.03
2483 12660 5.5 1428.1 8.86
2890 17270 7.5 2273.5 7.60
3284 22550 9.8 3359.7 6.71
3789 31210 13.6 5394.0 5.79
4377 42340 18.8 8608.7 4.92
4922 54570 24.6 12677.9 4.30
5199 62380 28.6 15588.0 4.00

What’s Included

  • 36.1 x 14.4 propellers: 2 pcs
  • Cover plate: 2 pcs
  • Hex socket cap head screw (M3*30 / M4*30): 8 pcs

For compatibility checks (motor/shaft pattern fitment) and order support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

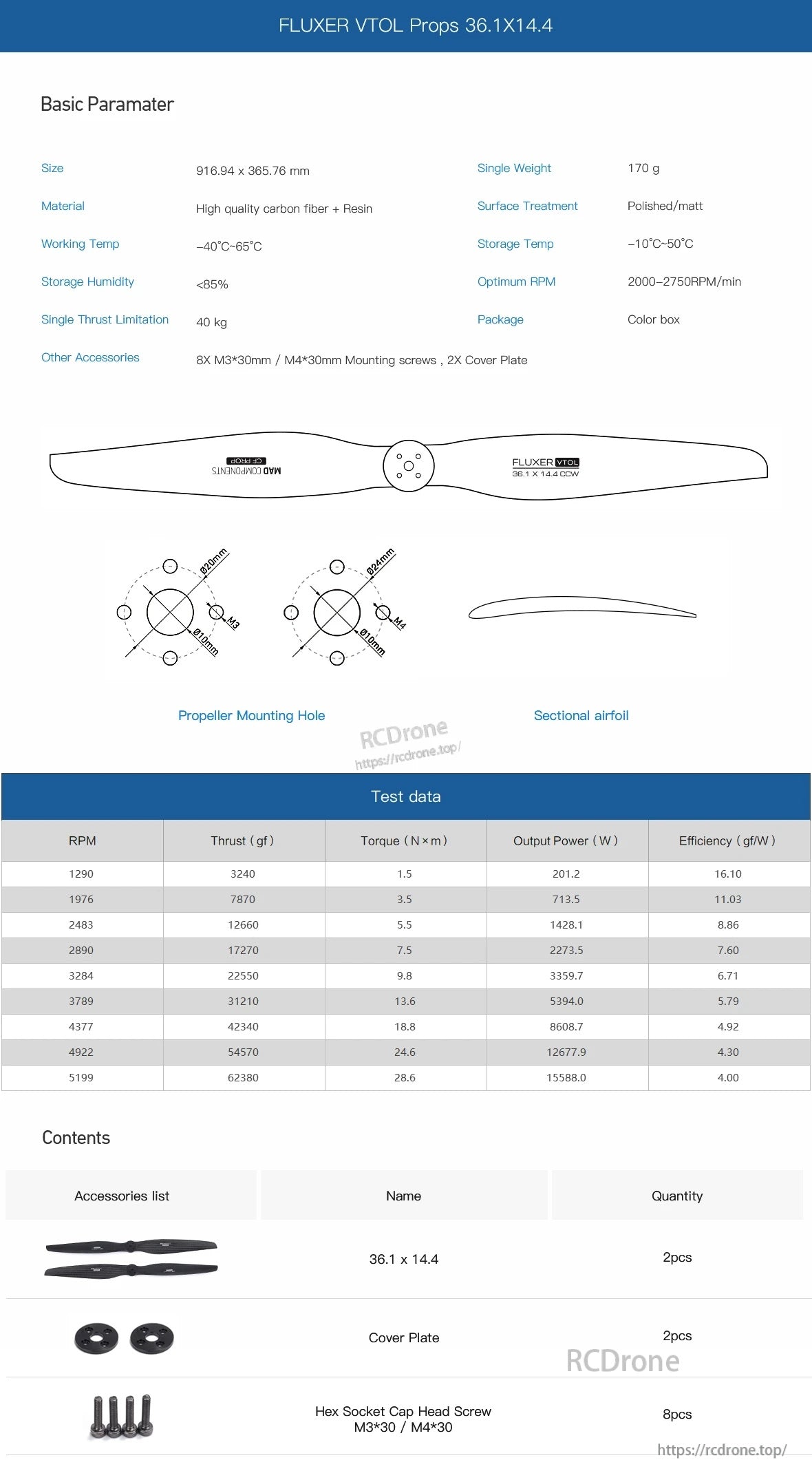

MAD 36.1x14.4 Inch FLUXER EVTOL carbon fiber Propeller

The FLUXER VTOL 36.1x14.4 carbon fiber propeller includes a mounting-hole layout, performance test data, and a package list with 2 props, 2 cover plates, and 8 screws.
