MAD FLUXER Pro Matt 19x5.7in Carbon Fiber Propeller Set (CW/CCW), 6mm Mount, 41g

MAD

$119.85 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Holes position D6-D12(M3*2） customize

Quantity

View full details

Overview

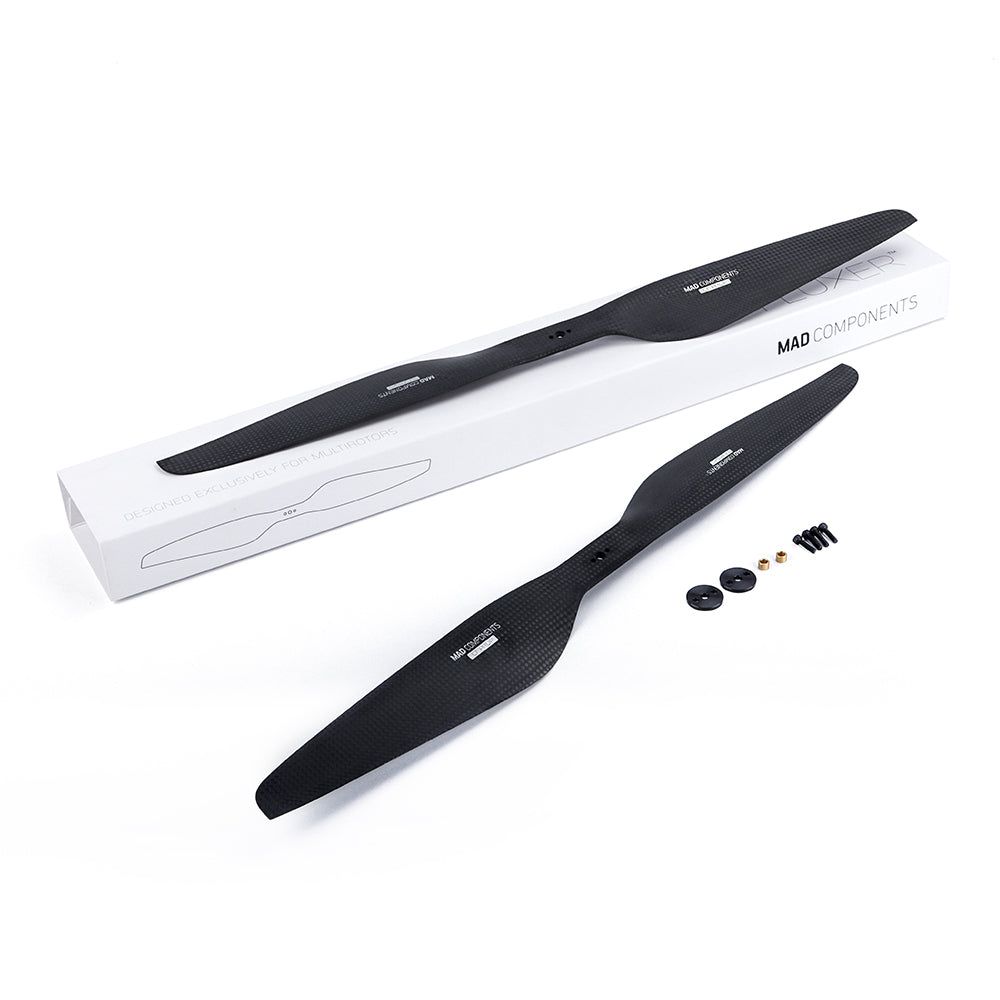

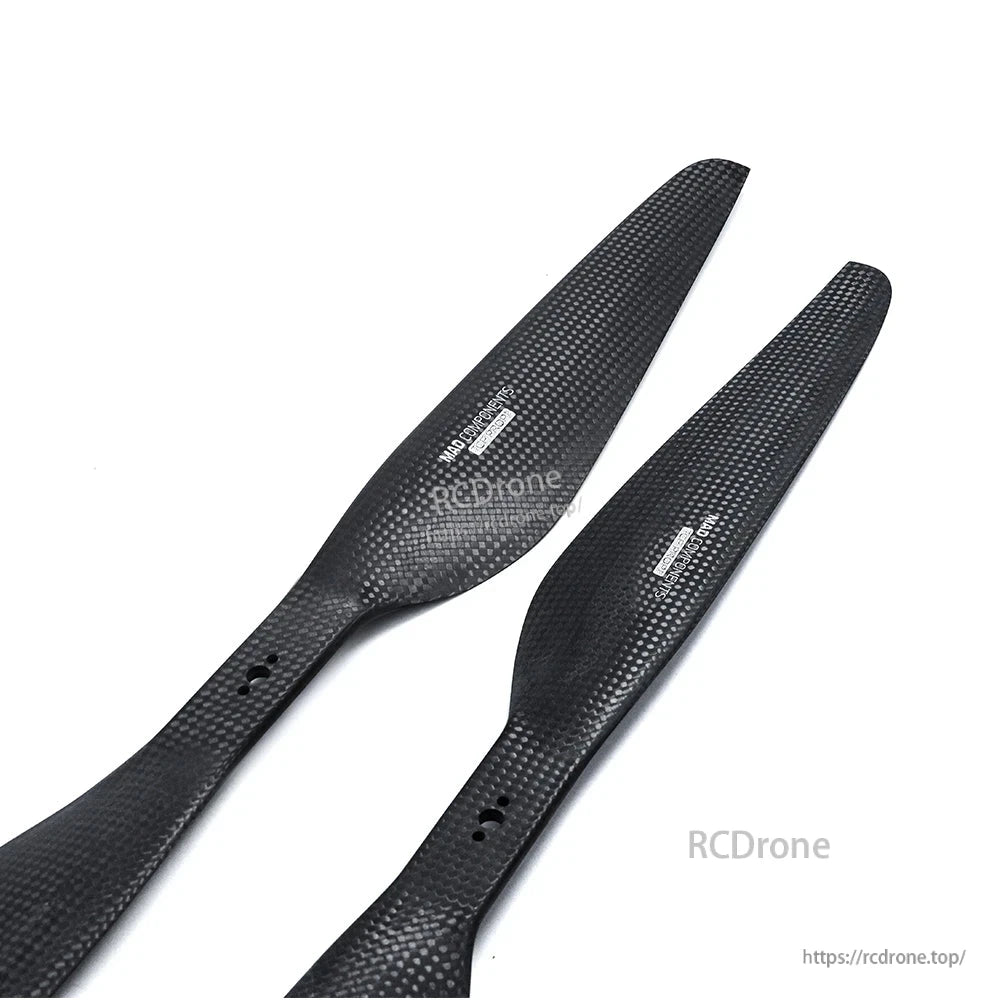

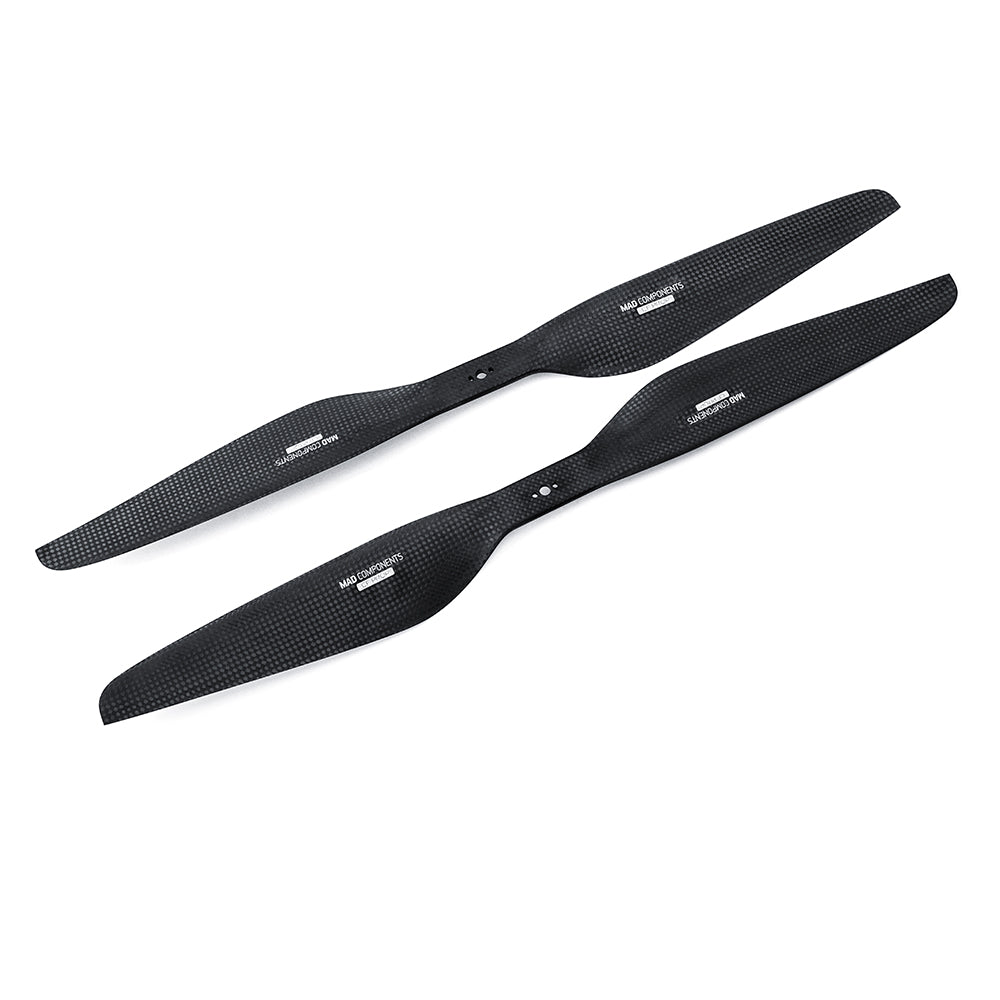

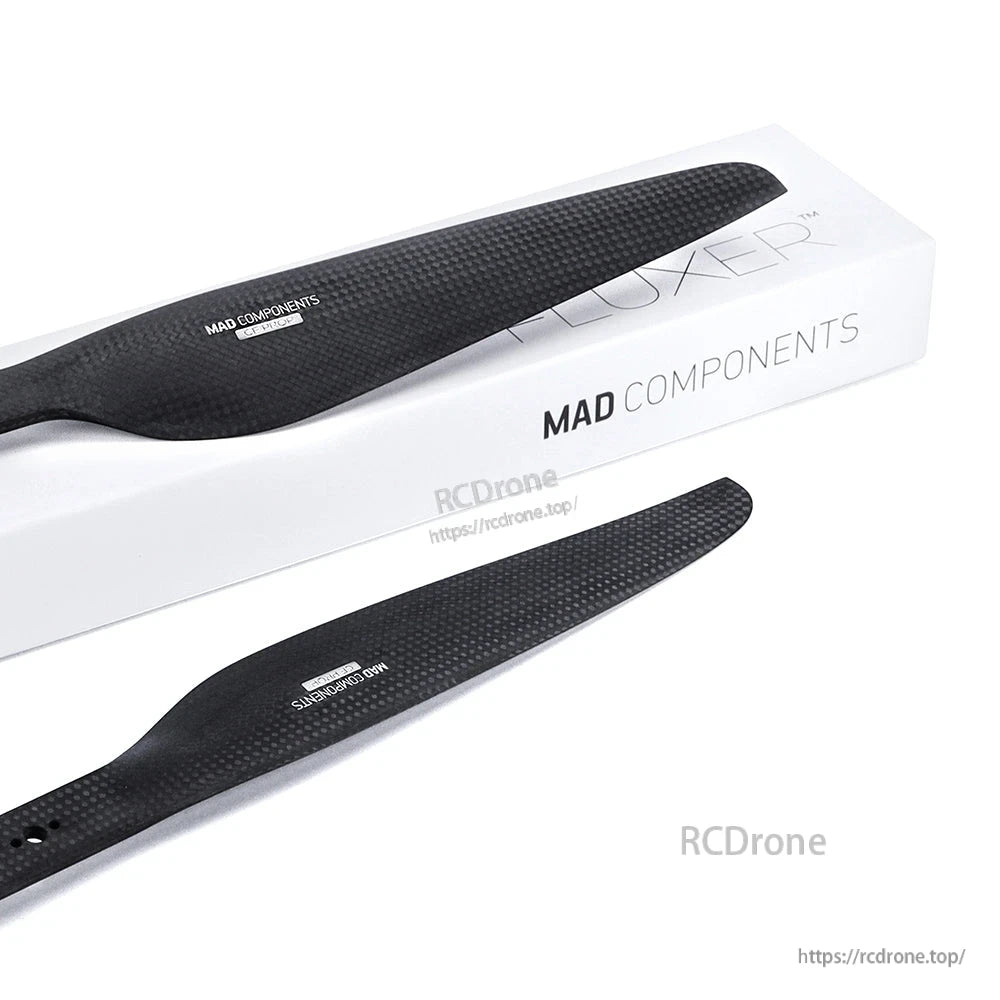

MAD FLUXER Pro Matt 19x5.7 inch carbon fiber propeller set for quadcopter/multirotor use. Built from uni-directional and bi-directional carbon fiber prepreg with a balsa wood core and a matt finish over woven carbon fiber prepreg, designed for responsive performance and optimized low-RPM operation.

Key Features

19x5.7 inch propeller set: 1 pair (CW + CCW)
Matt surface finish (polished/matt surface treatment)
Optimized for low RPM performance
6mm mounting hole (includes Ø6/Ø4 adapter rings)

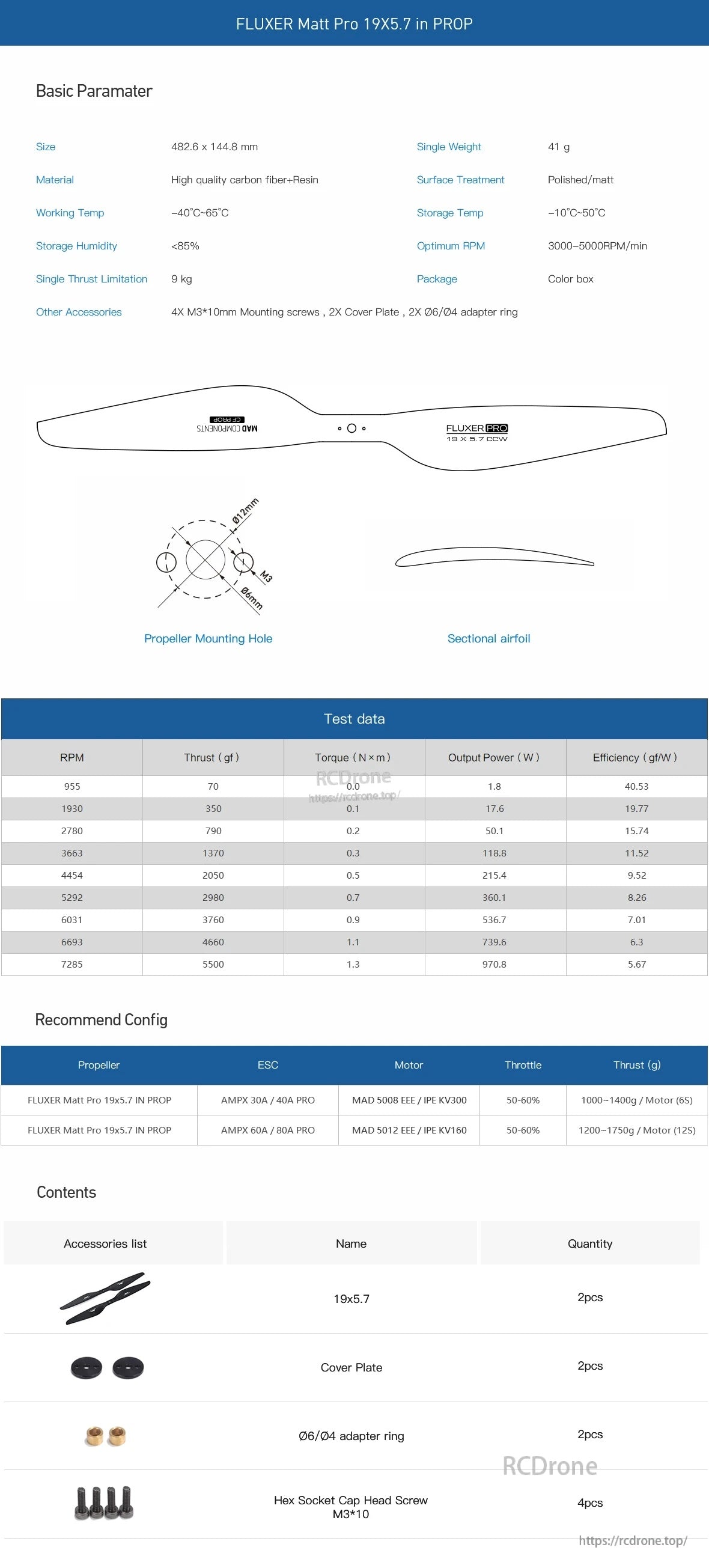

Specifications

Model	FLUXER Matt Pro 19x5.7 IN PROP
Size	482.6 x 144.8 mm
Material	High quality carbon fiber + resin
Single weight	41 g
Surface treatment	Polished/matt
Working temperature	-40°C to 65°C
Storage temperature	-10°C to 50°C
Storage humidity	<85%
Optimum RPM	3000-5000 RPM/min
Single thrust limitation	9 kg

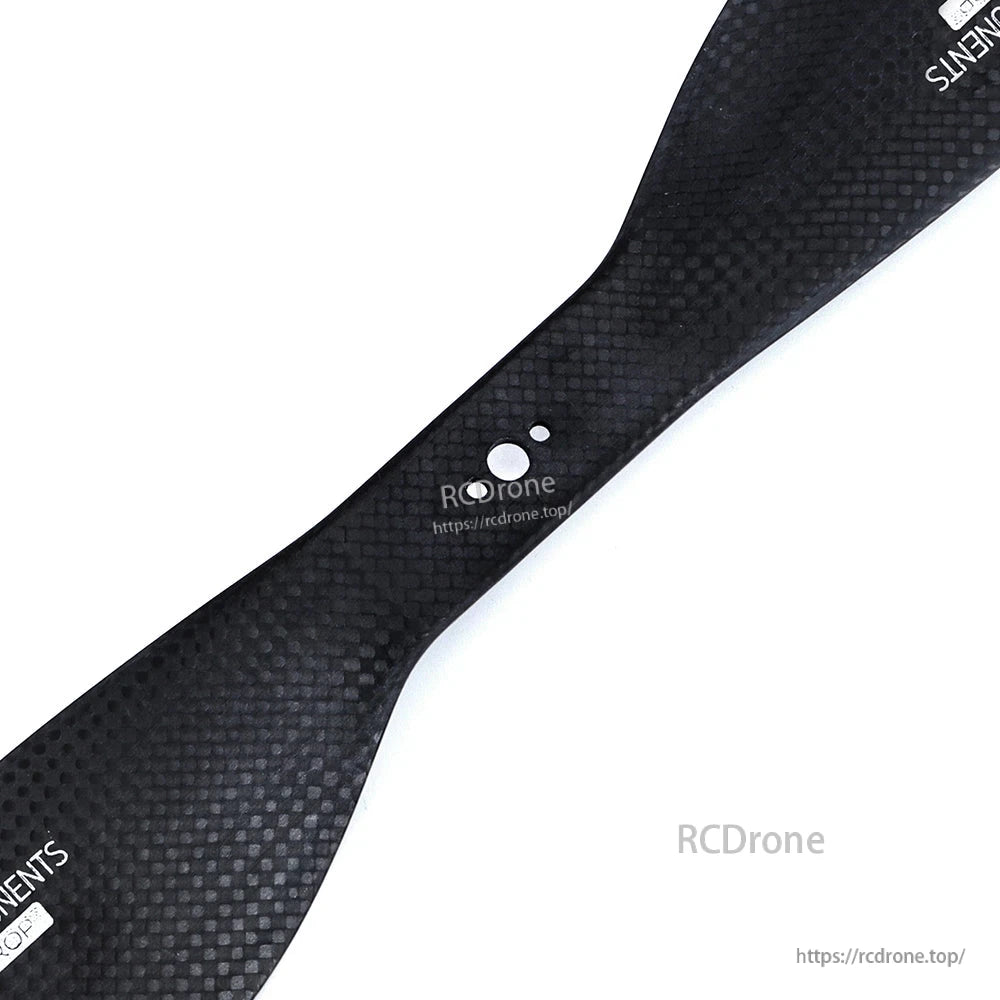

Mounting hole	6 mm
Mounting hole diagram labels	Ø12mm, Ø6mm, M3, 16.8mm

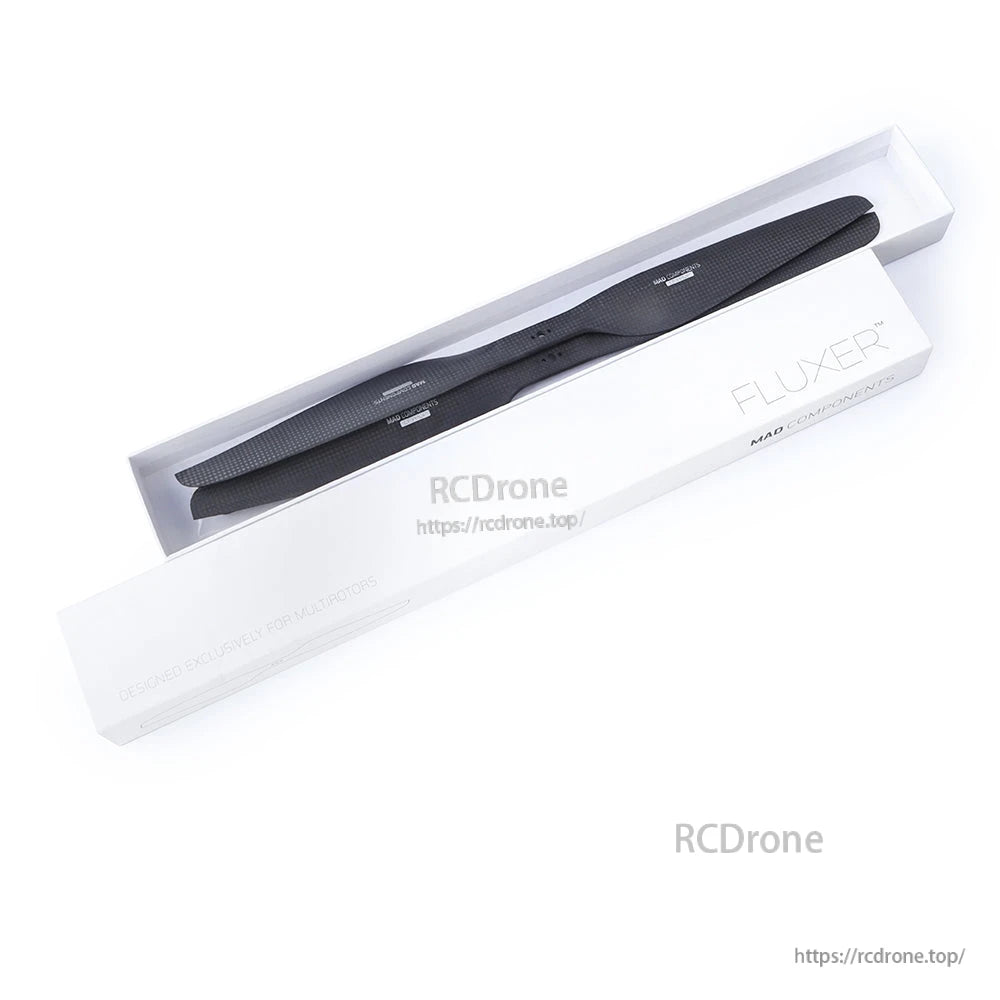

Package	Color box

Test Data

RPM	Thrust (gf)	Torque (N*m)	Output Power (W)	Efficiency (gf/W)
955	70	0.0	1.8	40.53
1930	350	0.1	17.6	19.77
2780	790	0.2	50.1	15.74
3663	1370	0.3	118.8	11.52
4454	2050	0.5	215.4	9.52
5292	2980	0.7	360.1	8.26
6031	3760	0.9	536.7	7.01
6693	4660	1.1	739.6	6.3
7285	5500	1.3	970.8	5.67

Recommended Config

Propeller	ESC	Motor	Throttle	Thrust (g)
FLUXER Matt Pro 19x5.7 IN PROP	AMPX 30A / 40A PRO	MAD 5008 EEE / IPE KV300	50-60%	1000-1400g / Motor (6S)
FLUXER Matt Pro 19x5.7 IN PROP	AMPX 60A / 80A PRO	MAD 5012 EEE / IPE KV160	50-60%	1200-1750g / Motor (12S)
