MAD FLUXER Pro Matt 17x5.8 in Carbon Fiber Propeller Pair (CW/CCW), 6mm Mount, 32.5g

MAD

$97.35 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Holes position D6-D12(M3*2） customize

Quantity

View full details

Overview

MAD FLUXER Pro Matt 17x5.8 in carbon fiber propeller set for multirotor/quadcopters, designed for responsive control and efficient low-RPM performance.

Constructed from uni-directional and bi-directional carbon fiber prepreg with a balsa wood core, featuring a matt finish over woven carbon fiber prepreg.

Key Features

17x5.8 in propeller pair (CW + CCW)
High rigidity with optimized lightweight design
Responsive speed characteristics
Optimized performance in low RPM operation
Polished/matt surface treatment

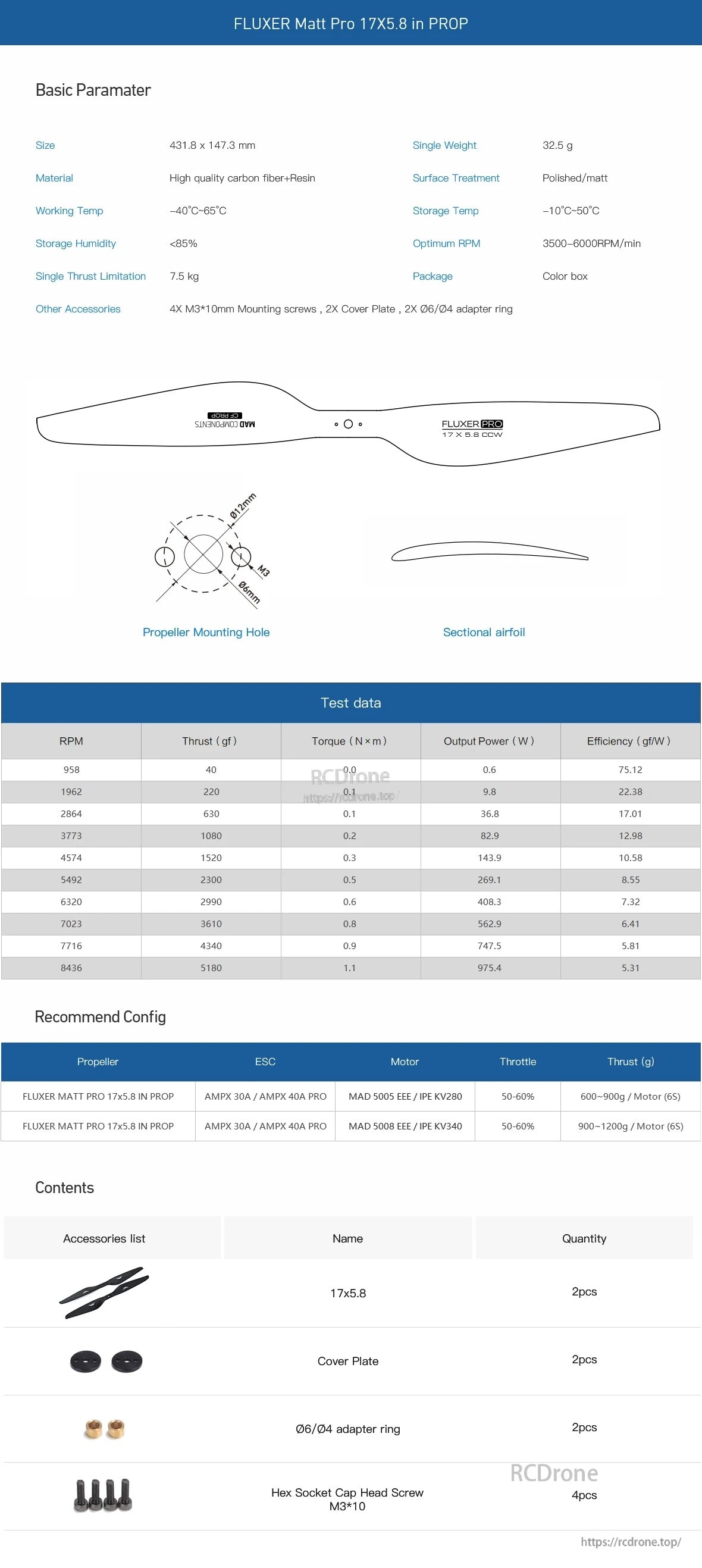

Specifications

Model	FLUXER Matt Pro 17x5.8 in PROP
Prop size	17x5.8 in
Size (mm)	431.8 x 147.3 mm
Material	High quality carbon fiber + resin (carbon fiber prepreg with balsa wood core)
Single weight	32.5 g
Surface treatment	Polished/matt
Working temperature	-40°C to 65°C
Storage temperature	-10°C to 50°C
Storage humidity	<85%
Optimum RPM	3500-6000 RPM/min
Single thrust limitation	7.5 kg

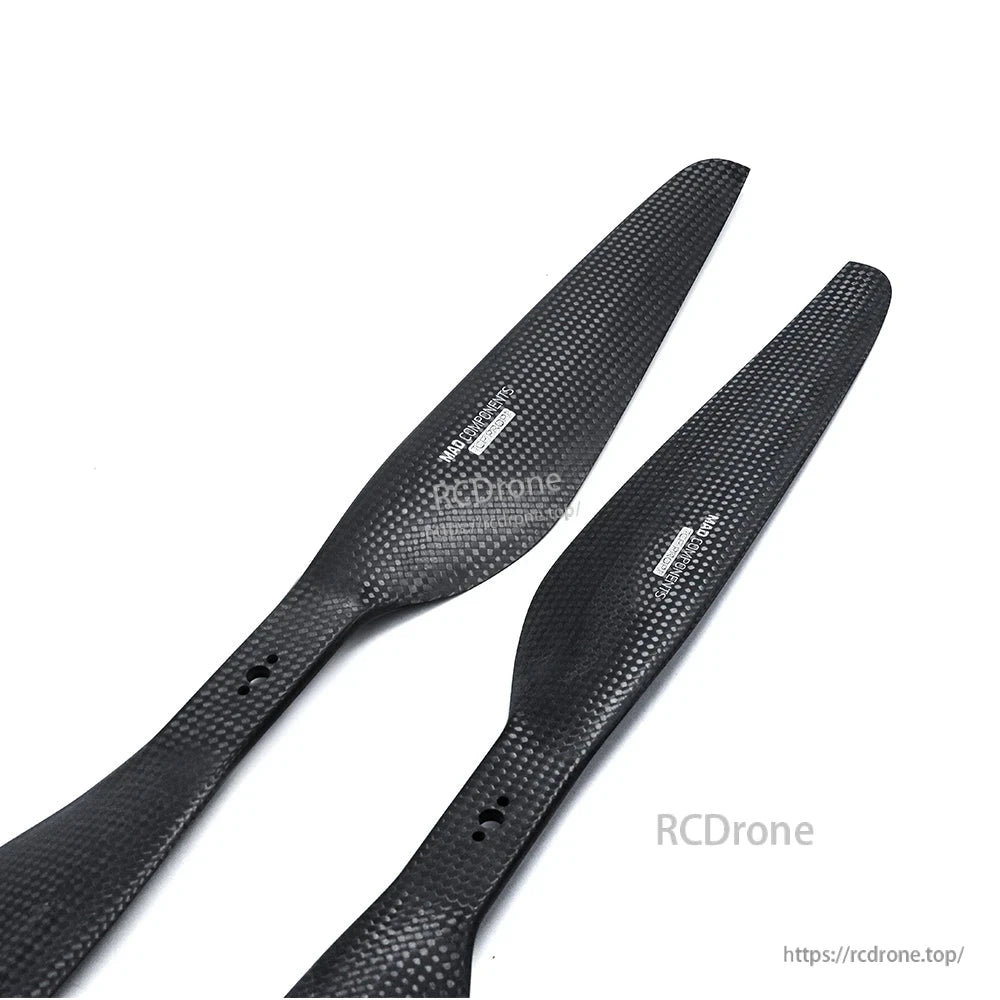

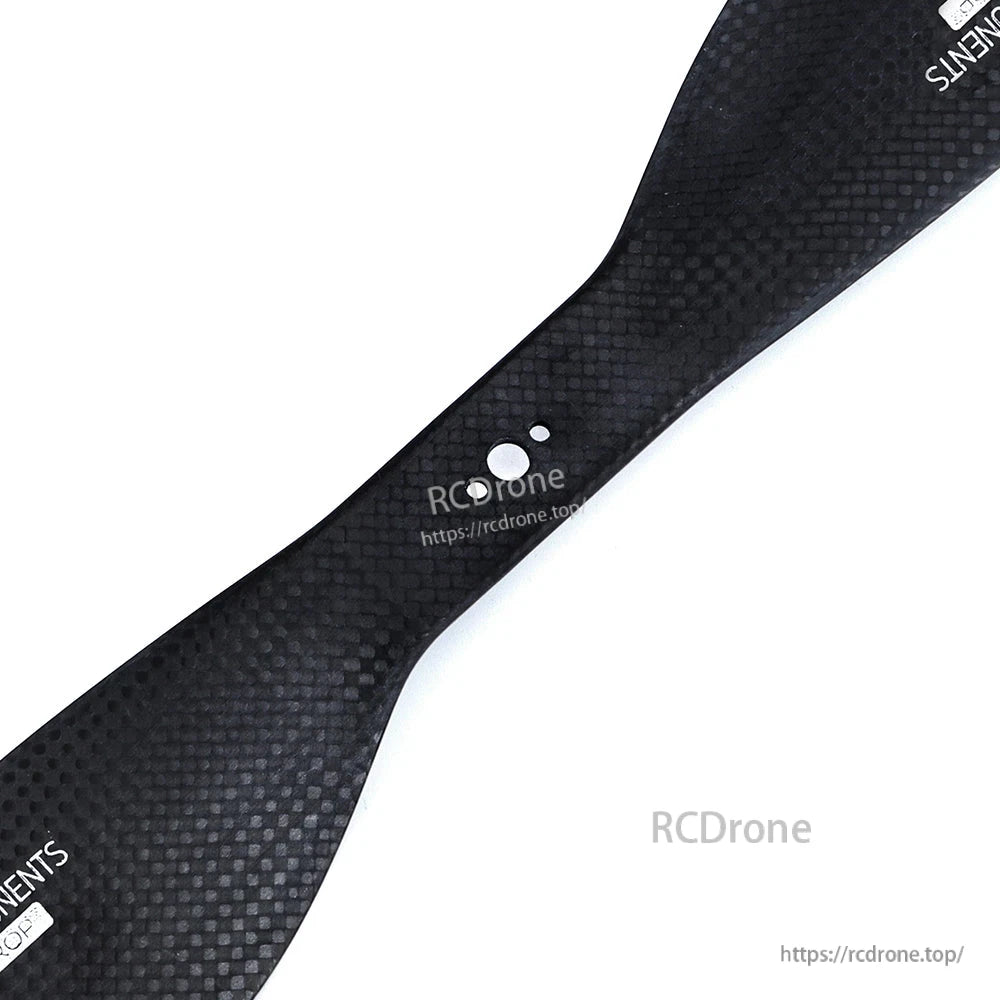

Mounting hole	6 mm
Mounting pattern	12 mm bolt circle, M3 screw holes

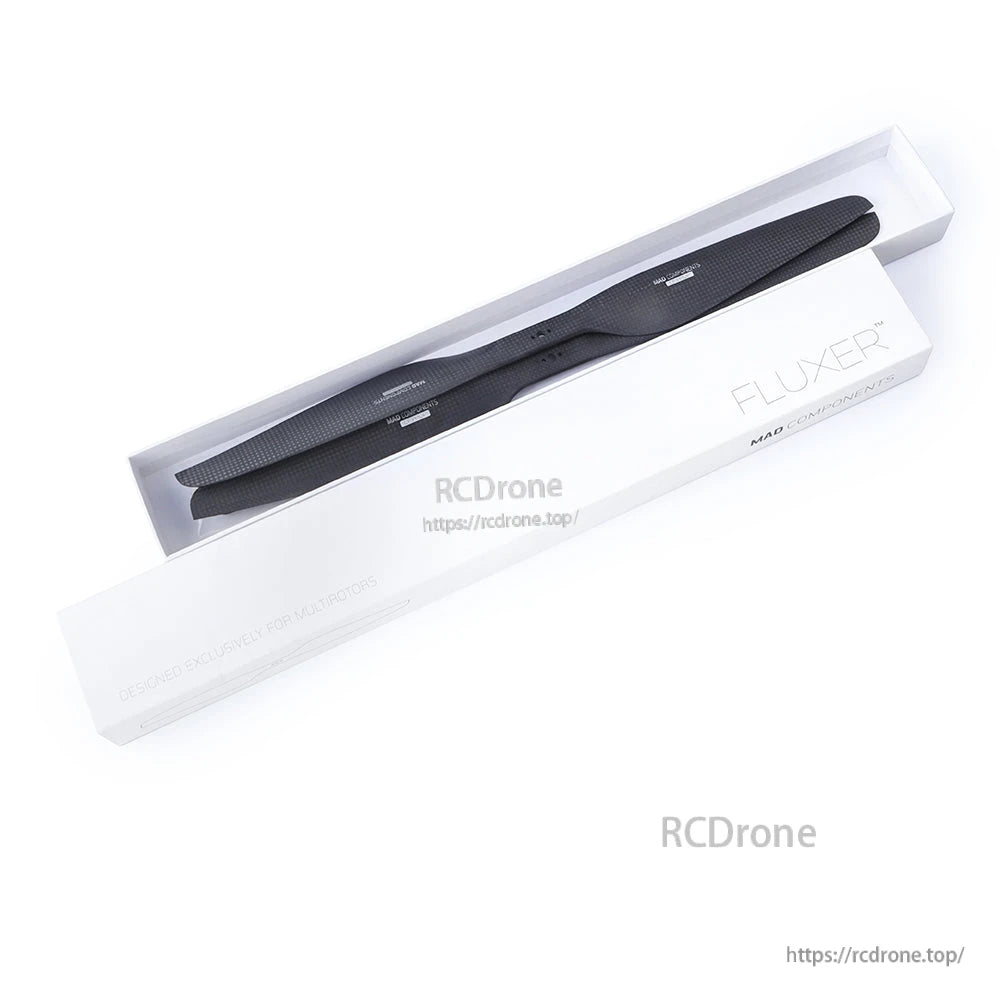

Package	Color box

For compatibility and setup questions, contact support@rcdrone.top or visit https://rcdrone.top/.

Test Data

RPM	Thrust (gf)	Torque (N*m)	Output Power (W)	Efficiency (gf/W)
958	40	0.0	0.6	75.12
1962	220	0.1	9.8	22.38
2864	630	0.1	36.8	17.01
3773	1080	0.2	82.9	12.98
4574	1520	0.3	143.9	10.58
5492	2300	0.5	269.1	8.55
6320	2990	0.6	408.3	7.32
7023	3610	0.8	562.9	6.41
7716	4340	0.9	747.5	5.81
8436	5180	1.1	975.4	5.31

Recommended Configuration

Propeller	ESC	Motor	Throttle	Thrust (g)
FLUXER MATT PRO 17x5.8 IN PROP	AMPX 30A / AMPX 40A PRO	MAD 5005 EEE / IPE KV280	50-60%	600-900 g / motor (6S)
FLUXER MATT PRO 17x5.8 IN PROP	AMPX 30A / AMPX 40A PRO	MAD 5008 EEE / IPE KV340	50-60%	900-1200 g / motor (6S)

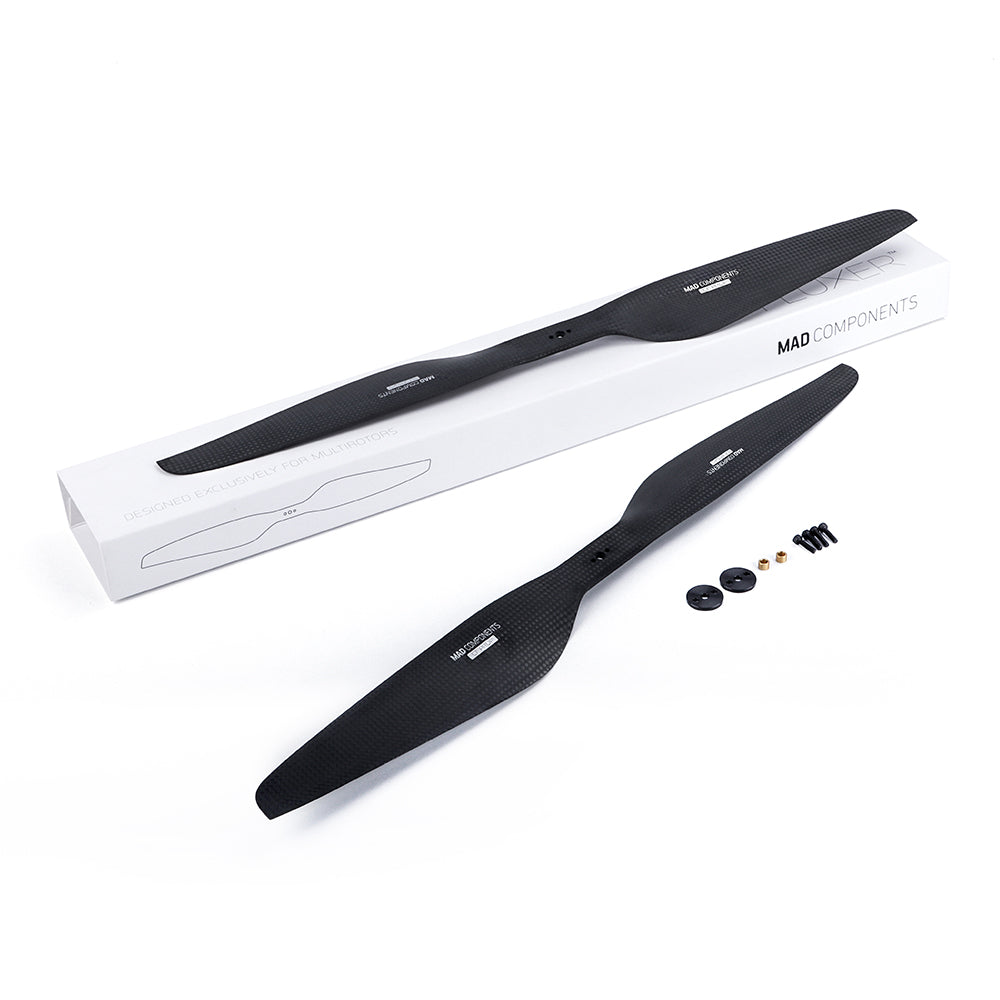

What’s Included

17x5.8 propellers: 2 pcs (1x CW, 1x CCW)
Cover plate: 2 pcs
Adapter ring (Ø6/Ø4): 2 pcs
Hex socket cap head screw M3*10: 4 pcs

Details

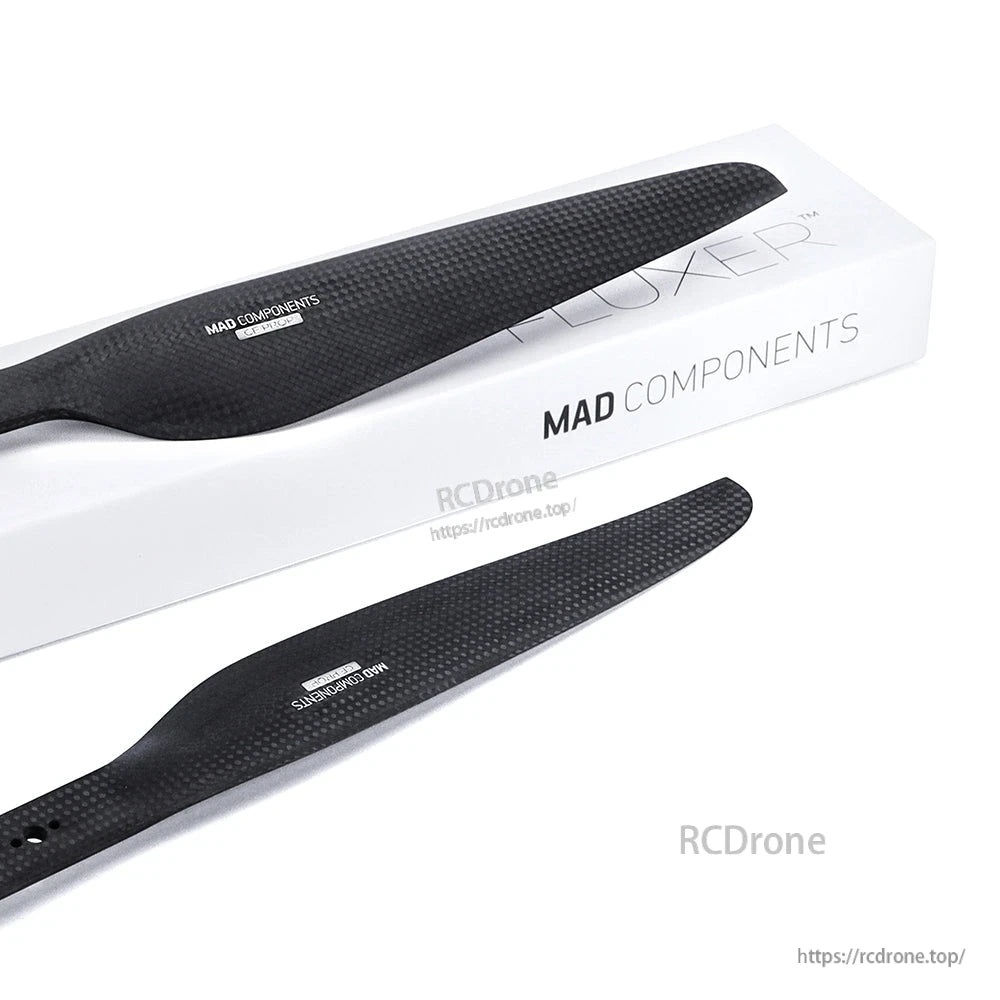

MAD 17x5.8 Inch FLUXER Pro Matt carbon fiber propeller

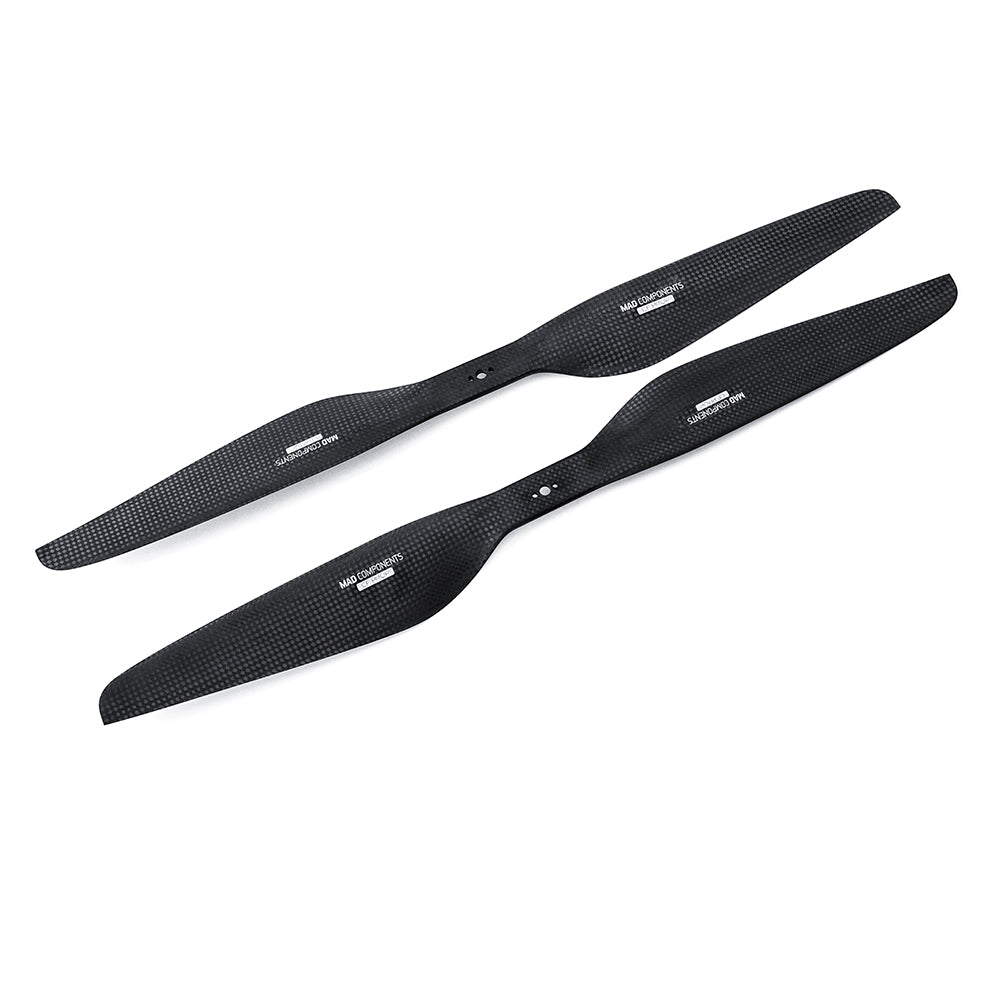

MAD FLUXER Pro Matt 17x5.8 in carbon fiber props come as a CW/CCW pair with a 6mm mounting layout, measuring 432.5 × 147.3 mm and listed at 32.5 g per prop.
