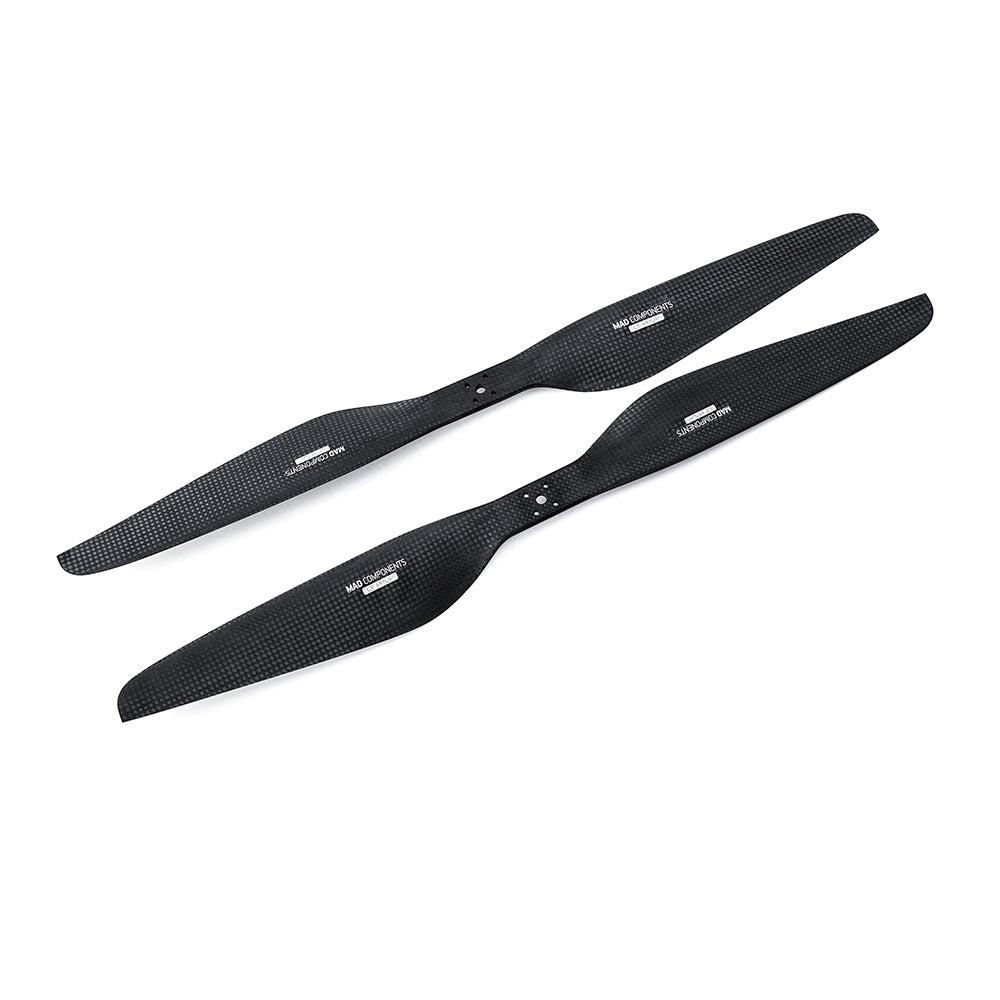

• Two matte carbon fiber drone propeller blades with woven finish and central mounting holes

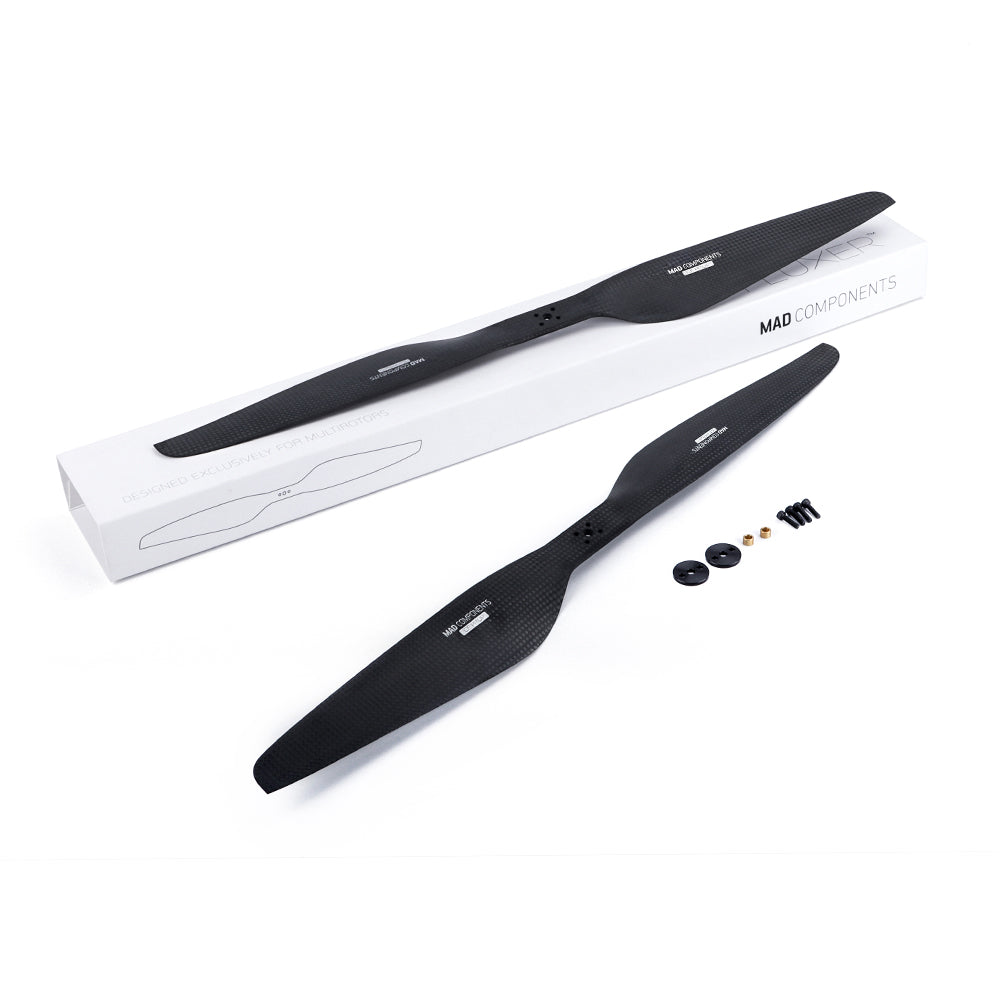

  • MAD FLUXER Pro matte carbon fiber propeller set (CCW) with mounting hardware and MAD Components box

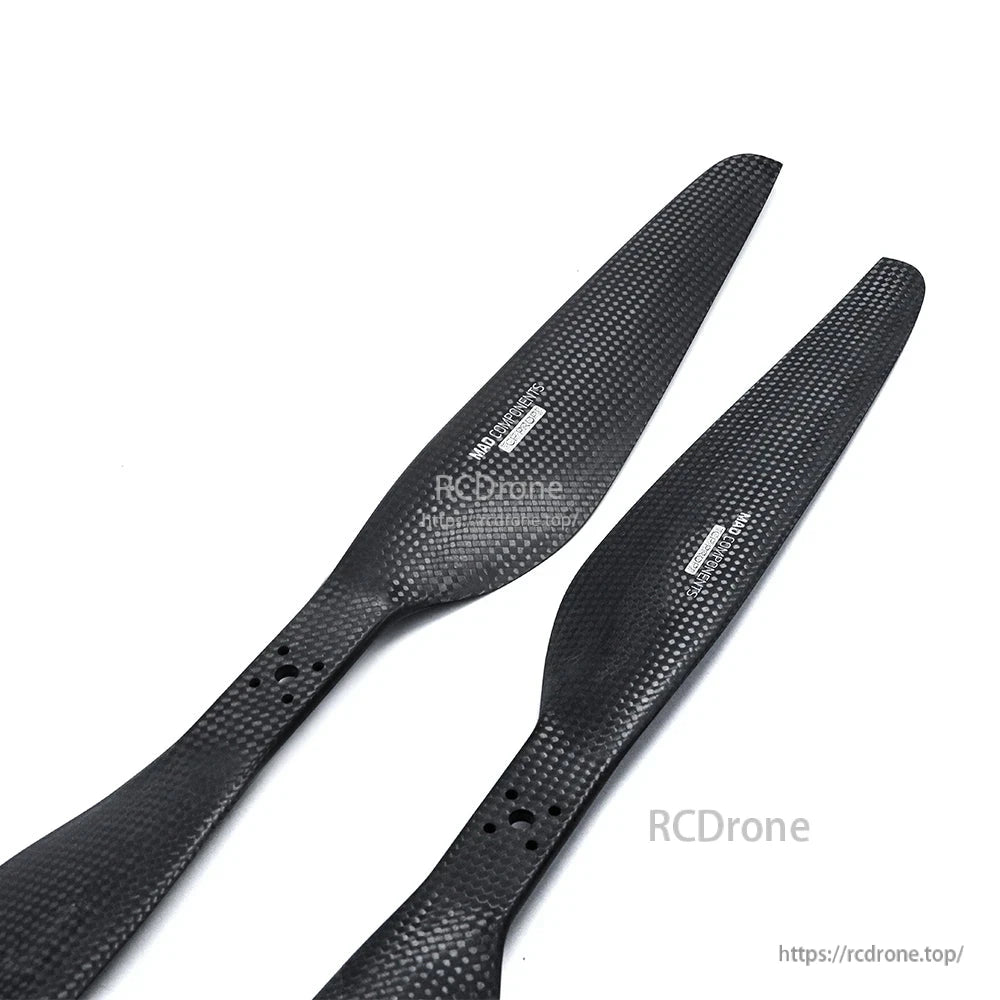

  • MAD FLUXER Pro matte carbon fiber propeller blades with mounting holes, 28x8.4 inch CCW

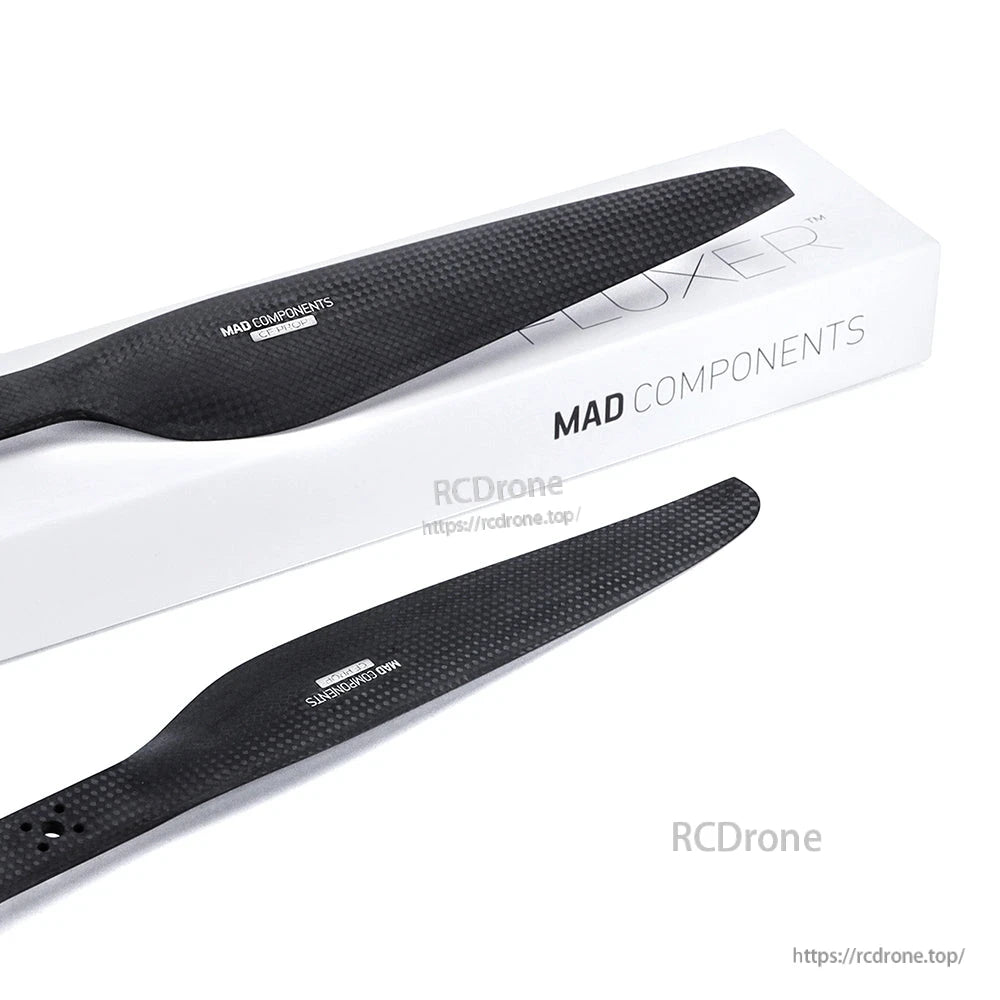

  • MAD Components Fluxer matte carbon fiber propeller blade set with branded box on white background

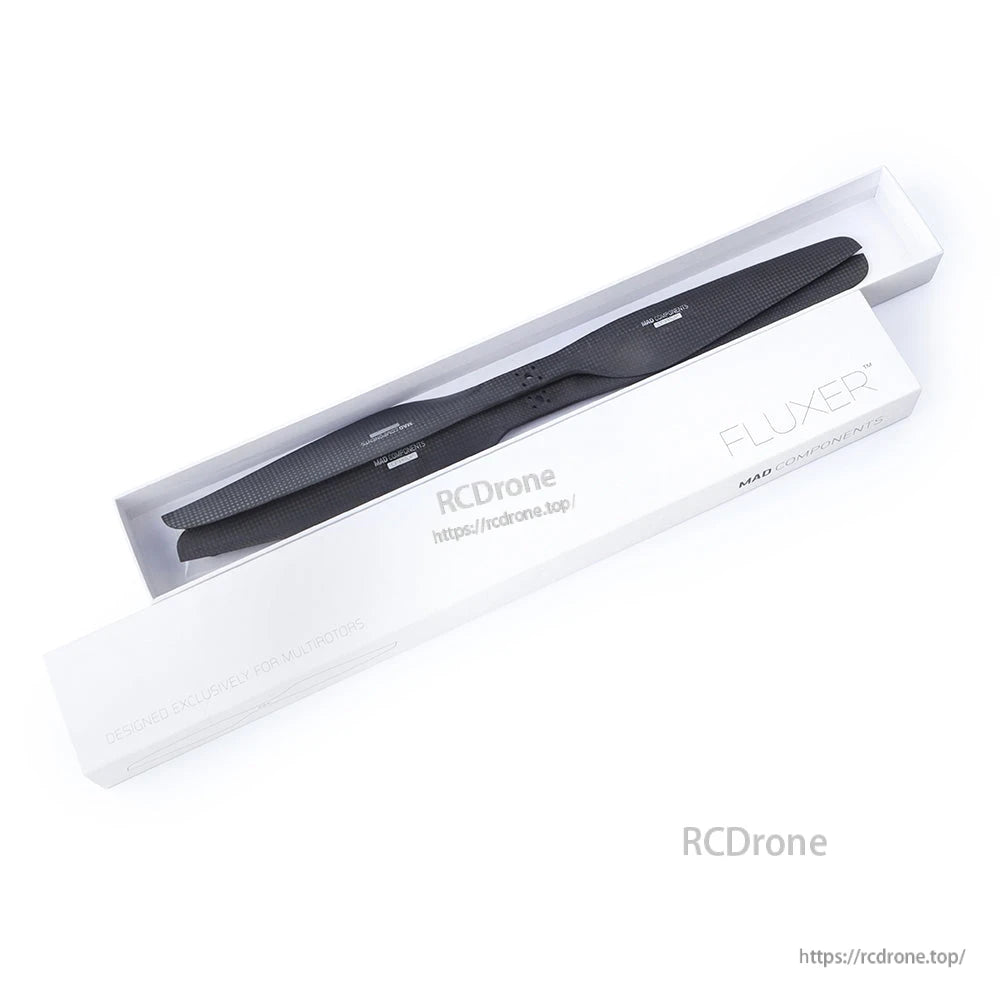

  • MAD FLUXER Pro matte carbon fiber drone propeller in white FLUXER box, single CCW blade

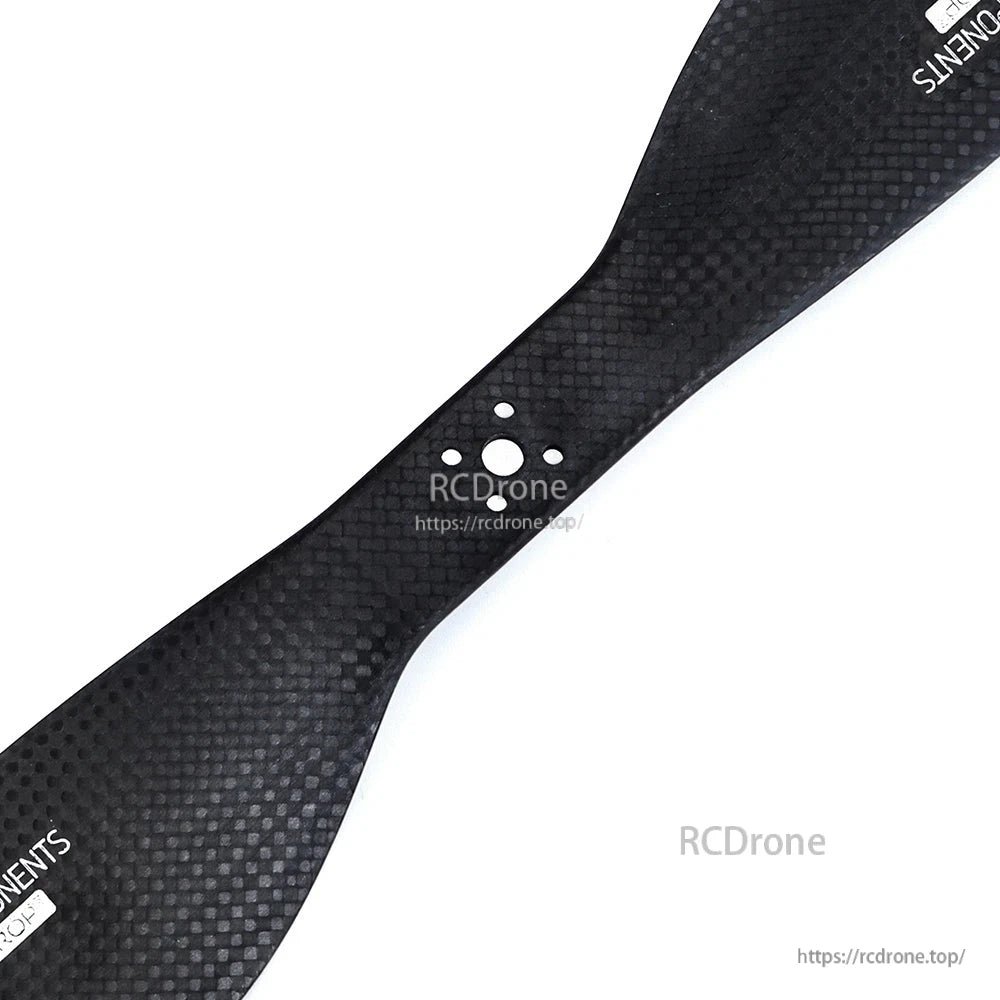

  • Matte carbon fiber drone propeller with visible weave finish and central mounting holes, MAD FLUXER Pro CCW
1 6

MAD FLUXER Pro 28x8.4 Inch Matte Carbon Fiber Propeller (CCW) 77 g, 711.2 x 213.4 mm

MAD FLUXER Pro 28x8.4 Inch Matte Carbon Fiber Propeller (CCW) 77 g, 711.2 x 213.4 mm

MAD

$349.35 USD
$349.35 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Holes position
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

MAD FLUXER Pro Matt 28x8.4 is a matte-finish carbon fiber propeller designed for excellent control performance with light weight and low inertia, suitable for exploration and inspection applications.

MAD 28x8.4 Inch FLUXER Pro Matt carbon fiber propeller

Key Features

  • Matte finish
  • Economical
  • Excellent control performance
  • Light weight, low inertia

Specifications

Model FLUXER Matt Pro 28x8.4 in PROP
Rotation marking 28 x 8.4 CCW
Size 711.2 x 213.4 mm
Single weight 77 g
Material High quality carbon fiber + Resin
Surface treatment Polished/matt
Working temperature -40°C~65°C
Storage temperature -10°C~50°C
Storage humidity <85%
Optimum RPM 1500-3700RPM/min
Single thrust limitation 23 kg
Package Color box
Other accessories 8X M3*14mm mounting screws, 2X Cover Plate

Test Data

RPM Thrust (gf) Torque (N*m) Output Power (W) Efficiency (gf/W)
523 150 0.1 3.1 48.59
1121 740 0.3 31.8 23.32
1649 1620 0.5 93.9 17.29
2143 2730 0.9 195.5 13.98
2550 3910 1.3 336.1 11.63
3040 5600 1.8 566.0 9.89
3461 7180 2.3 824.9 8.7
3791 8740 2.8 1101.7 7.93
4122 10240 3.3 1417.2 7.23
4459 11770 3.8 1768.9 6.65

Recommended Config

Propeller ESC Motor Throttle Thrust (g)
FLUXER Matt Pro 28x8.4 IN PROP AMPX 40A HV / 60A HV MAD M8 EEE / IPE KV100 50-60% 2000~3000g / Motor (12S)
FLUXER Matt Pro 28x8.4 IN PROP AMPX 60A HV / 80A HV MAD 8112 IPE KV100 50-60% 3000~4000g / Motor (12S)

What's Included

  • 28x8.4 propellers: 2 pcs
  • Cover Plate: 2 pcs
  • Hex Socket Cap Head Screw M3*14: 8 pcs

Applications

  • Exploration
  • Inspection

For product selection and after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

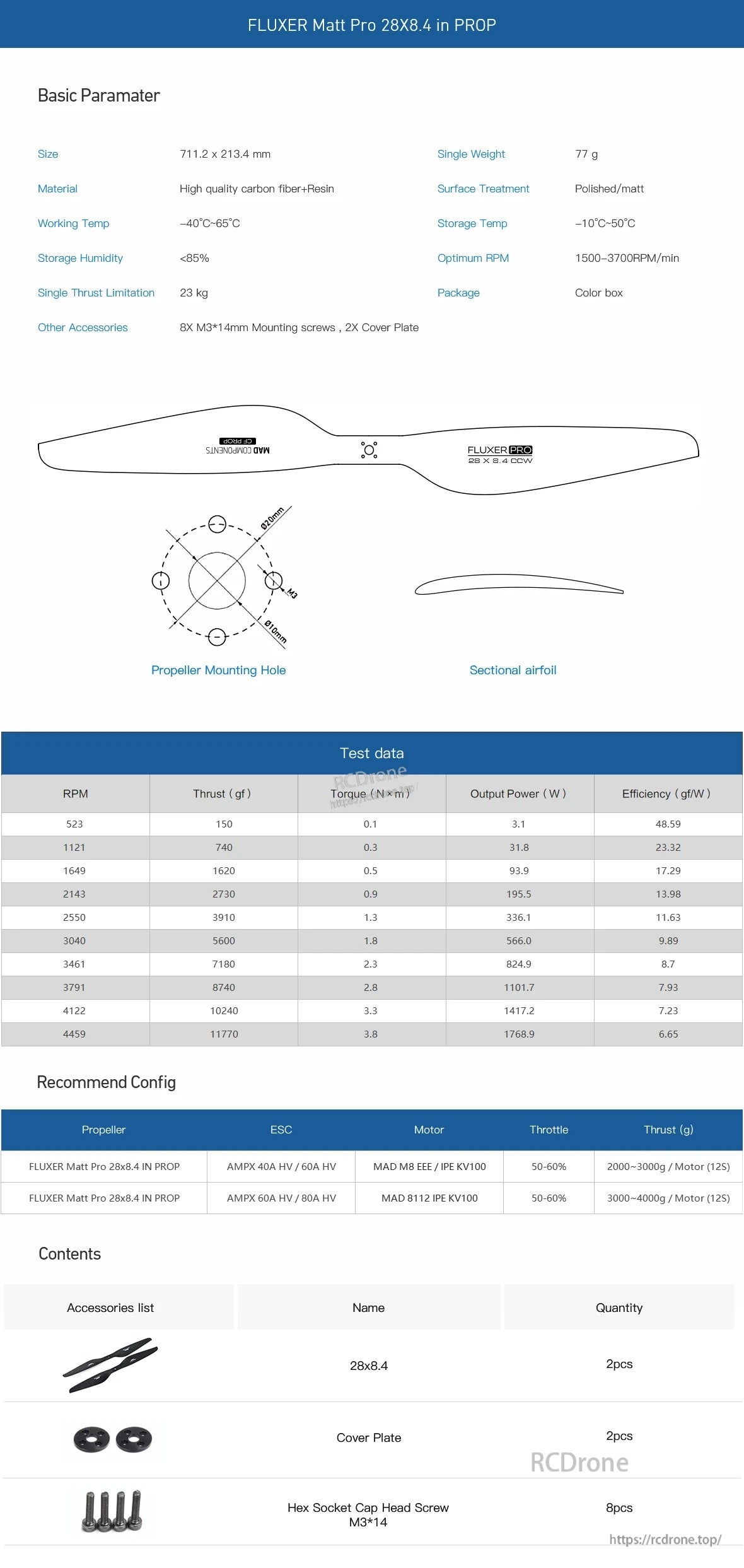

MAD 28x8.4 Inch FLUXER pro Matt carbon fiber propeller

The MAD FLUXER Pro 28x8.4 matte carbon fiber CCW propeller is listed at 711.2 × 213.4 mm and 77 g per blade, with mounting-hole details and included hardware.
