MAD FLUXER Pro Matt 30x10 Inch Carbon Fiber Propeller (30X10) 93g, 28kg Thrust Limit, 1800–3500RPM
MAD FLUXER Pro Matt 30x10 Inch Carbon Fiber Propeller (30X10) 93g, 28kg Thrust Limit, 1800–3500RPM
MAD
Regular price
$389.85 USD
Regular price
Sale price
$389.85 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
MAD FLUXER Pro Matt 30X10 is a carbon fiber propeller with a matte/polished surface treatment, designed for excellent control performance with light weight and low inertia. It is suitable for exploration and inspection applications.
Key Features
- Matte finish
- Economical
- Excellent control performance
- Light weight, low inertia

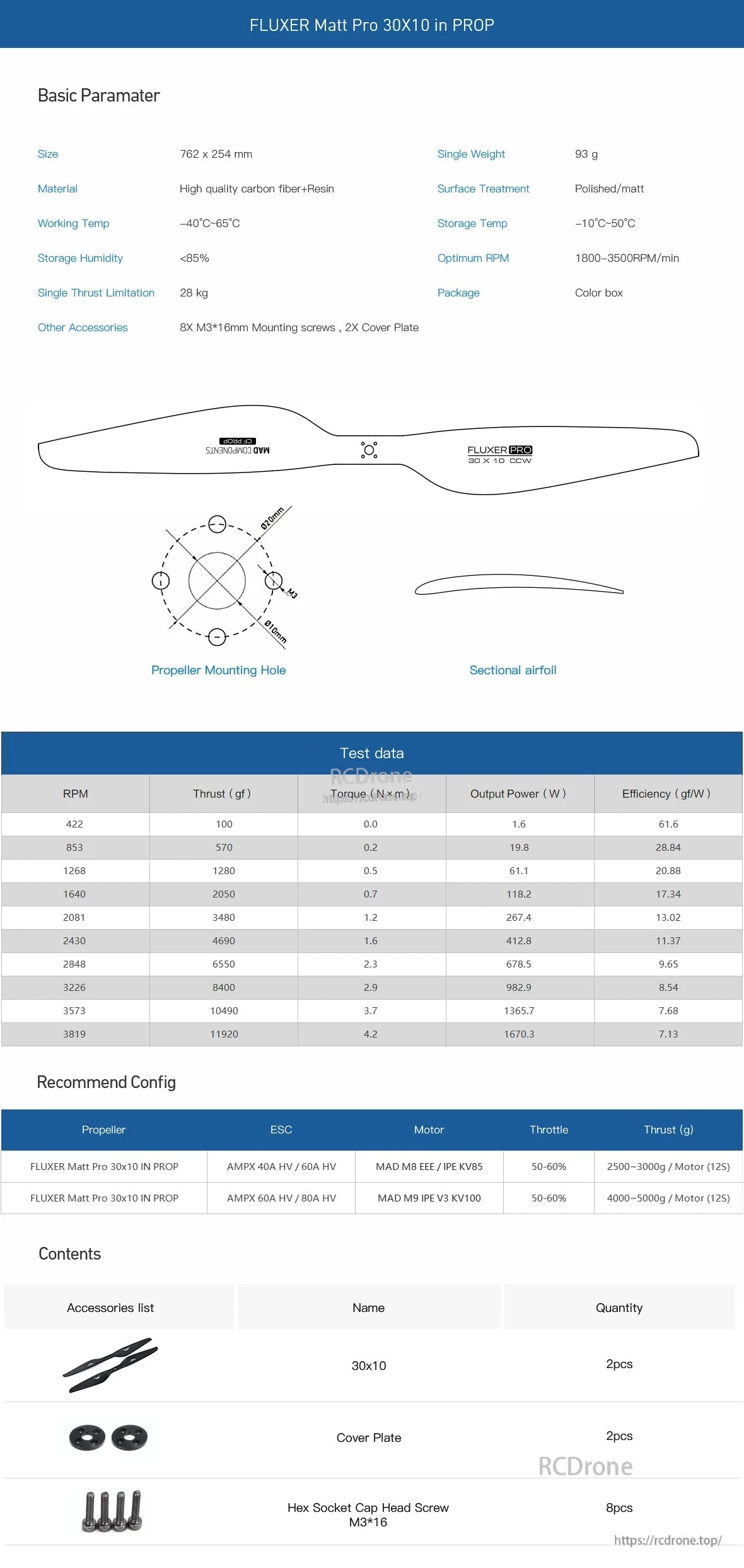

Specifications
| Model | FLUXER Matt Pro 30X10 in PROP |
|---|---|
| Size | 762 x 254 mm |
| Material | High quality carbon fiber+Resin |
| Single Weight | 93 g |
| Surface Treatment | Polished/matt |
| Optimum RPM | 1800–3500 RPM/min |
| Single Thrust Limitation | 28 kg |
| Working Temp | -40°C to 65°C |
| Storage Temp | -10°C to 50°C |
| Storage Humidity | <85% |
| Package | Color box |
| Other Accessories | 8x M3*16mm mounting screws, 2x cover plate |
Test Data
| RPM | Thrust (gf) | Torque (N×m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 422 | 100 | 0.0 | 1.6 | 61.6 |
| 853 | 570 | 0.2 | 19.8 | 28.84 |
| 1268 | 1280 | 0.5 | 61.1 | 20.88 |
| 1640 | 2050 | 0.7 | 118.2 | 17.34 |
| 2081 | 3480 | 1.2 | 267.4 | 13.02 |
| 2430 | 4690 | 1.6 | 412.8 | 11.37 |
| 2848 | 6550 | 2.3 | 678.5 | 9.65 |
| 3226 | 8400 | 2.9 | 982.9 | 8.54 |
| 3573 | 10490 | 3.7 | 1365.7 | 7.68 |
| 3819 | 11920 | 4.2 | 1670.3 | 7.13 |
Recommended Config
| Propeller | ESC | Motor | Throttle | Thrust (g) |
|---|---|---|---|---|
| FLUXER Matt Pro 30x10 IN PROP | AMPX 40A HV / 60A HV | MAD M8 EEE / IPE KV85 | 50–60% | 2500–3000g / Motor (12S) |
| FLUXER Matt Pro 30x10 IN PROP | AMPX 60A HV / 80A HV | MAD M9 IPE V3 KV100 | 50–60% | 4000–5000g / Motor (12S) |

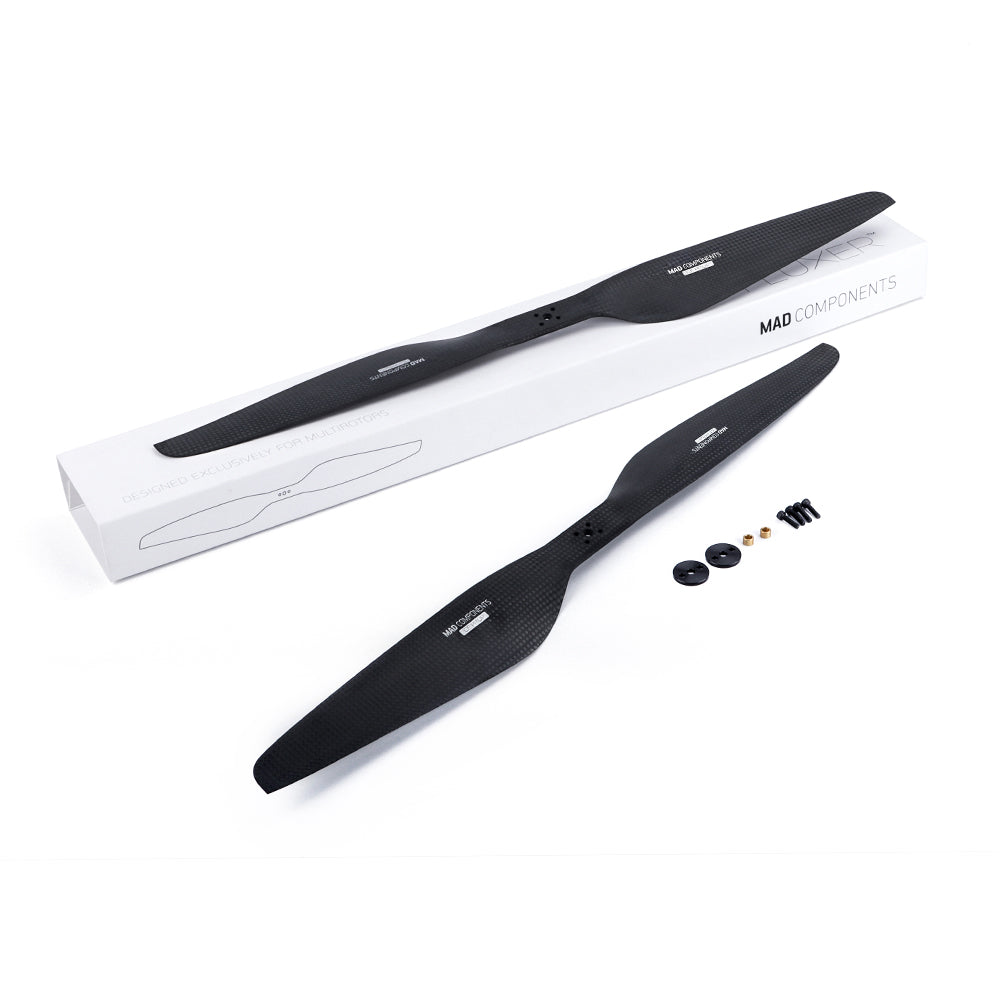

What’s Included
- 30x10 propeller: 2 pcs
- Cover plate: 2 pcs
- Hex socket cap head screw M3*16: 8 pcs
Applications
- Exploration platforms
- Inspection platforms
For compatibility questions (motor/ESC matching, mounting hardware, and setup guidance), contact support@rcdrone.top or visit https://rcdrone.top/.
Description

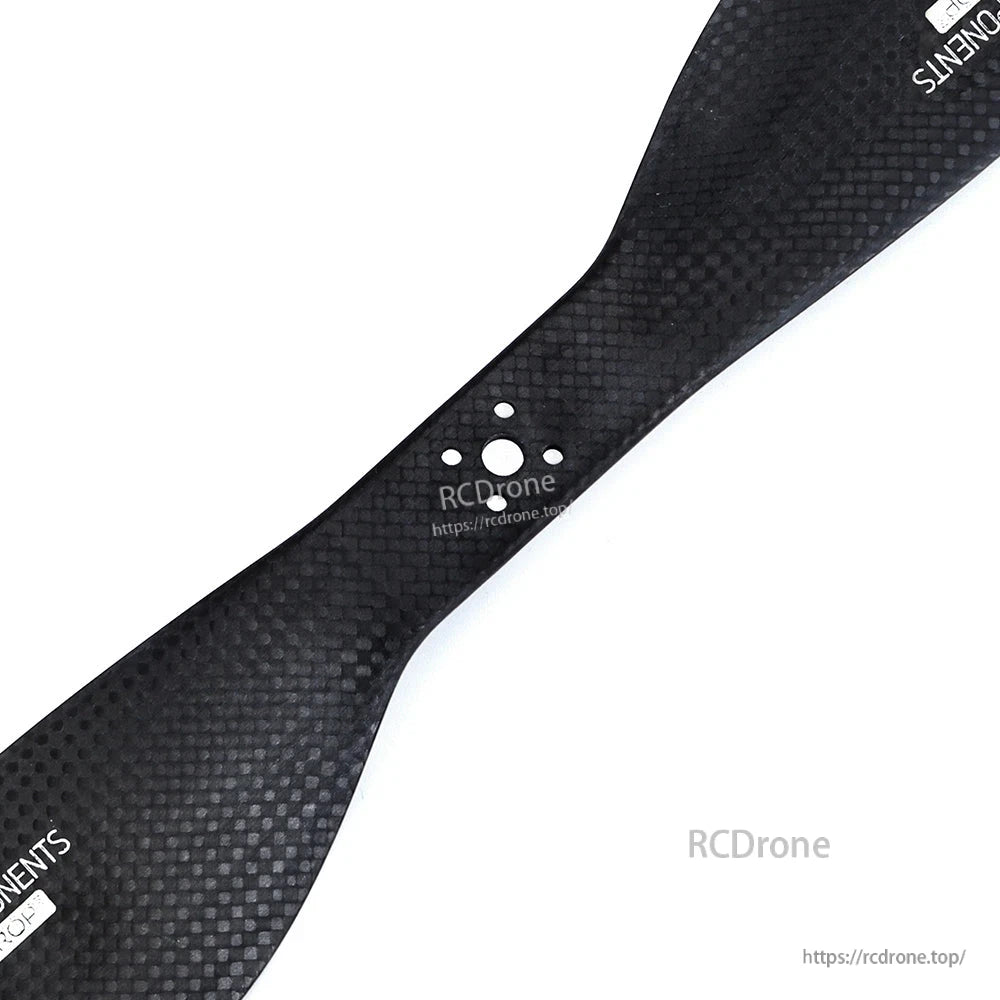

MAD FLUXER Pro Matt 30x10 carbon fiber propellers come with a mounting hole layout, RPM/thrust test data, and a parts list for installation.
Details
MAD FLUXER Pro Matt 30x10 carbon fiber propellers come with cover plates and hex socket cap head screws for installation.
