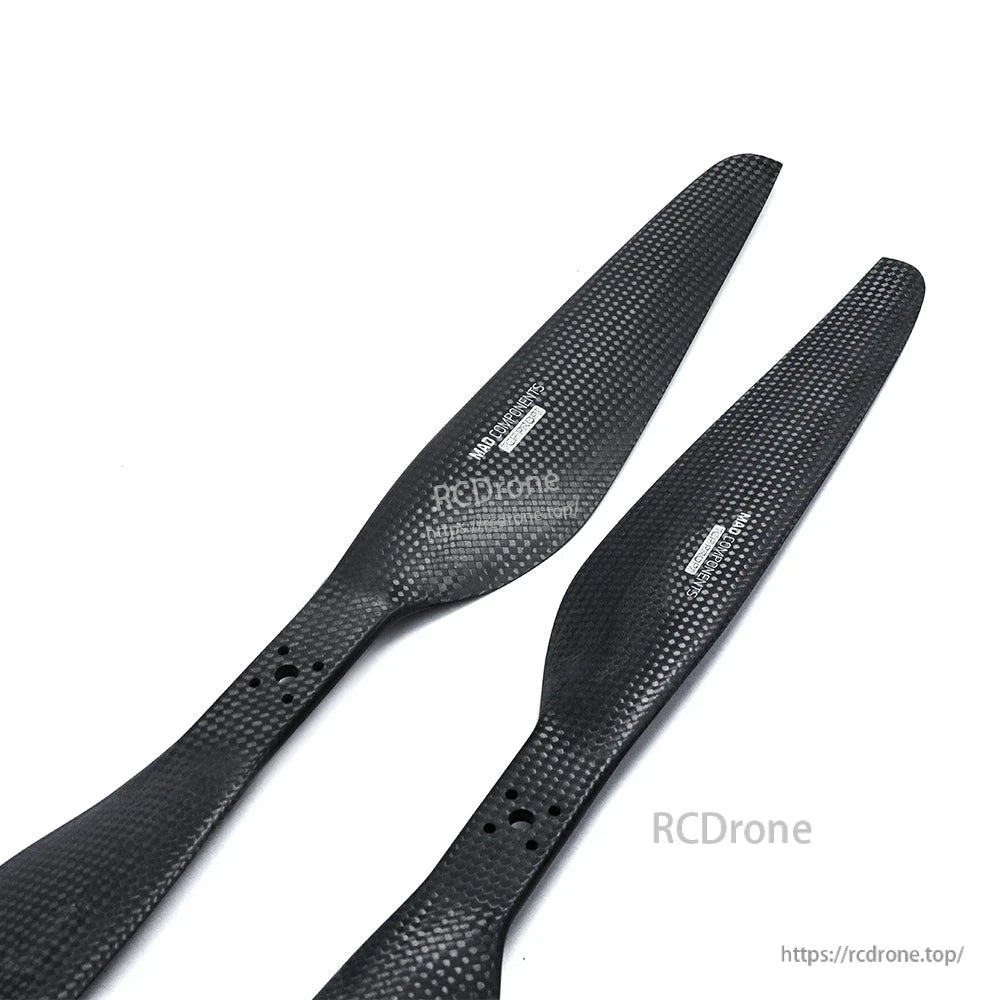

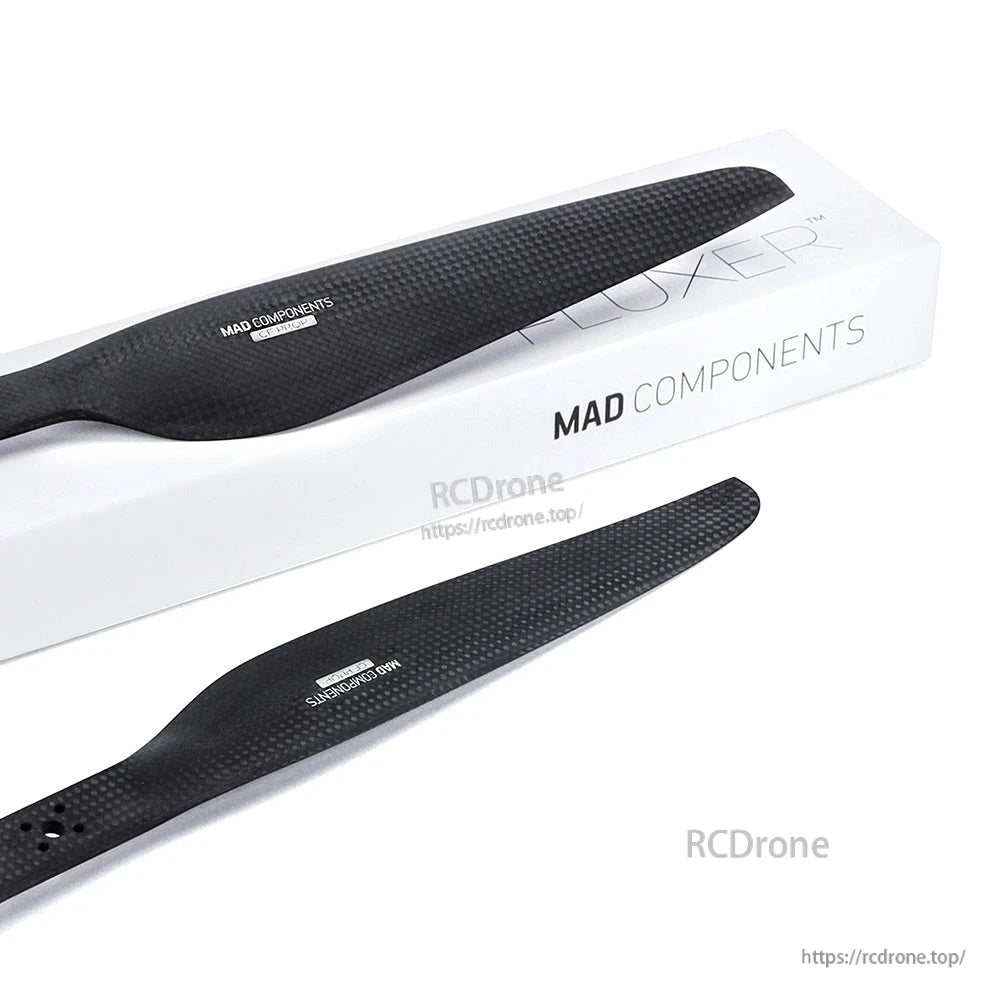

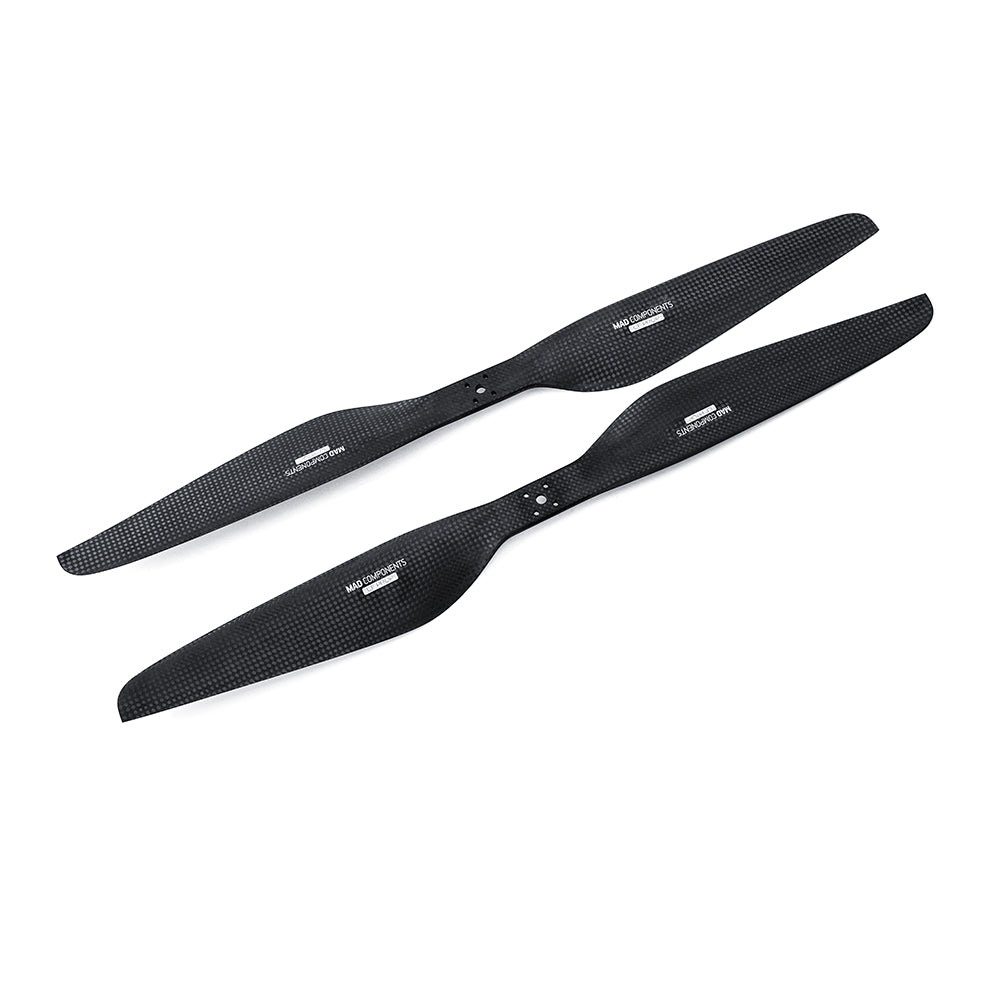

MAD FLUXER Pro 26x7.8 Inch Carbon Fiber Propeller (Matte/Polished), CCW, 69 g, 2pcs Set

MAD

$290.85 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Holes position D10-D20(M3*4) customize

Quantity

View full details

Overview

MAD FLUXER Pro 26x7.8 inch carbon fiber propeller with a matte finish (polished/matt surface treatment). Designed for excellent control performance with light weight and low inertia, suitable for exploration and inspection applications.

Key Features

Matte finish
Economical
Excellent control performance
Light weight, low inertia
Marked CCW (counter-clockwise) on the blade

Specifications

Model	FLUXER Pro Matt 26x7.8 in PROP
Size	660.4 x 198.1 mm
Pitch	7.8 in
Material	High quality carbon fiber + Resin
Surface Treatment	Polished/matt
Single Weight	69 g
Working Temp	-40 C~65 C
Storage Temp	-10 C~50 C
Storage Humidity	<85%
Optimum RPM	1900~4000RPM/min
Single Thrust Limitation	18 kg

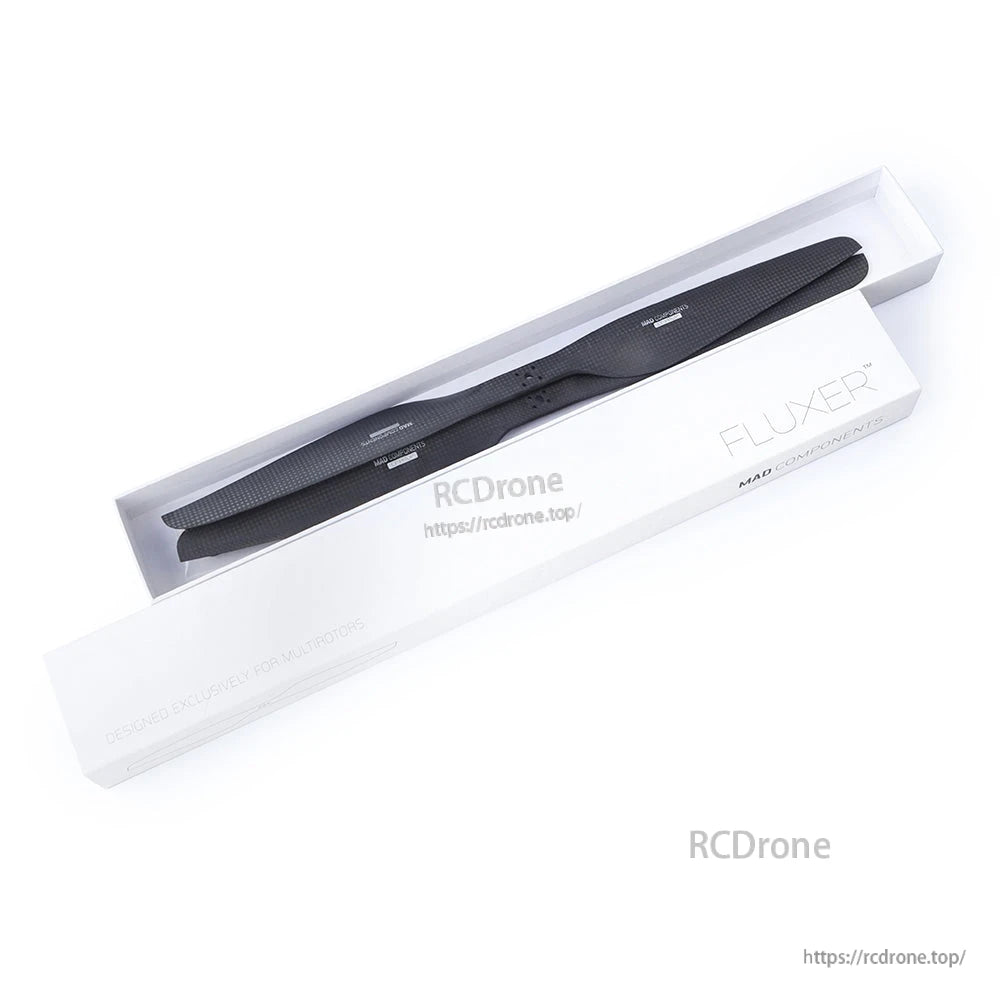

Package	Color box

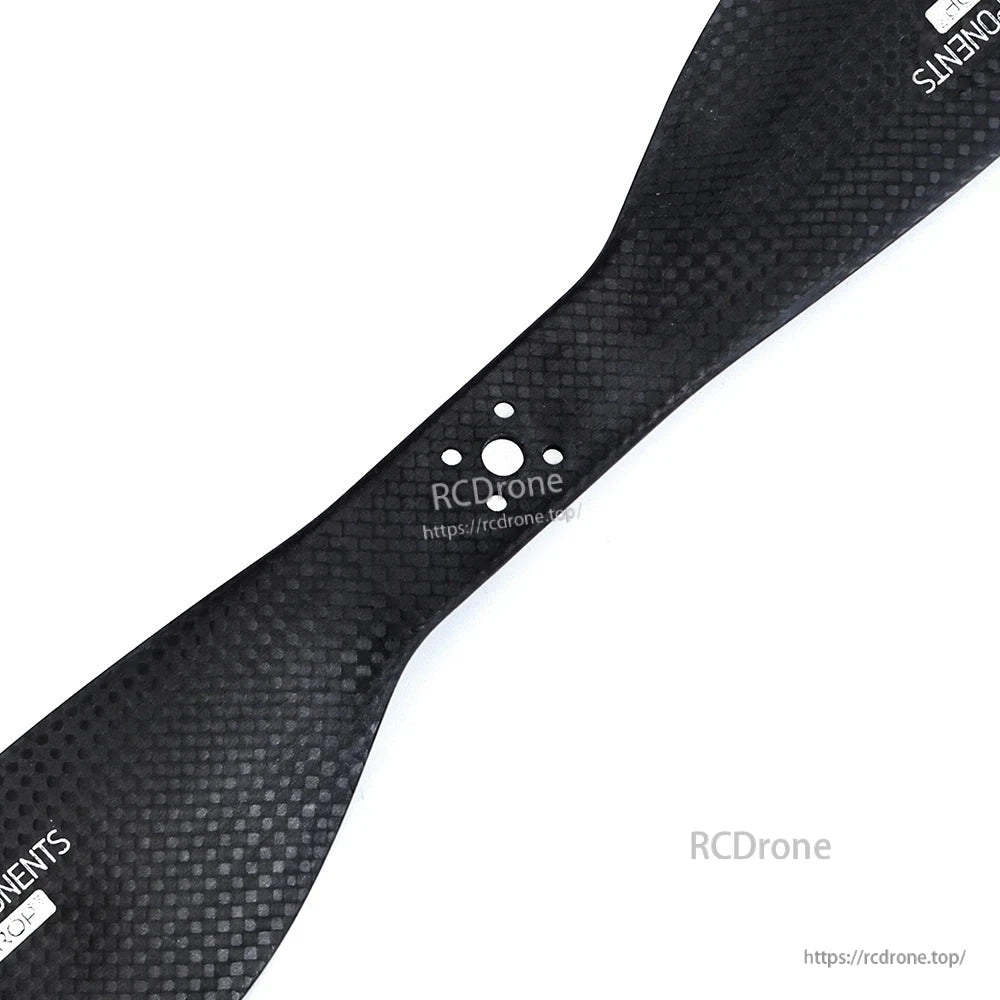

Propeller Mounting Hole

Circle diameter	120 mm
Circle diameter	101 mm
Hole diameter	6.5 mm

Test Data

RPM	Thrust (gf)	Torque (N b7m)	Output Power (W)	Efficiency (gf/W)
470	70	0.0	2.1	35.72
991	360	0.2	15.2	23.77
1451	870	0.3	43.2	20.19
1924	1480	0.5	98.5	15.05
2376	2210	0.7	182.4	12.13
2805	3180	1.0	296.3	10.72
3226	4110	1.3	444.0	9.27
3619	5120	1.7	625.0	8.19
3971	6160	2.0	834.1	7.38
4232	6940	2.3	1007.7	6.88

Recommended Config

Propeller	ESC	Motor	Throttle	Thrust (g)
FLUXER Matt Pro 26x7.8 IN PROP	AMPX 40A HV / 60A HV	MAD 8108 EEE / IPE KV100	50-60%	1500~2500g / Motor (12S)
FLUXER Matt Pro 26x7.8 IN PROP	AMPX 40A HV / 60A HV	MAD M8 EEE / IPE KV100	50-60%	1500~2500g / Motor (12S)

What 27s Included

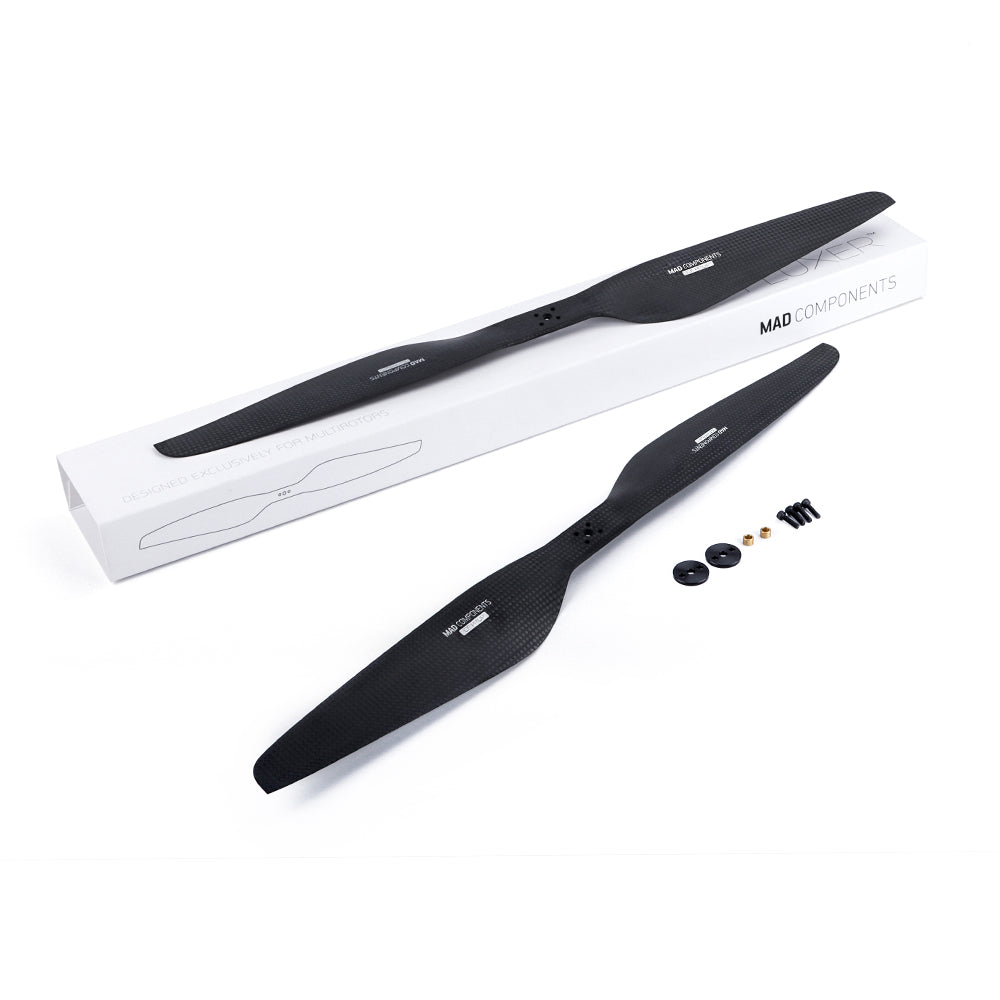

26x7.8 propeller: 2 pcs
Cover plate: 2 pcs
Hex socket cap head screw M3*14: 8 pcs

Applications

Exploration
Inspection

For pre-sales compatibility questions or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

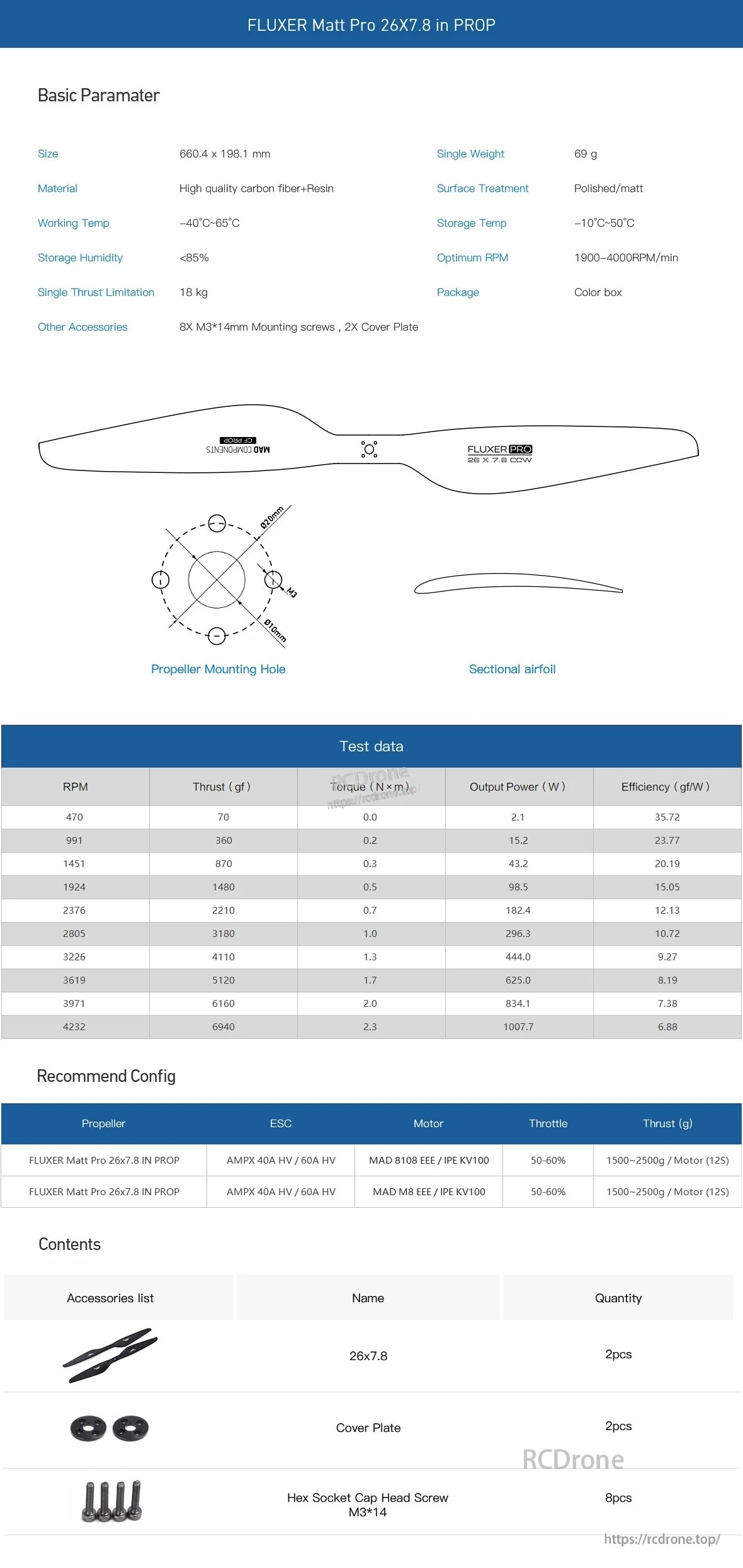

MAD 26x7.8 Inch FLUXER pro Matt carbon fiber propeller

The MAD FLUXER Pro 26x7.8 inch carbon fiber propeller features a matte finish, a detailed mounting-hole layout, and includes cover plates and mounting screws.
